l Large LCD display for easy reading
l 4 wire testing, capable of testing extreme low resistance
l Accurate measurement of conductor, electric heating
l elements and solder point
l High measurement range of 0.01mΩ to 2kΩ at 6 ranges
l HOLD key for data hold
l Backlit LCD for easy reading under dark light
l Connection for external power supply
l Strong anti-magnetic and anti-jamming functions
l Full function protection

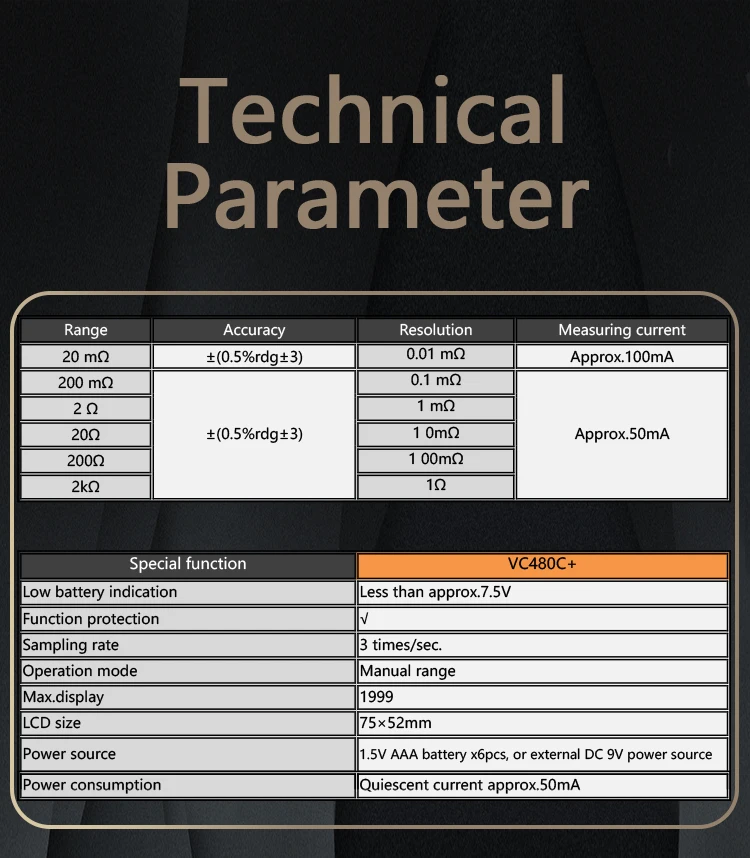

Technical Data:
|
Accuracy |
Resolution |
Measuring current |
|
|
±(0.5%rdg+3) |
0.01 mΩ |
Approx.100mA |
|
|
±(0.5%rdg+3) |
0.1 mΩ |
Approx.50mA |
|
|
1 mΩ |
|||
|
1 0mΩ |
|||
|
1 00mΩ |
|||
|
1Ω |
Special Function:
|
VC480C+ |
|
|
Low battery indication |
Less than approx.7.5V |
|
Function protection |
√ |
|
Sampling rate |
3 times/sec. |
|
Operation mode |
Manual range |
|
Max.display |
1999 |
|
LCD size |
75×52mm |
|
Power source |
1.5V AAA battery x6pcs, or external DC 9V power source |
|
Power consumption |
Quiescent current approx.50mA |
General:
|
Color |
|
|
Weight |
580g (including battery) |
|
Meter size |
175 (L) x116 (W) x63 (D) mm |
|
Standard accessory |
4-wire test lead, shoulder strap, battery, operation manual |
|
Individual packing |
Gift box |
|
|
