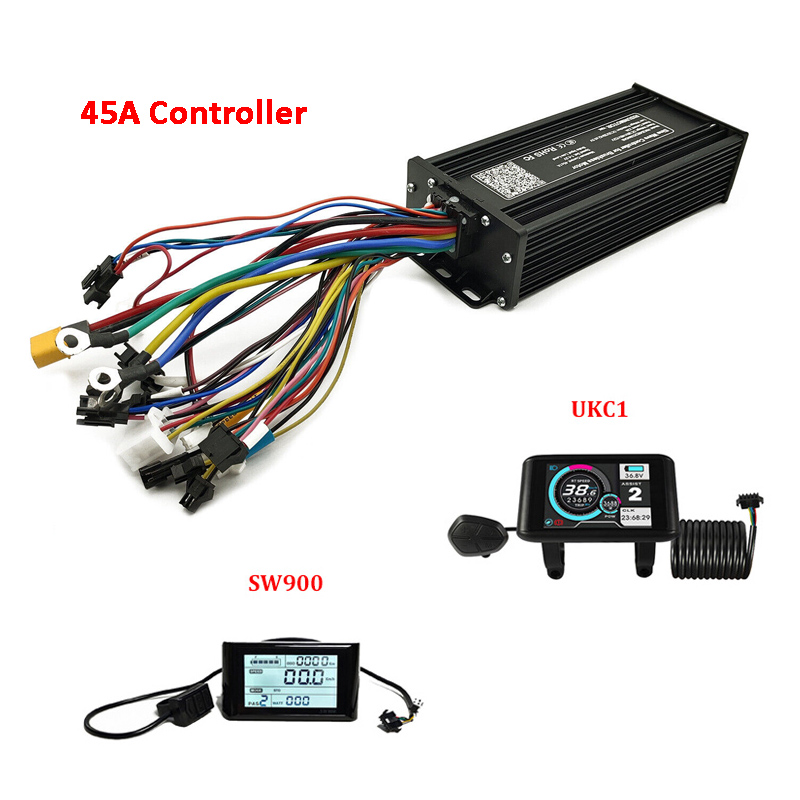

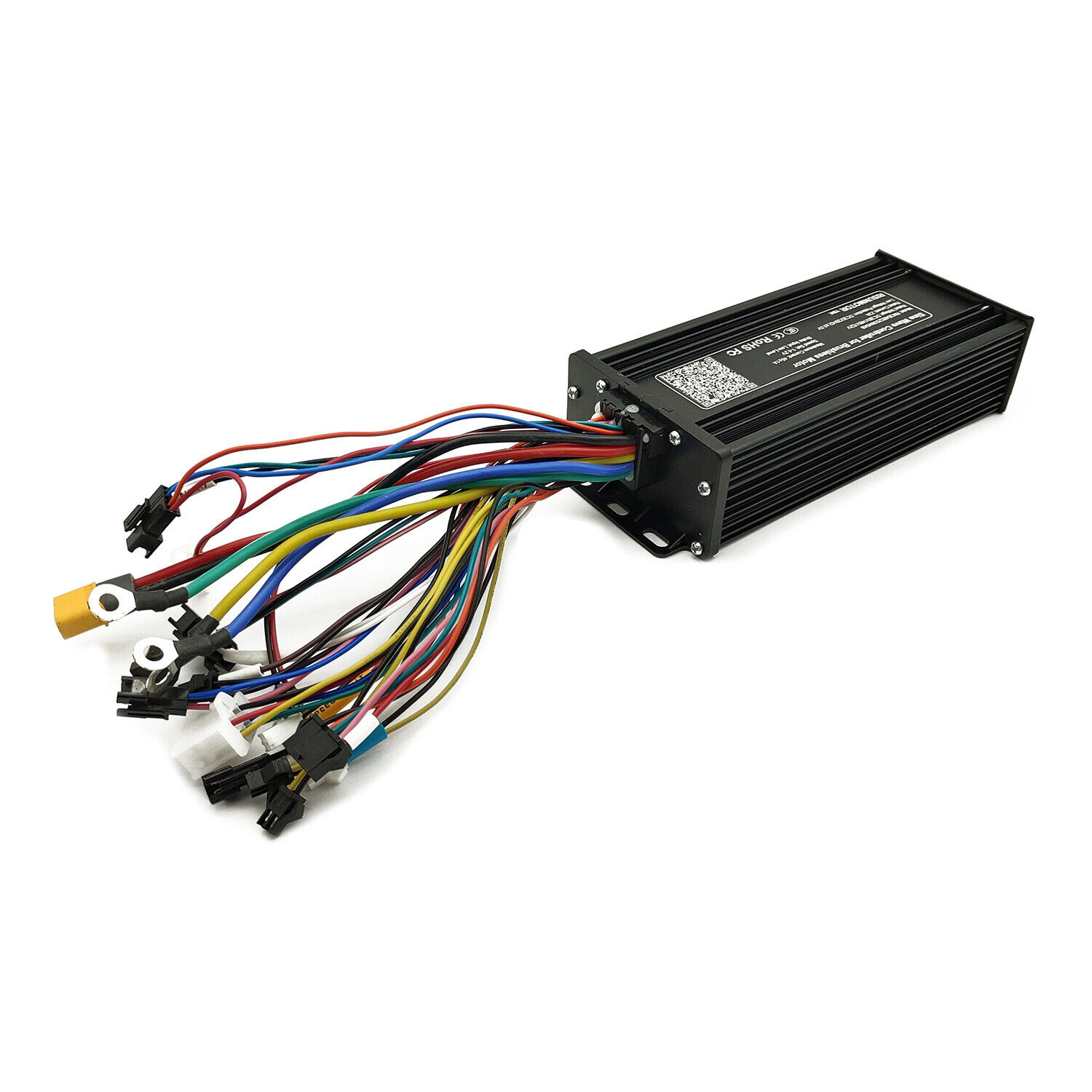

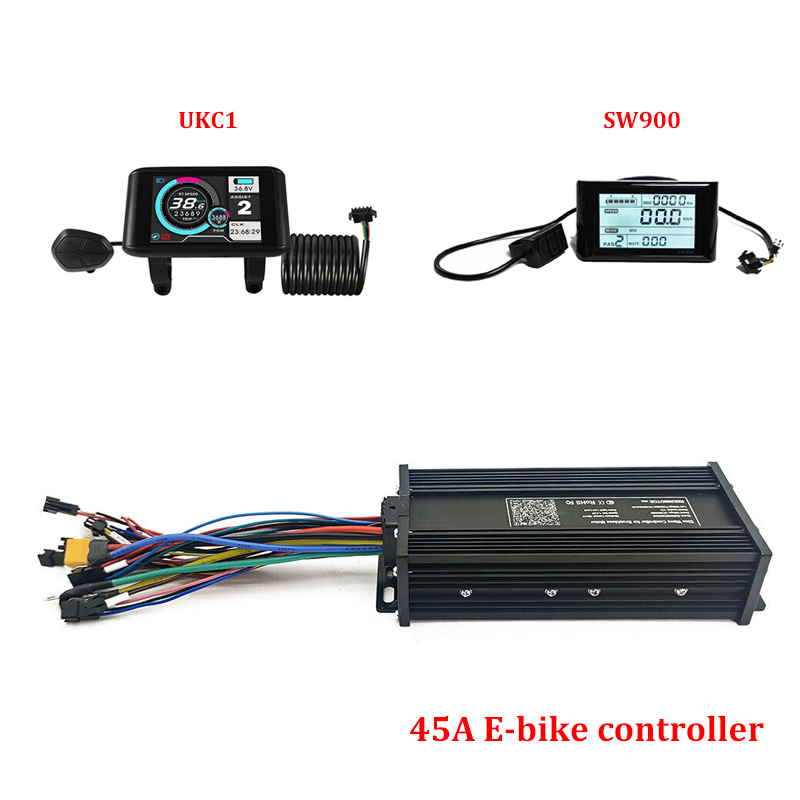

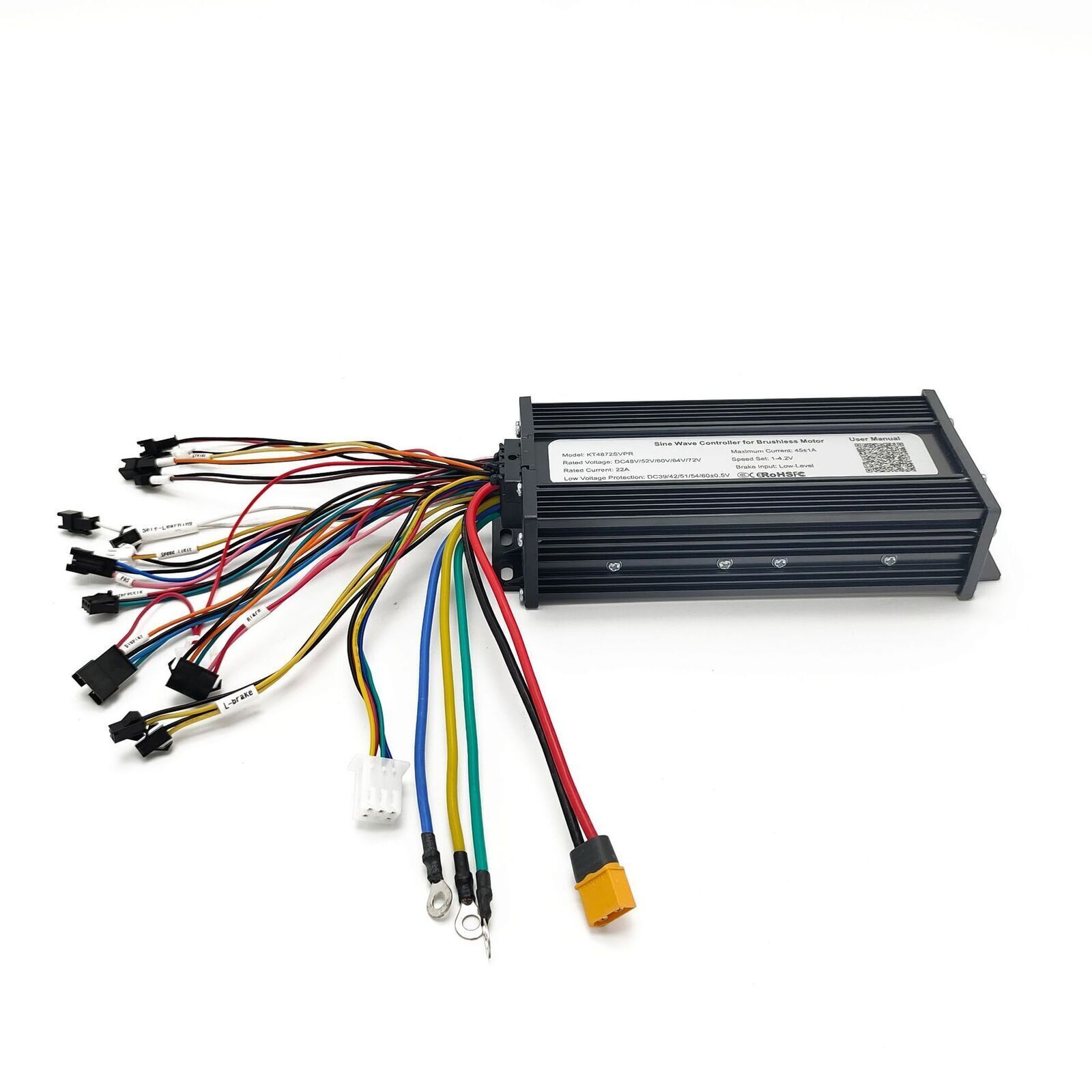

48V/52V/60V/72V 45A E-bike controller

Specification：

1. Rated Power: 48V 1000W/ 52V 1200W/ 60V 1300W/ 72V 1500W
2. Peak Power: 48V 2000W/ 52V 2300W/ 60V 2600W/ 72V 2800W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212x86.5x48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65

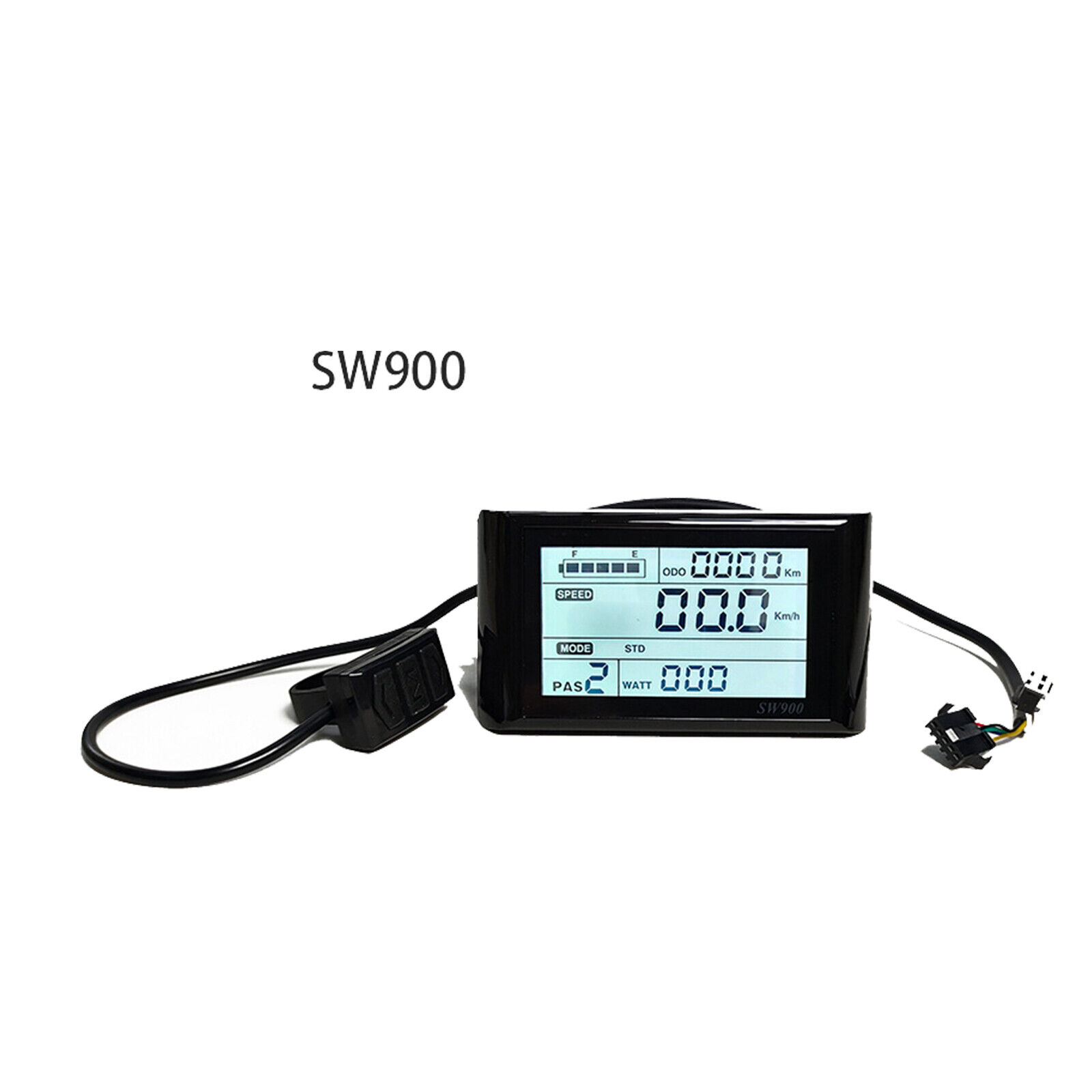

SW900 Display

Feature：

100% New and high quality.

It can be automatically identified and supports 36V 48V voltage.

It will show the true reflection of the battery charge, real-time recording the power consumption to ensure the driving mileage.

Individual joints are clearly configured to help with a cost effective installation.

When connected to a bike, this product will display many useful data on your bike, such as riding speed, time, power, and temperature.

Specification：

Type: S900 LCD Screen

Voltage: 24V, 36V, 48V, 60V, 72v

Material: ABS

Colour: black

Communication protocol: UART

Applicable handlebar diameter: 22.2mm

Cable Length: 180cm

Size: 110x62mm

Connector: SM plug with light plug

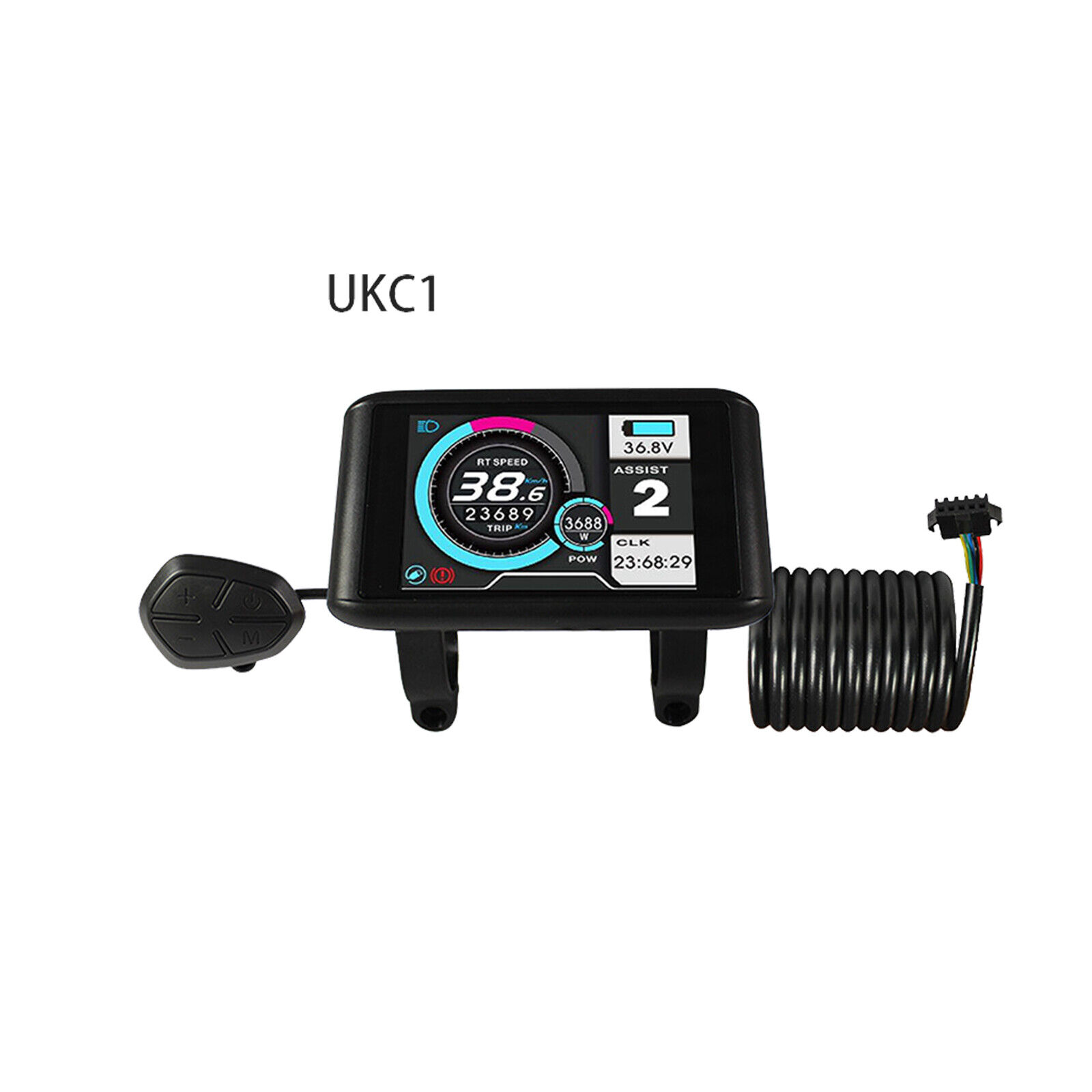

UKC1 Display

Feature：

1. High-Contrast 3.5 Inch IPS Colorful Matrix Screen.

2. Suitable for Low Temperature, MAX -20 ° C.

3. The Rotatable Screen Can Be Free Switch Horizontally and Vertical.

4. Speed Display: AVG Speed, Max Speed, Speed (Real-Time).

5. Kilometer / Mile: Can Be Set According to Customers' Habits.

6. Intelligent power indicator contains below: It can Provide a stable power indication through the optimization algorithm The power is not affected by the start-stop fluctuation of the motor If the system supports battery communication, the accurate percentage of power will be displayed..

7. Adjusting 5 Levels Backlight Brightness: 1st Level Is The Darkest, 5th Is The Lightest

8. 9-Level Assist: 3-Level / 5-Level / 6-Level / 9-level is Optional.

9. Mileage INDICATOR: ODMETER / TRIP DISTANCE / Clock / Riding Time.

10. Power Indicator: Real Time Power Indicator, Digital or Analog.

11. Error Code INDICATOR.

12. SPEED LIMITED CAN Be setted

Bicycle self-checking function

Battery Information Display (Battery Communication Is Required)

Endurance Mileage Showing (Battery Communication is Required)

USB Charging Port, 500mA / 5V

Software Upgraded: Software Can Be Upgraded THROUGH UART

TECHNOLOGY DATA

Specification：

Screen Size 3.5 inch IPS Screen

VOLTAGE 36V / 48V / 52V / 60V / 72V Battery Supply

Rated Operating Power 1W

Max Operating Power 5W

USB Charging Port 5V 500mA

Off Leakage Current 1UA

Support Current to Controller 100mA

Operating temperature -20 ~ 70 ° C, Storage Temperature: -30 ~ 80 ° C

NOTE:

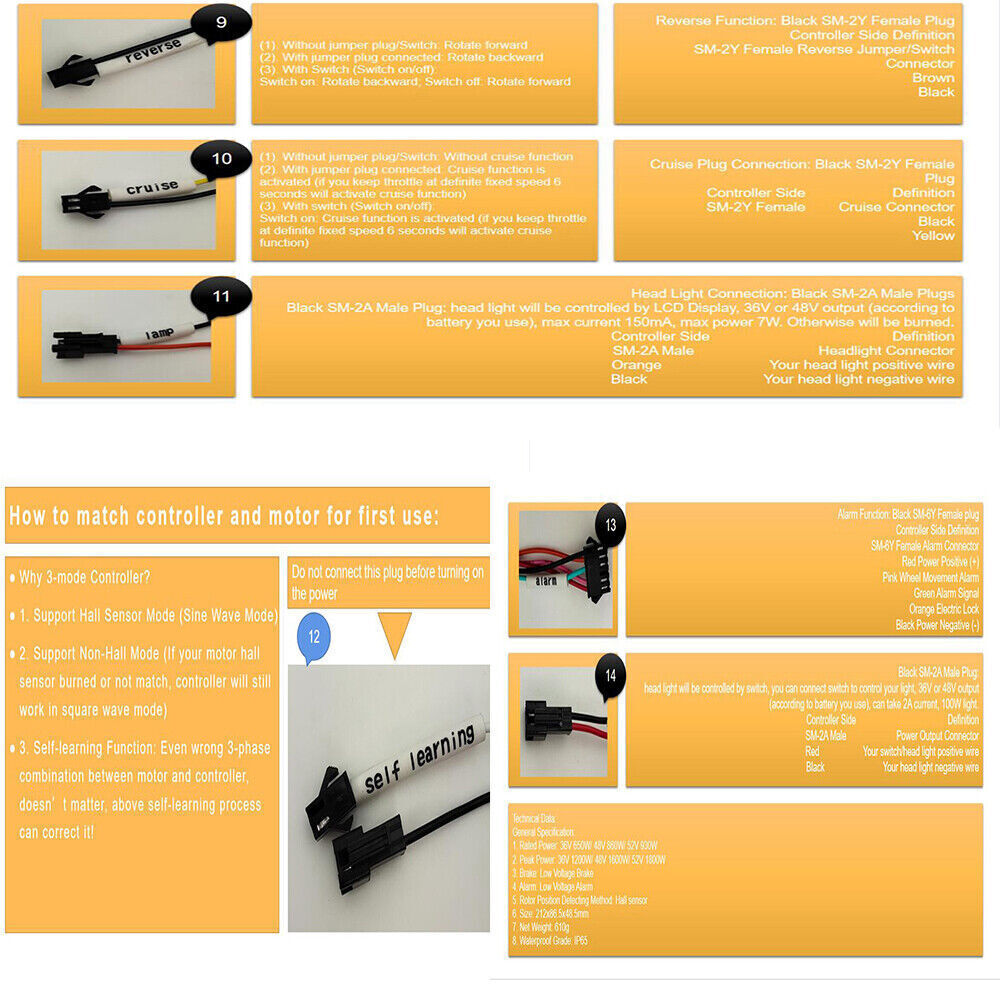

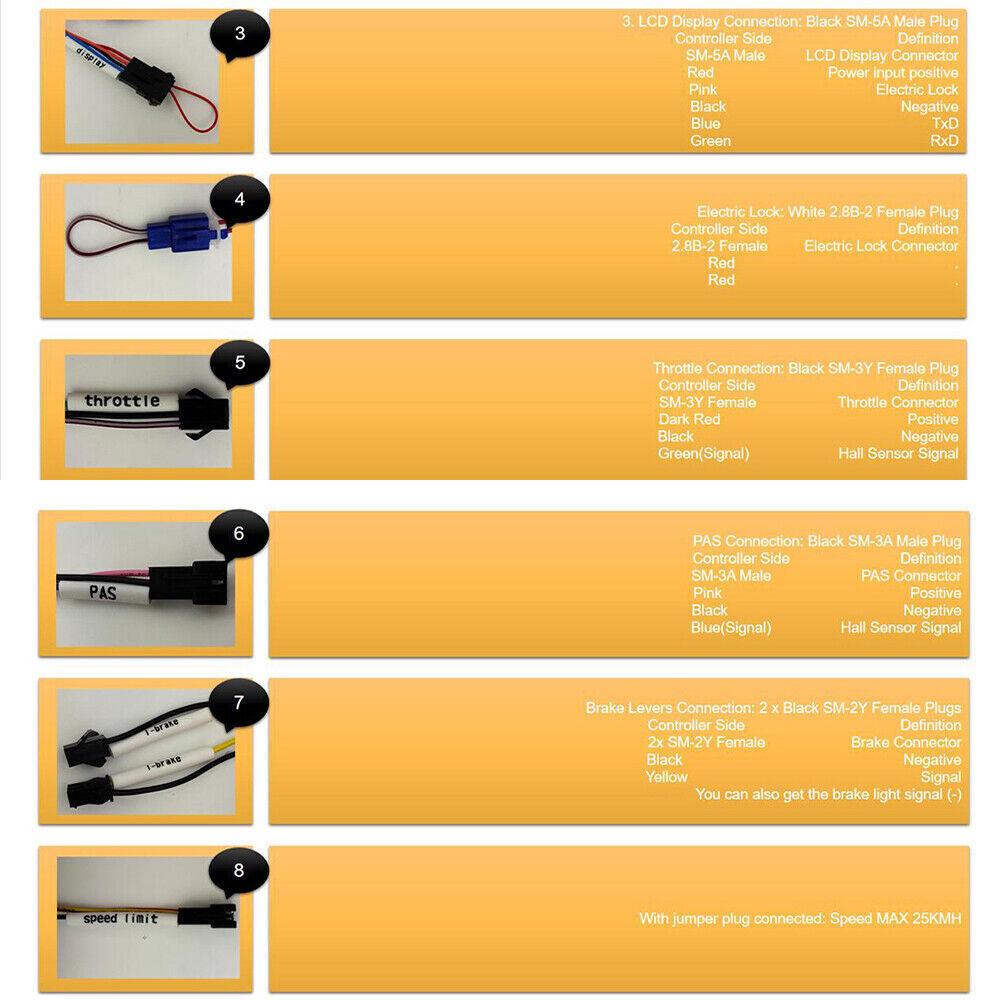

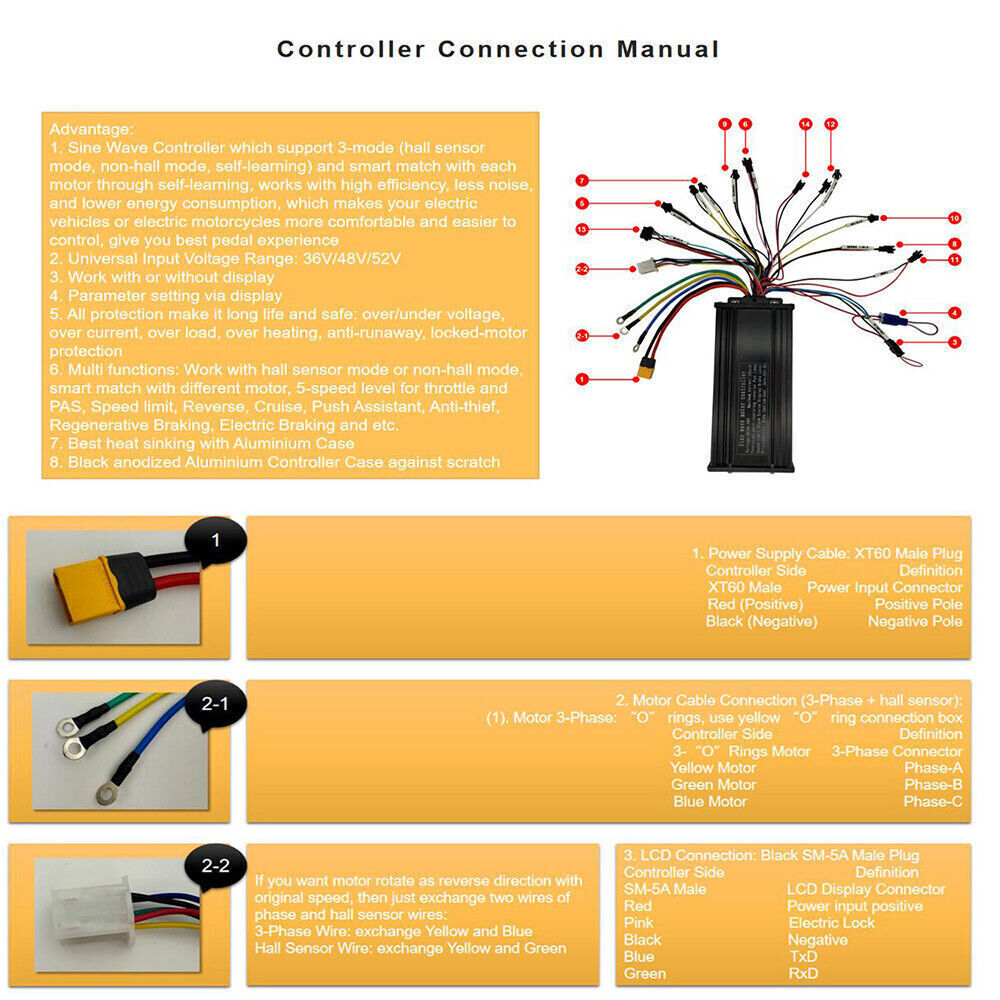

The QR code on the product is the wiring diagram of our product. Customers can scan and download the file through the mobile phone.

Package includes:

1*48/52V/60V/72V 45A E-bike controller

1 * E-bike Display
