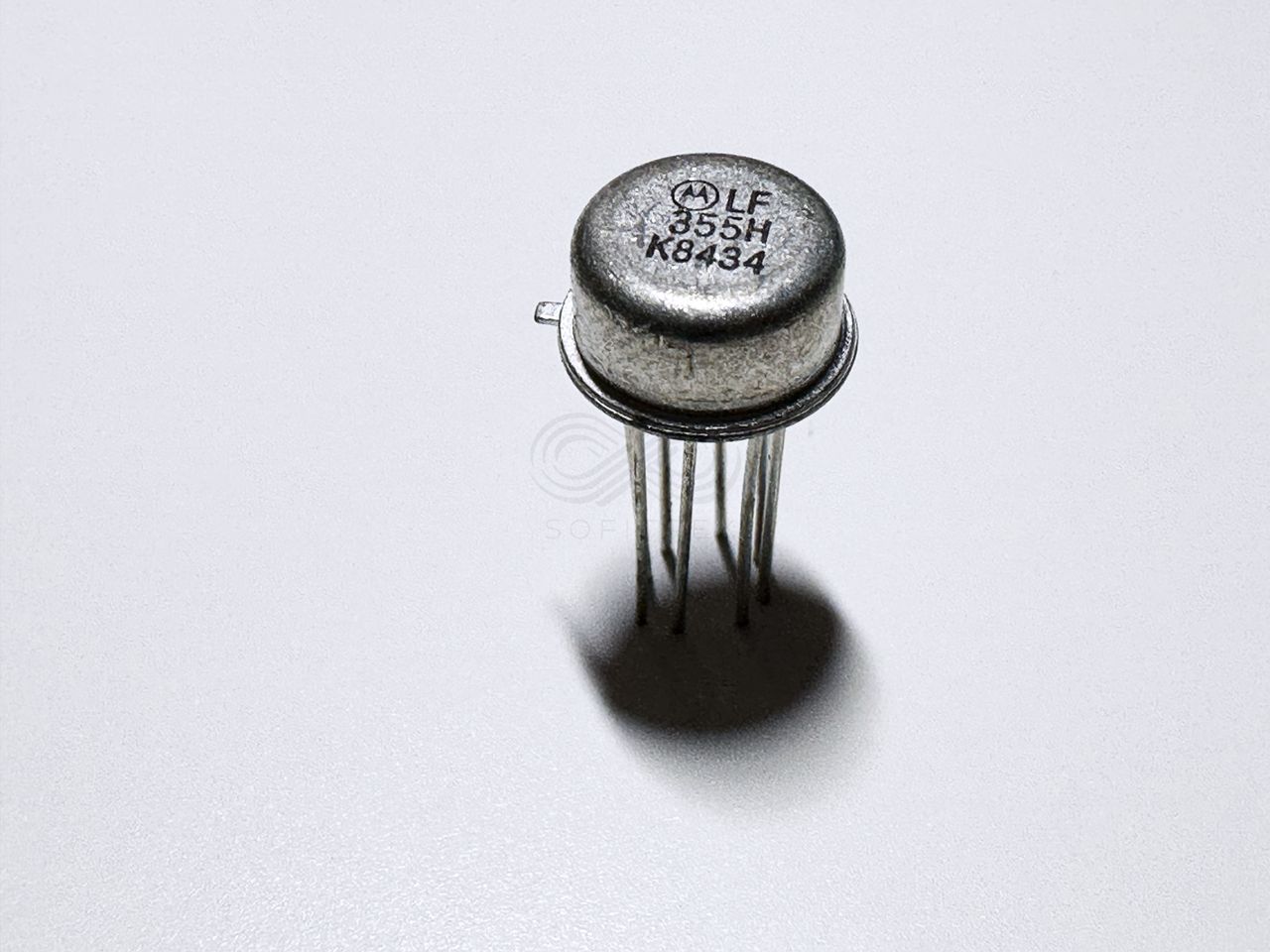

1X LF355H MOTOROLA JFET Input Op Amp High Speed TO-99-8
1 Piece - LF355H MOTOROLA JFET Input Op Amp High Speed TO-99-8
New Old Stock
| Specification | |
|---|---|
| Input Offset Voltage-Max | 9 mV |
| Slew Rate-Nom | 6 V/us |
| Average Bias Current-Max (IIB) | 200 pA |
| Supply Current-Max | 4 mA |
| Common-mode Reject Ratio-Min | 80 dB |
| Number of Functions | 1 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Supply Voltage-Nom (Vsup) | 15 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Technology | BIPOLAR |
| Architecture | VOLTAGE-FEEDBACK |
| Bias Current-Max (IIB) @25C | 200 pA |
| Frequency Compensation | NO |
| Input Offset Current-Max (IIO) | 50 pA |
| Low-Bias | YES |
| Low-Offset | NO |
| Micropower | NO |
| Neg Supply Voltage Limit-Max | -18 V |
| Power | NO |
| Programmable Power | NO |
| Slew Rate-Min | 2.5 V/us |
| Supply Voltage Limit-Max | 18 V |
| Temperature Grade | COMMERCIAL |
| Unity Gain BW-Nom | 2500 |
| Voltage Gain-Min | 25000 |
| Wideband | NO |
| Common-mode Reject Ratio-Nom | 100 dB |
| Operating Temperature-Max | 70 °C |
| Number of Terminals | 8 |
| Package Body Material | METAL |
| Package Code | TO-99 |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | ROUND |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |
| Package Description | CAN-8 |
Note: This table may not be entirely accurate and should only be used as a general reference.
