Features

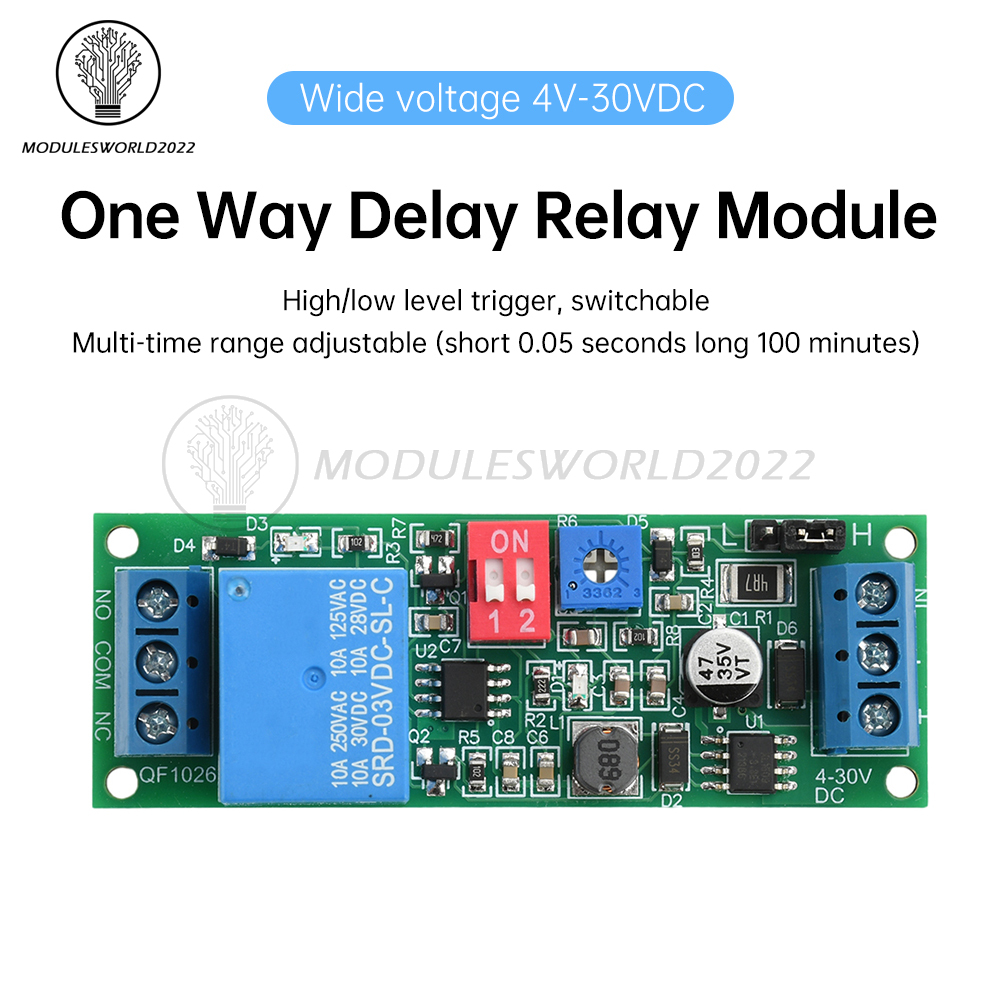

1.DC 4-30V wide voltage range, adaptable: support 4-30V DC voltage input, widely compatible with all kinds of power supply environment, whether it is industrial equipment or vehicle modification, can run stably.
2. Time range can be set, flexible to meet the demand: provide adjustable delay time range, according to the actual scene to set the trigger duration, accurate control of the relay switching state

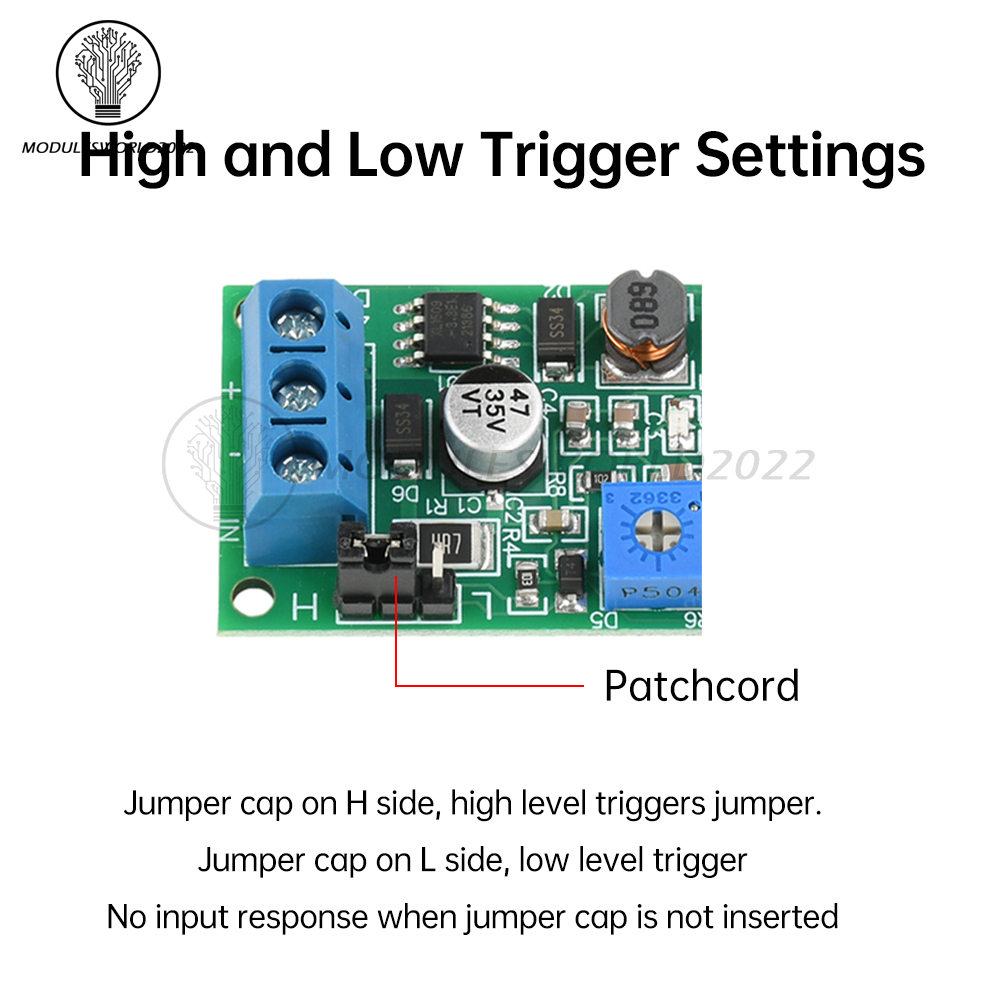

3. High and low level signals can be set, various triggering methods: support for high level or low level triggering, the user can choose the appropriate signal input method according to the specific needs, to enhance the applicability of the module.

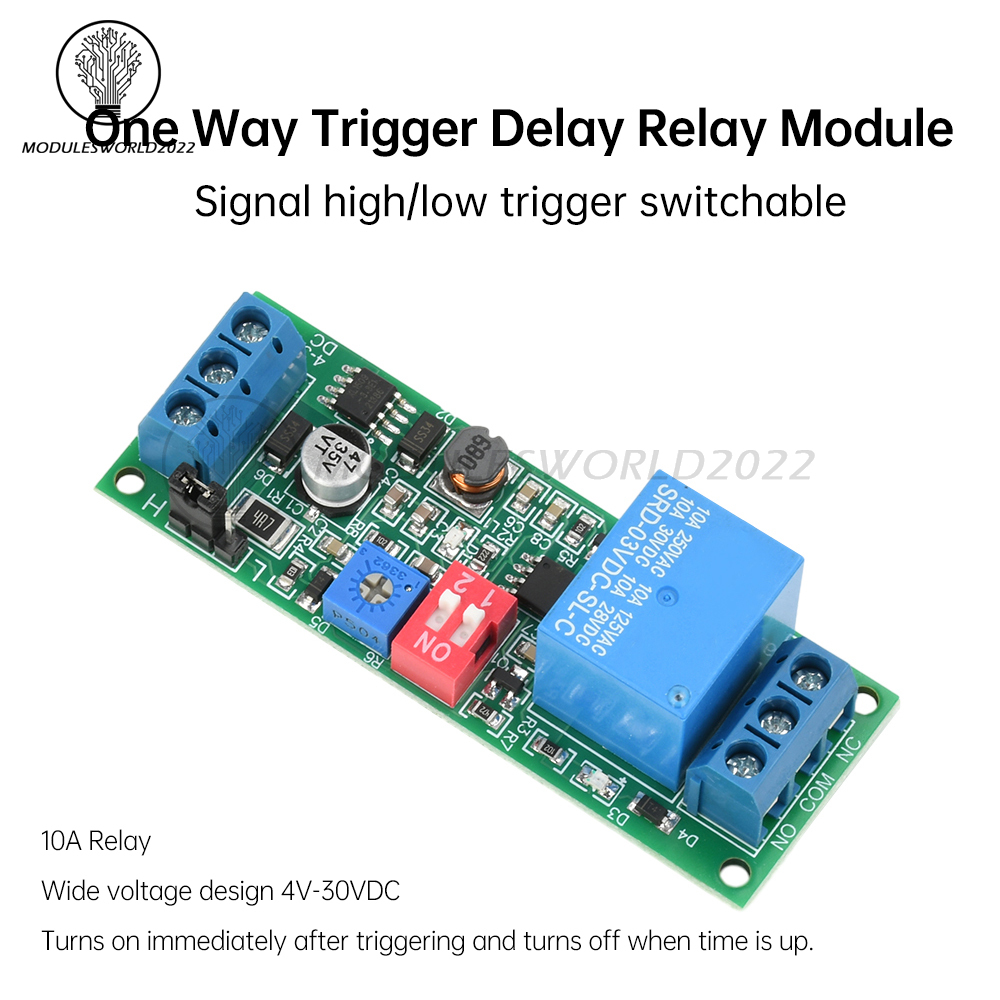

4. Monostable delay design, precise control: the relay is turned on immediately after triggering, and is automatically disconnected when the set delay time arrives, ensuring the accuracy and reliability of equipment operation.
5. Multi-scenario application, wide range of uses: suitable for industrial equipment timing control, household appliances automation and vehicle modification and other fields, to provide efficient and reliable timing solutions for your equipment.
1.DC 4-30V wide voltage range, adaptable: support 4-30V DC voltage input, widely compatible with all kinds of power supply environment, whether it is industrial equipment or vehicle modification, can run stably.
2. Time range can be set, flexible to meet the demand: provide adjustable delay time range, according to the actual scene to set the trigger duration, accurate control of the relay switching state
3. High and low level signals can be set, various triggering methods: support for high level or low level triggering, the user can choose the appropriate signal input method according to the specific needs, to enhance the applicability of the module.
4. Monostable delay design, precise control: the relay is turned on immediately after triggering, and is automatically disconnected when the set delay time arrives, ensuring the accuracy and reliability of equipment operation.
5. Multi-scenario application, wide range of uses: suitable for industrial equipment timing control, household appliances automation and vehicle modification and other fields, to provide efficient and reliable timing solutions for your equipment.
Specification
Voltage: DC 4-30V
Standby current:
5V, standby 4.5mA Working 129mA
12V, standby 2.6mA Work 50mA
24V, standby 2.1mA Working 28.3mA
Signal Trigger:
High level: valid above 3V, withstand limit -5~+30V
Low level: below 1V valid, limit withstand -5~+50V

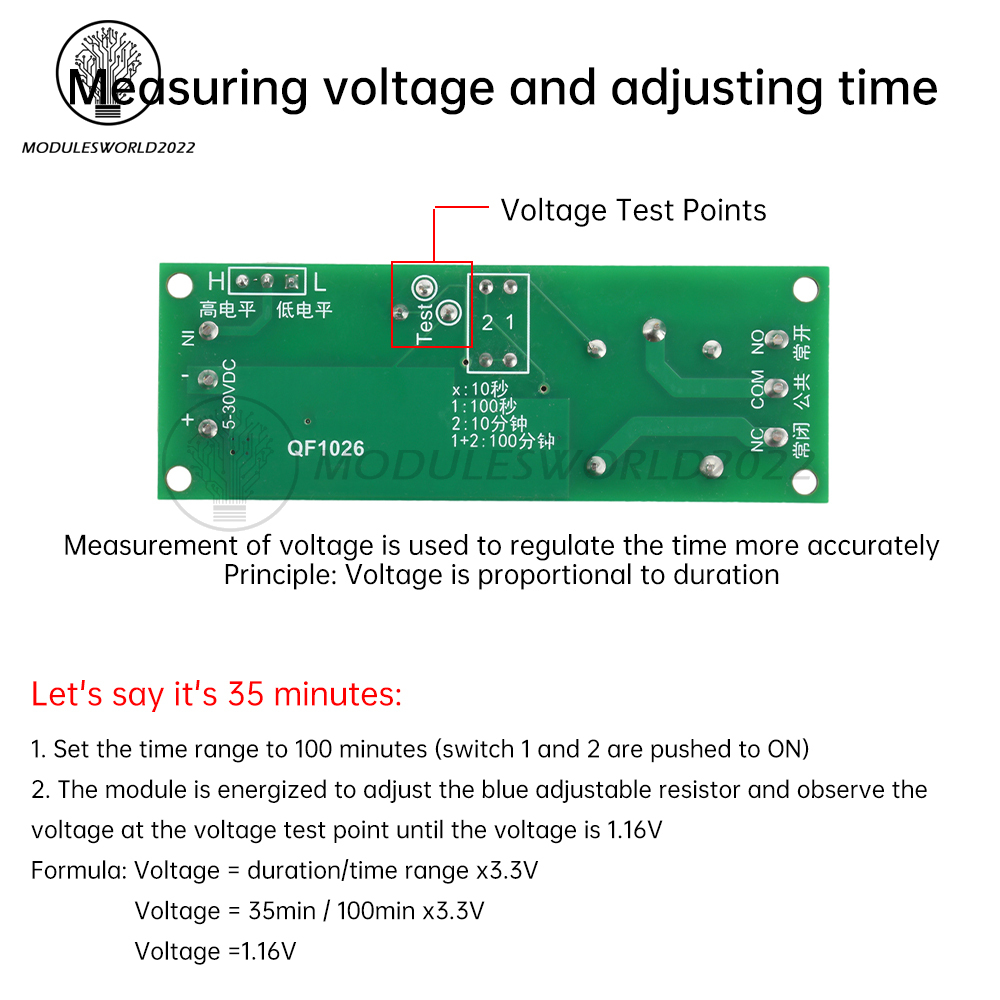

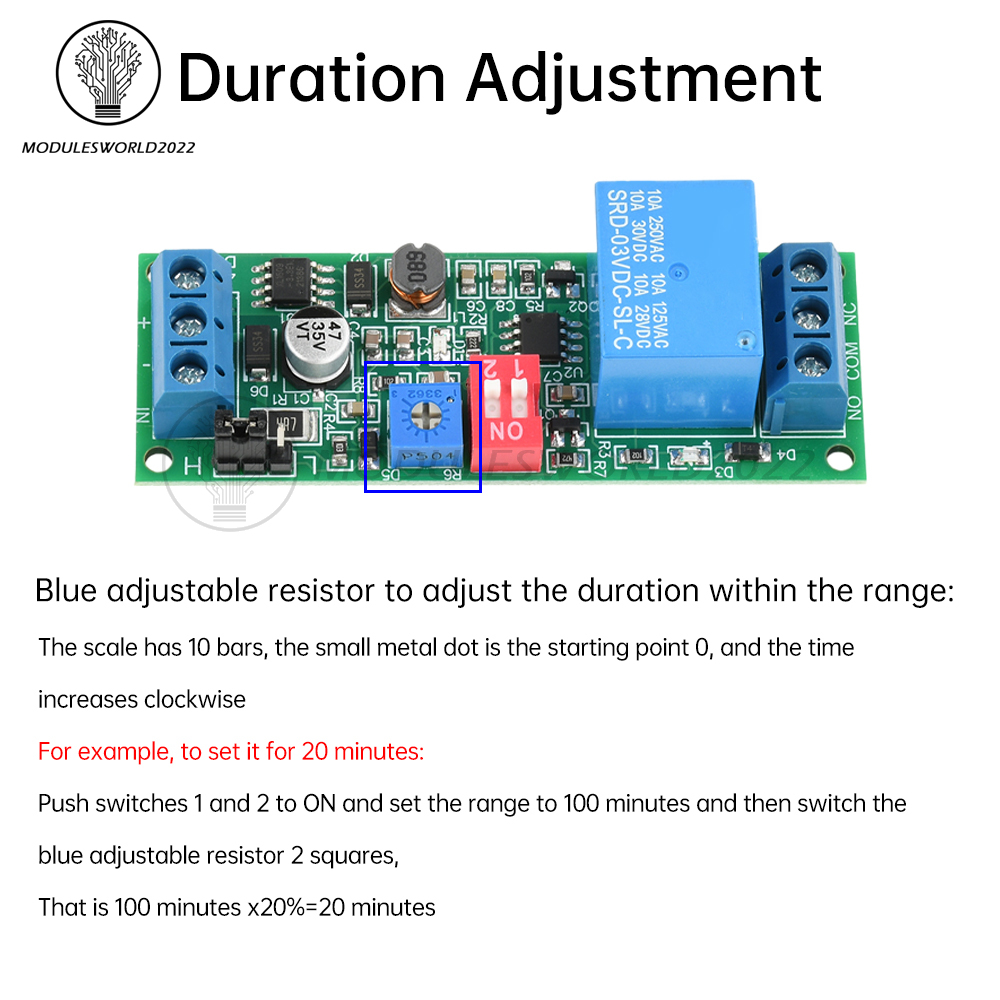

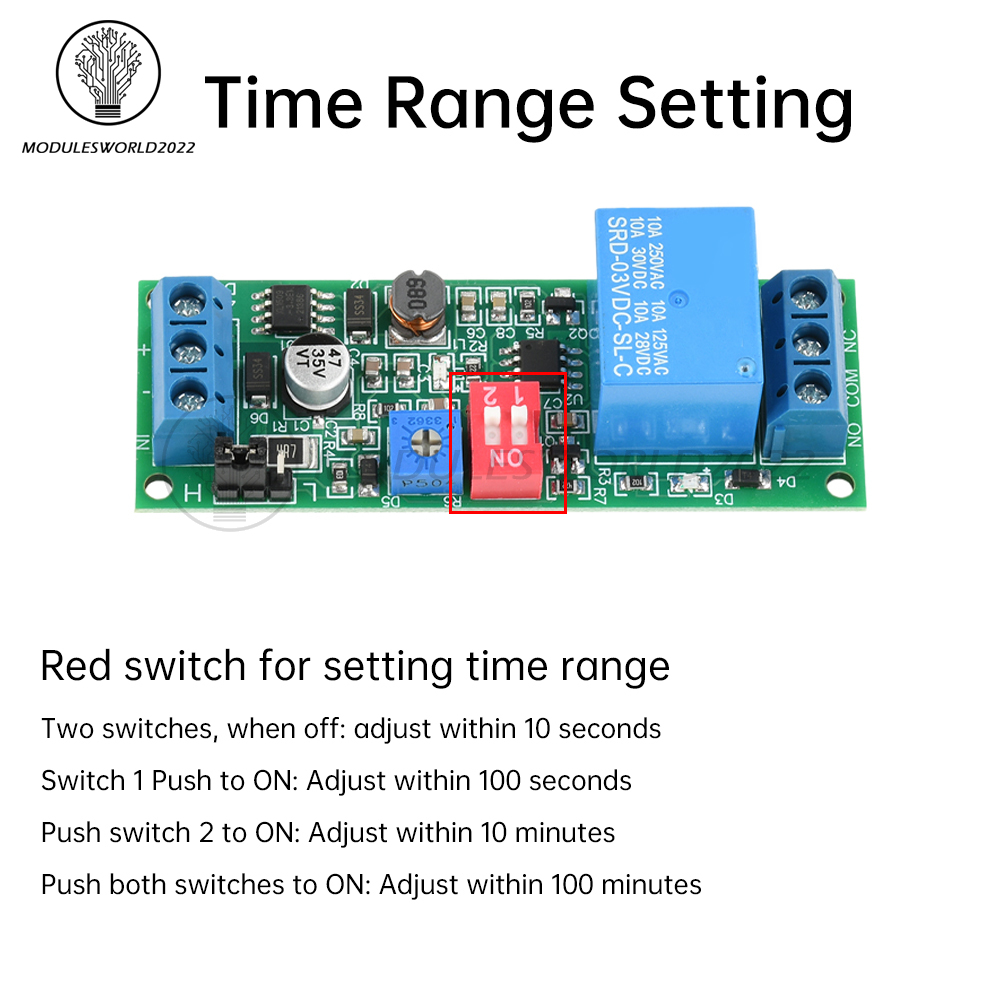

Timing range (4 steps):
0.05-10 seconds, accuracy 0.05 seconds
0.05-100 seconds, accuracy 0.05 seconds
0.05-10 minutes, accuracy 0.2 seconds
0.05-100 minutes, accuracy 1.5 seconds
Timing repeatability error: ±0.5% (based on the same module in the same environment for multiple tests)
Output mode: passive (switching), a set of normally open + normally closed
Output capacity: 10A
Switching time: about 10mS
Time error: ± 1%
Relay life: more than 100,000 times (within 10A current)
Product size: 70*25*20mm
Mounting hole: center distance 65*20mm, hole diameter 2.6mm
Voltage: DC 4-30V
Standby current:
5V, standby 4.5mA Working 129mA
12V, standby 2.6mA Work 50mA
24V, standby 2.1mA Working 28.3mA
Signal Trigger:
High level: valid above 3V, withstand limit -5~+30V
Low level: below 1V valid, limit withstand -5~+50V
Timing range (4 steps):
0.05-10 seconds, accuracy 0.05 seconds
0.05-100 seconds, accuracy 0.05 seconds
0.05-10 minutes, accuracy 0.2 seconds
0.05-100 minutes, accuracy 1.5 seconds
Timing repeatability error: ±0.5% (based on the same module in the same environment for multiple tests)
Output mode: passive (switching), a set of normally open + normally closed
Output capacity: 10A
Switching time: about 10mS
Time error: ± 1%
Relay life: more than 100,000 times (within 10A current)
Product size: 70*25*20mm
Mounting hole: center distance 65*20mm, hole diameter 2.6mm

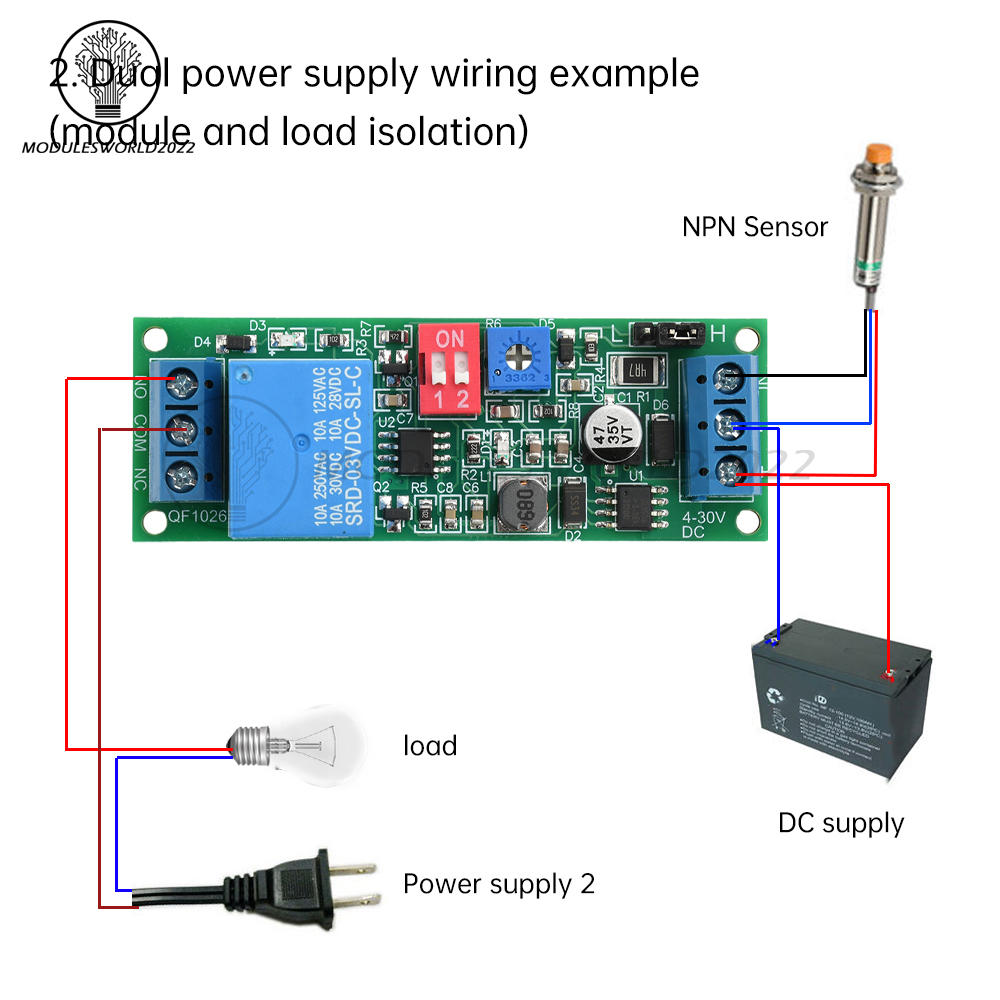

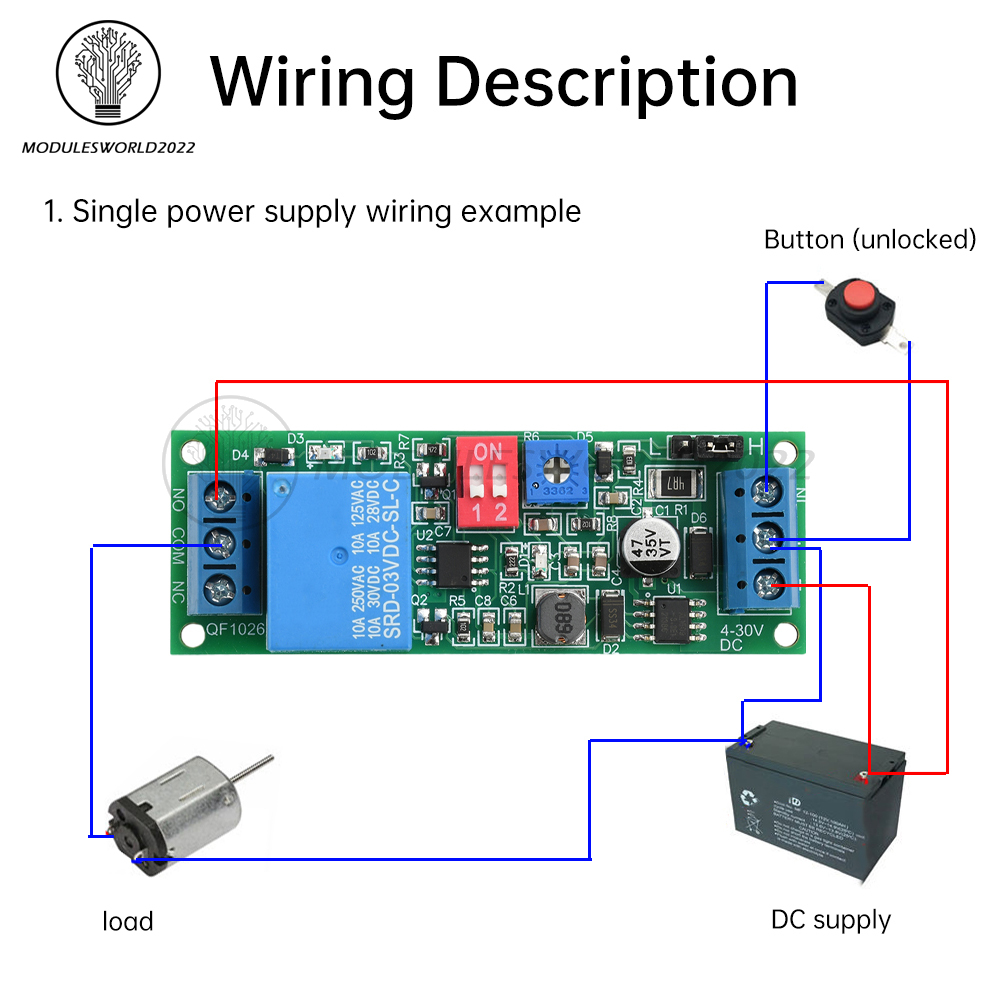

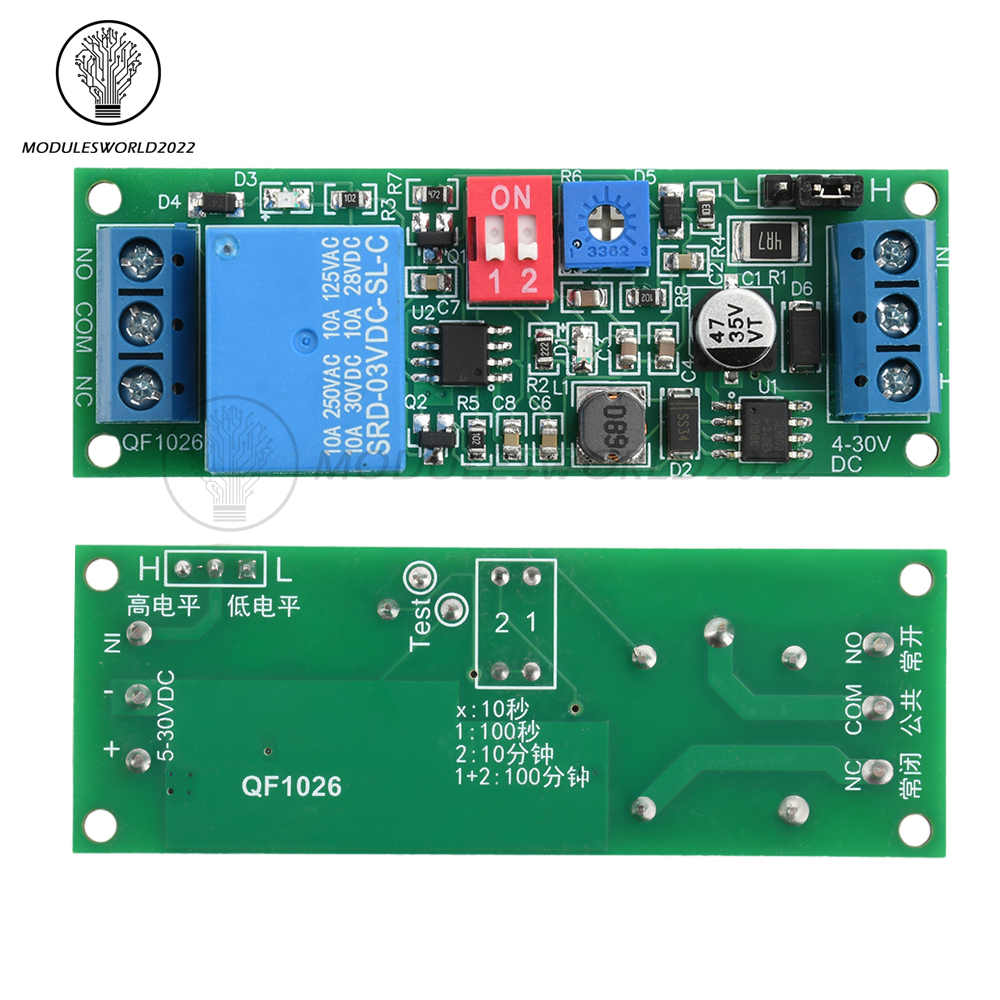

Terminal description:
+: positive terminal of power supply
-: Negative terminal of power supply
K: Signal input
NO: Normally open relay contact
NC: Normally closed relay contact
COM: relay common contact
+: positive terminal of power supply
-: Negative terminal of power supply
K: Signal input
NO: Normally open relay contact
NC: Normally closed relay contact
COM: relay common contact
Package includes

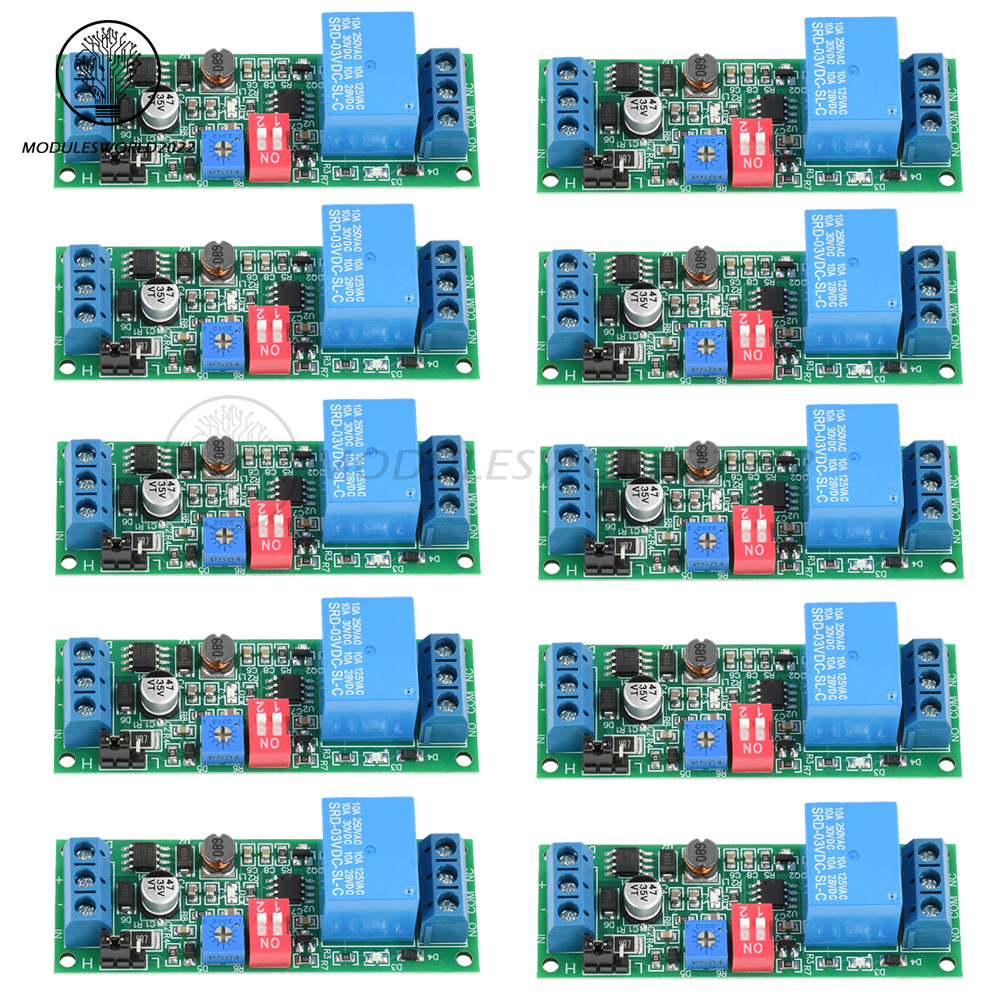

1/2/5/10 x Module
1/2/5/10 x Module
