Features:

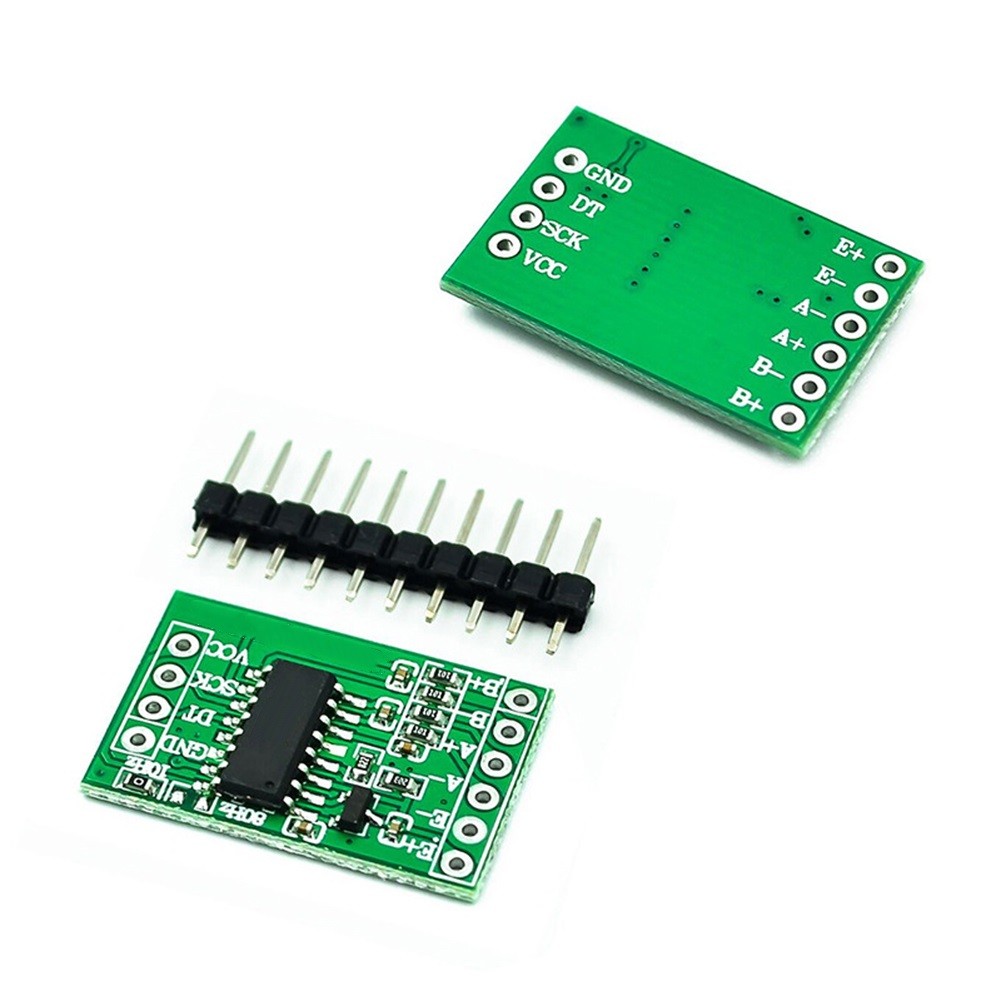

*High- for A/D Conversion: The weighing sensor utilizes the for HX711, a 24-bit high- for A/D conversion chip specifically designed for electronic scales. It features two analog input channels, making it suitable for applications requiring accurate weight measurements.
*Construction and Applications: This digital load cell weight sensor is made from aluminum alloy with a parallel beam structure. It is great for use in electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing systems.
*Operating Specifications: The for HX711 weighing sensor operates with a voltage range of 2.6-5.5V and can measure forces up to 10kg (22 lb). It has a rated output sensitivity of 1.0 ± 0.1 mV/V and an accuracy of 0.1g, with an output impedance of 1000 ± 50 ohms.

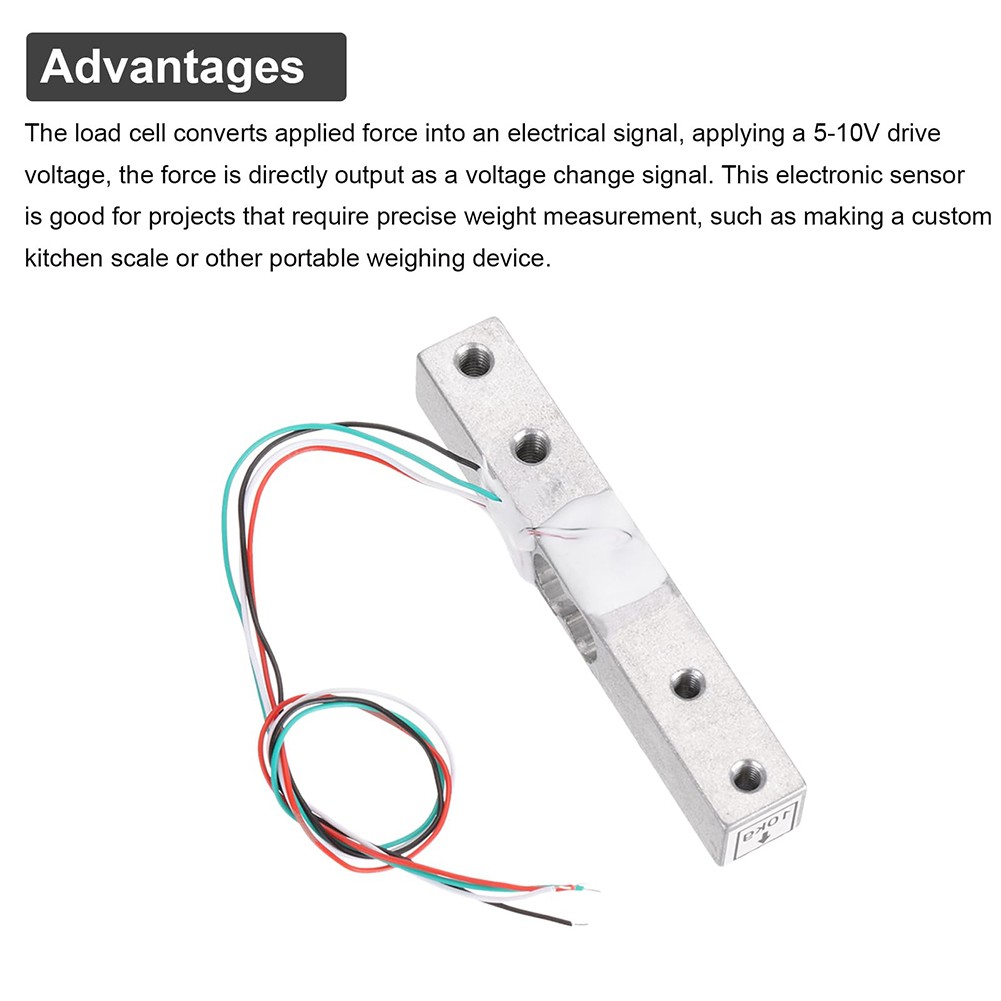

*Accurate Weight Measurement: The 24-bit A/D converter provides precise weight measurement results. The load cell transforms applied force into an electrical signal, with a drive voltage of 5-10V, resulting in a direct output as a voltage change signal.
*User-Friendly Design: The electronic sensor includes four wires for straightforward connection. The weighing sensor must be connected to the for HX711 module, with specific color coding for each wire: red to E+, black to E-, green to A+, and white to A-. The sensor is designed to be mounted with end fixed via a screw hole while allowing the other end to remain suspended, applying gravity as indicated by the label. Care should be taken not to press directly on the white rubber part to prevent damage to the sensor.
Specifications:
Part Name: Digital Load Cell Weight Sensor
Material: Plastic,Metal
Size: Standard
Color: Green,Silver
Weighing Sensor Operating Voltage: 2.6-5.5V
Weighing Sensor Size:16x24mm/0.63 x 0.95 inch
Load Cell maximum measures force: 10kg(22 lb)
Rated Output Sensitivity: 1.0+/-0.1 mV/V
for Zero output: ±0.1mV/V
Nonlinear: 0.05%F.S
Lag: 0.05%F.S
Repeatability: 0.05%F.S
Creep(5Min):0.05%F.S/3min
Output impedance:1000±50 ohm
Temperature Effect On Sensitivity: 0.05%F.S/°C
Temperature Effect On for Zero: 0.05%F.S/°C
Accuracy: 0.1g
Size: 80x12.7x12.7mm/3.15 x 0.5 x 0.5 inch
Connection:Red to E+ / Black to E- / Green to A+ / White to A-

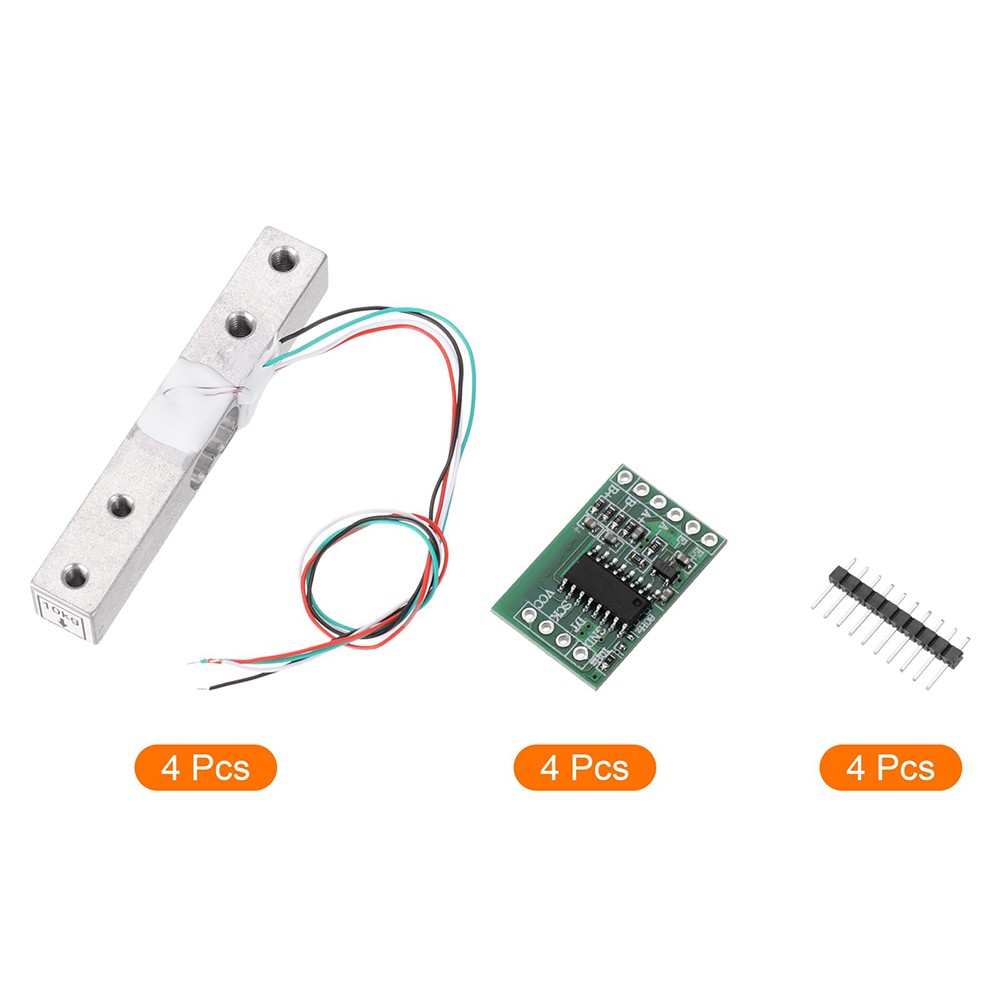

Package Content:

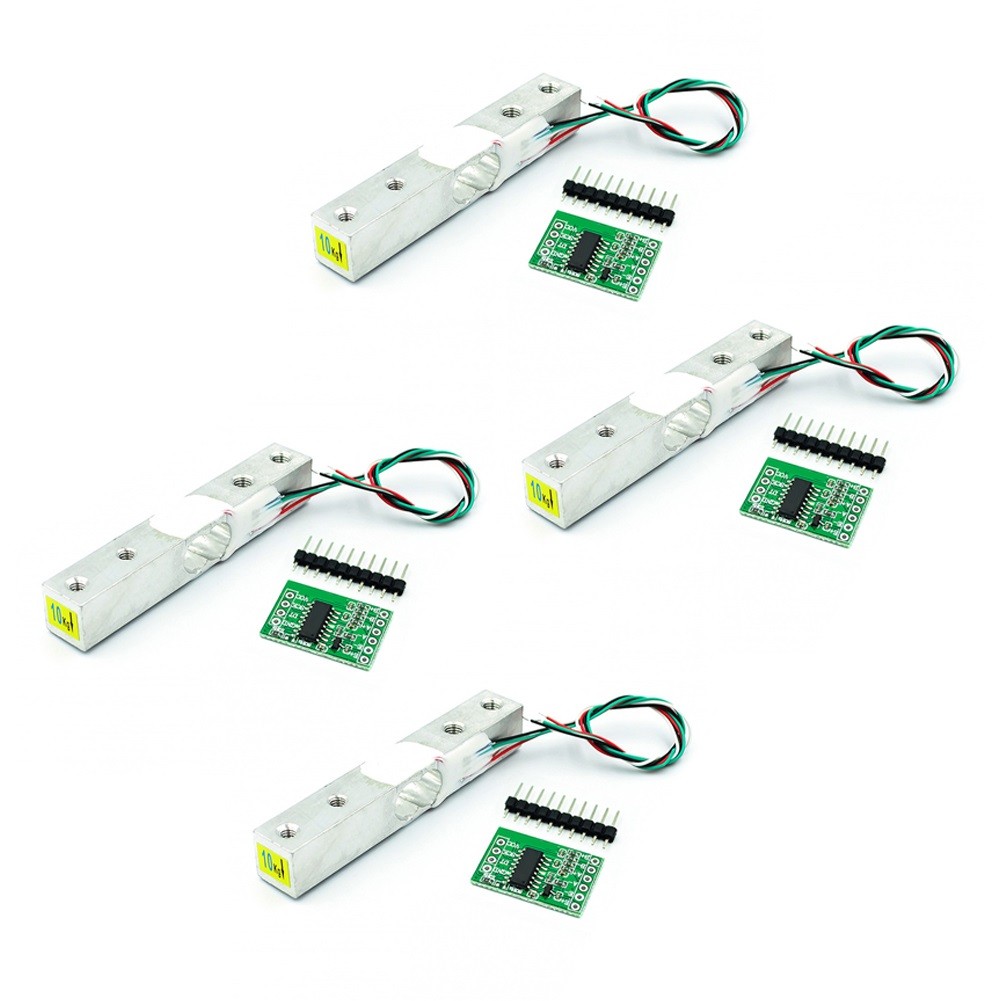

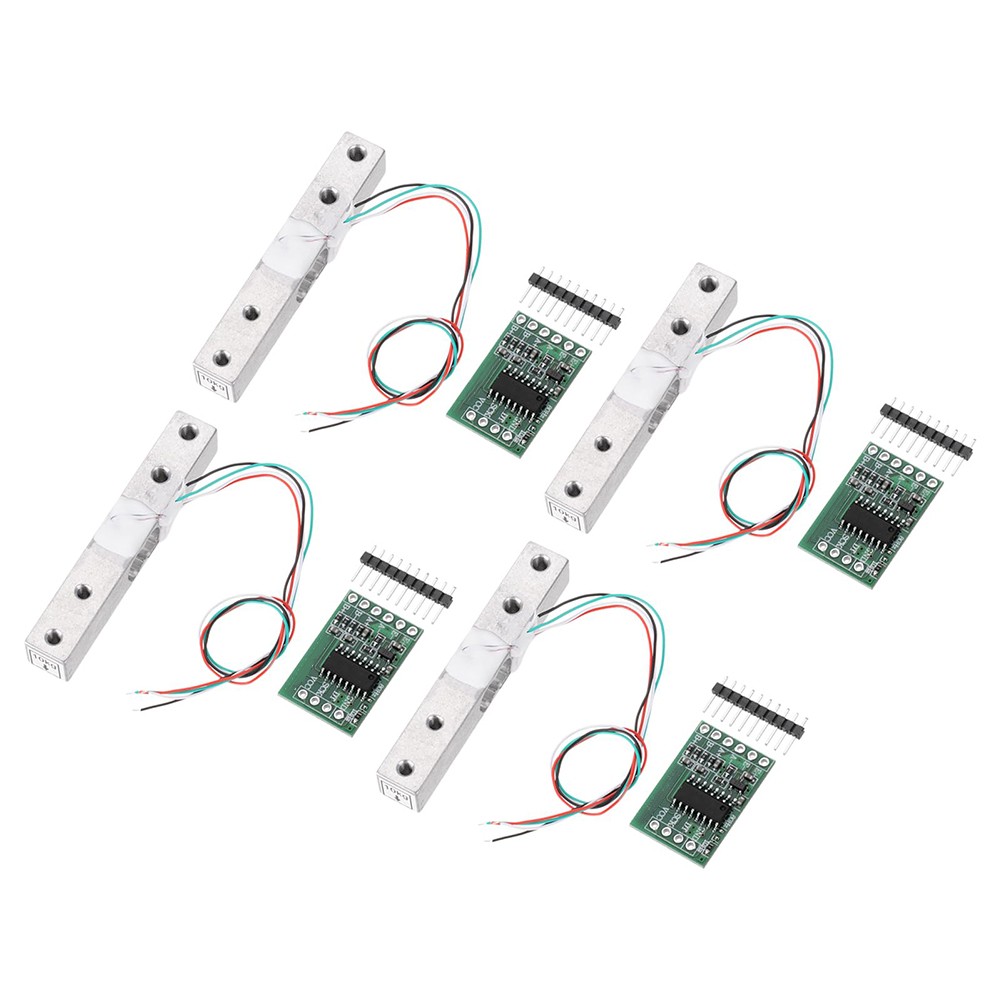

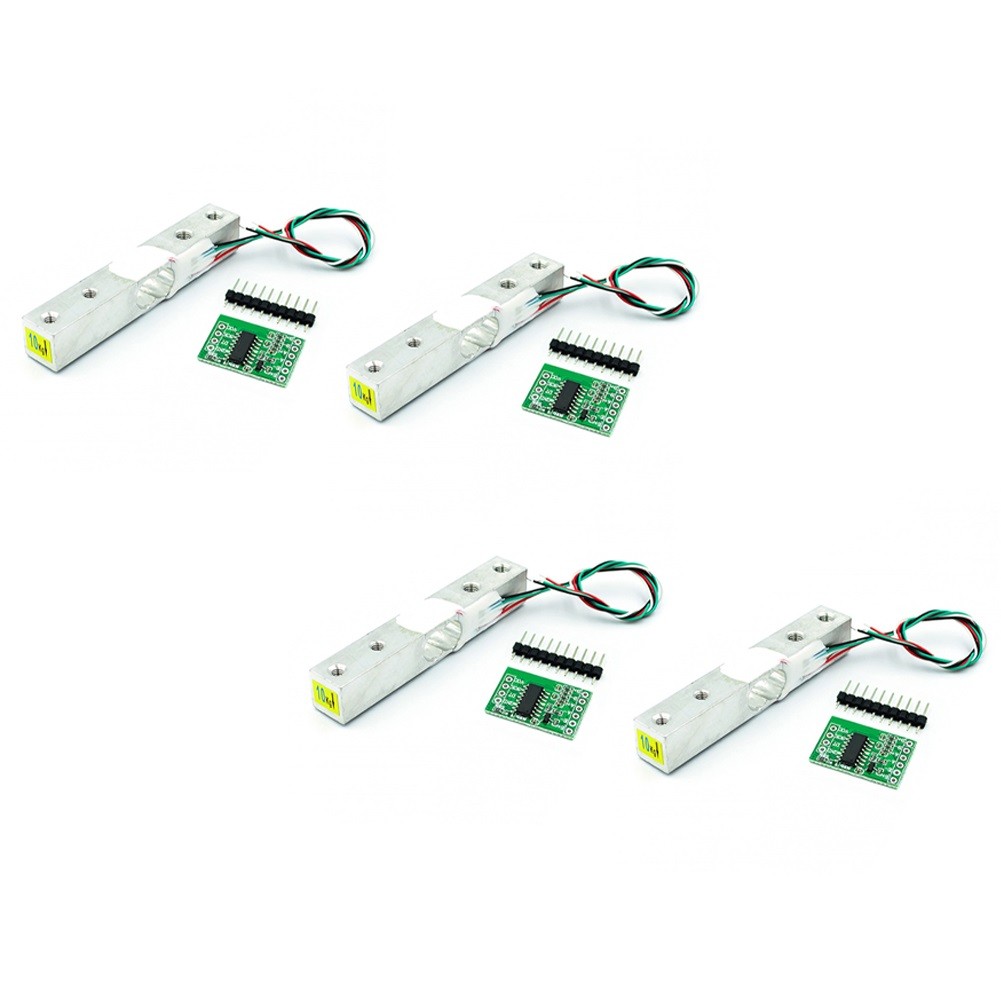

4 x for HX711 Weighing Sensor
4 x load cell weight sensor
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
