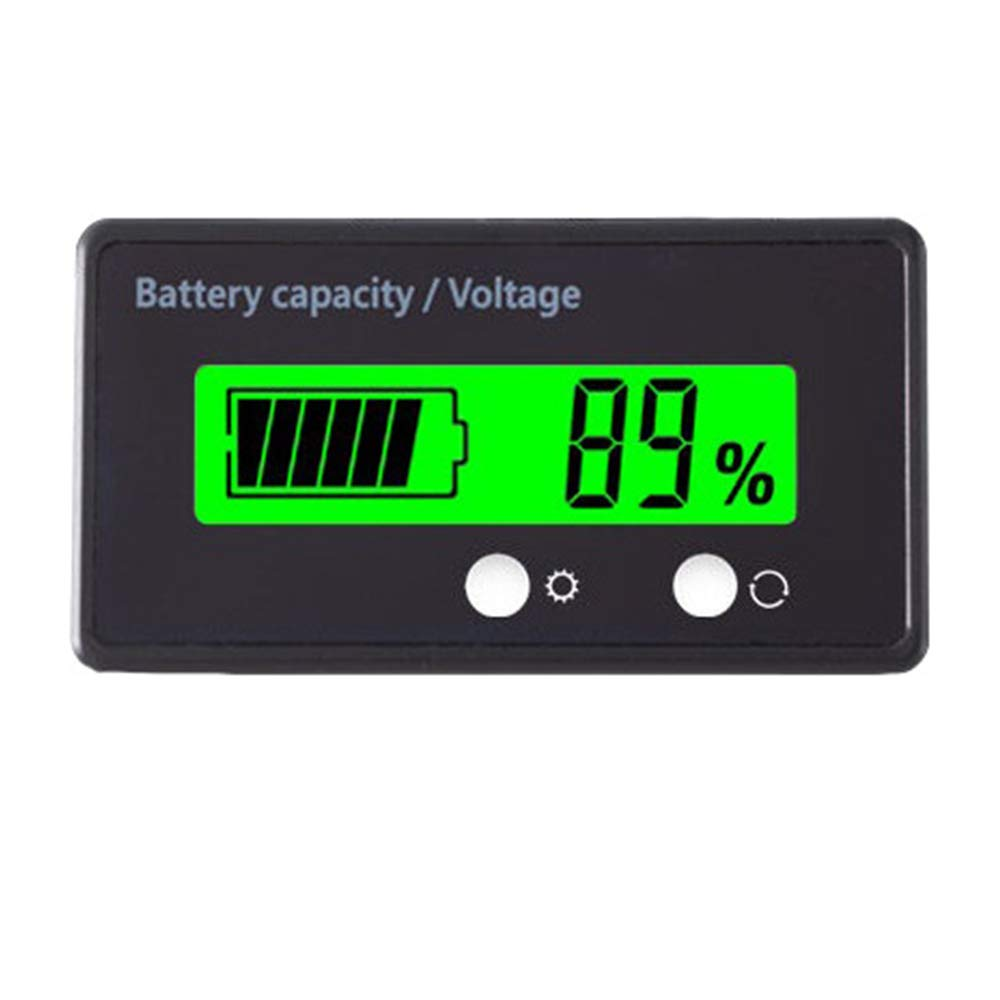

12V 24V 36V 48V Battery Capacity Indicator Golf Cart Voltage Meter
Description
| Style | Voltage Tester |
| Power Source | Battery Powered |
| Color | Green |
| Item Weight | 18 Grams |
| Product Dimensions | 2 x 1.1 x 0.45 inches; 0.63 ounces |
- Universal battery capacity indicator voltage meter - wide voltage input range DC 12V-84V Lead-acid Batteries and 3S-26S Lithium Batteries: Ternary lithium batteries, polymer batteries, lithium-ion batteries, storage batteries.
- Multifunctional Battery Capacity voltage meter Indicator - Battery tester Right Switch key can switch voltmeter, battery percentage, switch off. Left setting key have several functions: Cycle voltmeter/battery percentage, turn on the backlight, black, sleep mode, battery type selection etc.
- High Quality of battery voltage meter - Large LCD screen display with green backlit and low power consumption.Two display modes can be available: battery symbol and battery percentage, battery symbol and voltmeter.
- Safety to Use - The battery voltage meter Built-in 30cm power cable, simple to connect. Reverse protection design, won't burn if connect reversely.
- Portable and Waterproof voltage meter- Small size, light weight, equipped with a PVC film, the surface is waterproof.
Product description
12V 24V 36V 48V 60v 72v 84v Battery Capacity Indicator Golf Cart Voltage Meter with Bracket, Testers for 3S-26S Lithium &Lead-Acid Batteries
12V 24V 36V 48V Battery Capacity Indicator Golf Cart Voltage Meter with Bracket ,
LCD Display Green Backlight Monitor Gauge meter Testers for 3S-26S Lithium &Lead-Acid Batteries
- The testing range of Golf Cart Voltage Meter is DC8-100V and can be used for 12v 24v 36v 48v 60v 72v 84v batteries including 3.7v lithium battery(2S-25S), lead-acid battery(12V-84V), LifePO4 battery(F03-F26) etc.
- The golf cart battery meter is with power-off memory function, it can retain settings when power is removed.
- The battery voltage tester can be used for golf carts, cars, e-bikes, ships, RVs, boats, electric motorcycle, automotive, indicator panels etc.
- The battery voltage meter can be used indoor&outdoor.
Battery Capacity meter & Voltage meter
- Golf cart battery meter has wide Voltage power testing range: 9V-100V Wider Voltage Testing Range.
- More important, Our battery monitor can not only test the battery capacity percentage, but also the voltage value, which rally is a good choice to detach your device status.
Setting Key & Function Key control
- The setting key is used for selecting battery specifications( Lithium, lead acid or LIFEPO battery) and so on. T
- The function key is used for switching from capacity, voltage and turn off. Choose to display voltage, battery capacity percentage alone or in turn by pressing the function key.
PVC Waterproof Screen Protector
- The battery meter could work effectively even meets rain , mist weather, which ensure a stable performance for a long time.
- PS: do not soak it in the water.
ABS Protection Shell
- The 48V Battery Indicator is made of high quality ABS material, which can impact resistance and low temperature resistance.
Clear LCD Display & Sleep Mode
- The golf cart voltage meter has clear and bright display from every angle.
- Automatically turn into sleep mode in 10s for saving the power.
Package of Voltage meter
- Package contents including: 1X battery meter, 1X connected 30cm power cable, 1X manual.
- Voltage meter can be much more easier to set according to manual.
12V 24V 36V 48V 60V 72V 84V Golf Cart Voltage Meter Battery Capacity Indicator
Functions of battery capacity indicator:
1. Manually switch battery percentage / voltage / power off
2. Automatic recycling display battery capacity / voltage per 2 seconds (Settable)
3. 10s delay auto off (Settable)
4. Double discharge curve selection (Settable)
Specifications:
Color: Green Weight: 18g Material of battery capacity indicator: HTN / PCB
Dimensions: 61.3 * 33.3 * 13.5mm / 2.4 * 1.3 * 0.5in Wire Length: 30cm / 11.8"
Voltage Range: 6-63 (V) Circuit Load Current: 5 - 6mA Storage Temperature: -10 ~ 50℃
Suitable for: 3s-28s 3.7V/3.6V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V, 60V 72V 84V;
12V 24V 36V 48V 60v 72v 84v Battery Capacity Indicator Golf Cart Voltage Meter
Setting Instruction:
1 - Connect the cable to the battery.
2 - Hold down the setting button and plug in the connector at the same time.
3 - Release the setting button and you should see P01. P is the type of battery: P = lead acid, L = lithium, F - lithium iron phosphate.
4 - Press the setting button to select P, L or F.
5 - The number 01 is the number of cells or battery types For lead acid batteries, P: 01 = one 12v battery, 02 = two 12v batteries, etc. For lithium
batteries, L: 01 = one 3.7v cell, 02 = two 3.7v cells, etc. For lithium iron phosphate, F: 01 = one 3.2v cell, 02 = two 3.2v cells, etc.
6 - Press the setting button to add 1 to the number, function button to subtract 1.
7 - After setting, e.g., P01, hold the function button down to display S - 1.
8 - Press the setting button to select 1 - 5.
9 - Unplug the connector to save the settings.
10 - Plug the connector back in. Package List: Package contents including: 1X battery monitor, 1X connected 30cm power cable，1X manual.
12V 24V 36V 48V 60V 72V 84V Golf Cart Voltage Meter can be used for golf carts, cars, e-bikes, ships, RVs, boats, electric motorcycle, automotive, indicator panels etc.
