4.3in 480*270 ESP32-S3 Arduino LVGL WIFI&Bluetooth Smart Display Screen Module D
Features:
ESP32-4827S043 development board is basedon the company's ESP32-S3 controller, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO, SPI, UART and other functions, supports automatic download.
ESP32-4827S043 development board, which gives full play to the development of the internet of things, is areal internet of things development tool with a control-lable display screen, which can be used for APP remotecontrol, remote environmental data collection, remotedata fusion, remote parameter settings and other loT development applications.
The development of the remote IOT app uses blank app software, which can customize the personalized interface on the terminal device, with rich built-in controls and beautiful U interface. You can customize the app control module and interface, which is very suitable for making an app interface that meets your own requirements.
Specifications:
Working voltage: 4.75-5.25V
SPIFlash default: 32Mbit
RAM internal: 520KB
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: 4.2BR/EDR and BLE standard

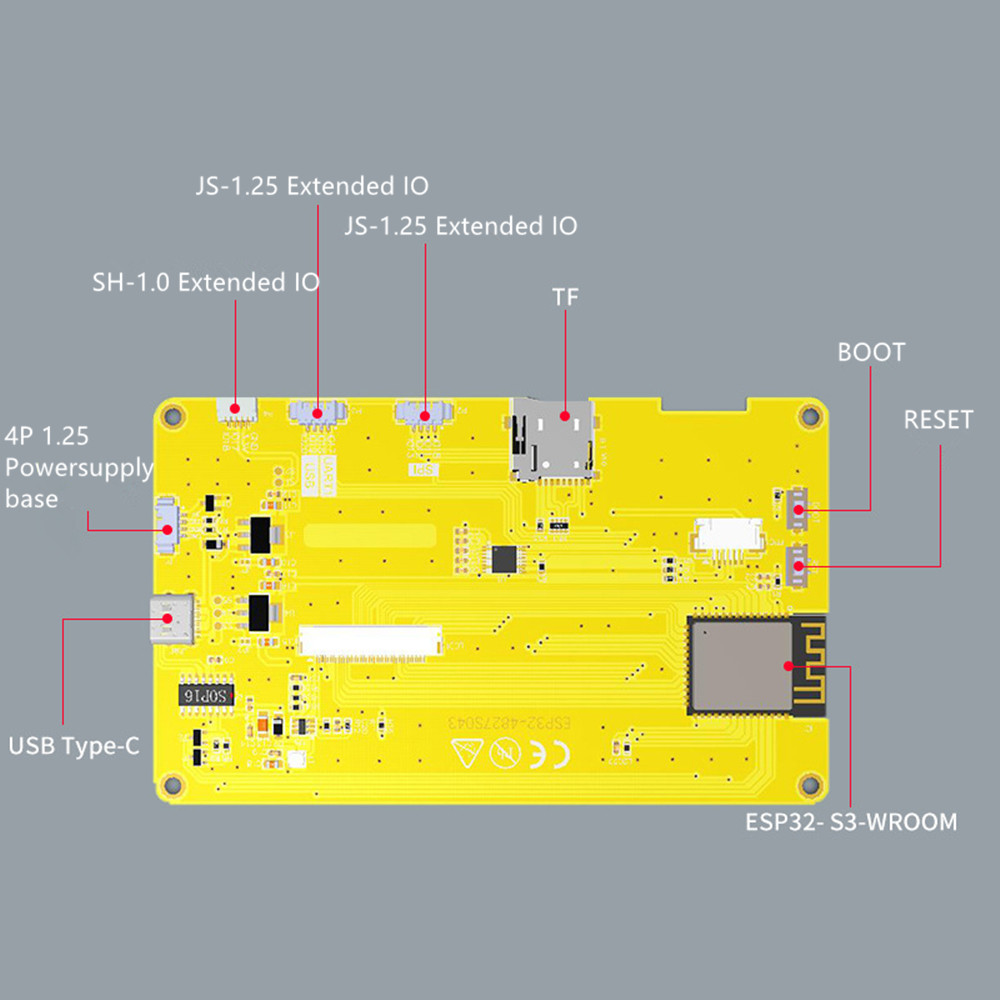

Support interface (2Mbps): UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port: 9
Serial port rate default: 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Transmit power: 802.11b: 17±2dBm (@11Mbps), 802.11g: 14±2dBm (@54Mbps), 802.11n: 13±2dBm (@MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH

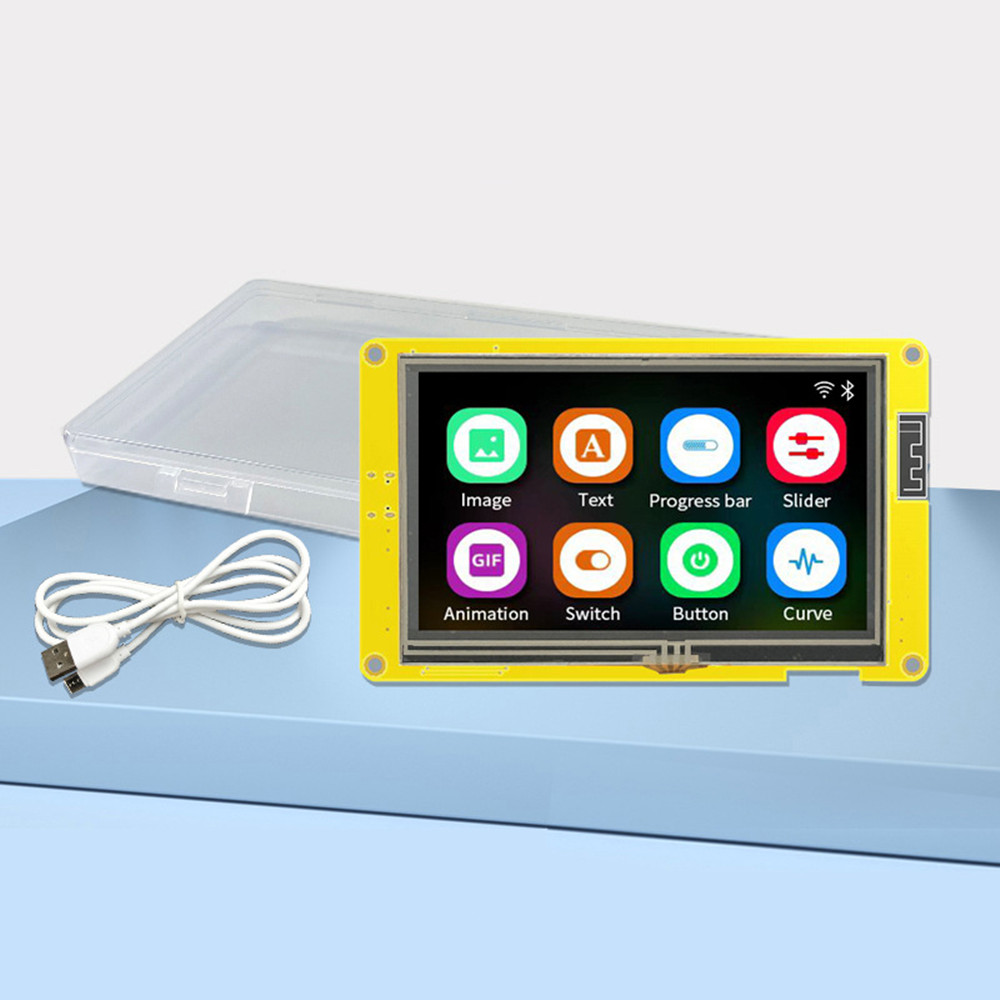

Package include:
1* ESP32-S3 4.3 inch screen
ESP32-4827S043 development board is basedon the company's ESP32-S3 controller, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO, SPI, UART and other functions, supports automatic download.
ESP32-4827S043 development board, which gives full play to the development of the internet of things, is areal internet of things development tool with a control-lable display screen, which can be used for APP remotecontrol, remote environmental data collection, remotedata fusion, remote parameter settings and other loT development applications.
The development of the remote IOT app uses blank app software, which can customize the personalized interface on the terminal device, with rich built-in controls and beautiful U interface. You can customize the app control module and interface, which is very suitable for making an app interface that meets your own requirements.
Specifications:
Working voltage: 4.75-5.25V
SPIFlash default: 32Mbit
RAM internal: 520KB
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: 4.2BR/EDR and BLE standard
Support interface (2Mbps): UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port: 9
Serial port rate default: 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Transmit power: 802.11b: 17±2dBm (@11Mbps), 802.11g: 14±2dBm (@54Mbps), 802.11n: 13±2dBm (@MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Package include:
1* ESP32-S3 4.3 inch screen
