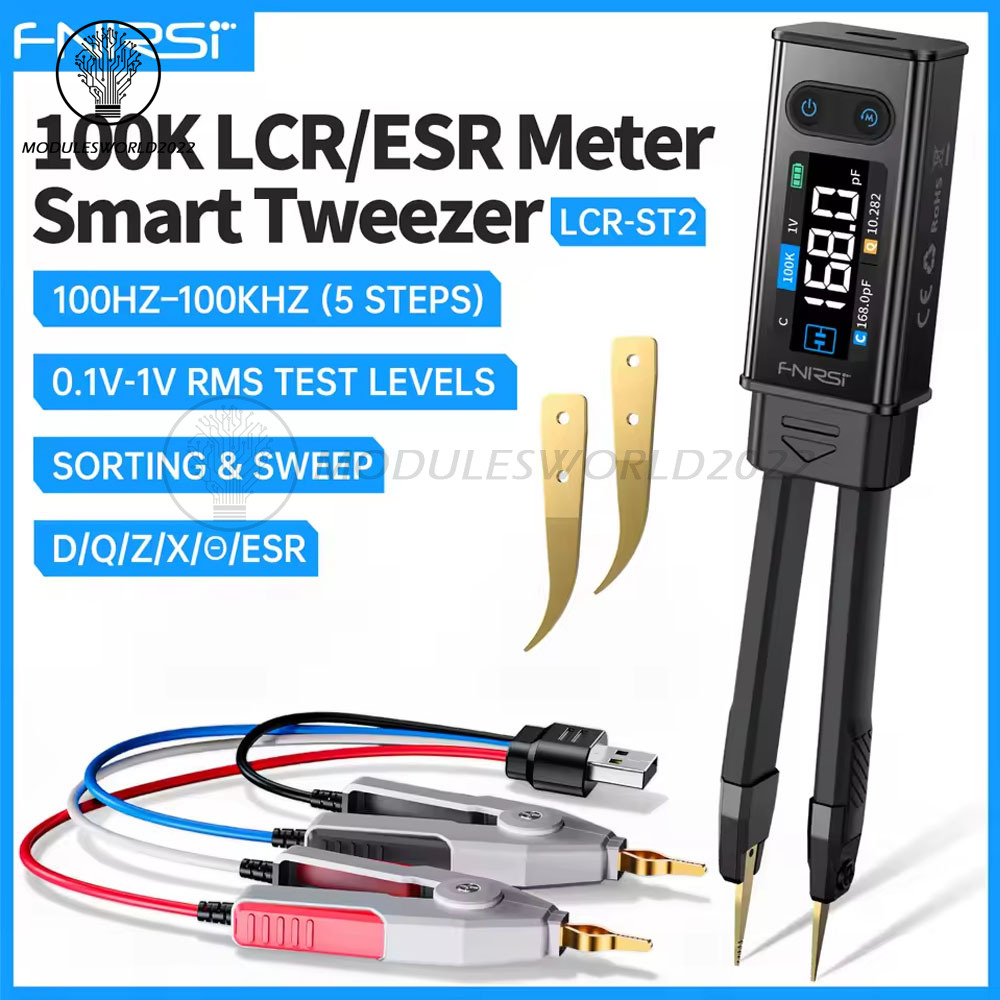

Feature

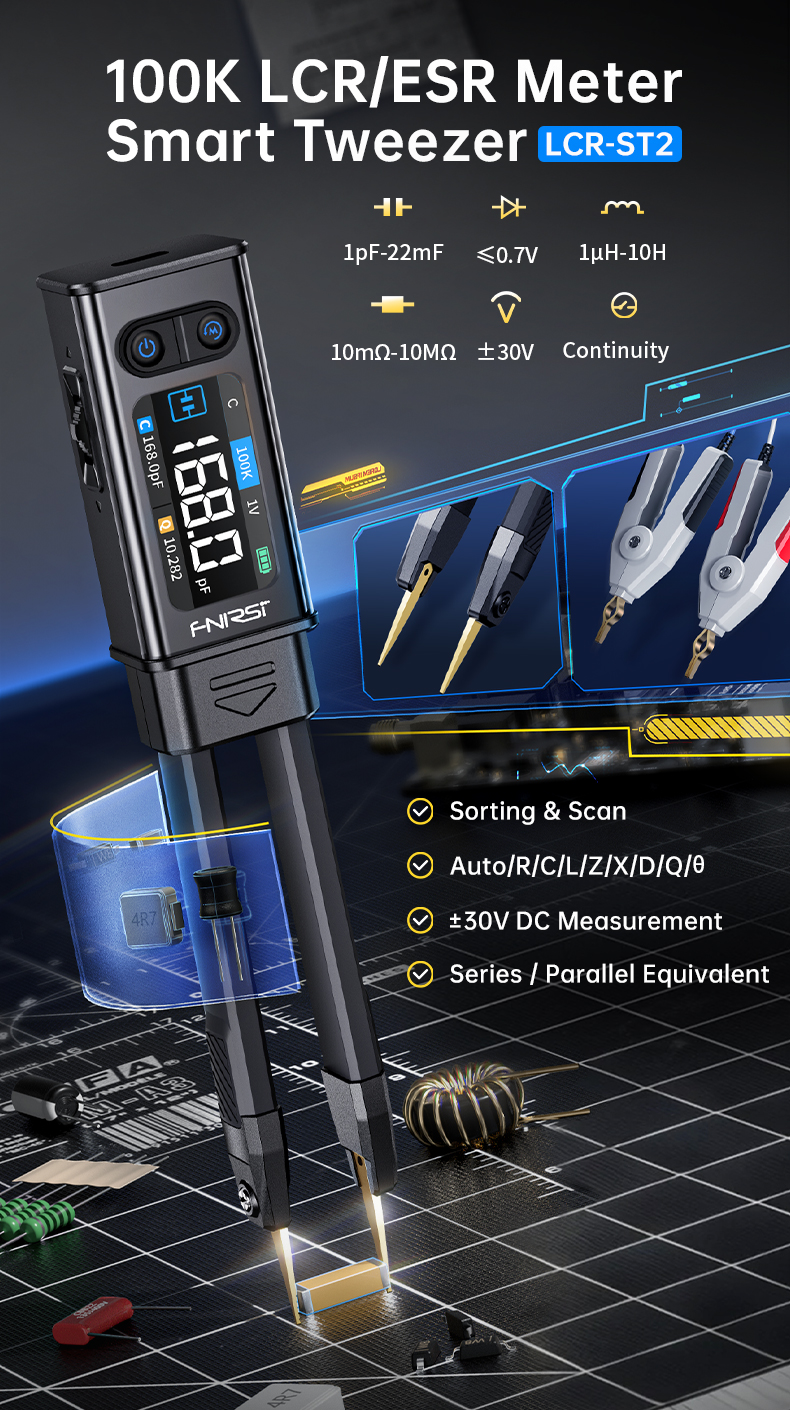

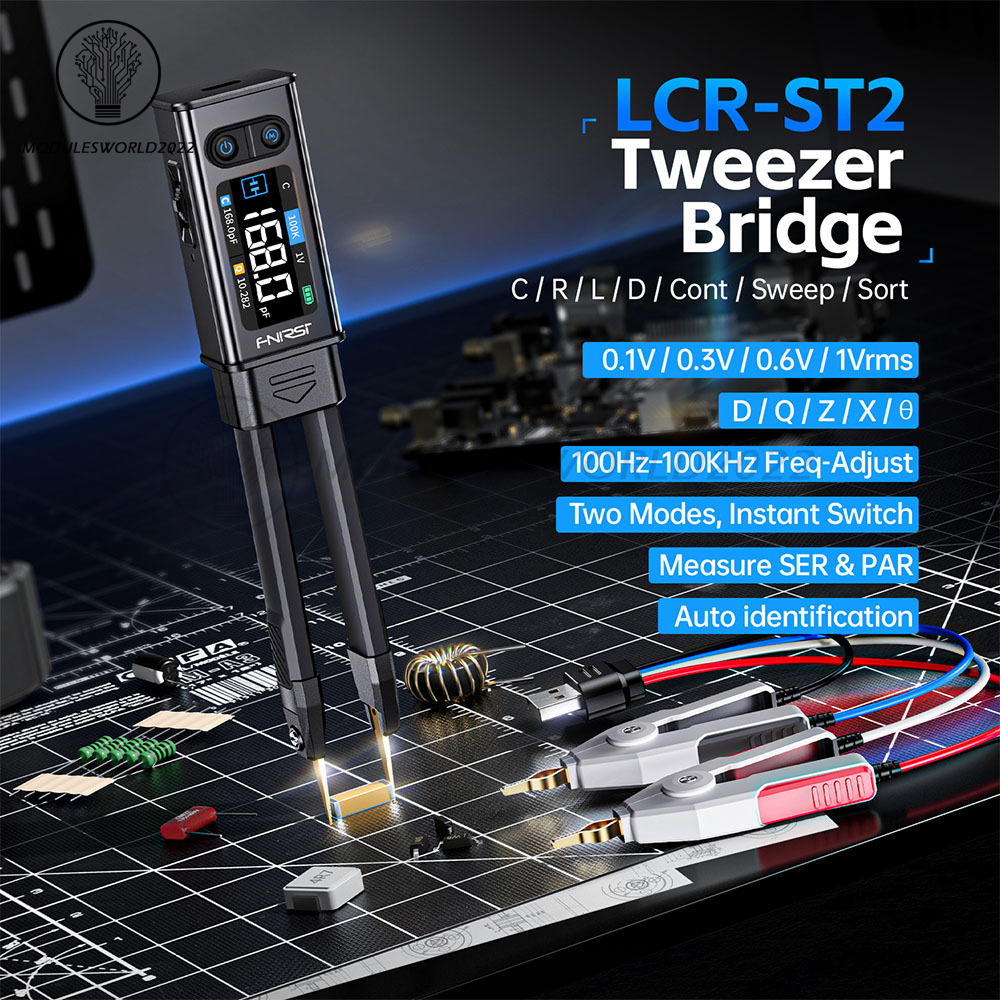

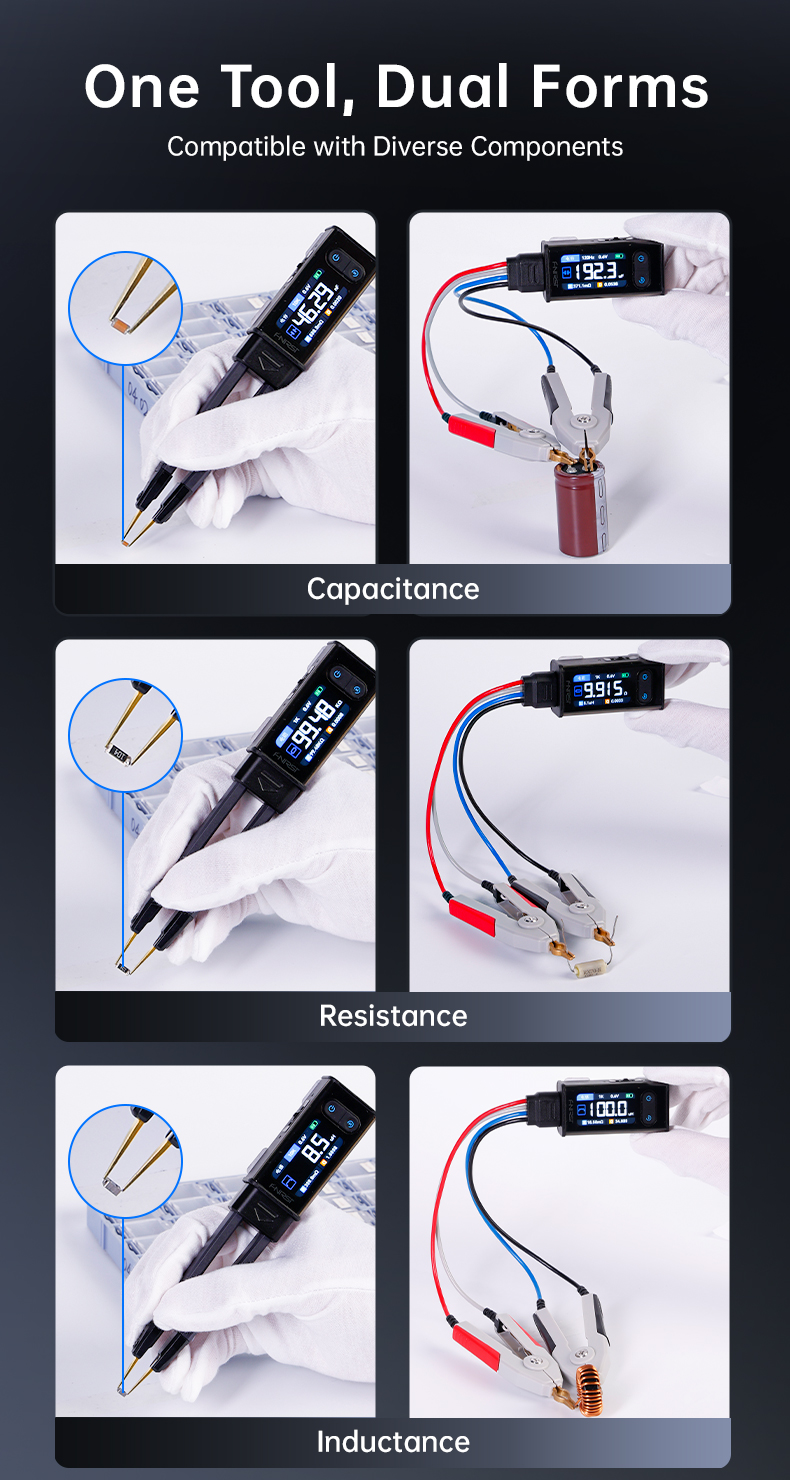

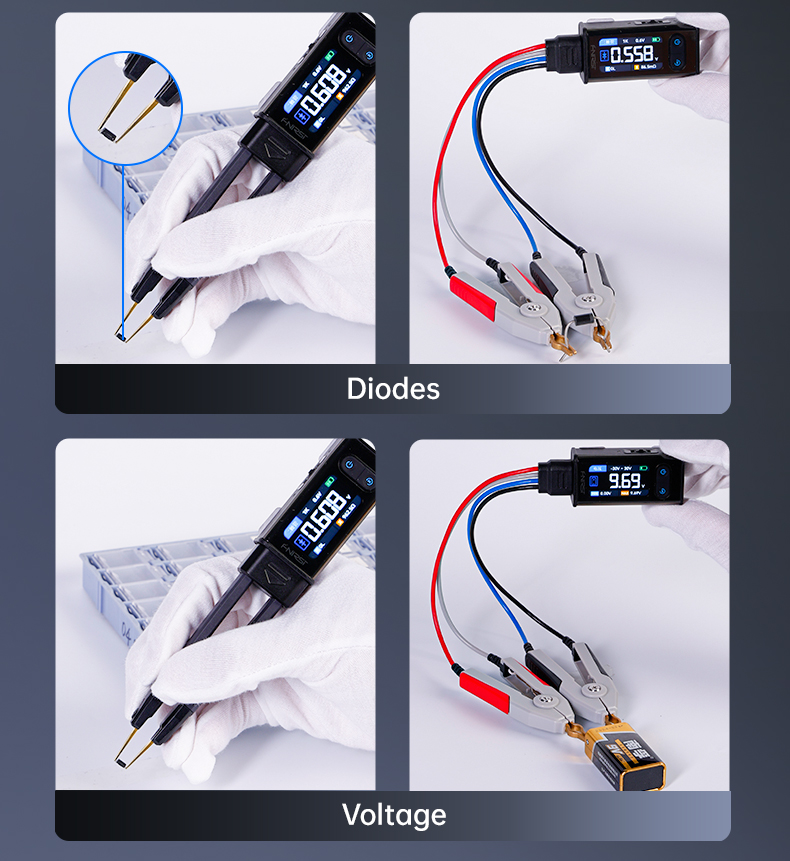

It is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes, as well as voltage measurement up to 30 V. Equipped with advanced measurement technology, the LCR-ST2 ensures high accuracy and stability.

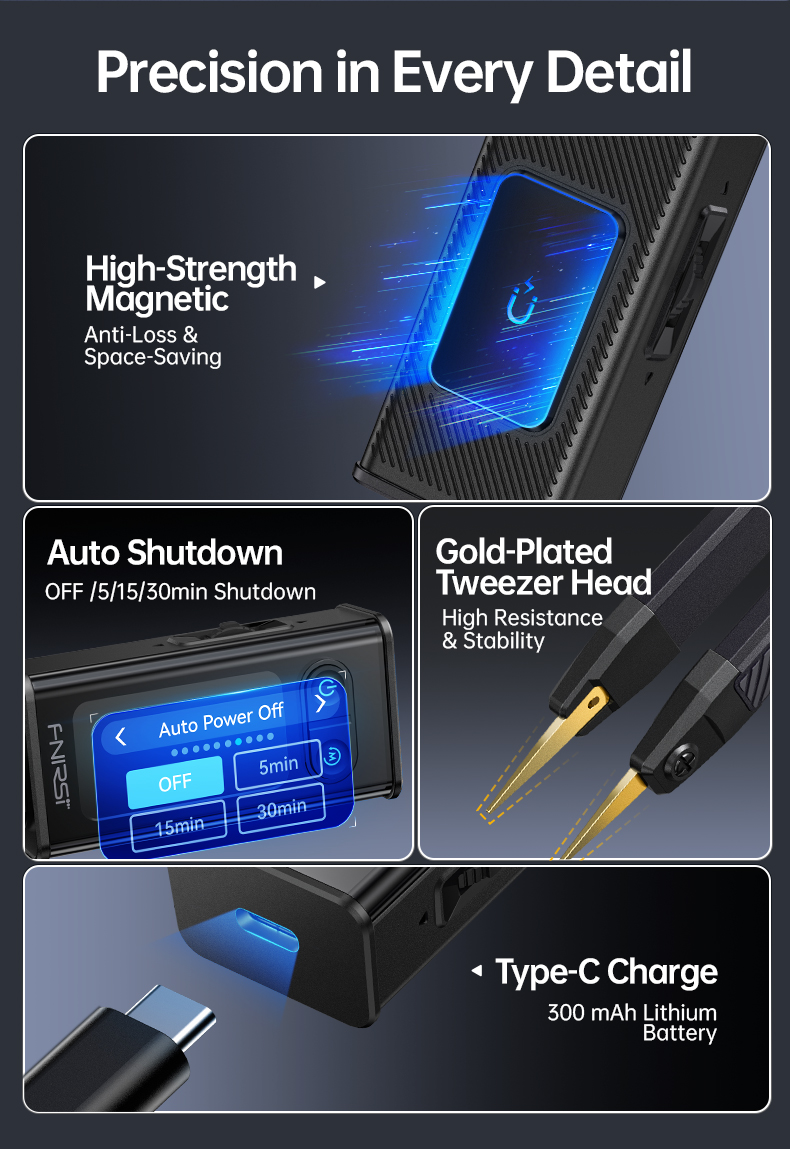

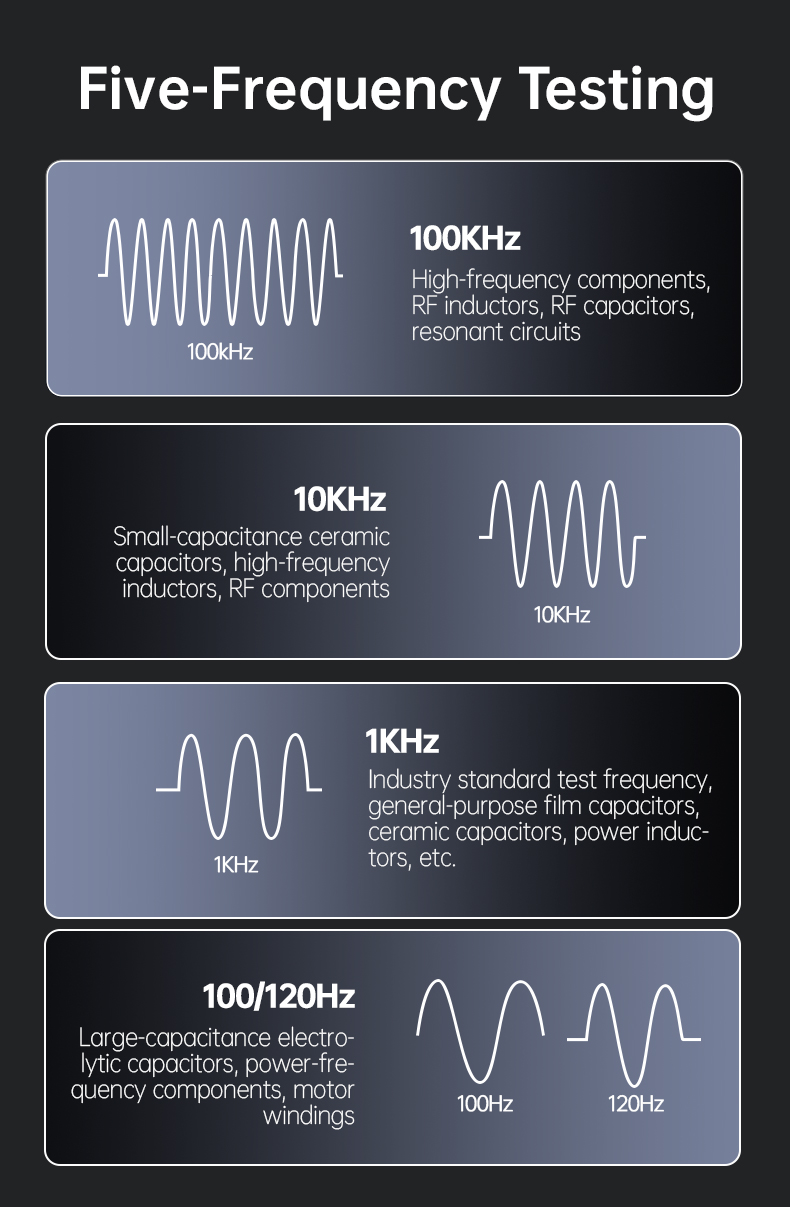

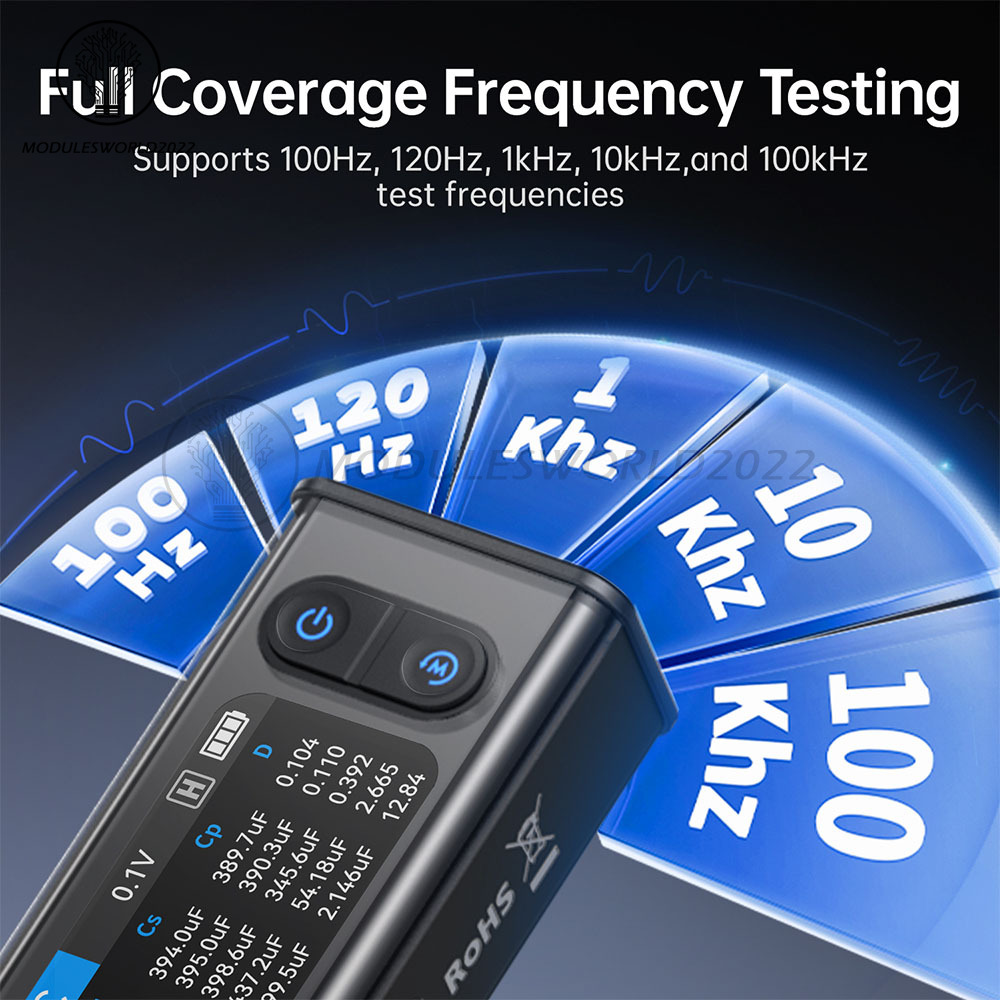

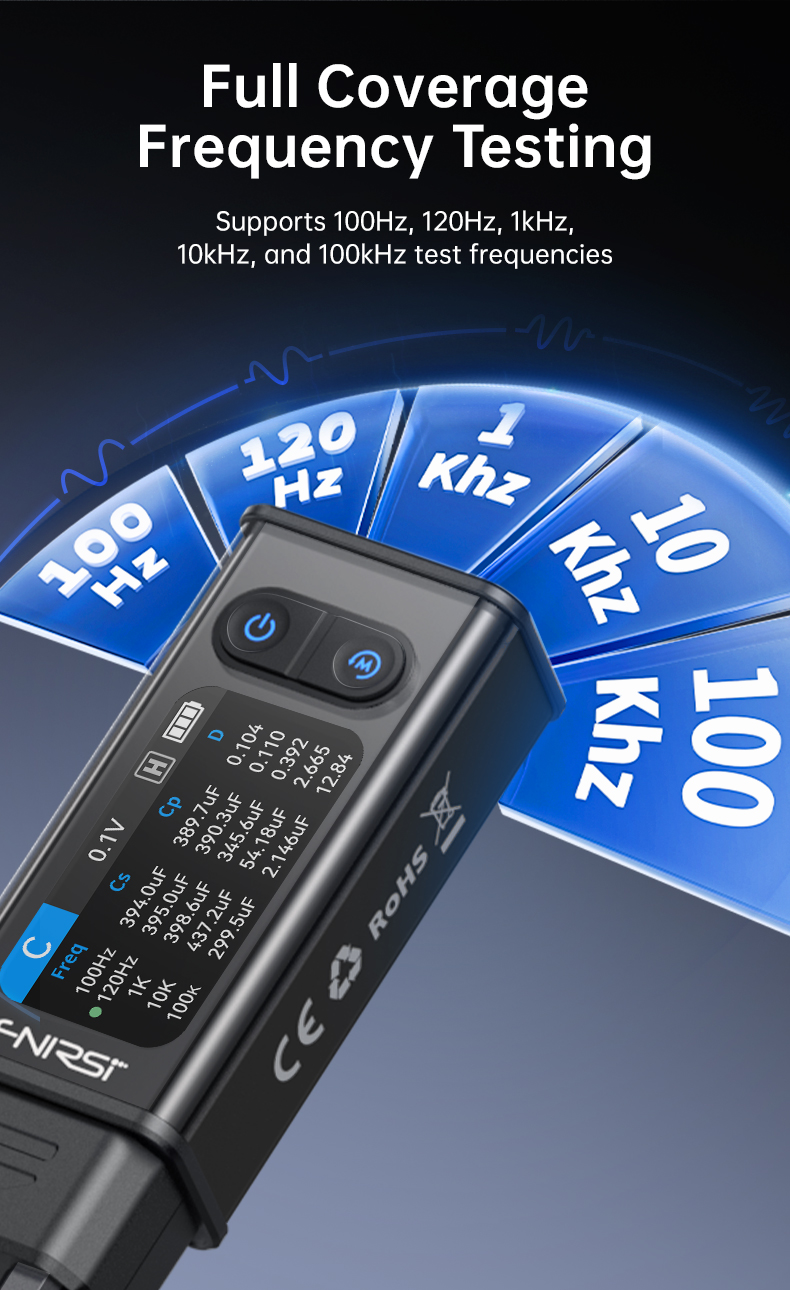

It features a 1.47-inch high-definition color display and magnetic attachment design, enhancing ease of use and portability. A built-in 300 mAh lithium battery provides long operating time, and the instrument supports five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.
Its unique tweezer-style design is especially suitable for fine operations in confined spaces, allowing quick testing of electronic components. In addition, the LCR-ST2 offers a sweep function that can rapidly scan component parameters across the full frequency range (100 Hz–100 kHz) and obtain multi-frequency data with a single press, enabling accurate component characterization.

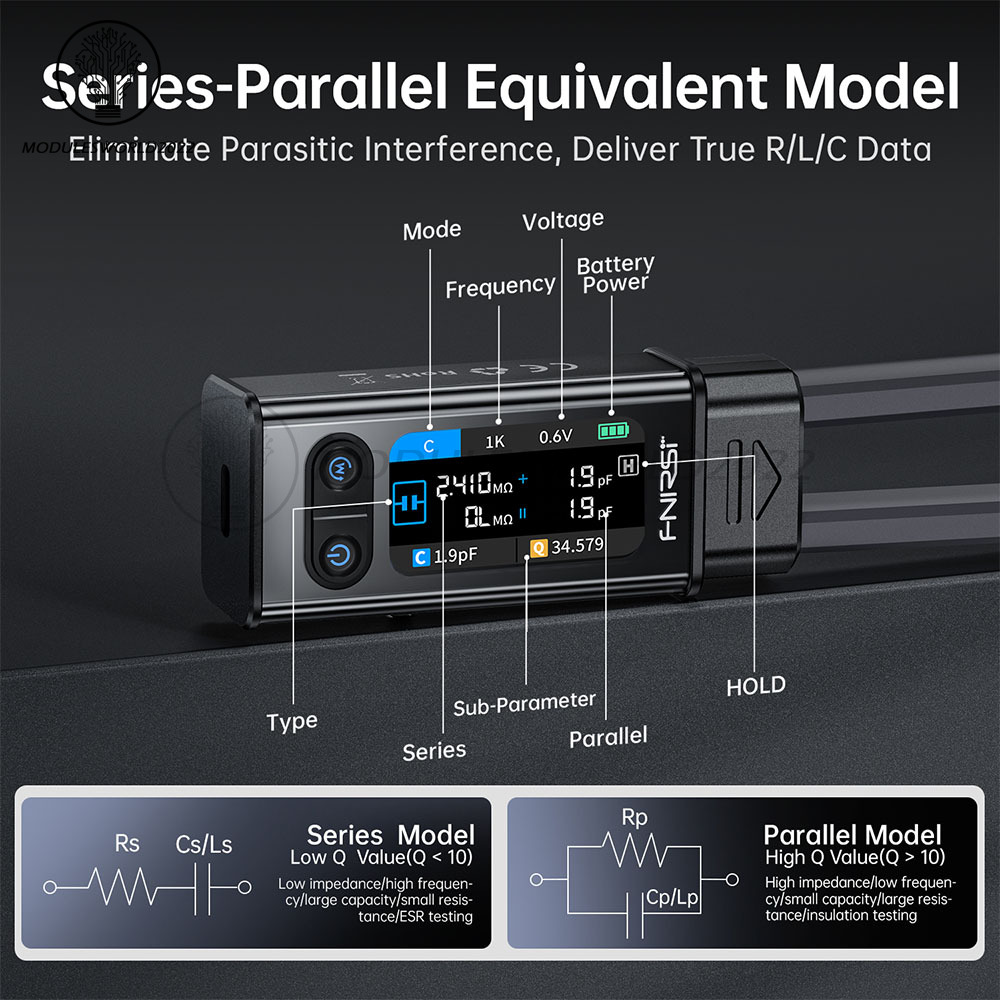

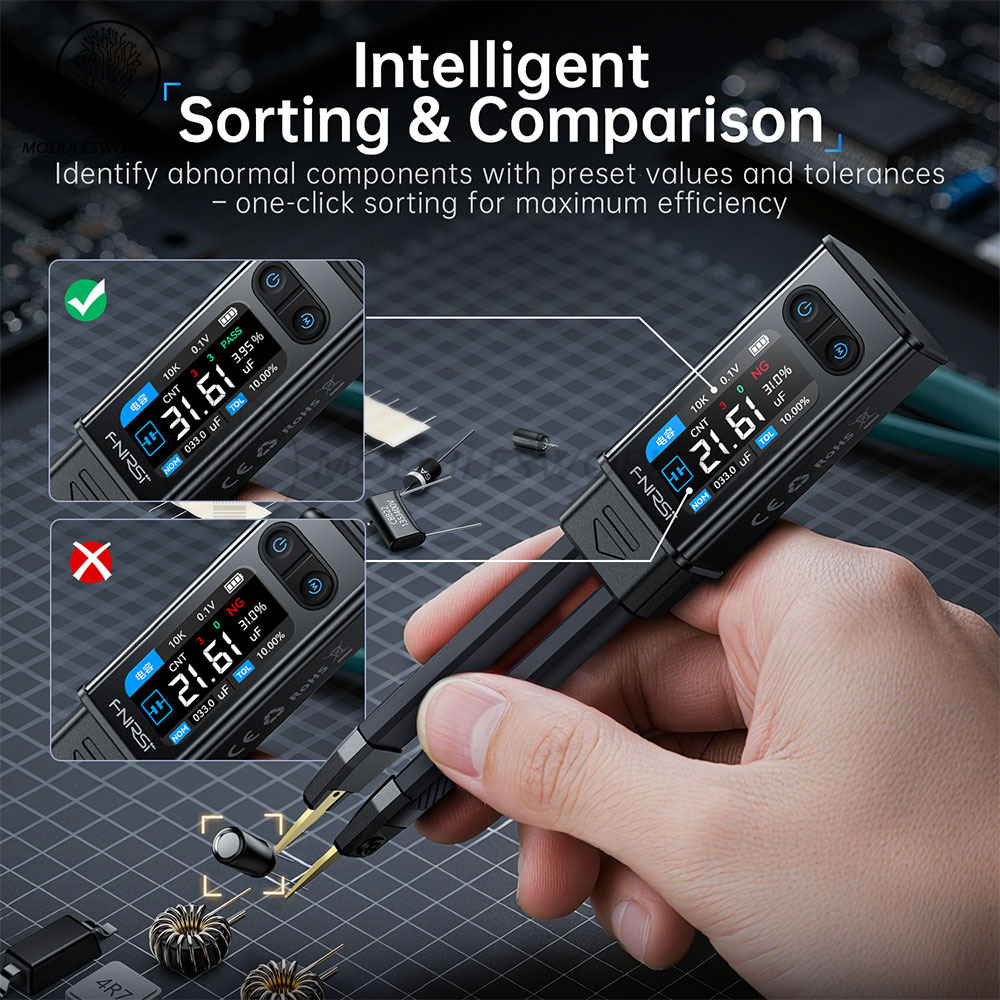

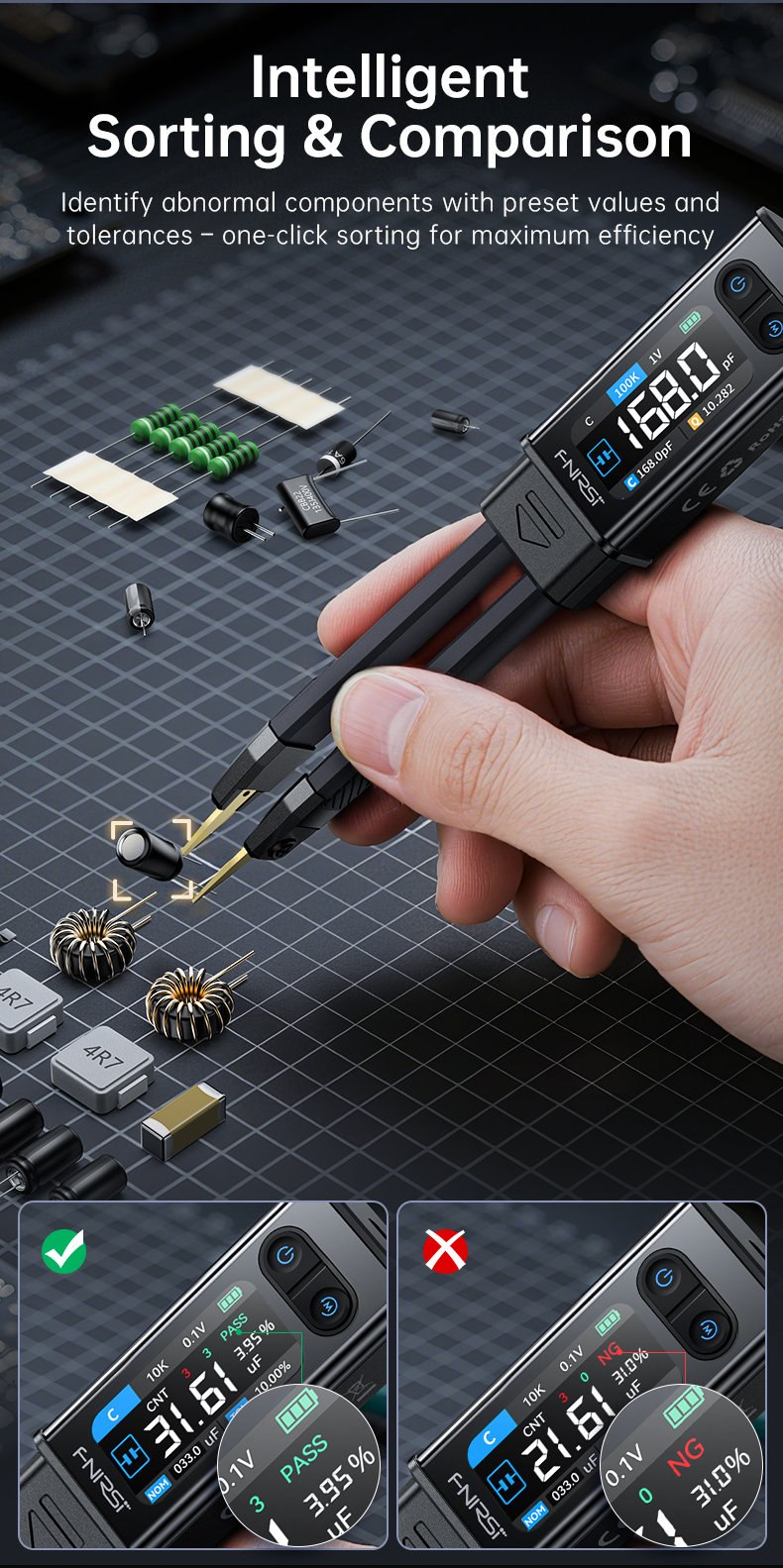

The intelligent sorting function automatically classifies and filters components, greatly improving batch testing efficiency. The dual-mode simultaneous display feature allows two measurement modes to be shown on the same screen for direct comparison, making result analysis more intuitive. With its lightweight and portable design, the LCR-ST2 is an indispensable high-efficiency tool for both field engineers and laboratory applications.

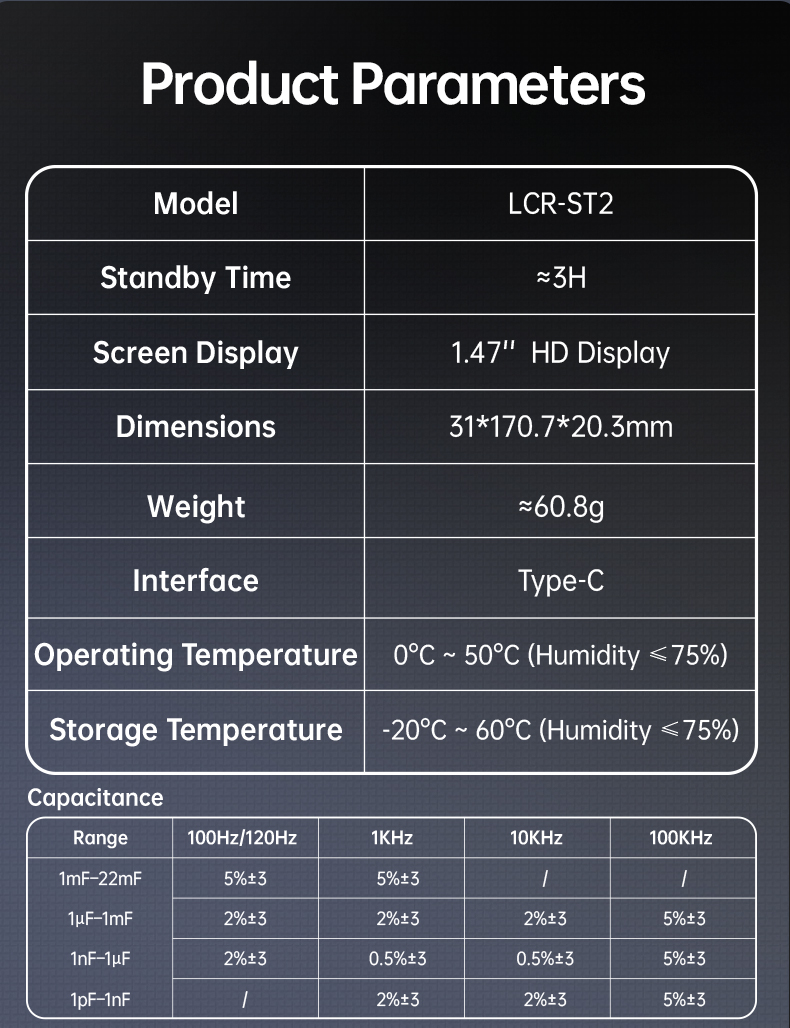

Parameter
Model: LCR-ST2
Display: 1.47-inch HD color screen
Battery: 300mAh lithium battery
Battery Life: Approx. 3 hours
Charging Port: Type-C
Dimensions: 31 × 170.7 × 20.3 mm
Net Weight: Approx. 60.8g
Operating Temperature: 0℃–50℃ (≤75%RH)
Storage Temperature: –20℃–60℃ (≤75%RH)
Auto power-off: Never / 5min / 15min / 30min
Language: English / Chinese
Calibration: Open / Short / Multiple resistor calibration
Adjustable screen brightness & sound
Auto recognition (R/C/L)
Capacitance range: 1pF–22mF
Inductance range: 1µH–10H
Resistance range: 10mΩ–10MΩ
Diode forward voltage detection: ≤0.7V

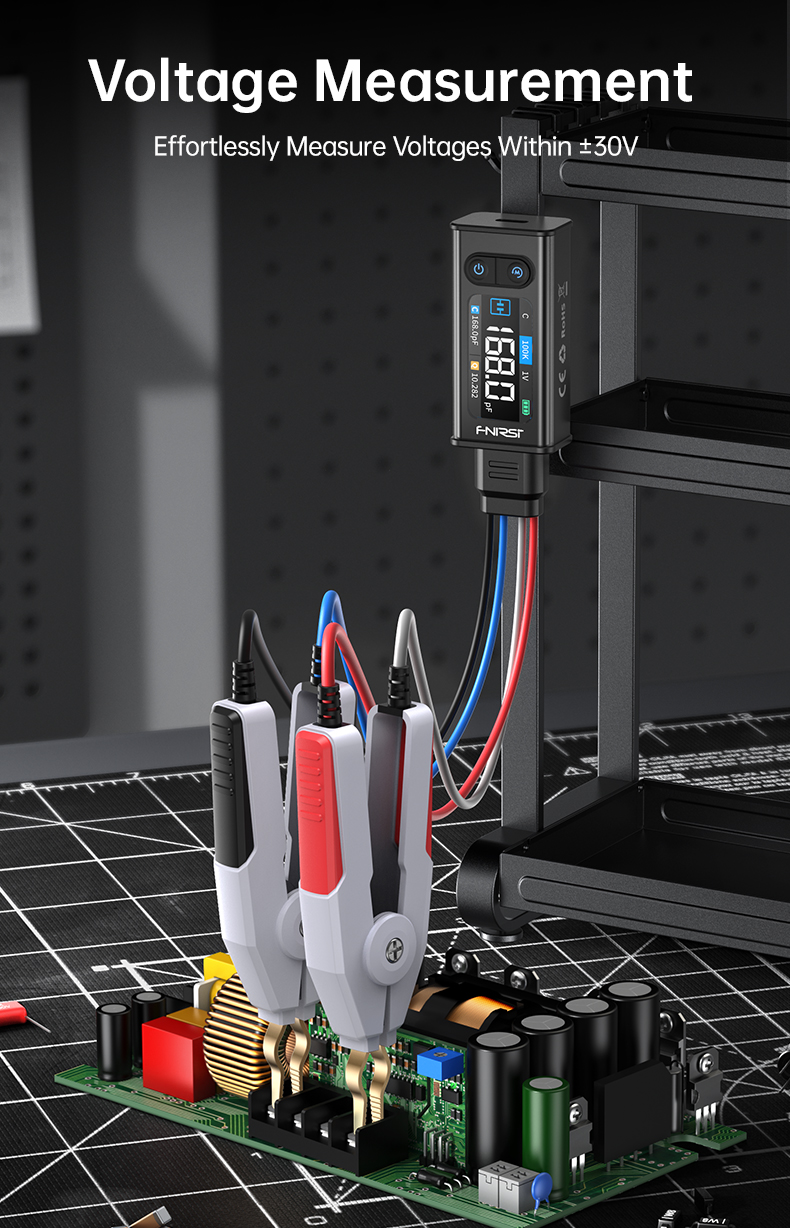

Voltage range: ±30V
Frequency sweep (100Hz–100kHz)

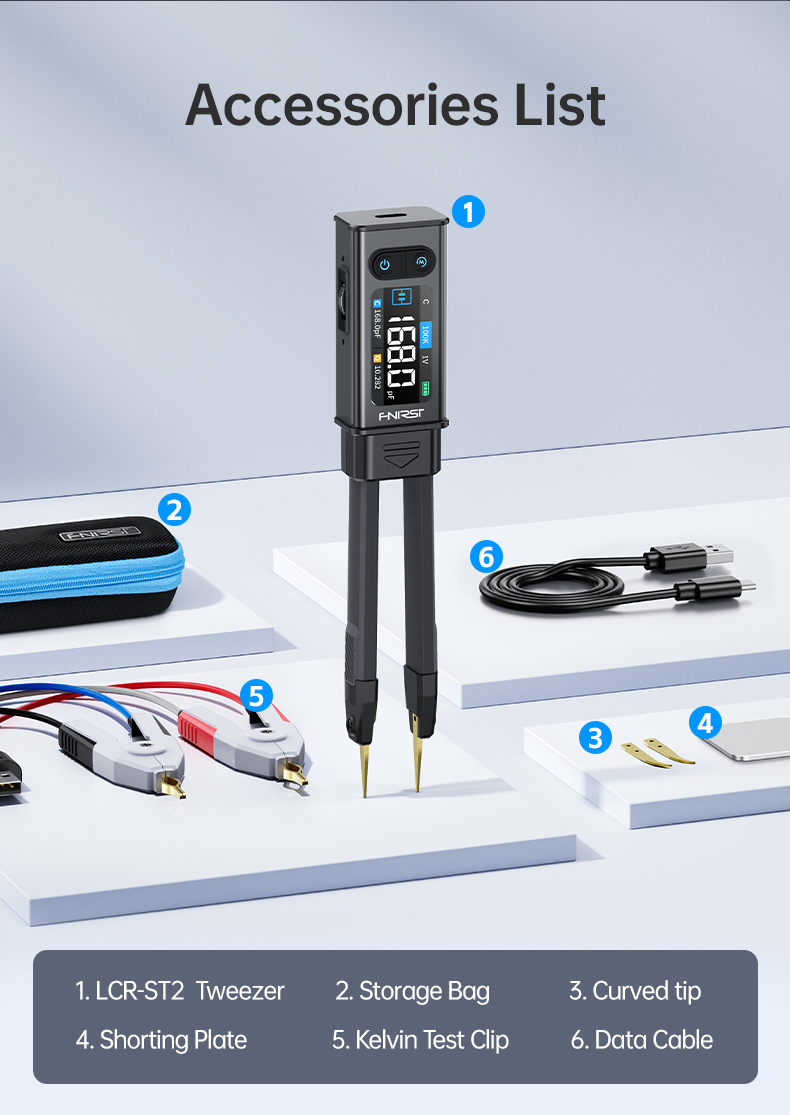

LCR-ST2 Set 1
1. LCR-ST2 Host + Tweezer-Style Clip
2. Storage Bag

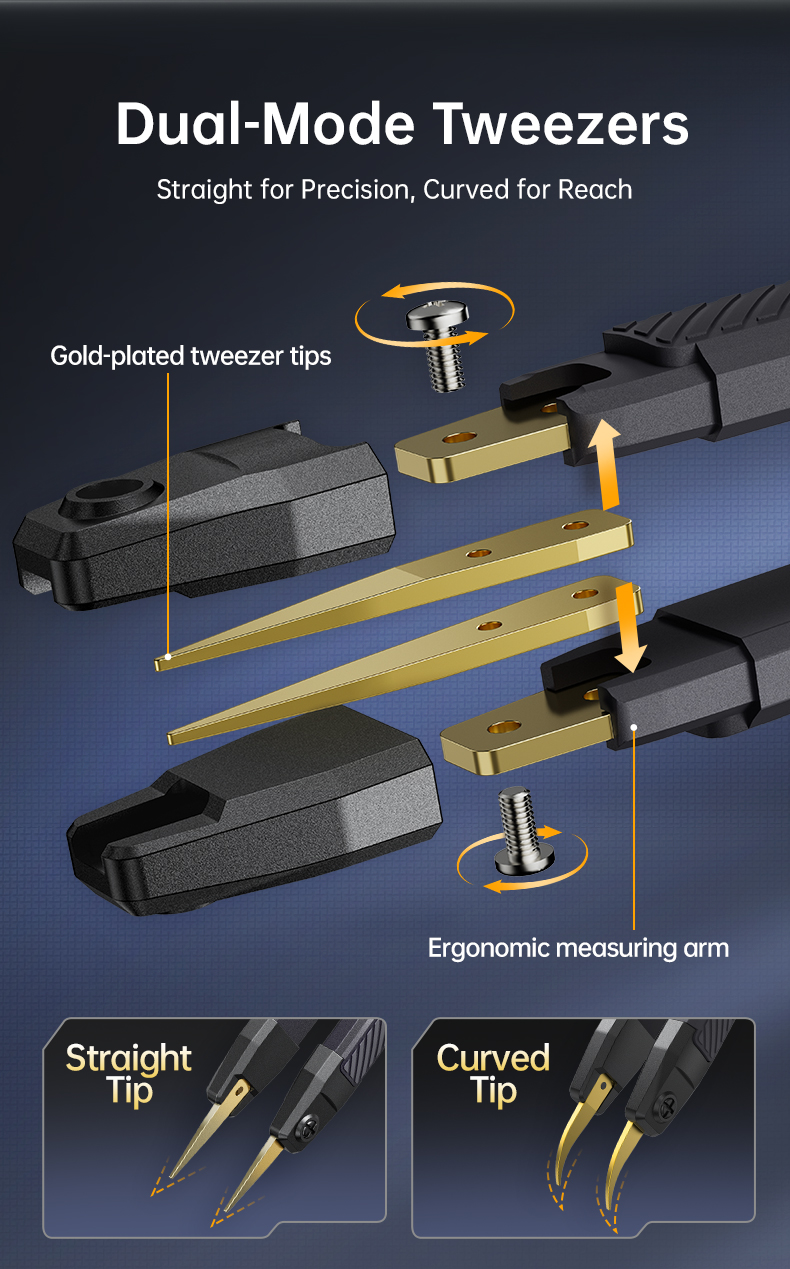

3. Curved tip
4. Shorting Plate
5. Data Cable
LCR-ST2 Set 2
1. LCR-ST2 Host + Tweezer-Style Clip
2. Storage Bag
3. Curved tip
4. Shorting Plate

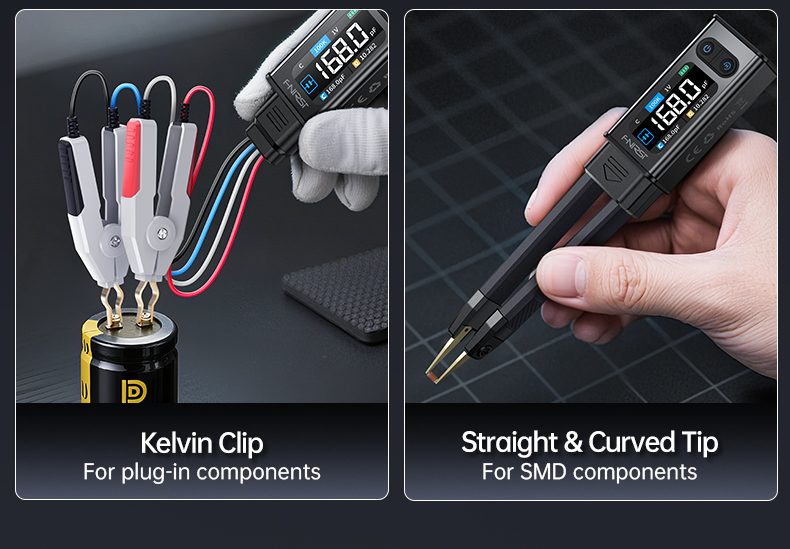

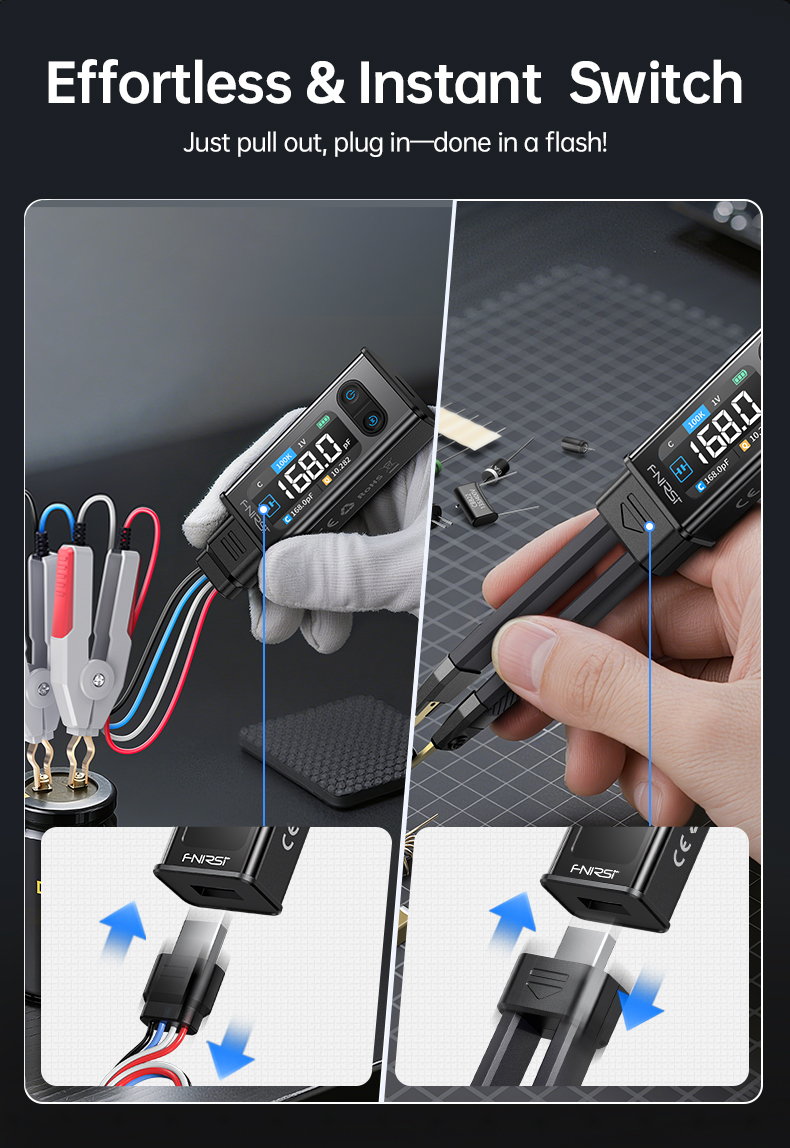

5. Kelvin Test Clip
6. Data Cable
