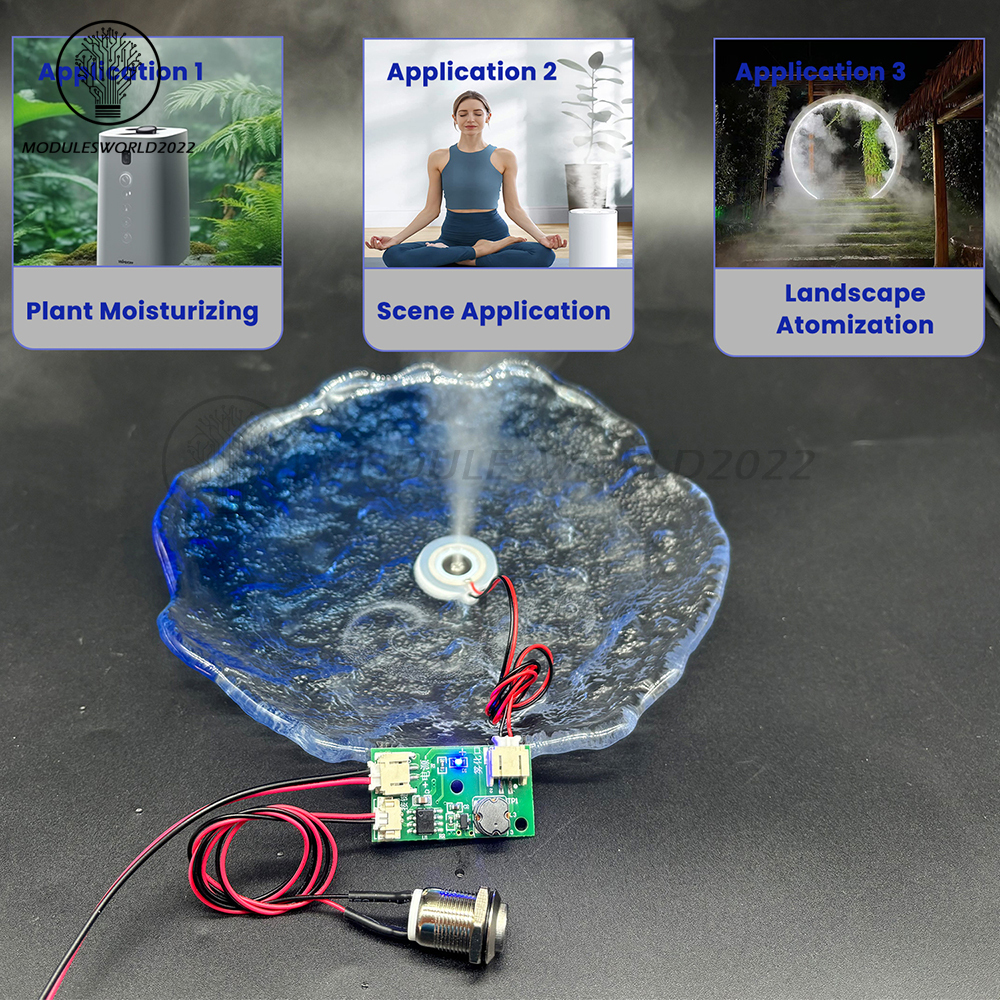

Product Features:
1. Supports continuous and intermittent misting modes to meet diverse humidification needs.
2. Ultrasonic atomization technology delivers fine mist with high efficiency, energy savings, and low power consumption.
3. Built-in auto-shutdown protection ensures safe and worry-free operation.
4. Modular design enables easy DIY customization for versatile applications.
5. Equipped with LED indicator lights for clear status display and intuitive operation.
1. Supports continuous and intermittent misting modes to meet diverse humidification needs.
2. Ultrasonic atomization technology delivers fine mist with high efficiency, energy savings, and low power consumption.
3. Built-in auto-shutdown protection ensures safe and worry-free operation.
4. Modular design enables easy DIY customization for versatile applications.
5. Equipped with LED indicator lights for clear status display and intuitive operation.

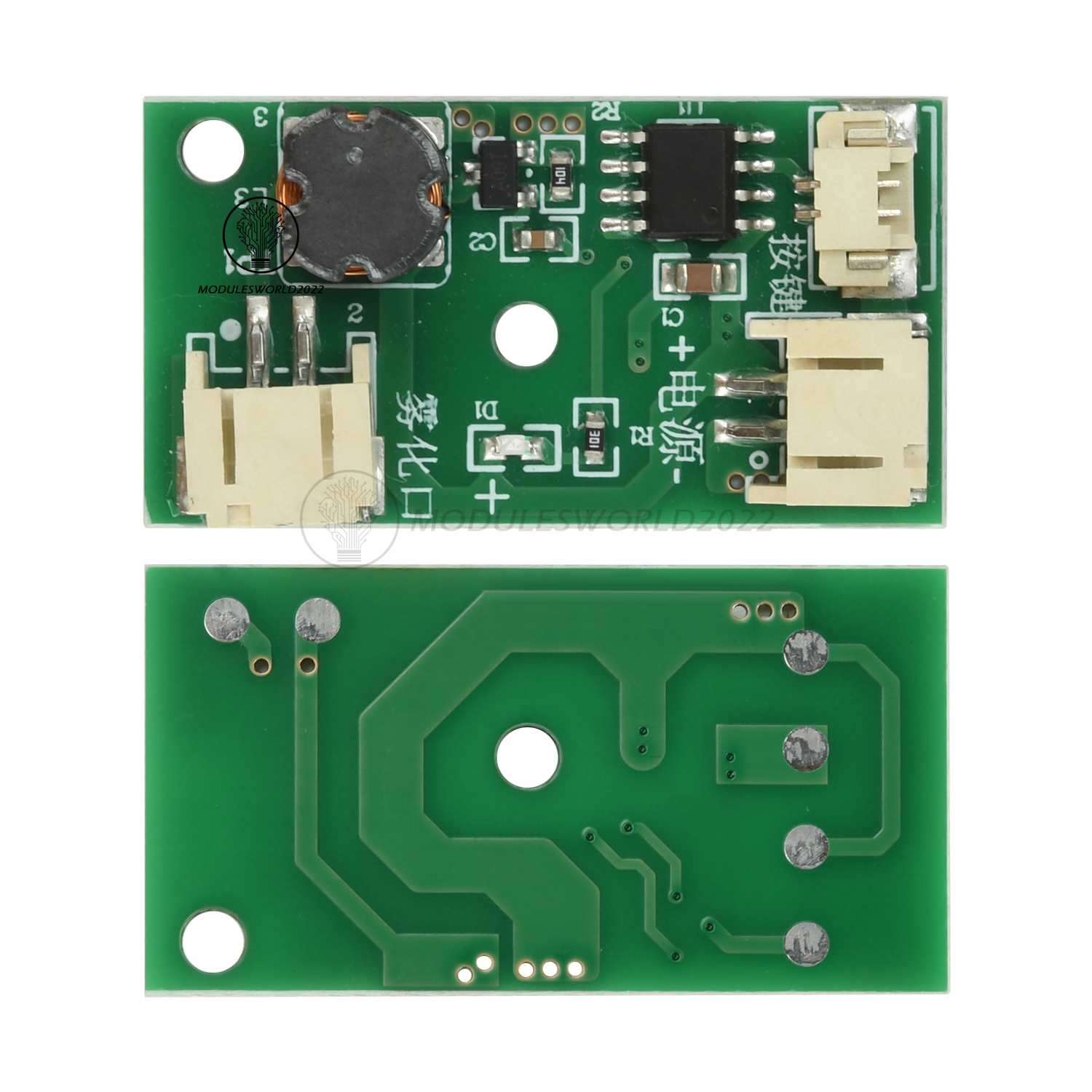

Product Specifications:

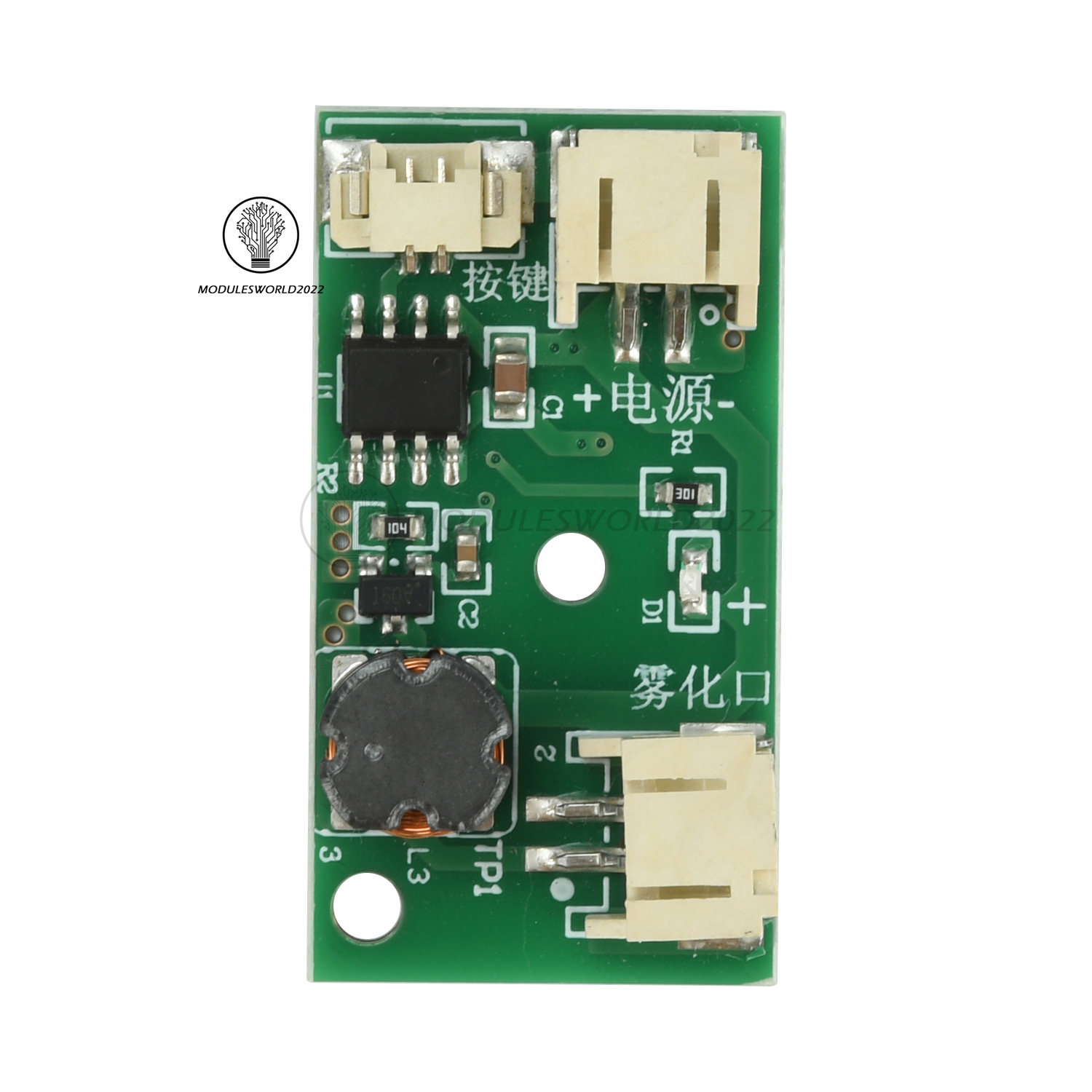

Name: External Switch Spray Humidifier Module
Material: 1.2MM FR-4
Rated Voltage: DC 5V (Power Supply)
Power Port: PH2.0
Button Interface: PH1.25
Atomization Frequency: 108KHZ±2KHZ
Rated Current: 300MA
Power: 1.5-2W

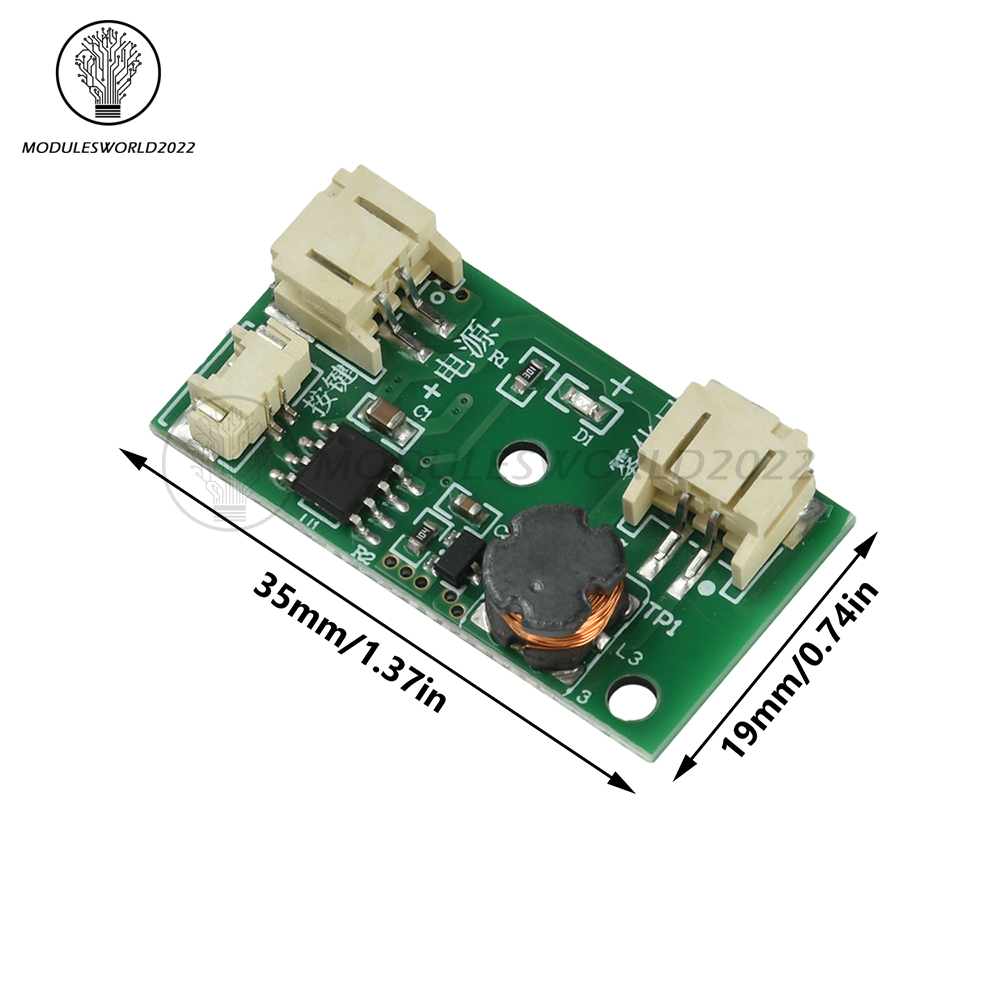

Dimensions: 35mm × 18.5mm
Name: External Switch Spray Humidifier Module
Material: 1.2MM FR-4
Rated Voltage: DC 5V (Power Supply)
Power Port: PH2.0
Button Interface: PH1.25
Atomization Frequency: 108KHZ±2KHZ
Rated Current: 300MA
Power: 1.5-2W
Dimensions: 35mm × 18.5mm
Atomization Plate Parameters:
Name: Micro-Pore Atomization Plate
Drive Voltage: 5V
Resonance Frequency: 108-110kHz ±5
Rated Power: 2W
Pore Size: 4-5μm
Number of Holes: 800
Silicone Sleeve Outer Diameter: 20mm
Rubber Ring Thickness: 3mm
Steel Plate Diameter: 16mm
Wire Length: 250mm
Atomizer Interface: PH2.0
Atomizer Wire Length: 25cm
Switch Wire Length: 20/30cm
Cotton Swab: 8mm x 100mm
Name: Micro-Pore Atomization Plate
Drive Voltage: 5V
Resonance Frequency: 108-110kHz ±5
Rated Power: 2W
Pore Size: 4-5μm
Number of Holes: 800
Silicone Sleeve Outer Diameter: 20mm
Rubber Ring Thickness: 3mm
Steel Plate Diameter: 16mm
Wire Length: 250mm
Atomizer Interface: PH2.0
Atomizer Wire Length: 25cm
Switch Wire Length: 20/30cm
Cotton Swab: 8mm x 100mm

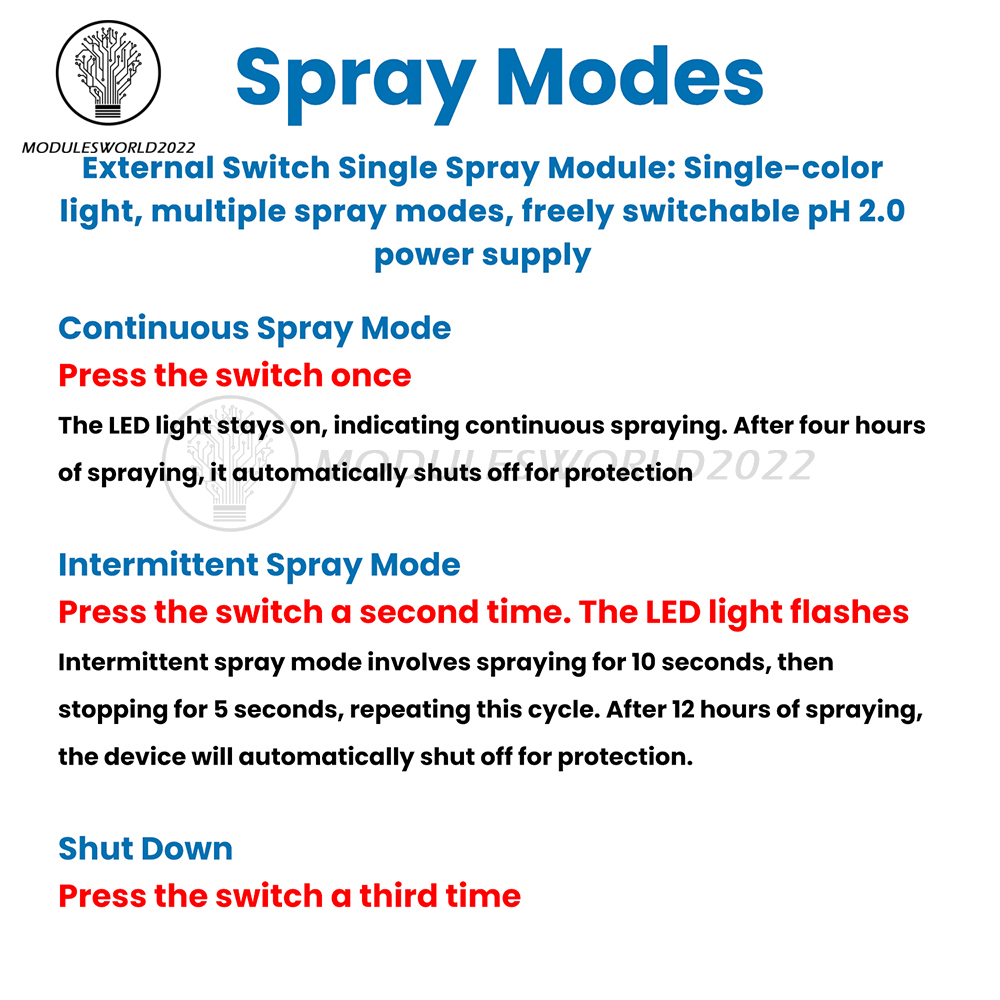

Spray Modes:
1. Continuous Spray Mode:
Press the switch once
LED stays on, continuous spray mode
Sprays continuously. Automatically shuts off after 4 hours for protection
2. Intermittent Spray Mode:
Press the switch a second time.
LED flashes.
Intermittent spray mode: sprays for 10 seconds, pauses for 5 seconds,
repeats cycle. Automatically shuts off after 12 hours of operation.
3. Power Off:
Press the switch a third time.
1. Continuous Spray Mode:
Press the switch once
LED stays on, continuous spray mode
Sprays continuously. Automatically shuts off after 4 hours for protection
2. Intermittent Spray Mode:
Press the switch a second time.
LED flashes.
Intermittent spray mode: sprays for 10 seconds, pauses for 5 seconds,
repeats cycle. Automatically shuts off after 12 hours of operation.
3. Power Off:
Press the switch a third time.

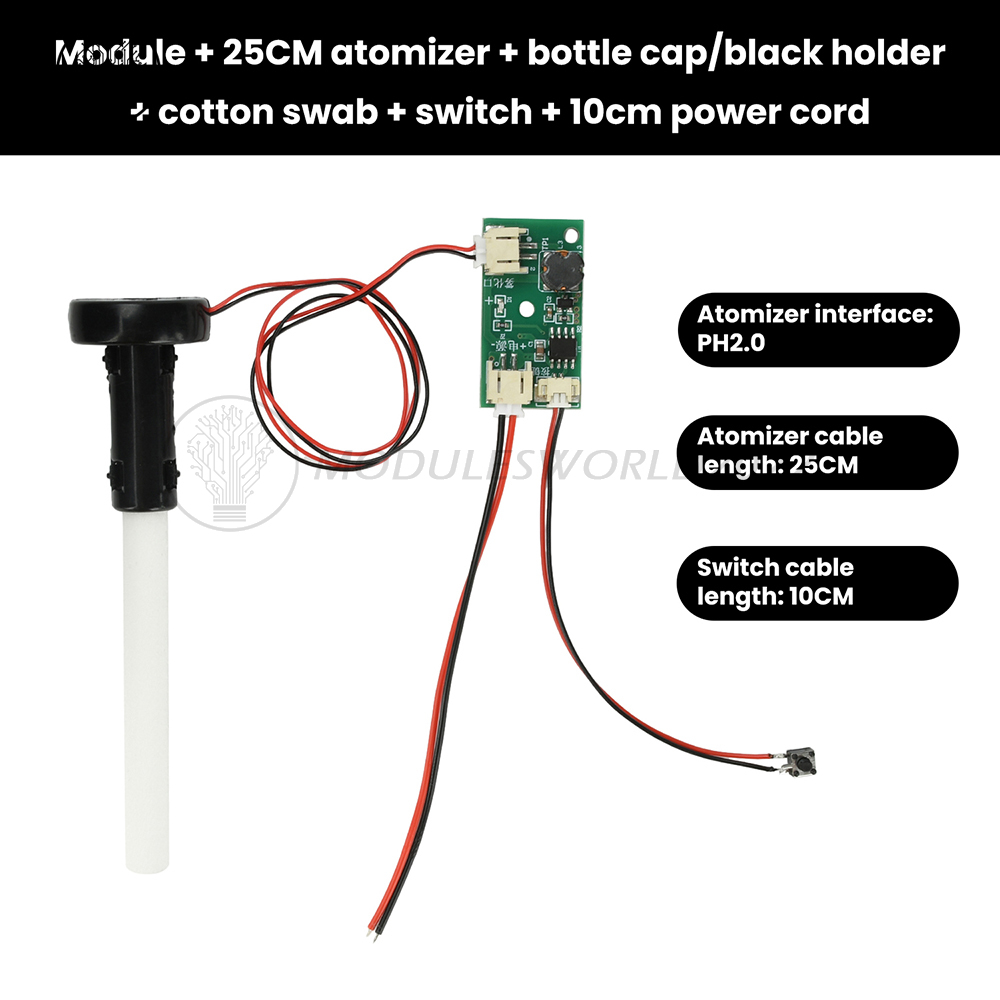

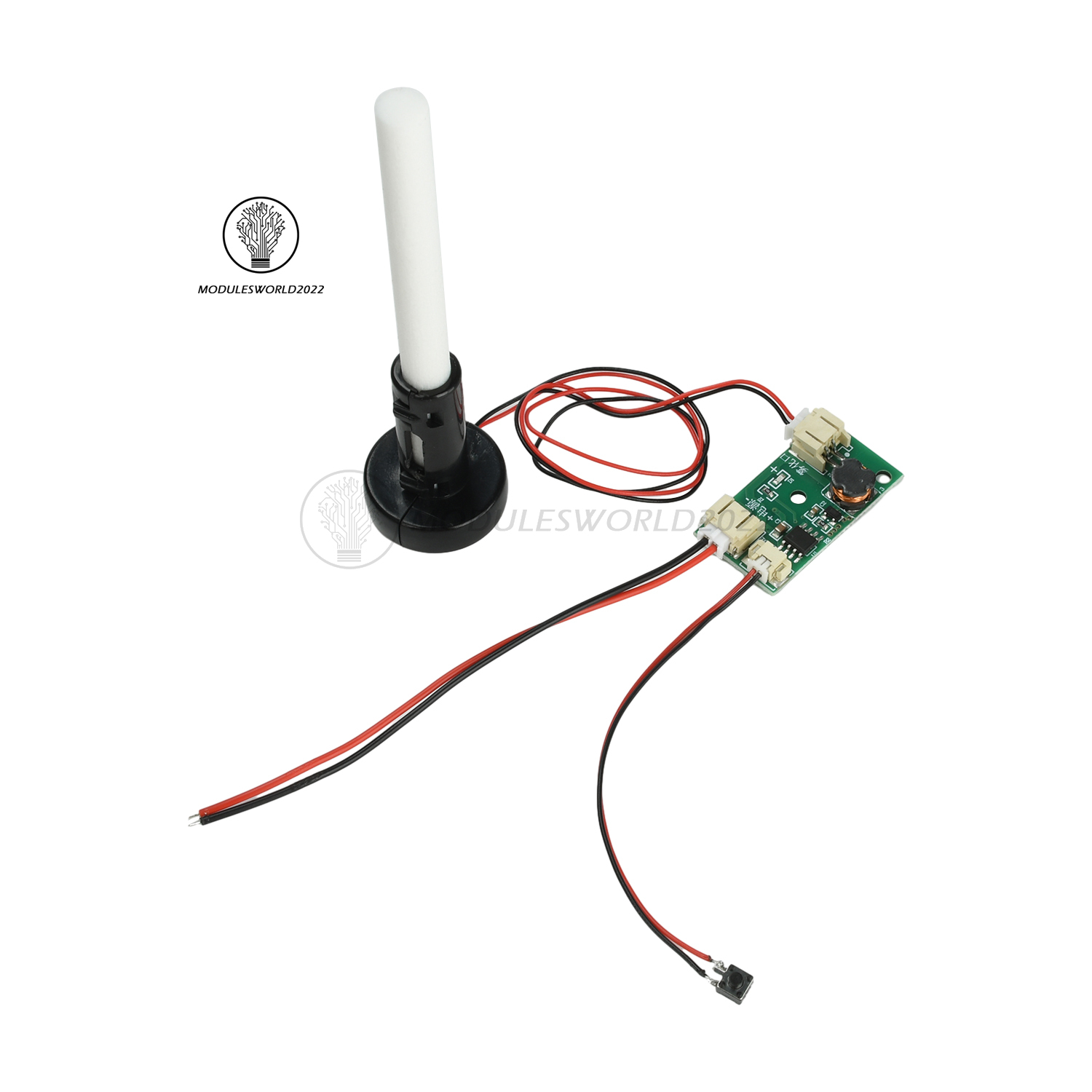

Product Listing: ( set A or set B, item ship according buyer choose)
Set A:
5x Module
5x Atomization Plate 25cm
5x Switch Cable 20cm
5x 10cm Power Cord
5x Bottle Cap Black Holder
5x Cotton Swab 8*100mm
Set A:
5x Module
5x Atomization Plate 25cm
5x Switch Cable 20cm
5x 10cm Power Cord
5x Bottle Cap Black Holder
5x Cotton Swab 8*100mm

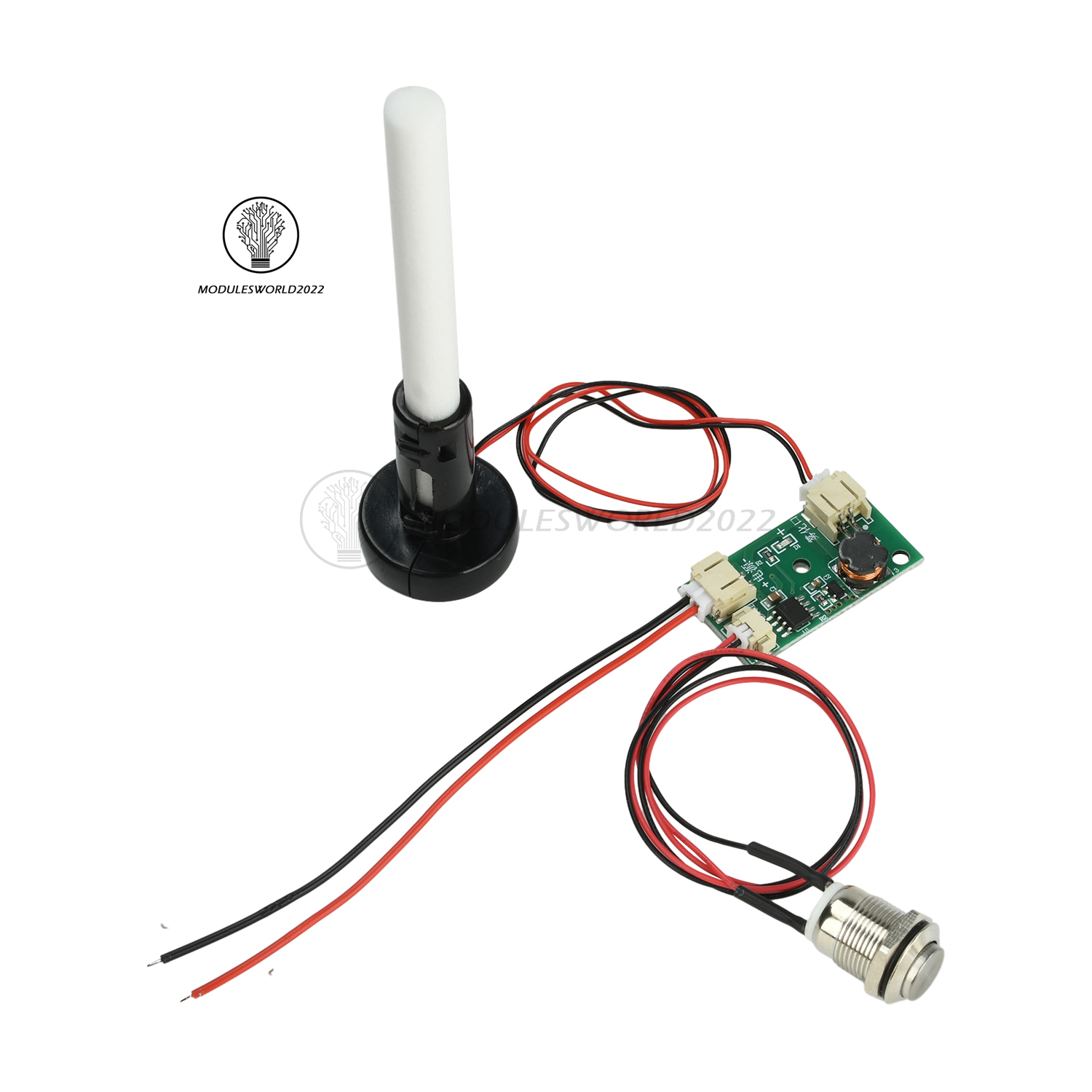

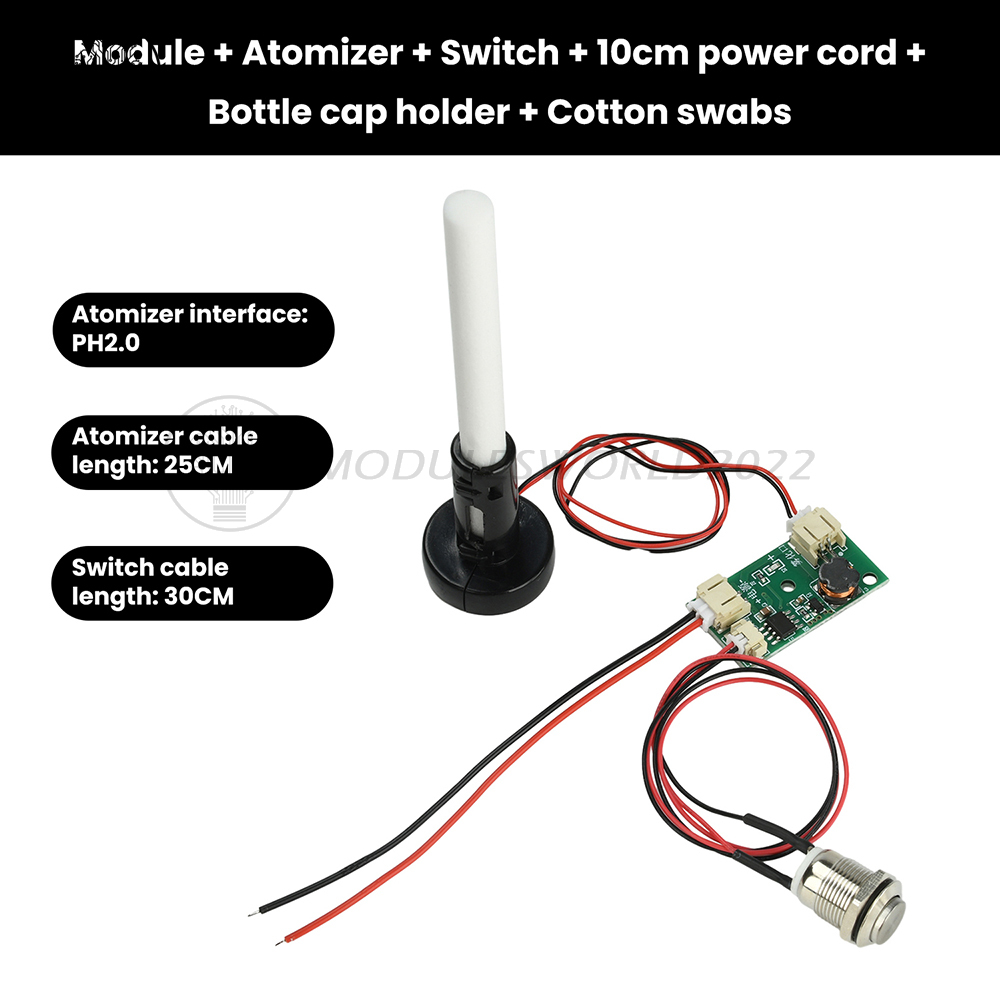

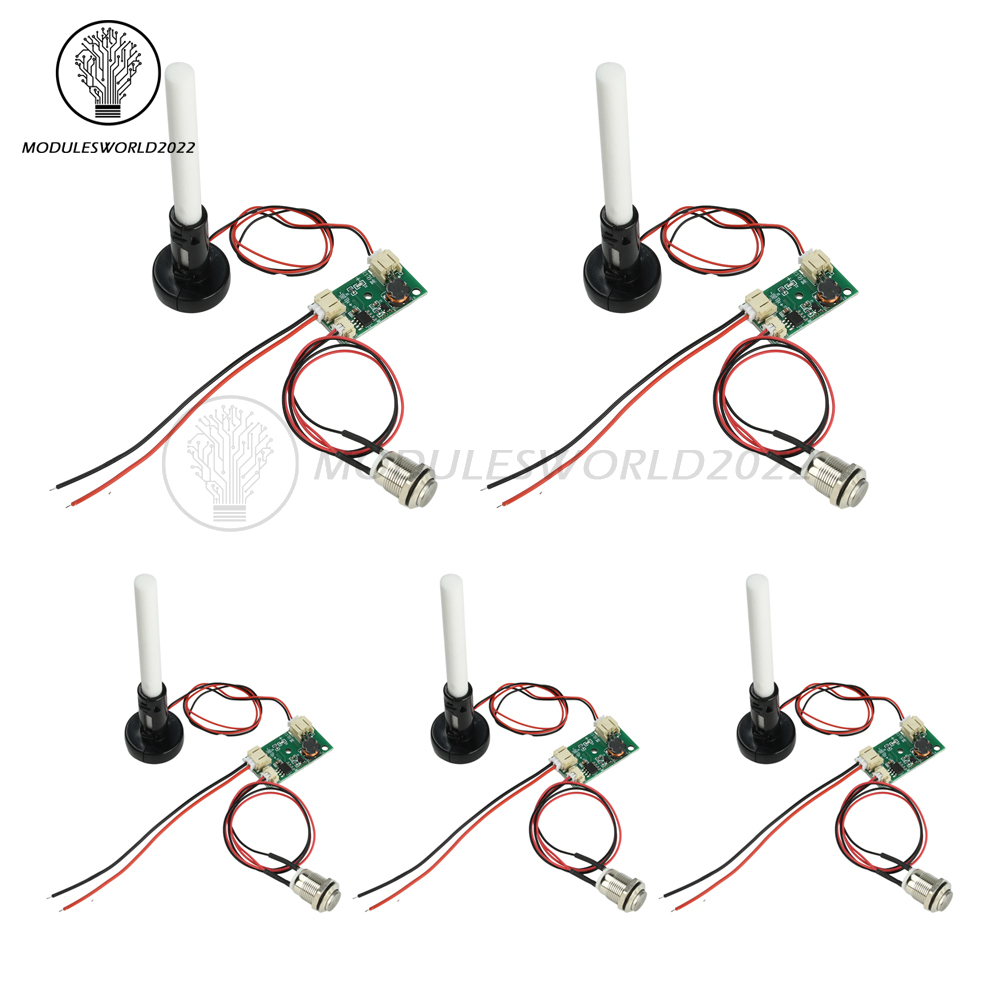

Set B:
5x Module
5x Atomization Plate 25cm
5x Push-button Switch 30cm
5x 10cm Power Cord
5x Black Bottle Cap Holder
5x Cotton Swab
5x Module
5x Atomization Plate 25cm
5x Push-button Switch 30cm
5x 10cm Power Cord
5x Black Bottle Cap Holder
5x Cotton Swab
Usage Instructions:
1. Install atomizer holder and cotton swab first
2. Connect atomizer to module's atomizer port
3. Connect power supply to module's power port
4. Press power switch
5. Atomizer sprays upon contact with water
1. Install atomizer holder and cotton swab first
2. Connect atomizer to module's atomizer port
3. Connect power supply to module's power port
4. Press power switch
5. Atomizer sprays upon contact with water
Precautions:
1. Never puncture the atomizer plate; do not bend or pull its solder joints.
2. Never power on without an atomizer plate connected.
3. Never use a fast charger.
4. Never modify the module.
5. Keep the module away from water.
6. Ensure the steel plate (raised side) faces down when absorbing liquid with the cotton swab.
7. Use only rated power input.
1. Never puncture the atomizer plate; do not bend or pull its solder joints.
2. Never power on without an atomizer plate connected.
3. Never use a fast charger.
4. Never modify the module.
5. Keep the module away from water.
6. Ensure the steel plate (raised side) faces down when absorbing liquid with the cotton swab.
7. Use only rated power input.
