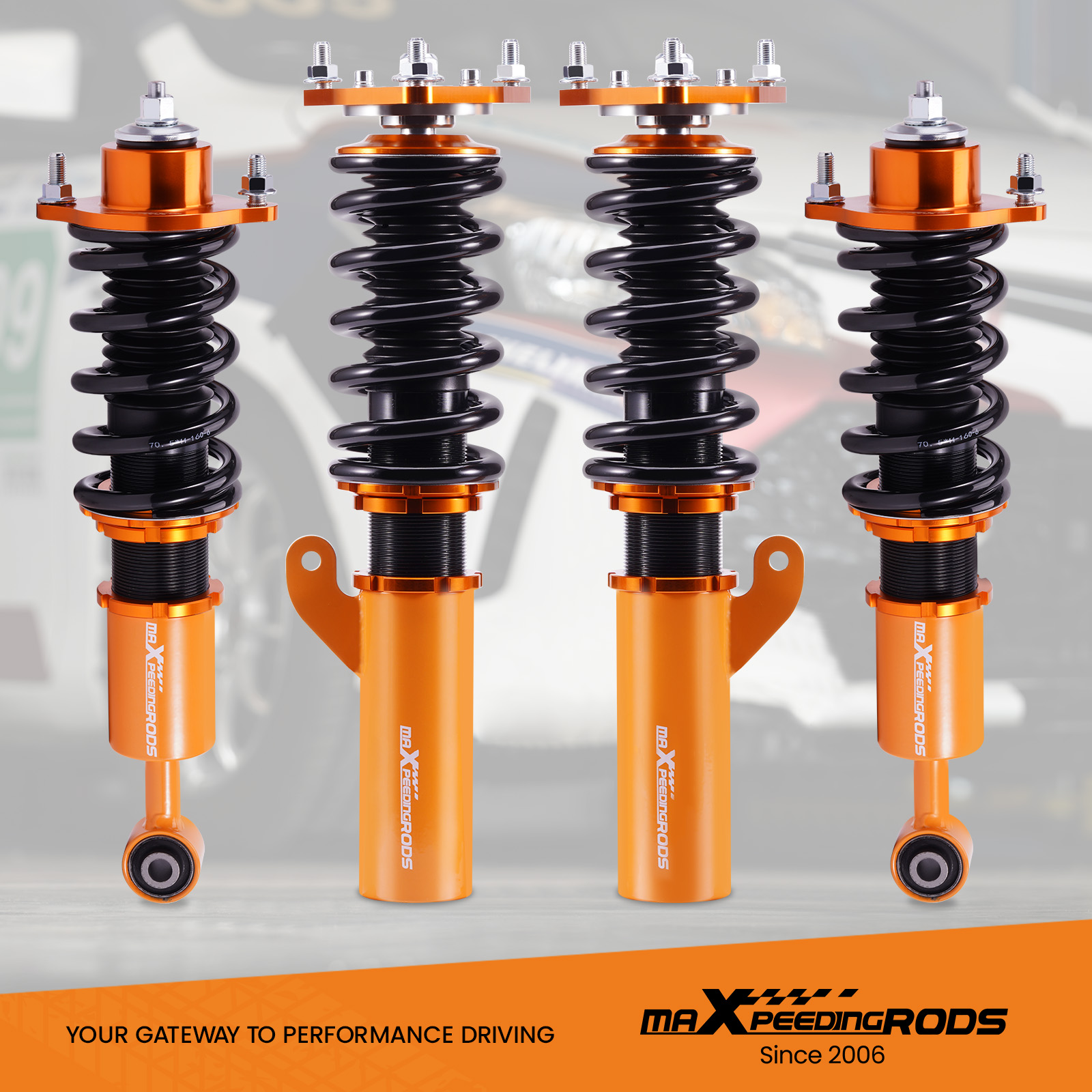

Height Adjustment Coilover For Mitsubishi Lancer CX/CY 2008-2016 Outlancer Sport

Introduction

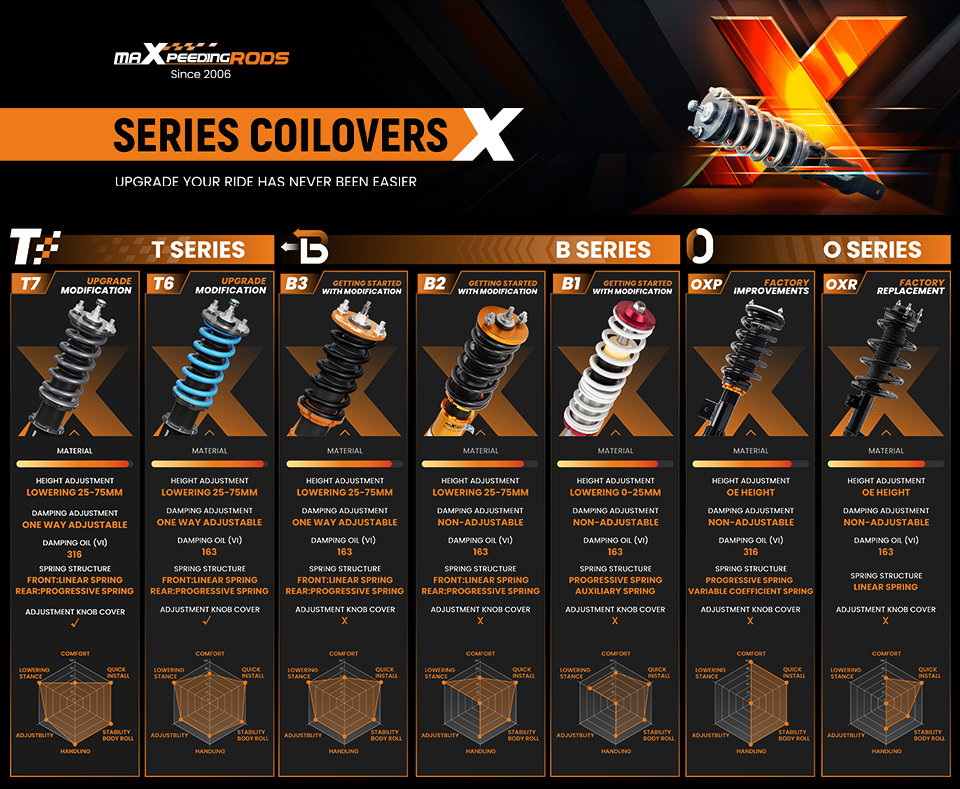

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

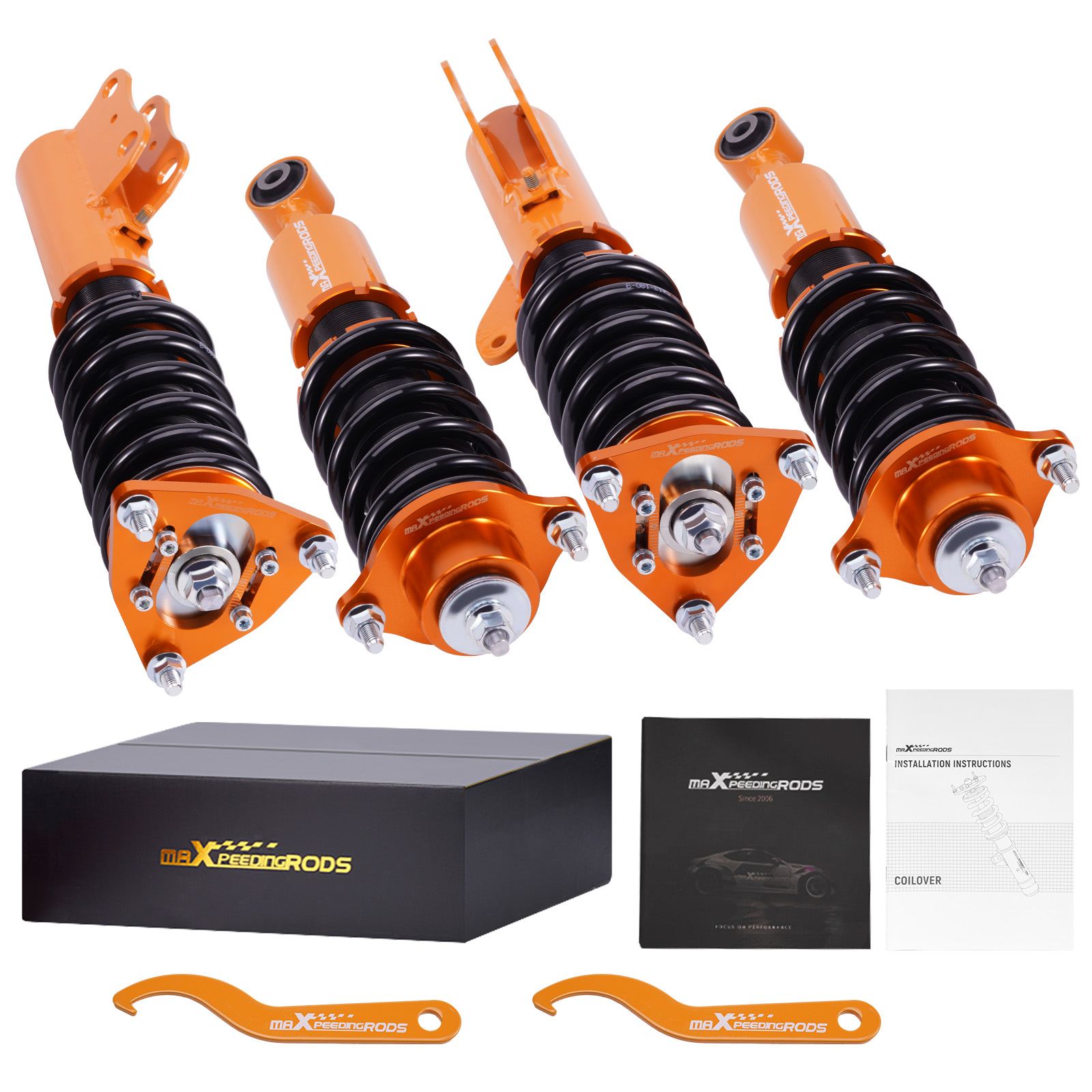

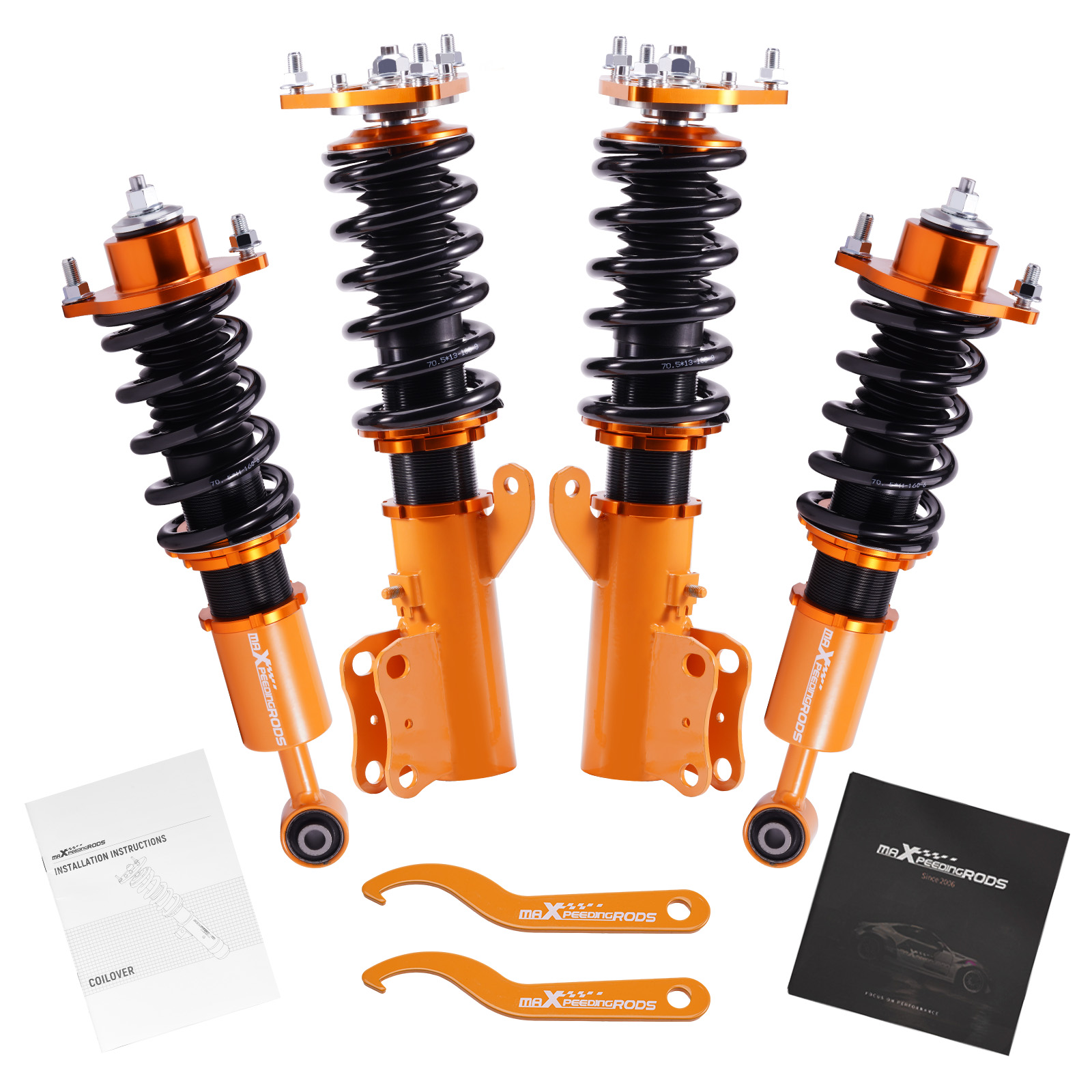

Package included

Complete coilovers 2 front and 2 rear
A pair wrench for height adjustment

Application

For Mitsubishi Lancer(CX/CY) 2008-2016, except Lancer Evolution
For Mitsubishi Outlander Sport(GA) 2011-2020

Notice:

The coilovers kit will "Lower your car" and does not keep to the original ride height.

Standard Technical Specifications

Top mounts	Pillow ball top mount with camber plate front, standard rubber top mount rear.
Damping adjustable	No adjustable damper force
Height adjustable	Yes lowering 1" to 3".
Spring Rate Front	9kg/mm (504 lbs/in)

Spring Rate Rear	6 kg/mm (336 in/lbs)
Spring Preload advised	7-10 mm
Shock type	Twin tube

Details

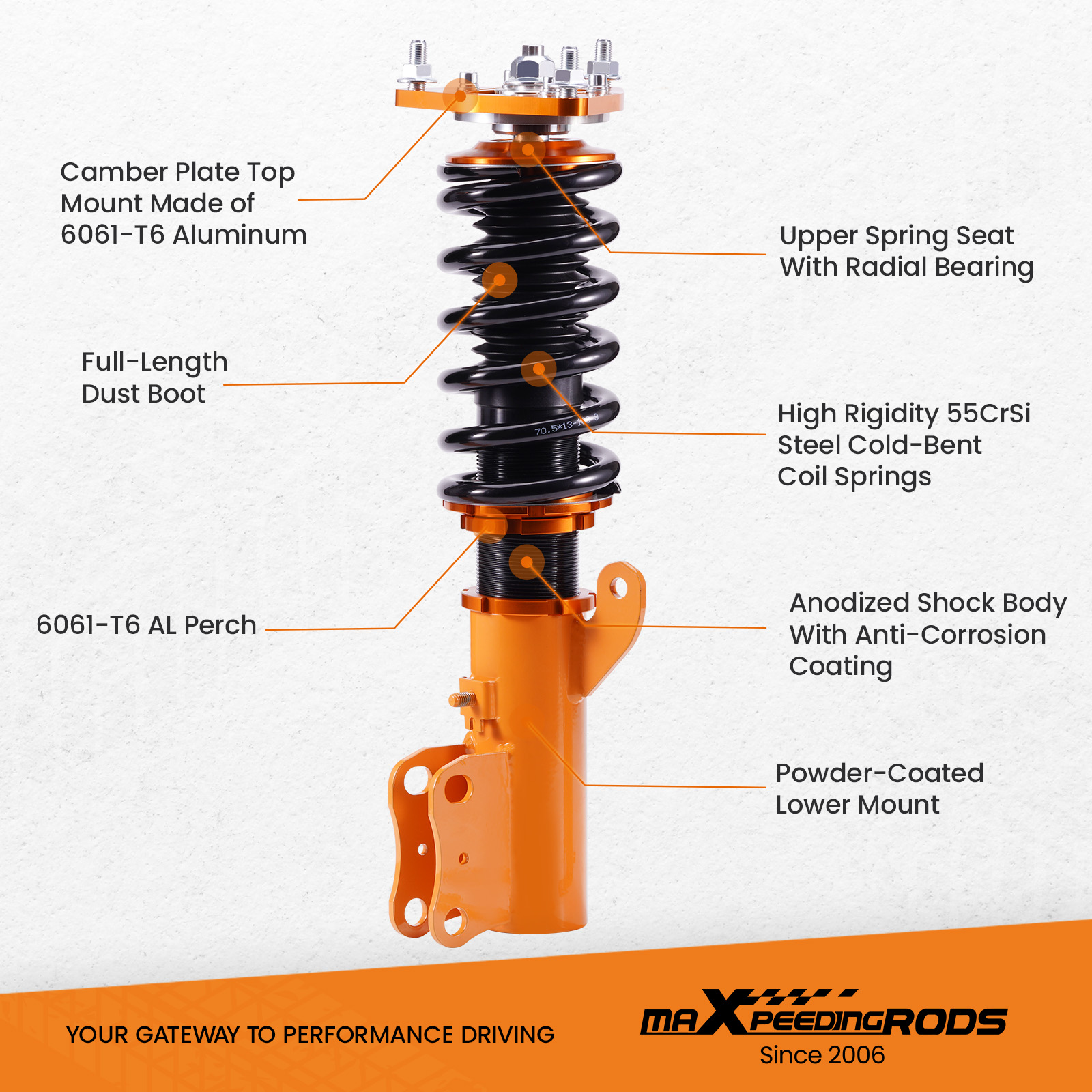

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

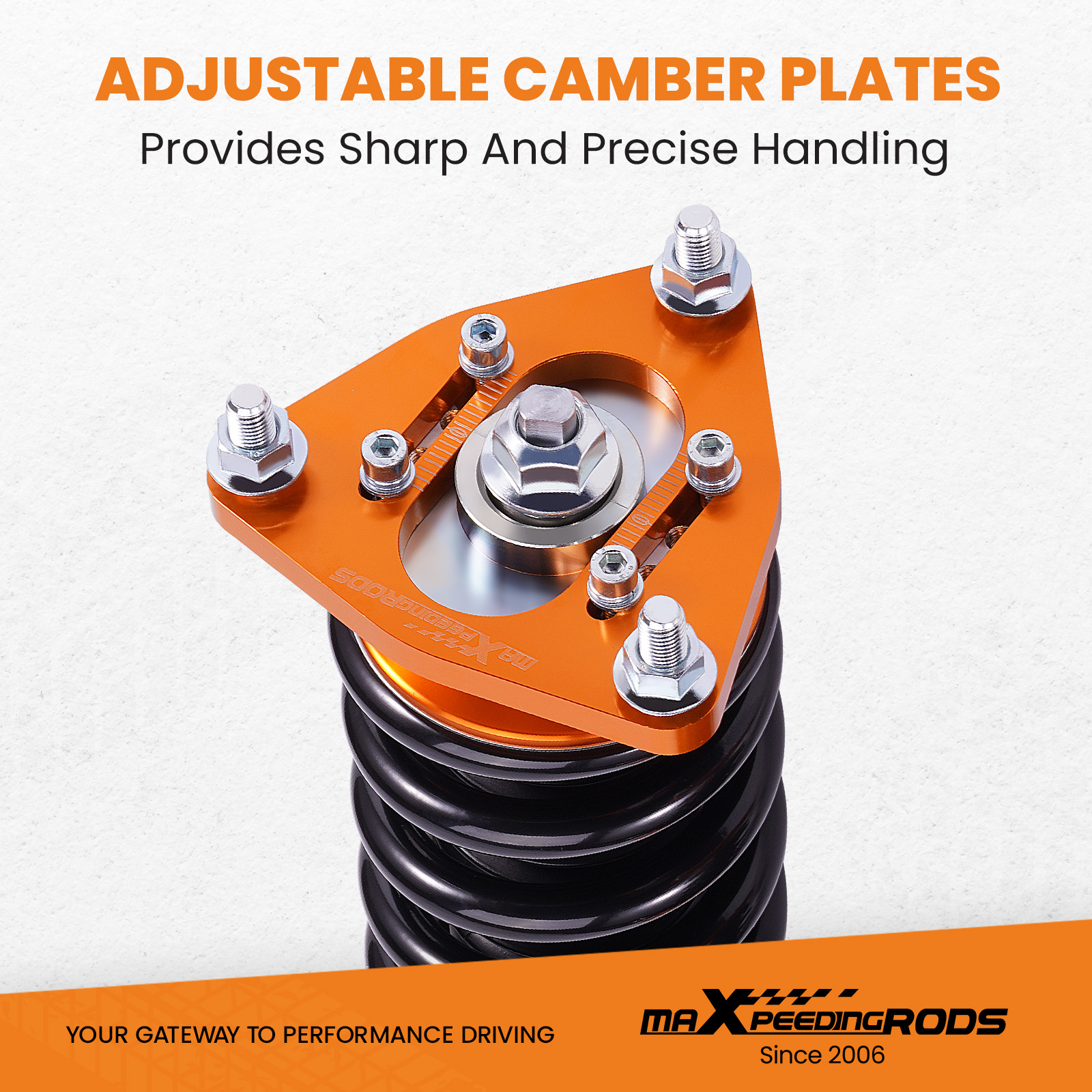

Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)
Pillow ball top mount - It improves the steering feel and response.（Front Only)
Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (only rear)
Twin-Tube structure allows sufficient stroke within the shock absorber.

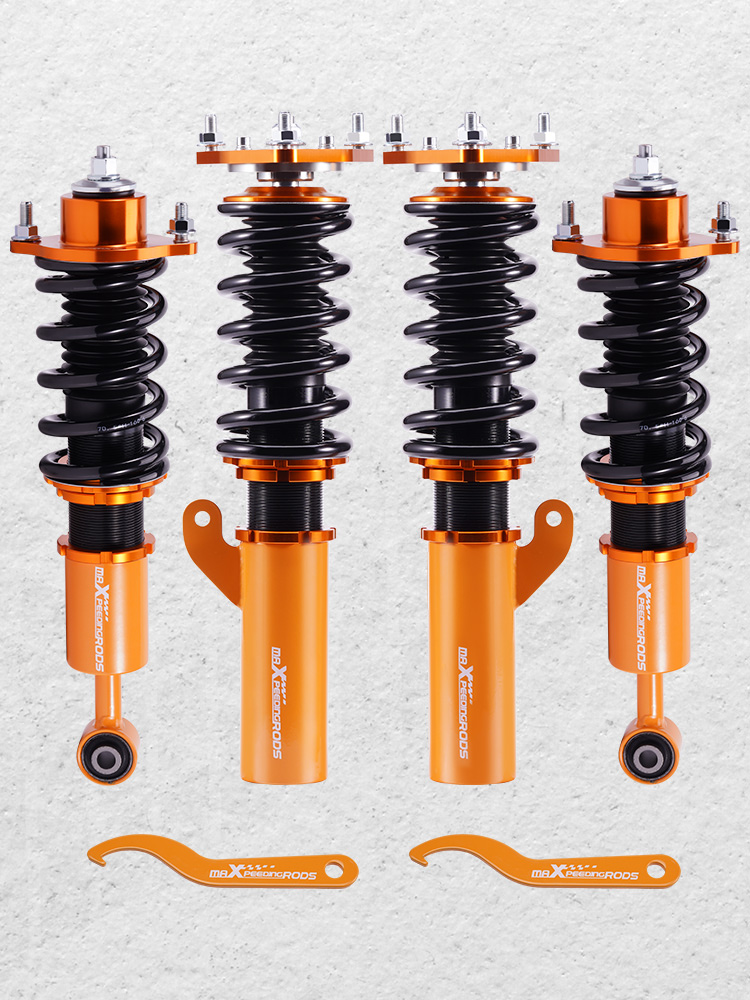

Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

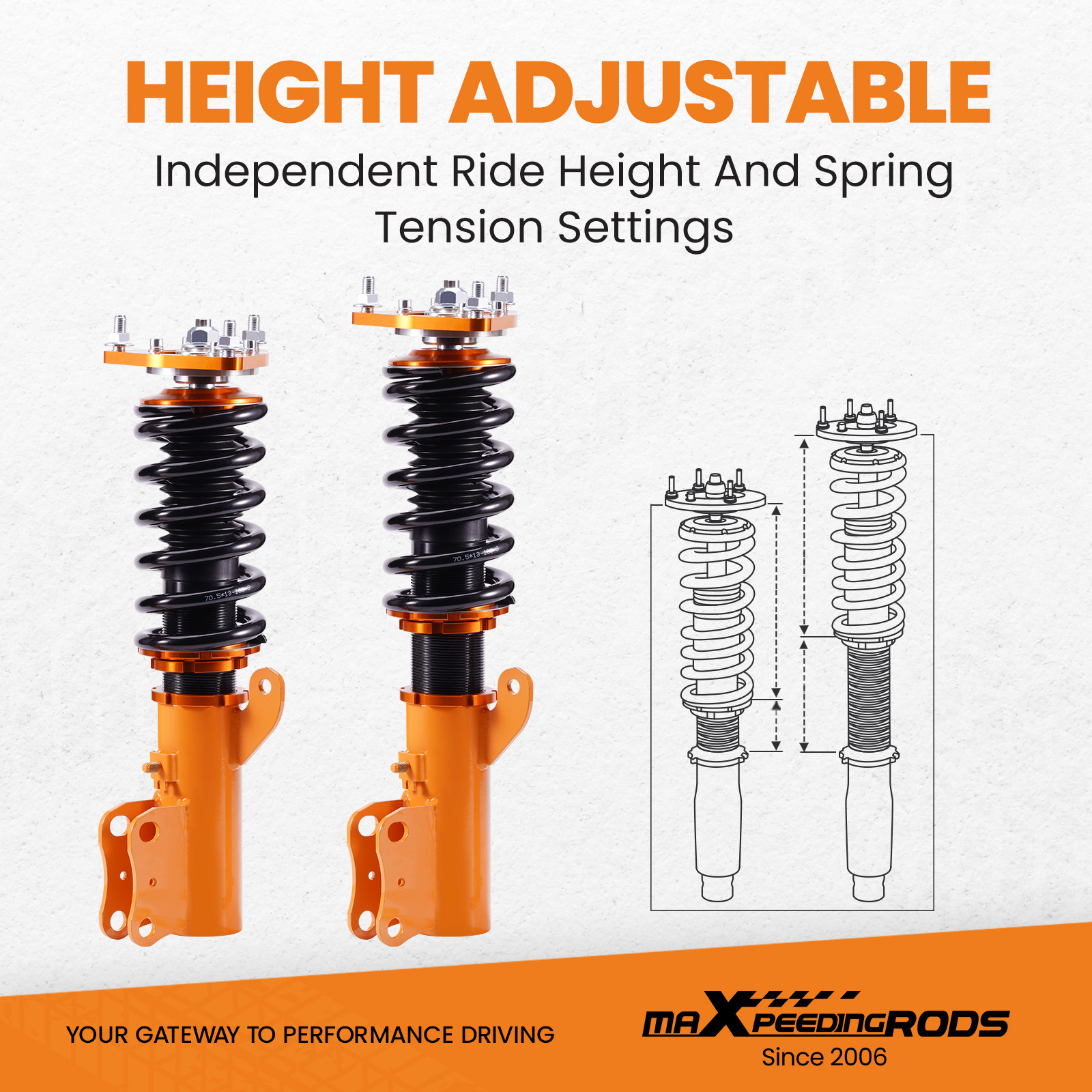

Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.

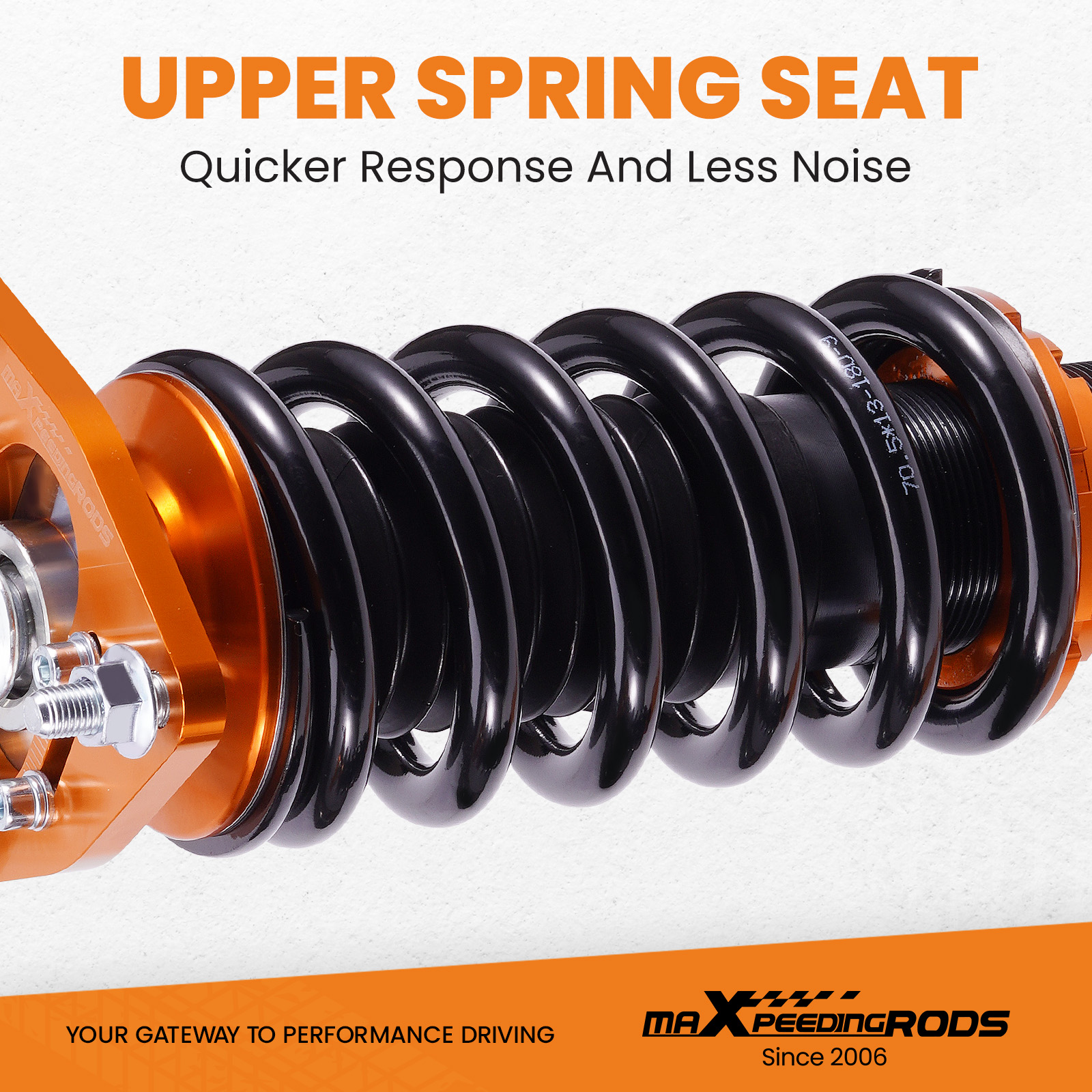

High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Full rebuildable.
