5X LT1054CN8 Linear Technology Switched Capacitor Charge Pump Voltage Converter with Regulator 100mA 3.5V to 15V DIP-8

Ready to Ship

Ask a Question

30-Day Return

5 Pieces - LT1054CN8 Linear Technology Switched Capacitor Charge Pump Voltage Converter with Regulator 100mA 3.5V to 15V DIP-8

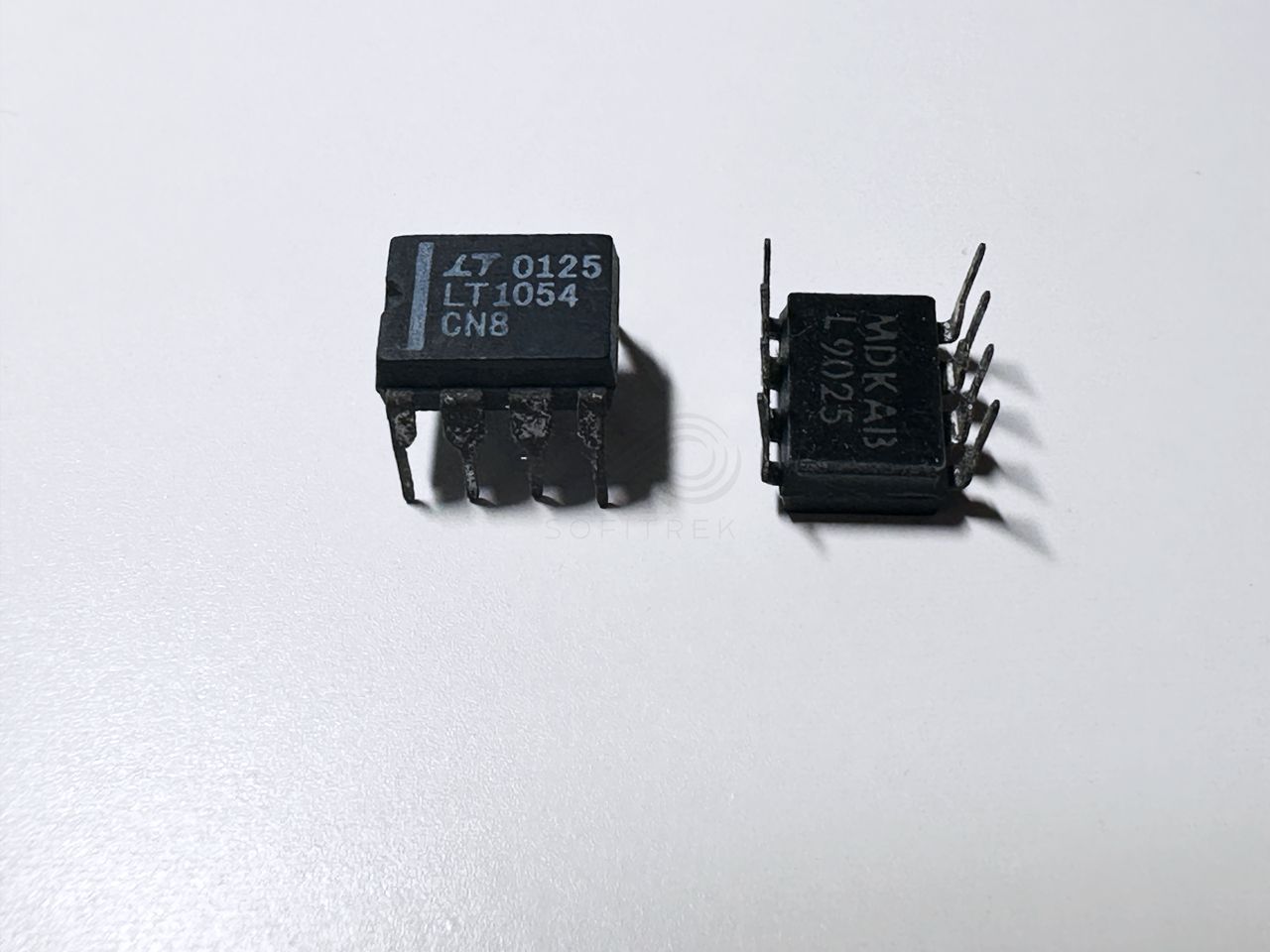

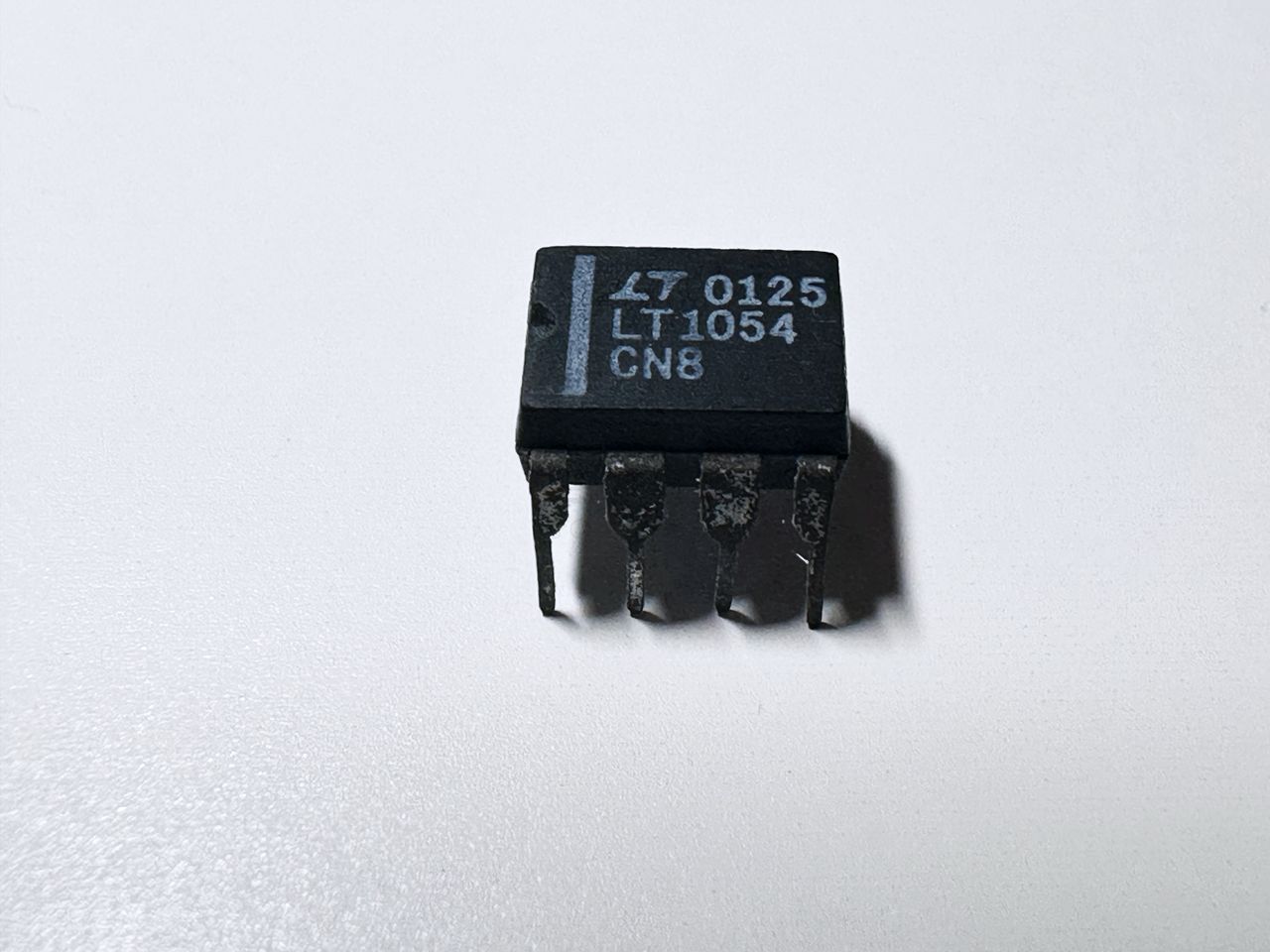

New Old Stock. Rusty pins.

Specification
Output Voltage-Nom -5 V
Input Voltage-Max 15 V
Input Voltage-Min 3.5 V
Output Current-Max 100 mA
Supply Current-Max (Isup) 5 mA
Surface Mount NO
Switcher Configuration DOUBLER INVERTER
Switching Frequency-Max 25 kHz
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
Control Mode VOLTAGE-MODE
Number of Functions 1
Technology BIPOLAR
Temperature Grade COMMERCIAL
Moisture Sensitivity Level 1
Operating Temperature-Max 70 °C
Number of Terminals 8
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
Length 9.78 mm
Seated Height-Max 4.445 mm
Package Description DIP, DIP8,.3
Pin Count 8
Manufacturer Package Code N

Note: This table may not be entirely accurate and should only be used as a general reference.
