Uniervsal Weld-On Triangulated 4 Link 2500LBS Air Spring Bags Suspension Kit
Description
Feature:
Provide better handing and comfort ride for you.
Design for comfort suspension
Heavy duty double convoluted crimped
Application:
for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;
for Ford F150/F250, for GMC Sierra；
for Chevrolet Silverado;
for Dodge Ram 1500 2500 3500, etc;
for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.

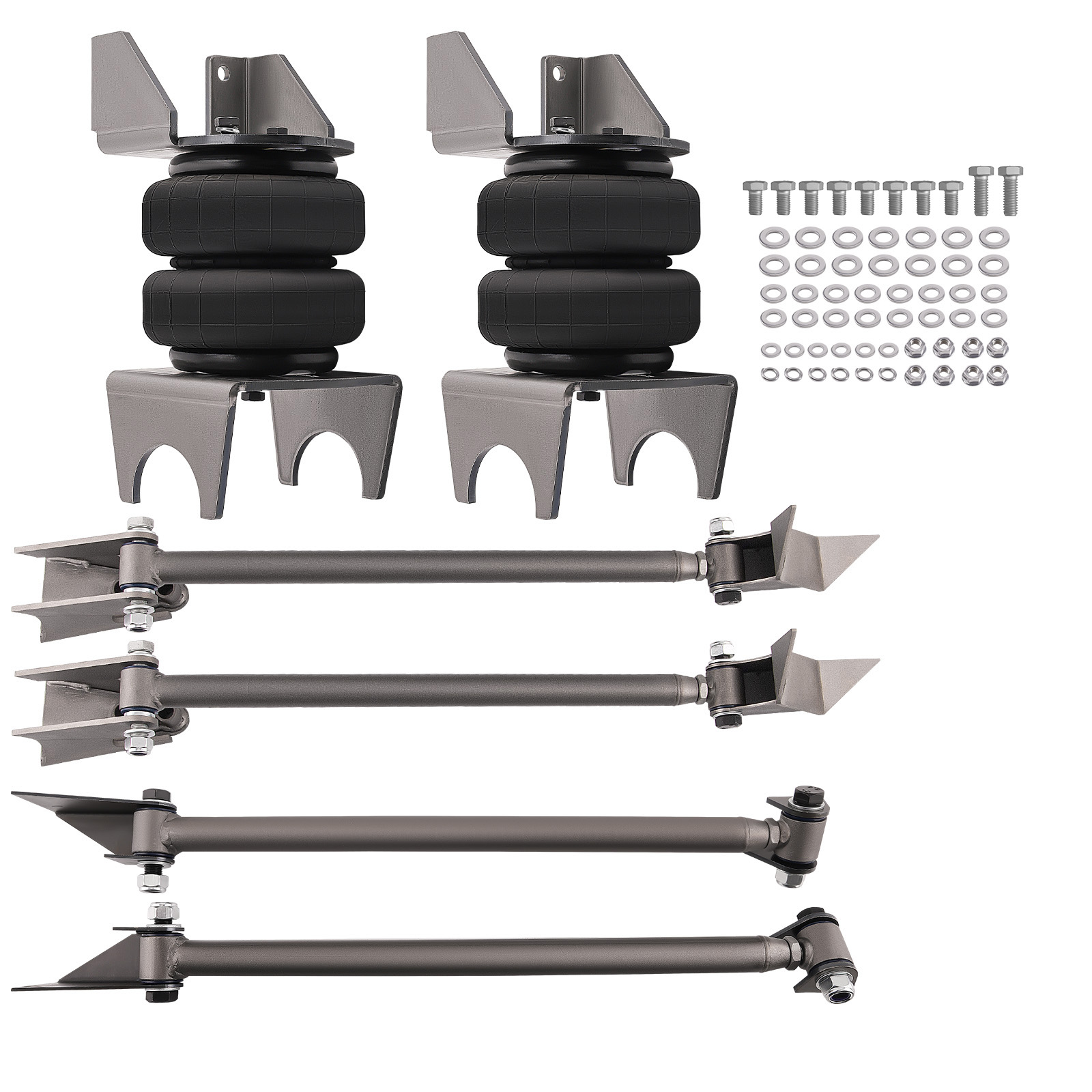

Package Includes:

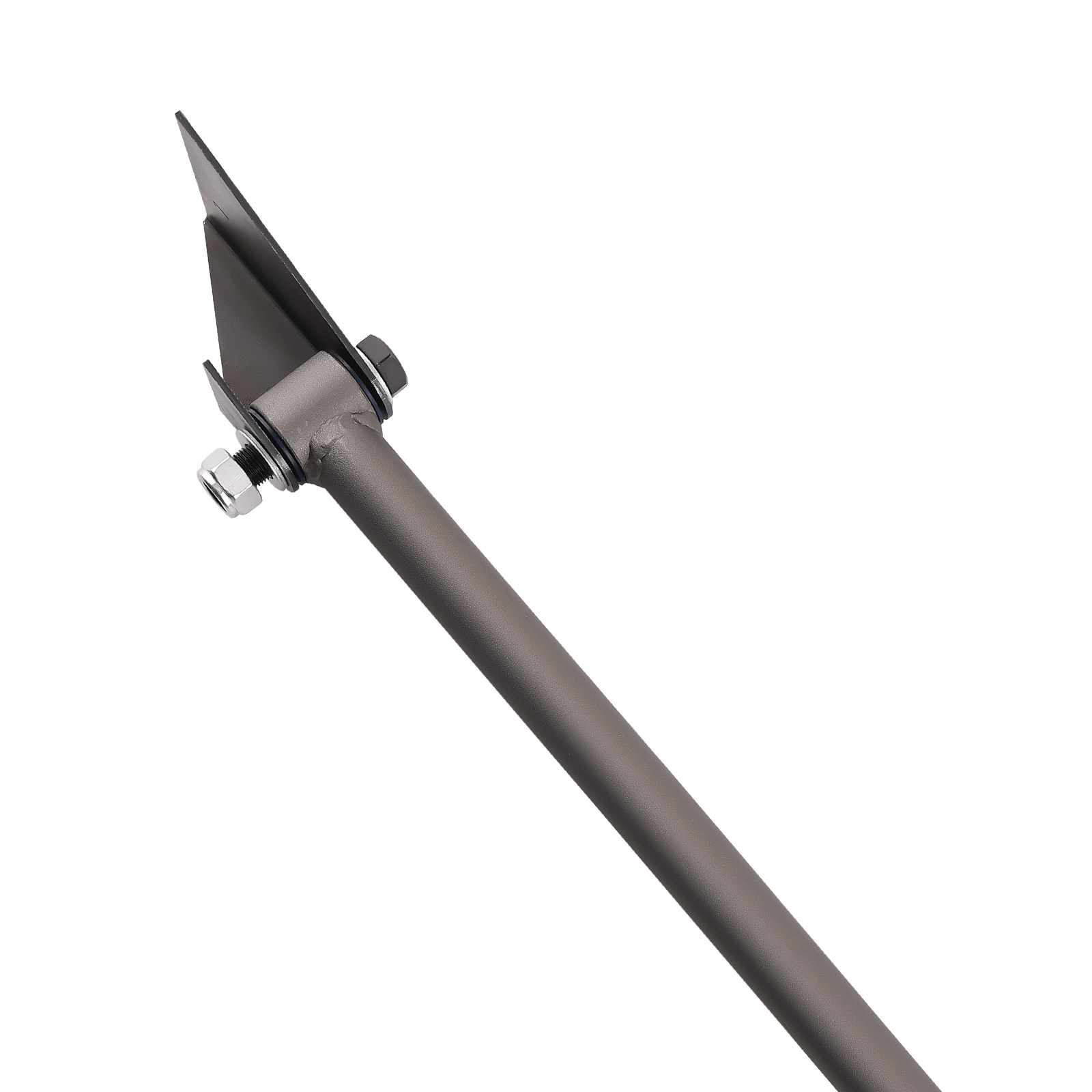

4 x Heavy Duty Steel Bars
4 x Rod Ends W/ Urethane Bushings
2 x Weld-On Triangulated Frame Mounts
2 x Weld-On Lower Axle Tube Mounts
4 x Weld-On Center Link Axle Mounts
2 x Weld-On Side Frame Mounts

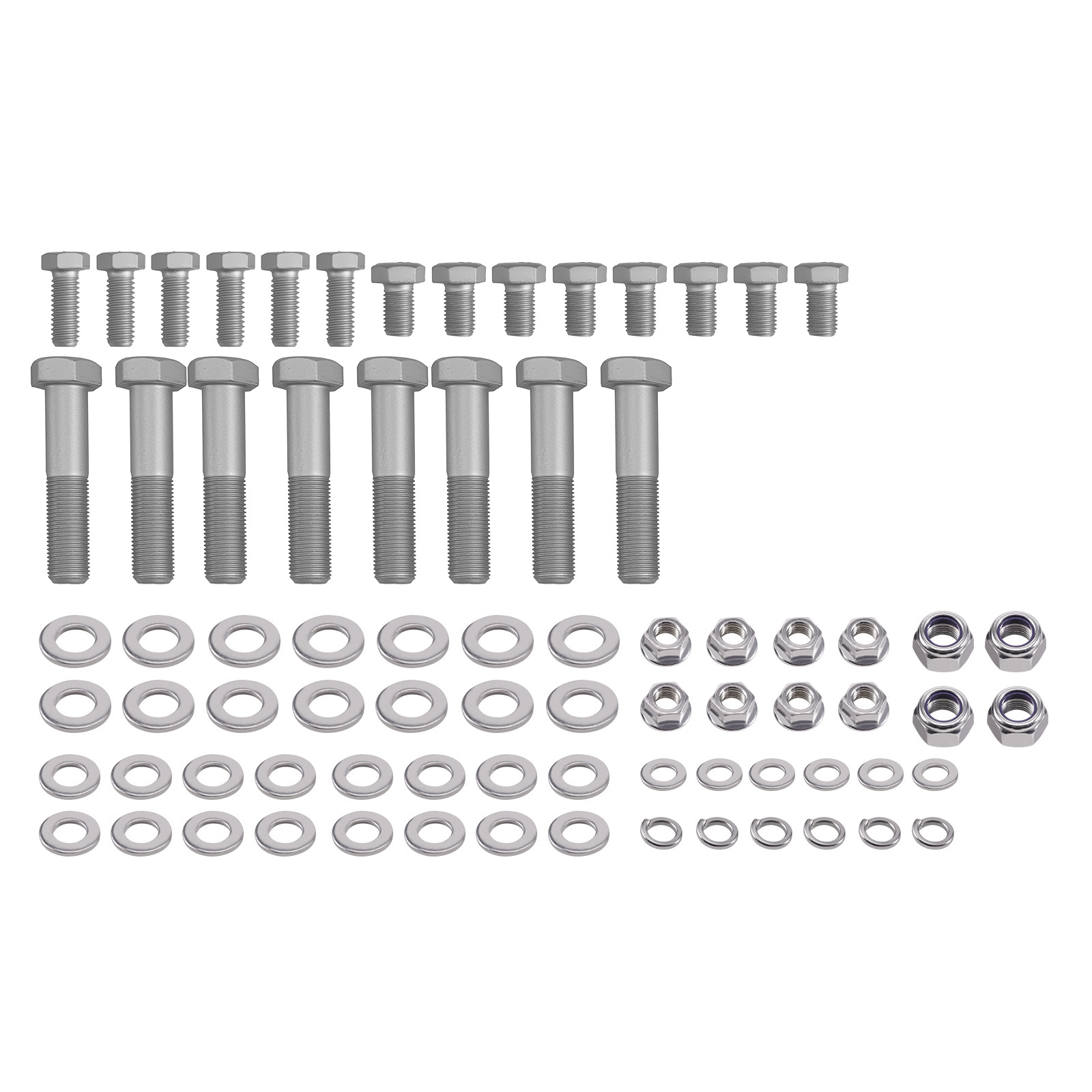

8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount

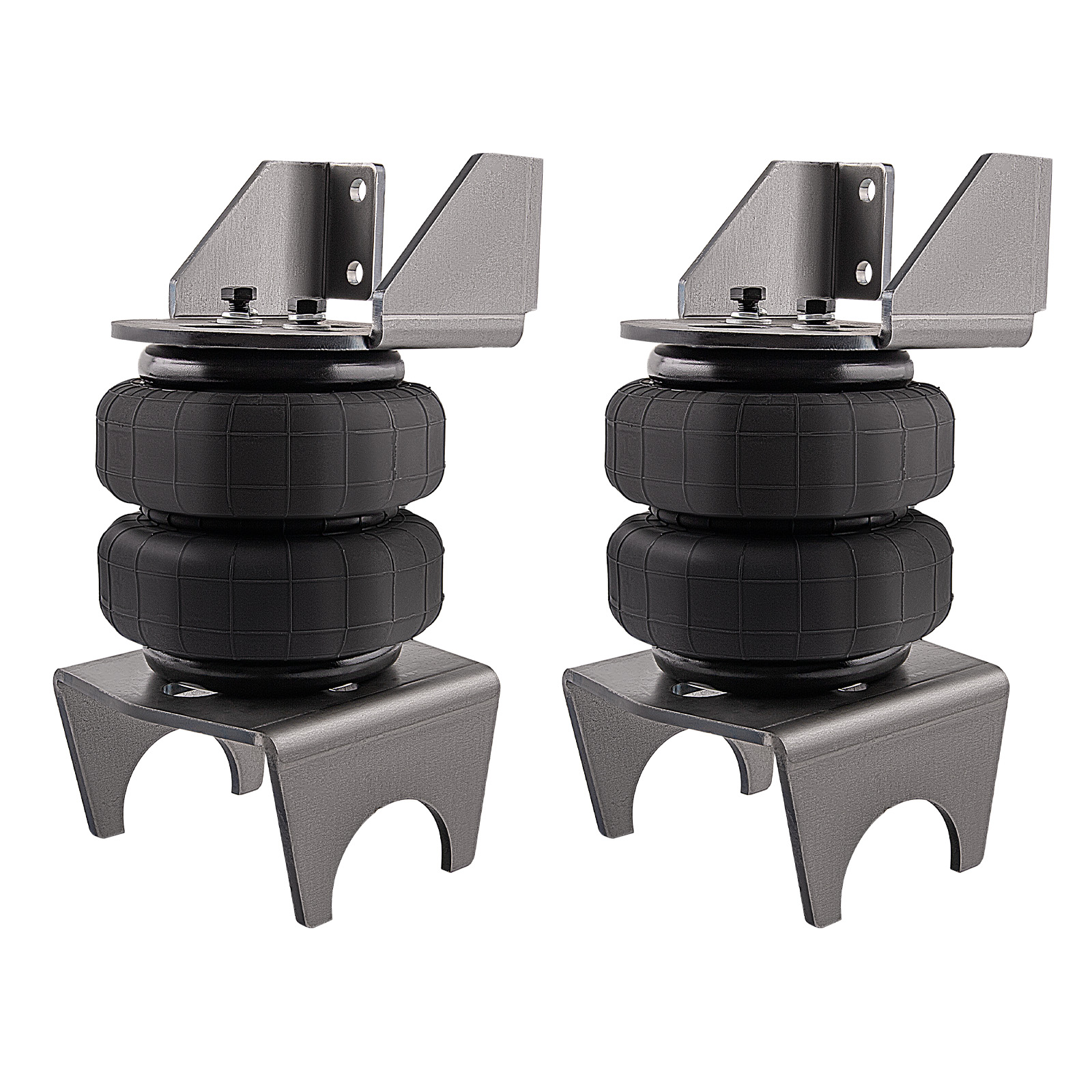

2x Standard 2500 Single 1/2"npt Port Air Spring Bags
4 Link Bar Dimensions:
Tubing Outside Diameter : 1.25"
Tubing Thick Wall : 0.197"
All Four Bars : 24.00"
(Center To Center Adjusted All The Way In)
Specs of bag:
2500 LBS
Diameter: 6"
Extended:8"
Closed:2.75"
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC
Note: The rod is available in silver and black, please refer to the actual product received.
Notice:
Please feel free to contact for whatever we can help!
Instructions Are Not Included
We Recommend Professional Installation
