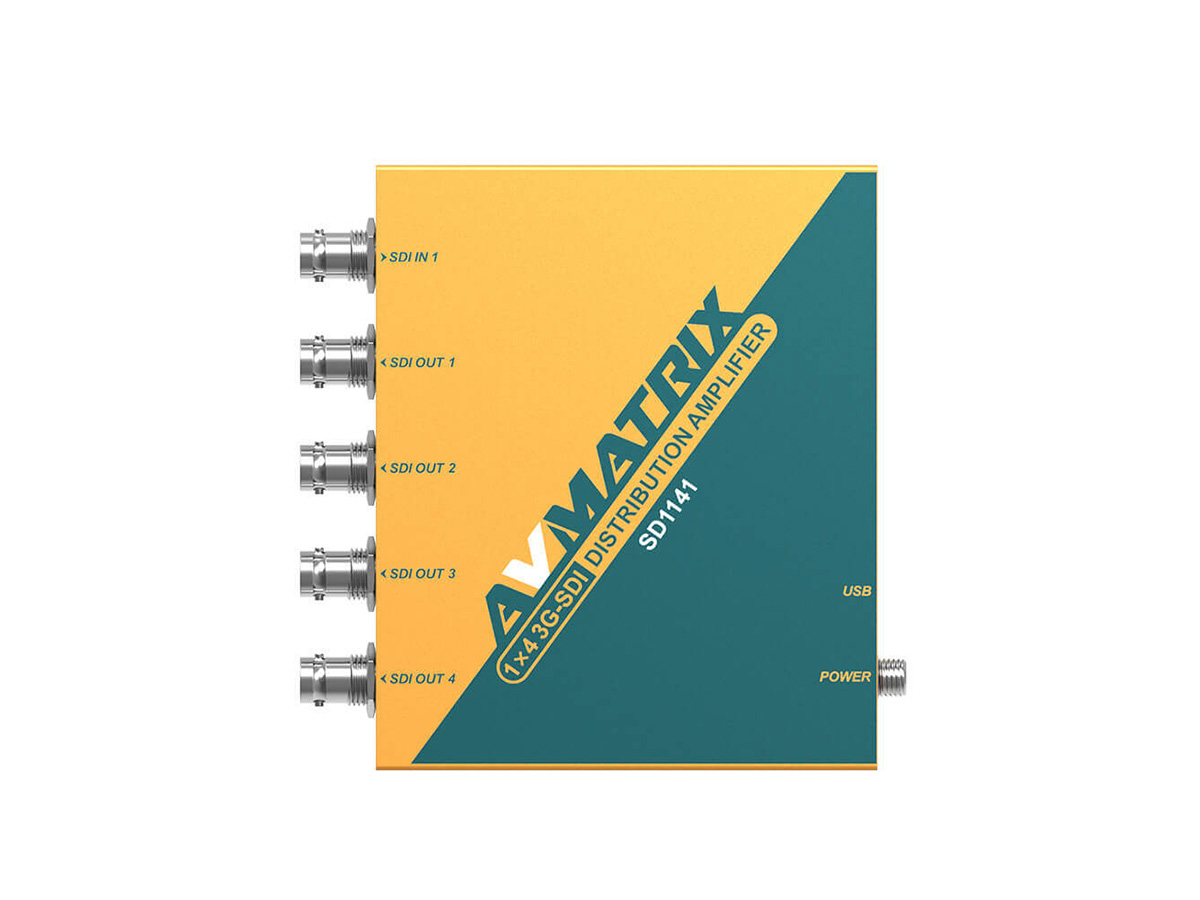

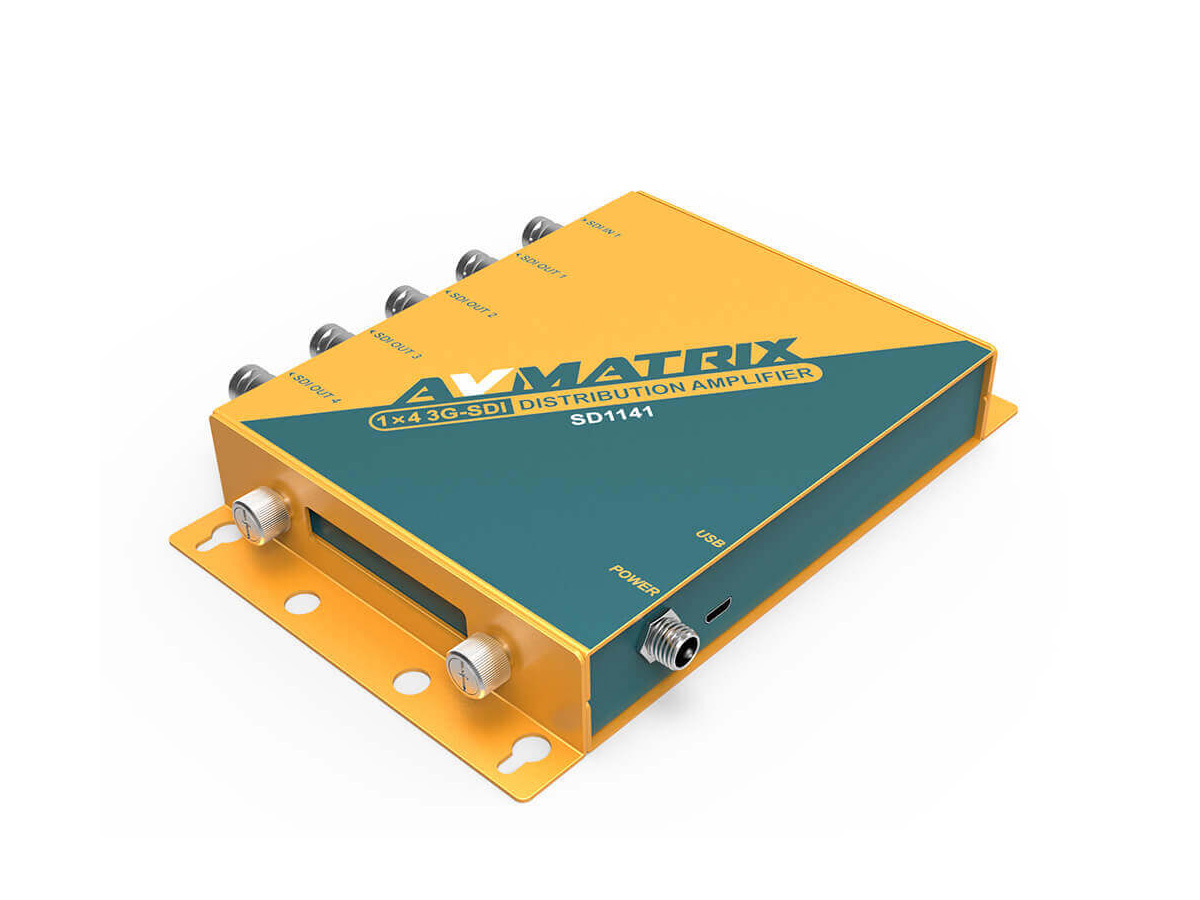

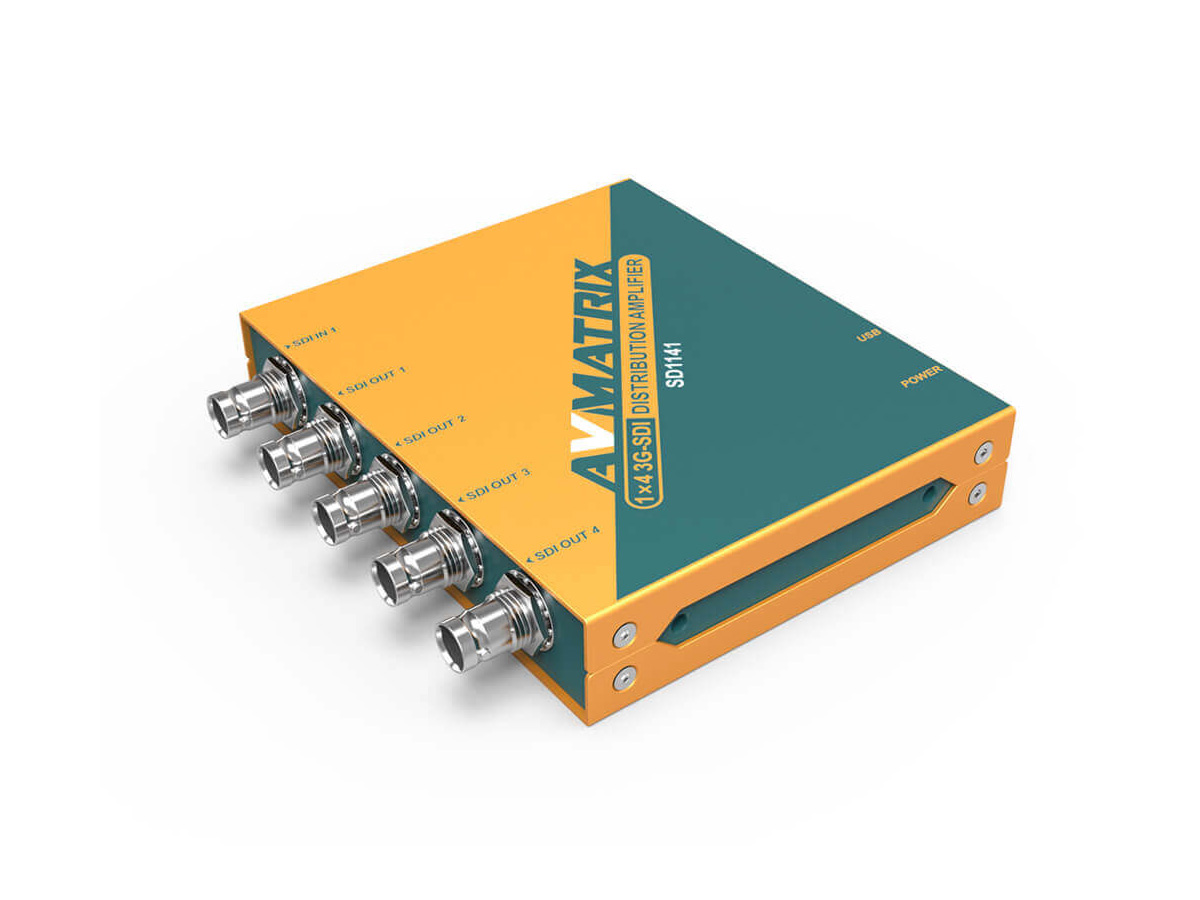

AVMatrix SD1141 1X4 3G-SDI Reclocking Distribution Amplifier
Manufacturer:AVMatrix
SKU:SD1141
Condition:New
Warranty:1 Year

The SD1141 is a miniature and low-cost 1x4 3G/HD/3G-SDI re-clocking distribution amplifier. Among the 4 outputs, the SDI out 2 and SDI out 4 can support ASI signal. Besides, this distribution amplifier can be powered by DC or Micro USB. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization (SD: 400m, HD: 200m, 3G: 120m).

Features:

  • Automatically detects SD, HD and 3G-SDI
  • 4 buffered and re-clocked outputs
  • 3G / HD / SD-SDI multi-rate signal processing
  • Output 2 & 4 support for DVB-ASI signal
  • Automatic cable equalization and signal retiming
  • Pass all ancillary data and embedded audio
  • Micro USB and DC power
  • Detachable bracket design for wall mounting

Specifications:

Connections
Input SD/HD/3G-SDI X1
Output SD/HD/3G-SDI x4 (output 2 & 4 support DVB-ASI)
Formats
SDI Input Format Support (2K) 2048x1080p 30/29.97/25/24/23.98
(2K) 2048x1080PsF 30/29.97/25/24/23.98
(HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920x1080PsF 30/29.97/25/24/23.98
(HD) 1920x1080i 60/59.94/50
(HD) 1280x720p 60/59.94/50
(HD) 1280x720p 30/29.97/25/24/23.98
(SD) 625i 50
(SD) 525i 59.94
SDI Video Rate SD/HD/3G-SDI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M
SMPTE 424M, SMPTE 425M
ASI Compliance DVB-ASI
SDI Color Space and Precision RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit
SDI Auto Switching Auto selects SD, HD and 3G-SDI on input
Power
Power Connector Micro USB, Threaded locking connector
Voltage Range USB 5V, DC 5~17V
Power Consumption 1W
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Relative Humidity 0%-90% non-condensing
Size
Size 125.5 x 104 x 24.5mm
Weight 512g
Warranty
Warranty 3 year limited warranty

Package Includes:

  • SD1141 (1×4 3G-SDI Reclocking Distribution Amplifier)
  • Mounting Brackets ×2
  • DC 12V Universal Power Supply with International Socket Adapters
