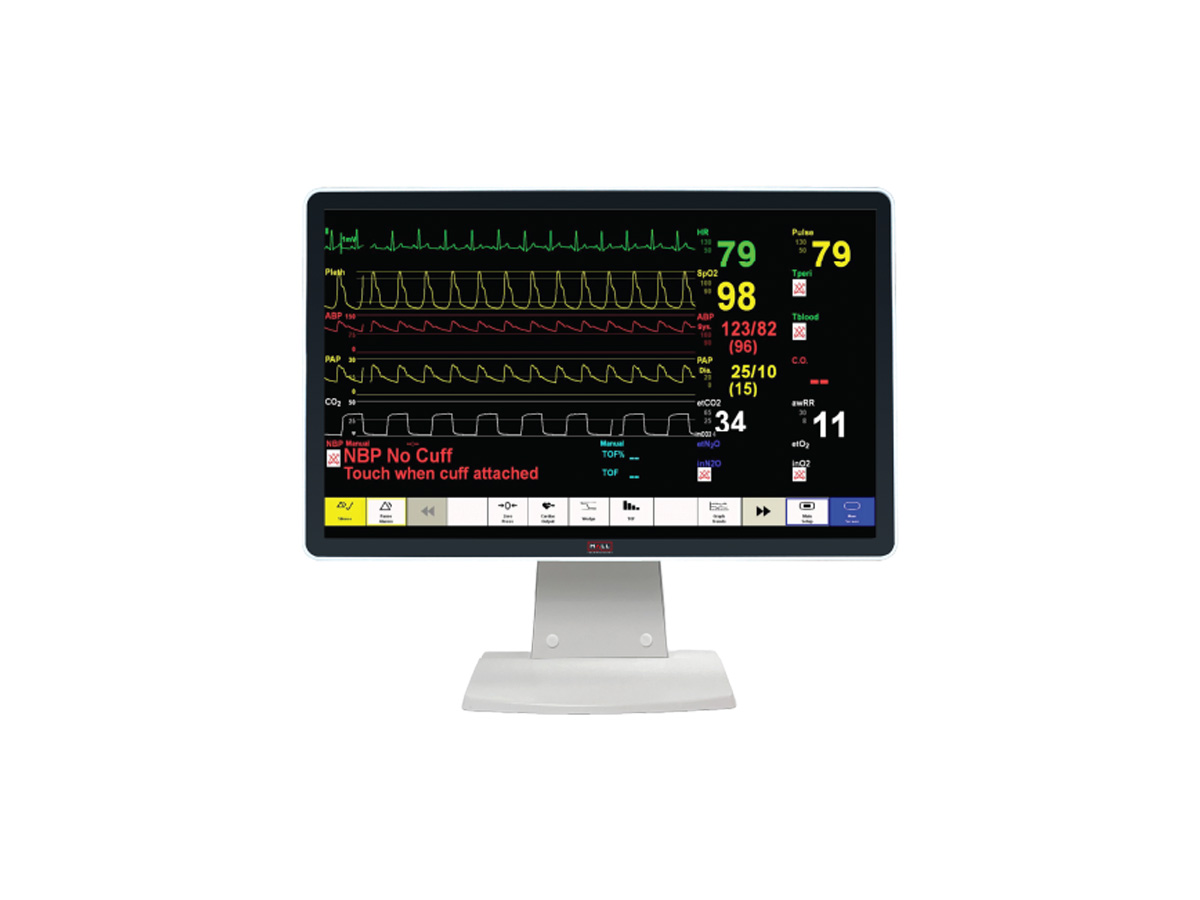

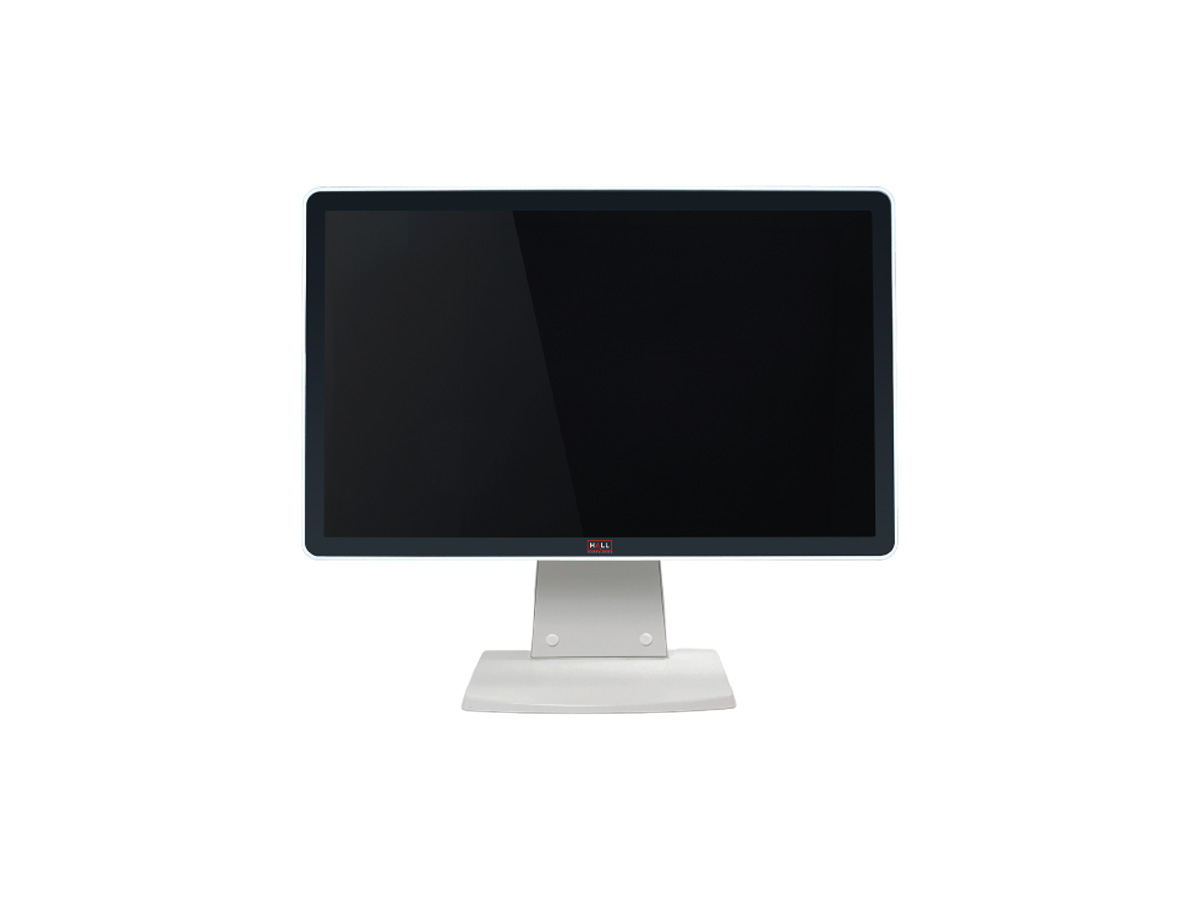

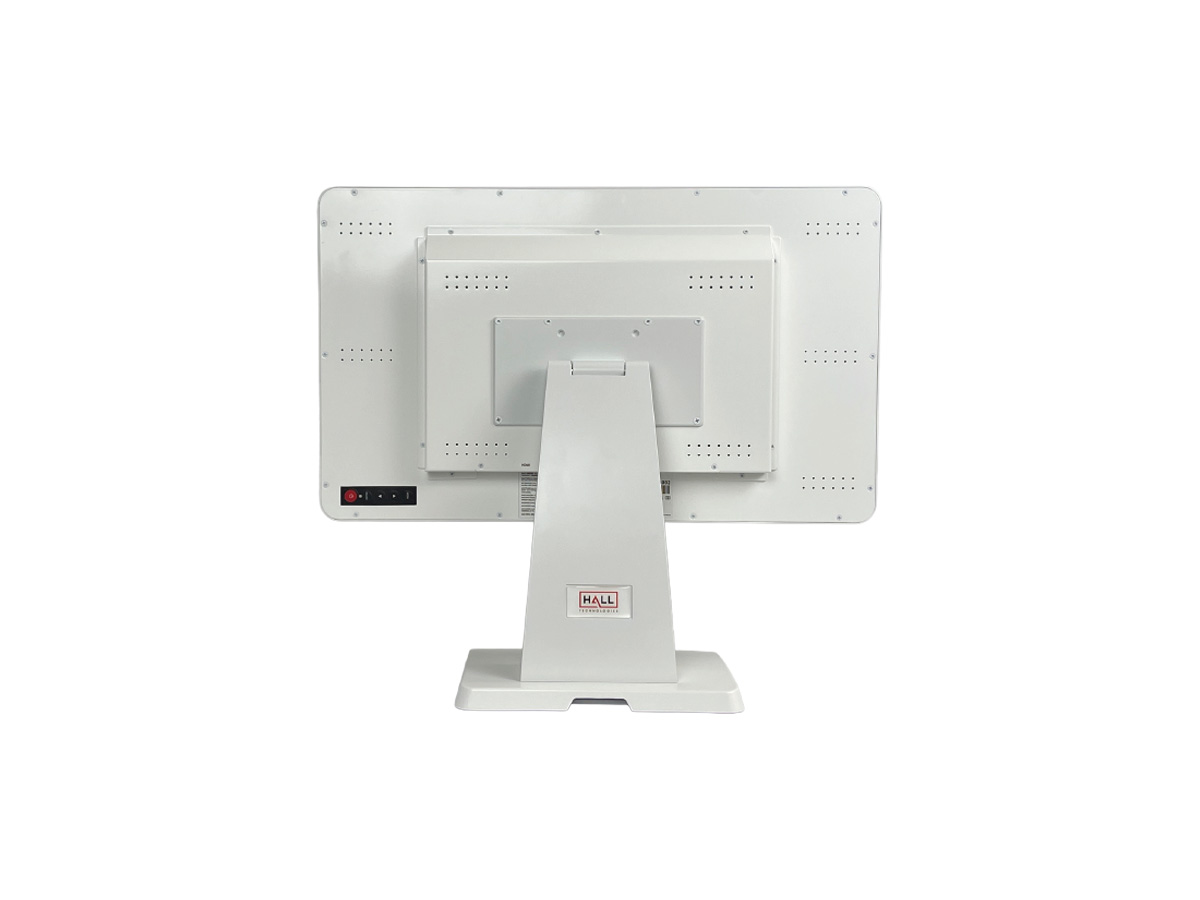

The HT-HVM32 is a 32 inch medical-grade HD monitor designed for clinical and point-of-care environments. It delivers a native 1920x1080 resolution at 60Hz and a 16:9 aspect ratio for clear, detailed images. The monitor is certified to IEC/EN 60601-1 and IEC/EN 60601-1-2 standards for electrical safety and EMC. Its core features include a TFT-LCD panel optimized for healthcare settings, built-in stereo speakers, and multiple video inputs. The display supports HDMI and DVI-I inputs and provides audio pass-through and de-embedded HDMI audio. The monitor also offers a long rated lifetime and a hard-coated front surface for durability. Performance highlights include a 1920x1080 resolution, 60Hz refresh rate, an 8ms response time, and a 4000:1 contrast ratio on the 32 inch model. Brightness with protective glass is rated at 350 cd/m2 and panel life exceeds 50,000 hours. Viewing angles are 178 degrees horizontal and vertical to aid multiple-staff viewing. Connectivity is straightforward with one HDMI port, one DVI-I port, a 3.5mm line-level audio input and a 3.5mm audio output. The audio output supports pass-through from the line input and can de-embed audio from HDMI sources. On-screen display controls provide Auto, Up, Power Down and Menu functions for quick adjustments. The HT-HVM32 is suitable for nurse workstations, patient monitoring stations, diagnostic viewing rooms and clinical documentation areas. It supports desktop mounting and VESA 400mm x 300mm mounting for flexible installation. The monitor"s certifications and EMC performance make it appropriate for regulated healthcare spaces. Installation and daily operation are simplified by a 12V 5A external power supply and a total power draw of 60W. The enclosure uses natural air cooling and operates between 0 degrees C and 50 degrees C. The construction and medical certifications provide a reliable, compliant display solution for clinical AV deployments. Specifications: | Sizes include | 24", 32", 43" | | 1920?1080 at 60Hz Native Resolution | 1920 x 1080 | | HDMI and DVI video inputs | HDMI, DVI-I | | Built-in stereo speakers | 2x15W 8? stereo | | Greater than 50,000 lifetime hours | >50,000 hours | | IEC/EN 60601-1 and IEC/EN 60601-1-2 medical certifications | IEC/EN 60601-1, IEC/EN 60601-1-2 | | Display | 32" TFT-LCD | | Response time | 6.5ms 8ms | | Aspect Ratio | 16:9 | | Display area (H x V) | 27.14" x 15.46" (689.40mm x 392.80mm) | | Resolution | 1920 x 1080 | | Refresh Frequency | 60Hz | | Contrast Ratio | 4000:1 | | Viewing Angle | Horizontal 178° / Vertical 178° | | Brightness with Glass | 350 cd/m2 | | Lifetime ? | 50,000 hours | | Surface Treatment | FOG, Hard Coating (3H) | | Audio Loudspeaker | 2*15W / 8? (2.0 Stereo) | | Power Requirements | 12V, 5A | | Overall Power | 60W | | Video Inputs | 1 x HDMI, 1 x DVI-I | | Audio Inputs | 1 x 3.5mm Line-Level | | Audio Outputs | 1 x 3.5mm Line-Level (pass-through, de-embed HDMI) | | OSD Button | Auto, Up, Power Down, Menu | | Display Dimensions (W x H x D) | 29.45" x 17.56" x 1.96" (748.0mm x 446.0mm x 49.8mm) | | VESA Standard (H x V) | 400mm x 300mm | | Weight | Net weight: 25.9 lbs. (11.8kg) | | Operating Temperature | 32° F to 122° F (0° C to 50° C) | | Storage Temperature | -4° F to 140° F (-20° C to 60° C) | | Humidity | 5% ~ 90% at 40° C, non-condensing | | Heat Dissipation | Natural air cooling | | Certifications | ACMA, BSMI, CE, FCC, ICES, IEC/EN 60601-1, IEC/EN 60601-1-2, KC, PSB, QUACERT, RoHS, SIRIM, SNI, TISI, UKCA, VCCI |
|
