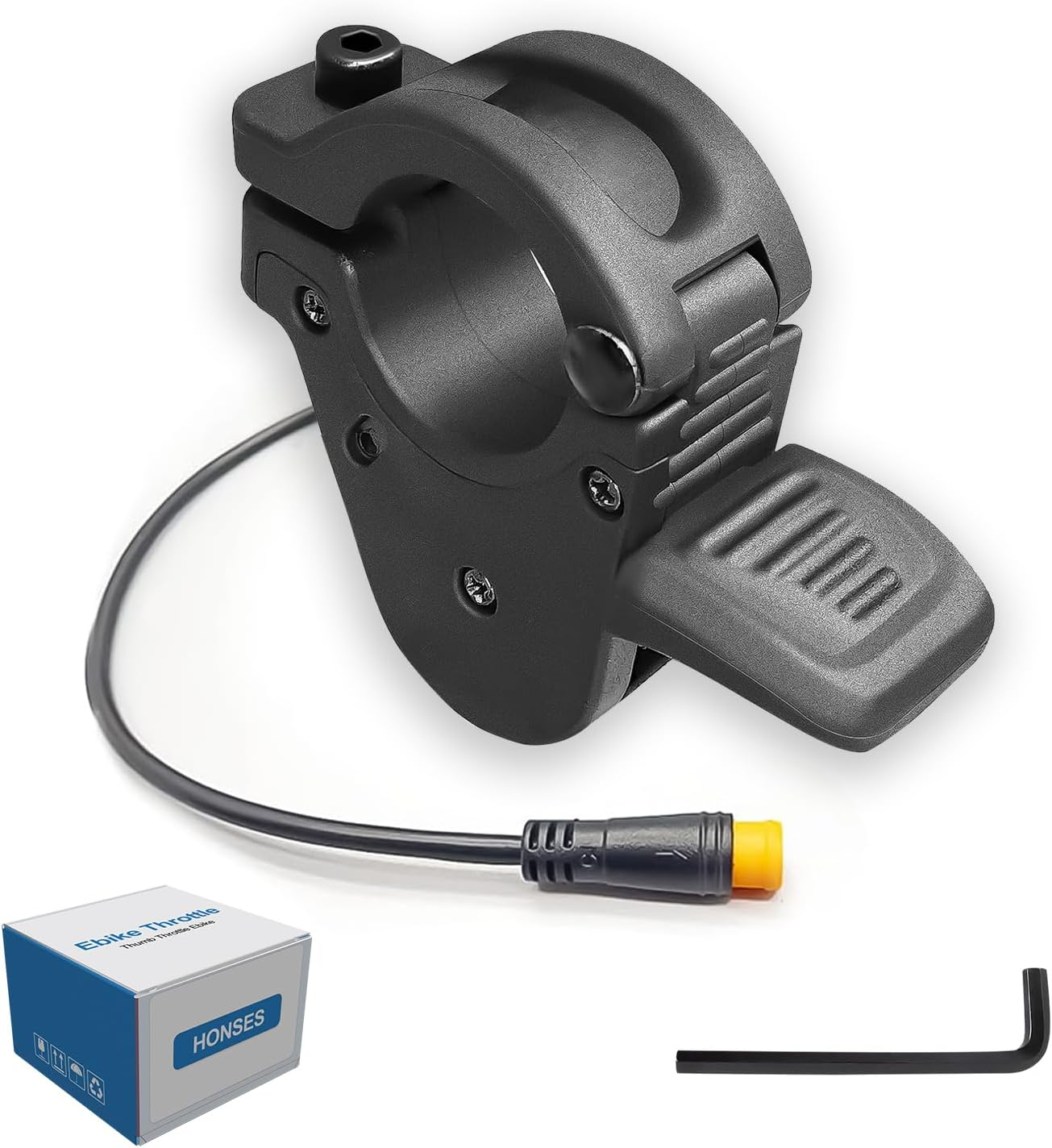

Ebike Thumb Throttle 300X Aluminum Alloy Material Ebike Parts 3 Wire Throttle waterproof plug

Vehicle model compatibility information

Your vehicle only needs to meet these three requirements to be eligible for installation：

1. Handlebar diameter is precisely 22 mm (measured with a caliper between 21.5 and 22.5 mm) - Vernier caliper
2. Controller voltage is 12V-72V DC (compatible with lead-acid/lithium batteries) - Multimeter test Multimeter measures battery output
3. Throttle interface is a 3-pin M8 male connector (triangular metal connector)

The following models are not applicable:

• Handlebar mismatch: motorcycles, children's electric bikes
• Voltage exceeds specifications: 96V modified electric motorcycles, AC motor tricycles
• Incorrect connector: (JST connector), Ninebot E200P (dedicated connector)

Note: Please carefully check the vehicle model compatibility information to avoid affecting the installation experience later on!

If the vehicle model is not compatible and you wish to attempt a DIY modification of the accelerator, there is a high likelihood of issues such as loose installation, loosening during driving, complete incompatibility of protocols and structures, or accelerator failure. We do not recommend that users without modification experience attempt this! We conduct 100% testing before shipping, so please carefully consider whether the vehicle model is suitable.

Note : Please try to make sure that the terminal connector of the thumb throttle of your car model is suitable before purchasing! In order to prevent mismatch, after installation does not work problems bring trouble, according to the following steps to determine!

• 1. Confirm your own model
• 2. Confirm the thumb throttle wire speed port for your ebike model.
• 3. Is the wire sequence (red +5 positive, black negative, signal wire) arranged correctly！

- M8 waterproof terminal interface wiring sequence on the market there are five kinds of layout, we use the most widely used models of the wiring sequence layout, from left to right, from top to bottom are (+5 positive-left, signal wire-right, negative-bottom)

- This thumb throttle complies with the wire order of most models, if your model wire can not be confirmed, please consult us to help confirm, if your model does not comply with the choice to buy, the only solution is that you can cut the cable in a safe situation, according to the wire order of your model wiring can be solved!

Features

• -Voltage: 12V , 24V, 36V, 48V, 52V, 60V, 72V
• -Cord length: 35 cm (waterproof plug)
• -Plug: 3-pin connector
• -Technology: Brushed finish
• -Mounting: 22 mm/(7/8 in) left or right handlebar
• -Weight: 43 g (waterproof plug)
• -Waterproof rating IPX5

Comes with an installation wrench to facilitate faster installation and save your installation time!

Compatible Models:

Suitable for 24V 36V 48V 52V 60V 72V electric bicycle and electric scooter

Installation method: Direct mounting

Save installation time

• Compared with other traditional scooter accelerators, the 300X accelerator can save the installation step of directly removing the original handlebar and then installing the accelerator.
• It can directly open the 300X throttle, then remove the bolt with the throttle, and then install it directly on the 7/8inch handlebar.

Specific size details

Packaging form: box packaging

include:

1*300X scooter accelerator waterproof plug

1* Installation wrench
