Details
Features

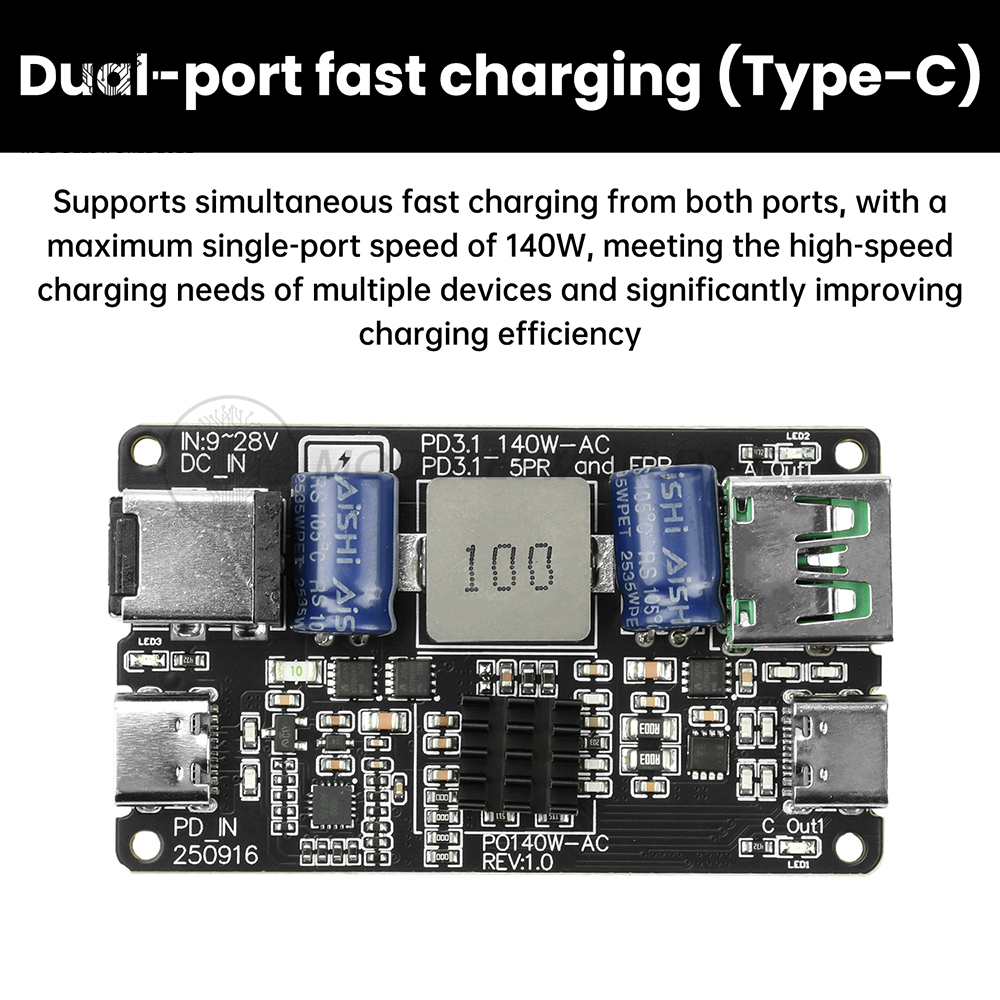

1. Supports simultaneous fast charging on both ports, with up to 140W per port to meet high-speed charging demands for multiple devices, significantly boosting charging efficiency

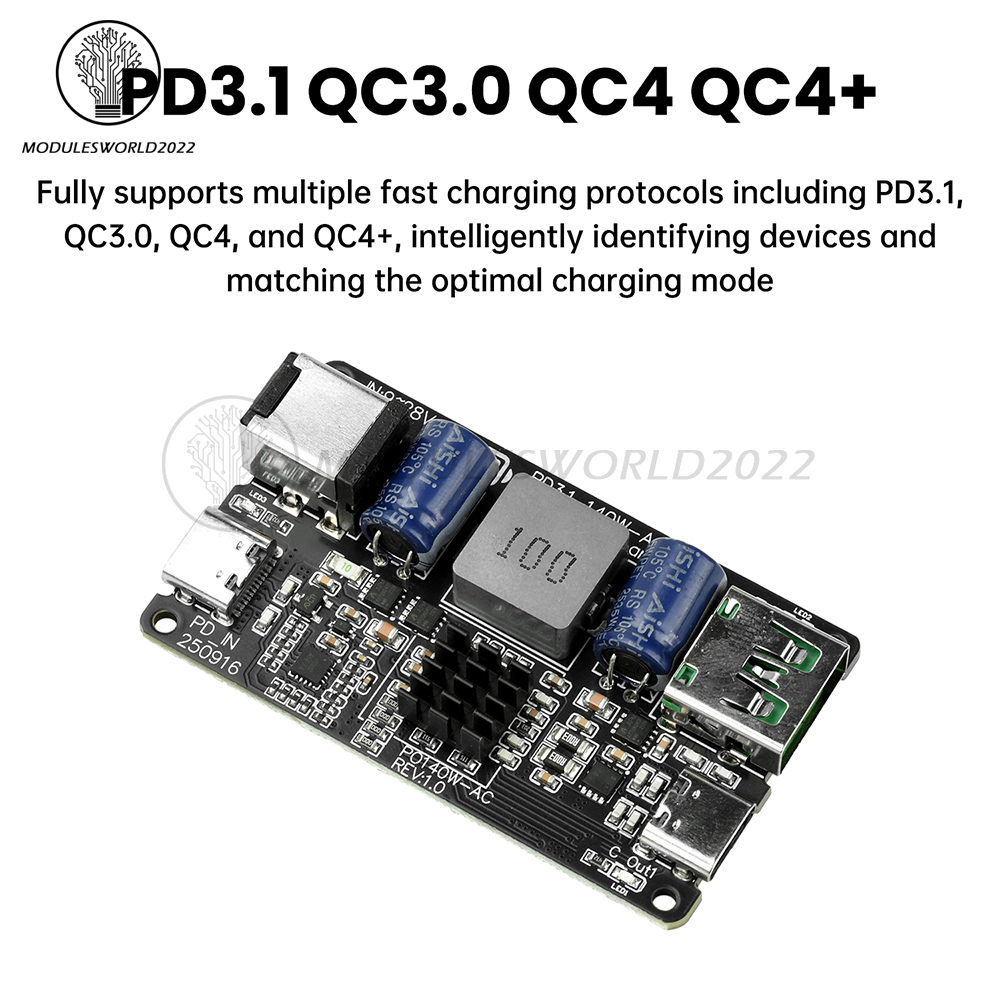

2. Fully supports PD3.1, QC3.0, QC4, QC4+, and other fast charging protocols. Intelligently identifies devices and matches optimal charging modes

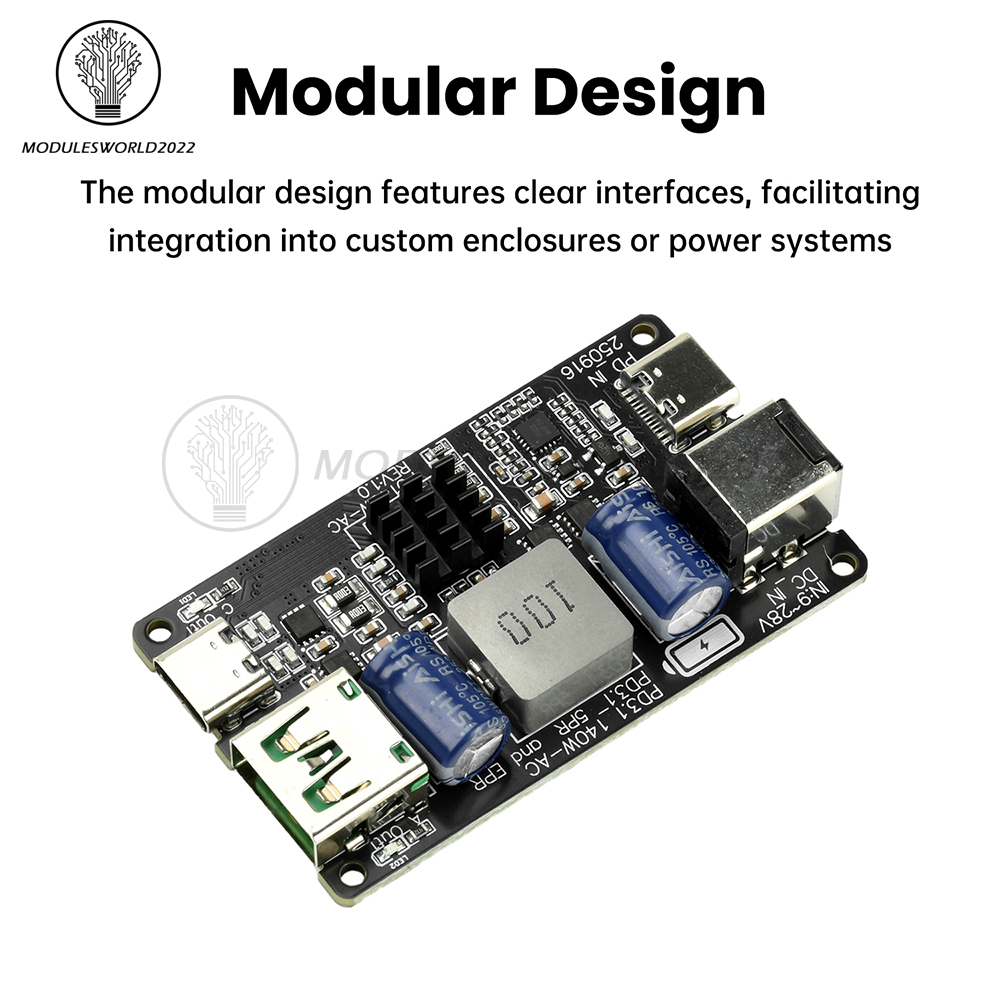

3. Modular design with clearly labeled interfaces facilitates integration into custom enclosures or power systems

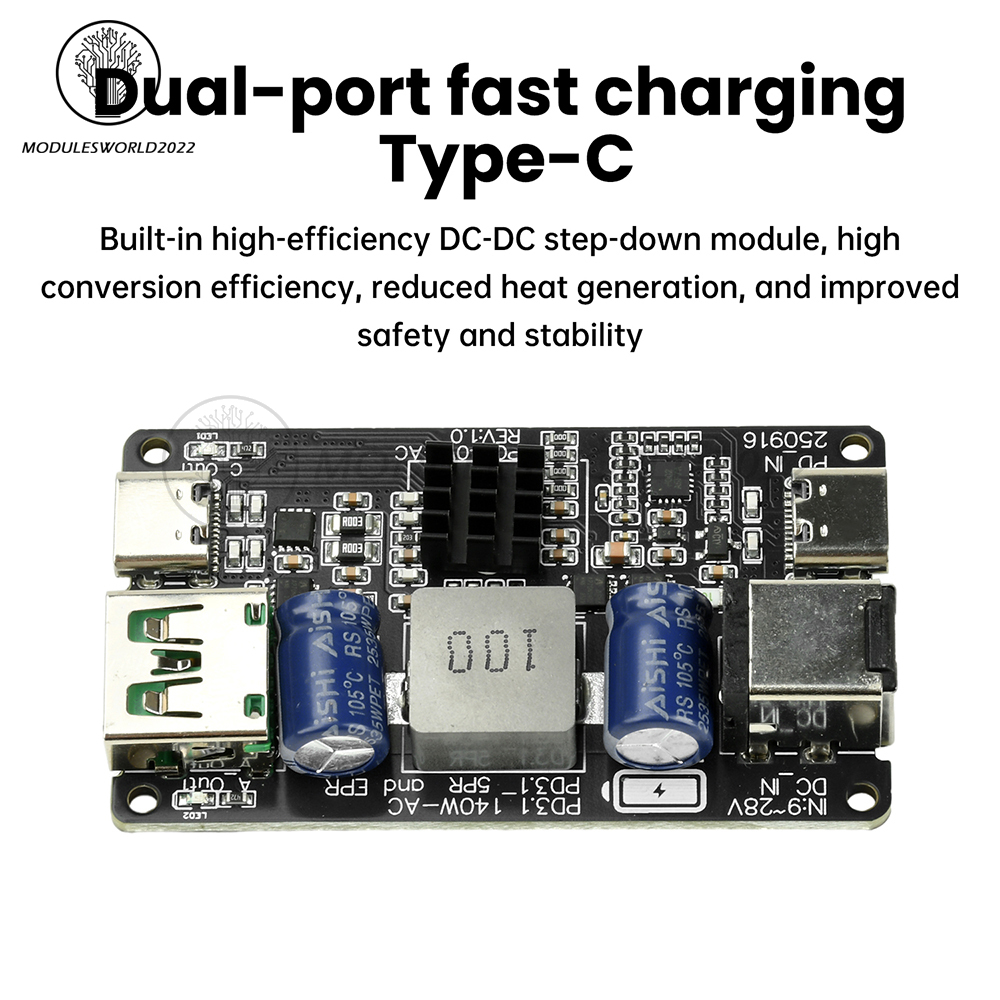

4. Built-in high-efficiency DC-DC buck module delivers superior conversion efficiency, minimizes heat generation, and enhances safety and stability

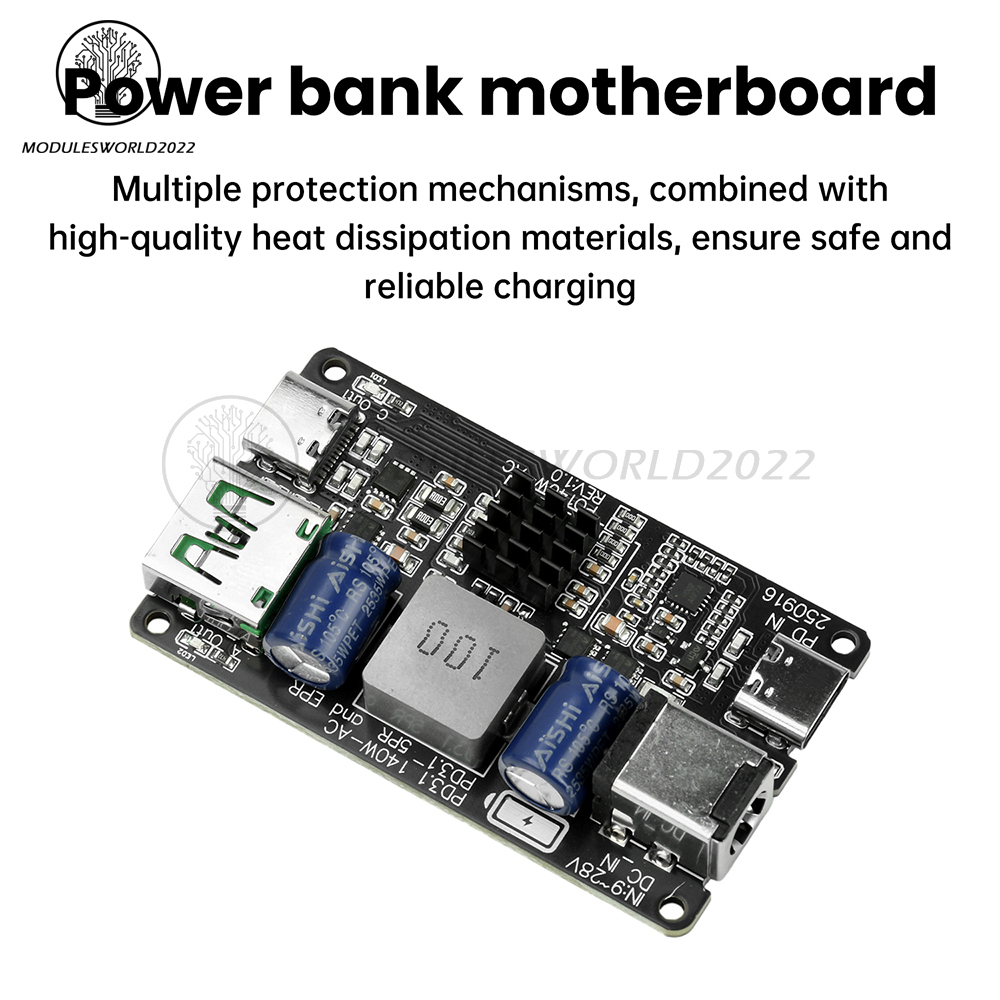

5. Multiple protection mechanisms combined with premium heat dissipation materials ensure safe and reliable charging

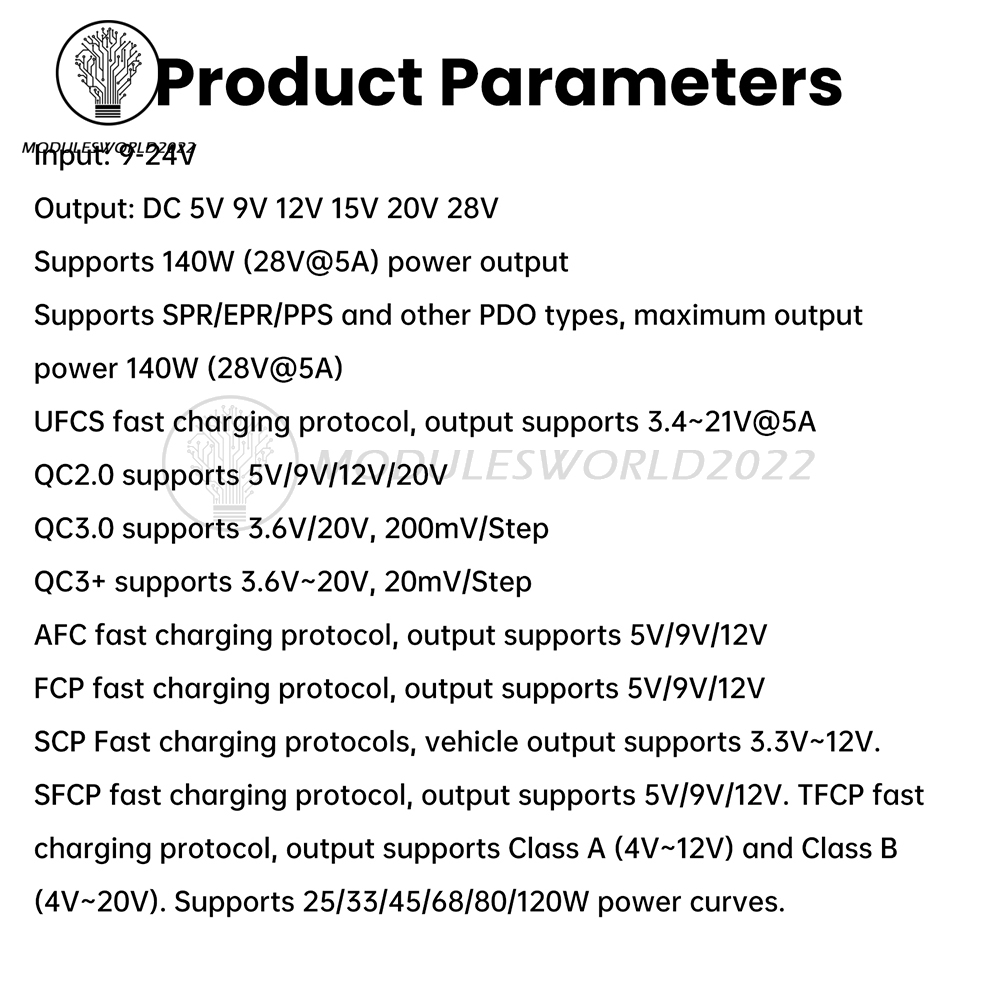

Parameter
Input: 9-24V
Output: DC 5V, 9V, 12V, 15V, 20V, 28V

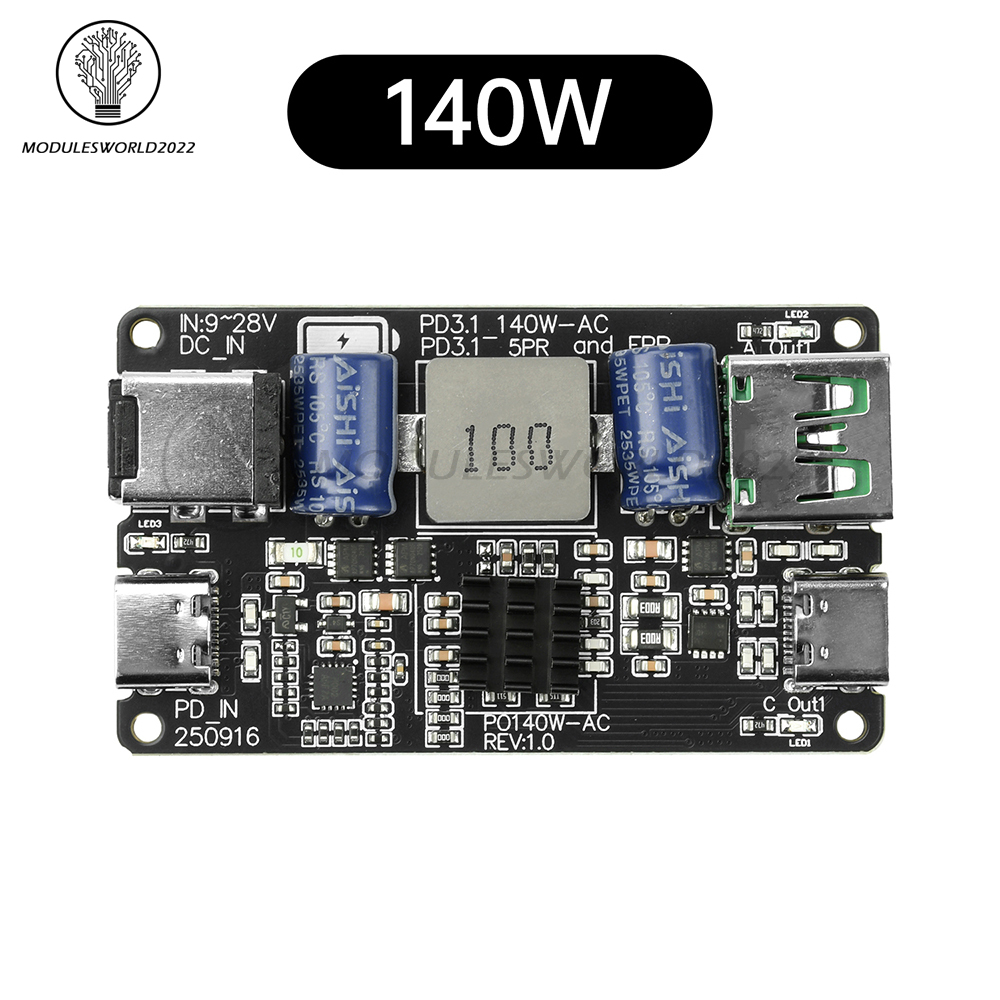

Supports 140W (28V@5A) power output
Supports PD0 protocols including SPR/EPR/PPS, with maximum 140W output power (28V@5A)
UFCS fast charging protocol, output supports 3.4~21V@5A
QC2.0 supports 5V/9V/12V/20V
QC3.0 supports 3.6V~20V, 200mV/step
QC3+ supports 3.6V~20V, 20mV/step
AFC fast charging protocol, output supports 5V/9V/12V
FCP Fast Charging Protocol, output supports 5V/9V/12V
SCP Fast Charging Protocol, vehicle output supports 3.3V~12V
SFCP Fast Charging Protocol, output supports 5V/9V/12V
TFCP Fast Charging Protocol, output supports Class A (4V~12V), Class B (4V~20V)
Supports 25/33/45/68/80/120W power curves.
Note: 140W output requires dedicated Emark cable; standard cables support up to 100W
Package include
Module*1
