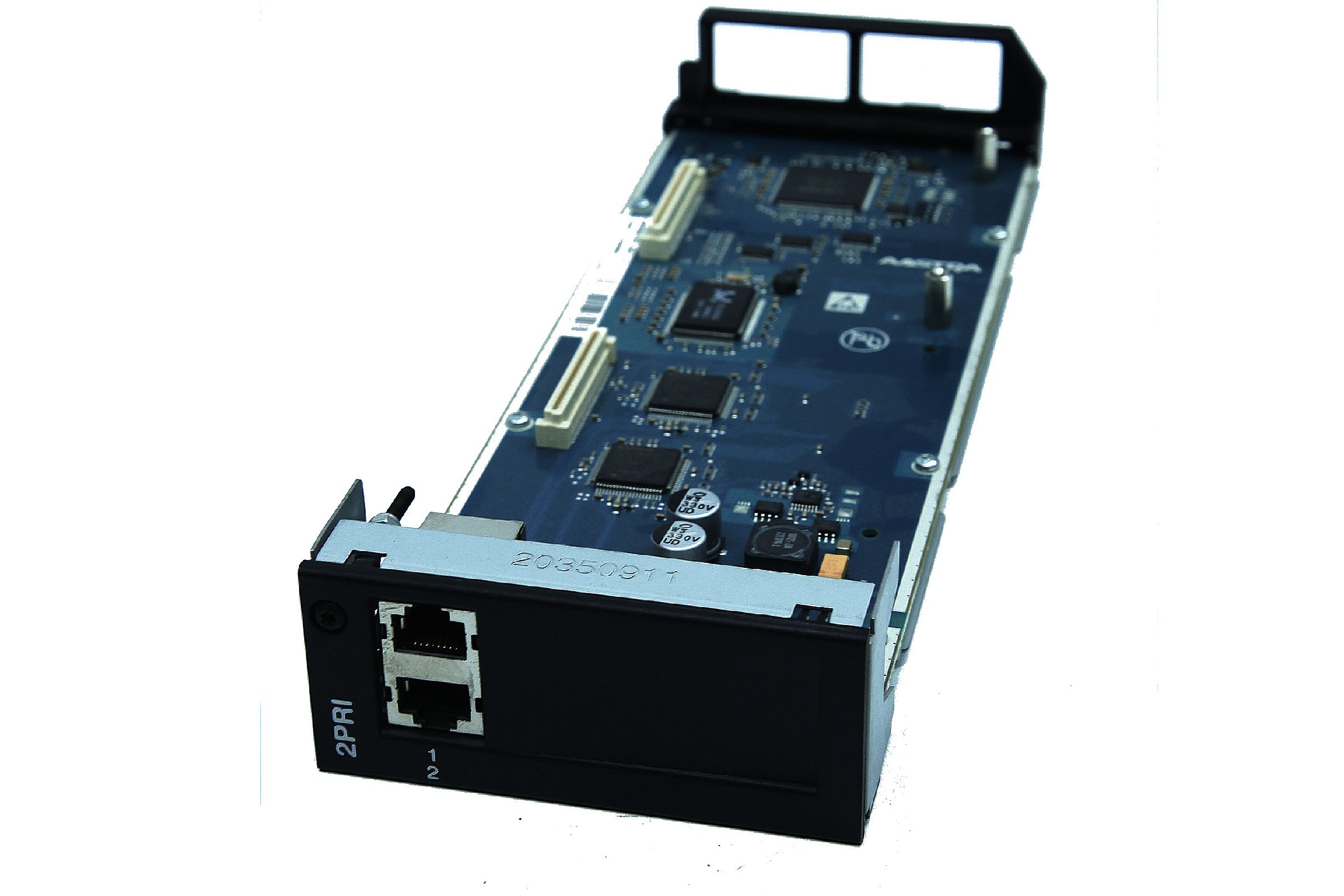

Aastra Mitel 470 2PRI MOV958.EXP.2PRI S2M assembly - 20350863
PRI cards (PRI: Primary Rate Interface) connect the Mitel Mivoice Office 470 (Aastra 470) to the public ISDN network via S2M connections (also called PMX-primarily mentioned). The group of the assembly includes 2x 10 S2M channels, further channels can be purchased with the TIC-1PRI license. The PRI assembly can be adapted to the S2M connections, which is now also offered in Germany with a different number of channels. A maximum of 30 channels are available per Pri connection.
Network assembly for the following Mitel (Aastra) systems:
Mivoice Office 470 (Aastra 470) Network assembly for the following mitel (Aastra) Systems: Mivoice Office 470 (Aastra 470) Pri-cards offer the possibility Aastra 470 systems with S2M-ISDN (PMX)-Connect connections: 2 card types: 1PRI, 2PRI with 1 or 2 interfaces expandable with IP media module EIP1-8 and EIP 1-32
| Manufacturer: | Mitel |
| Model name: | MOV958.ESP.2PRI 20350863 |
| Module type | Interface module for ISDN-S2M network ports |
| Module name | Network card ISDN primarily 2PRI - MOV958.EXP.2pri -1 |
| Number of ports | 2 |
| Expansion limit | 7 modules |
| Cable requirements for the PRI connection | Aern pairs x vein: 2 x 2, at a short distance also 1 x 4 navigated: Yes wire diameter: 0.4 .. 0.6 mm shielding: yes Kat.5 Wave resistance: <125ohm (100kHz), <115ohm (1MHz) Wave damping: <6 db/km (100 kHz), <26 db/km (1 MHz) Near/Next |
| Condition: | Reprocessed (used hardware moved back in new condition) |
| State description: | Recently, a part is relocated to an almost new state. As a rule, this includes careful technical review, cosmetic overhaul, cleaning and conversion. |
| Accesories: | No other accessories |
