Feature:

1. 【New Eye conservation Design】: The protective cover plays a very good role in protecting your eyes. You and the people around you can watch engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
2. 【Solid and Easy Installation Structure】: The full-metal structure design makes the machine more solid and durable, and improves the accuracy of engraving. The whole structure is designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. 【Upgraded Fixed- 】: Engraving can be done without adjusting the ; The new can combine both engraving and high-energy cutting at the same time. The power of the fixed- is more stable than the zoom .
4. 【Ultra-Fine Compression 】: power is 4.5-5.5W, the high-power engraving is and more accurate. The ultra-fine area is reduced to 0.23mm^2. The high-density can easily cut 12mm thick wood and black Acrylic; can directly engrave smooth stainless steel metal and ceramics.
5. 【Intelligent Security conservation】: When the is in an abnormal state and continues to be irradiated, the will automatically stop to prevent fire; when the engraving machine is impacted by an external force, the will automatically stop to avoid danger (Customers can choose whether to use this function).
6. 【Extensive Compatibility】: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support XP/7/8/10(LaserGRBL), and also support system (LightBurn), engraving file format support NC, BMP, JPG, PNG, DXF etc.
7. 【 Scale Line Axis】: X-axis and Y-axis has scale lines, which is convenient for you to carry out quick length measurement. The 410x400mm large-area engraving interval can meet your various engraving needs. Widely used in metal(non-reflective or painted black), wood, plastic, paper, bamboo, leather, etc.
8. 【Integral Screw Rod】: The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the more precise and the coupling more durable.

Specification:

Features:
【New Eye conservation Design】:The protective cover plays a very good role in protecting your eyes. You and the people around you can watch engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
【Solid and Easy Installation Structure】:The full-metal structure design makes the machine more solid and durable, and improves the accuracy of engraving. The whole structure is designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
【Upgraded Fixed- 】:Engraving can be done without adjusting the ; The new can combine both engraving and high-energy cutting at the same time. The power of the fixed- is more stable than the zoom .

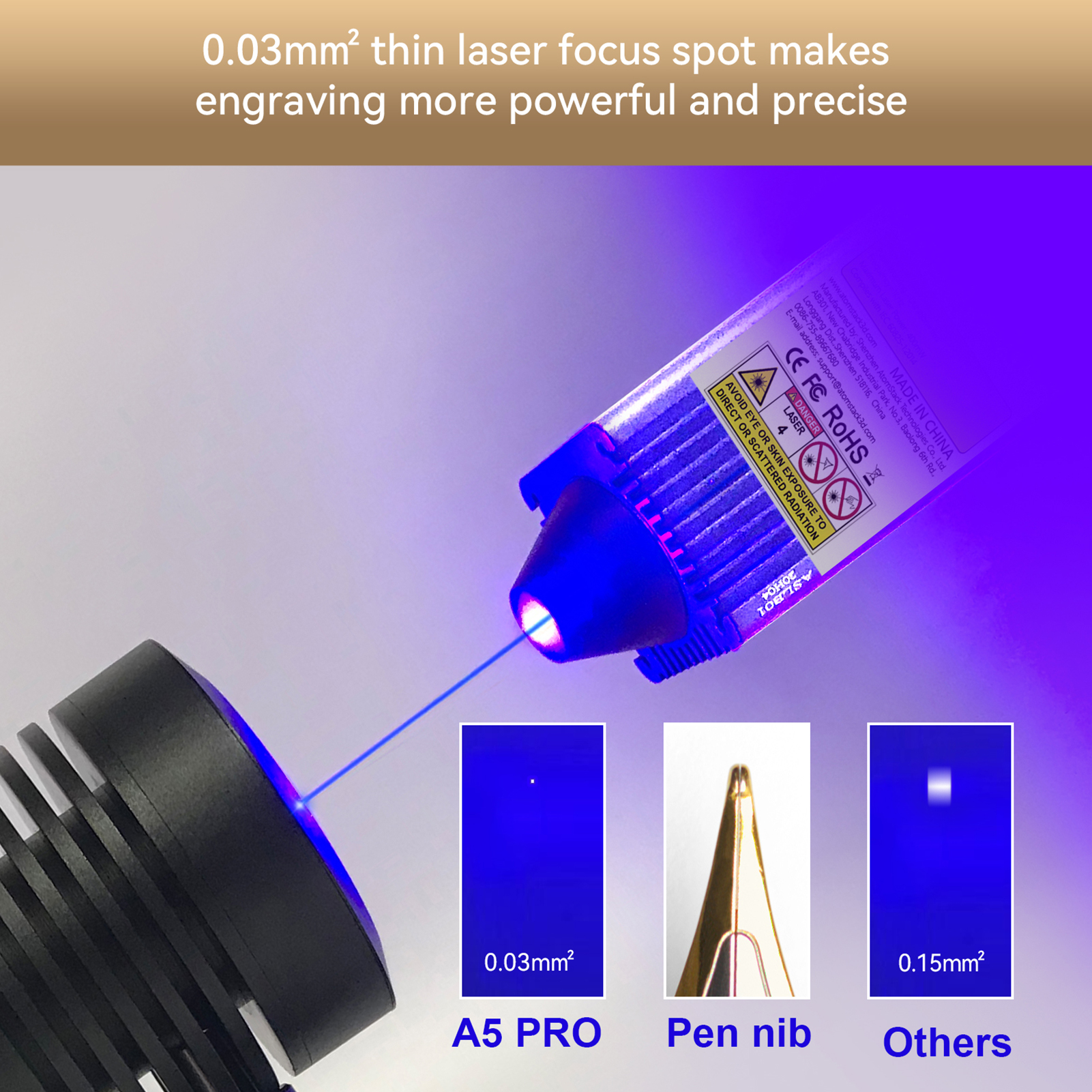

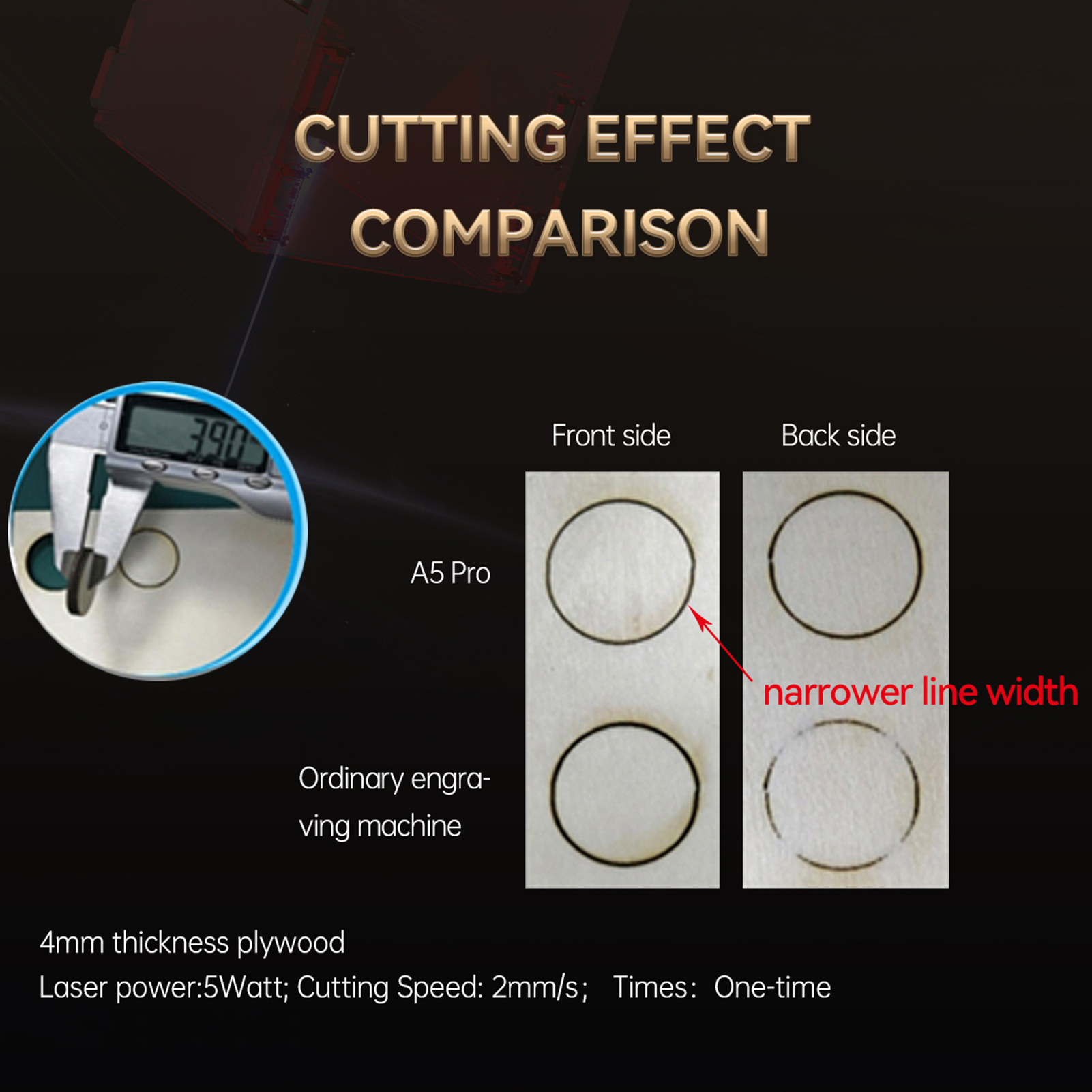

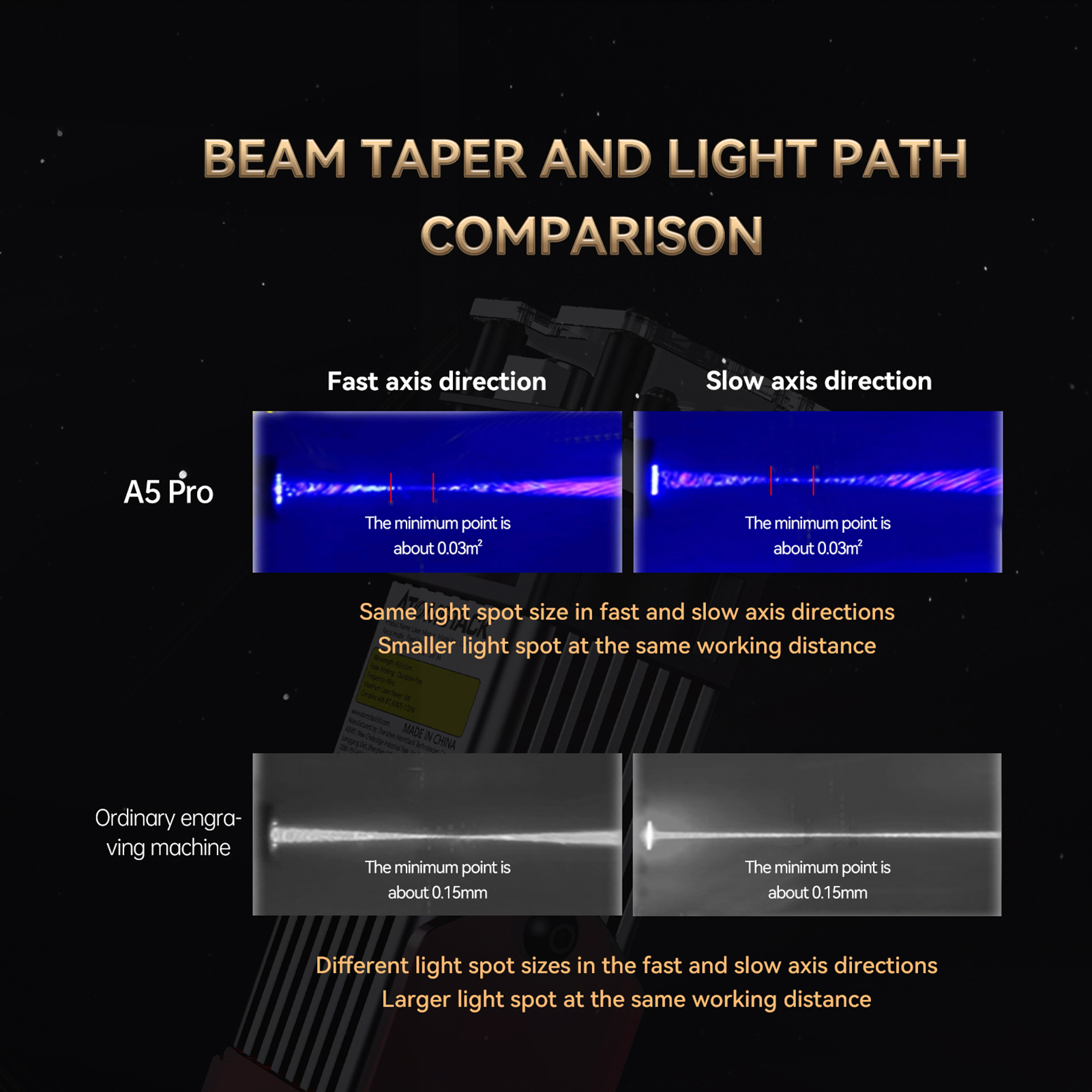

【Ultra-Fine Compression 】: power is 4.5-5.5W, the high-power engraving is and more accurate. The ultra-fine area is reduced to 0.23mm^2. The high-density can easily cut 12mm thick wood and black Acrylic; can directly engrave smooth stainless steel metal and ceramics.
【Intelligent Security conservation】:When the is in an abnormal state and continues to be irradiated, the will automatically stop to prevent fire; when the engraving machine is impacted by an external force, the will automatically stop to avoid danger (Customers can choose whether to use this function).
【Extensive Compatibility】:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support XP/7/8/10(LaserGRBL), and also support system (LightBurn), engraving file format support NC, BMP, JPG, PNG, DXF etc.

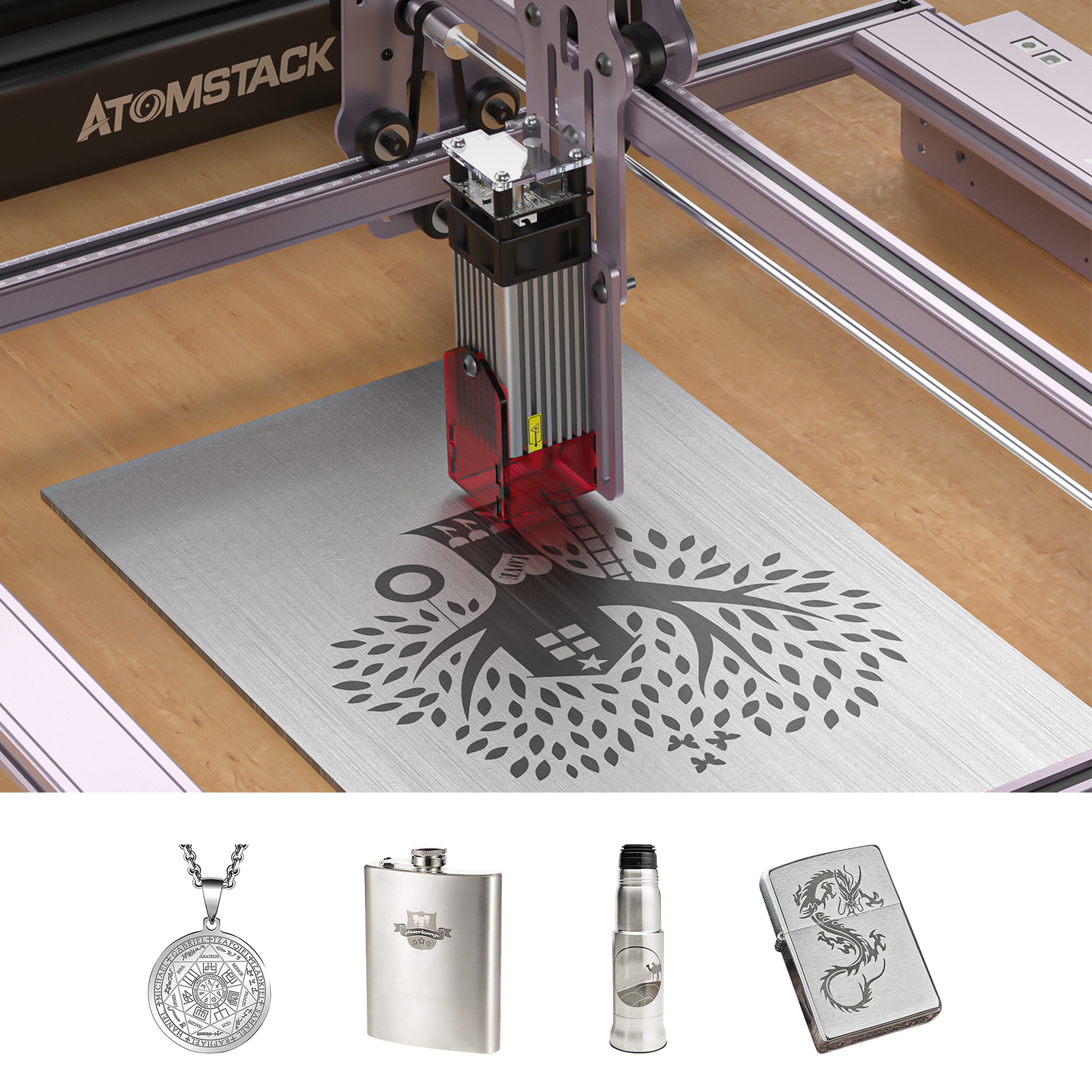

【 Scale Line Axis】:X-axis and Y-axis has scale lines, which is convenient for you to carry out quick length measurement. The 410x400mm large-area engraving interval can meet your various engraving needs. Widely used in metal(non-reflective or painted black), wood, plastic, paper, bamboo, leather, etc.
【Integral Screw Rod】:The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the more precise and the coupling more durable.

Specifications:

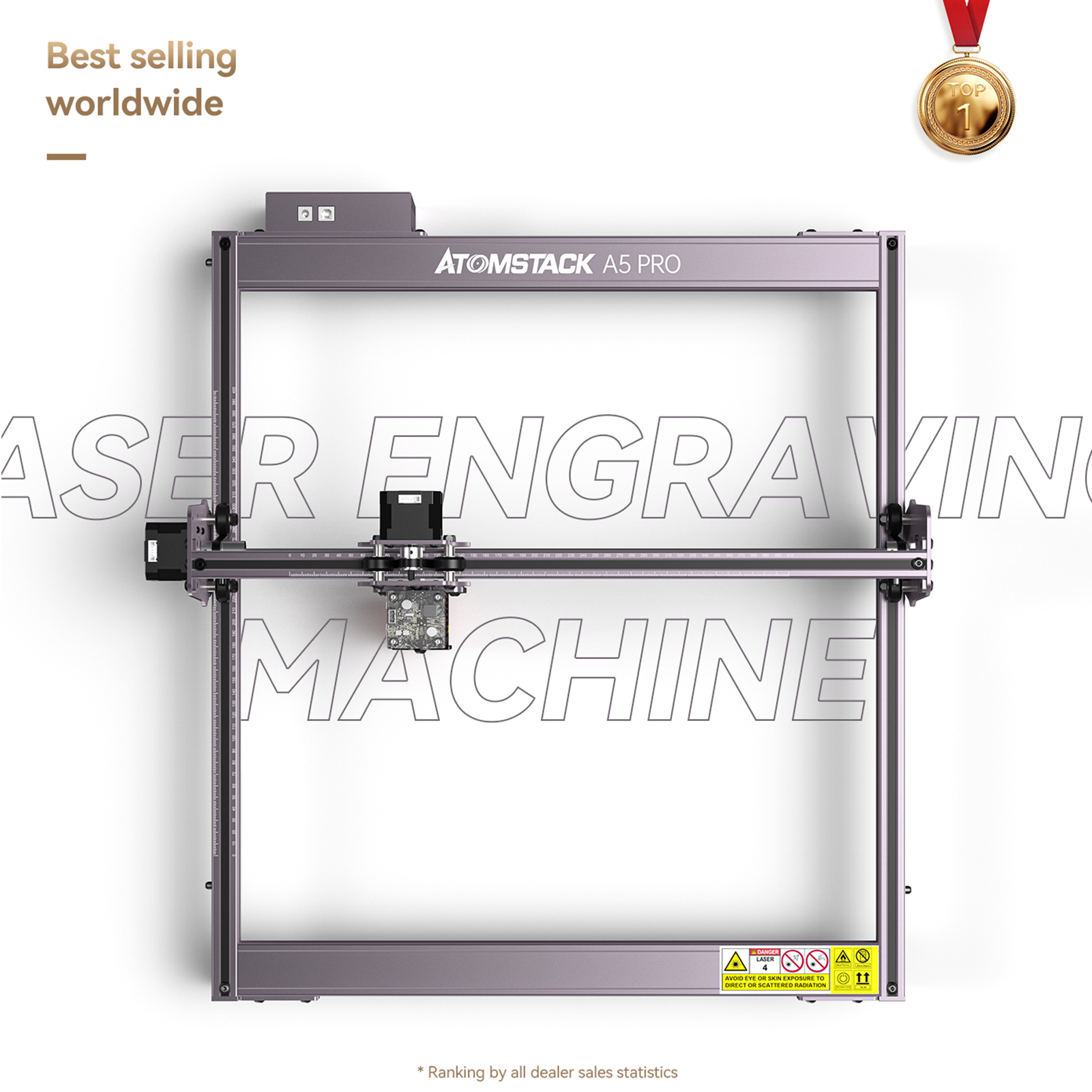

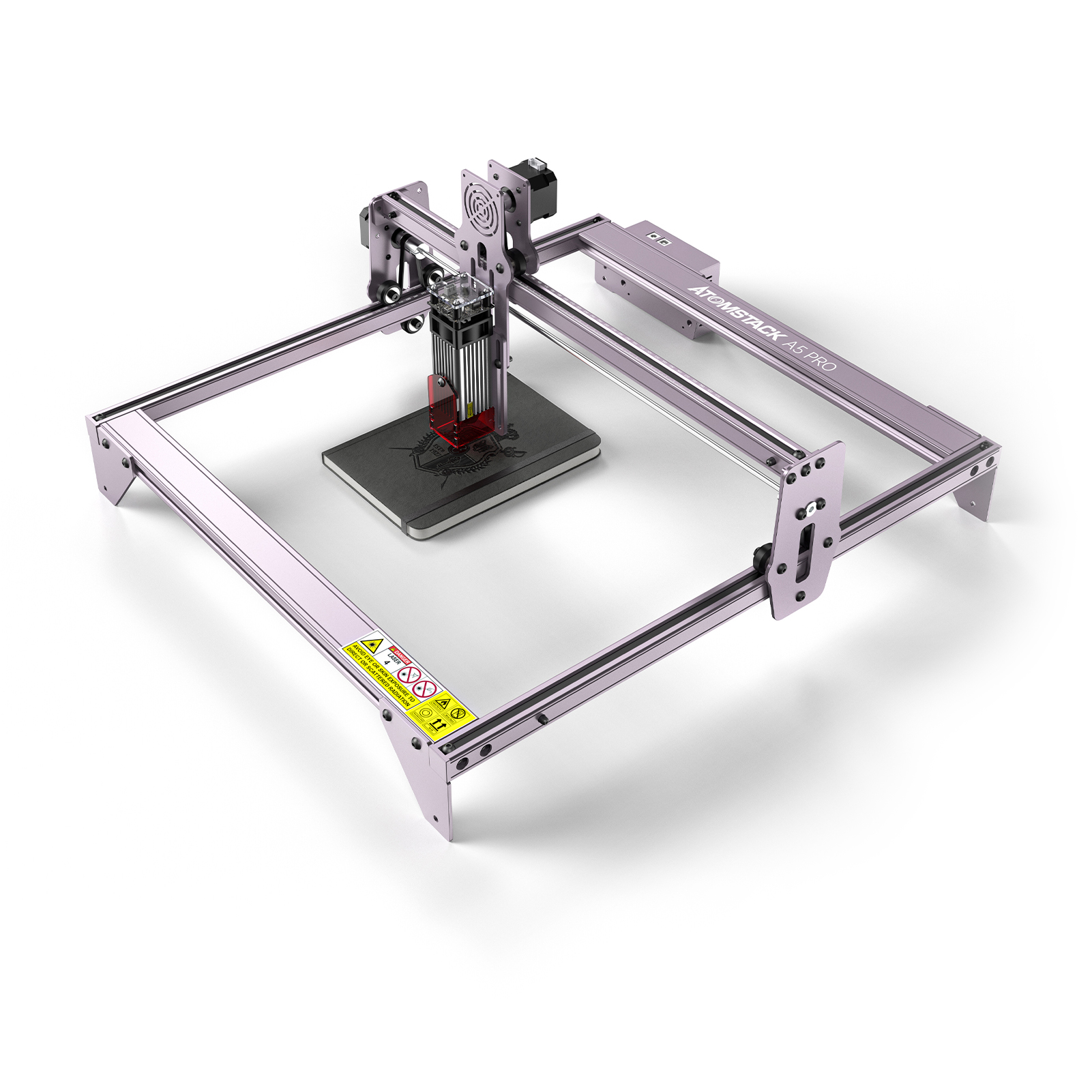

Product Model: ATOMSTACK A5 Pro
Frame Material Sheet Metal + Aluminum Profile
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 3A
Engraving Size: 410*400mm
Carving Objects: All wood, bamboo, paperboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal.
Cutting Objects: Cardboard, non-woven fabric, thin wood, acrylic material, thin plastic board.
Power: 40W
Output Power: 4.5-5.5W
Wave Length: 455±5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed , no need to
Safety conservation: When the is under control, the motor does not move and the lights up. If the user forgets to turn off the , the will automatically turn off after a period of exposure to prevent fire. Impact move will be detected ,and the machine will stop to avoid danger.
Protective Cover: Protect the user's eyes and prevent pets from grabbing the spot.
Operating Software: LaserGRBL, LightBurn, support XP/ 7/ 8/ 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method: USB Connection
Equipment Size: 57 * 60 * 27cm / 22.4 * 23.6 * 10.6in
Equipment Weight: 3426g / 7.6lbs
Packing Size: 59x35x3cm/23.2x13.7x1.1in
Package Weight: 5072g / 11.2lbs

Precautions:
●Before operating the engraving machine, please read the manual carefully.
●When operating the engraving machine, please install the protective cover; if it is not installed, you need to wear goggles.
●Do not touch the with your hands, or you may burn your hands.
●Please avoid strong impact on the machine.
●Children under the age of 14 are prohibited from using this product, and children over the age of 14 need adult supervision.
●Do not apply the directly to any specular reflective objects, which may cause injury to the operator or burn the .
●Transparent acrylic cannot be engraved directly.

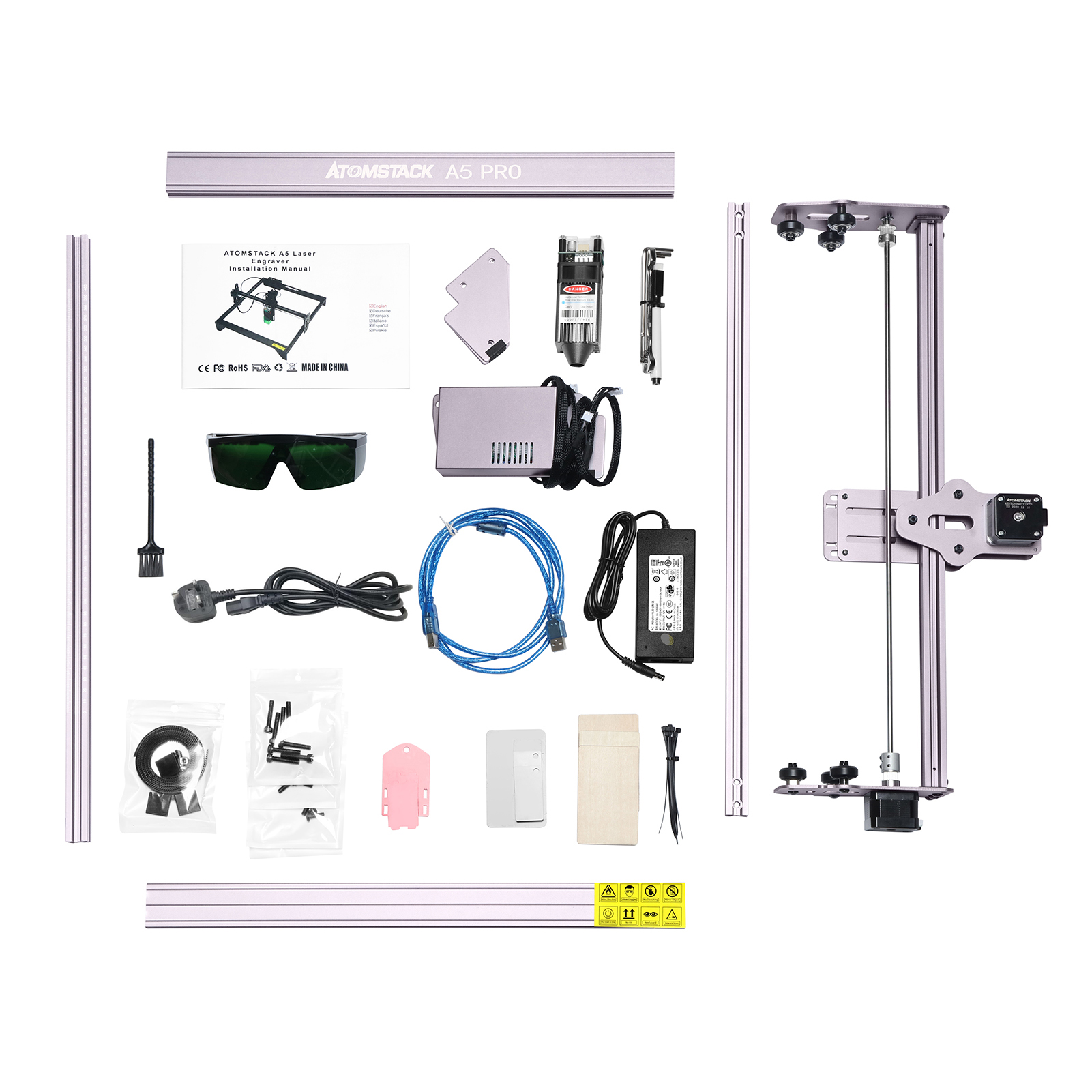

Packing List:
1 * X-Axis Assembly
2 * Section 57CM
2 * Section 48CM
1 * Control Box
3 * Support Feet
1 * Goggles
1 *
1 * Power Adapter
1 * Power Cord
1 * USB Cable
1 * Step 1~5 Installation Package
1 * M5 Wrench
10 * Rolled Belt
3 * Small Wood
1 * Length Film
1 * M3 Wrench
1 * Marker
1 * Brush
3 * Small Acrylic

Package List:

1 * X-Axis Assembly
2 * Section 57CM
2 * Section 48CM
1 * Control Box
3 * Support Feet
1 * Goggles
1 *
1 * Power Adapter
1 * Power Cord
1 * USB Cable
1 * Step 1~5 Installation Package
1 * M5 Wrench
10 * Rolled Belt
3 * Small Wood
1 * Length Film
1 * M3 Wrench
1 * Marker
1 * Brush
3 * Small Acrylic
