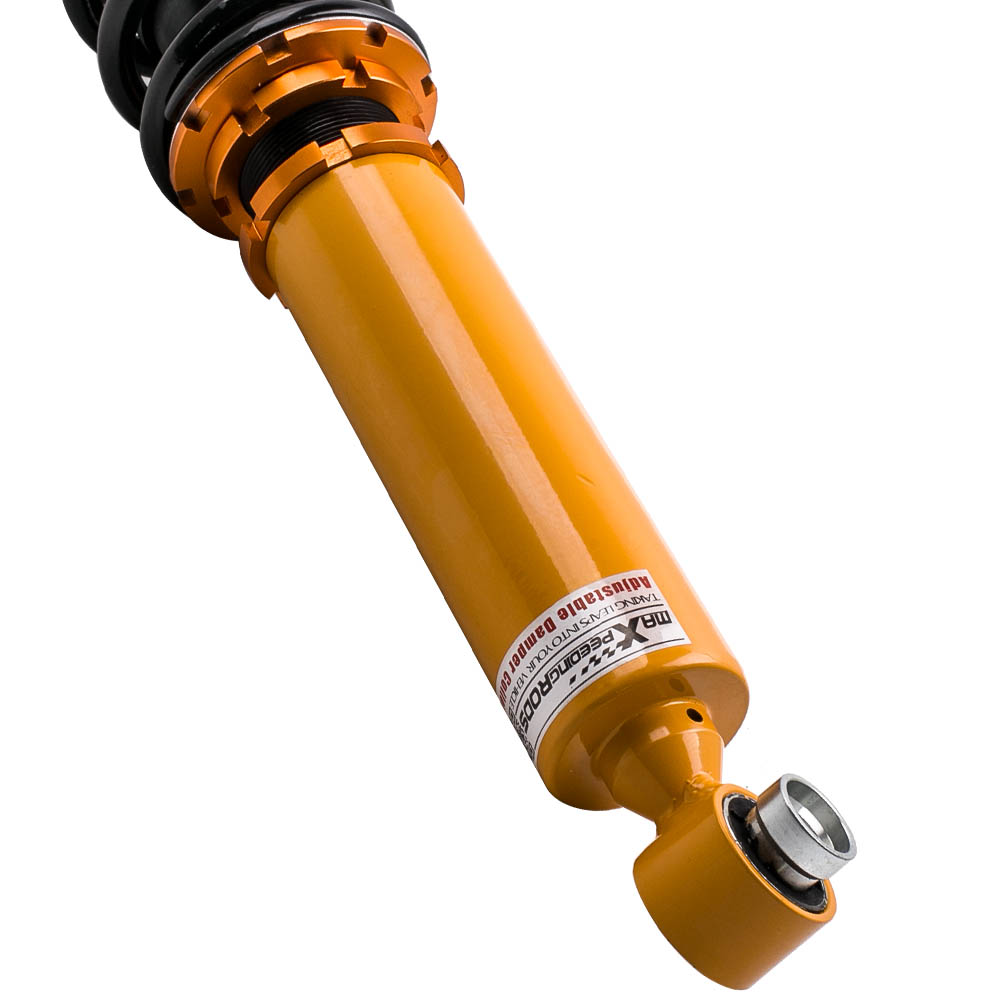

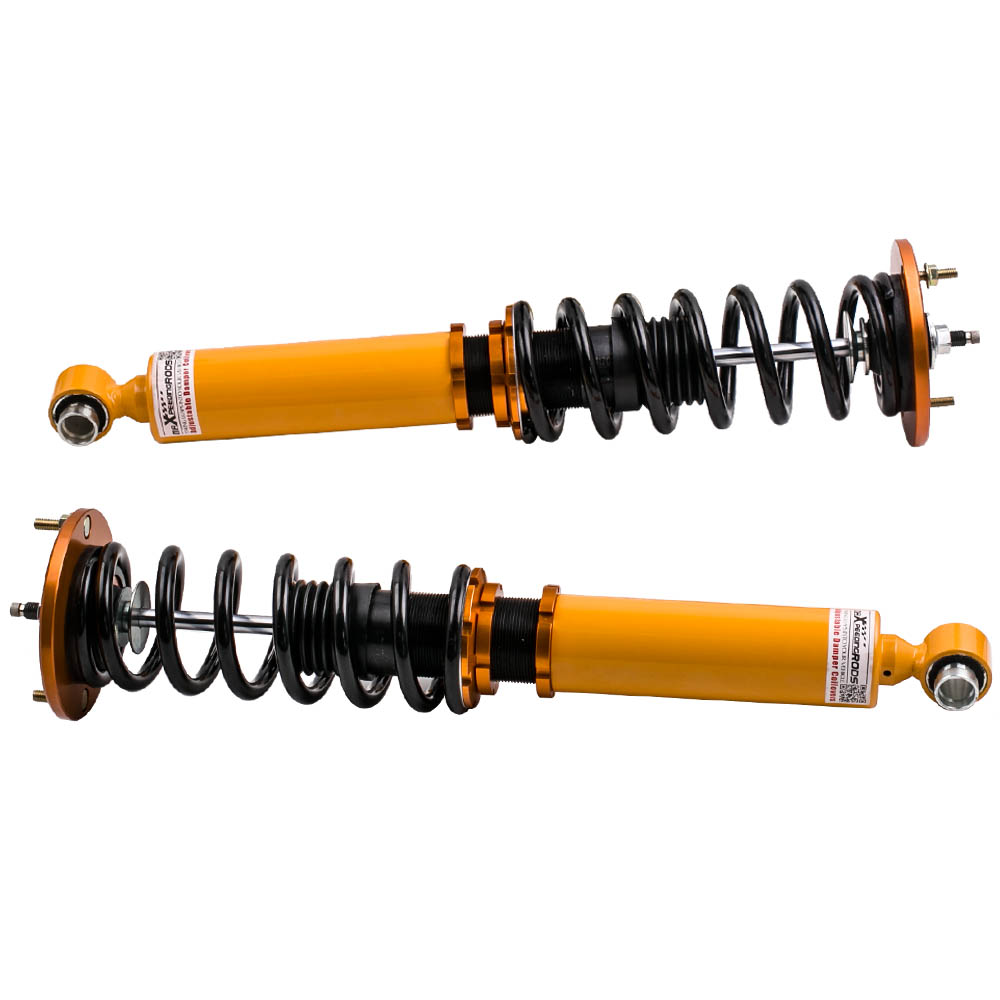

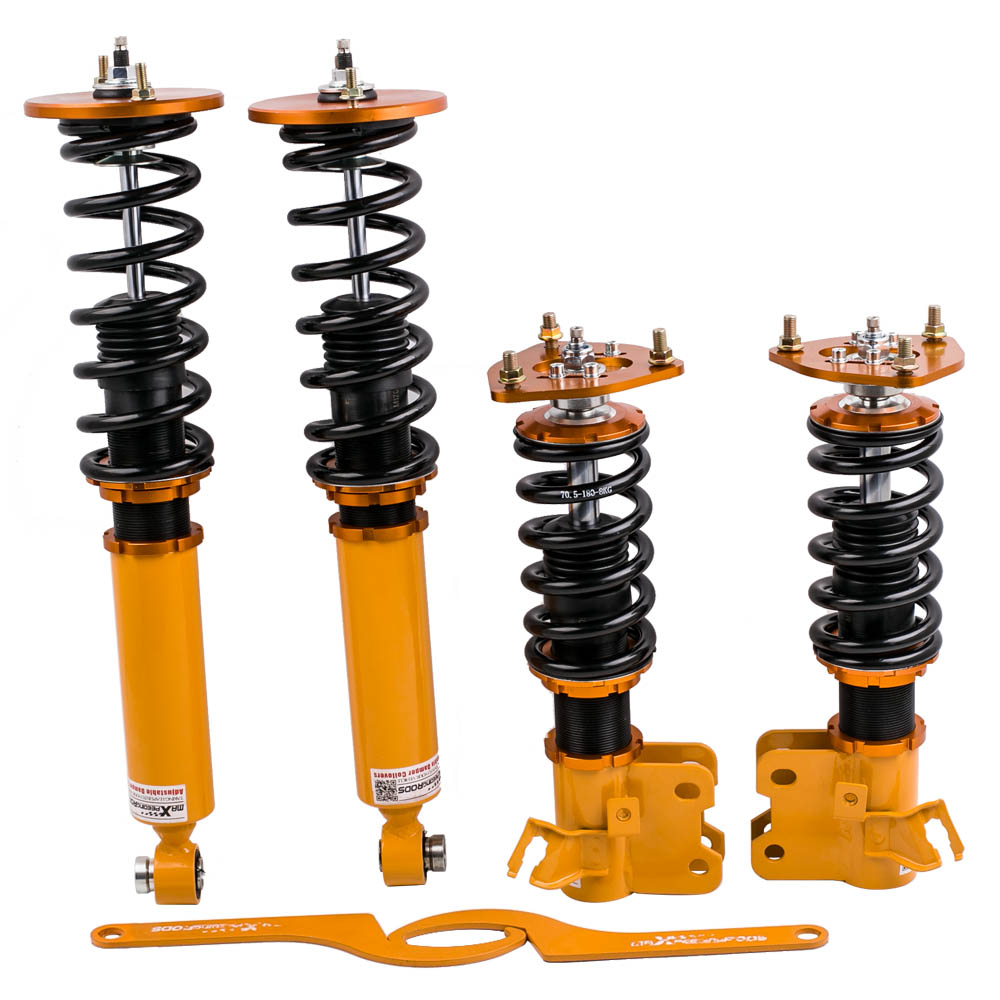

24-Way Adj. Damper Coilover Suspension Kit For Nissan S14 200SX BASE MODEL/ LE
Description
Applications For Nissan S14 Silvia 1994-1998 (Japan Market)
For Nissan S14 200SX BASE MODEL/ LE 1994-1998 (Europe / Australia/ New Zealand Market)
For Nissan S14 240SX BASE MODEL/ LE/SE 1995-1998 (USA Market) Note: Don't fit Nissan 200SX SE /SE-R
Specifications Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear Damping: 24 levels rebound damping adjustable Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 180mm
Spring length Rear: 255mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-470mm
Coilover overall length Rear: 550mm-700mm
Shock type: Twin tube.
Spring Preload: 7-10 mm.
Color: Gold.
Package included Complete coilovers 2 front and 2 rear
A pair wrench for height adjustment.
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
3.Pillow ball top mount - It improves the steering feel and response.（Only Front )
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)
5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.
12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Notice * Instruction not Included. Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For CA domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 4-7 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.But if any question , pls contact us via eBay.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
We will ship your order in one business day once the payment is cleared.
Tracking number will be uploaded to eBay within 24 hours after shipment.
Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .
We accept 30 days return/refund guarantee
If the item you received is faulty, damaged or incorrect, or any further problems, please contact our customer service on eBay within 30 days from item received.
For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.
WHY CHOOSE US
24-Way Adj. Damper Coilover Suspension Kit For Nissan S14 200SX BASE MODEL/ LE
Applications
For Nissan S14 Silvia 1994-1998 (Japan Market)
For Nissan S14 200SX BASE MODEL/ LE 1994-1998 (Europe / Australia/ New Zealand Market)
For Nissan S14 240SX BASE MODEL/ LE/SE 1995-1998 (USA Market)
Note: Don't fit Nissan 200SX SE /SE-R
Specifications
Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear
Damping: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 180mm
Spring length Rear: 255mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-470mm
Coilover overall length Rear: 550mm-700mm
Shock type: Twin tube.
Spring Preload: 7-10 mm.
Color: Gold.
Package included
Complete coilovers 2 front and 2 rear
A pair wrench for height adjustment.
Dimension
Gross weight: 26.06kg
Package size: 71*51*21cm
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
3.Pillow ball top mount - It improves the steering feel and response.（Only Front )
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)
5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.
12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Notice
* Instruction not Included. Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
