Forscan ELM327 Bluetooth OBD2 Scanner with Switch For Ford Mazda Diagnostic Tool

📘 Product Description

The Forscan ELM327 Bluetooth OBD2 Scanner with Switch is a professional diagnostic interface designed specifically for Ford and Mazda vehicles.
Equipped with a genuine FT232RL chipset, this advanced adapter supports HS-CAN and MS-CAN networks, giving you complete access to all Ford ECUs for reading, coding, resetting, and monitoring vehicle data.

It connects wirelessly via Bluetooth to your laptop, tablet, or Android device and works seamlessly with FORScan, FOCCCUS, and other popular OBDII diagnostic software.
Compact, durable, and user-friendly, this adapter provides reliable communication for fault code reading, live data streaming, ECU configuration, and advanced diagnostics.

Forscan ELM327 Bluetooth with switch, full working with Forscan software can be downloaded from Forscan website

With genuine FT232rl Chip, ELM327 HS + FORScan + MS CAN

Can update driver online from official website for Win7, Win8

Can OEM with new design

Software can be downloaded from official website

This interface will allow you to realize a diagnosis on vehicles FORD group.

If you have a FORD, this interface is for you!

Using the switch, so you can access the FORD proprietary networks like CAN HS, MS CAN.

This interface will show you much more easily and quickly the settings you have selected. FORSCAN associated software, you can access many computers. A list of computers is also available on the official website.

It’s the best available resource in the market to work with software like FORSCAN and FOCCCUS diagnostic software, specially designed for FORD and some MAZDA Models.

To check it’s compatibility for your FORD visit the official website of FORSCAN

Perform all functions, the counterfeits would be lack of performing all the functions

Supported communication protocols:

With genuine FT232rl can be tested via updating driver on official website for FT232rl; Those fake ones would be locked or failed, our genuine would get through smoothly.

Functions:

Features:

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

Software:

• For Android: Torque+1.5.58+
• For Symbian: OBDScopev1.21
• For Window Mobile-palm-pc-pocket pc
• ScanMaster--ELM v2.1-pc
• PCMSCAN-pc
• OBD2Spy
• ELM327-V1.2-pc
• EasyOBDII
• WOBDCRAZY

Specifications:

• Output Protocol: S232 to Bluetooth
• Frequency: 8400
• Size: 88*46*25
• Voltage: 12V
• Current: 45mA
• Bluetooth: 10M
• Supported platform: Android, Symbian, Windows Mobile, palm, pc, pocket pc.

• Introduction:


  One ELM327 OBDII OBD2 USB with switch. Designed for communicating  for FORD, Mazda, Lincoln and Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular


  OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.




  Basic Features:


  Reset fault /trouble codes / parameter ids (PIDs)
  Change car configuration data
  Run tests
  Services procedures
  Program certain models




  Pin Configurations:


  Switch position one: HS CAN - Occupies pins 6 and 14
  Switch position two: MS CAN - Occupies pins 3 and 11




  Supported Software:




  FORScan
  Elmconfig
  FoCCCus
  FF2
  Plus more




  Modified EML:


  Please note that many  for FORD and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN

  is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
  ELM327 supports HS CAN from the stock, because  for FORD HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.





  Supported Vehicles:


  All  for FORD, Mazda, Lincoln, Mercury vehicles that can be addressed using an ELM via an OBDII connector.








  Supported Protocols:




   for FORD HS CAN


   for FORD MS CAN




⚙️ Product Specifications

🚗 Key Features & Highlights

• ✅ Full FORScan Compatibility — Specially designed for Ford & Mazda diagnostics.

• ✅ HS-CAN / MS-CAN Switch — Access all proprietary Ford modules effortlessly.

• ✅ Wireless Bluetooth Connectivity — No cables needed; connects to PC, tablet, or Android phone.

• ✅ Genuine FT232RL Chip — Ensures reliable, fast data transfer and firmware update compatibility.

• ✅ Reads & Clears Trouble Codes — Quickly identifies issues and resets the check engine light.

• ✅ Displays Live Engine Data — Monitor RPM, fuel trim, temperature, throttle position, airflow, etc.

• ✅ Supports All Major OBDII Protocols — Compatible with CAN, KWP, VPW, PWM, and ISO standards.

• ✅ Compact & Durable Design — Ideal for workshops, garages, and DIY enthusiasts.

• ✅ 1-Year Warranty & Full Online Support — Backed by reliable service and firmware updates.

🧠 Functions

• Read and clear diagnostic trouble codes (DTCs).

• View real-time engine and sensor data.

• Turn off the “Check Engine” (MIL) light.

• Perform ECU coding, adaptation, and reset.

• Monitor engine RPM, load value, fuel trim, and temperature.

• Check timing advance, intake pressure, and air/fuel ratios.

• Display oxygen sensor voltages and fuel pressure.

• Works with software like FORScan, Torque, FOCCCUS, ScanMaster, EasyOBDII, and more.

💻 Software Compatibility

For Android: Torque, DashCommand, OBD Auto Doctor
For Windows PC: FORScan, FOCCCUS, ScanMaster, EasyOBDII, OBD2Spy, PCMSCAN
For Symbian / Windows Mobile: OBDScope, WOBDCRAZY

🧩 Supported OBDII Protocols

• SAE J1850 PWM (Ford)

• SAE J1850 VPW (GM)

• ISO9141-2

• ISO14230-4 KWP (5-baud and fast init)

• ISO15765-4 CAN (11/29-bit ID, 250-500 Kbaud)

• SAE J1939 CAN (29-bit ID, 250 Kbaud)

• USER1 CAN (11-bit ID, 125 Kbaud)

• USER2 CAN (11-bit ID, 50 Kbaud)

⚙️ Applications

• Ford vehicle diagnosis and module programming

• Mazda system scanning and coding

• ECU data reading and adaptation reset

• Service interval and DPF reset

• Real-time performance monitoring

• Ideal for car technicians, tuners, and DIY enthusiasts

• Technical Details:


  1.Latest ELM327 version for greater for  compatibility
  2.Manufactured modification to include a switch to connect to different CAN buses
  3.Designed for FORScan software
  4.Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more
  5.MS CAN bus and HS CAN bus support
  6.Drivers and instructions included

📦 Package Includes

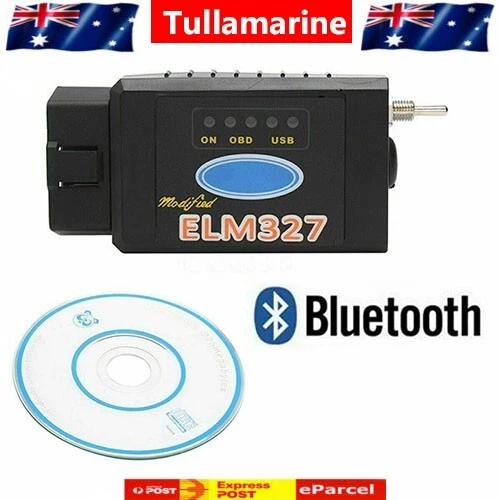

• 1 × Forscan ELM327 Bluetooth Adapter with Switch

• 1 × CD-ROM (Software & Drivers)

⚠️ Important Notes

• Designed mainly for Ford & Mazda vehicles.

• Not compatible with iOS devices (Bluetooth version).

• Always download the latest FORScan version from the official website.

• Ensure ignition is ON before connecting the scanner.

🏷️ Item Used

Forscan Bluetooth Scanner, ELM327 OBD2 Adapter, Ford Diagnostic Tool,
Mazda OBD2 Scanner, HS CAN MS
