10.2KW On/Off grid Solar Hybrid Inverter DC48V AC230V Built-in 160A PV Max 500V
We sell energy storage batteries, which can be customized from 1 kilowatt hour to 10 kilowatt hours. To avoid insufficient battery capacity or excessive waste of power generation. The battery capacity is based on the specific use requirements of the load and application scenarios. You can contact us for technical support. thank you!
This is a single phase inverter. Parallel connection is not supported.

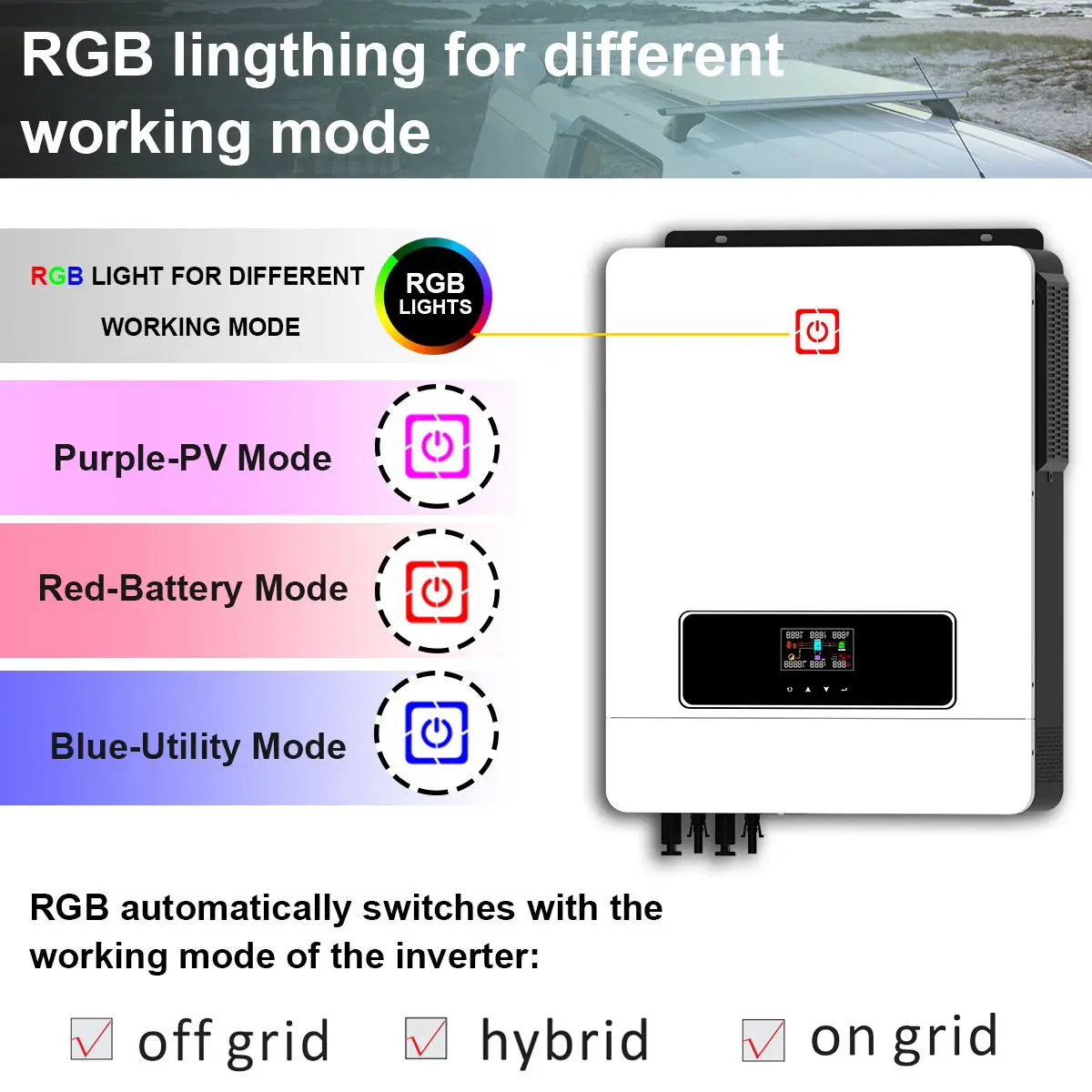

【Pure sine Wave Inverter】10200W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, dual MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)

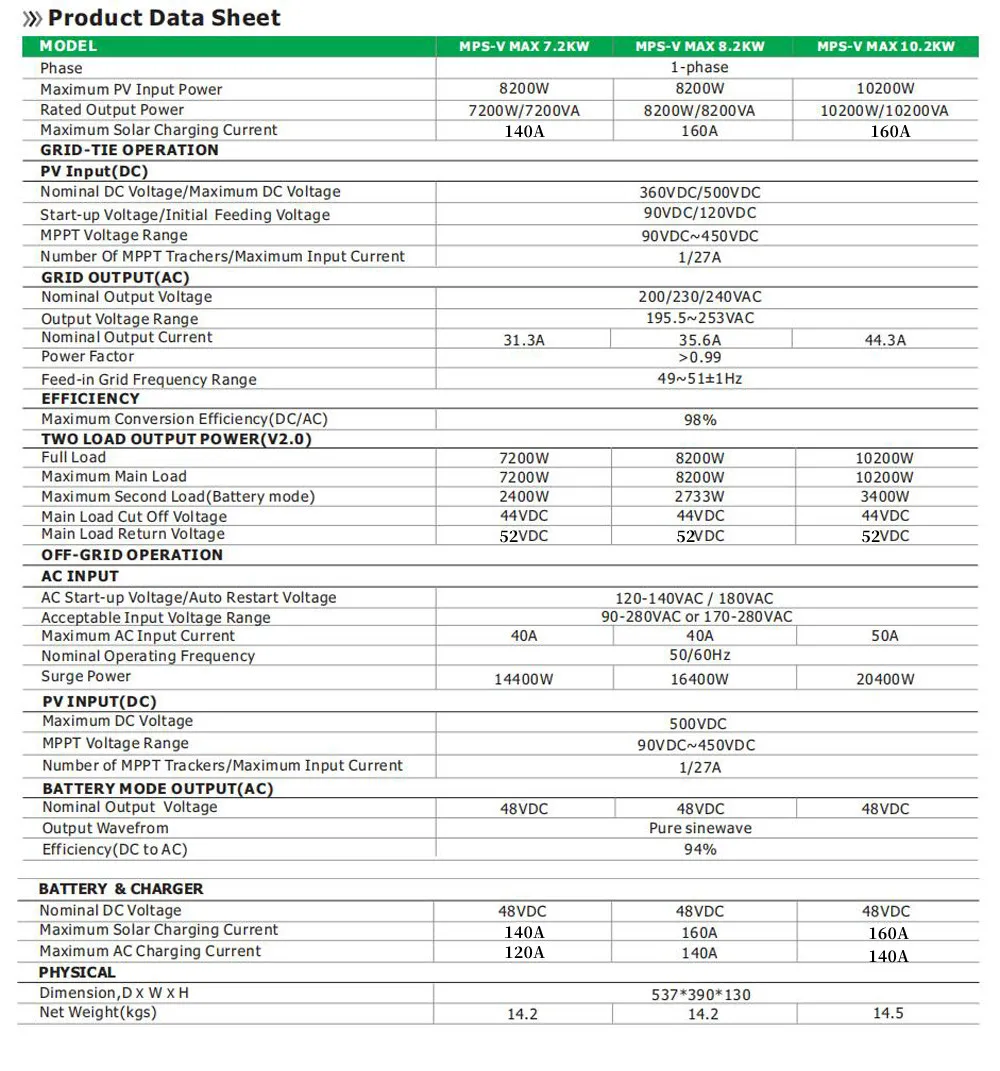

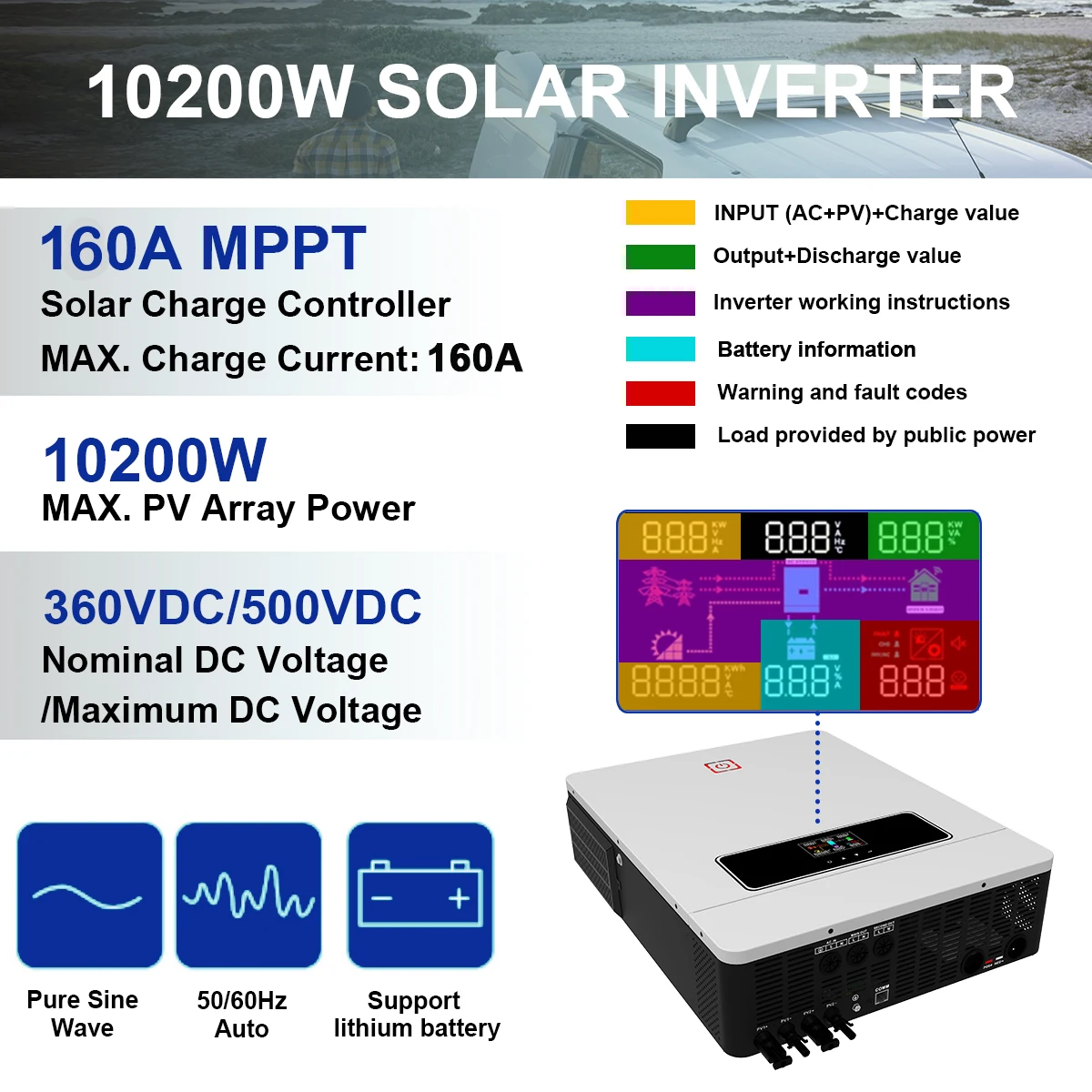

【TECHNICAL SPECIFICATIONS】10.2KW Hybrid Solar Inverter Max.PV Input Power: 10200W, Voltage range: 90-450Vdc, Max.PV Input VOC: 500V DC, Starting voltage >150V; The best working voltage is 300-360V;Recommended PV cable size: 10AWG, Max. charge current: 160A. Nominal Input Frequency: 50/60Hz; Output Power: 10200W, surge Capacity: 20400W.fit for 48V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.

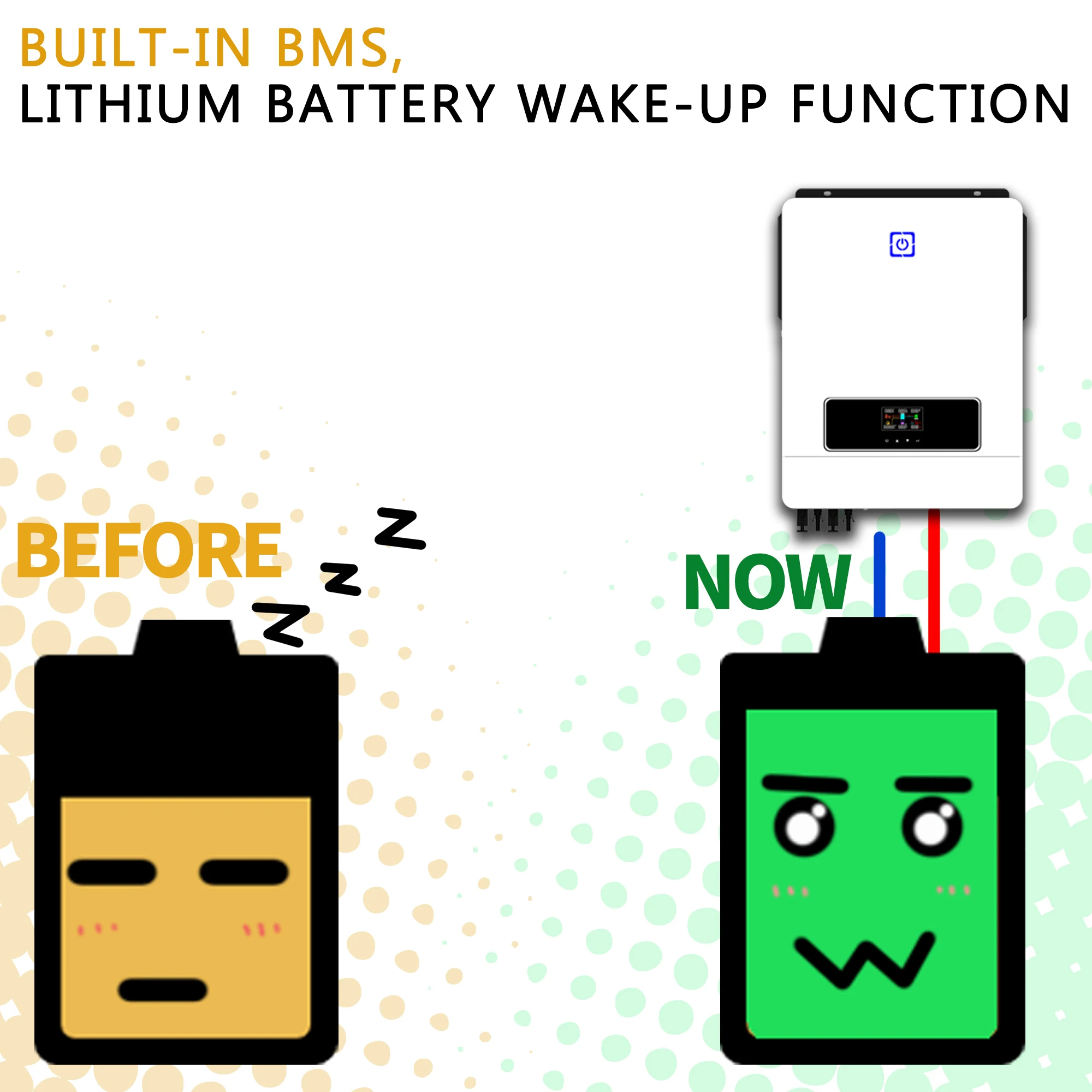

【New features】Built-in BMS function. Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest
To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, that it can help you don't need to pay the additional fees. when you order before, please contact us first, thank you.
【Y&H can provide you with a battery package.】
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction:
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
Features of 48VDC solar power inverter：
1.Pure sine wave solar inverter
2.Output power factor 1.0
3.Wifi&GPRS available for IOS and android

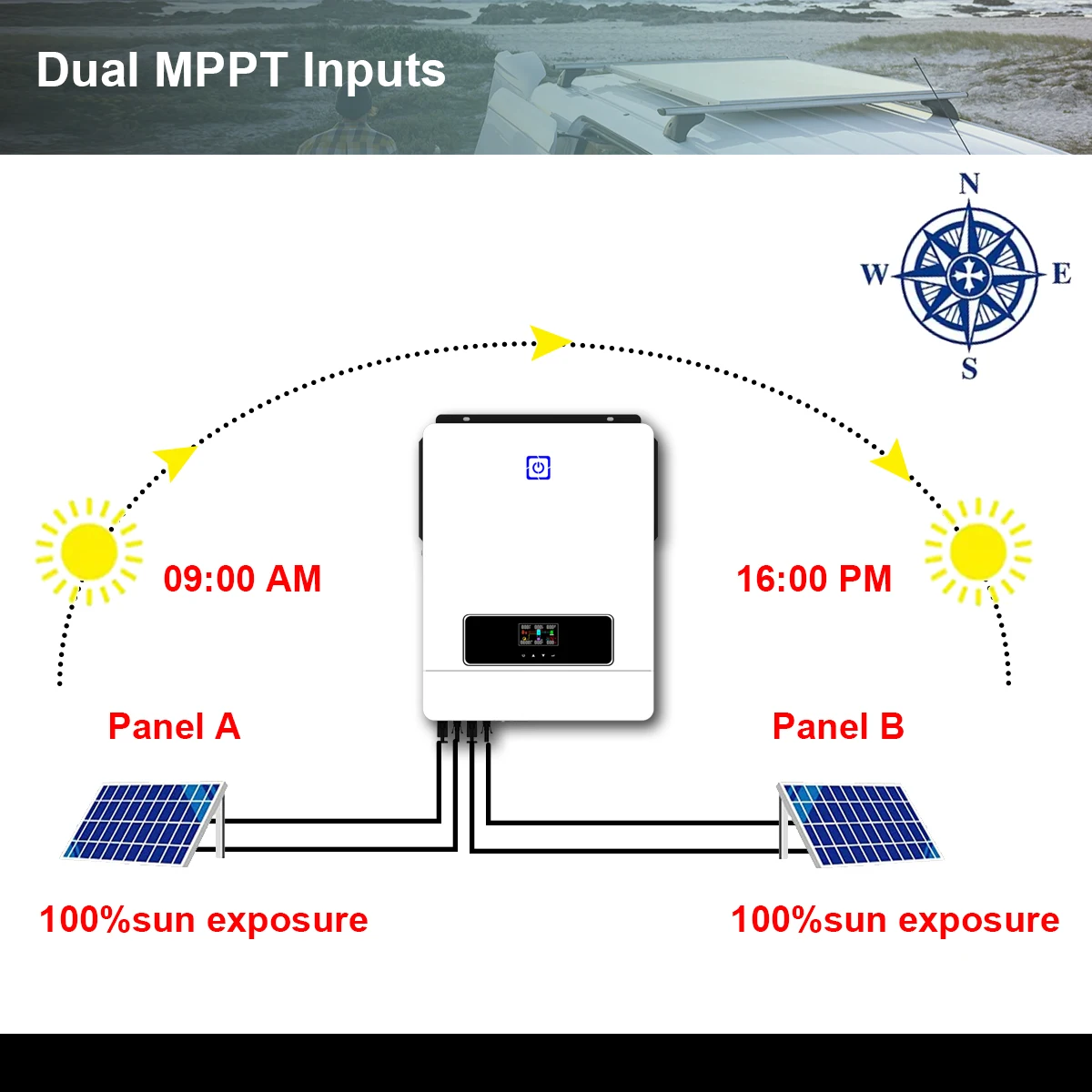

4.Dual MPPT input, dual AC output
5.Built-in 160A MPPT solar charge controller
6.High PV input voltage range(120~500VDC)
7.Built anti-dusk kit for harsh environment
8.Smart battery charger design for optimized battery life
9.RGB automatically switches with the working mode of the machine
10. On/off-grid,Touch screen display
11.Inverter running without battery

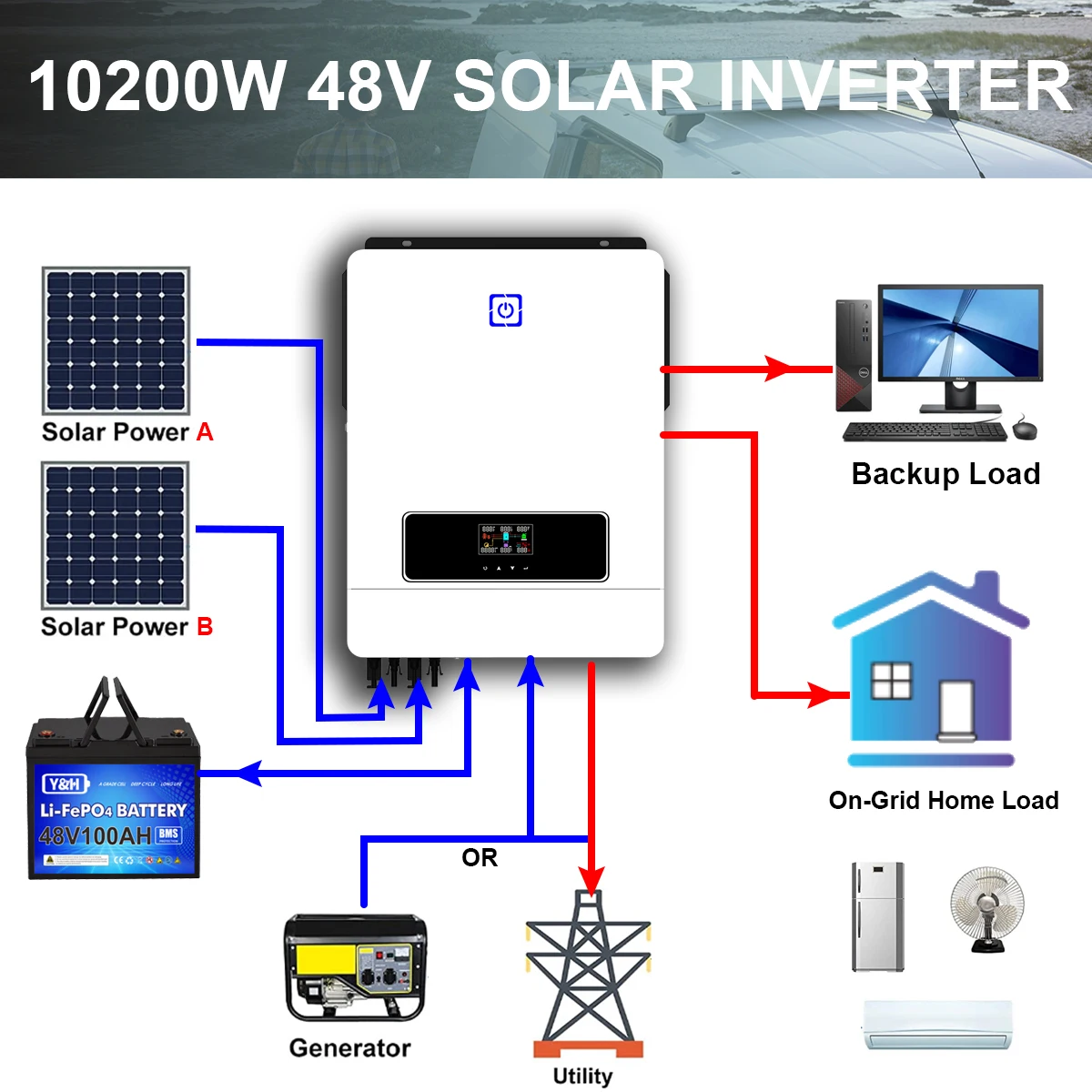

Basic System Architecture:
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
1.Generator or Utility.
2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.

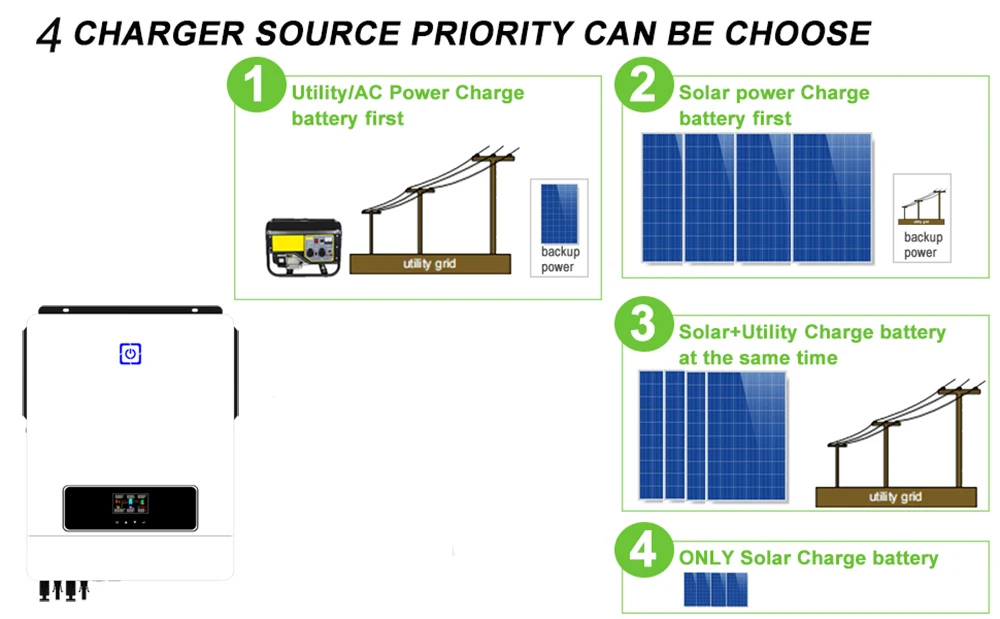

Four modes can be choose when charging battery:
Utility first: Utility will charge battery as first priority source, then Solar Power.
Solar first: Solar will charge battery as first priority source, then Utility Power.
Solar and Utility(default): Solar Power and Utility power will charge battery at the same time.
Only Solar: Solar Energy as the only source charge battery.

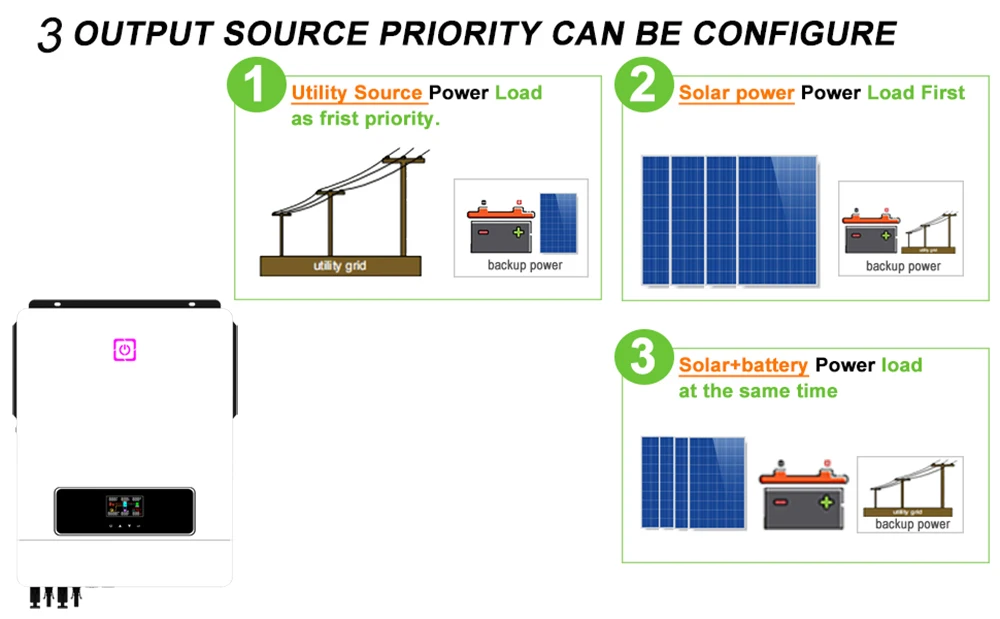

Three Output modes can be choose：
Utility first (default):Utility will provide power to theloads as first priority, Then Solar Power, battery Power
Solar first: Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time，then battery power.
SBU Priority: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time.
