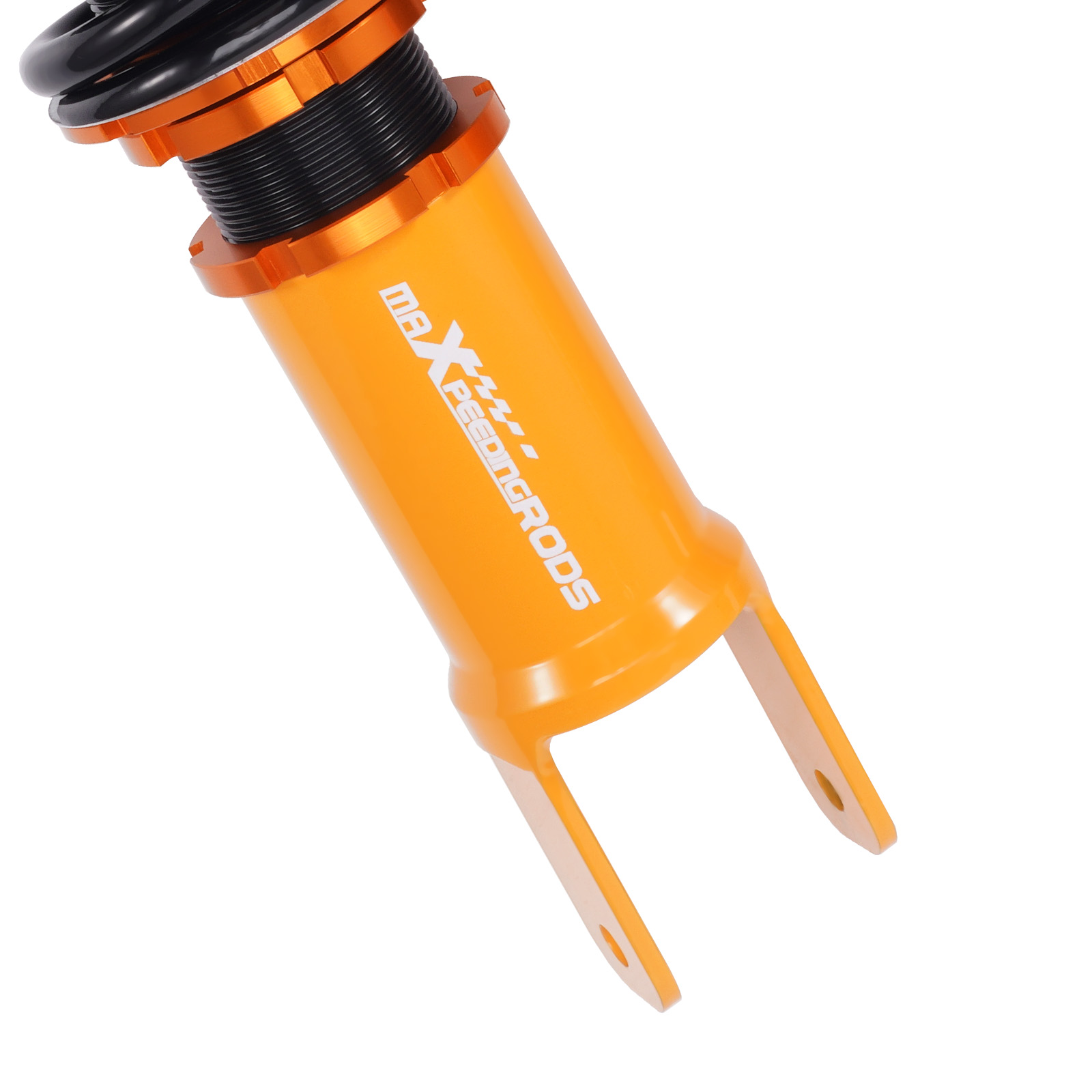

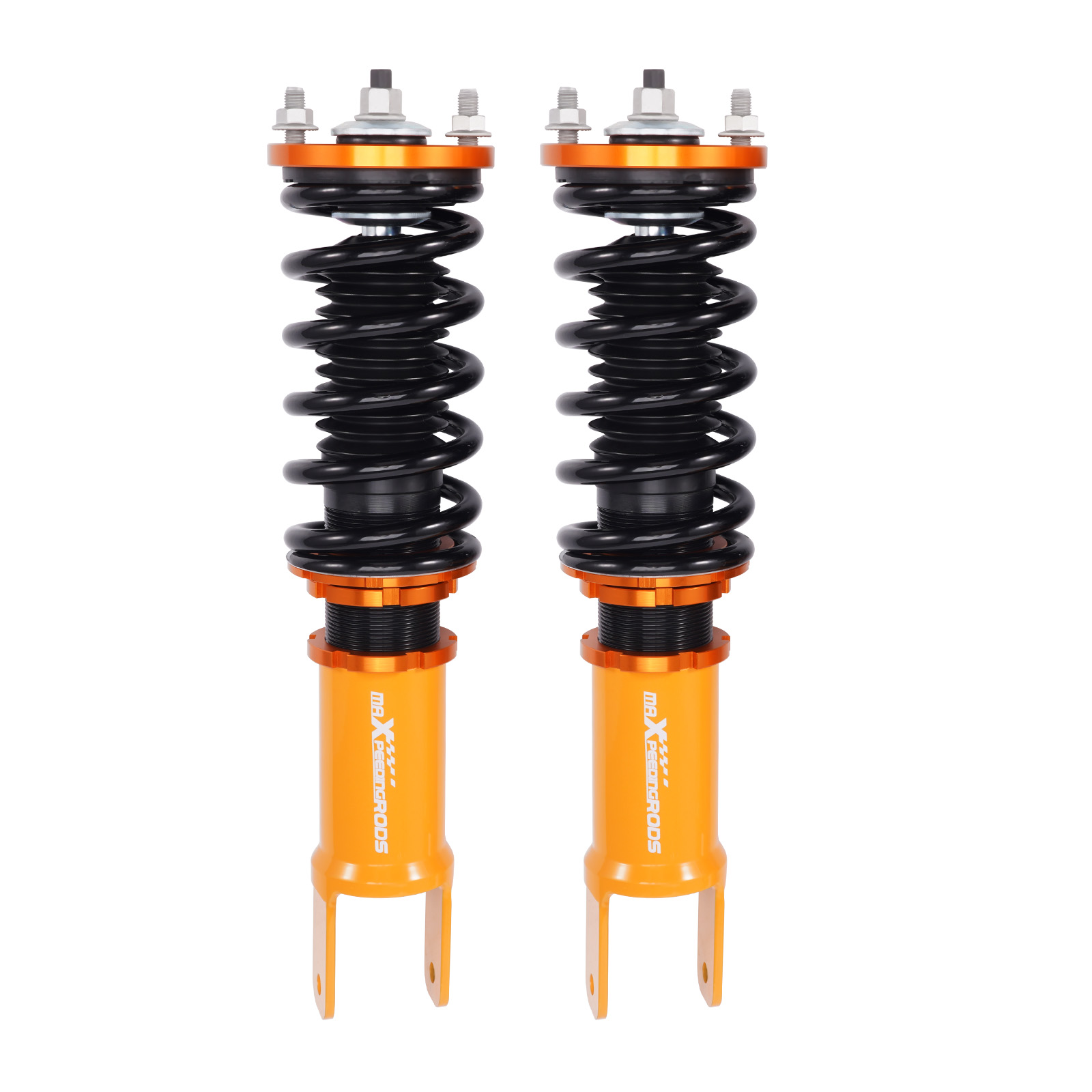

Coilover Lowering Kit For Honda CR-X 1988-1991 ED EE EF ED8 ED9 Rear fork type
Description
Introduction MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Application For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
(ED8\ED9\EE6\EE8\EF6\EF7\EF8)
For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)
For Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only
For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)
For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only
For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only
Note: For some vehiles, you will need sleeves and washers that already included in our package.
Specification Front and Rear top mount: Rubber Damper: Non Adjustable Damping
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480m
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Gold body with black spring
Package included Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment
1. Quickly Install: Preload parameter is provided to save your 3-4 hours installation time. 2. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
4. Twin-Tube structure allows sufficient stroke within the shock absorber.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9. Height Adjustment tools included.
10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
11. Steel shock bodies with special surface treatment to improve the durability.
12. Full rebuildable.
Note * Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For CA domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 4-7 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.But if any question , pls contact us via eBay.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
We will ship your order in one business day once the payment is cleared.
Tracking number will be uploaded to eBay within 24 hours after shipment.
Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .
We accept 30 days return/refund guarantee
If the item you received is faulty, damaged or incorrect, or any further problems, please contact our customer service on eBay within 30 days from item received.
For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.
WHY CHOOSE US
Coilover Lowering Kit For Honda CR-X 1988-1991 ED EE EF ED8 ED9 Rear fork type
Introduction
MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Application
For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
(ED8\ED9\EE6\EE8\EF6\EF7\EF8)
For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)
For Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only
For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)
For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only
For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only
Note: For some vehiles, you will need sleeves and washers that already included in our package.
Specification
Front and Rear top mount: Rubber
Damper: Non Adjustable Damping
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480m
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Gold body with black spring

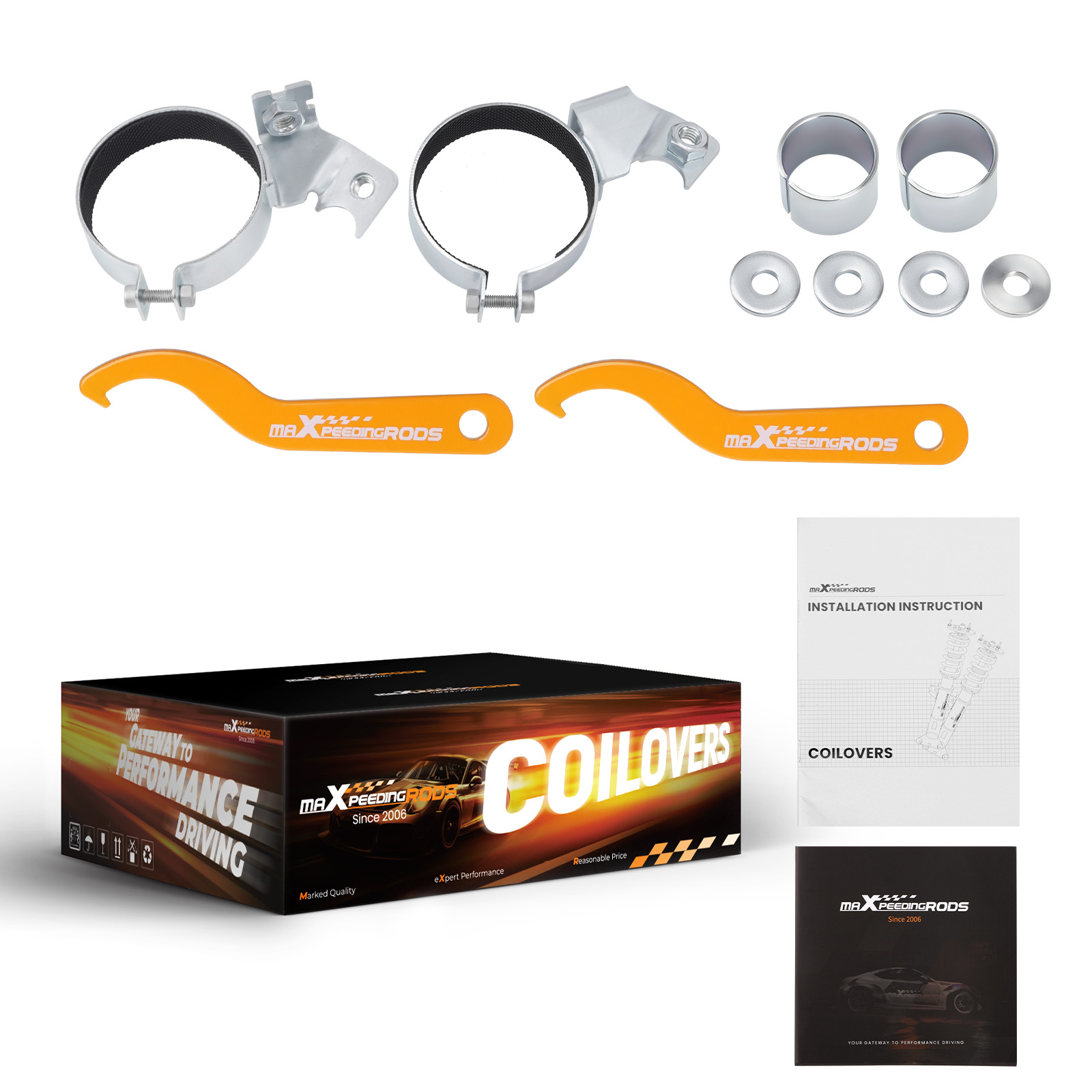

Package included
Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment
Dimension
Package dimension : 71*51*21
Weight: 22260g
Feature
1. Quickly Install: Preload parameter is provided to save your 3-4 hours installation time.
2. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
4. Twin-Tube structure allows sufficient stroke within the shock absorber.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9. Height Adjustment tools included.
10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
11. Steel shock bodies with special surface treatment to improve the durability.
12. Full rebuildable.
Note
* Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
