JLD Acoustic Guitar Bridge Pins (#AN3695)

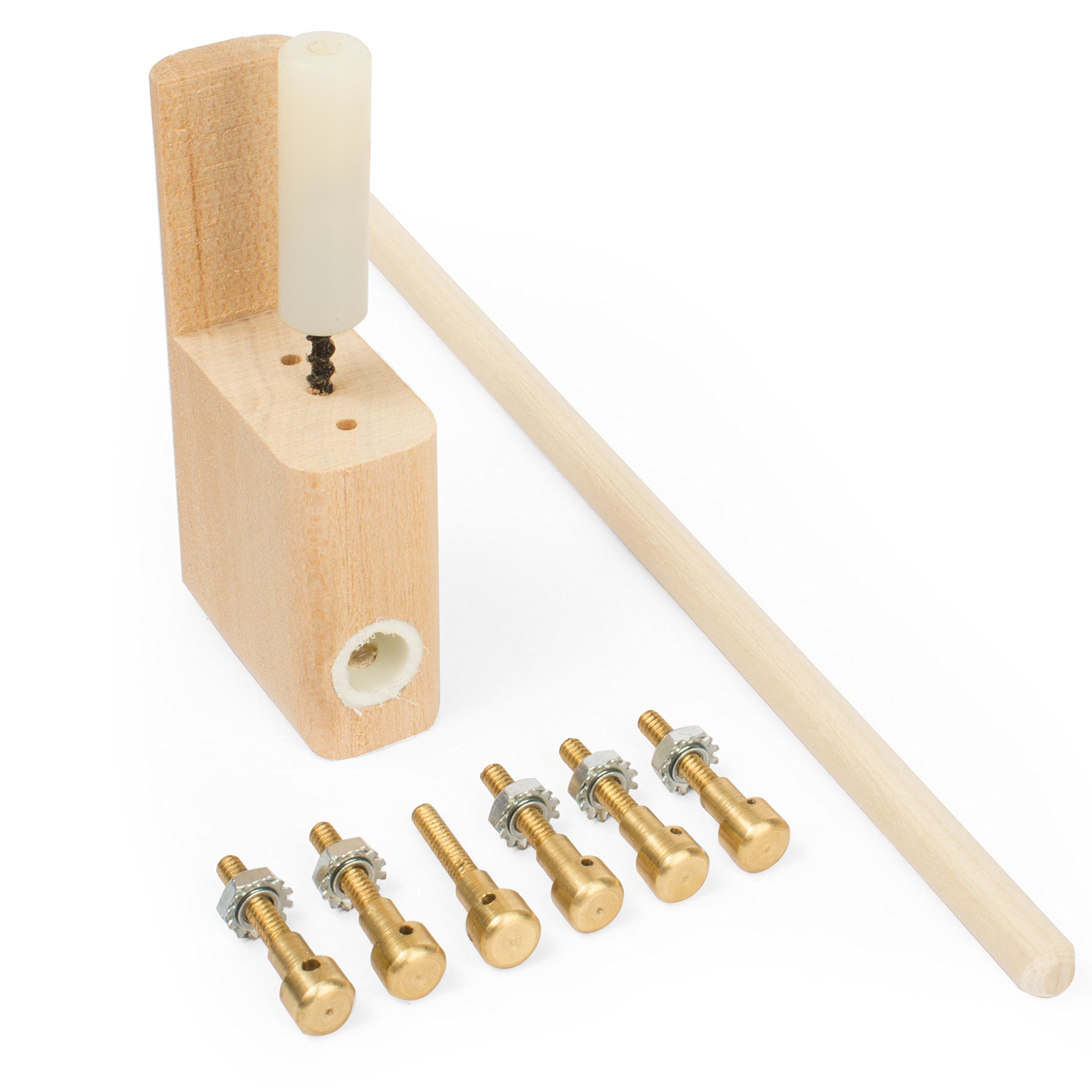

The JLD Bridge Doctor Enhances volume Flattens 'bellied' soundboards A unique
solution to a common bridge problem, this spruce device attaches beneath a
guitar bridge. An adjustable spruce "pressure post" rests against the
tailblock, providing leverage to flatten the soundboard. The spruce block is
3/4" x 1-5/8" x 3-3/8" tall. The 1/4"-diameter tension rod is 9" long. The
mounting post has three different positions to accomodate a variety of bridge
styles. Brass pin mount version: The pin-mounted version of the JLD Bridge
Doctor attaches beneath the bridge using a threaded brass bridge pin. The
strings mount horizontally through the tops of the matching brass bridge pins
(included). An adjustable spruce pressure post rests against the tailblock,
providing leverage to flatten the soundboard. Better bridge contact and
alignment can also enhance sound projection. StewMac Tech Tip: We recommend
the brass pin mount version for 12-string guitars. Installation instructions
included.
Product Details
| Brand | JLD |
|---|---|
| Mpn | AN3695 |
- A unique solution to a common bridge problem, this spruce device attaches beneath a guitar bridge
- An adjustable spruce "pressure post" rests against the tailblock, providing leverage to flatten the soundboard
- Better bridge contact and alignment can also enhance sound projection
- This pin-mount version attaches beneath the bridge using a threaded brass bridge pin, and the strings mount horizontally through the tops of the matching brass bridge pins (included)
- Installation instructions included
-
