This listing features 4 pieces (Two Pairs )of Brand New, 50W 6Ohm Load Resistors with T-Tap included.
-Brand new and high quality;
-Can be used with vehicle turn signal light's LED conversion;
-Solve hyper flash or no blinking of turn signal;
-Each LED bulb installation requires one resistor connected in parellel (see picture below for instruction);
*Description:
-Voltage: DC 12V
-Number: 4PCS of 6 Ohm 50W LED Load Resistors
-Type: One LED resistor is required for each turn signal bulb or each license plate light bulb.

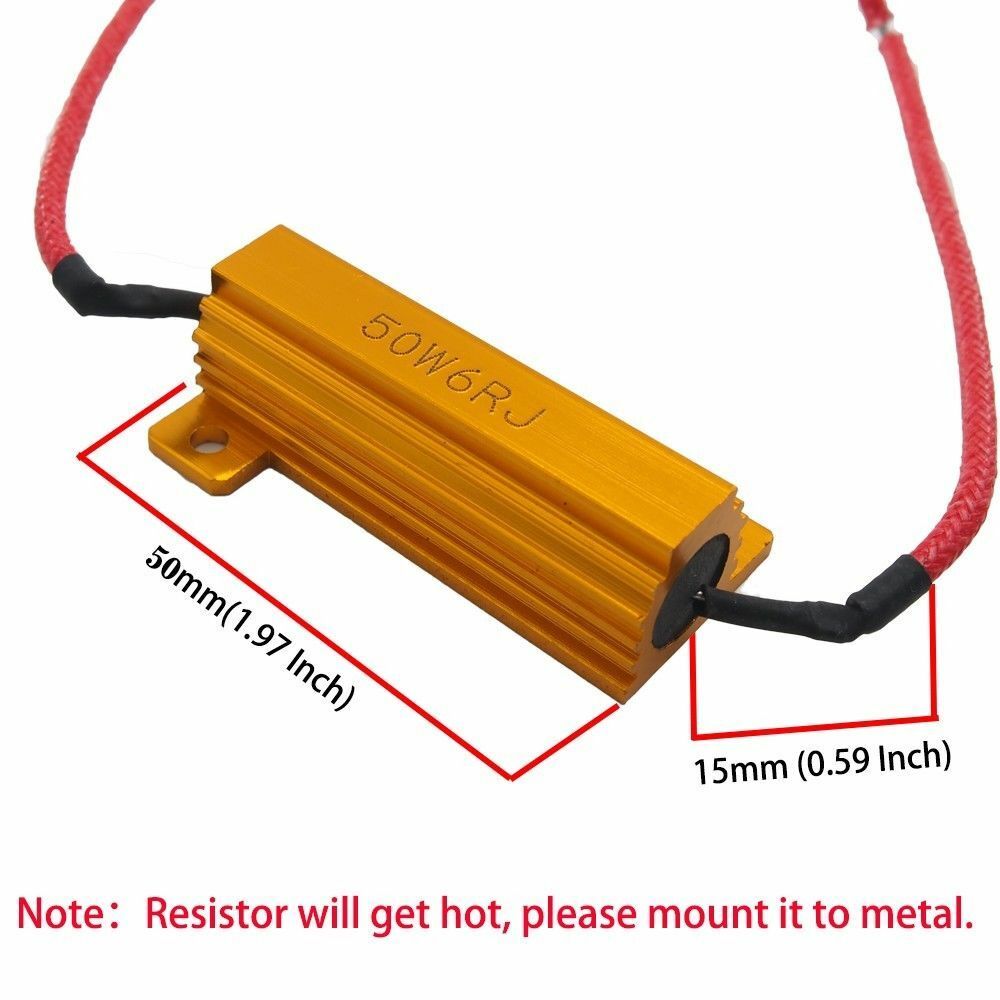

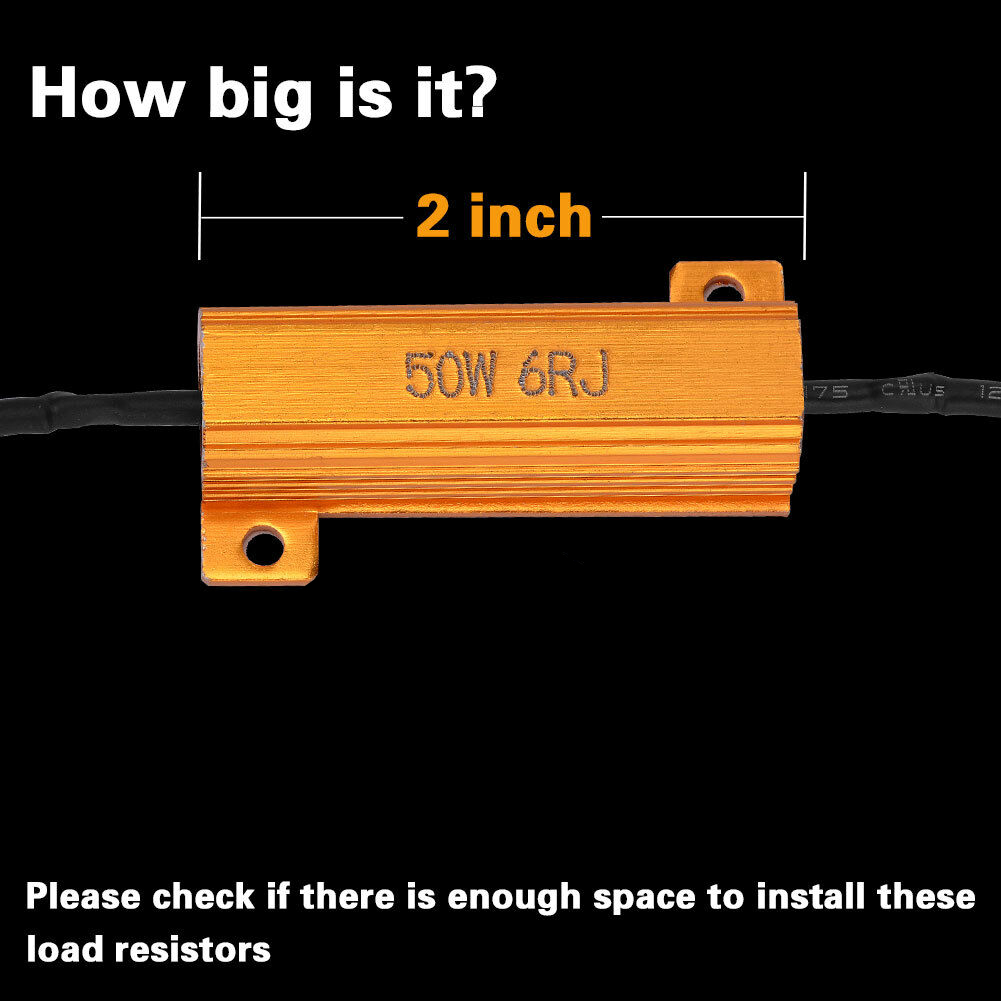

-Dimension: 15mm X 50mm
-Weight: 31.47g
-Feature:
-Solution for "bulb out signal" / "OBC error message" after installing SMD LED light bulb
-Solution for fast turn signal blinking response after installing SMD LED light bulb
Common Part Number Cross Reference Part Number
1157 BA15s 1016 1034 1076 1130 1154 1157 1158 1493 2057 2357 2397 7528
1156 BAY15d 1073 1093 1129 1141 1156 1159 1295 1459 1619 1651 1680 7506 S25 7527
7507 BAU15s PY21W
7443 7444 7443 7441 7440 T20
7440 992A 7440 (A refers to Amber) T20
3157 3057 3155 3357 3457 4157
3156 3056 3456 4156
***Note***
If they don't light after inserting into the socket, insert oppositely
When using LED bulbs for turn signal, you will need to use the above load resistor or decoder set to prevent hyper flash or bulb malfunction.
*Installation:
One resistor is required for each LED turn signal bulb.
Connect one wire to ground and the other wire to the turn/brake wire.

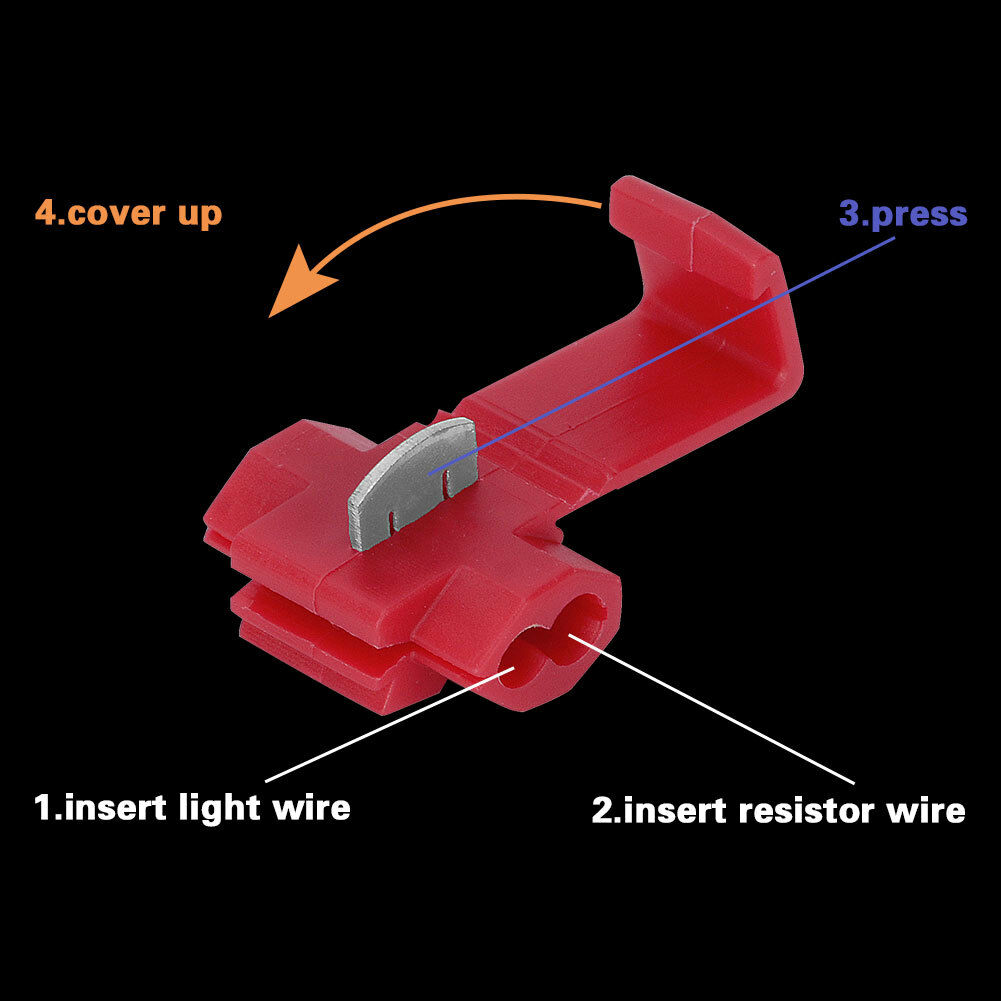

You can use the T taps so you do not have to cut your car's wiring.
One Load Resistor is required for each turn signal bulb.

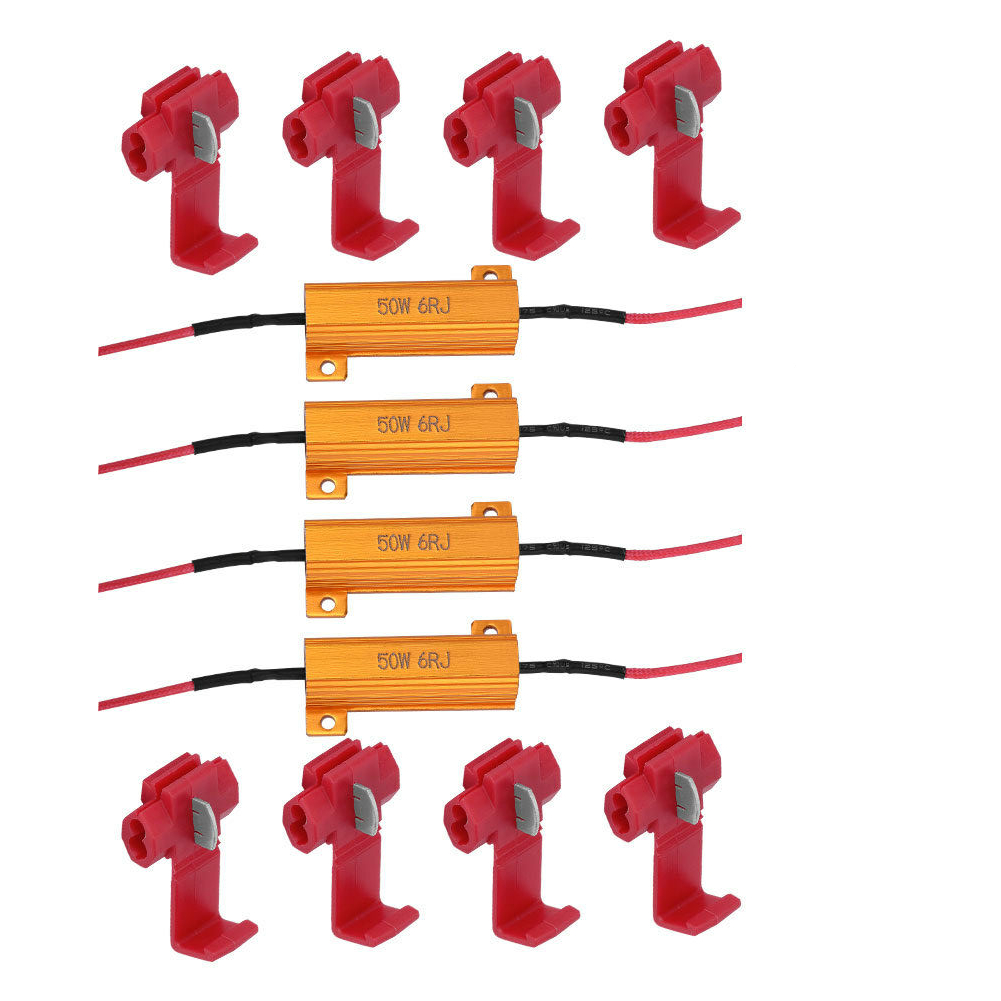

*Package Include:
- 4x Brand New Load Resistors
- 8x T-Taps
Note: These load resistors WILL get really hot as a working halogen bulb. Please mount them steadily onto metal surface and keep them off of any plastic parts to avoid plastic from melting down.
