TPA3223 TPA3255 Digital Amplifier Board Bluetooth Audio Power Amplifier Module
Features
1.High-performance chip: adopts audiophile-grade chip, supports lossless component sound quality, providing a clearer and more detailed audio experience.
2.Multi-functional volume knob: integrates multiple operating functions, single-click pause/play, double-click next song, triple-click previous song, quadruple-click switching mode, long-press switch on/off, convenient and efficient operation.
3. Multiple audio input modes: support Bluetooth 5.2, AUX, U disk, USB sound card and other input modes, compatible with WAV, FLAC, APE and other lossless formats, to meet the needs of diverse audio sources.
4. High-quality components: Equipped with special low-loss inductors for digital amplifiers, high-capacity black gold capacitors and metal film capacitors to ensure stable and efficient audio performance, and purer sound quality.
1.High-performance chip: adopts audiophile-grade chip, supports lossless component sound quality, providing a clearer and more detailed audio experience.
2.Multi-functional volume knob: integrates multiple operating functions, single-click pause/play, double-click next song, triple-click previous song, quadruple-click switching mode, long-press switch on/off, convenient and efficient operation.
3. Multiple audio input modes: support Bluetooth 5.2, AUX, U disk, USB sound card and other input modes, compatible with WAV, FLAC, APE and other lossless formats, to meet the needs of diverse audio sources.
4. High-quality components: Equipped with special low-loss inductors for digital amplifiers, high-capacity black gold capacitors and metal film capacitors to ensure stable and efficient audio performance, and purer sound quality.
TPA3223 Board Specifications
Product name: Bluetooth digital audio amplifier board
Power output: 200W×2
Chip: TPA3223
Product Model: T2002P
Power supply: DC12-42V/5A or above

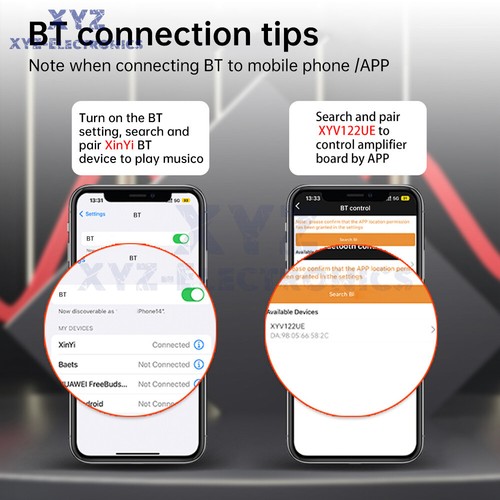

Bluetooth version: 5.2
Audio input: Bluetooth/AUX/U disk/USB sound card
Bluetooth audio decoding: AACSBC
U disk lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
10W+10W @8Ω/12VDC
20W+20W @4Ω/12VDC
35W+35W @8Ω/24VDC
70W+70W @4Ω/24VDC
80W+80W @8Ω/36VDC
160W+160W @4Ω/36VDC
100W+100W @8Ω/42VDC
200W+200W @4Ω/42VDC
Product name: Bluetooth digital audio amplifier board
Power output: 200W×2
Chip: TPA3223
Product Model: T2002P
Power supply: DC12-42V/5A or above
Bluetooth version: 5.2
Audio input: Bluetooth/AUX/U disk/USB sound card
Bluetooth audio decoding: AACSBC
U disk lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
10W+10W @8Ω/12VDC
20W+20W @4Ω/12VDC
35W+35W @8Ω/24VDC
70W+70W @4Ω/24VDC
80W+80W @8Ω/36VDC
160W+160W @4Ω/36VDC
100W+100W @8Ω/42VDC
200W+200W @4Ω/42VDC
TPA3255 Board Specifications
Product name: Bluetooth digital audio amplifier board
Power Output: 300W+300W
Chip: TPA3255
Product Model: T3002P
Power supply: DC19-51V/10A or more
Bluetooth version: 5.2
Audio input: Bluetooth/AUX/U disk/USB sound card
Bluetooth audio decoding: AAC SBC
U disk lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
30W+30W @8Ω/24VDC
70W+70W @4Ω/24VDC
80W+80W @8Ω/36VDC
160W+160W @4Ω/36VDC
160W+160W @8Ω/50VDC
300W+300W @4Ω/50VDC
Product name: Bluetooth digital audio amplifier board
Power Output: 300W+300W
Chip: TPA3255
Product Model: T3002P
Power supply: DC19-51V/10A or more
Bluetooth version: 5.2
Audio input: Bluetooth/AUX/U disk/USB sound card
Bluetooth audio decoding: AAC SBC
U disk lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
30W+30W @8Ω/24VDC
70W+70W @4Ω/24VDC
80W+80W @8Ω/36VDC
160W+160W @4Ω/36VDC
160W+160W @8Ω/50VDC
300W+300W @4Ω/50VDC
Package Includes
1 x Amplifier Board
1 x Screwdriver
1 x Amplifier Board
1 x Screwdriver
