DESCRIPTION
Package Include:
1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

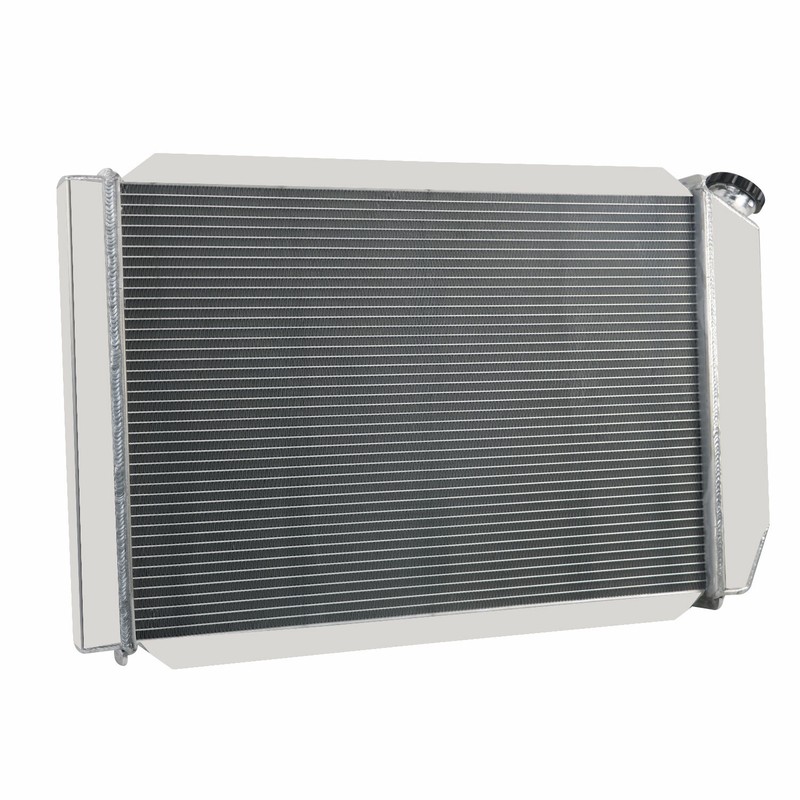

Radiator Details:
Material：Full aluminum
Row : 3 Rows
Core Size: 24 4/9''W x 16 4/9''H
Overall Size: 29 8/9" W X  19 1/9" H
Outlet/Inlet Diameter: 1 1/4''/1 1/2''
Radiator Flow: Cross-Flow
Upper Hose Fitting: Pass
Lower Hose Fitting: Driver
Mounting Type: Saddle
Only for manual


Fans Details：
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Vehicle Fitment

  • 1979-1993  Ford Mustang
    1980-1987  Ford Thunderbird
    1983-1986  Ford LTD
    1981-1982  Ford Granada
    1980-1983  Ford Fairmont
    1982-1987  Lincoln Continental
    1984-1992  Lincoln Mark VII
    1980-1986  Mercury Capri
    1980-1987  Mercury Cougar
    1985       Mercury Grand Marquis
    1983-1986  Mercury Marquis

Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full T-5057 Aluminum Construction
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

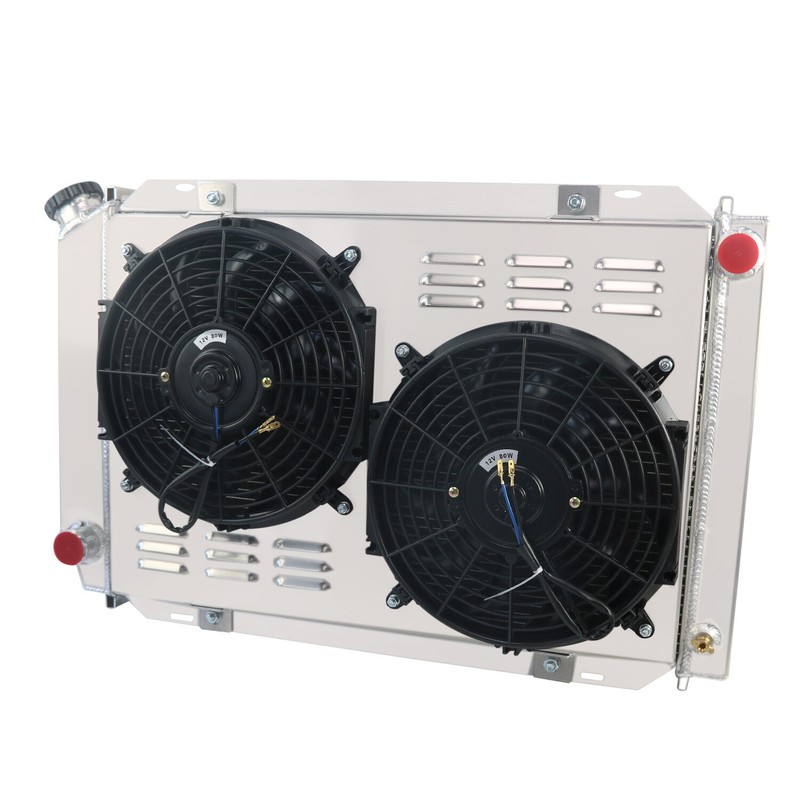

Shroud and Fans:

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the

 engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components

that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of

engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in

maintaining the ideal working conditions of the engine.
