All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application:

For BMW X5 E53 2000-2006

Specification:

Adjustable Height: lowering 25-75mm depending on the vehicle models

Damping : Not adjustable

Top mount: Standard rubber

Camber adjustable: Not available

Spring rate Front: 8 kg/mm (448 in/lbs)

Front spring inner diameter: 70.5 mm

Spring length Front: 300 mm

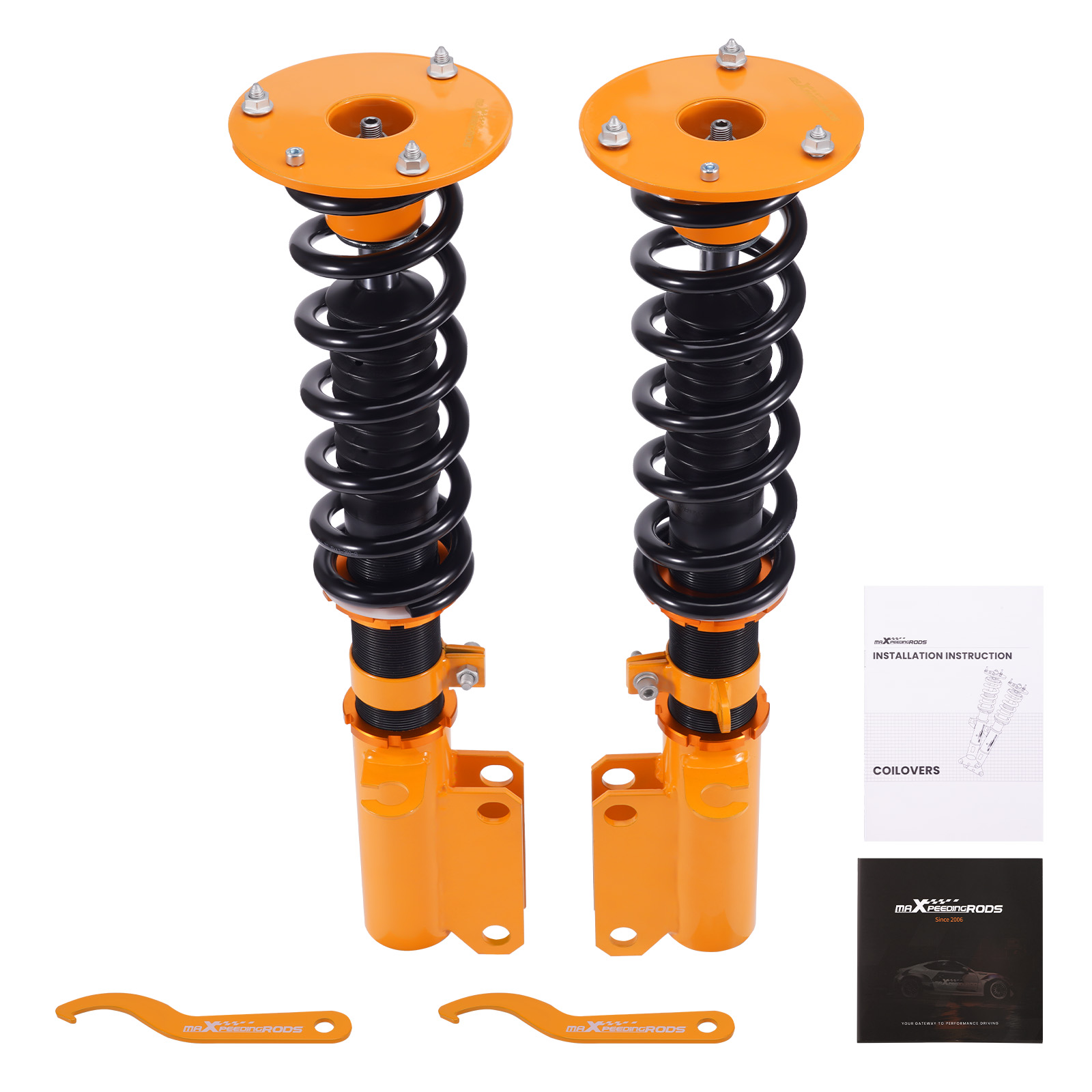

Package included

2x Front coil-overs
2x C spanners

Feature:

Hi Tensile performance spring - Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance.

Notice :

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
