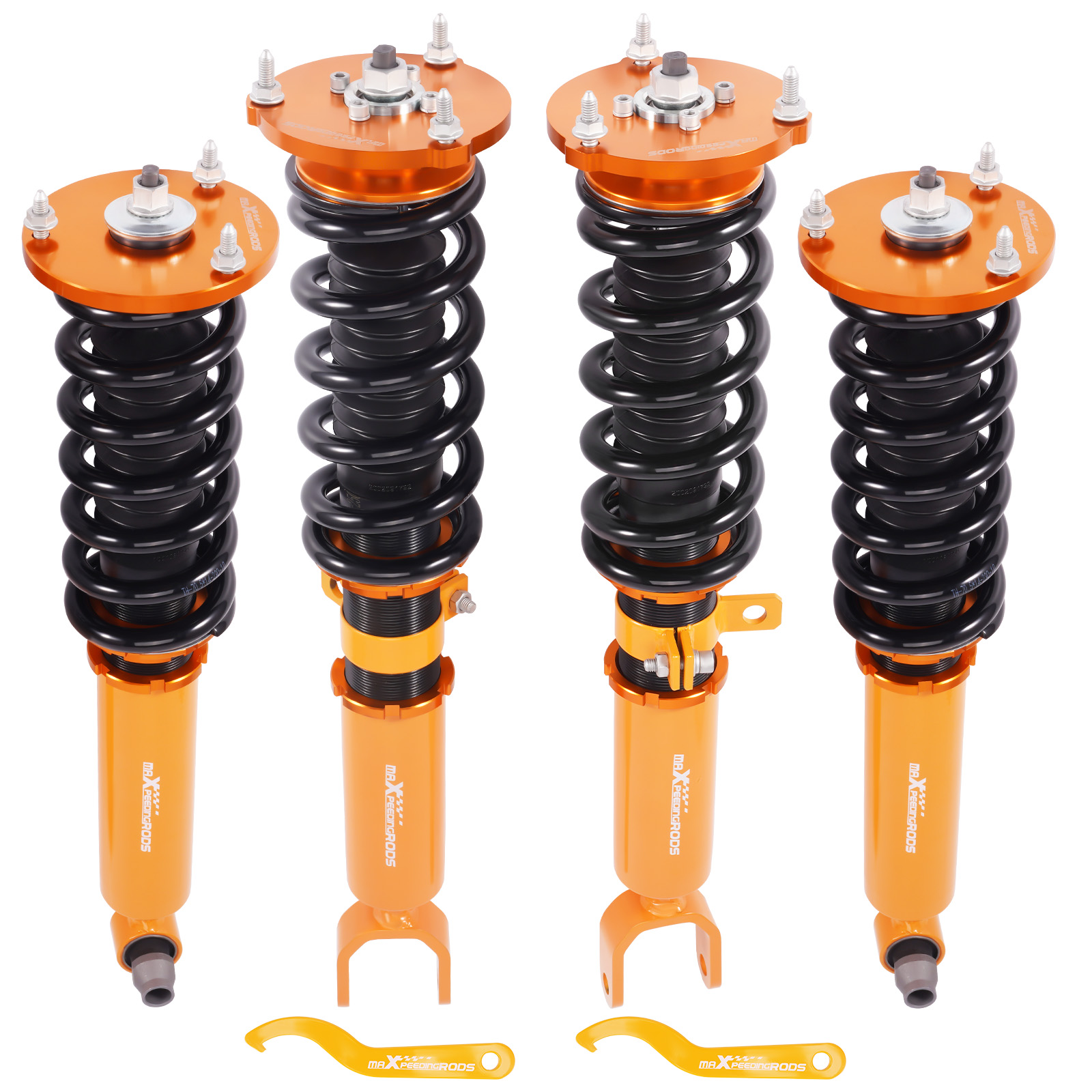

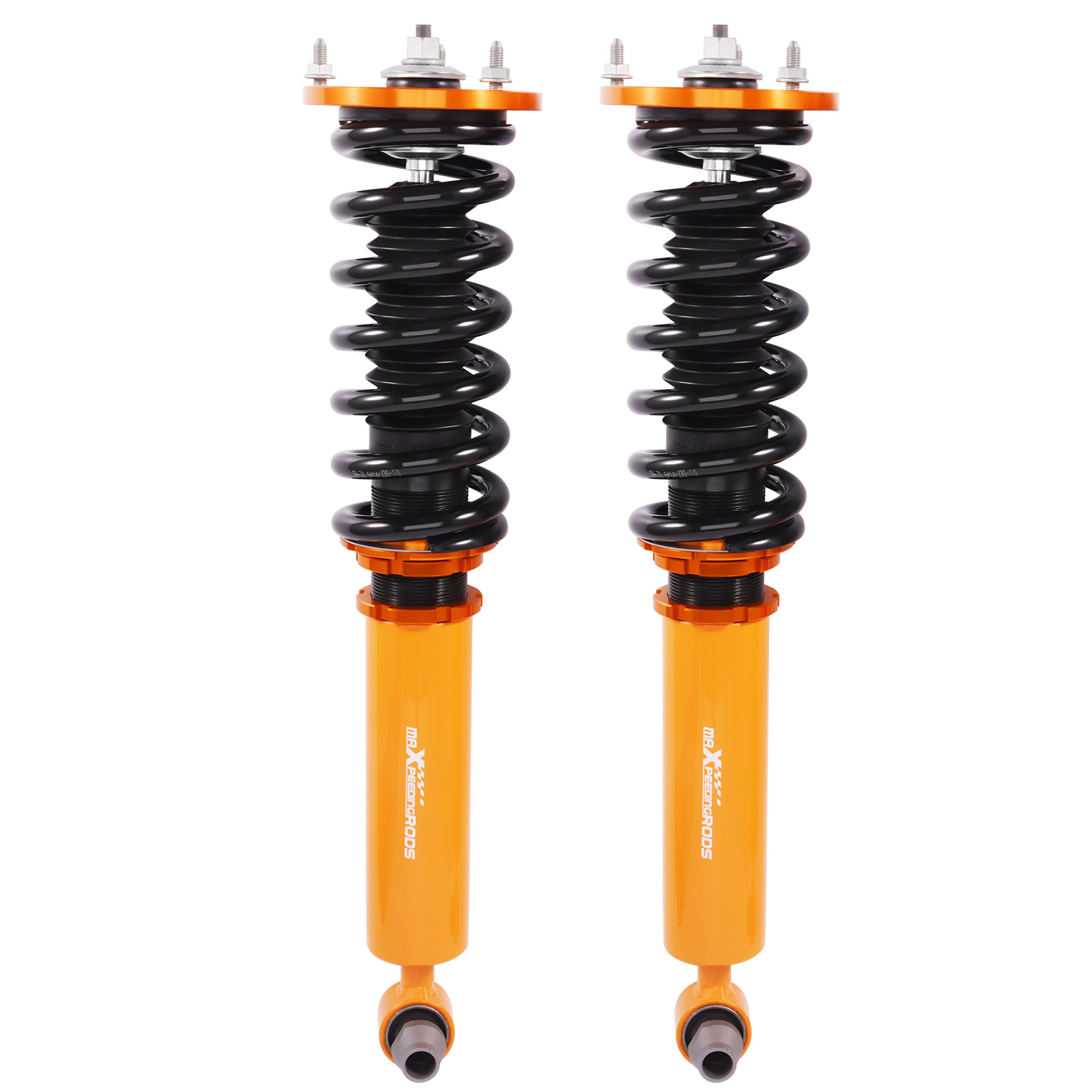

Height Adjustable Coilover for BMW 5-Series F10 518d 520d 523i 2009-2016 RWD
Description
Introduction
MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Application
For BMW 5-series (F10) Sedan (01/2009-10/2016) RWD 528i,518d, 520i, 520d, 523i, 528i, 535i, 550i, 535d. Note: Will not fit Electronic controlled damper or air suspension
Specification
Front top mount: Pillow ball
Rear top mount：Rubber
Spring rate front: 12kg/mm ( 672lbs/in)
Spring rate rear: 10kg/mm( 560lbs/in)
preload range：7-10mm Damper: Non adjustable damper
Adjustable height: lowering 1-3inch
Color: Gold body with black spring
Package included
Complete coilovers for 2 front and 2 rear
A pair wrench for height adjustment
Dimension
Weight: 28400g
Size: 71*51*21 cm
Features
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Pillow ball top mounts for front improve the steering feel and response.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
5. Separate height adjustment does not affect damper stroke.
6. Height can be adjusted with coilovers installed on the vehicle.
7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.
9. Camber plate top mounts help to eliminate the need for a separate camber kit.
10. Pillow ball top mount - It improves the steering feel and response.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
12. Full rebuildable.
Notice
* Professional installation & alignment suggested.
