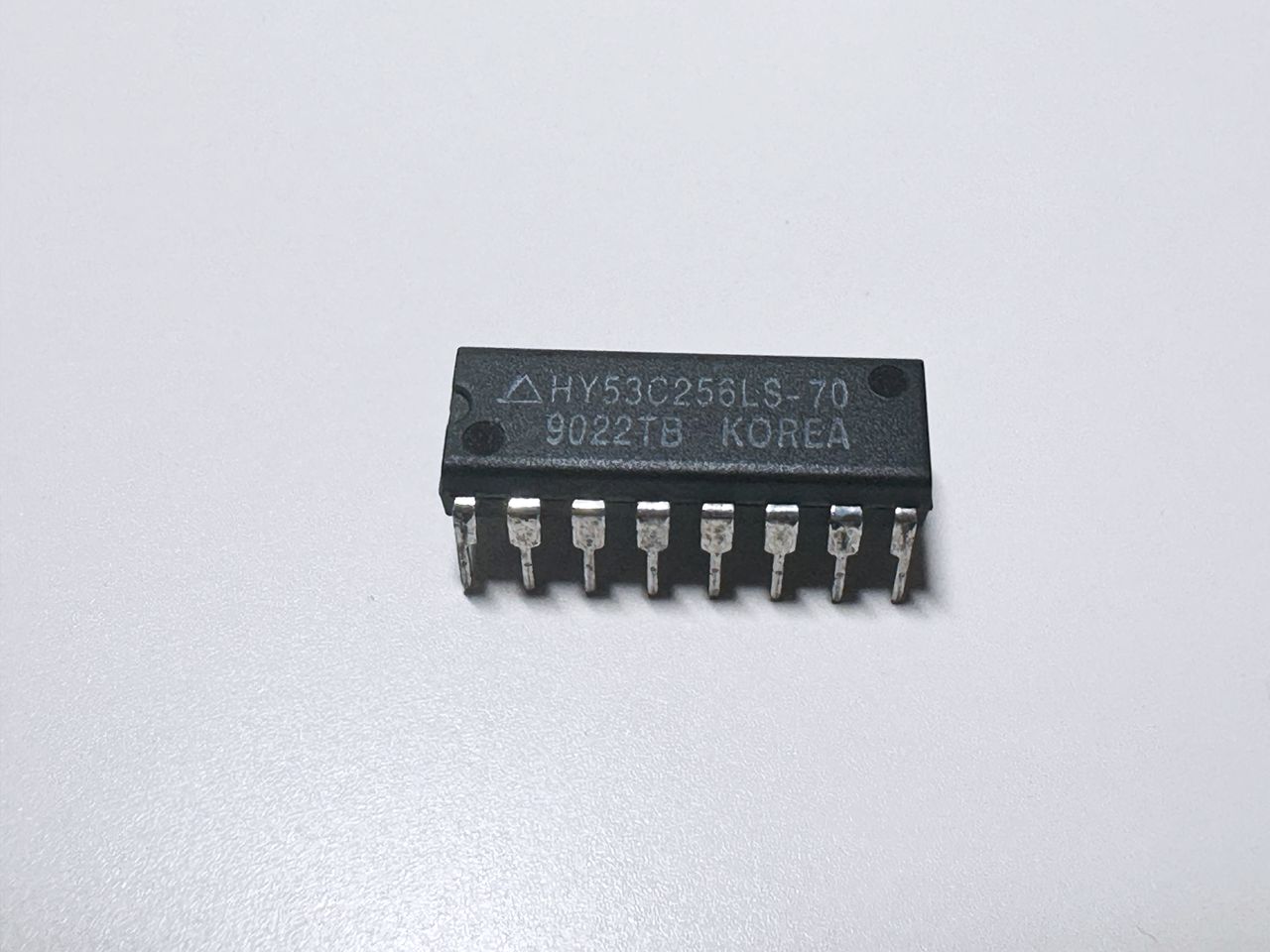

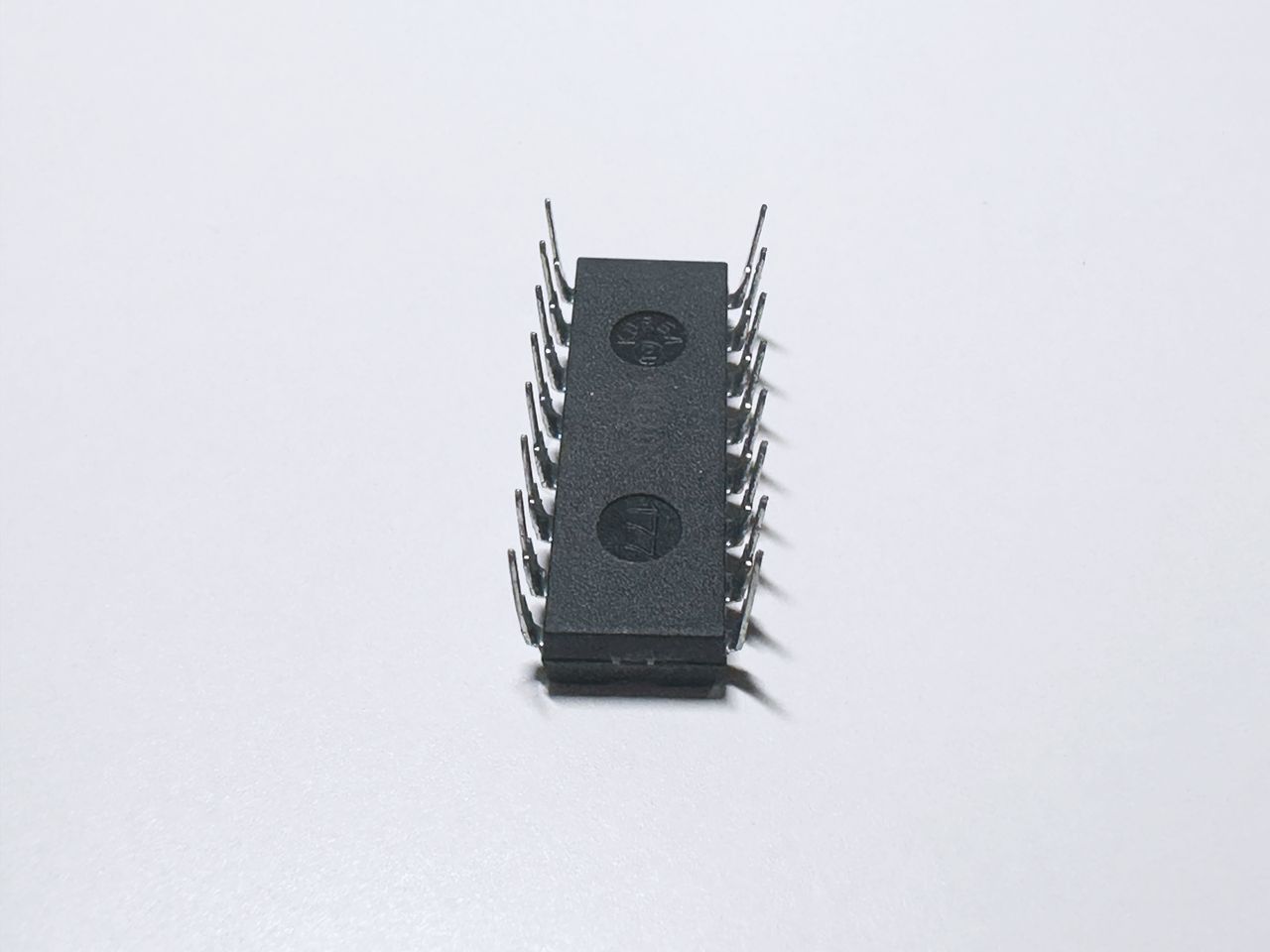

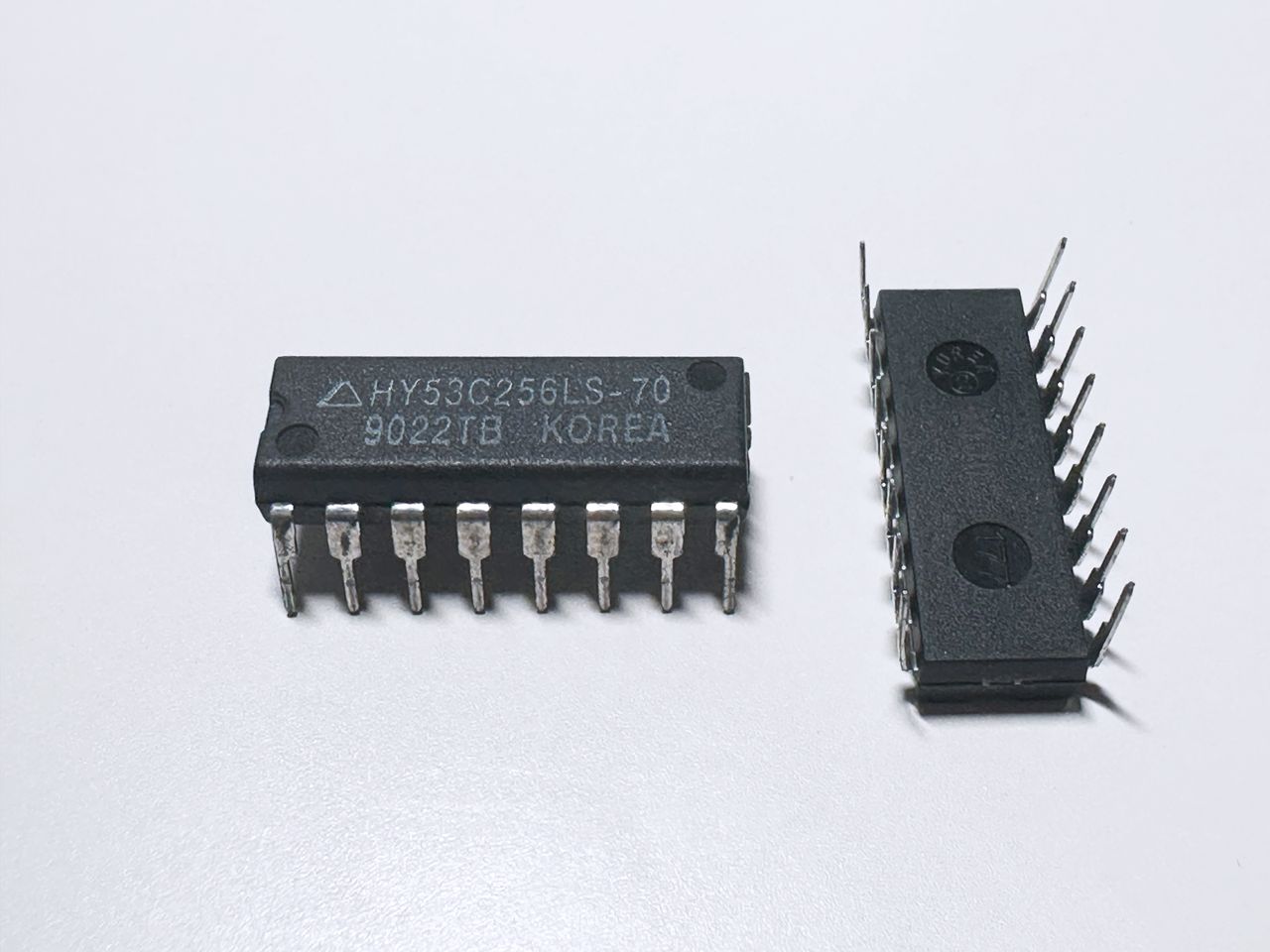

1X HY53C256LS-70 HYUNDAI 256Kx1 Dynamic RAM 70ns DIP-16 1-Bit DRAM Memory IC
1 Piece - HY53C256LS-70 HYUNDAI 256Kx1 Dynamic RAM 70ns DIP-16 1-Bit DRAM Memory IC
| Specification | |
|---|---|
| Memory Density | 262.144 kbit |
| Memory Width | 1 |
| Organization | 256KX1 |
| Supply Voltage-Nom (Vsup) | 5 V |
| Power Supplies | 5 V |
| Access Time-Max | 70 ns |
| Refresh Cycles | 256 |
| Access Mode | FAST PAGE |
| Memory IC Type | FAST PAGE DRAM |
| Additional Feature | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH |
| I/O Type | SEPARATE |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Words Code | 256000 |
| Number of Words | 262.144 k |
| Operating Mode | ASYNCHRONOUS |
| Output Characteristics | 3-STATE |
| Supply Current-Max (Isup) | 70 µA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Operating Temperature-Max | 70 °C |
| Number of Terminals | 16 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Seated Height-Max | 4.699 mm |
| Length | 19.43 mm |
| Width | 7.62 mm |
| Manufacturer | HYUNDAI |
| Package Description | DIP, DIP16,.3 |
| Pin Count | 16 |
Note: This table may not be entirely accurate and should only be used as a general reference.
