ISolar-SMH-II-7KW
Rated Power	7000VA/6200W
INPUT
Voltage	230Vac
Selectable Voltage Range	(170Vac~280Vac) ±2%；(90Vac-280Vac)±2%
Frequency Range	50Hz/ 60Hz (Auto detection)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge power	14000VA
Transfer Time	10ms (for personal computers) / 20ms (for home appliances)

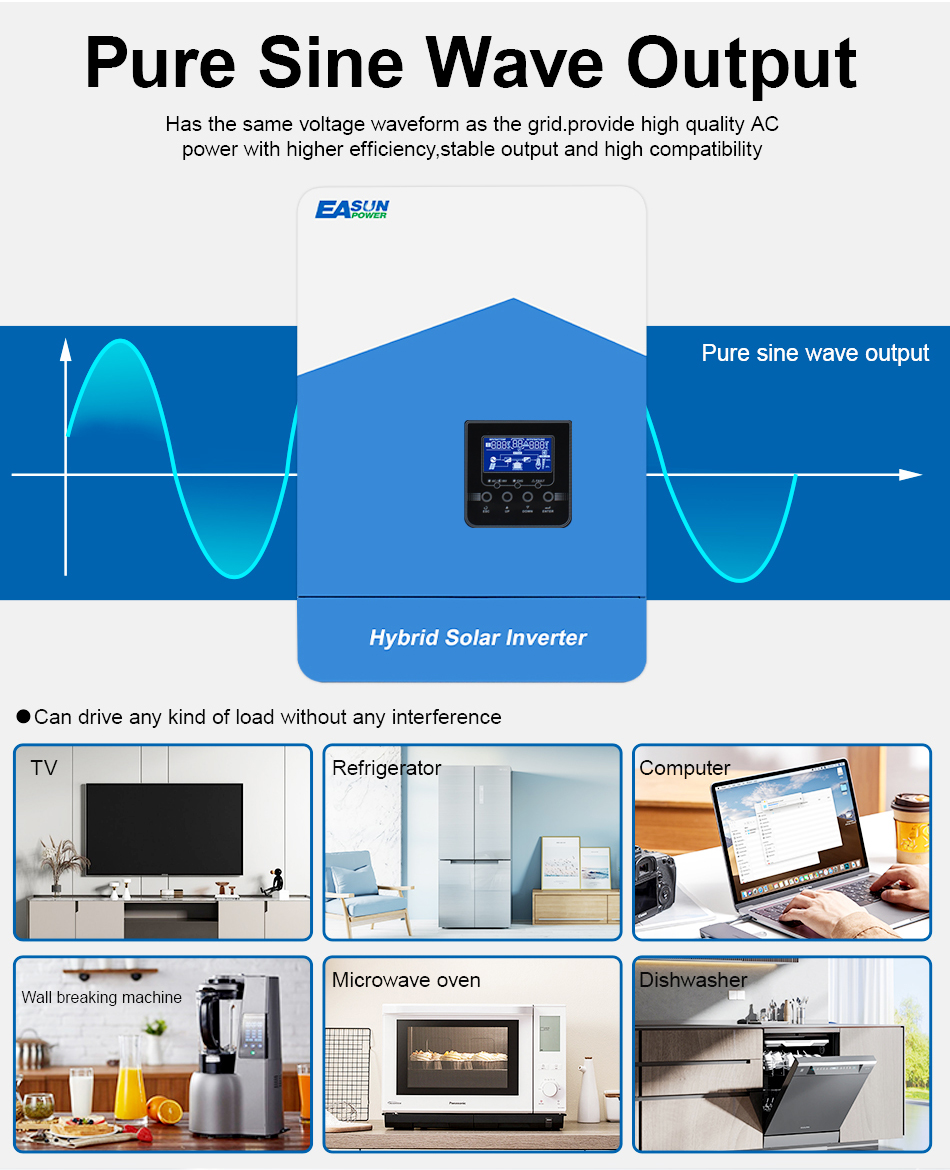

Wave form	Pure Sine Wave

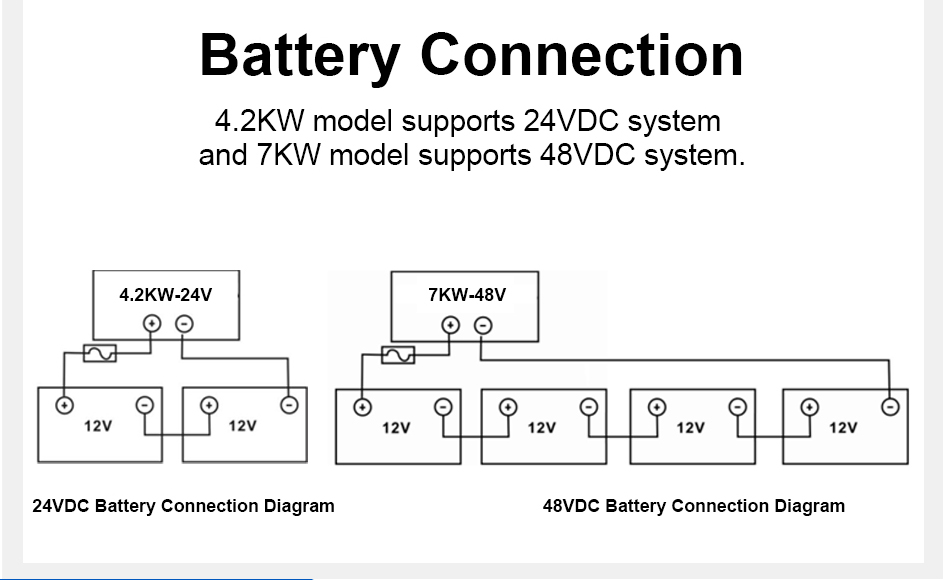

BATTERY & AC CHARGER
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	61VDC
Maximum charge current	80A

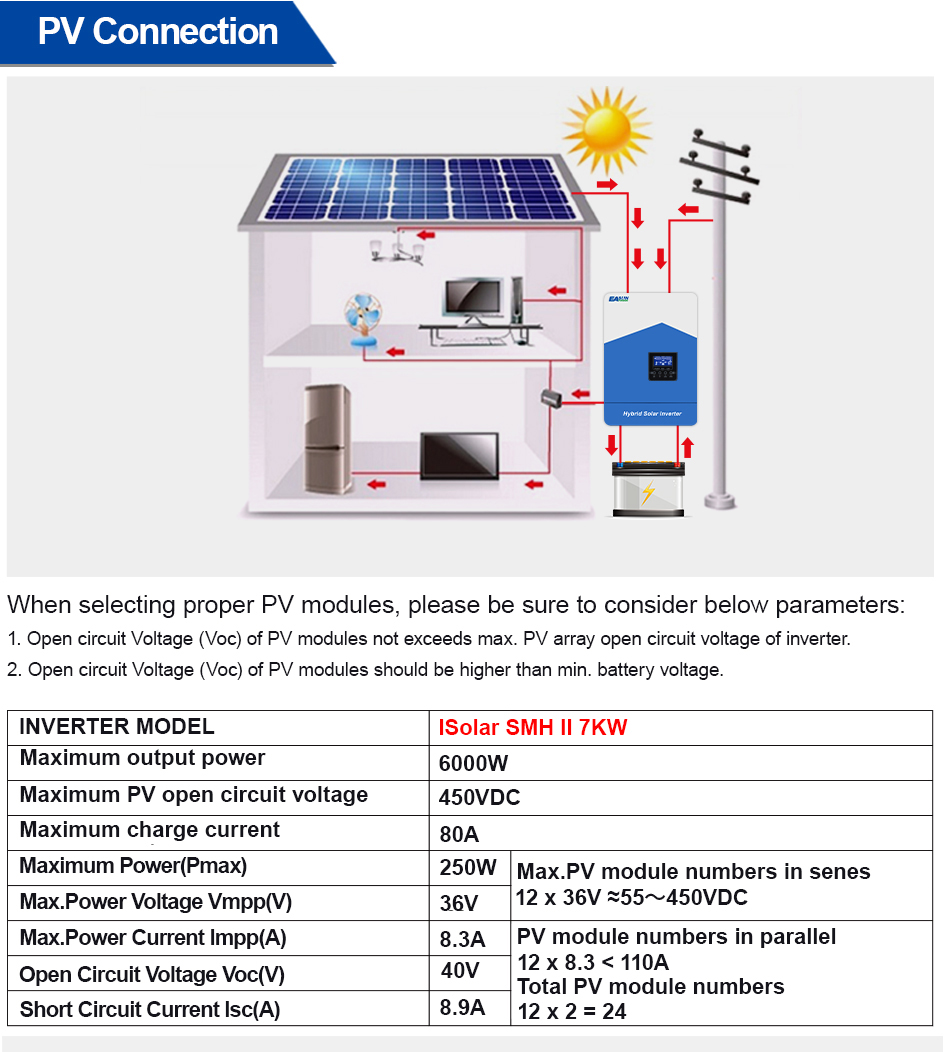

SOLAR CHARGER
MAX.PV Array Power	6000W
MPPT Range@ Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	110A
Maximum Efficiency	98%
PHYSICAL
Dimension.D*W*H(mm)	423x310x120mm
Net Weight (kgs)	8.0kg

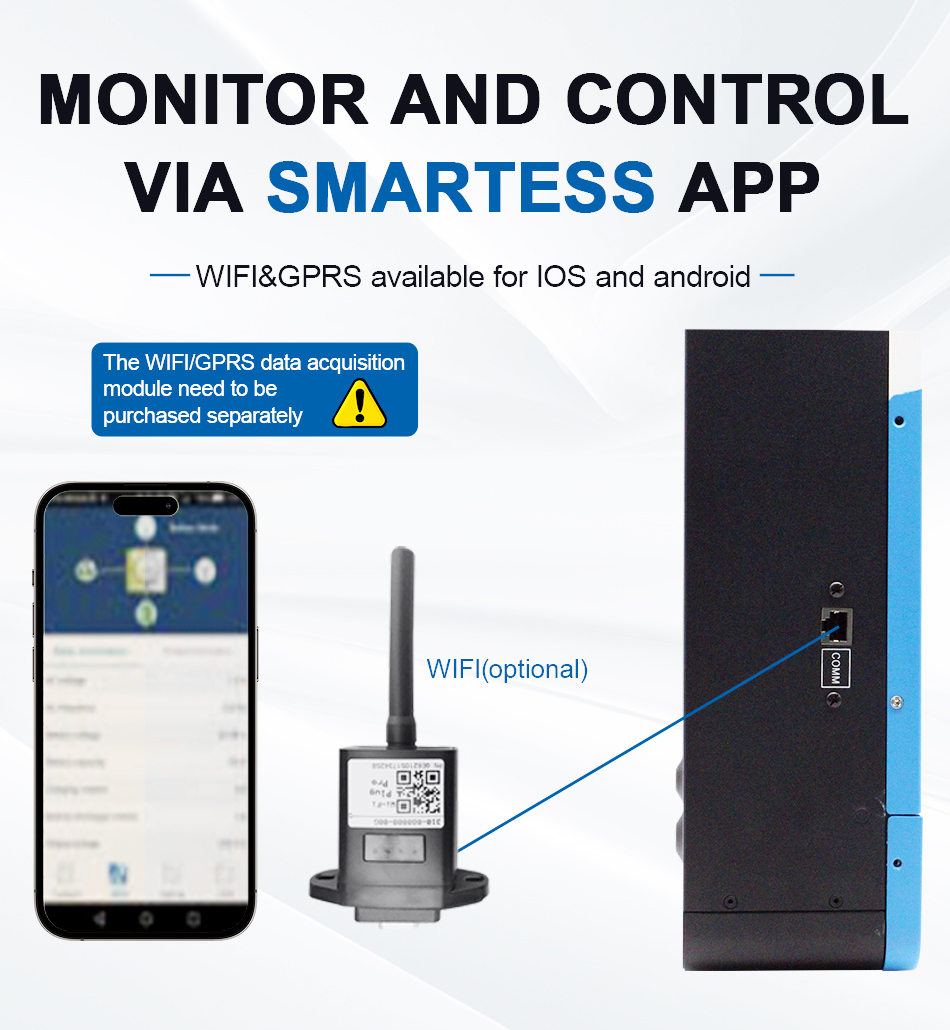

Communication Interface	RS232/RS485(Standard) / GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 55°C
Storage Temperature	-15°C to 60°C



---
