Elevate your mountain biking experience with the MEINIER-SNAKE mountain bike frame, meticulously crafted for unisex adults who seek a blend of performance and agility. Constructed from premium T1000 carbon fiber, this frame is engineered to provide a lightweight platform without compromising on strength, perfect for hardtail bikes and mountain biking enthusiasts alike. The frame's sleek design is complemented by its exceptional versatility, accommodating wheel sizes up to 29 inches and tires up to 2.4 inches. Attention to detail is evident in the frame's components, featuring a smooth integrated head tube with a top and down 1-1/2(52mm) headset size, and a sturdy screw-in T47 bottom bracket with a 73mm width. The MEINIER-SNAKE frame is designed to work seamlessly with dropper seatposts, boasting a seatpost size of 31.6mm. Disc brakes with a 160mm rotor ensure reliable stopping power, while the rear spacing of 148x12mm boost and UDH hanger compatibility add to its adaptability. This offering includes the frame, seat clamp, and axle thru skewer, udh hanger,with a manufacturer warranty of 2 years.

About The 29er Carbon Mountain Bike Frame

MEINIER- Snake

Type:Carbon MTB XC Frame
 Model:MEINIER-Snake
 Material: T1000 Carbon Fiber

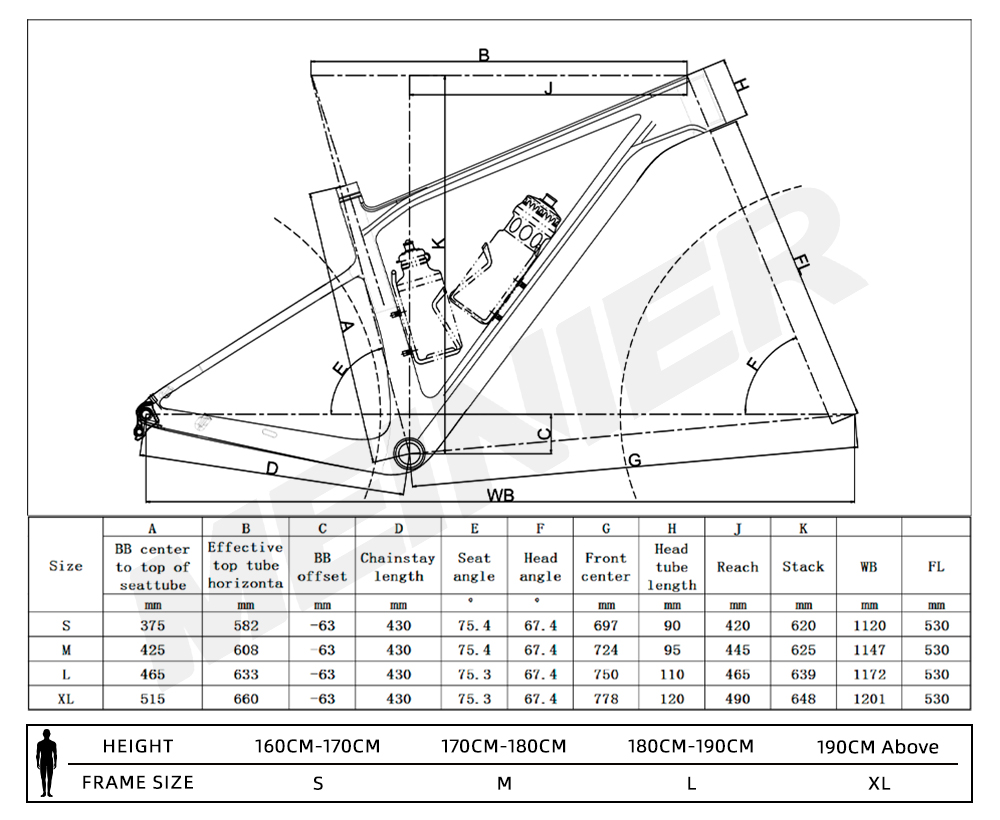

 Frame Size:S/M/L/XL

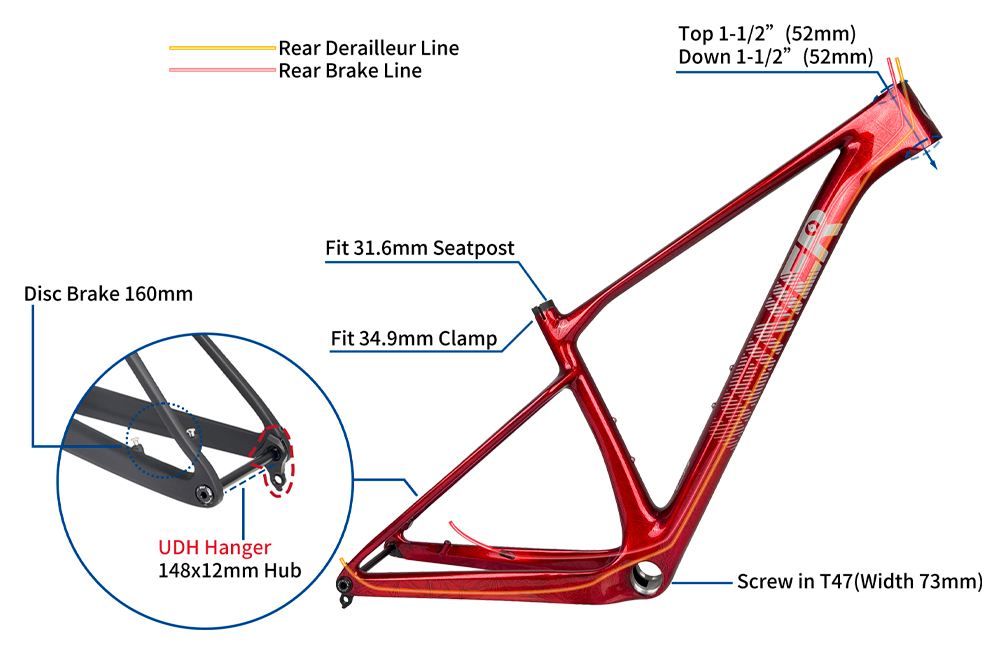

 Seatpost size:31.6mm, Support dropp seatpost
 Headset Size:Top 1-1/2(52mm) Down 1-1/2(52mm)
 Bottom Bracket:Screw in T47(Width 73mm)
 Brake:Disc Brake 160mm
 Rear Spacing:148x12mm boost ,UDH hanger
 Max Tire Size:29erx2.4
 Weight:980g+-100g( S size )
NOTE:This Item contains frame+seat clamp+Axle thru skewer+UDH Hanger

1. Regarding logo and color, if you need to customize any color or without logo, you can leave a message or contact me
2. Regarding delivery to the United States, we have duty-free logistics channels and fast delivery, you can contact me or click the link below
3.Regarding shipping to EU and UK,We have DPD duty free logistics,you can contact me or clinck the link below



The following is the complete bicycle assembled by this frame. Click on the picture to see this bike's more details.
