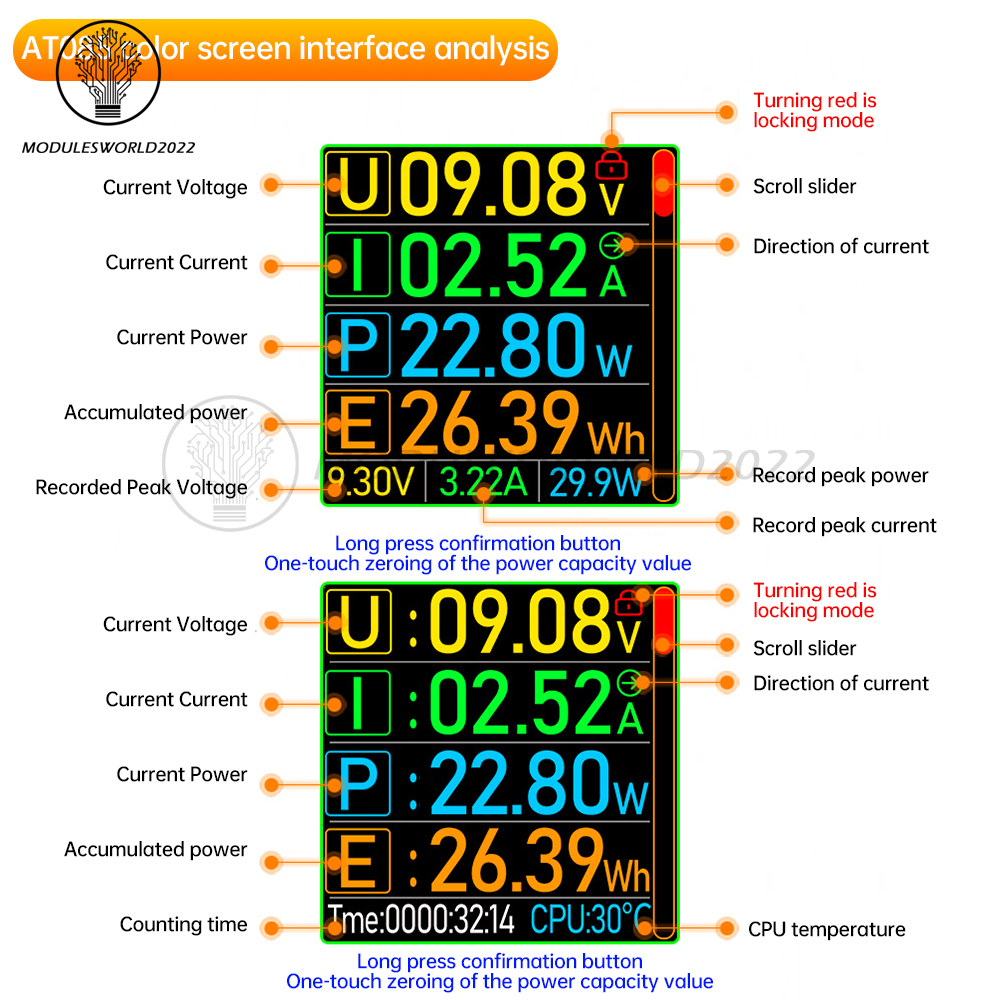

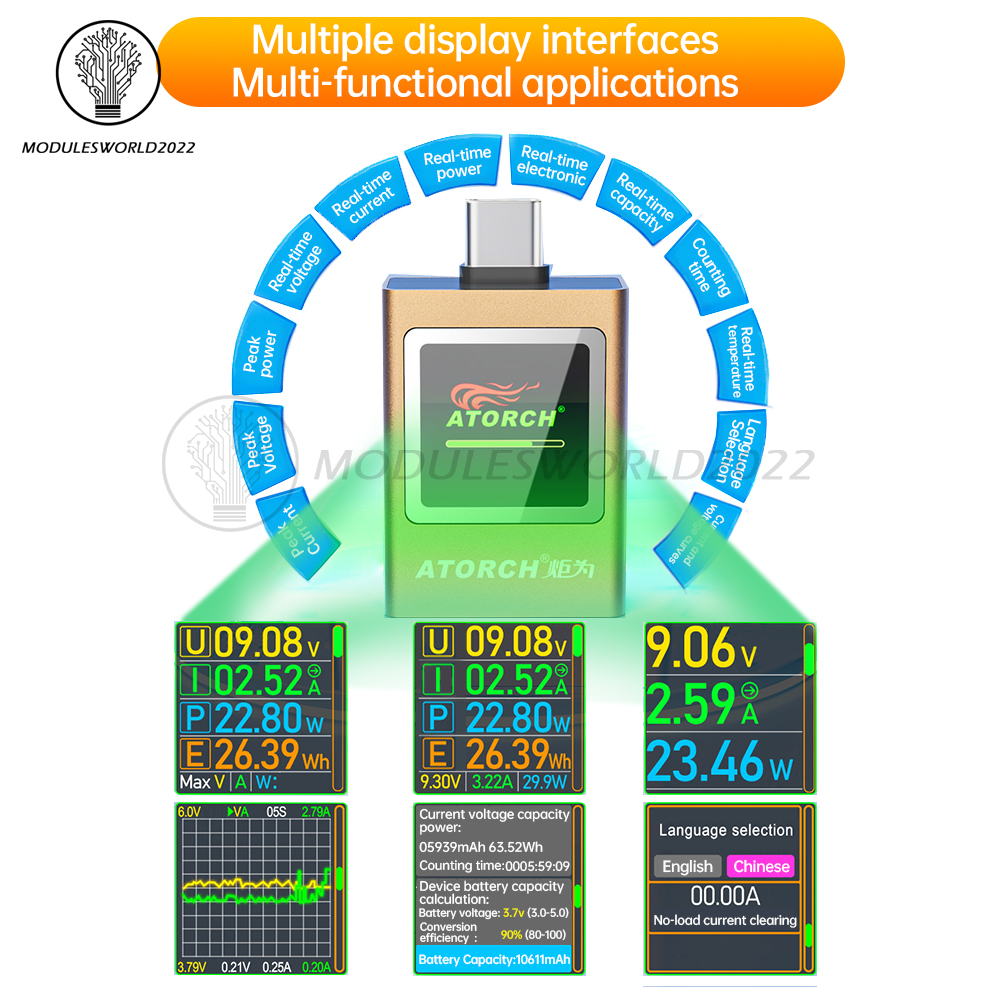

1. Real time display of voltage, current, power, electricity, capacity, temperature, timing, voltage and current curves, etc.
2. Supports multiple fast charging protocols, displays multiple parameters on one screen, high-definition color screen, and various test parameters are clear at a glance.

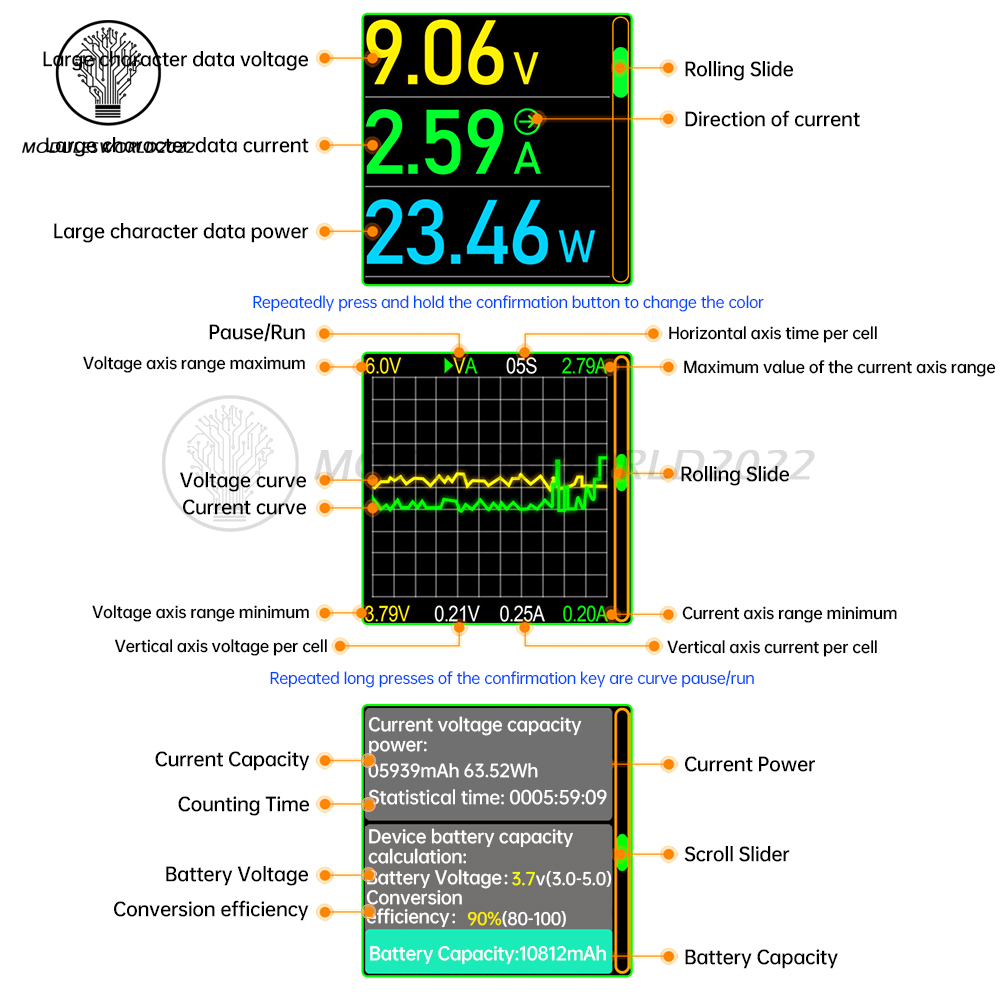

3. Added real-time voltage and current curve display function, making it convenient for users to analyze the fluctuation status during the charging process.
4. Bidirectional current measurement and separate addition of no-load current reset function, making the measurement of fine current more accurate.
5. Equipped with power-off memory and data storage function, convenient for data accumulation application in segmented endurance testing.

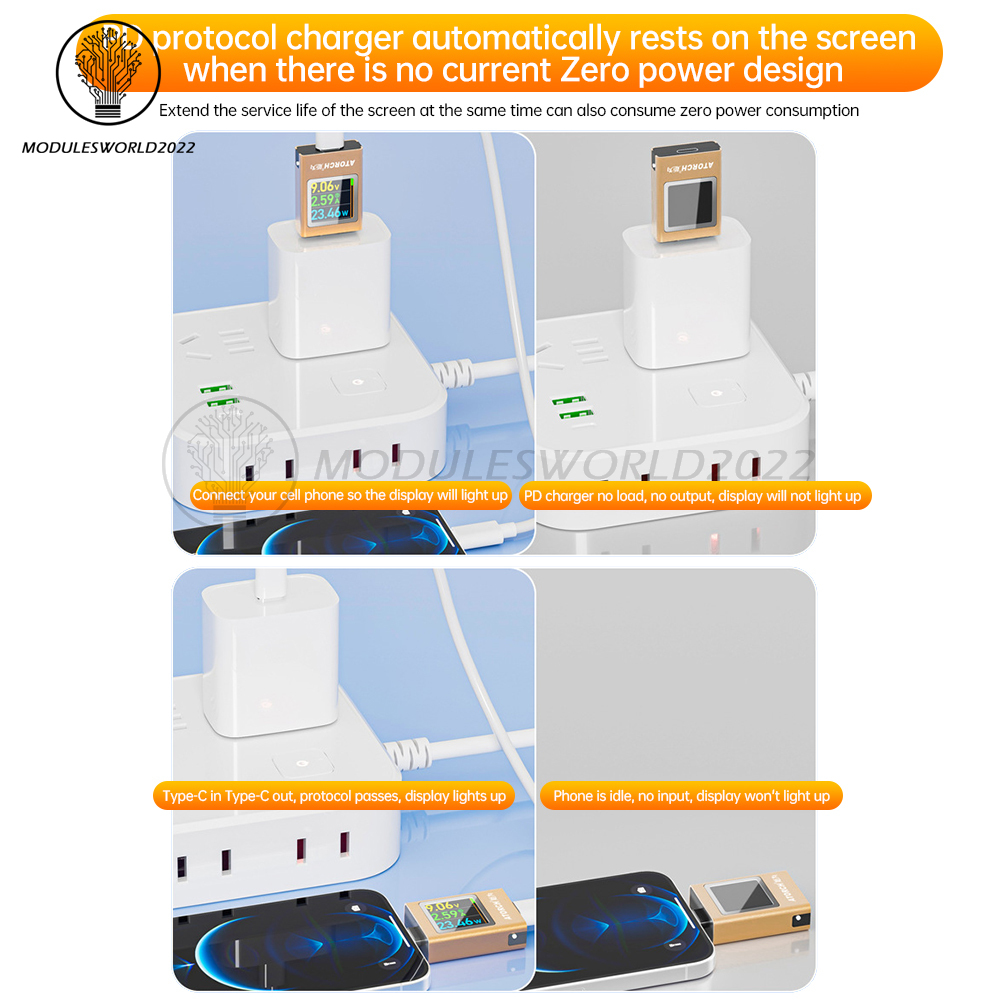

6. The PD protocol charger automatically turns off the screen with zero power consumption when there is no current, extending the lifespan of the screen and being energy-saving and environmentally friendly.

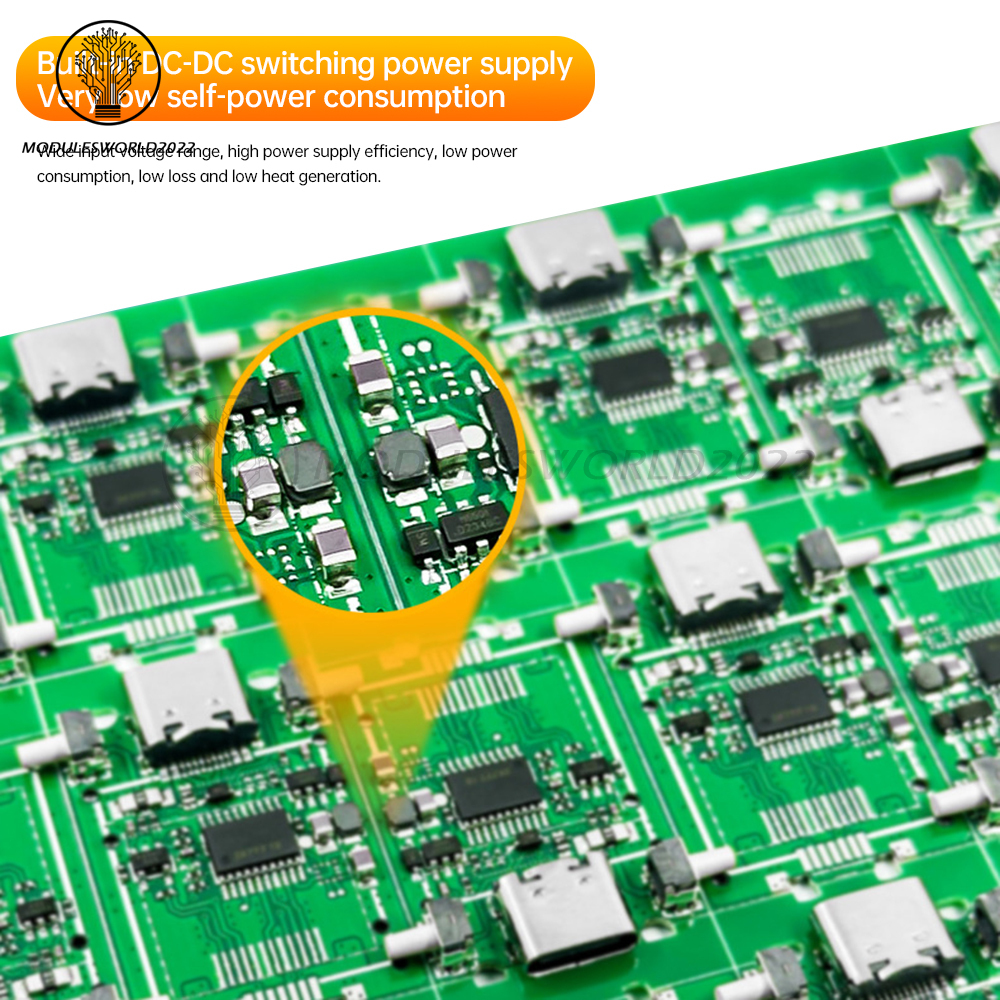

7. Using DC-DC switch power chips to supply power to the circuit, with a wide input voltage range, high power supply efficiency, and low self power consumption.
Working voltage: DC 4.5~50V
Working current: 0-6A (short-term peak value 12A)
Bidirectional current: 12A in both directions
Power display: 0~600W
Battery display: 0~9999Wh
Capacity display: 0~99999mAh
Working temperature: 0~45 ℃/32~113 ℉
Sampling resistance: 0.001R
Power consumption:<0.15W

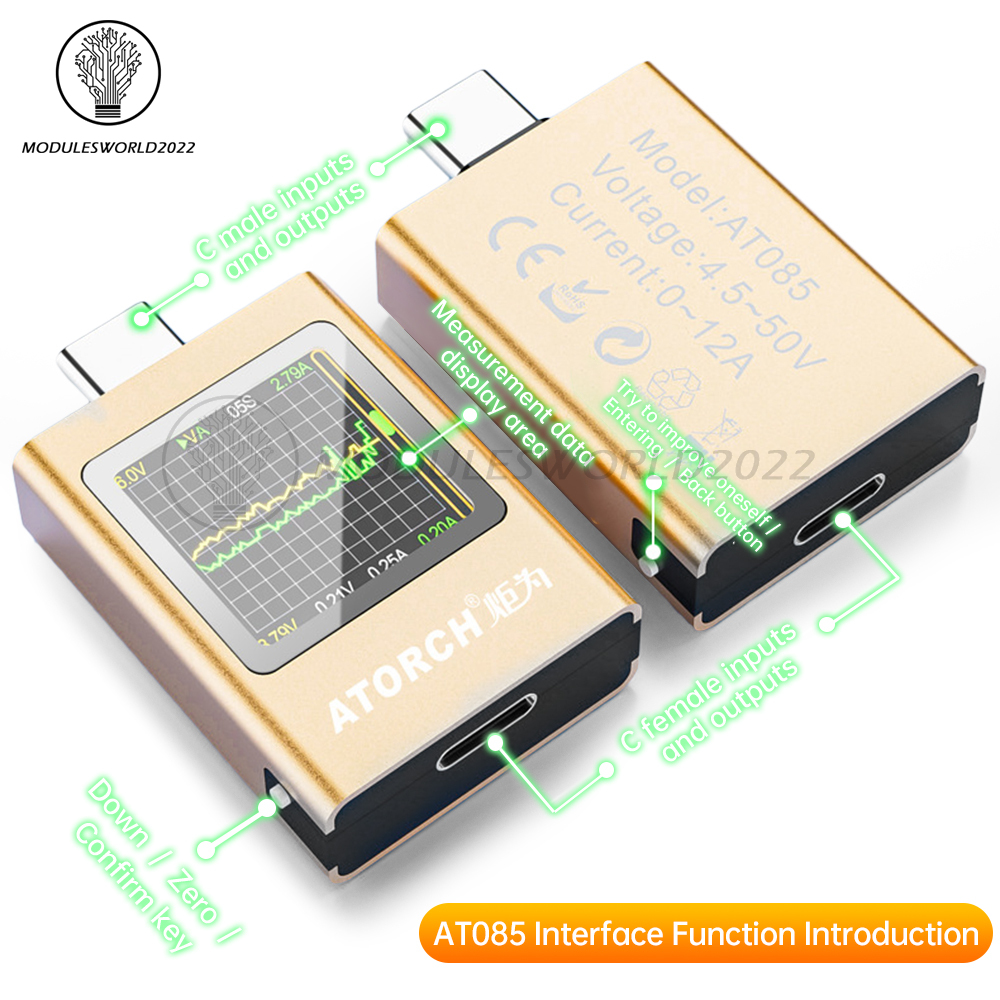

Interface type: C male, C female
Protocol communication: CC1 CC2 protocol transmission, D+D-data transmission
Temperature measurement: CPU temperature measurement
Power supply mode: 48V full voltage power supply

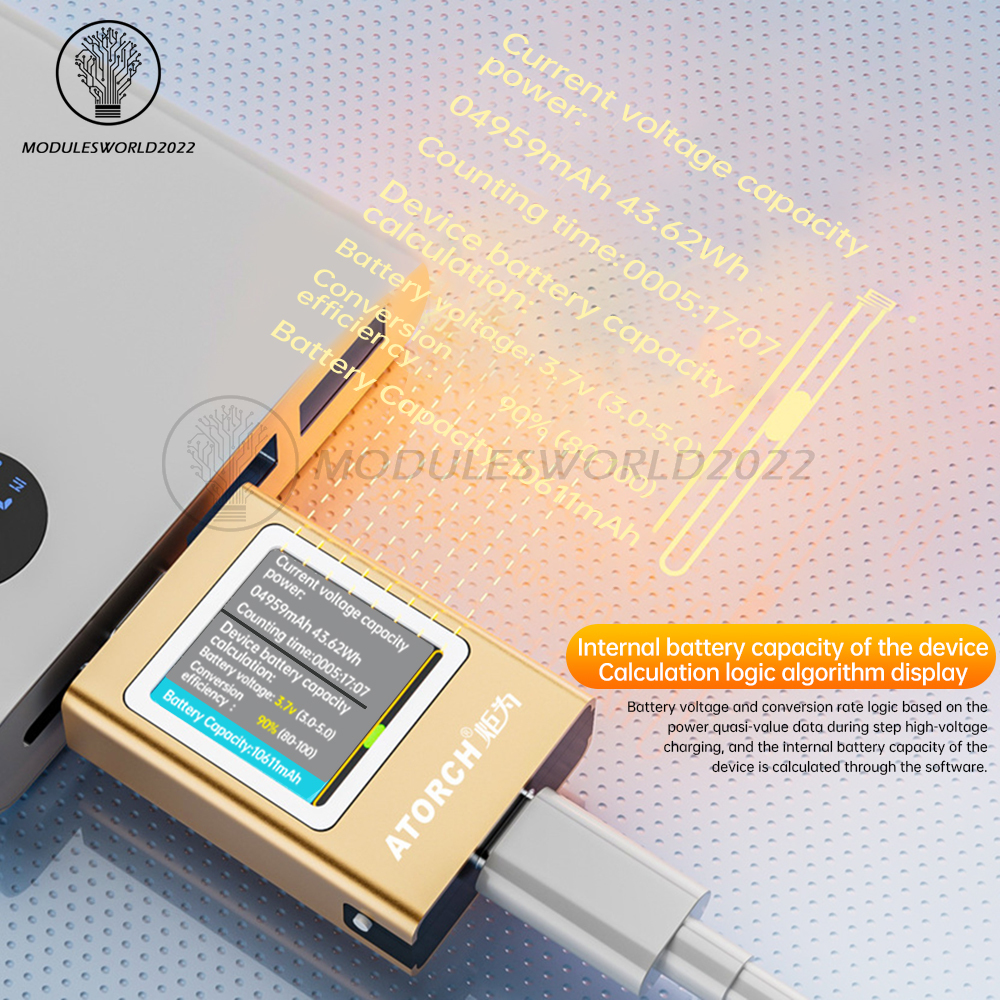

Capacity calculation: Calculate capacity based on electricity value
Power chip: DC-DC switching power supply
Control method: Double key flipping
Curve function: Dual parameter curve can pause/run

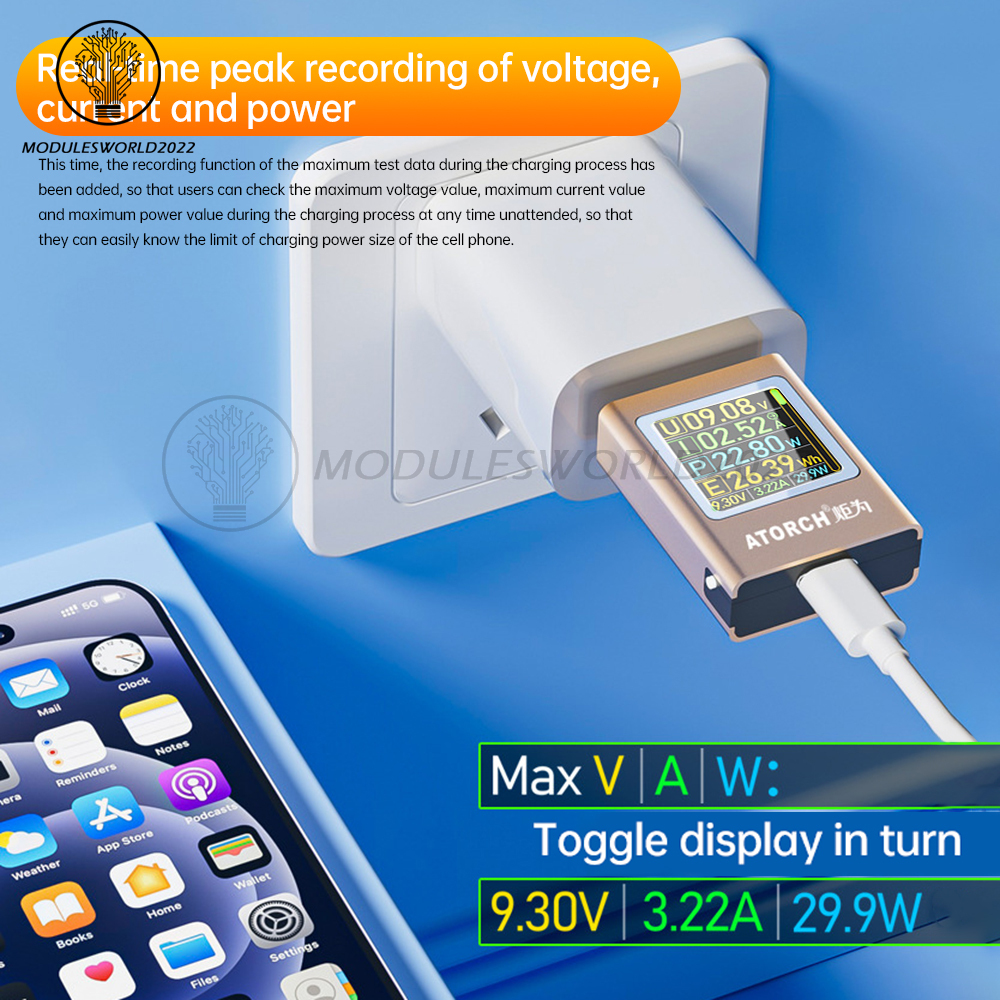

Electrical parameter recording: real-time recording of voltage, current, power peak values
Display screen: IPS high-definition colorful display

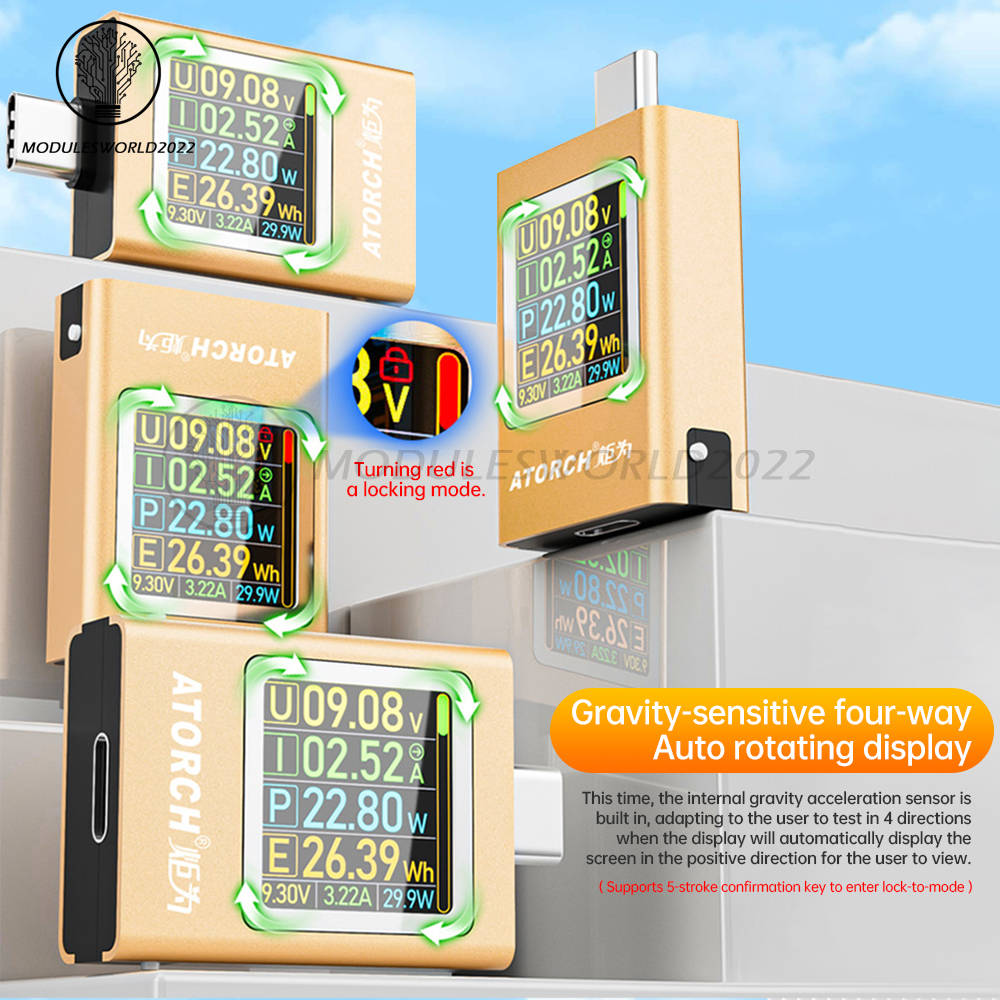

Gravity Sensing: Gravity Rotating Screen/Supports Locking Direction
Product size: 43 * 25 * 10mm
Power meter * 1
