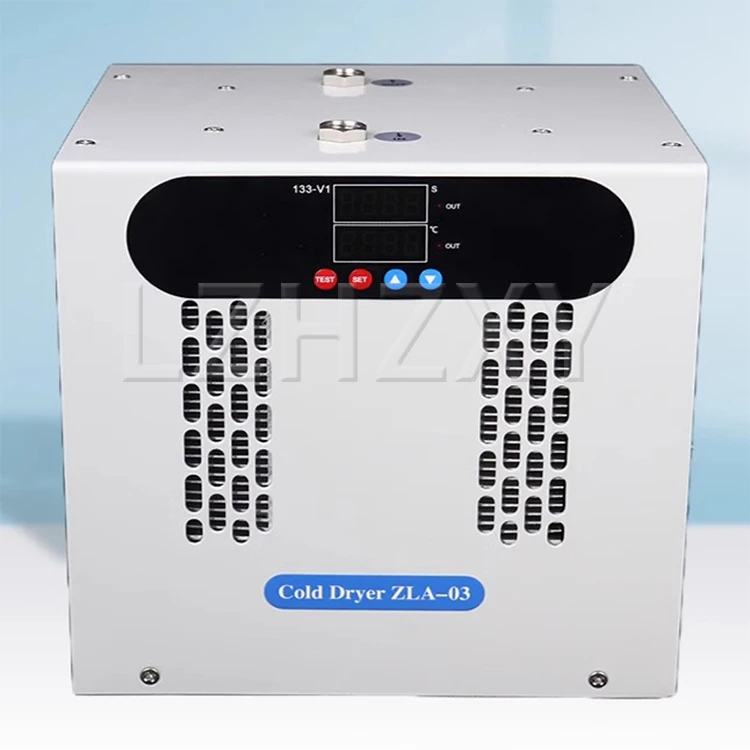

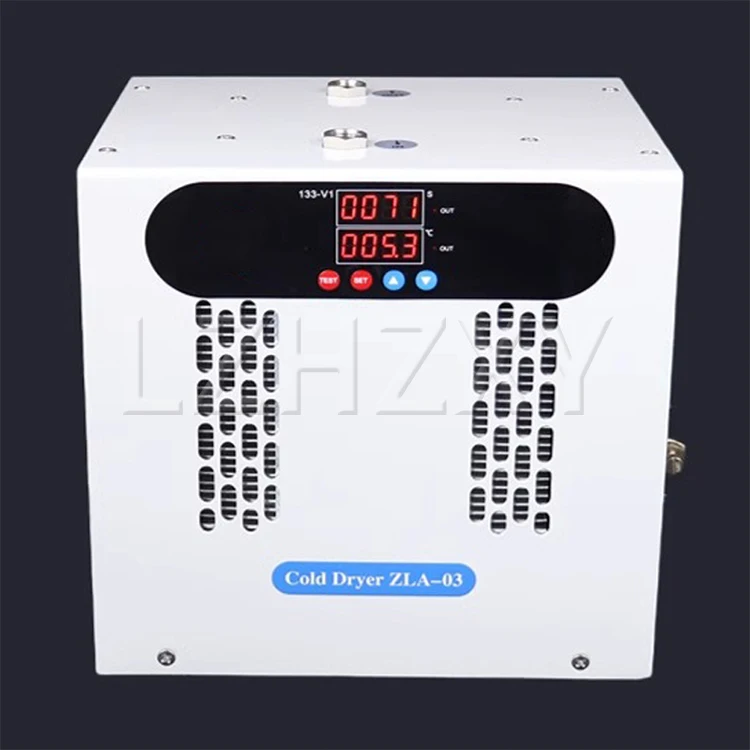

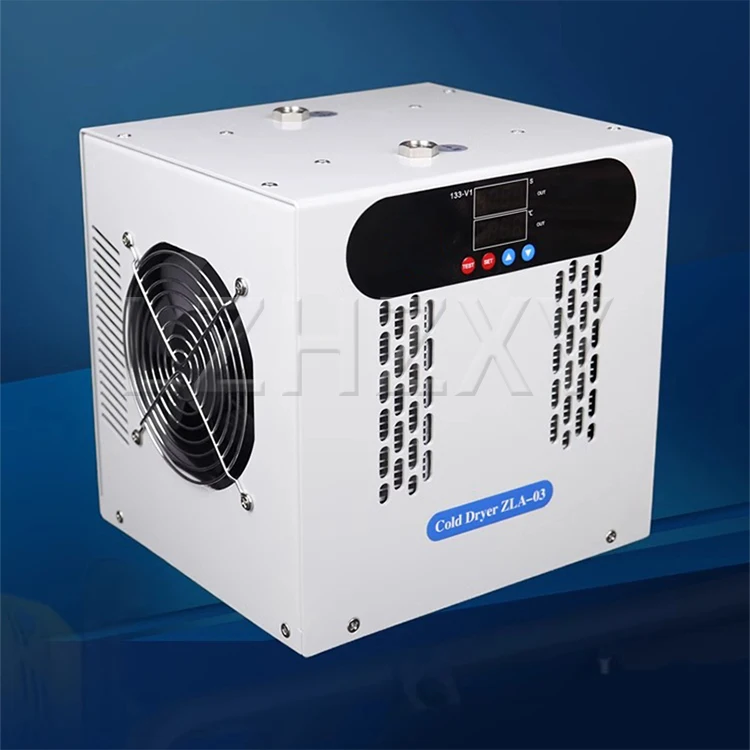

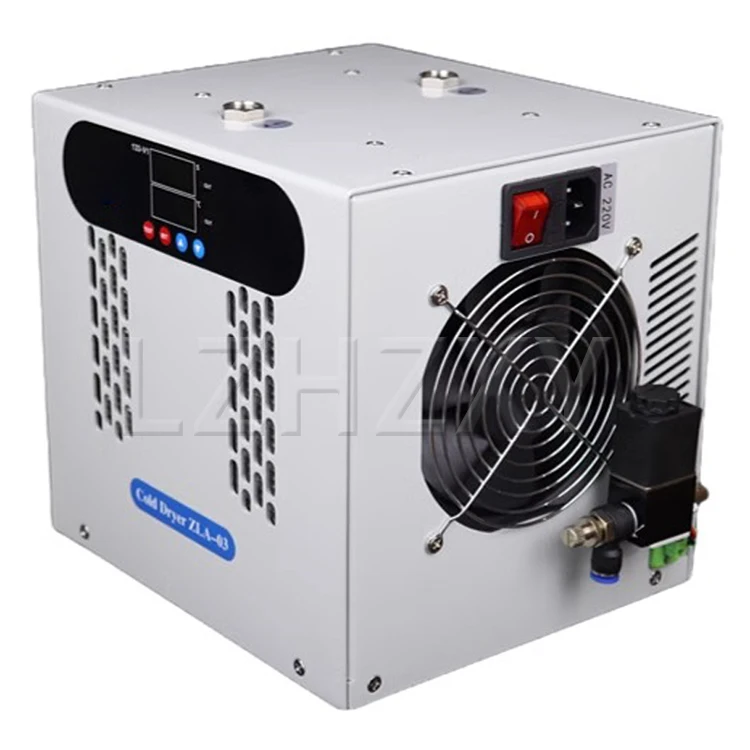

200L/Min Cold Dryer Electronic Condenser Compressed Air Drying Water Removal Filter Refrigeration Dryer Dehumidifier

Name: Cold dryer
Model: ZLA-03
Voltage: 110V/220V 50/60Hz
Rated current: 1.2A
Power: 260W
Flow: 200L/min
Outlet dew point: ≤10℃
Rated pressure: ≤8Bar
Air inlet: G1/4
Air outlet: G1/4
Drainage pipe diameter: Φ6
Drainage method: solenoid valve
Inlet temperature: ≤45℃
Cold cavity temperature: 0-10℃
Drainage time: 0-9999S
Drainage interval: 0-9999S
Size: 250*200*250MM
product description:
*This product is an electronic refrigeration gas condenser. It is used to cool and dry hot and humid gas to reduce the water content of the sample gas. It uses freeze drying and is mainly used to dry and purify the gas source at the gas terminal to achieve the purpose of gas-liquid separation. This device is mainly used as a pretreatment device for various gases.
*It can reduce the dew point of gas and reduce the water-carrying problem of gas on devices and equipment. This product adopts precise temperature control. The temperature is adjusted through the intelligent module to keep the cold cavity temperature constant at the set temperature, and the temperature accuracy is to ±0.1℃. Drainage device cycle timing work control time 0-9999 seconds.
