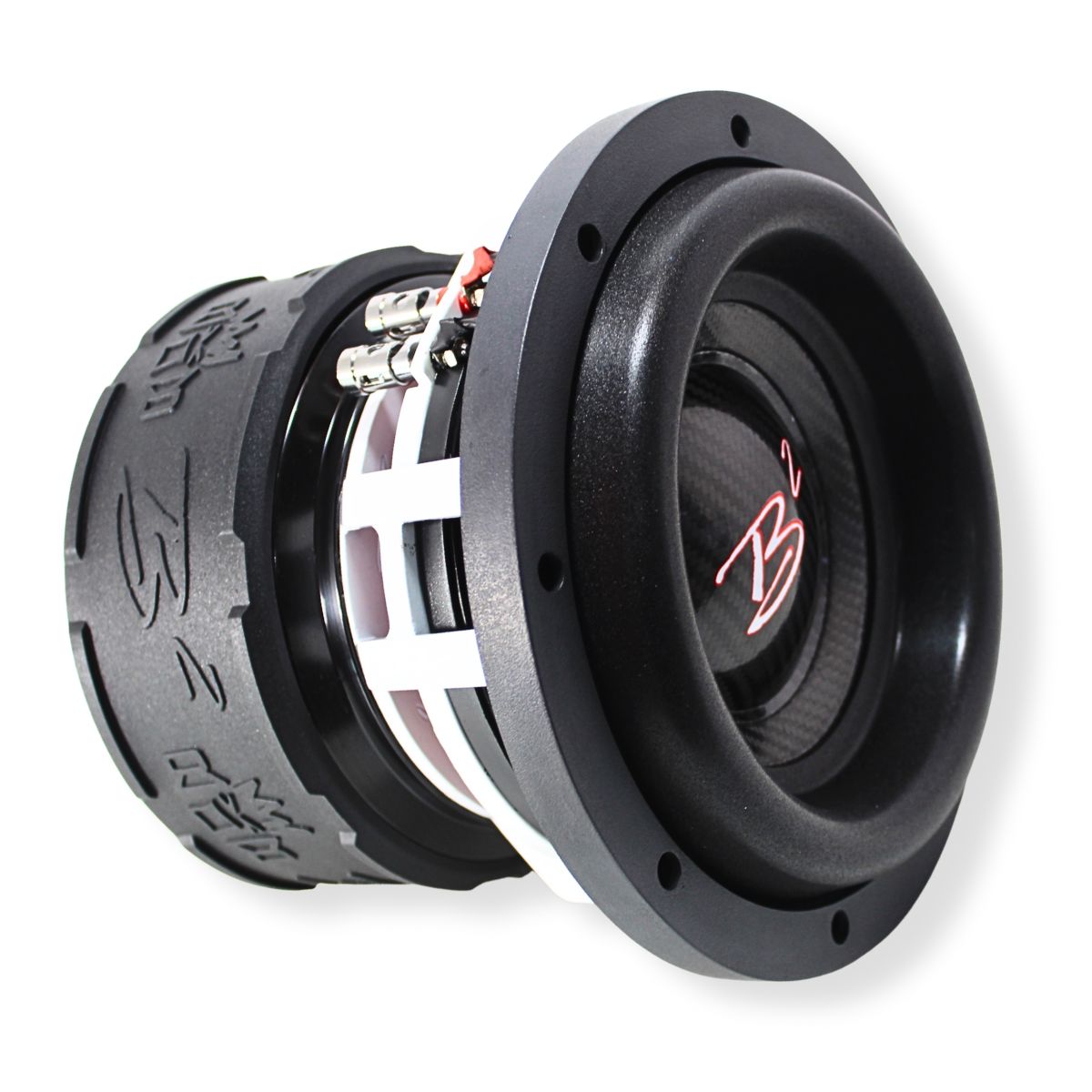

B2 Audio 8" Carbon Fiber Subwoofer RAMPAGE8 V3 1000W RMS Dual 1 Ohm



B2 Audio RAMPAGE 8 V3 8" Dual 1-Ohm 2" Voice Coil 1000 Watt RMS Subwoofer

This Listing Includes:

  • (1) B2 Audio Rampage 8" V3 Dual 1 Ohm Subwoofer

Compact size. Colossal violence.
The B2 Audio Rampage 8 V3 turns tight spaces into pressure chambers, delivering brutal low-end authority from an 8" frame. With a carbon-fiber cone, 2" copper voice coil, and a monstrous 330 oz ferrite motor, this mini-beast is engineered for punishing daily use and shockingly loud SPL bursts. Whether you drop it in sealed, ported, or bandpass, the Rampage 8 V3 hits fast, hard, and clean.

Features

  • 1000W RMS / 2000W Max Power muscle packed into a compact, heavy-duty 8" chassis
  • Dual 1-Ohm 2" Copper Voice Coils for flexible wiring and stable high-power performance
  • Carbon Fiber Cone for strength, stiffness, and lightning-fast transient response
  • Massive 330 oz Ferrite Motor that delivers serious control and excursion
  • Tall U-Shaped Foam Surround for impressive Xmax and clean, deep bass
  • Versatile Enclosure Options tuned for sealed, ported, and 4th-order bandpass systems
  • 8 Gauge Push Terminals for secure, high-current wiring
  • Built for daily drivers, demo vehicles, and serious SPL builds

Specifications:

  • RMS Power: 1000W
  • Max Power: 2000W
  • Impedance: Dual 1 Ohm (D1)

Performance

  • Resonance Frequency (Fs): 39.9 Hz
  • Frequency Response: 10–500 Hz
  • Sensitivity: 80.1 dB
  • Xmax (one-way): 17 mm

Voice Coil & Motor:

  • Voice Coil Diameter: 2" (50.4 mm)
  • Winding Material: Copper
  • Magnet Type: Ferrite
  • Motor Weight: 330 oz

Construction

  • Cone: Carbon Fiber
  • Surround: Tall U-Shaped Foam
  • Terminals: 8 Gauge Push

Thiele/Small Parameters

  • Fs: 39.9 Hz
  • Vas: 5 L
  • Re: 1.8 Ohm
  • Qms: 5.82
  • Qes: 0.54
  • Qts: 0.49
  • Cms: 90 μm
  • Mms: 162 g
  • Sd: 196.8 cm²
  • EBP: 72.5

Enclosure Recommendations:

  • Sealed: 9.2 L / 0.33 ft³ (Qtc/F3 = 0.488 / 67 Hz)
  • Ported Compact: Fb = 45 Hz, Port Area = 18 in², Port Length = 15.7"
  • Ported Standard: Fb = 38 Hz, Port Area = 7.49 in², Port Length = 12.6"
  • Bandpass (4th Order): Ratio 2:1

Dimensions:

  • Overall Diameter: 8.66" (220 mm)
  • Cutout Diameter: 7.28" (185 mm)
  • Total Depth: 6.49" (165 mm)
  • Mounting Depth: 5.90" / 150 mm
  • Magnet Diameter: 6.42" (163 mm)
  • Net Weight: 25.35 lbs (11.5 kg)
  • Shipping Weight: 27.56 lbs (12.5 kg)
  • Box Size: 10.63" x 10.63" x 10.63" (270 x 270 x 270 mm)

Turn any space into a pressure chamber: Upgrade your low end with a subwoofer that punches far above its size. Feel the power. Hear the difference.


Product Details

BrandB2 Audio
ColorWhite
Size8 inches
StyleRAMPAGE
ManufacturerB2 Audio
Product Type8" Subwoofer
MpnB2-RAMPAGE8-D1-V3
  • 1000W RMS Mini Monster: delivers huge output from a compact 8" footprint, perfect for daily drivers and demo builds.
  • Dual 1-Ohm 2" Copper Voice Coils: provide flexible wiring options and stable high-power performance.
  • Carbon Fiber Cone: with Tall U-Surround delivers tight, controlled bass with exceptional durability and excursion.
  • Massive 330 oz Ferrite Motor: engineered for clean low-end authority, fast response, and serious output.
  • Versatile Enclosure Compatibility: works in sealed, ported, or 4th-order bandpass boxes for custom sound tuning.




-
