Brand	Trifox
Model	X8
Product Name	Bike Frameset X8
Type	Road Bike Frame
Available Size	48 / 51 / 54 / 56 cm
Available Color	Yellow / Red
Material	T800 Carbon Fiber
Finish	Glossy
Braking System	V Brake/The Alex Thru
Fork Rake / Offset	43mm
Installable	Fit for DI2 & Mechanical
saddle installation method:	Lock left and right
Derailleur Cables Routing	Internal
Bottom Bracket	BSA BB68 (φ 34mm, L 68mm)
Headset	1 1/8'' to 1 1/2'' Tapered Integrated
Max Wheels & Tire Size	700 x 25C
O.L.D	φ9x100mm;
	12x100mm Thru Axle
Style	Quick Release

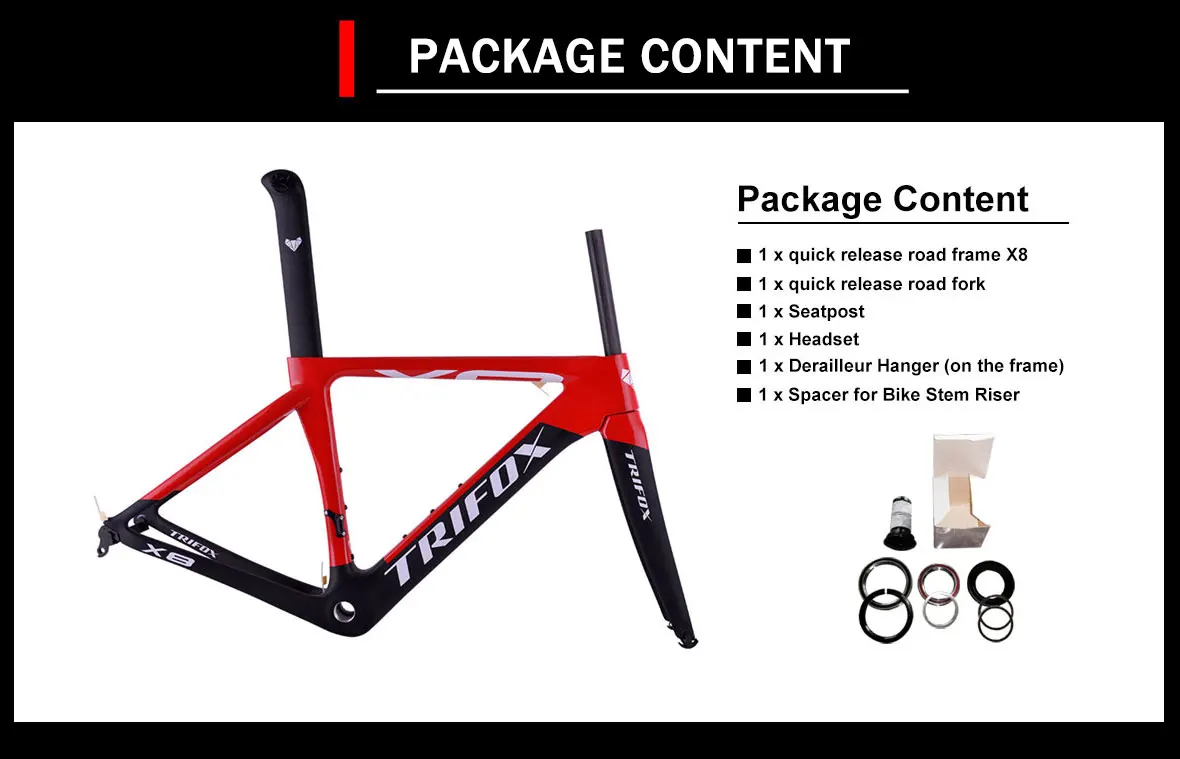

Package Content	1 x Road Bike Frame X8
	1 x Fork
	1 x Seatpost
	1 x Hanger
	1 x Headset
Warranty	2 years

Trifox

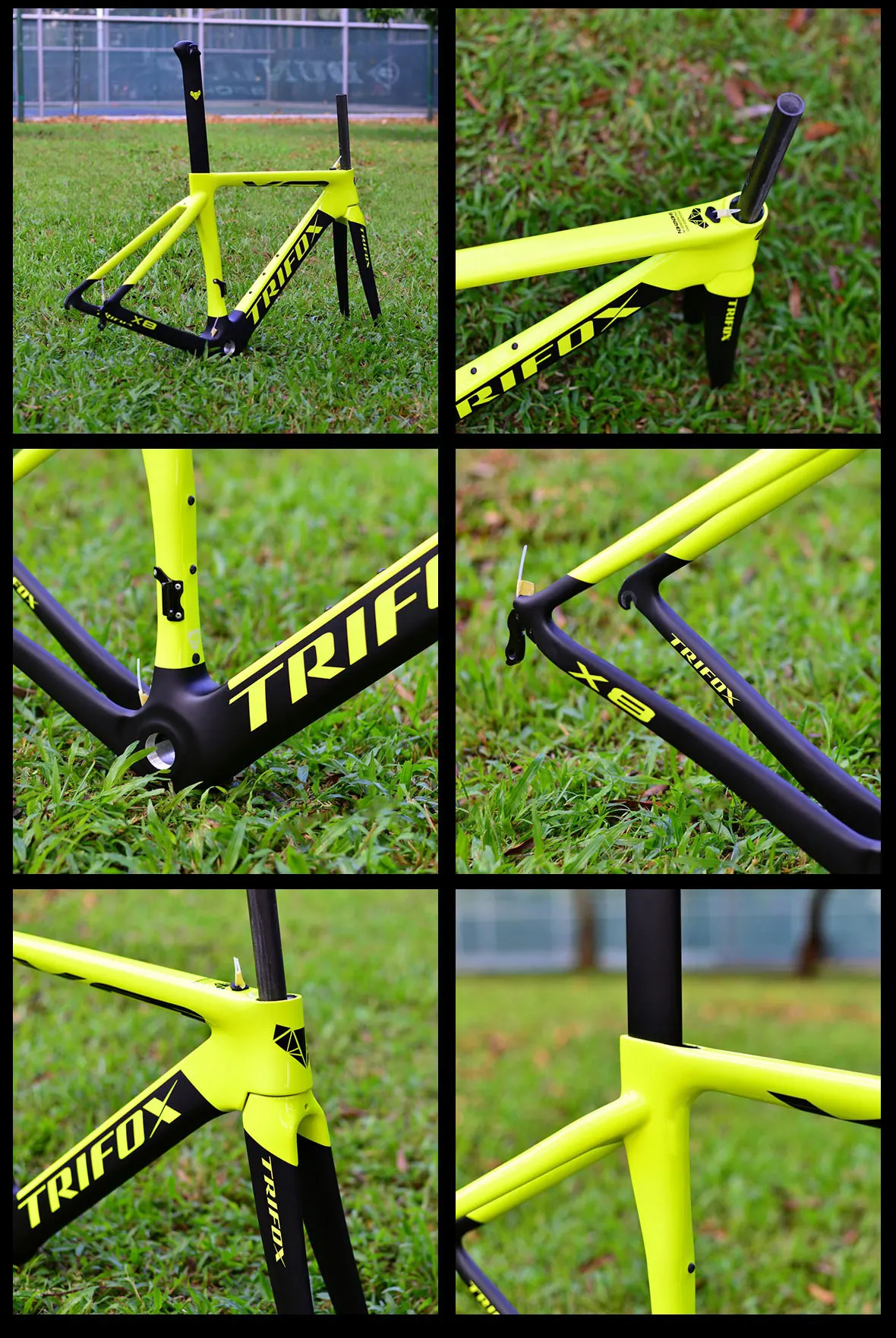

X8 adopts carbon fiber integrated molding process, three-dimensional
guide type integrated aero pipe type, internal routing aerodynamic
propel design, full sense of strength, the combination of sports and
equipment aesthetics, and the special processing method of carbon fiber
makes the frame without Joint gaps, with consistent visual aesthetics
that other frame materials don't have.

The internal routing design, the wiring from the upper tube of the frame head, is simple and beautiful.

The
carbon fiber raw materials is derived from Toray T800 high-quality. The
carbon fiber is flexible on the outside and rigid on the inside. It is
lighter than aluminum alloy, but more strength than steel. It has the
characteristics of corrosion resistance, shock resistance and high
modulus. It is important materials and always used in national defense,
military and civilian applications. It not only has the inherent
characteristics of carbon materials, but also has the soft
processability of textile fibers. It is a new generation of reinforcing
fibers which has many excellent properties.

Ultra-light
carbon fiber front fork: aerodynamic design of breaking wind, taking
into account lightness and strength, riding faster and more comfortable.

Carbon
fiber windbreaking aero seatpost: The lay-back drop-shaped tube design,
with a smaller windward surface, effectively reduces the wind
resistance of cycling, and makes riding more enjoyable.

Hidden seatpost clamp, beautiful and fashionable.

2-year warranty service.
