Product features:

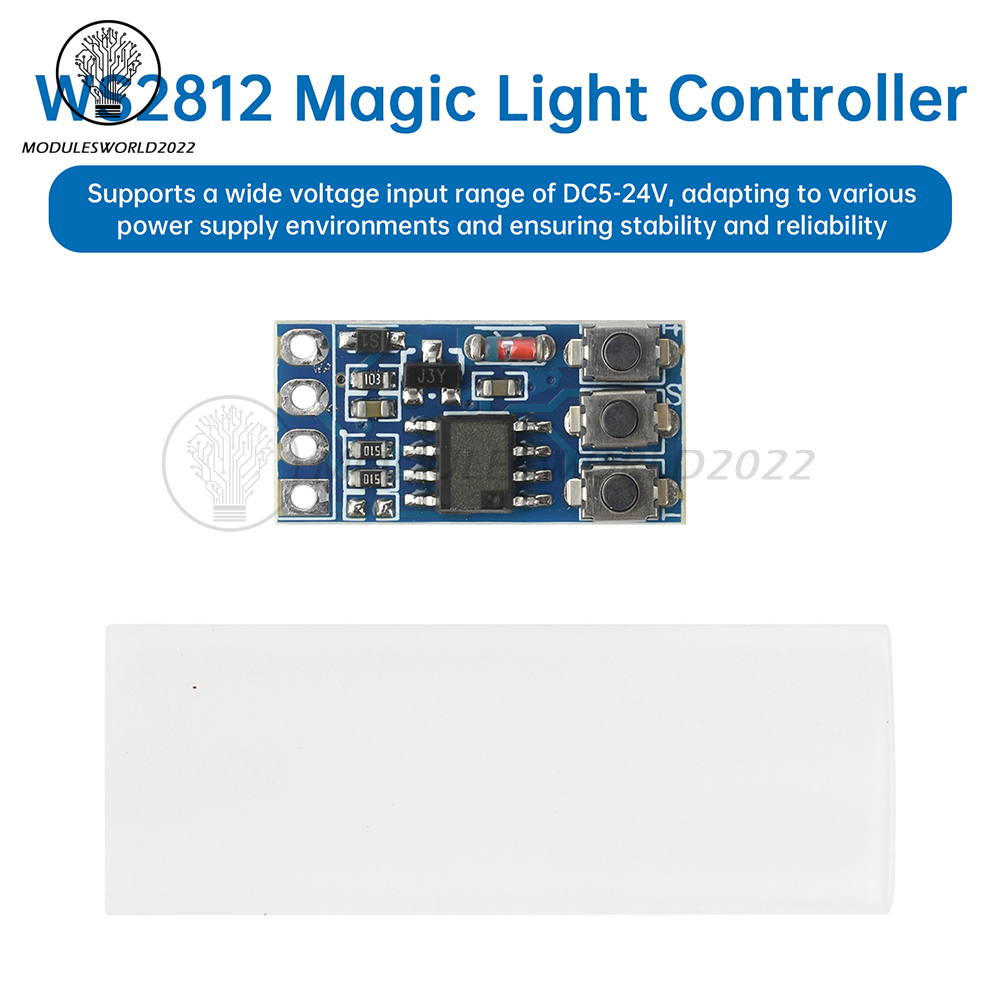

1. Supports DC5-24V wide voltage input, adaptable to various power environments, stable and reliable

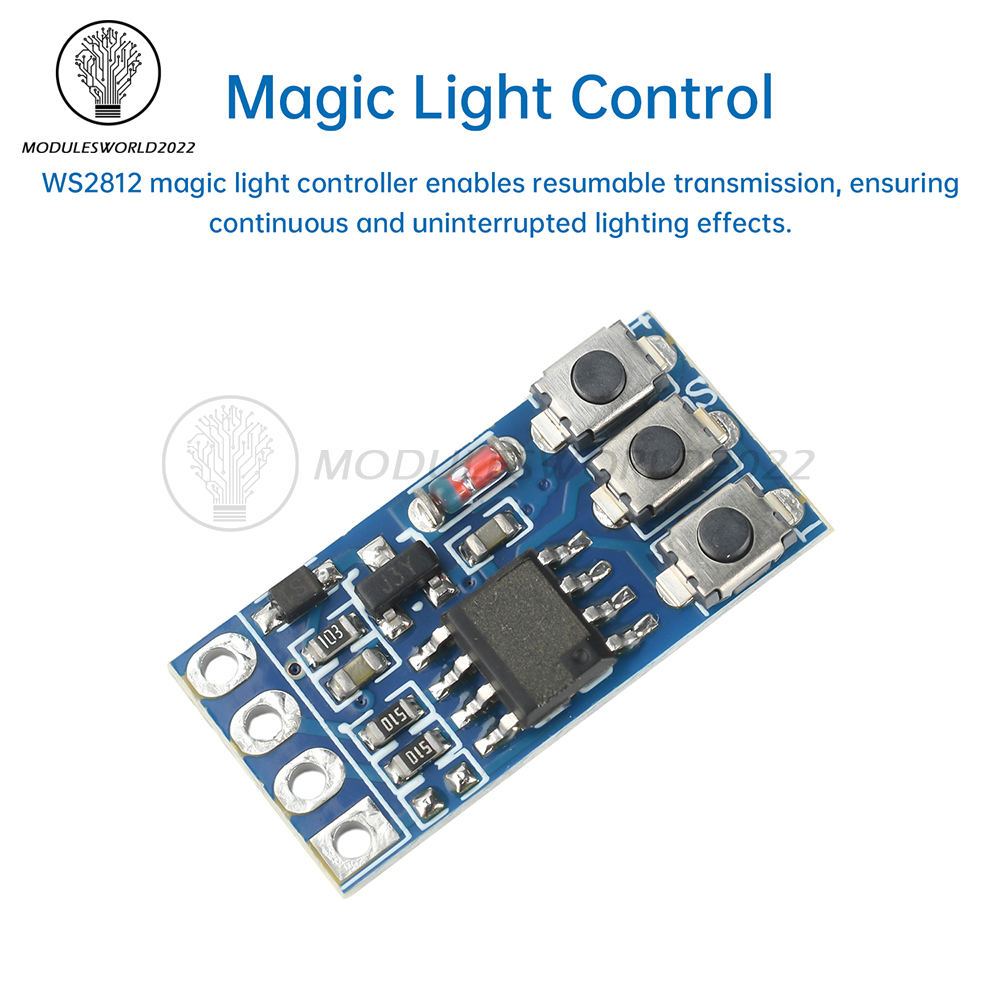

2. WS2812 Colorful Light Controller, realizing breakpoint continuation to ensure seamless and uninterrupted lighting effects
3. Flow light control board design, flexible control of RGB light strips, creating dazzling dynamic lighting effects

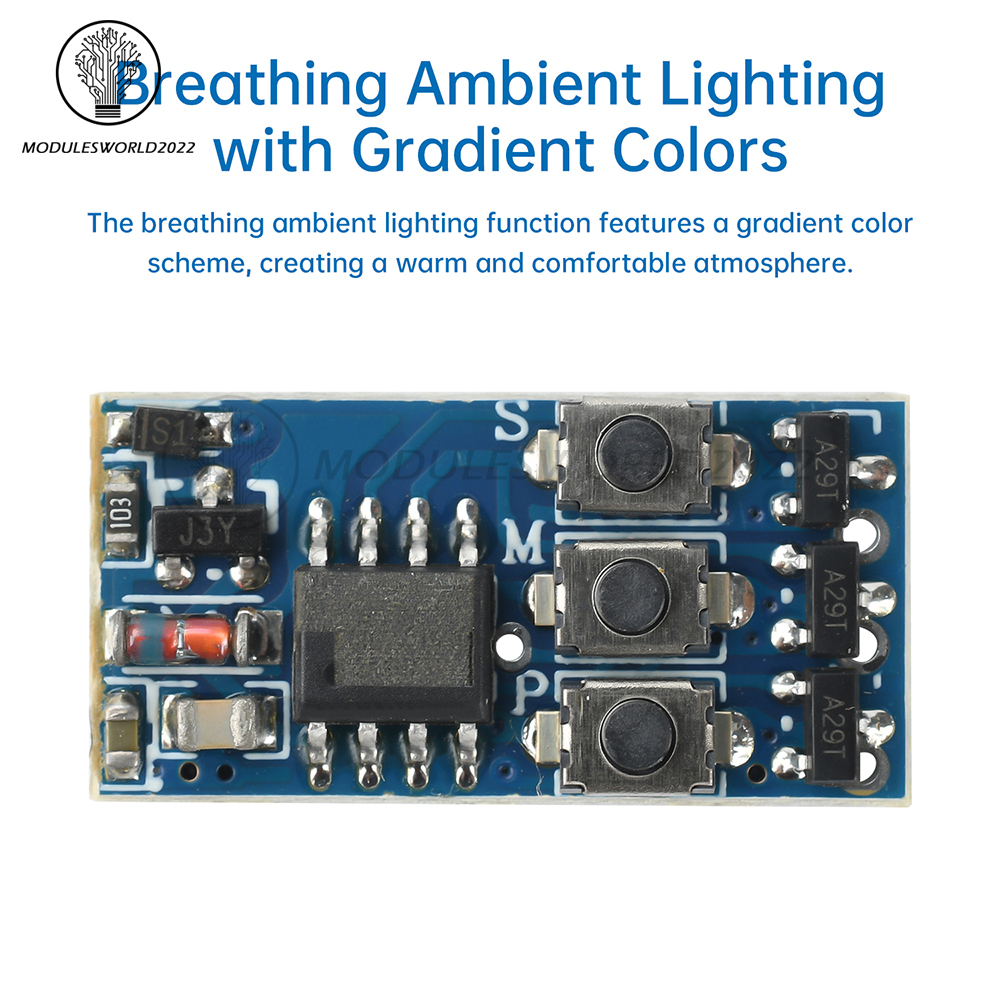

4. Breathing atmosphere light function, rainbow gradient colors, creating a warm and comfortable environment atmosphere

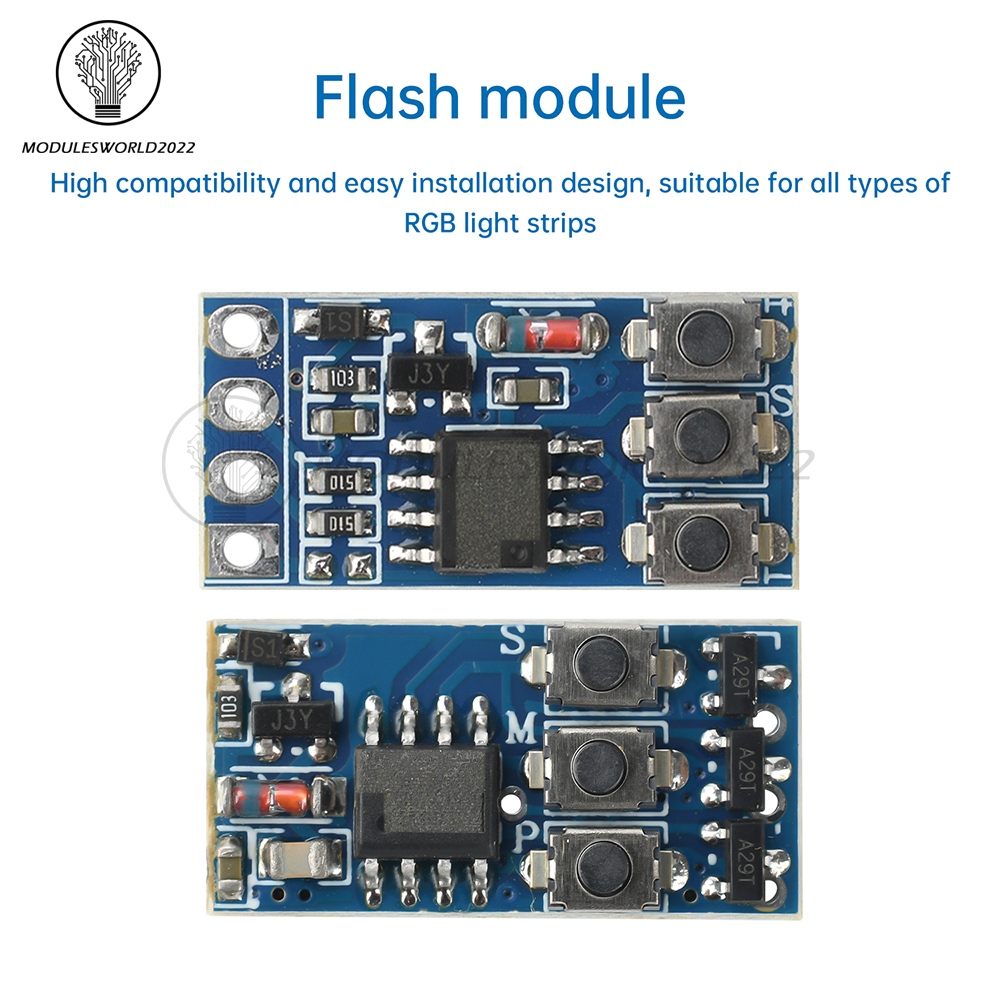

5. High compatibility and easy installation design, suitable for various RGB light strips, easy to operate
1. Supports DC5-24V wide voltage input, adaptable to various power environments, stable and reliable
2. WS2812 Colorful Light Controller, realizing breakpoint continuation to ensure seamless and uninterrupted lighting effects
3. Flow light control board design, flexible control of RGB light strips, creating dazzling dynamic lighting effects
4. Breathing atmosphere light function, rainbow gradient colors, creating a warm and comfortable environment atmosphere
5. High compatibility and easy installation design, suitable for various RGB light strips, easy to operate
Product parameters:

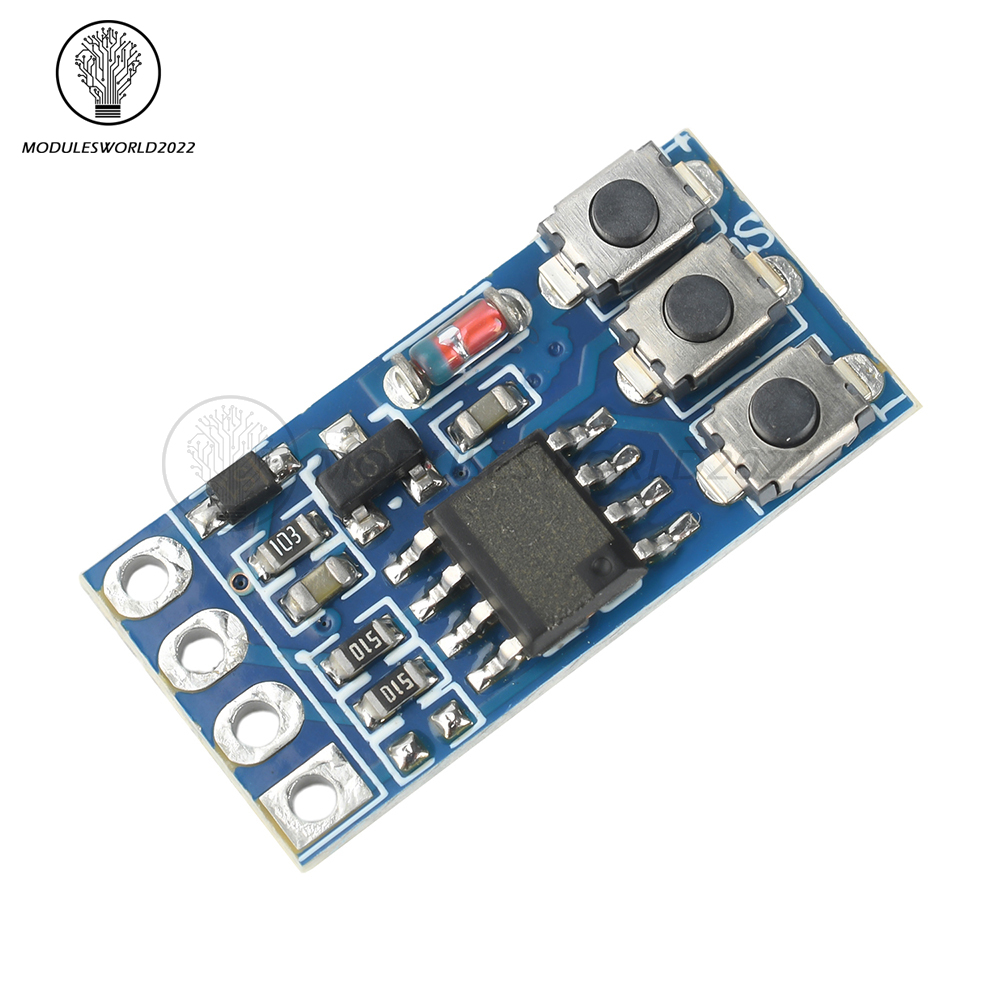

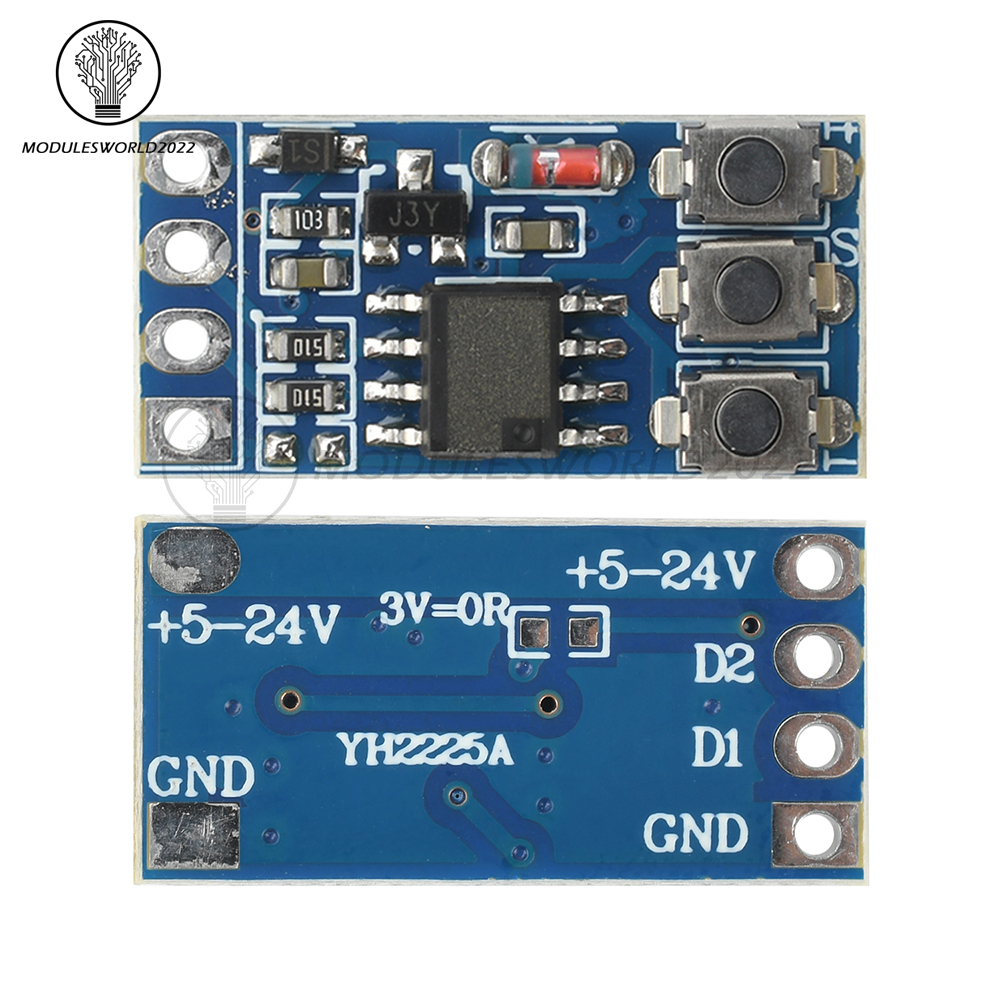

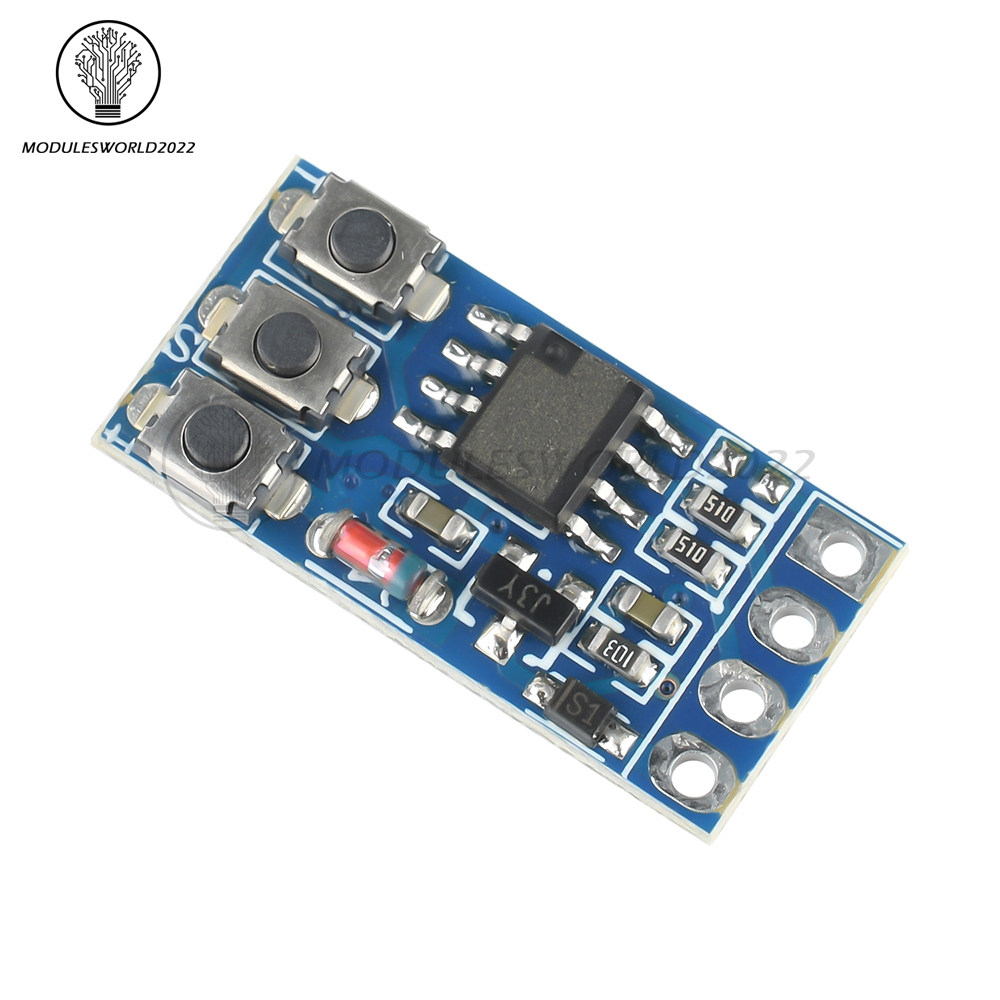

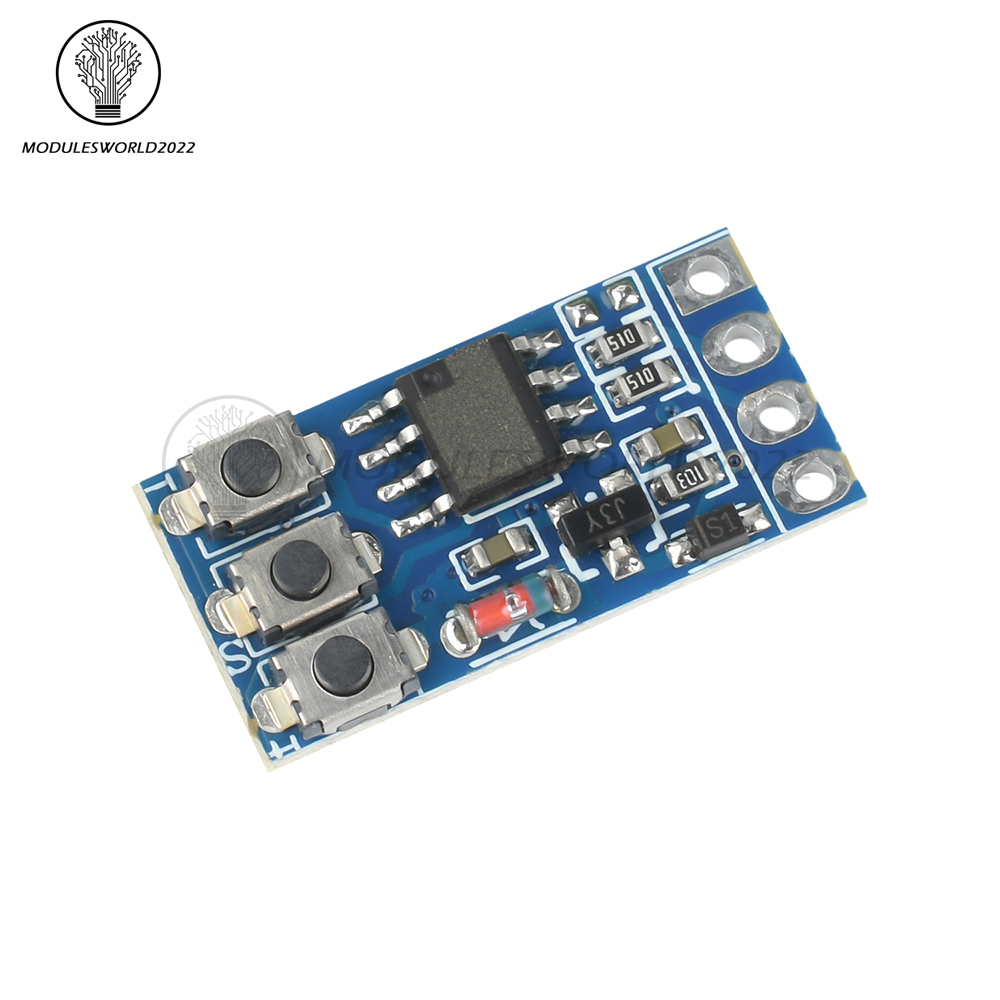

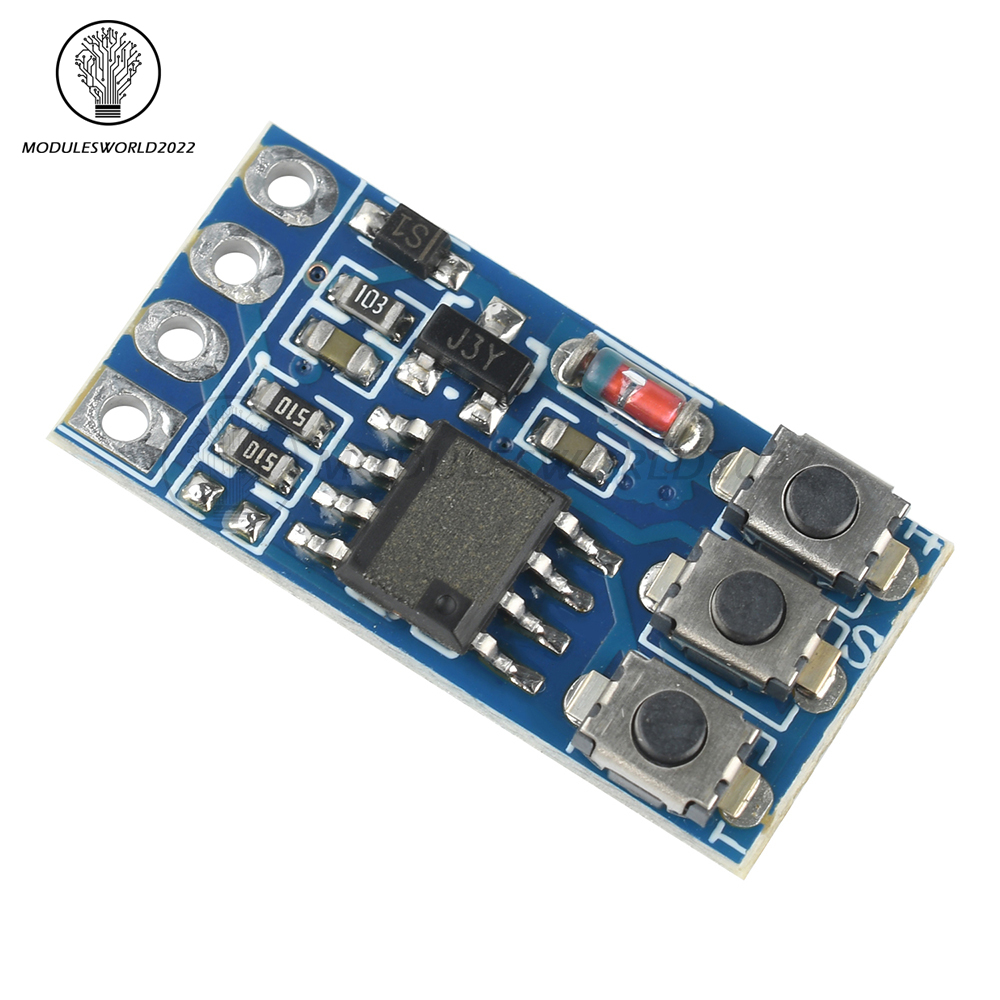

Fantasy Lantern Controller

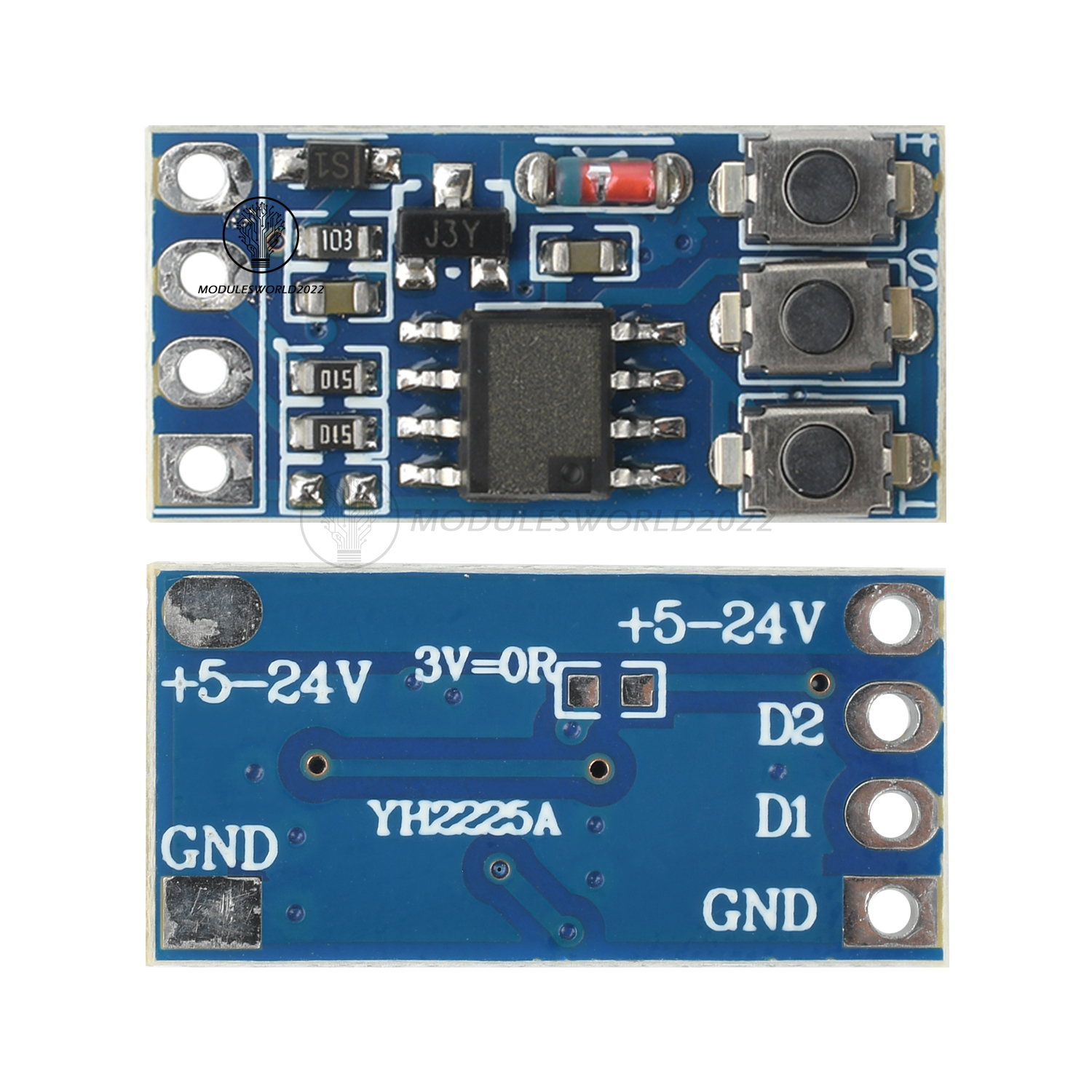

Input voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)
Maximum pixels: 900 RGB chips
Working mode: 300 combinations of iridescent effects, moving left and right
Sports speed: 6-speed setting
Supporting LED strip types: WS2811, WS281216703790319034193518129263905 and other single or double line zeroing driver chips for LED strips
Serial port signal output frequency: Single line 800KHz zeroing code driver chip (dual channel output)
Input reverse protection: Yes, reverse connection does not burn the module
Power off memory: Yes, all parameters will be automatically saved after setting
Working temperature: -20~+85 ℃
Fantasy Lantern Controller
Input voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)
Maximum pixels: 900 RGB chips
Working mode: 300 combinations of iridescent effects, moving left and right
Sports speed: 6-speed setting
Supporting LED strip types: WS2811, WS281216703790319034193518129263905 and other single or double line zeroing driver chips for LED strips
Serial port signal output frequency: Single line 800KHz zeroing code driver chip (dual channel output)
Input reverse protection: Yes, reverse connection does not burn the module
Power off memory: Yes, all parameters will be automatically saved after setting
Working temperature: -20~+85 ℃

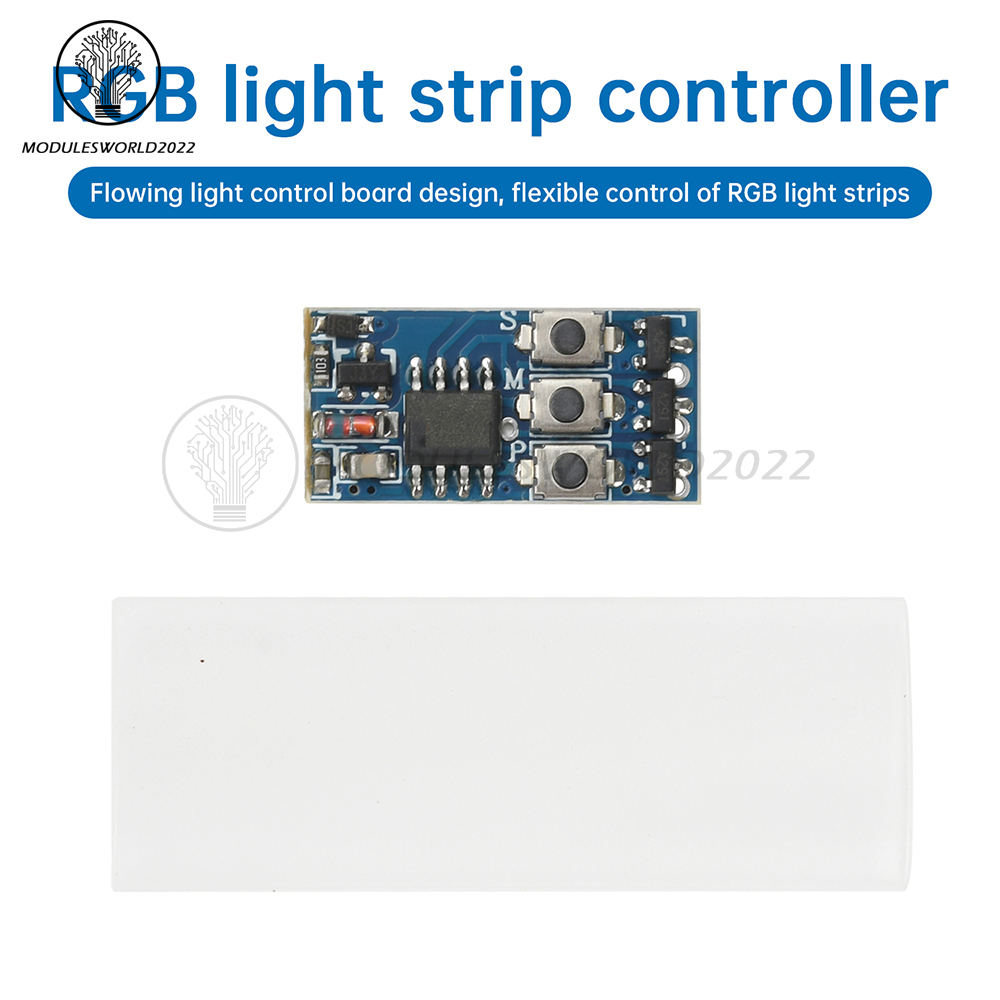

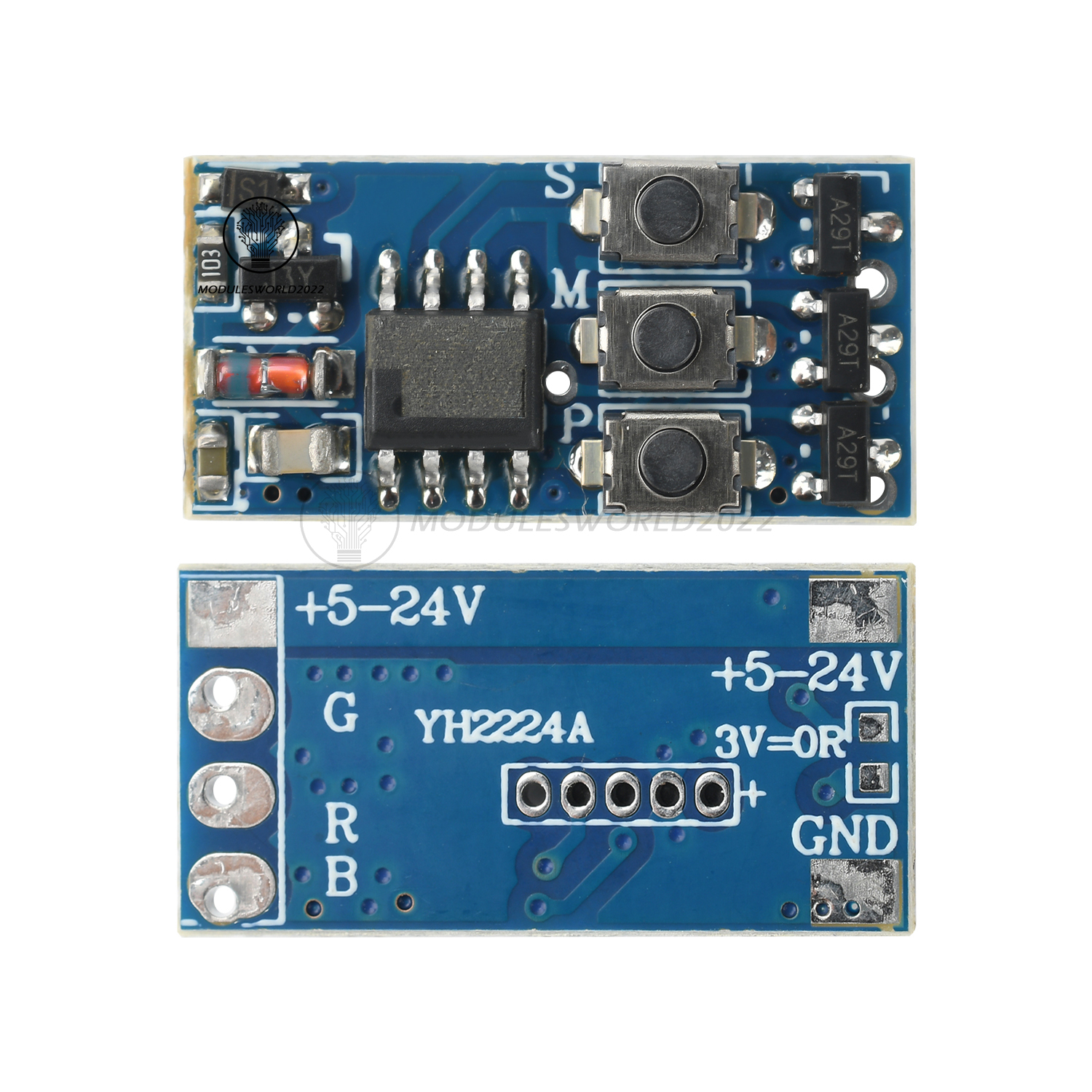

Three channel RGB light controller
Input voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)
Maximum operating current: 3A/channel
Input voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)
Maximum operating current: 3A/channel
Working mode: 5 mode settings
1. Monochromatic breathing mode
2. Dual color synchronous mixing breathing mode
3. Dual color asynchronous mixing breathing mode
4. Tri color mixed color calling mode
5. Loop mode
Breathing time: 8 time settings. 3 seconds to 24 seconds, a total of 8 levels, 3 seconds per level
Mixing ratio: 10 levels of mixing ratio settings. 10% -100% color mixing ratio
Working frequency: 3KHz (high working frequency can effectively prevent flicker problems)
Power off memory: Yes, all parameters will be automatically saved after setting
Power on/off settings: You can set the default power on or off when powered on. Press and hold for 3 seconds to turn on, press and hold for 3 seconds to turn off
Input reverse protection: Yes, reverse connection does not burn the module
Working temperature: -20~+85 ℃
1. Monochromatic breathing mode
2. Dual color synchronous mixing breathing mode
3. Dual color asynchronous mixing breathing mode
4. Tri color mixed color calling mode
5. Loop mode
Breathing time: 8 time settings. 3 seconds to 24 seconds, a total of 8 levels, 3 seconds per level
Mixing ratio: 10 levels of mixing ratio settings. 10% -100% color mixing ratio
Working frequency: 3KHz (high working frequency can effectively prevent flicker problems)
Power off memory: Yes, all parameters will be automatically saved after setting
Power on/off settings: You can set the default power on or off when powered on. Press and hold for 3 seconds to turn on, press and hold for 3 seconds to turn off
Input reverse protection: Yes, reverse connection does not burn the module
Working temperature: -20~+85 ℃
Packing list:
Module * 1
Module * 1
