Product Description

New in sealed packing, FedEx International Priority


Package includes:

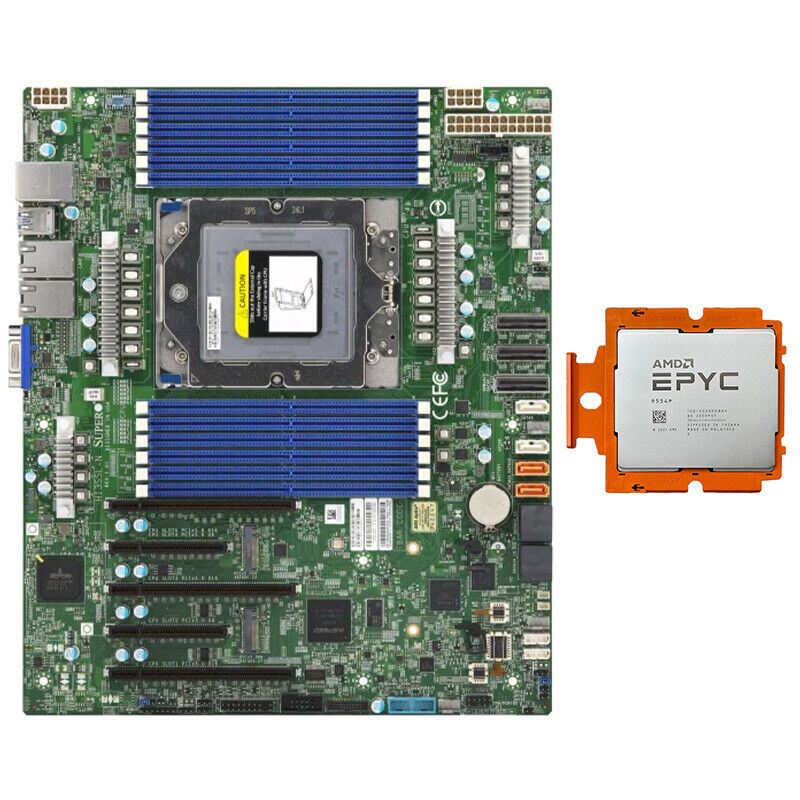

1x Supermicro H13SSL-N Motherboard rev. 1.x

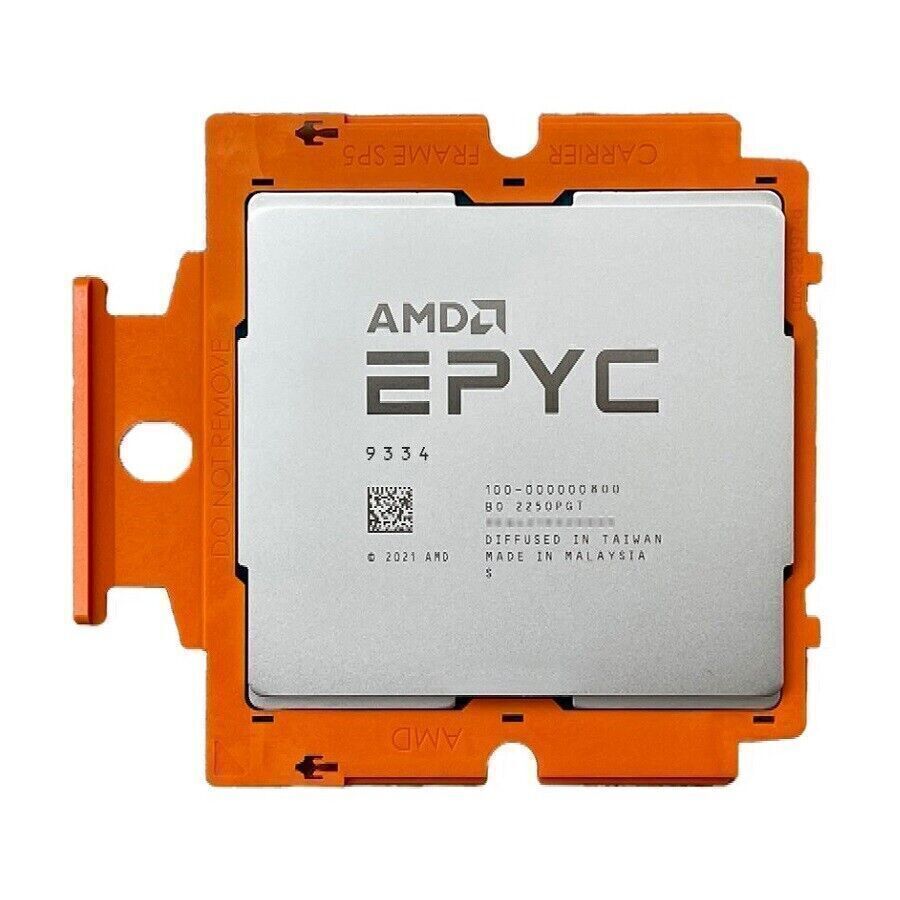

1x AMD Genoa EPYC 9334 QS 2.7-3.9 GHz 32 Cores CPU


CPU:

AMD Genoa EPYC 9334 2.7-3.9GHz 32cores 64thr CPU processor Server/Workstation QS Test Version



Product SKUs
MBD-H13SSL-N
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
  • AMD EPYC™ 9004 series Processors
  • Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core
  • Up to 96/192
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type
  • 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • Dual LAN with Broadcom BCM5720 1GBase-T
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 port(s) (4 USB; 2 via header)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Others
  • 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
  • 2 MCIO (PCIe 5.0 x8) Port(s)
Expansion Slots
PCIe
  • 3 PCIe 5.0 x16 (in x16 slot),
  • 2 PCIe 5.0 x8
M.2
  • M.2 Interface: 2 SATA/PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
  • SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN
PC Health Monitoring
Voltage
  • VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Other Features
  • RoT
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
