Feature:

1. New EM series motors, designed for long-range FPV

2. High-strength M5 steel shaft

3. High-torque magnetic circuit design

4. 19mmx19mm base

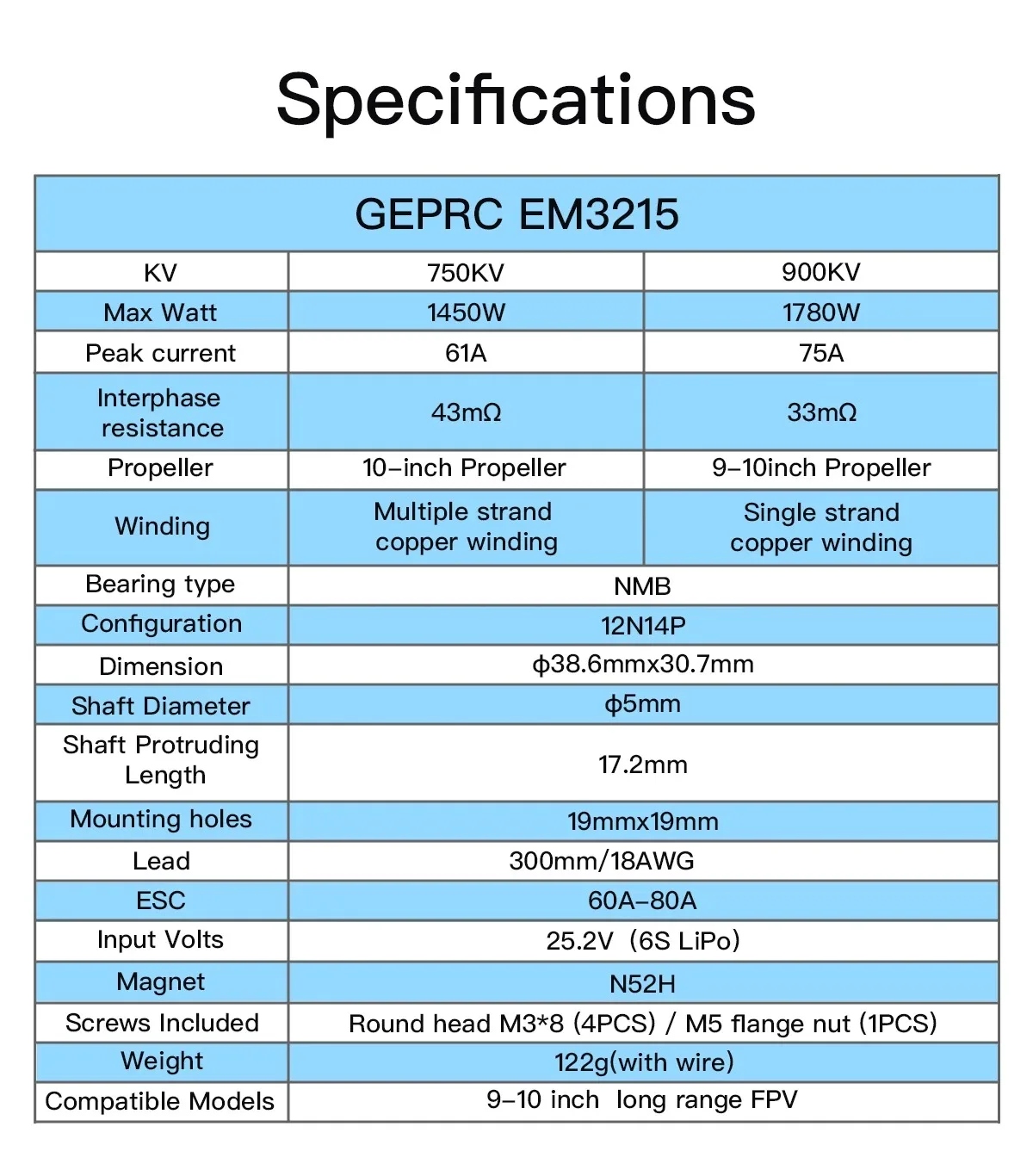

Specification

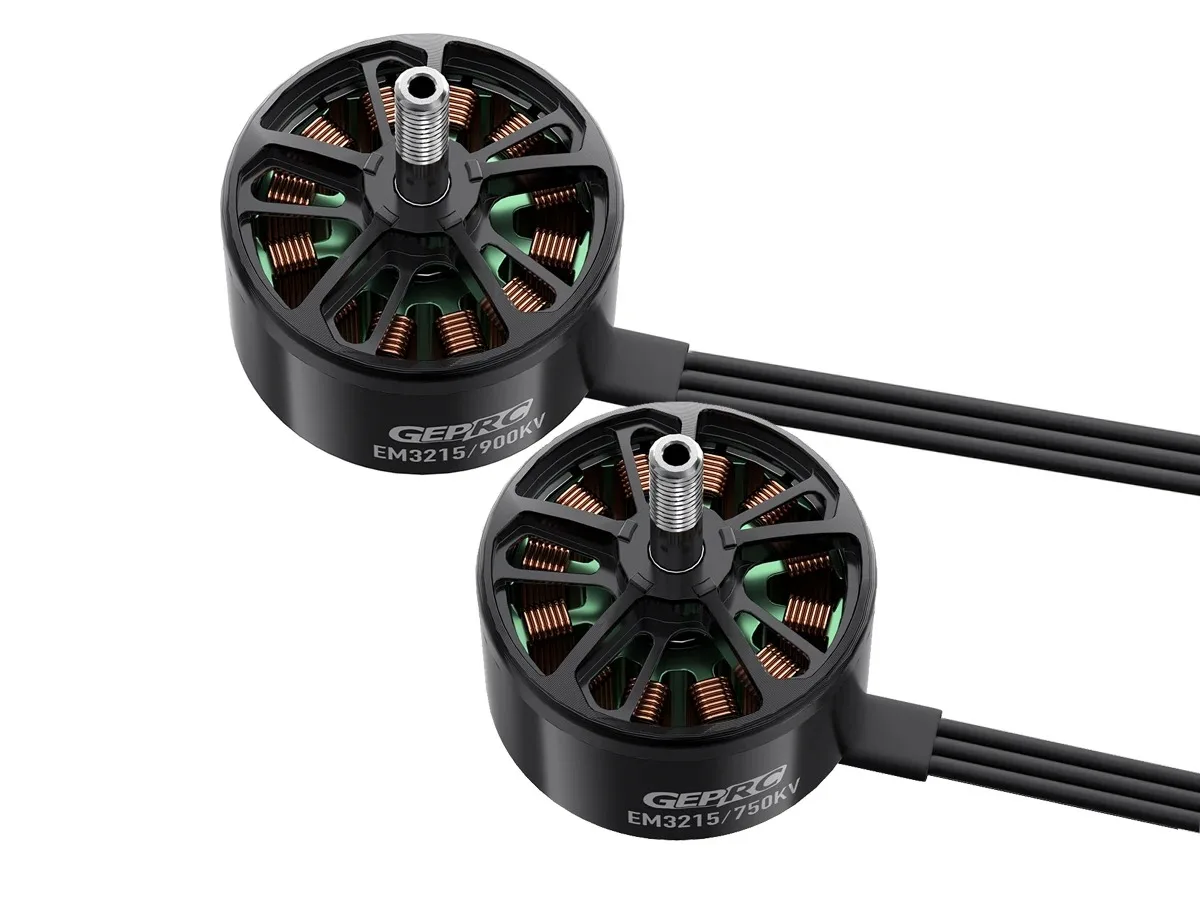

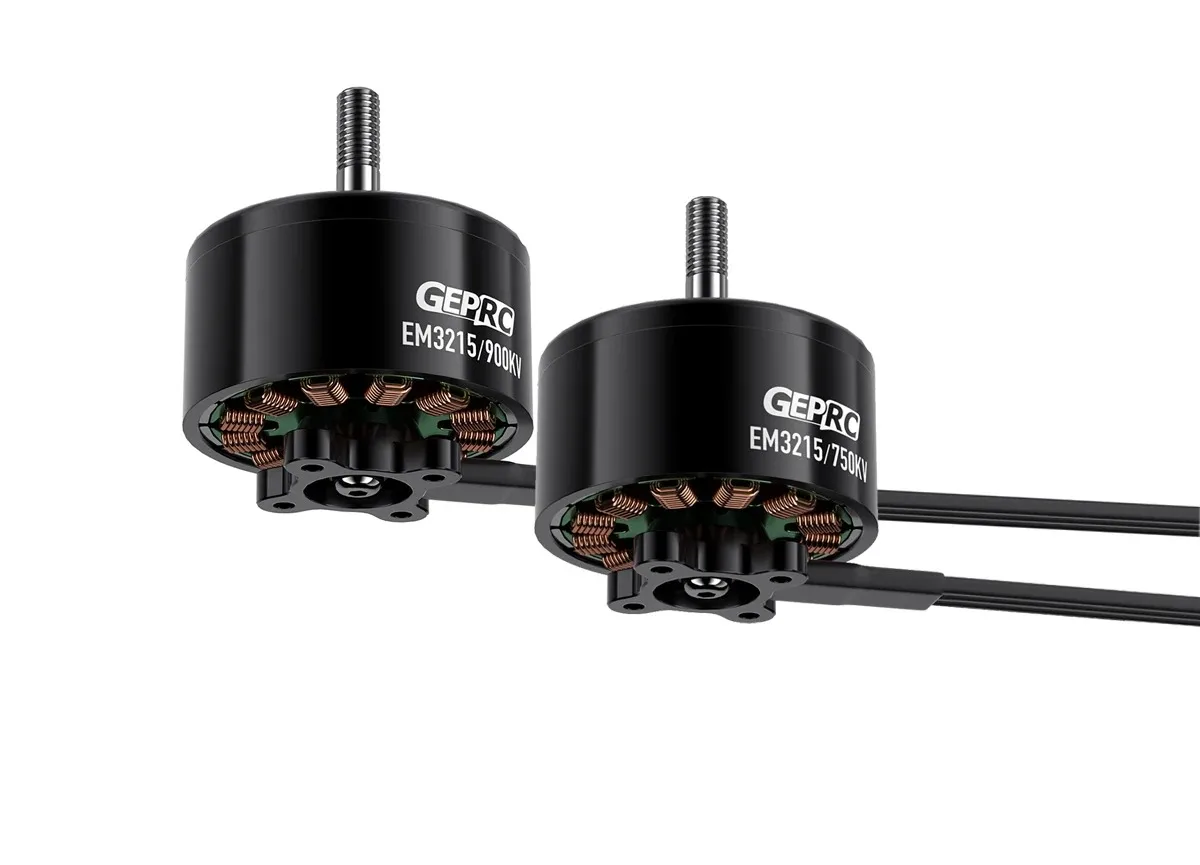

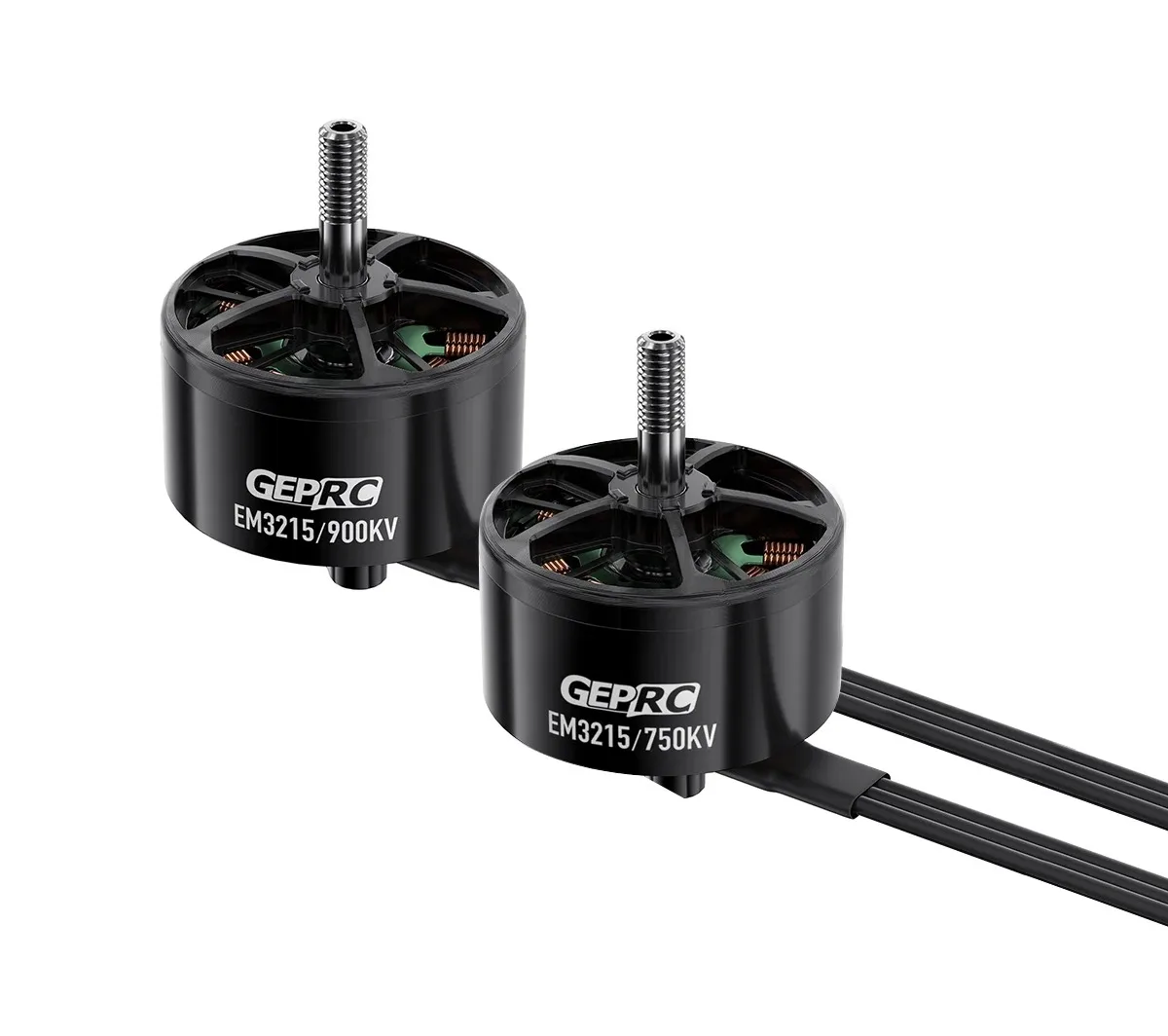

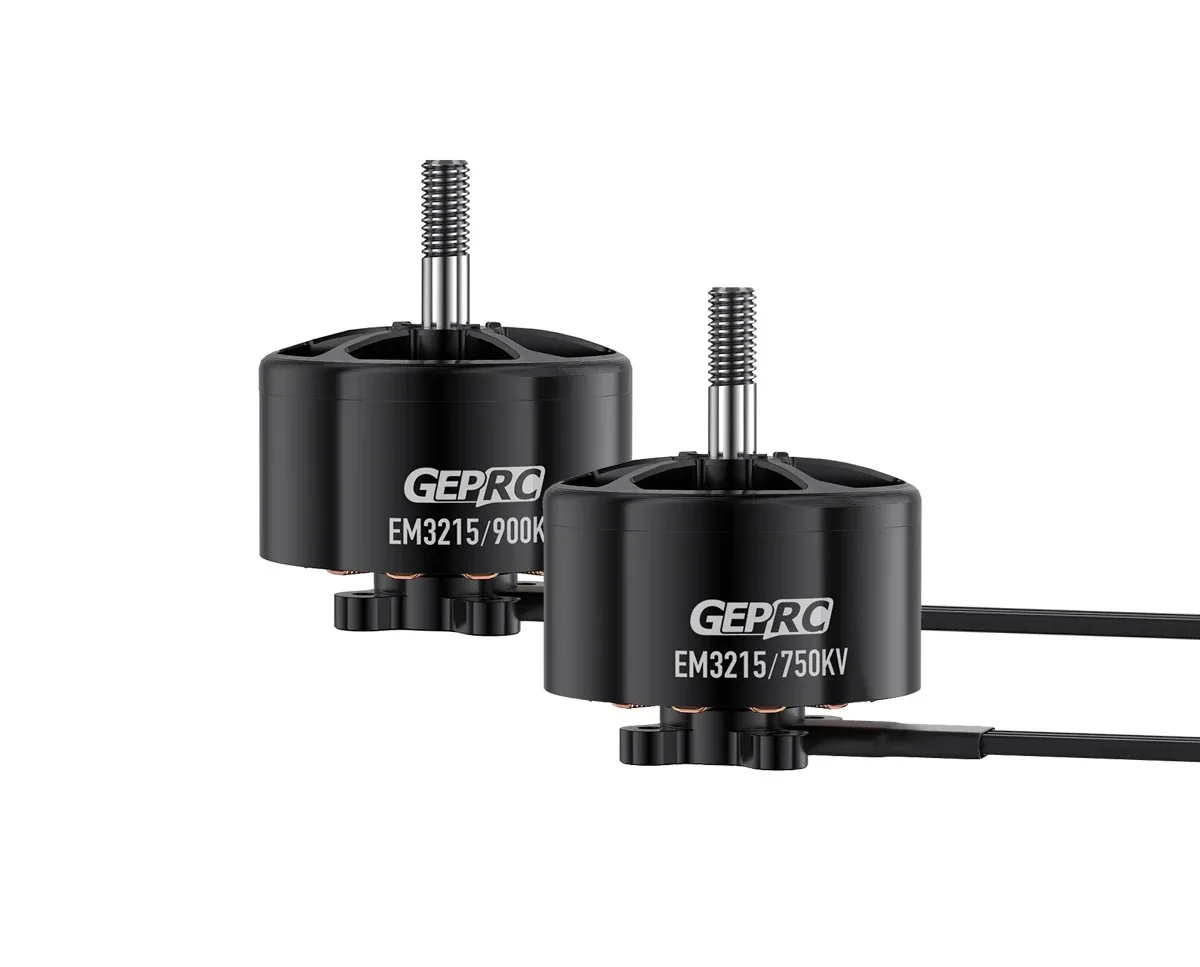

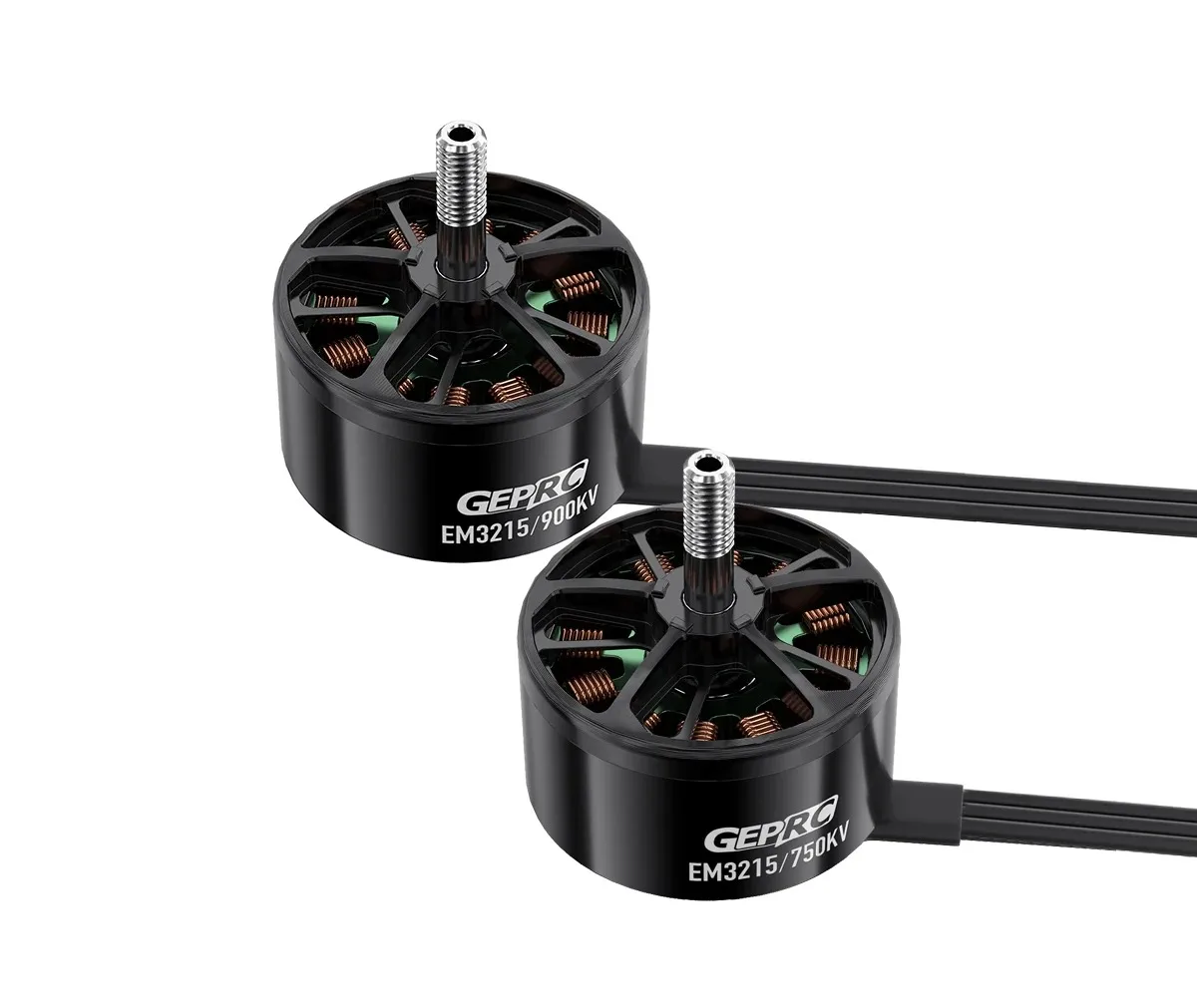

Item: EM3215 900KV Motor

• Model: EM3215 900KV Motor

• KV：900KV

• Max Watt: 1780W

• Peak Current: 75A

• Interphase Resistance: 33mΩ

• Propeller: 9-10inch Propeller

• Magnet: N52H

• Bearing Type: NMB

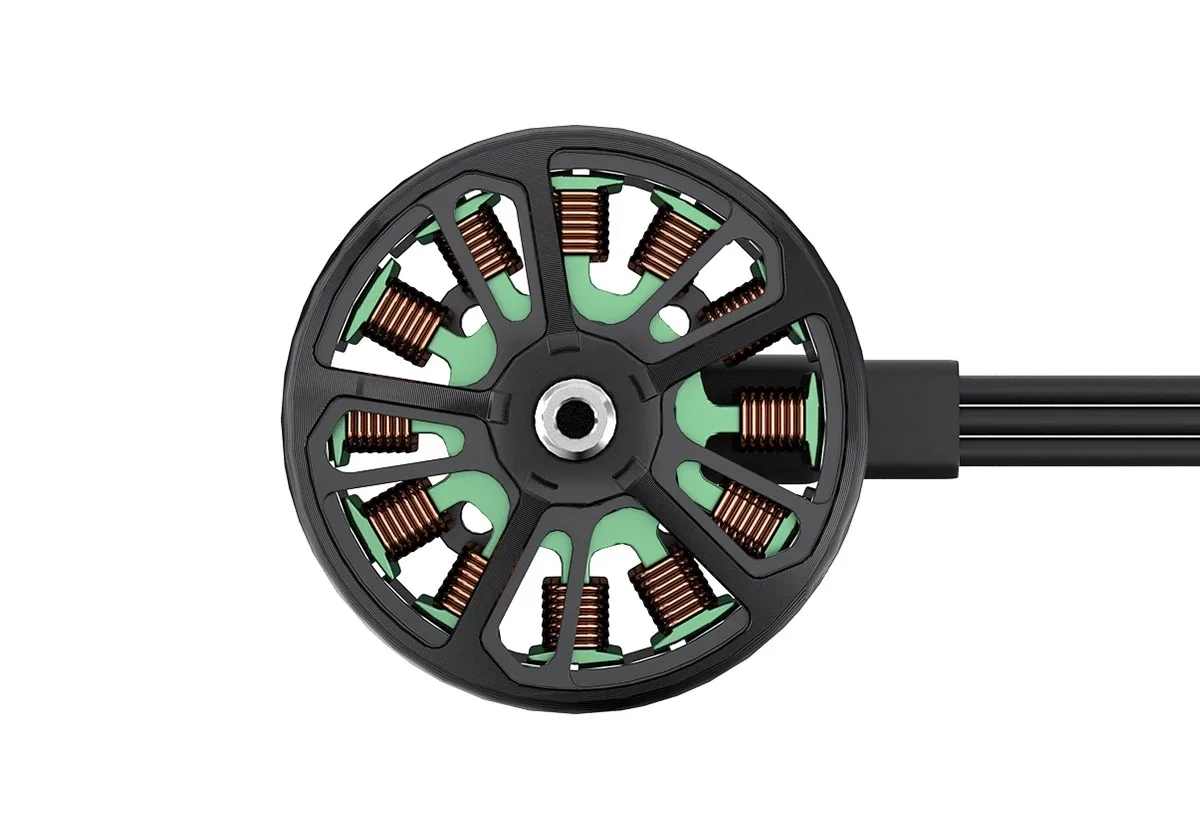

• Configuration: 12N14P

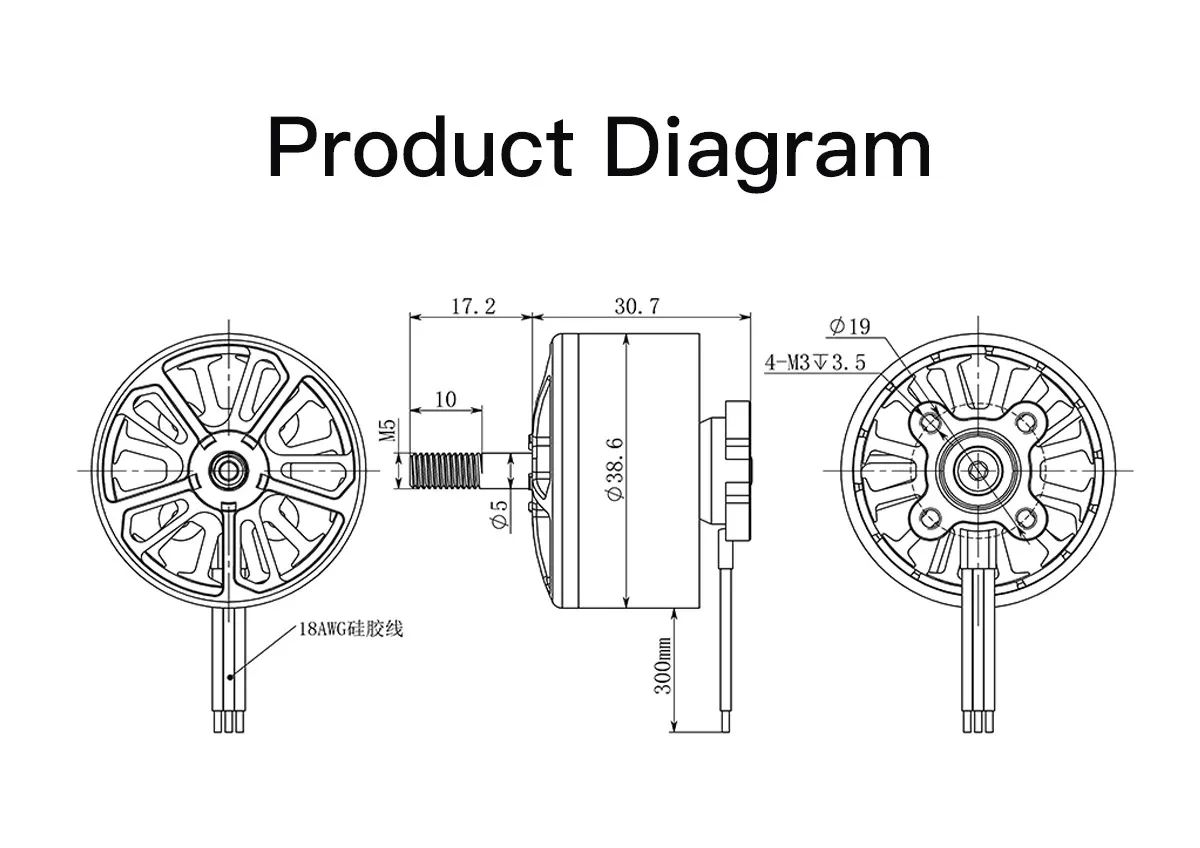

• Dimension: φ38.6mmx30.7mm

• Shaft Diameter: φ5mm

• Shaft Protruding Length: 17.2mm

• Mounting Hole Size: 19mmx19mm

• Lead: 300mm/18AWG

• ESC: 60A-80A

• Input Volts: 25.2V（6S LiPo)

• Winding: Single-strand copper winding

• Screws Included: Round head M3*8 (4PCS) / M5 flange nut (1PCS)

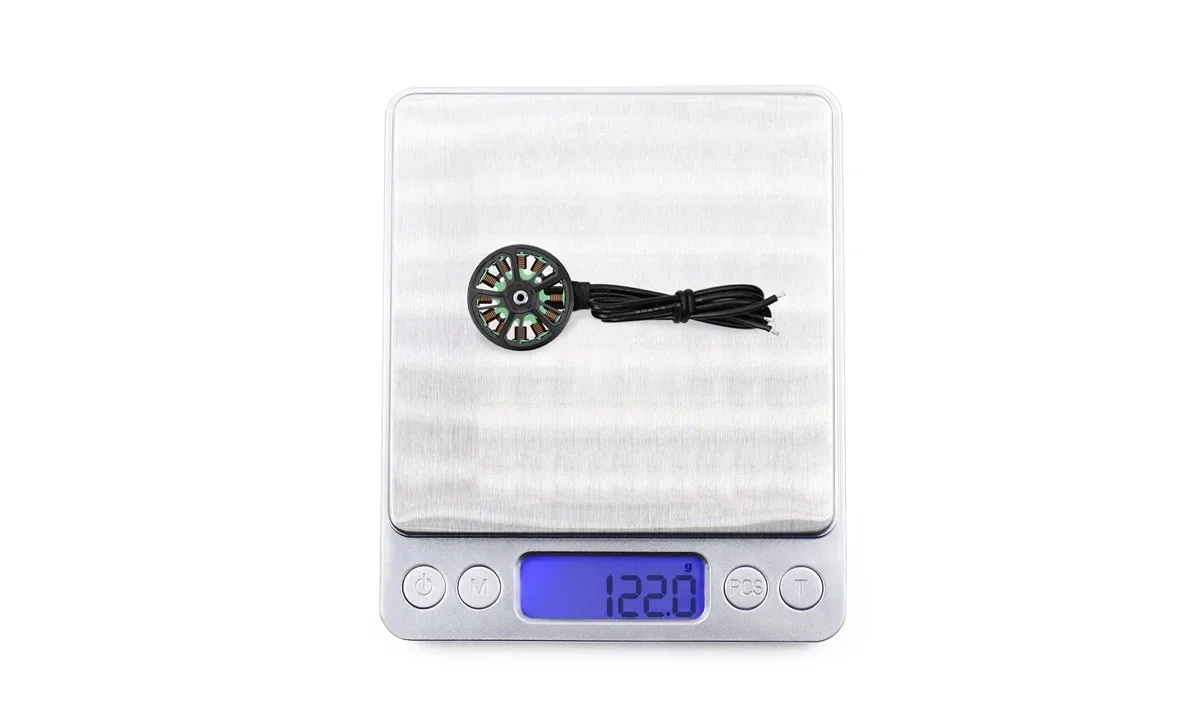

• Weight: 122g(included wire)

• Compatible Models: 9-10 inch  long range FPV

Item: EM3215 750KV Motor

• KV: 750KV

• Max Watt: 1450W

• Peak current: 61A

• Interphase Resistance: 43mΩ

• Propeller: 10-inch Propeller

• Magnet: N52H

• Bearing Type: NMB

• Configuration: 12N14P

• Dimension: φ38.6mmx30.7mm

• Shaft Diameter：φ5mm

• Shaft Protruding Length: 17.2mm

• Mounting Hole Size: 19mmx19mm

• Lead: 300mm/18AWG

• ESC: 60A-80A

• Input Volts: 25.2V（6S LiPo)

• Winding: Multiple-strand copper winding

• Screws Included：Round head M3*8 (4PCS) / M5 flange nut (1PCS)

• Weight (with wire)：122g

• Compatible models: 10-inch long-range FPV

Include:

1 x EM3215 motor
4 x M3*8 round head screws
1 x M5 anti-slip nut
