Overview

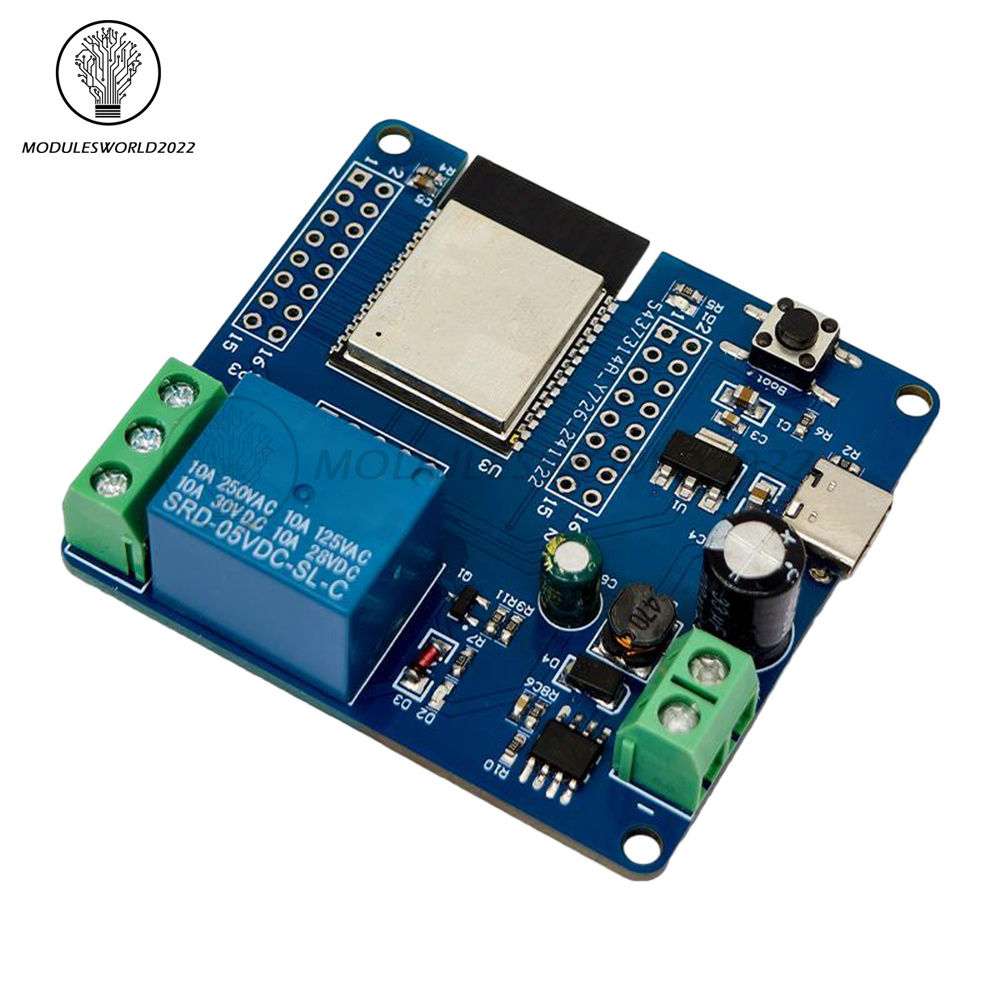

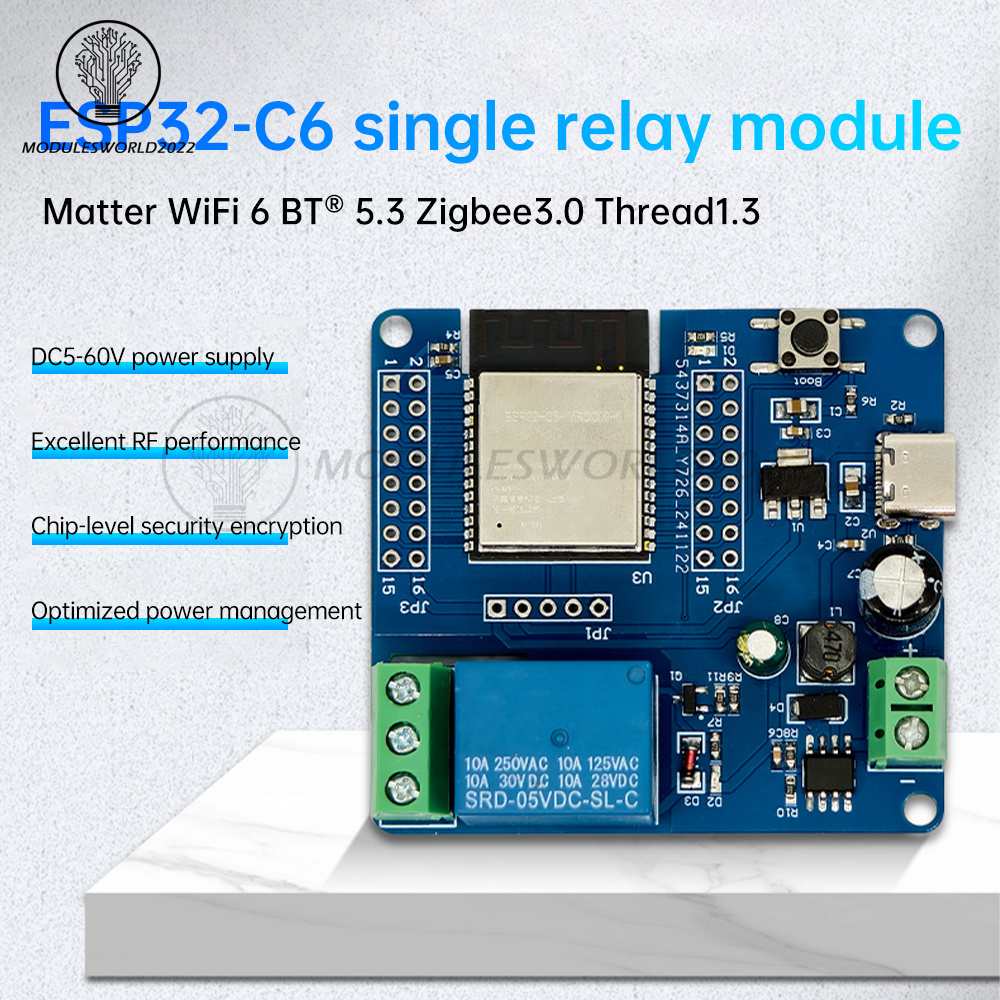

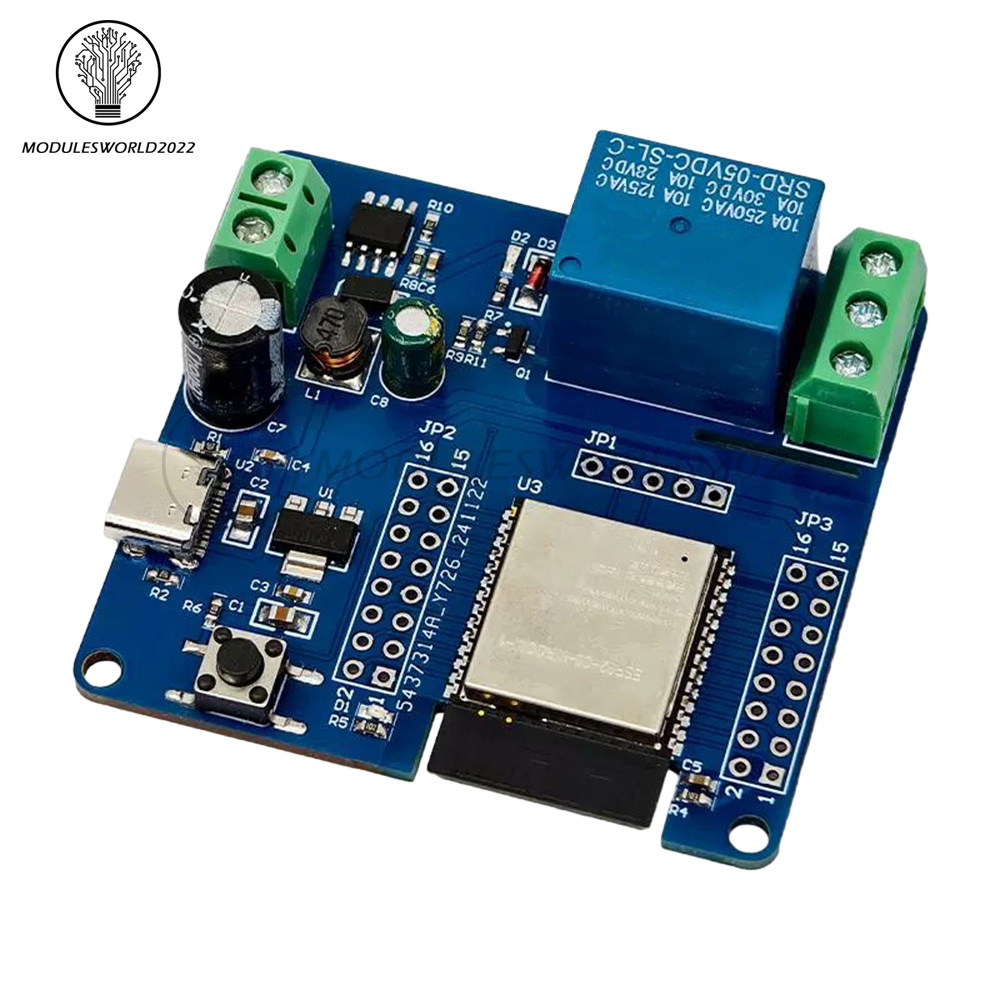

The ESP32-C6Relay_X1 single relay development board is based on the ESP32-C6 module. the V/0 port is fully pinned out, supporting DC5-60V power supply. It has on-board programmable buttons, LEDs and relays to facilitate developers' rapid prototyping and development, and bring more possibilities for loT control scenarios.
The ESP32-C6 is the first SoC to support Wi-Fi6, integrating 2.4GHz Wi-Fi6, Bluetooth5 (LE) and 802.15.4 protocols, which can provide industry-leading RF performance, comprehensive security mechanisms and rich memory resources for IoT products. Built-in two 32-bit RISC-V processors, one of which is a high-performance (HP) processor with a main frequency of up to 160MHz, and the other is a low-power (LP) 32-bit RISC-V processor with a main frequency of up to 20MHz. The chip is also equipped with a 512KB SRAM, a 320KB ROM, and a 4MB Flash, which provide more space for programming, bringing more more possibilities for IoT control scenarios.
The ESP32-C6 has 30 (QFN40) programmable GPIO pins supporting SPI, UART, I2C, I2S, RMT, TWAI, PWM, motor control PWM and SDIO, and it also integrates a 12-bit ADC and a temperature sensor.
The ESP32-C6 natively supports Matter due to its enhanced wireless connectivity. Its wireless stack supports 2.4GHz WiFi 6,Bluetooth@5.3, Zigbee, and Thread (802.15.4). As the first Thread-compatible device, it is ideally suited for building Matter-compliant projects that enable interoperability between smart home devices.
The ESP32-C6Relay_X1 single relay development board is based on the ESP32-C6 module. the V/0 port is fully pinned out, supporting DC5-60V power supply. It has on-board programmable buttons, LEDs and relays to facilitate developers' rapid prototyping and development, and bring more possibilities for loT control scenarios.
The ESP32-C6 is the first SoC to support Wi-Fi6, integrating 2.4GHz Wi-Fi6, Bluetooth5 (LE) and 802.15.4 protocols, which can provide industry-leading RF performance, comprehensive security mechanisms and rich memory resources for IoT products. Built-in two 32-bit RISC-V processors, one of which is a high-performance (HP) processor with a main frequency of up to 160MHz, and the other is a low-power (LP) 32-bit RISC-V processor with a main frequency of up to 20MHz. The chip is also equipped with a 512KB SRAM, a 320KB ROM, and a 4MB Flash, which provide more space for programming, bringing more more possibilities for IoT control scenarios.
The ESP32-C6 has 30 (QFN40) programmable GPIO pins supporting SPI, UART, I2C, I2S, RMT, TWAI, PWM, motor control PWM and SDIO, and it also integrates a 12-bit ADC and a temperature sensor.
The ESP32-C6 natively supports Matter due to its enhanced wireless connectivity. Its wireless stack supports 2.4GHz WiFi 6,Bluetooth@5.3, Zigbee, and Thread (802.15.4). As the first Thread-compatible device, it is ideally suited for building Matter-compliant projects that enable interoperability between smart home devices.

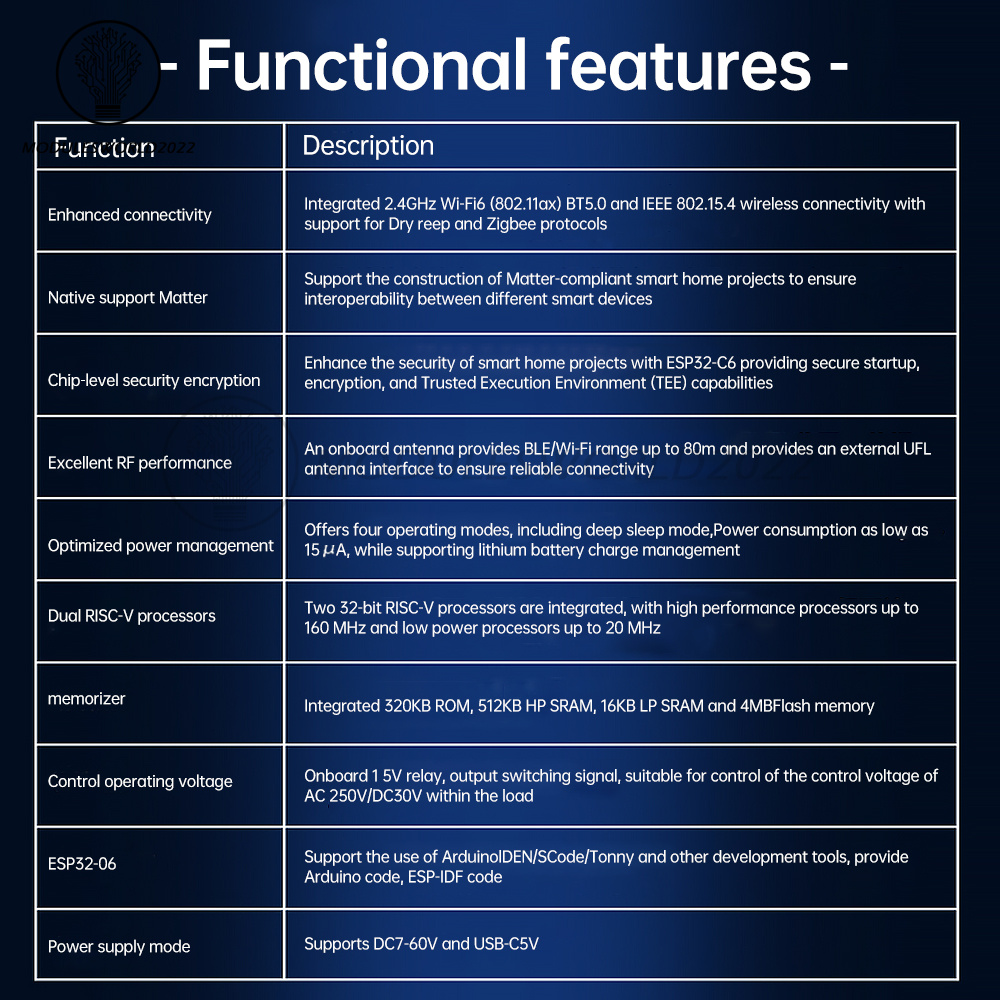

Features
1. Powerful wireless connection: supports Wi-Fi 6 and Bluetooth 5.3, realizing efficient IoT communication.
2. Wide voltage power supply: support DC 7-60V or TYPE-C 5V power supply, adapt to a variety of application scenarios, more flexible use.
3. High-performance processor: Dual-core 32-bit RISC-V architecture, main frequency up to 160MHz, providing excellent computing performance.
4. Rich peripheral interfaces: 30 programmable GPIOs, support SPI, UART, I2C and other protocols, strong scalability.
5. Built-in sensors: integrated 12-bit ADC and temperature sensor, convenient for environmental monitoring and control, simplify the development process.
1. Powerful wireless connection: supports Wi-Fi 6 and Bluetooth 5.3, realizing efficient IoT communication.
2. Wide voltage power supply: support DC 7-60V or TYPE-C 5V power supply, adapt to a variety of application scenarios, more flexible use.
3. High-performance processor: Dual-core 32-bit RISC-V architecture, main frequency up to 160MHz, providing excellent computing performance.
4. Rich peripheral interfaces: 30 programmable GPIOs, support SPI, UART, I2C and other protocols, strong scalability.
5. Built-in sensors: integrated 12-bit ADC and temperature sensor, convenient for environmental monitoring and control, simplify the development process.
Specification
Power supply: supports DC7-60V or TYPE-C 5V (either one)
Module Model: ESP32-C6
Control voltage: onboard 1 channel 5V relay, output switch signal, suitable for controlling loads within the control voltage of AC250V/DC30V.
Processor: Integration of two 32-bit RISC-V processors, high-performance processor frequency up to 160MHz, low-power processor frequency up to 20MHz
Size: 57.5mm*53.7mm
Positioning hole diameter: 3MM
Power supply: supports DC7-60V or TYPE-C 5V (either one)
Module Model: ESP32-C6
Control voltage: onboard 1 channel 5V relay, output switch signal, suitable for controlling loads within the control voltage of AC250V/DC30V.
Processor: Integration of two 32-bit RISC-V processors, high-performance processor frequency up to 160MHz, low-power processor frequency up to 20MHz
Size: 57.5mm*53.7mm
Positioning hole diameter: 3MM

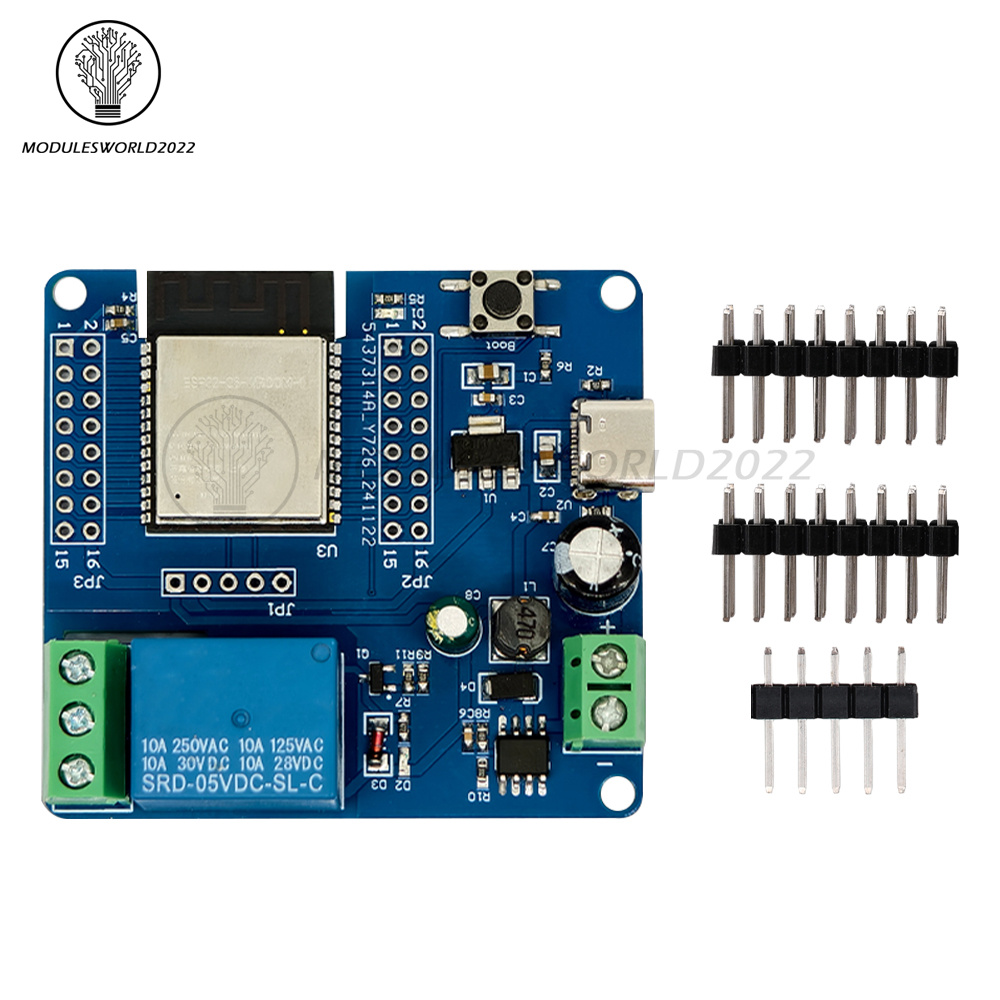

Package includes
1 x ESP32-C6 single relay module
2 x 8P double row pin
1 x 5P single row pin
1 x ESP32-C6 single relay module
2 x 8P double row pin
1 x 5P single row pin
Copyright©2018 datacaciques
Store Categories
Product View
Details
Overview
The ESP32-C6Relay_X1 single relay development board is based on the ESP32-C6 module. the V/0 port is fully pinned out, supporting DC5-60V power supply. It has on-board programmable buttons, LEDs and relays to facilitate developers' rapid prototyping and development, and bring more possibilities for loT control scenarios.
The ESP32-C6 is the first SoC to support Wi-Fi6, integrating 2.4GHz Wi-Fi6, Bluetooth5 (LE) and 802.15.4 protocols, which can provide industry-leading RF performance, comprehensive security mechanisms and rich memory resources for IoT products. Built-in two 32-bit RISC-V processors, one of which is a high-performance (HP) processor with a main frequency of up to 160MHz, and the other is a low-power (LP) 32-bit RISC-V processor with a main frequency of up to 20MHz. The chip is also equipped with a 512KB SRAM, a 320KB ROM, and a 4MB Flash, which provide more space for programming, bringing more more possibilities for IoT control scenarios.
The ESP32-C6 has 30 (QFN40) programmable GPIO pins supporting SPI, UART, I2C, I2S, RMT, TWAI, PWM, motor control PWM and SDIO, and it also integrates a 12-bit ADC and a temperature sensor.
The ESP32-C6 natively supports Matter due to its enhanced wireless connectivity. Its wireless stack supports 2.4GHz WiFi 6,Bluetooth@5.3, Zigbee, and Thread (802.15.4). As the first Thread-compatible device, it is ideally suited for building Matter-compliant projects that enable interoperability between smart home devices.
The ESP32-C6Relay_X1 single relay development board is based on the ESP32-C6 module. the V/0 port is fully pinned out, supporting DC5-60V power supply. It has on-board programmable buttons, LEDs and relays to facilitate developers' rapid prototyping and development, and bring more possibilities for loT control scenarios.
The ESP32-C6 is the first SoC to support Wi-Fi6, integrating 2.4GHz Wi-Fi6, Bluetooth5 (LE) and 802.15.4 protocols, which can provide industry-leading RF performance, comprehensive security mechanisms and rich memory resources for IoT products. Built-in two 32-bit RISC-V processors, one of which is a high-performance (HP) processor with a main frequency of up to 160MHz, and the other is a low-power (LP) 32-bit RISC-V processor with a main frequency of up to 20MHz. The chip is also equipped with a 512KB SRAM, a 320KB ROM, and a 4MB Flash, which provide more space for programming, bringing more more possibilities for IoT control scenarios.
The ESP32-C6 has 30 (QFN40) programmable GPIO pins supporting SPI, UART, I2C, I2S, RMT, TWAI, PWM, motor control PWM and SDIO, and it also integrates a 12-bit ADC and a temperature sensor.
The ESP32-C6 natively supports Matter due to its enhanced wireless connectivity. Its wireless stack supports 2.4GHz WiFi 6,Bluetooth@5.3, Zigbee, and Thread (802.15.4). As the first Thread-compatible device, it is ideally suited for building Matter-compliant projects that enable interoperability between smart home devices.
Features
1. Powerful wireless connection: supports Wi-Fi 6 and Bluetooth 5.3, realizing efficient IoT communication.
2. Wide voltage power supply: support DC 7-60V or TYPE-C 5V power supply, adapt to a variety of application scenarios, more flexible use.
3. High-performance processor: Dual-core 32-bit RISC-V architecture, main frequency up to 160MHz, providing excellent computing performance.
4. Rich peripheral interfaces: 30 programmable GPIOs, support SPI, UART, I2C and other protocols, strong scalability.
5. Built-in sensors: integrated 12-bit ADC and temperature sensor, convenient for environmental monitoring and control, simplify the development process.
1. Powerful wireless connection: supports Wi-Fi 6 and Bluetooth 5.3, realizing efficient IoT communication.
2. Wide voltage power supply: support DC 7-60V or TYPE-C 5V power supply, adapt to a variety of application scenarios, more flexible use.
3. High-performance processor: Dual-core 32-bit RISC-V architecture, main frequency up to 160MHz, providing excellent computing performance.
4. Rich peripheral interfaces: 30 programmable GPIOs, support SPI, UART, I2C and other protocols, strong scalability.
5. Built-in sensors: integrated 12-bit ADC and temperature sensor, convenient for environmental monitoring and control, simplify the development process.
Specification
Power supply: supports DC7-60V or TYPE-C 5V (either one)
Module Model: ESP32-C6
Control voltage: onboard 1 channel 5V relay, output switch signal, suitable for controlling loads within the control voltage of AC250V/DC30V.
Processor: Integration of two 32-bit RISC-V processors, high-performance processor frequency up to 160MHz, low-power processor frequency up to 20MHz
Size: 57.5mm*53.7mm
Positioning hole diameter: 3MM
Power supply: supports DC7-60V or TYPE-C 5V (either one)
Module Model: ESP32-C6
Control voltage: onboard 1 channel 5V relay, output switch signal, suitable for controlling loads within the control voltage of AC250V/DC30V.
Processor: Integration of two 32-bit RISC-V processors, high-performance processor frequency up to 160MHz, low-power processor frequency up to 20MHz
Size: 57.5mm*53.7mm
Positioning hole diameter: 3MM
Package includes
1 x ESP32-C6 single relay module
2 x 8P double row pin
1 x 5P single row pin
1 x ESP32-C6 single relay module
2 x 8P double row pin
1 x 5P single row pin
