Feature

1. New EM series motors,mainly design for large-size FPV

2. High-strength M5 steel shaft

3.  High torque magnetic circuit design

4. 19mmx19mm base

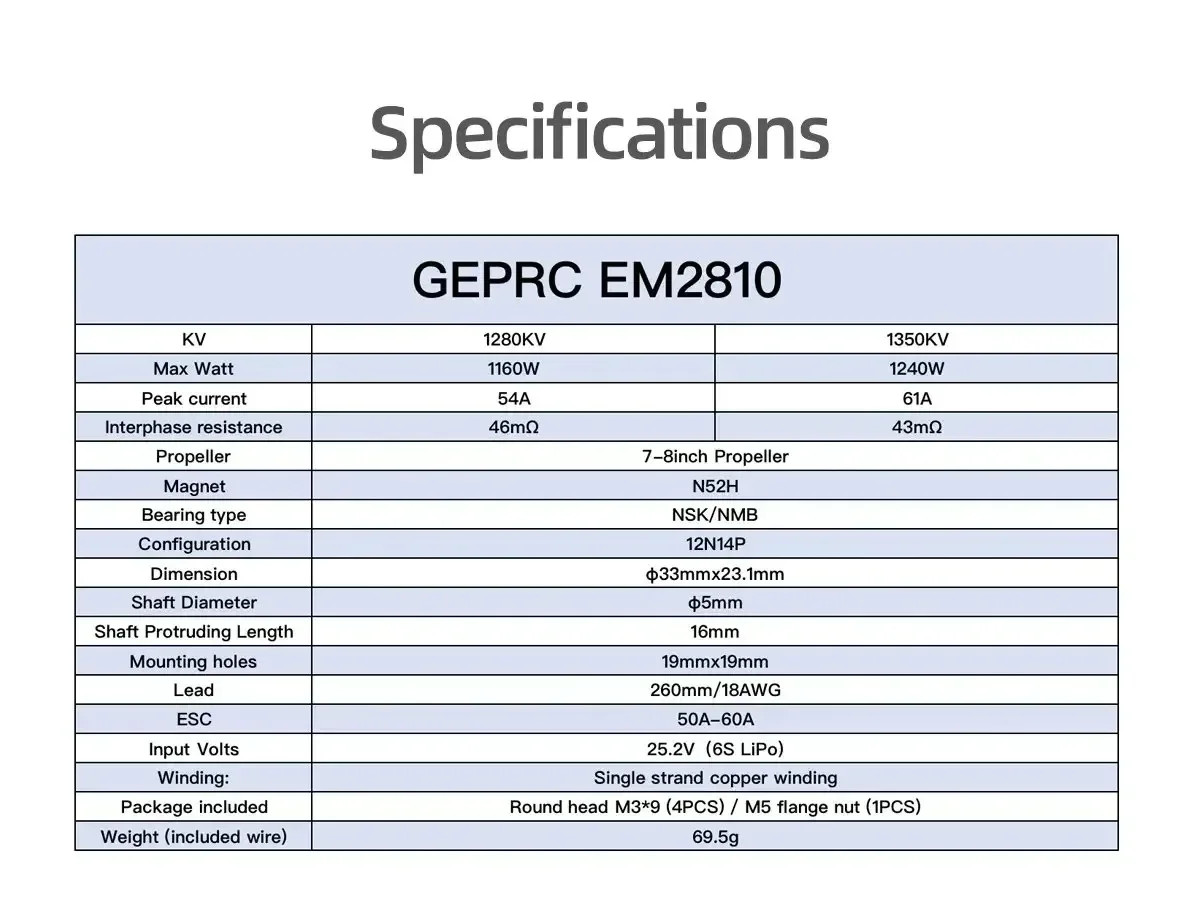

Specifications

• Model: EM2810 1280KV Motor

• Max Watt: 1160W

• Peak current: 54A

• Interphase resistance: 46mΩ

• Propeller: 7-8inch Propeller

• Magnet: N52H

• Bearing type: NSK/NMB

• Configuration: 12N14P

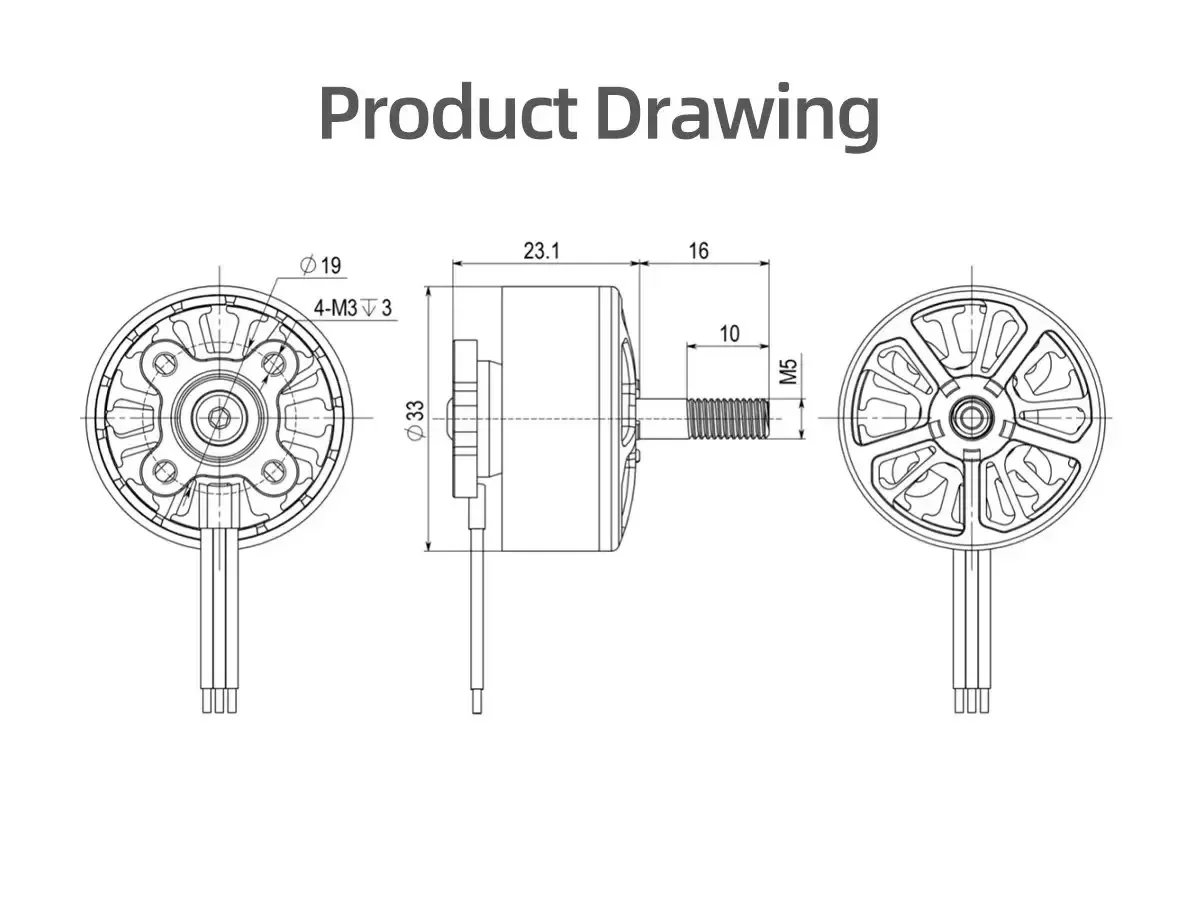

• Dimension: φ33mmx23.1mm

• Shaft Diameter: φ5mm

• Shaft Protruding Length: 16mm

• Mounting holes: 19mmx19mm

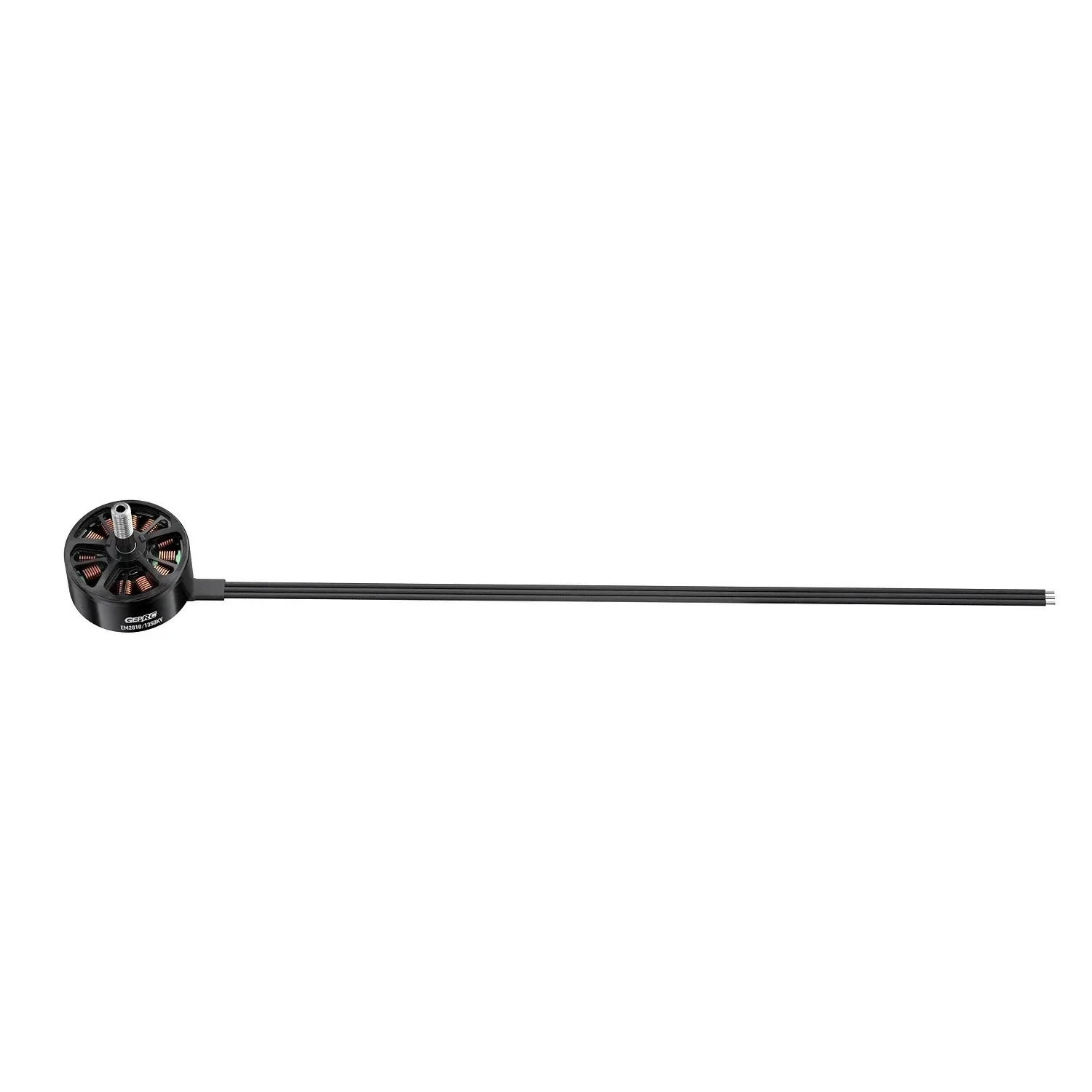

• Lead: 260mm/18AWG

• ESC: 50A-60A

• Input Volts: 25.2V(6S LiPo)

• Winding: Single strand copper winding

• Weight: 69.5g(included wire)

• Applicable models: suitable for 7-8 inch long-distance traversing aircraft / 7 inch X8 models

Specifications

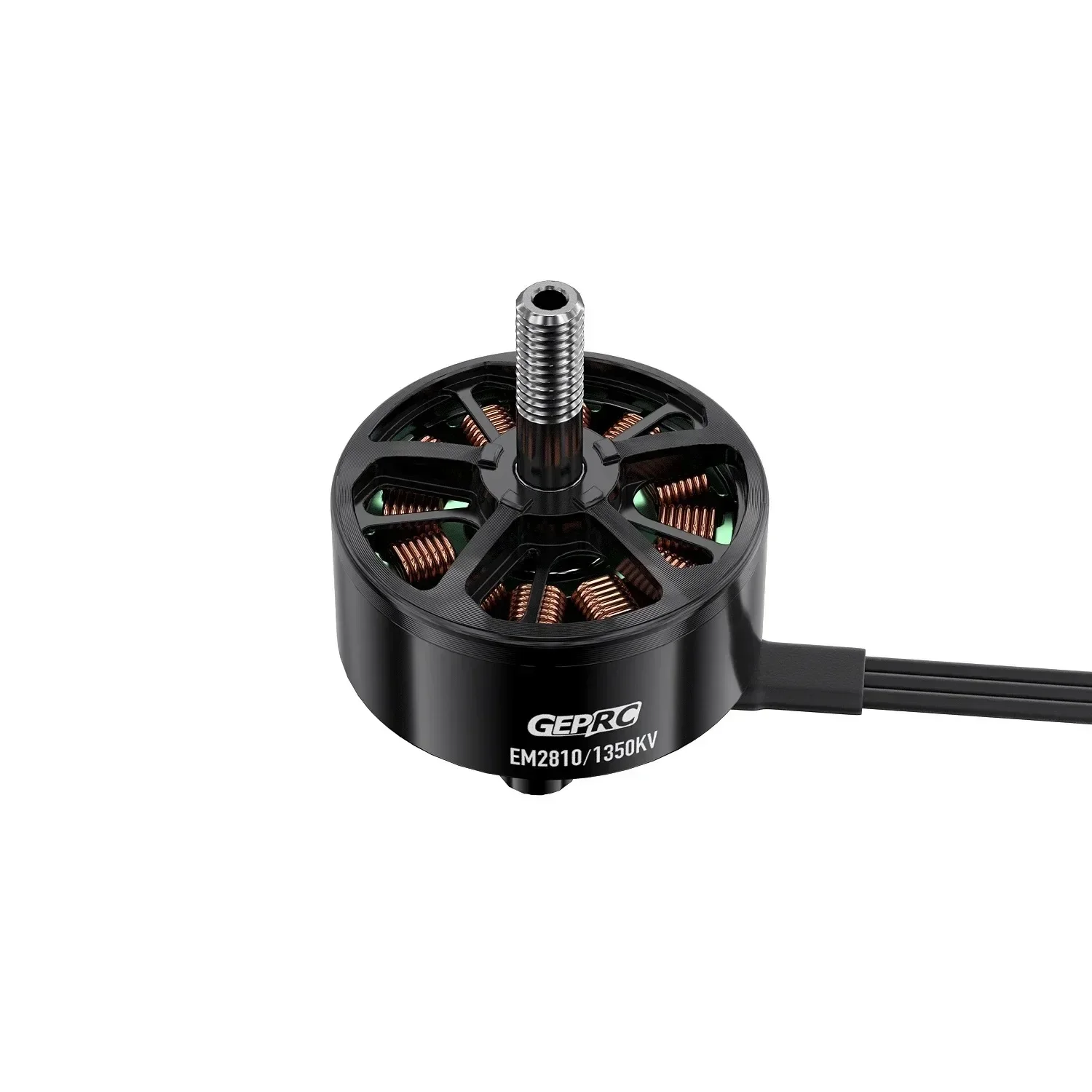

• Model: EM2810 1350KV Motor

• Max Watt: 1240W

• Peak current: 61A

• Interphase resistance: 43mΩ

• Propeller: 7-8inch Propeller

• Magnet: N52H

• Bearing type: NSK/NMB

• Configuration: 12N14P

• Dimension: φ33mmx20.1mm

• Shaft Diameter: φ5mm

• Shaft Protruding Length: 16mm

• Mounting holes: 19mmx19mm

• Lead: 260mm/18AWG

• ESC: 50A-60A

• Input Volts: 25.2V(6S LiPo)

• Winding: Single strand copper winding

• Weight: 69.5g(included wire)

• Applicable models: suitable for 7-8 inch long-distance traversing aircraft
