Features:

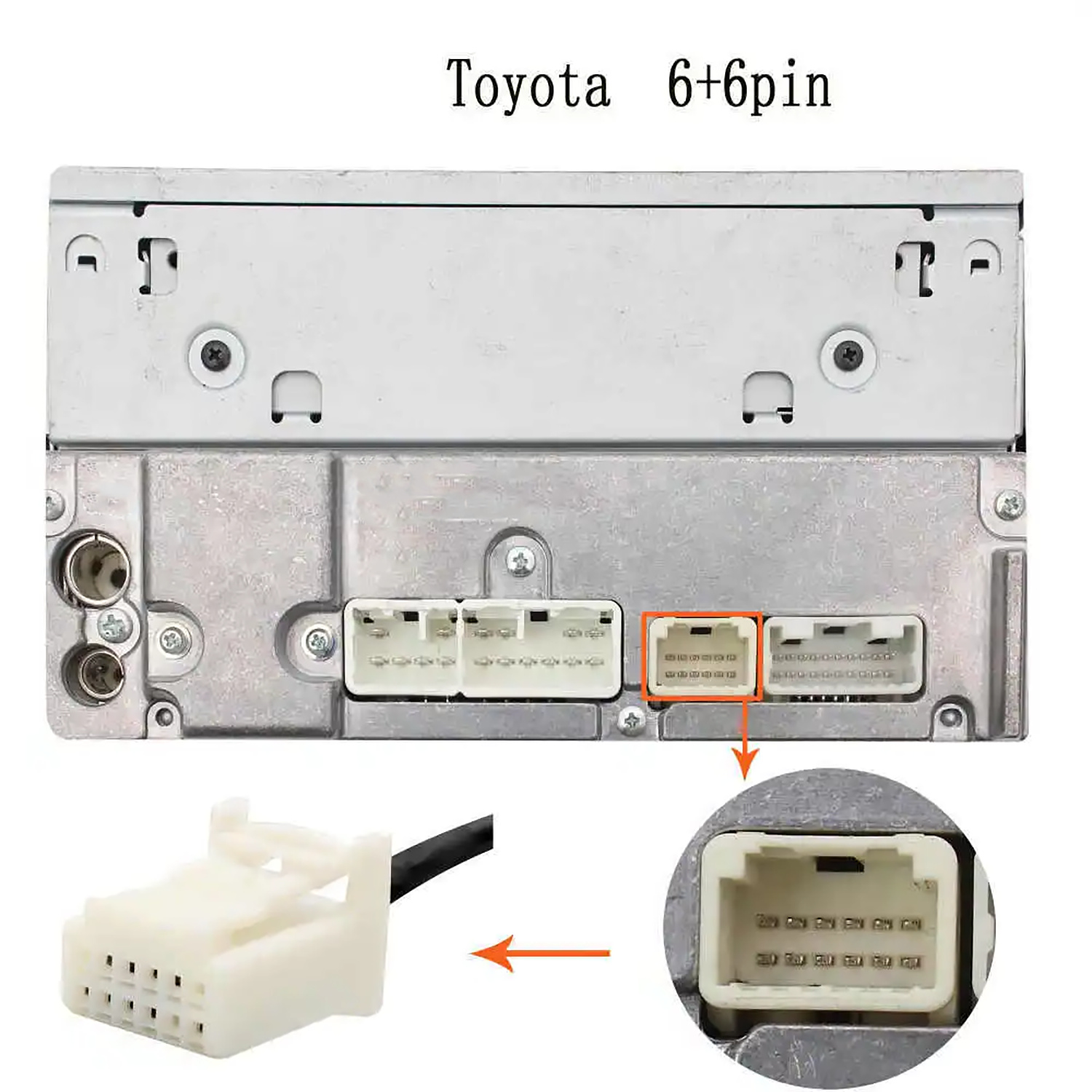

Plug and play: use the original car audio host disk box interface original position installation, simple and fast, and the original car perfectly integrated.

Support HFP Bluetooth hands-free call: can be controlled by the original car audio host and steering wheel buttons to answer/hang up the phone and other operations.

Support A2DP Bluetooth music playback: you can easily play Bluetooth device audio through the original car stereo.

Bluetooth AVRCP control technology: you can use the car audio host (or steering wheel) to control the song selection/fast forward/fast rewind/pause, convenient and safe control.

High fidelity sound quality: Bluetooth host output to the car stereo through a wired connection, eliminating any interference and sound quality loss, sound quality comparable to CD.

Adopt bluetooth 5.0 protocol, compatible with 2.0 3.0 4.0 other versions of bluetooth protocol

Support common MP3 format audio, and also support WMA, WAV, FLAC, and other high-quality audio format decoding, non-general ordinary bluetooth function

USB Function: Supports USB flash drives and flash cards (USB support up to 8GB), support radio panel control.

Support 3.5 mm AUX Input: Standard 3.5 mm AUX input, you can enjoy music from all AUX possible device, like MP3 player, Mobile Phone, PSP, MP4, etc. Please note 3.5mm AUX NOT support Radio Panel Control.

This item Work with iPod/iPad/iPhone,Samsung,HTC,Sony,Nokia and any other phones or pads (Please make sure there is bluetooth function in your phone or pad)

Cable length: approx 20cm

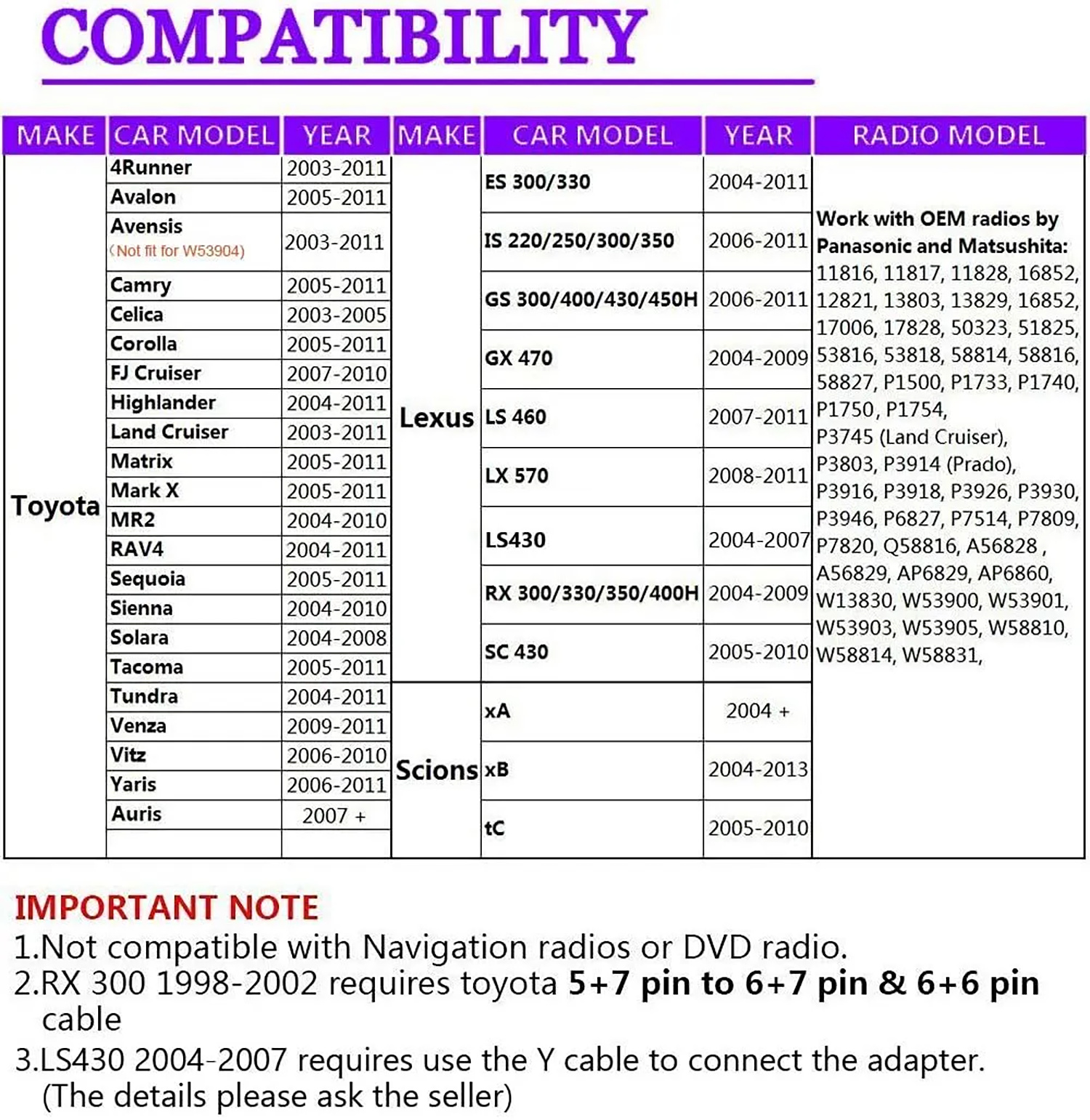

Compatibility:

For Toyota

For 4runner  2003-2011

For Avalon  2005-2011

For Avensis  2003-2011

For Auris  2007-2011

For Camry  2005-2011

For Celica  2003-2005

For Corolla  2005-2011

For FJ cruiser  2007-201

For Highlander  2004-2011

For Land cruiser  2003-2011

For MarkX  2005-2011

For MR2  2004-2010

For Matrix  2005-2011

For RAV4  2003-2011

For Sequoia  2005-2011

For Sienna  2004-2010

For Solara  2004-2008

For Tacoma  2005-2011

For Trundra  2004-2011

For Venza  2009-2011

For Vitz  2006-2010

For Yaris  2006-2011

For Lexus

For ES 300/330  2004-2011

For IS 220/250/300/350  2006-2011

For GS 300/400/430/450H  2006-2011

For GX 470  2004-2009

For LS 460  2007-2011

For LX570  2008-2011

For RX300(requires YT-SBY cable)  1998-2002

For RX300/330/350/400H  2004-2009

For SC430  2005-2010

For Scion

For xA  2004+

For xB  2004-2013

For tC  2005-2010

Please note:

Not compatible with Navigation, DVD and Touch Screen radios.

The Splitter/Y cable is needed if the CD changer port is occupied by others (except for being occupied by CD Changer).

Not work with following radio model

52867(Vios), Aygo, 58805(2003 RAV4 ), 56018, 58813, T18303, B9010, B9004(2007 RAV4), RAV4 with a factory navigation, TNS Travel 700, P1718, P3905, P6813, P6832, WH8403, W58816, T18303, W13807/W13081/W13086 (Auris), W53904(Panasonic, Avensis 2007), W58824, W58832,36458, AD1812(Delphi on 2010-2011 Tundra/ Sequoia),AD6900(Delphi on 2000-2004 Avalon), other AD-xxx radios

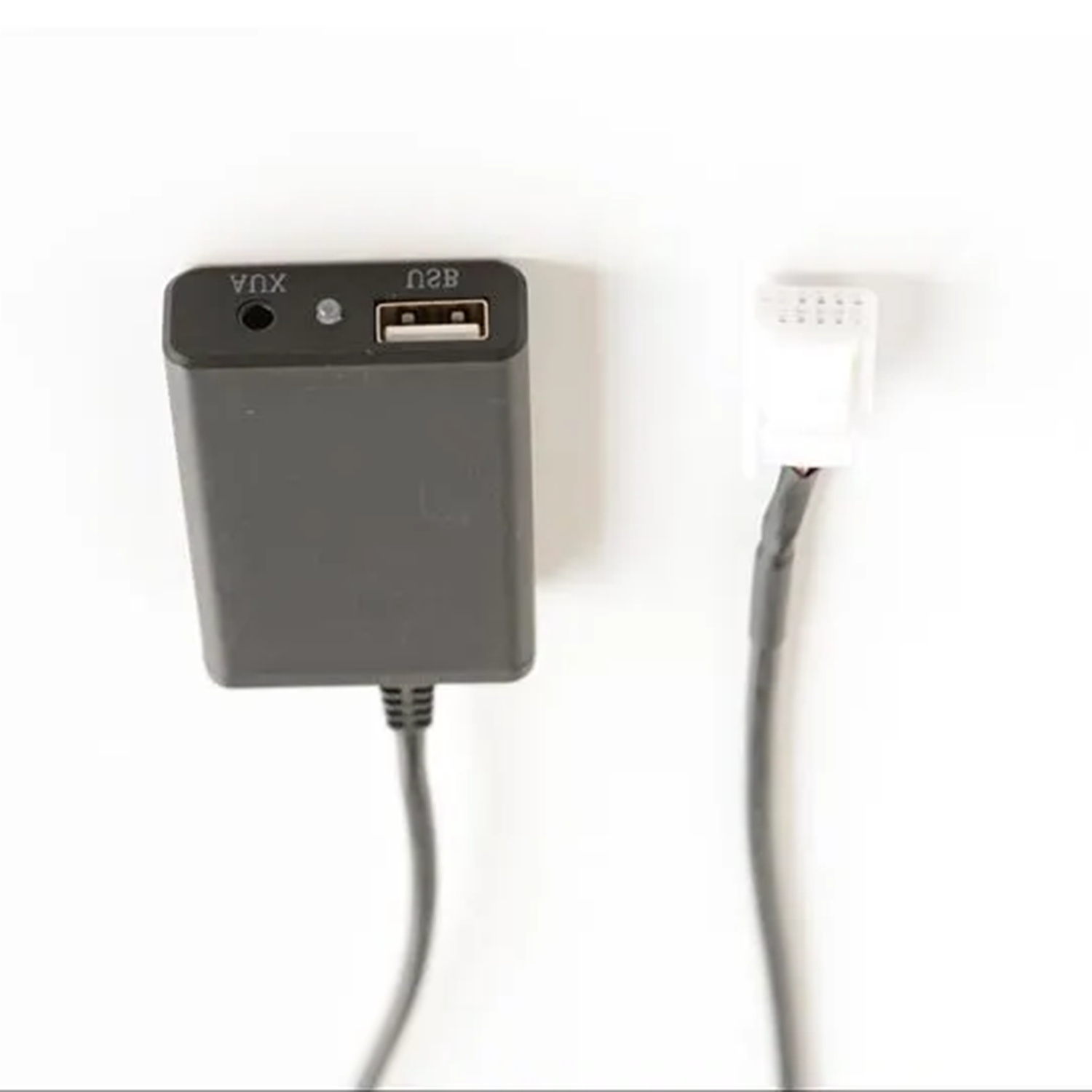

Product parameters:

Specification size: 70*45*15 (mm)

Support decoding format: WAV /MP3/APE/WAVE/FLAC(lossless format)

Support external: USB2.0 /AUX

Frequency response: 20-20K Hz

Bluetooth version: 5.0BR/EDR (including compatible with versions below 5.0)

Distortion: < 0.05%

Signal to Noise Ratio: > 90dB

Standby power consumption: > 0.1W

Operating temperature: -20 - +70°C

Operating power: DC11-15V (generally taken from the host, no external power supply)

USB output: DC 5V/300mA

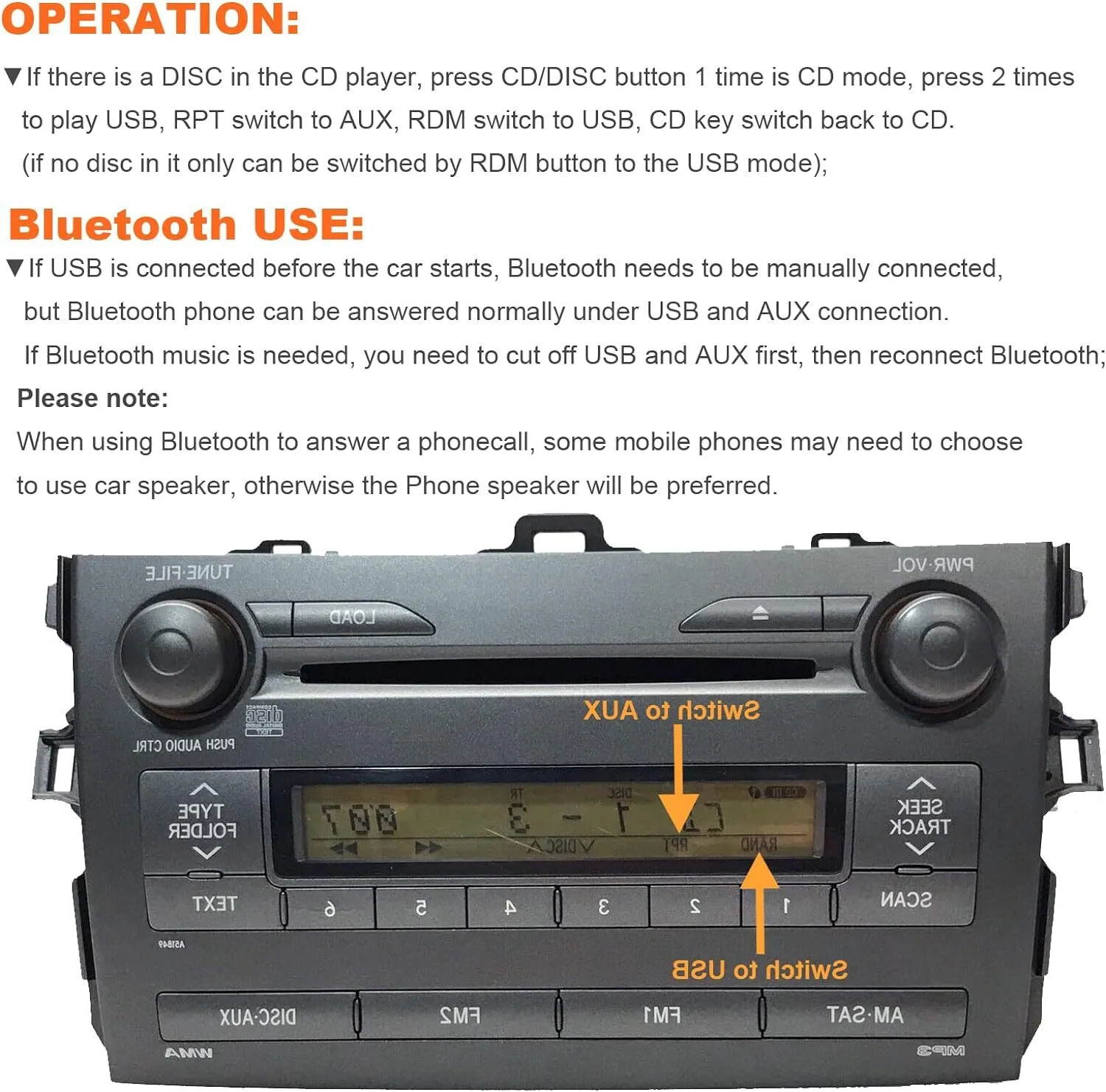

Original car button function (or refer to the car manual)

1, CD-C, CD, DISC, SRC, CD/AUX, etc. for the disc box switching keys

2, DISC+/DISC- etc. for up and down discs (1-6)

3, short press Track +Seek / Track- Seek, etc. for up and down songs (1-99)

4, long press Track +Seek / for single song repeat / sequence play switch

5, long press Track -Seek / Random Play

6, volume, pause, mute and host operation the same

7, Bluetooth priority, disconnect Bluetooth after playing U disk, no U disk switch to AUX.

8. Bluetooth phone MIC default is running in the background, regardless of which option can be used, press a song to connect the phone, press a song to hang up the phone.

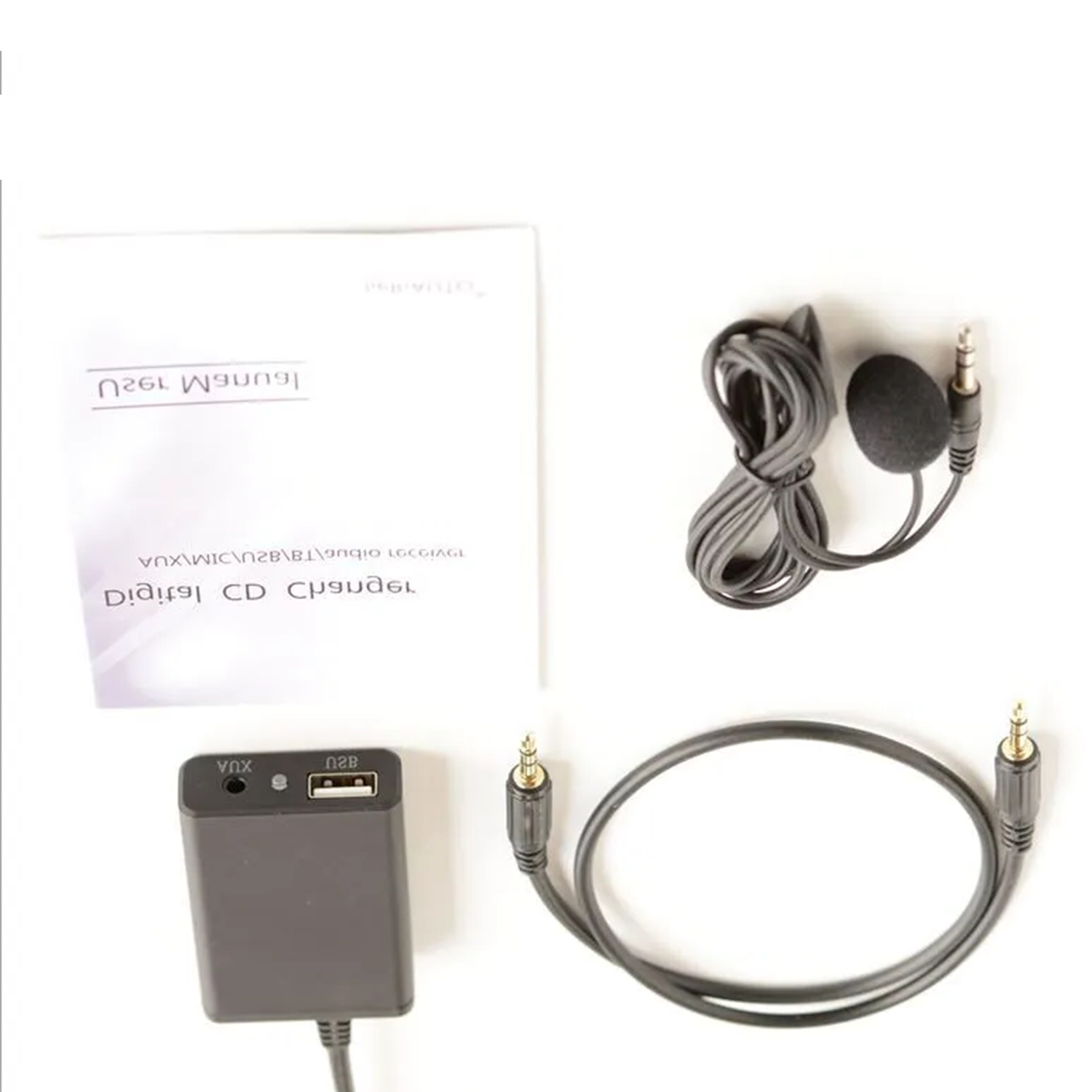

Package included:

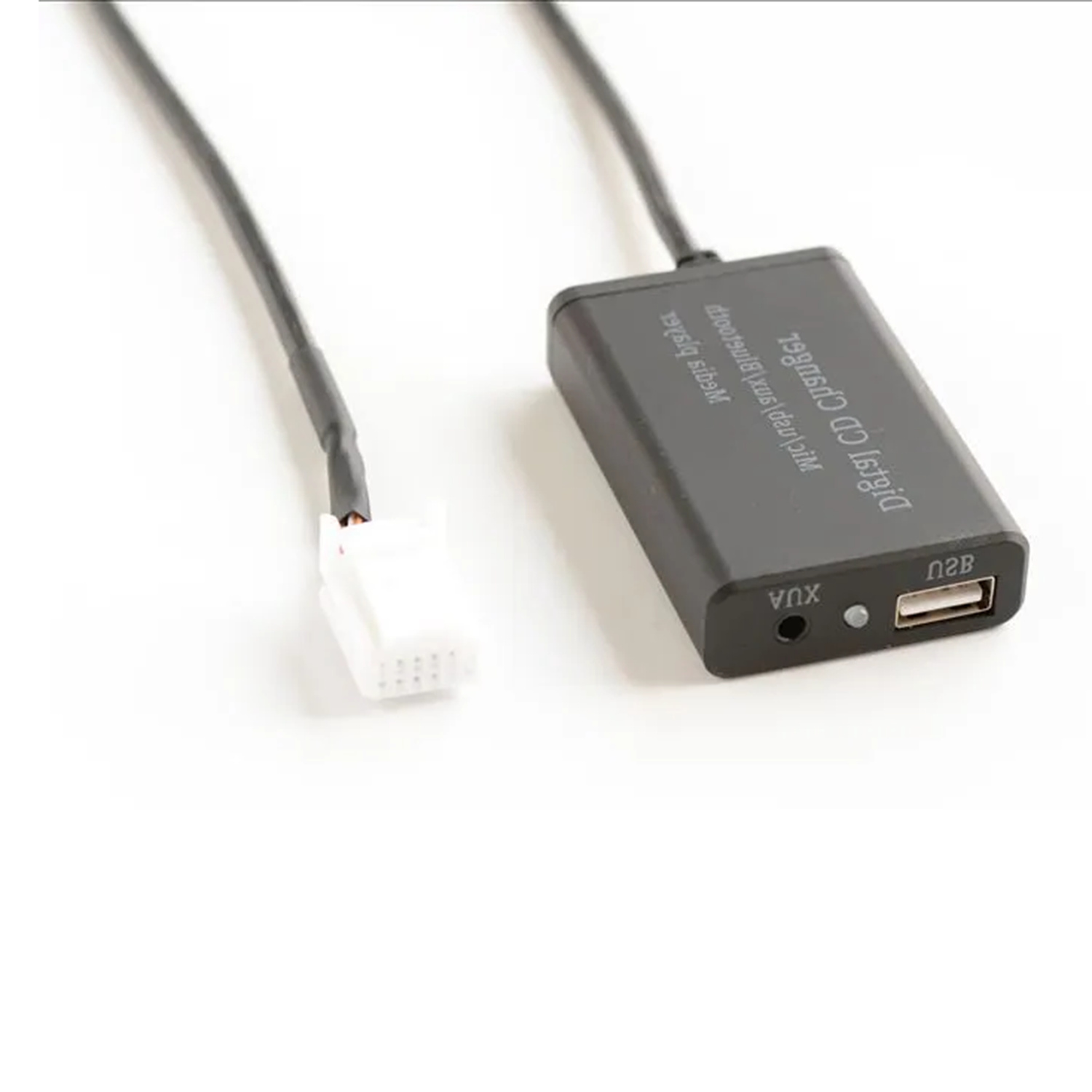

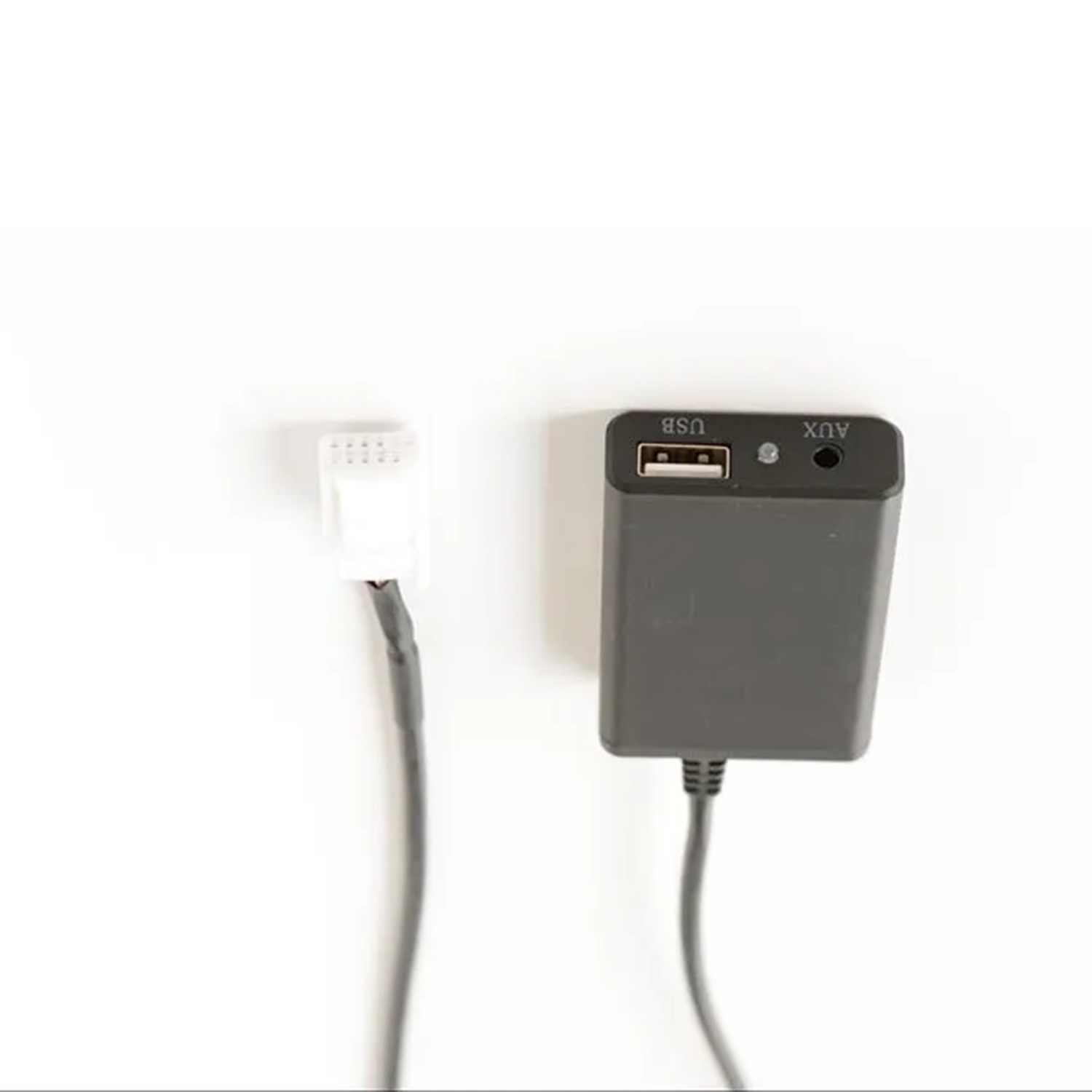

1 x Module Unit

1 x Aux Cable

1 x Mic Cable

1 x User Manual
