The Carbon Road Bike Frameset Flat Mount Disc Brake T47 700C Carbon Road Bike Frame by MEINIER is a high-quality bicycle frame designed for road bikes. Made of carbon fiber, this frame is lightweight at 2400g and features a tapered fork size between 28.6mm to 39.8mm. It fits for a headset size of Top 1-1/2(52mm) Down 1-1/2(52mm) and a bottom bracket size of T47 Screw-in BSA(86mm). This set includes the frame, fork, handlebar, and seatpost, with a maximum load capacity of 250kg. The frame is compatible with 700C carbon disc road bikes and comes with a 2-year manufacturer warranty. Ideal for both men and women, this frameset is a top choice for cyclists looking for a high-performance and durable ride.

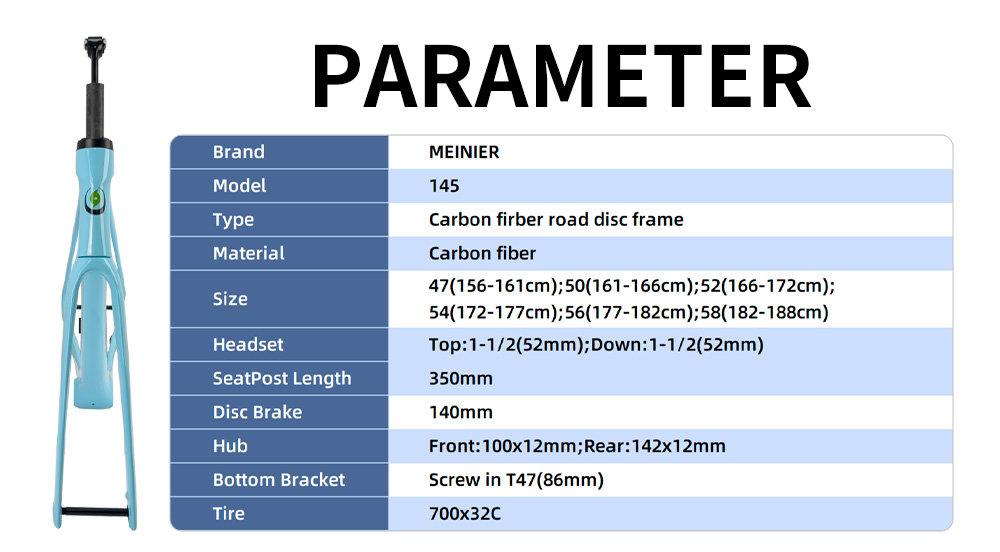

About the Carbon 700C Road Bike Frame
Type:Carbon Road Disc Brake Frameset
Material: Full Carbon Fiber
Model：MEINIER-DS-145

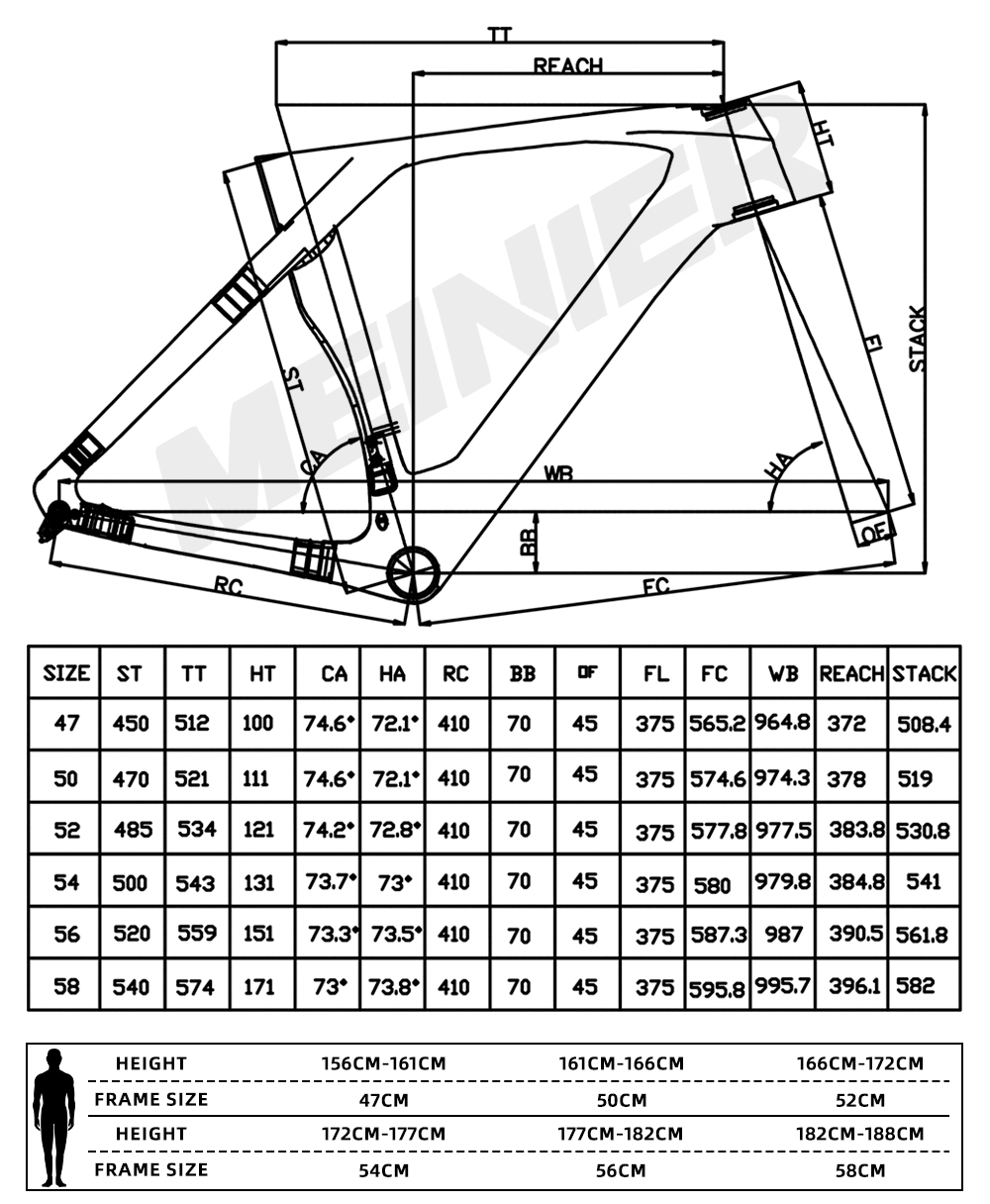

Available Size: 47/50/52/54/56/58cm;
Max load: 250kg;

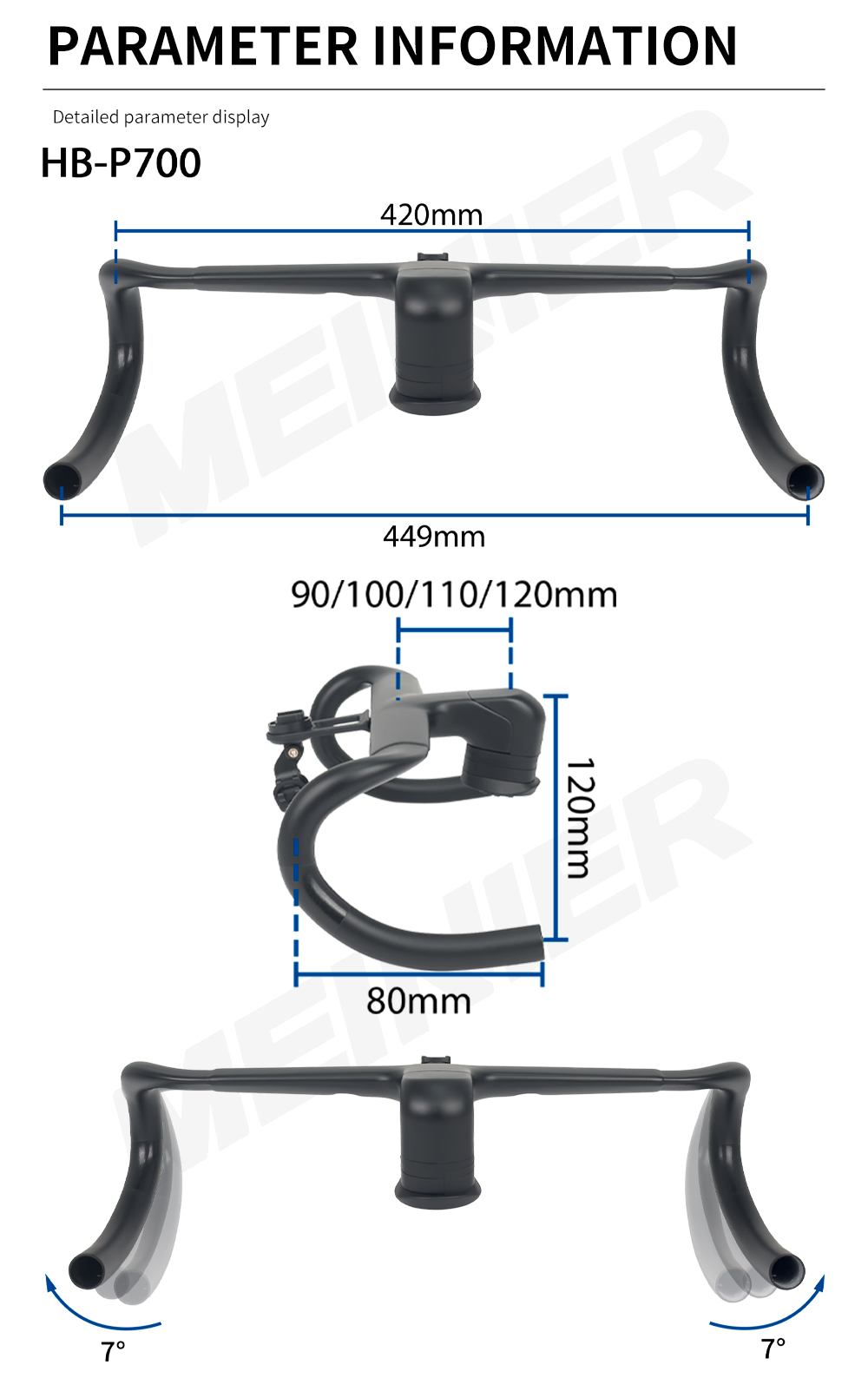

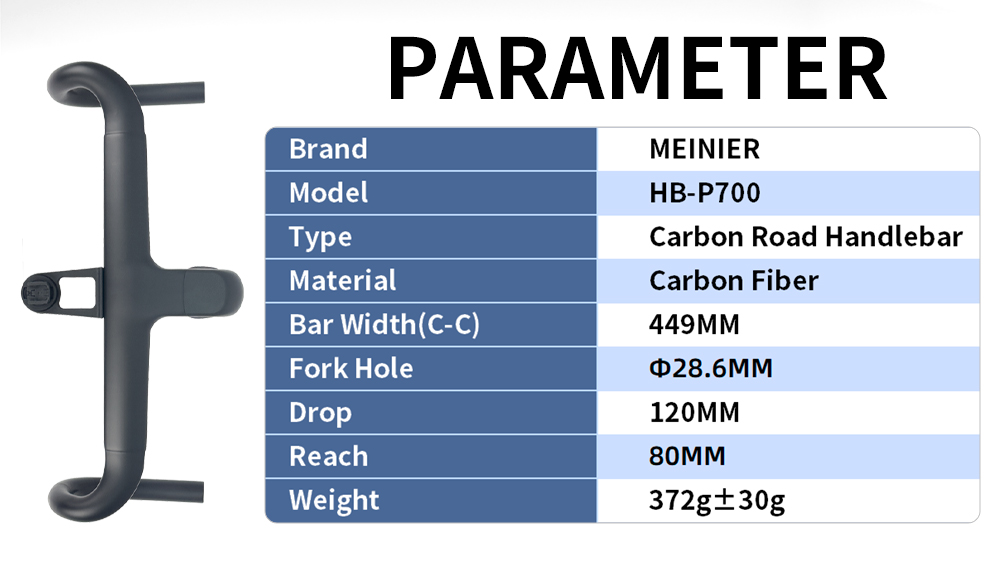

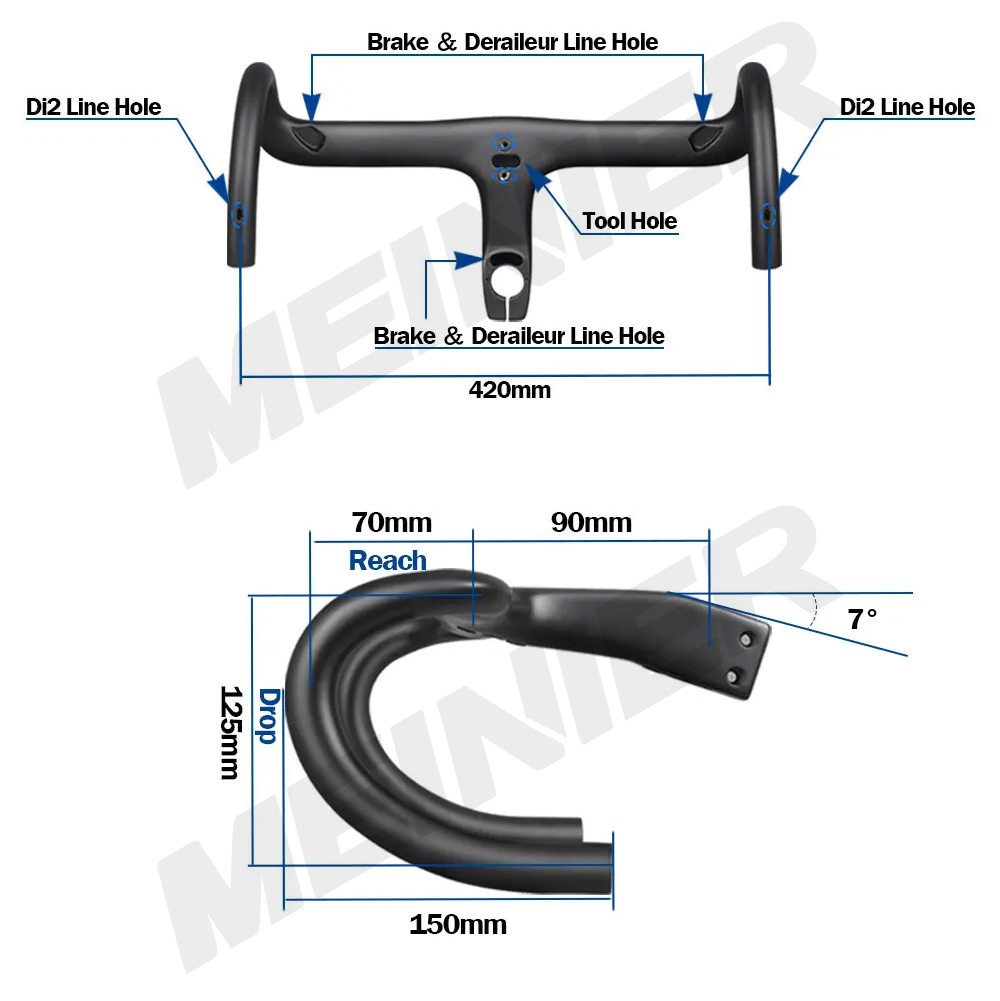

Handlebar Size: the size is 420x90/100/110/120. If you need one of these sizes, pls contact customer service;

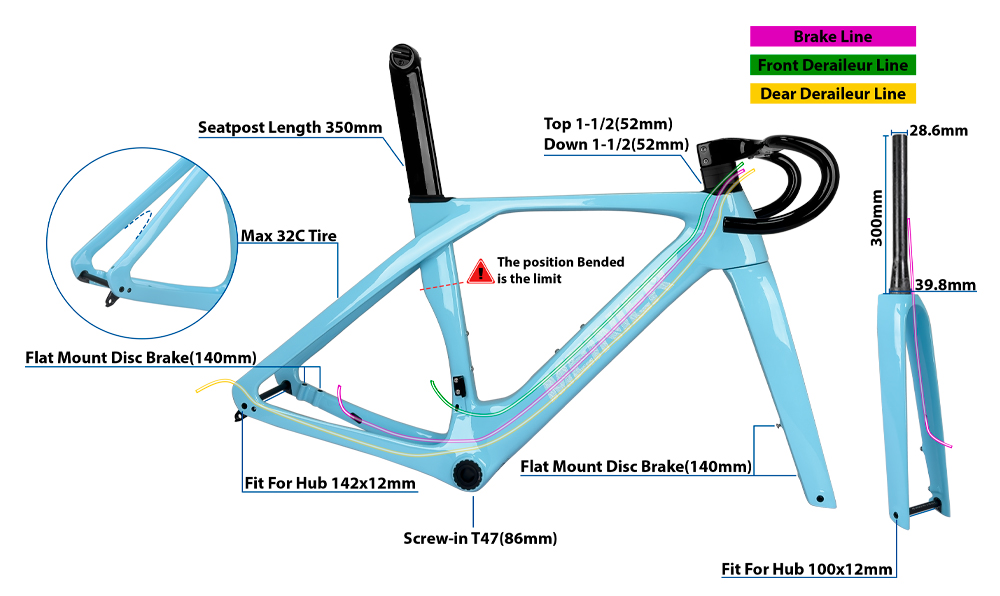

Fit for Tire: 700C,Max 32C Tire;
Brake System: Flat-Mounted Disc Brake;
Fit For Bottom Bracket: BSA-T47(86mm);
Fit for Wheel Hub: Fork(100x12mm),Frame(142x12mm);

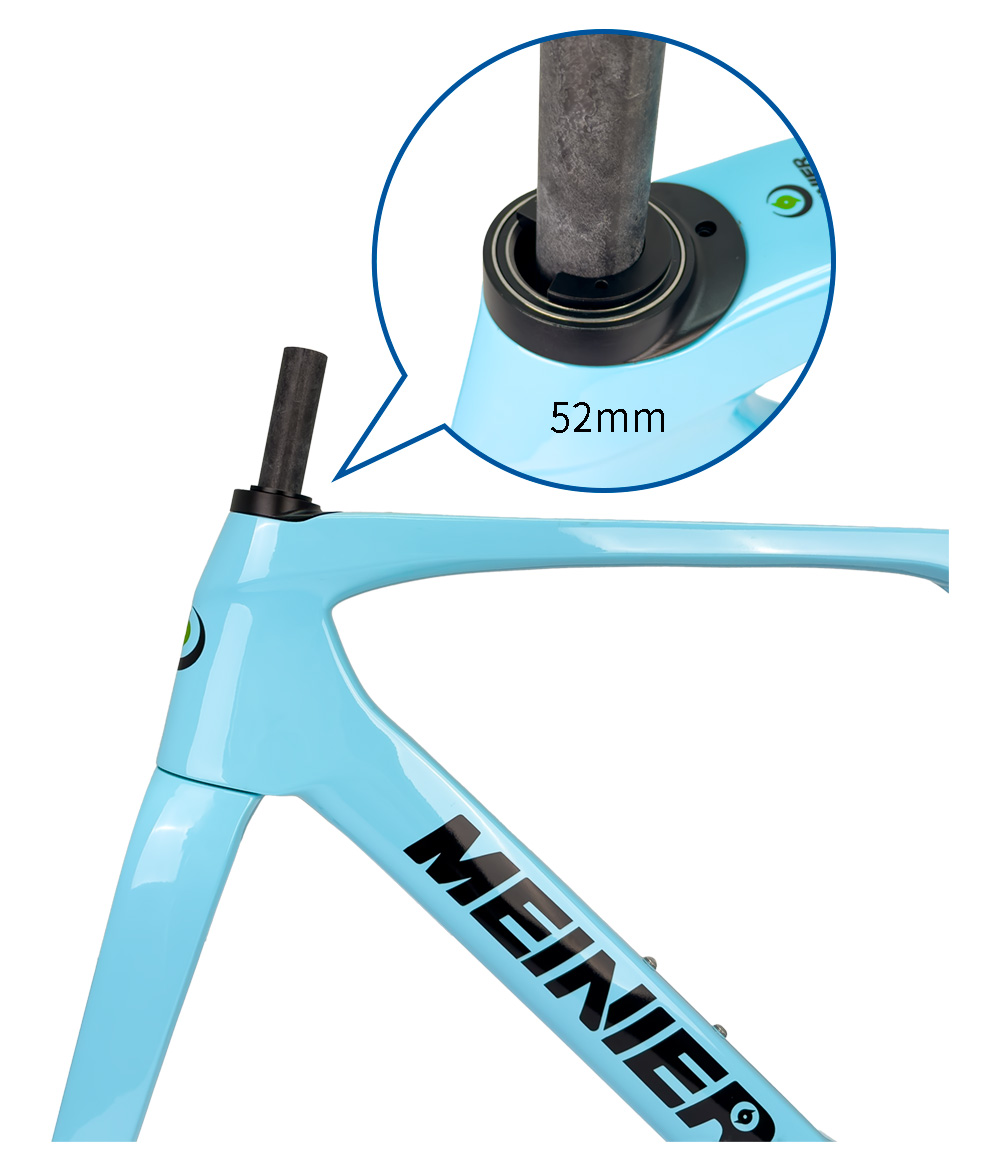

Fit for Headset: Top 1-1/2(52mm),Down 1-1/2(52mm);
Fit for Derailleur: Mechanical
Brake,Derailleur Cable: Fully Hidden

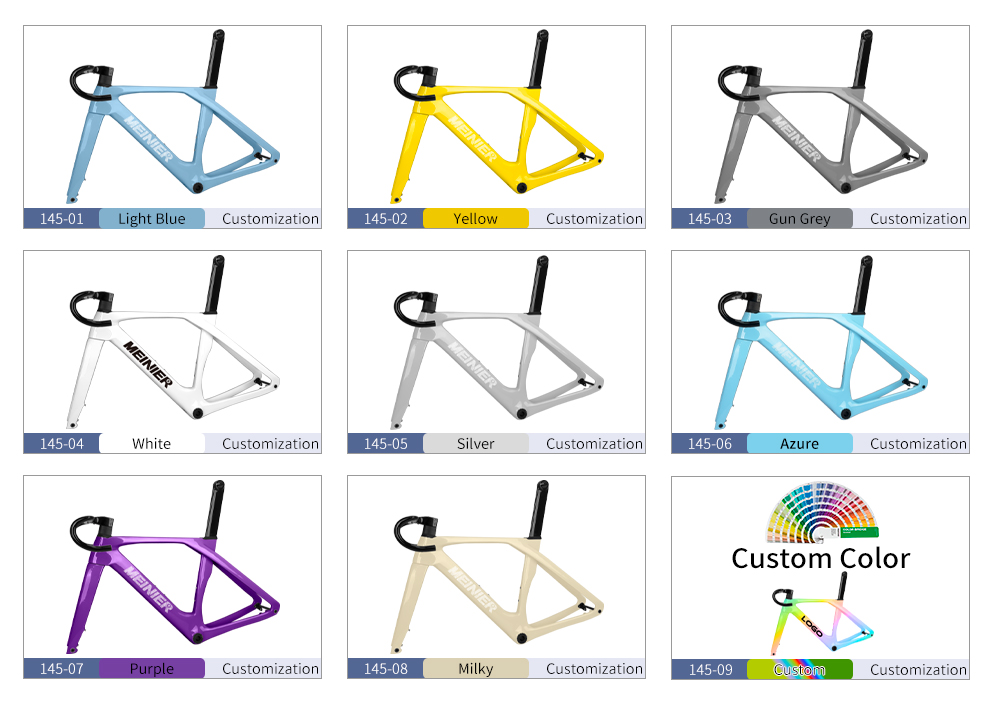

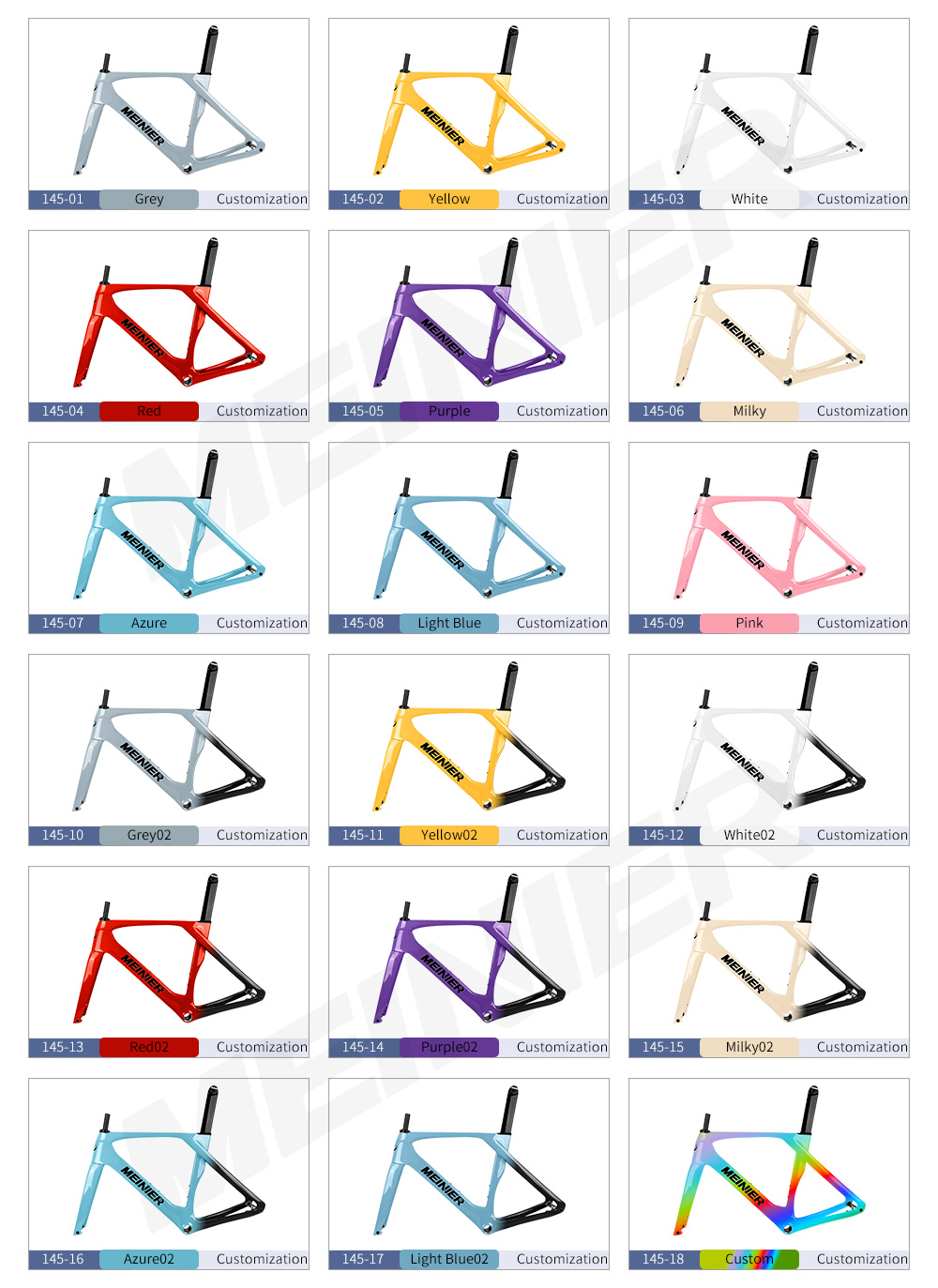

1. Regarding logo and color, if you need to customize any color or without logo, you can leave a message or contact me
2. Regarding delivery to the United States, we have duty-free logistics channels and fast delivery, you can contact me or click the link below
3. Regarding delivery to EU and UK, we have DPD duty-free logistics, you can contact me or click the link below



Note:

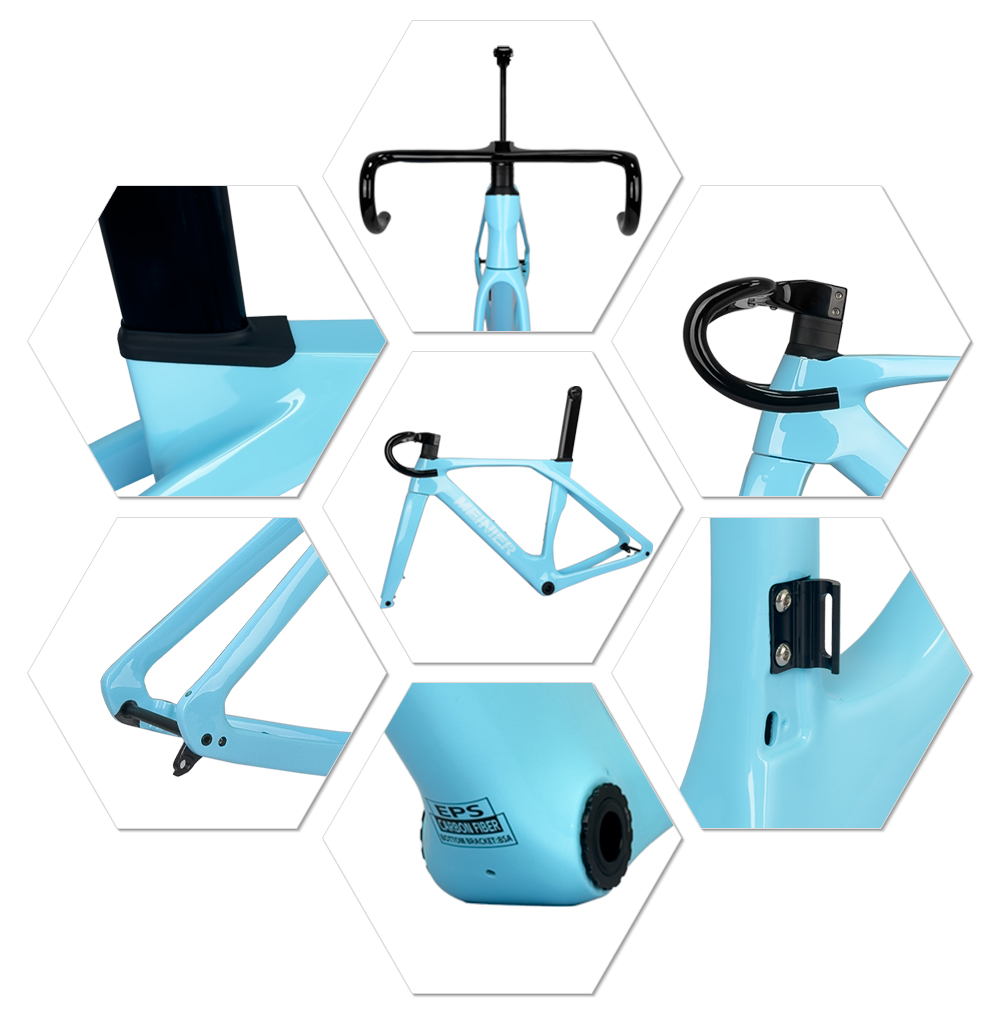

The handlebars of this frameset have been replaced with another handlebar, and there is a modification at the head tube position.

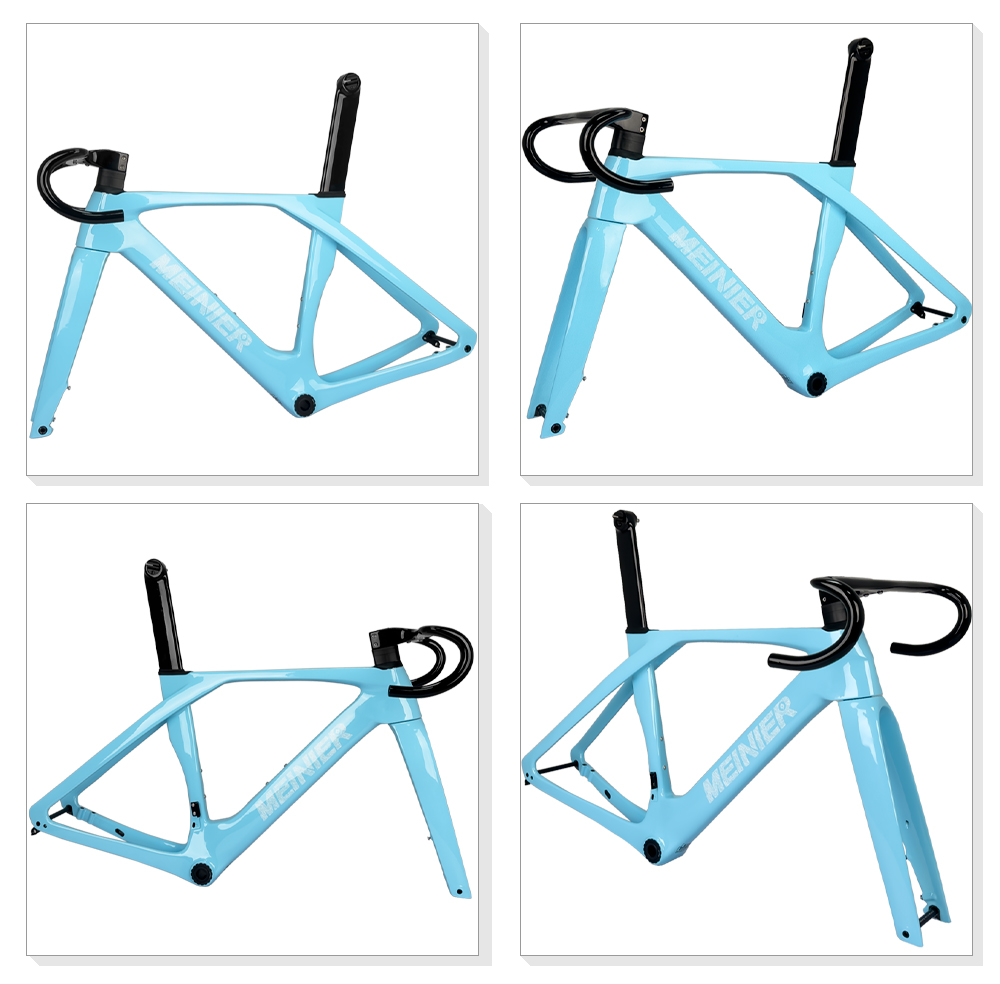

as shown in the three pictures.

---
