50KHZ Industry CNC 4 Axis Breakout Board Engraving Carving Machine Control Card

Brief introduction:

Using high-performance 32-bit  Cpu, Equipped with liquid crystal displays ,Window humane man-machine interface.  Using external TF card memory ,Storage space than 2G,Operating voltage and  control voltage before using isolation model Touch keyboard. The system has high  reliability, High precision ,Noise, Easy to operate and so on. The controller  can Four axis linkage.

Features:

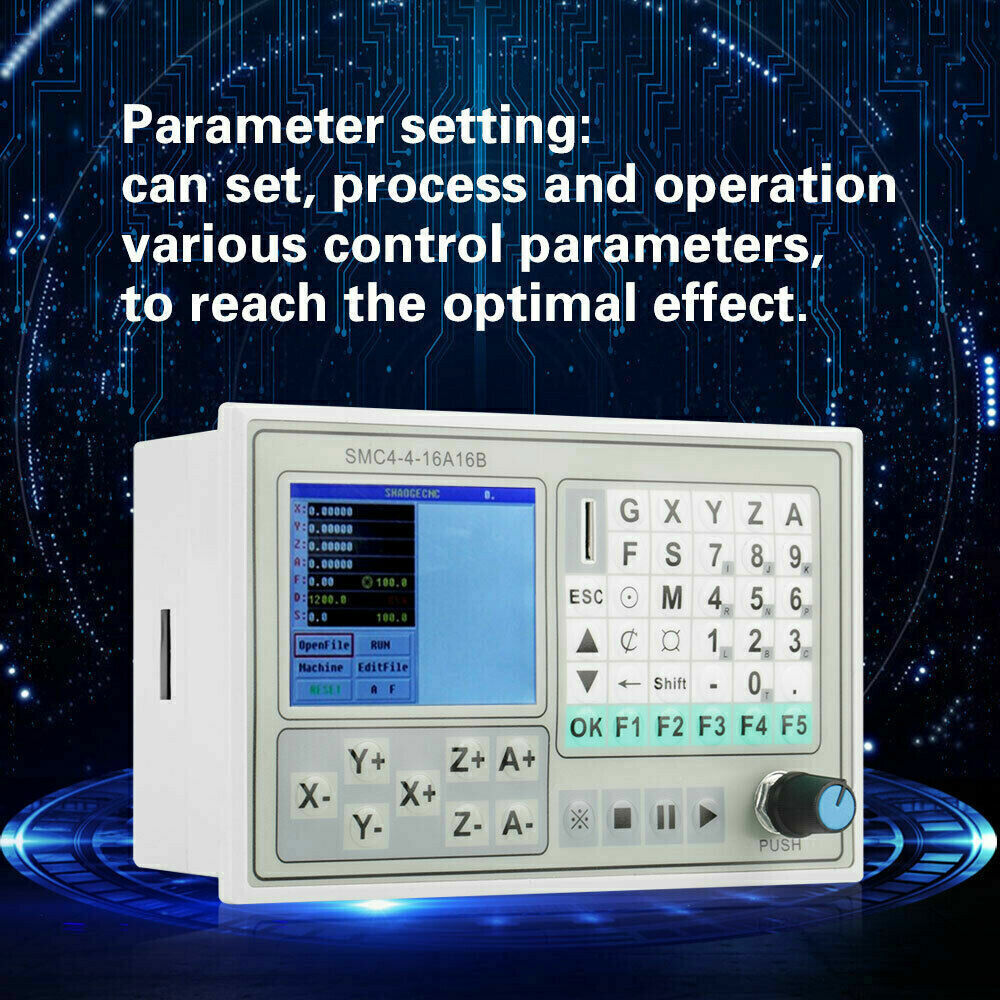

Parameter settings: For processing, control parameters related to the operation
Manual operation: can be achieved manually, jog back to the program zero, back  to mechanical zero,
cleared coordinate operations.
Program management: program can create, delete, modify, read, save, save,  automatic processing,
continuous, and pause.
External Manual: Manually define a variety of external functions to facilitate  the use of
Freedom to select the input function: the limited input port can achieve a  variety of user needs.

System components:
High-performance, high-speed 32-bit ARM CPU
Liquid crystal display (resolution: 320 × 240)
Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output  pull-down tank flow 500MA)
Users machining program memory can be implemented in any storage TF card
Technical indicators
The smallest unit of data 0.0001mm
The maximum data size ± 99999.999mm
Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ)
Control Axis: 4 Axis (X, Y, Z, A)
4-axis linkage axis and has a micro-multi-multi-axis interpolation control line  forward

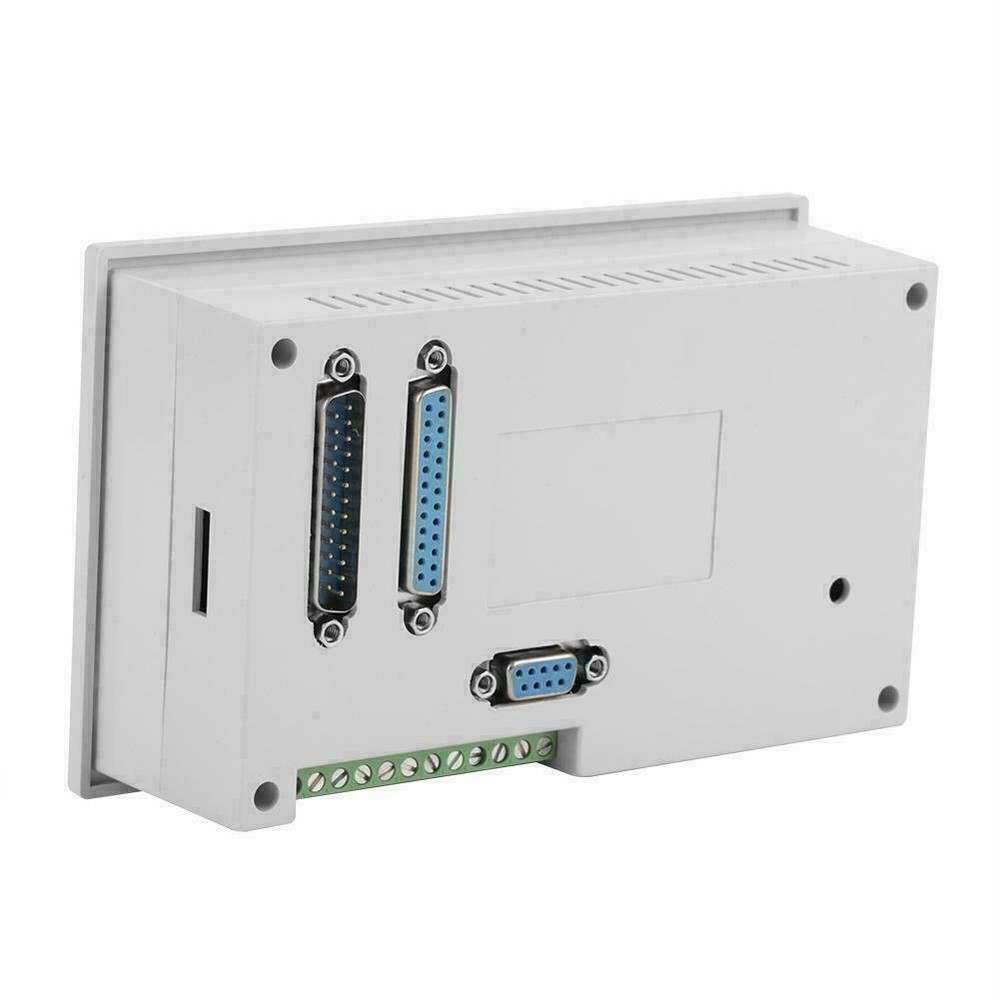

Appearance and Panel: Dimensions: length 165, width 101, height 50
