Description

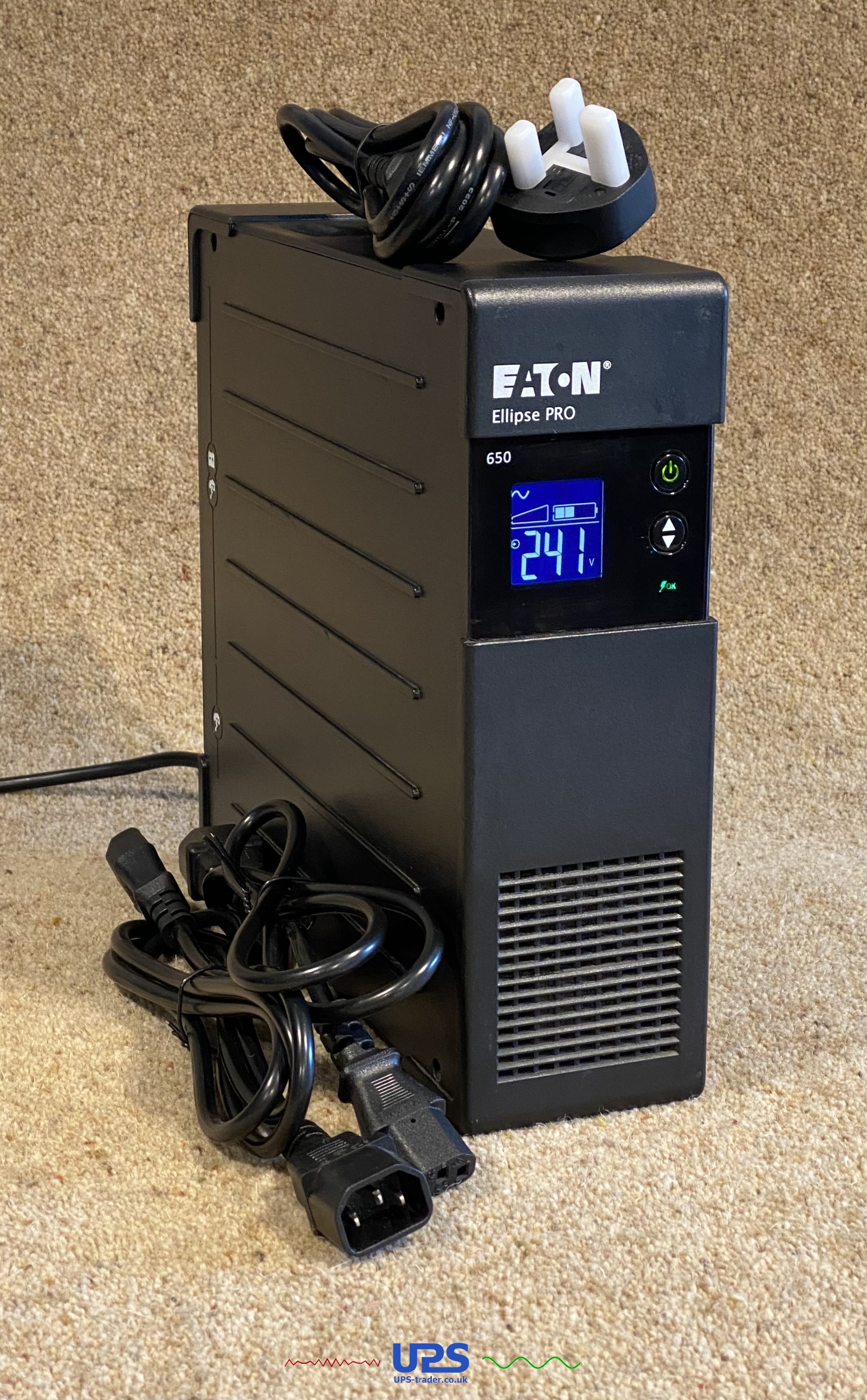

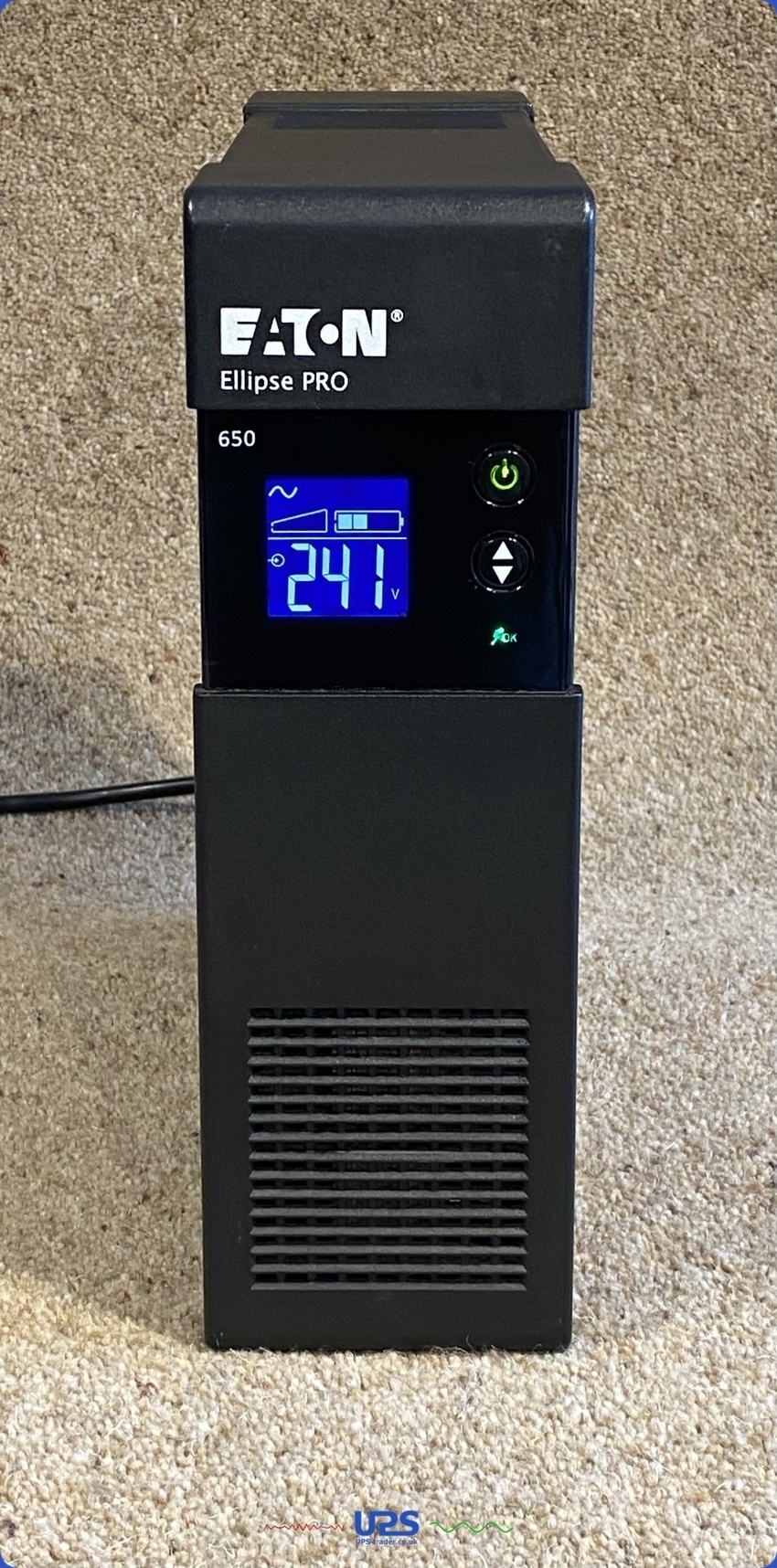

This refurbished Eaton Ellipse Pro 650 IEC UPS has had a new battery fitted and been thoroughly tested by one of our UPS technicians.
It is ready to use on delivery and carries our 12-month RTB warranty.

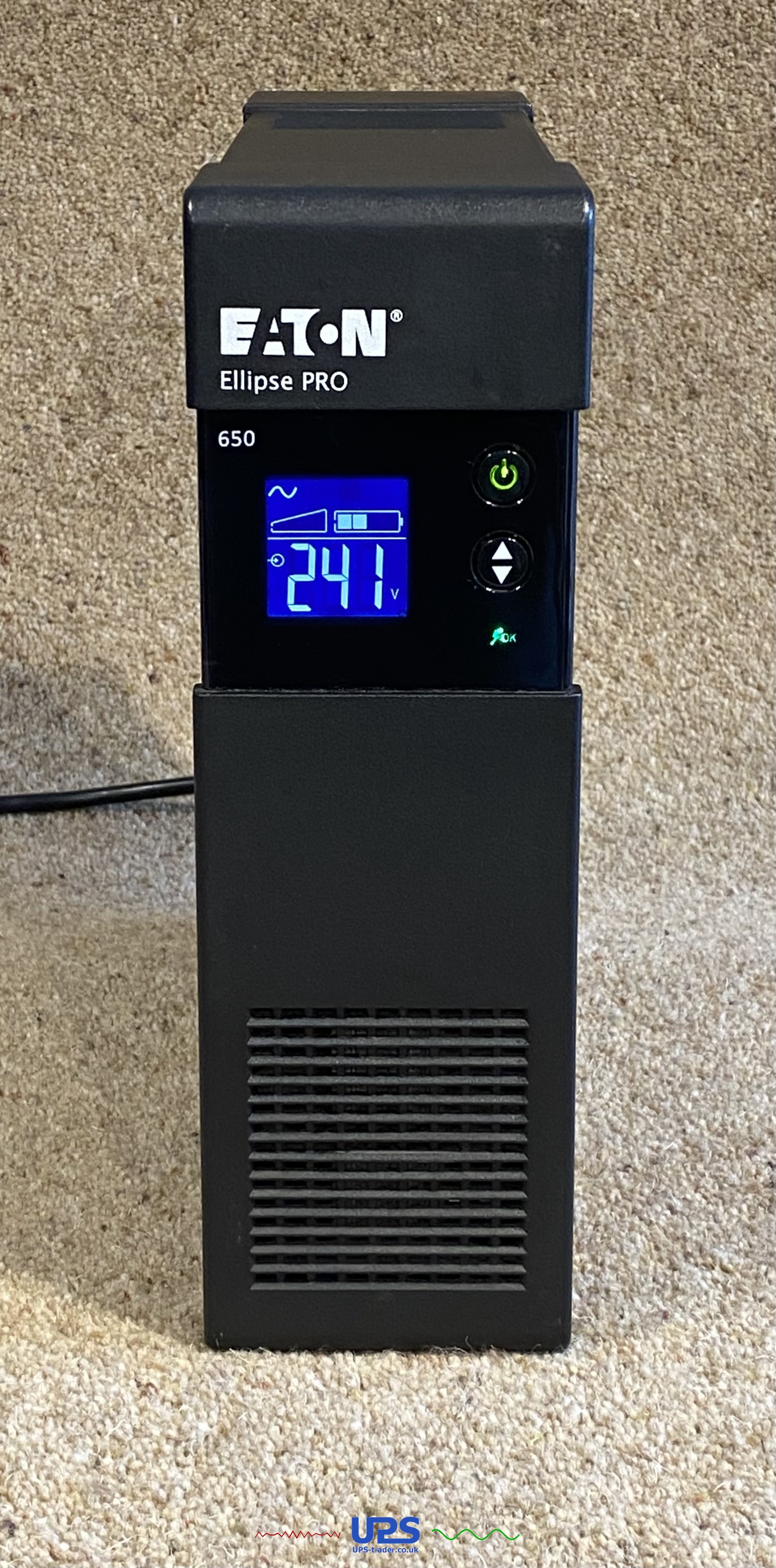

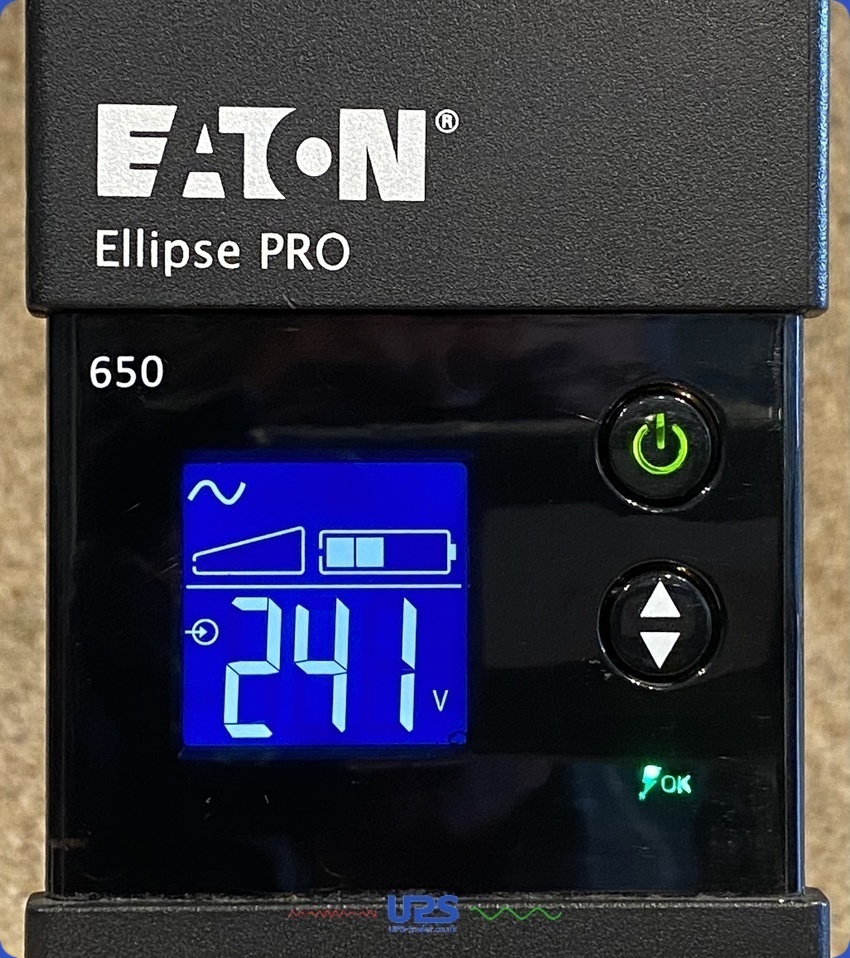

This line-interactive UPS features a bright and informative LCD display and has a very small footprint for your desktop.
Also included are 1x UK mains input lead and 2x C13-14 output leads.
Our products are comprehensively tested by UPS experts and are fully working. They are second user, and will have cosmetic signs of previous use.
The grading is A-Grade which we class as as good as you can get without having new. We touch up or re-spray cases as needed. We have been supplying UPS since 2002 and are the respected leader in the field, with the most used stock in Europe. Our experience reduces the occurrence of problems, and the availability of resources and stock we hold means we have the ability to quickly resolve issues when they do arise.
We set our same day dispatch times on eBay as a guide. This is a broad stroke estimation, as our items are of varying complexity. While simple orders can be packed and shipped quickly, large units or volume quantities may roll over to being dispatched the following working day. You can contact us if you need to be sure of when we can send an order and we can make a plan.
All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated and can be subject to surcharge. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK.
When we process the order, we issue a dispatch notification via email. This will have a PDF invoice attached, and detail which courier we have shipped with, along with the tracking number and any pertinent information & guidance.
Specification

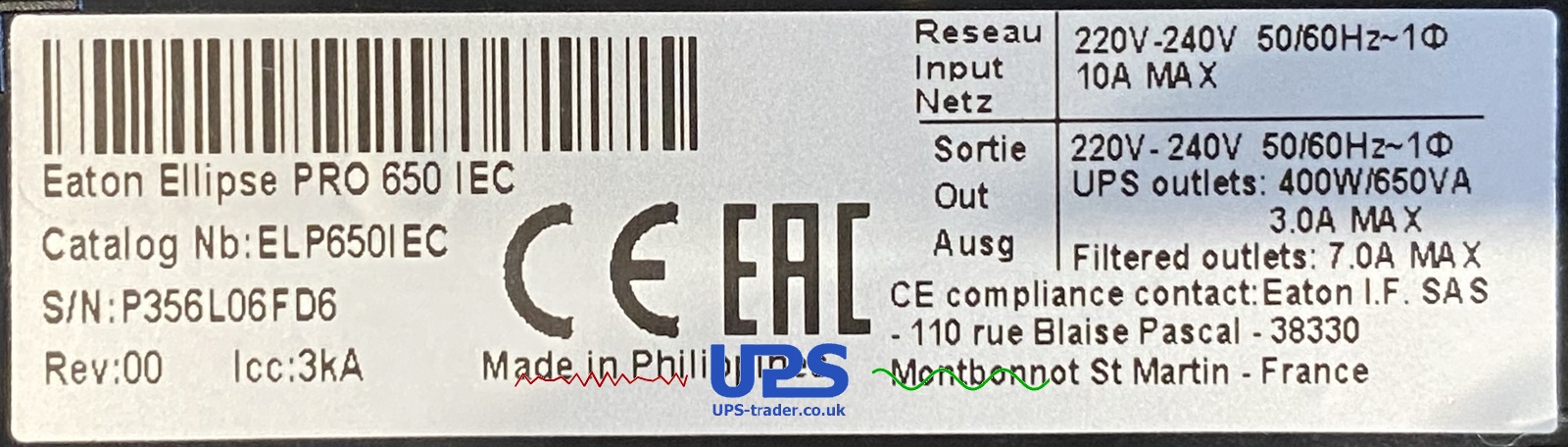

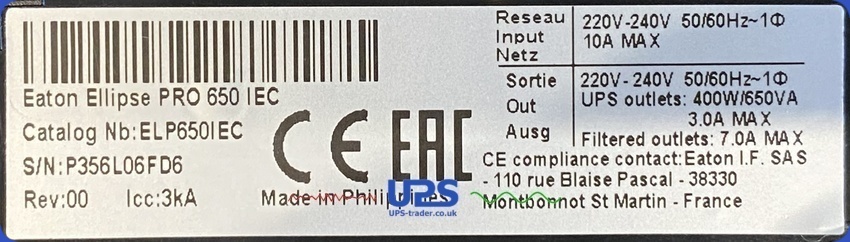

GENERAL SPECIFICATIONS
Product Name: Eaton Ellipse PRO UPS
Catalog Number: ELP650IEC
UPC: 743172437334
Product Length/Depth: 82 mm
Product Height: 260 mm
Product Width: 285 mm
Product Weight: 6.6 kg
ELECTRICAL INPUT
Input connection: C14
Input nominal voltage: 230V default (220/230/240V)
Nominal frequency: 50/60 Hz
Input voltage range: 165-285 V (adjustable to 150-285 V)
Input frequency range: 46-70 Hz
COMMUNICATIONS
Includes network card: No
Communication: USB port (HID compliant)
Ethernet interface: No

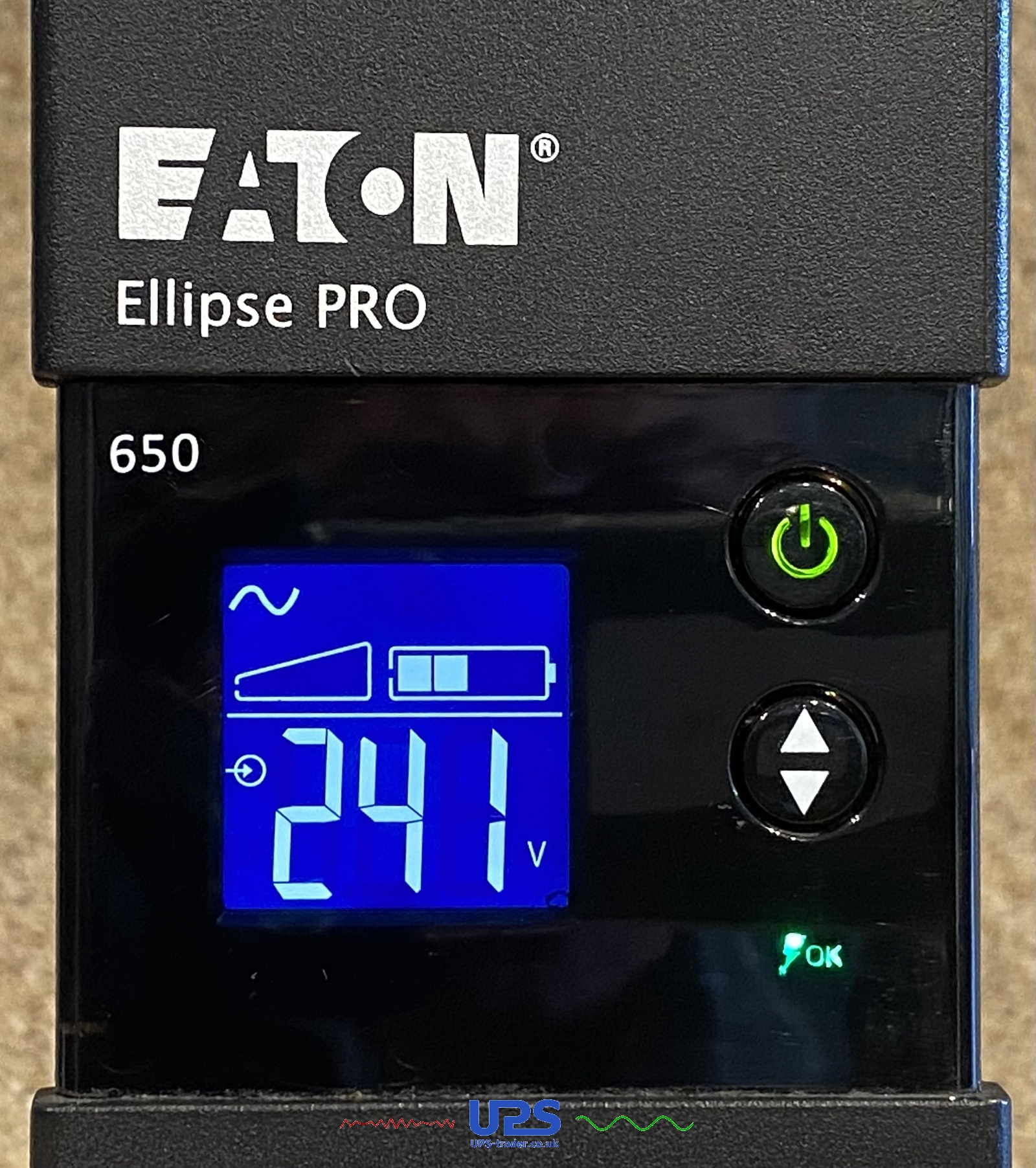

User interface: LCD (UPS status and measurements, configuration of UPS settings)
Potential free switch contact: No
Expansion slots: No
Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Type of interface: USB
BATTERY
Battery type: Sealed, lead-acid
Battery replacement: User replaceable
Battery quantity: 1
Battery management: Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Battery rating: 12 V / 7 Ah
Extended battery capability: No
ELECTRICAL OUTPUT

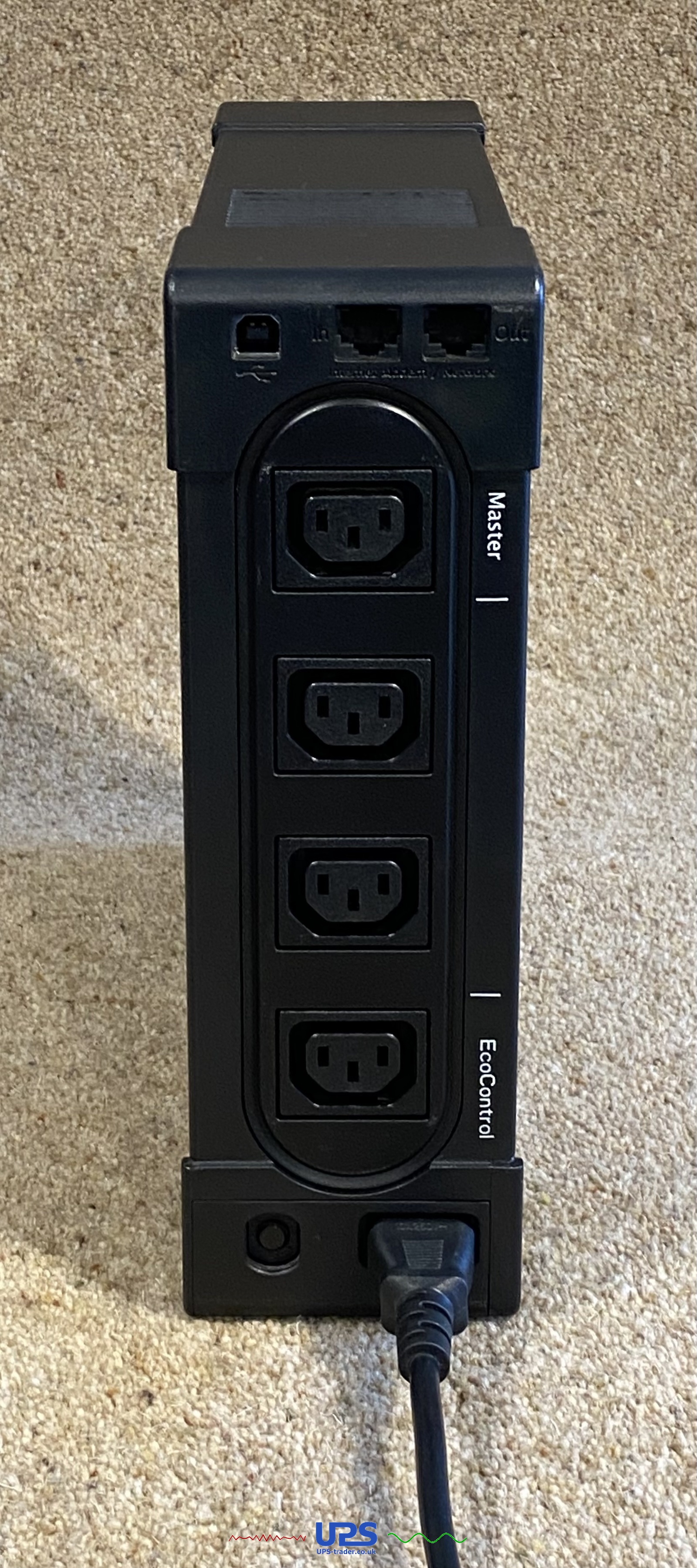

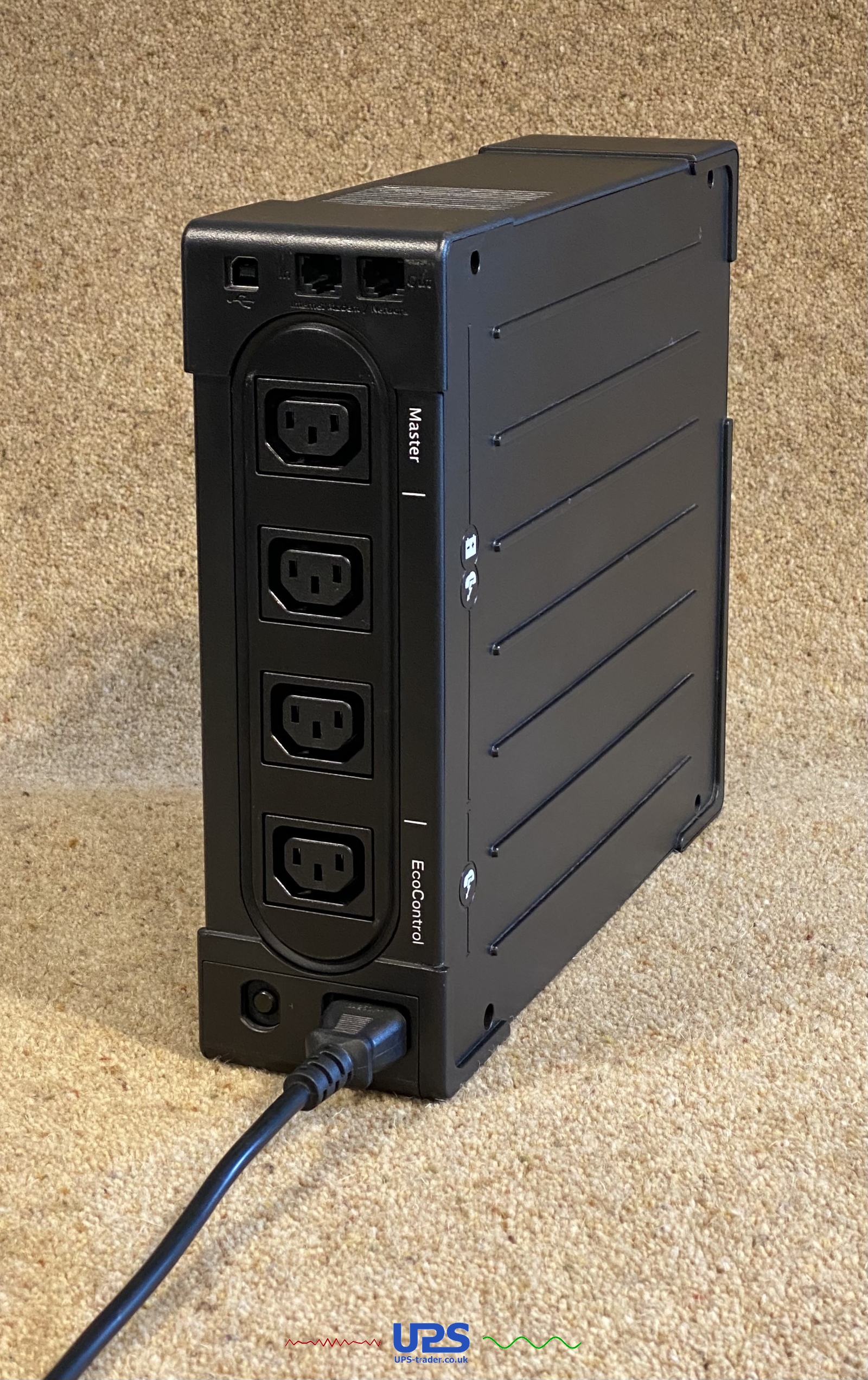

Receptacle: (3) C13, (1) C13 surge only
Voltage: 230V
Wattage: 400W
Output power factor: 0.6
Output voltage range: 176-284 V
Output nominal voltage: 230V default (220/230/240V)
Feed type: 1
Topology: Line-interactive
VA rating: 650 VA
ENVIRONMENTAL
Altitude: 2000 m
Noise level: <25 dB at 1 meter
Temperature range: 0° to 35°C (32° to 95°F)
Relative humidity: 0-85% non-condensing
|
|
