OBDSTAR Odo-Master For Clu-ster Calibration Oil/ Service Reset and OBDII

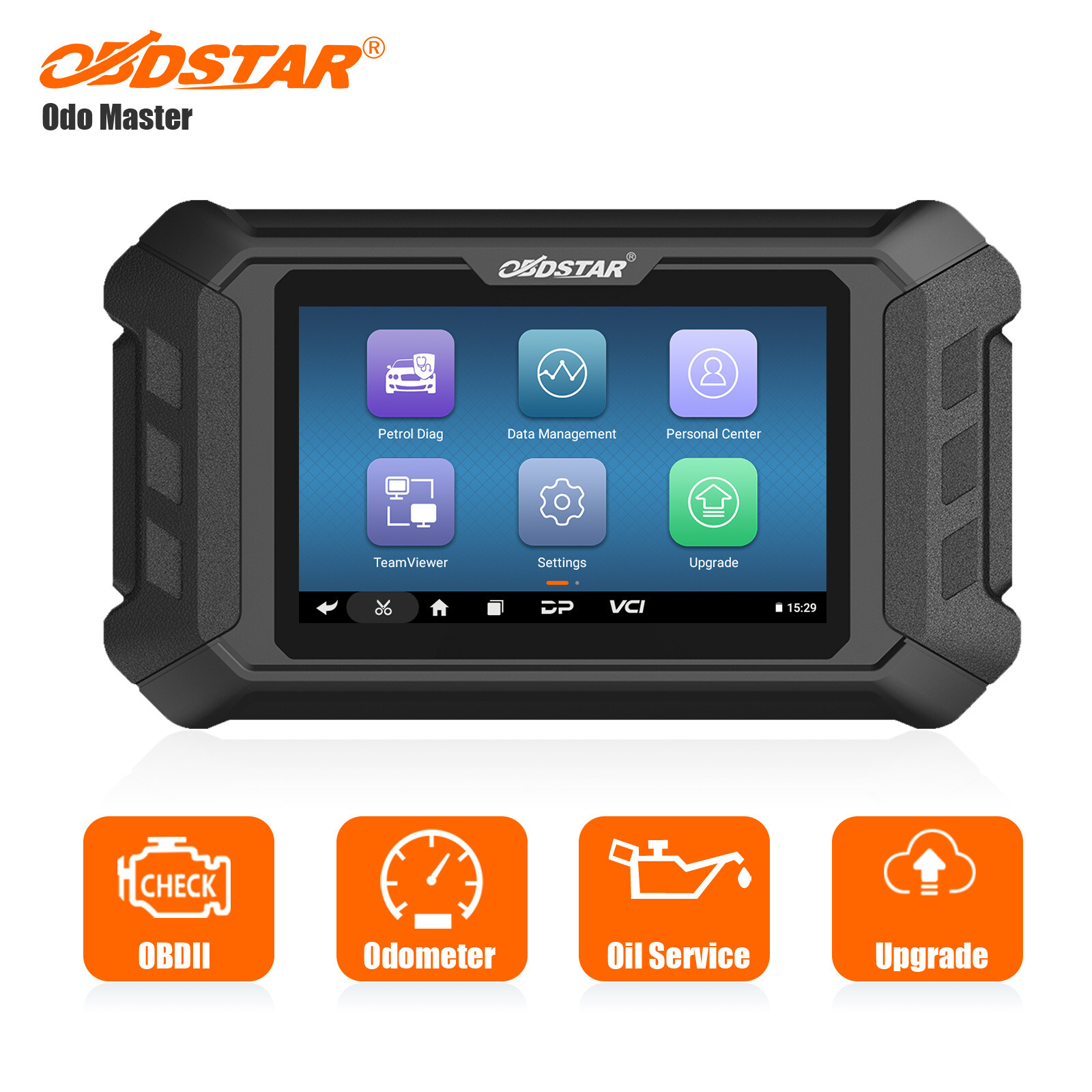

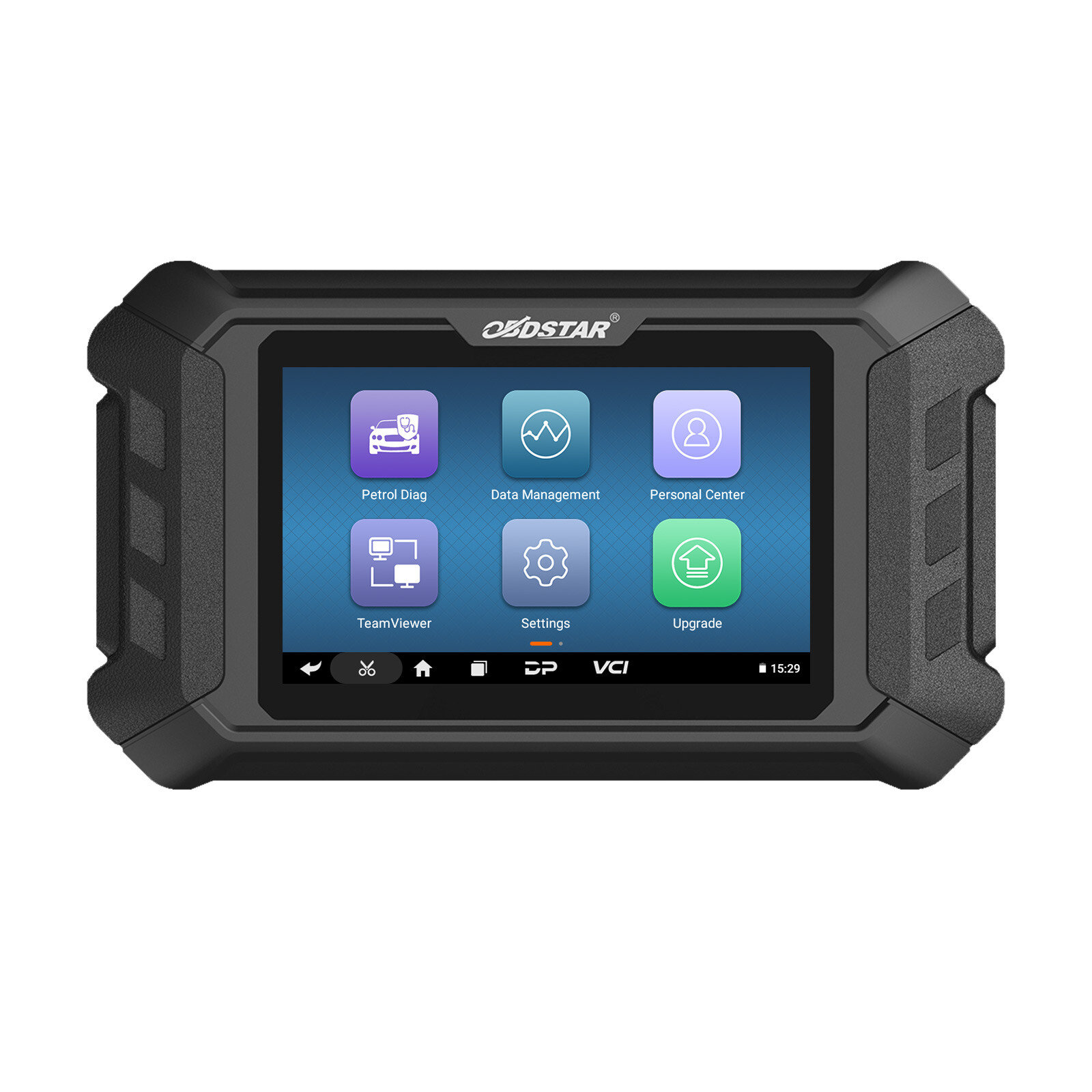

Odo Master is a new Android-based 5'' tablet specialized for cluster calibration and oil service reset.
The device inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use, wide model coverage,fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.
Free Update Online for One Year, No Need Tokens.
Support Multi-languages: English, Italian, Russian, German, Spanish, Polish, Portuguese, French
(Default language is English, it can be changed to another language but one time only, please register the device before changing language.)
ATTENTION:
As for 2018 and up FIAT/CHRYSLER/ALFA ROMEO vehicles, please work together with the FCA 12+8 adapter（Not included）, otherwise, it won't work.
Do not work on for BMW. (Please pay attention to check the car list, if you are not sure, please contact us.)
Please register the device before using.
Please upgrade the device if there is no full function(which it support) in it.
Distributor code is 0086A002.
Newly added for DUCATI, KTM motorcycle clu-ster recalibration!(It's in ODO MASTER software.)
for Ducati (Need to buy the M037 and M041 cable to work with them.）
For KTM (Need to buy the M041 and M019 cable to work with them.）
For BRP (Need to buy the M043 cable to work with it.）
ADD BOMBARDIER USA CAN_AM DASHBOARD 70F3554 2019
For Toyota
Add for TOYOTA CAMRY 2018 XV70 VDO R7F701406
For Honda (As for Honda, Odo master worsk on the follwoing models only)
Highlights:
1. The update cycle is short and fast (updated at least once a month)
2. Free upgrade within one year,after one year it will cost $199 per year.
3. Strong competitiveness and industry advantage
4. Some models can support 18/19 years of car (such as for GM/Chrysler)
5. Add a new help function as shown below :
(Applicable to some models, R & D information is being update)

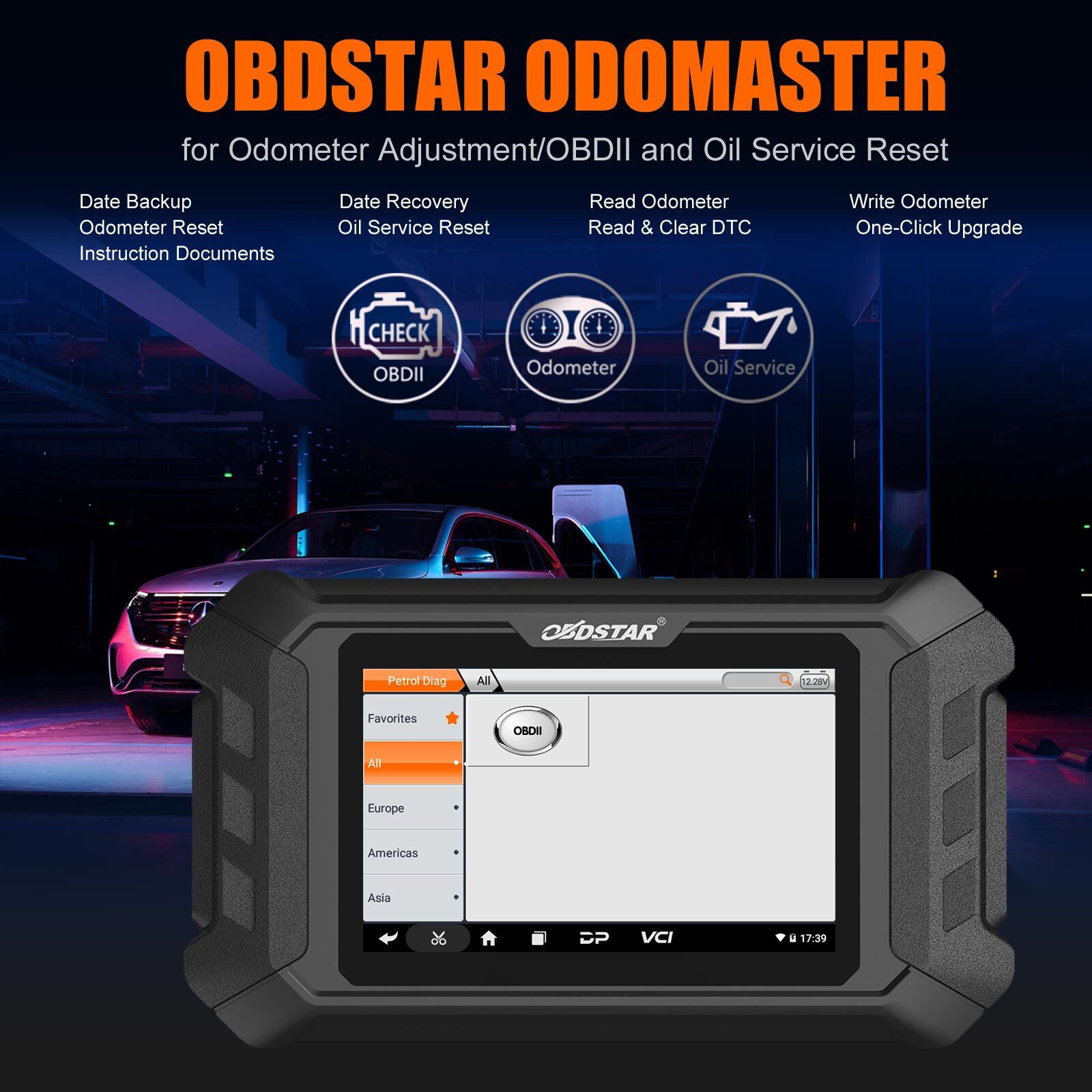

Functions:
1. Via OBDII
2. Date Backup
3. Date Recovery
4. Read Od0meter
5. Write Od0meter
6. Od0meter Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage

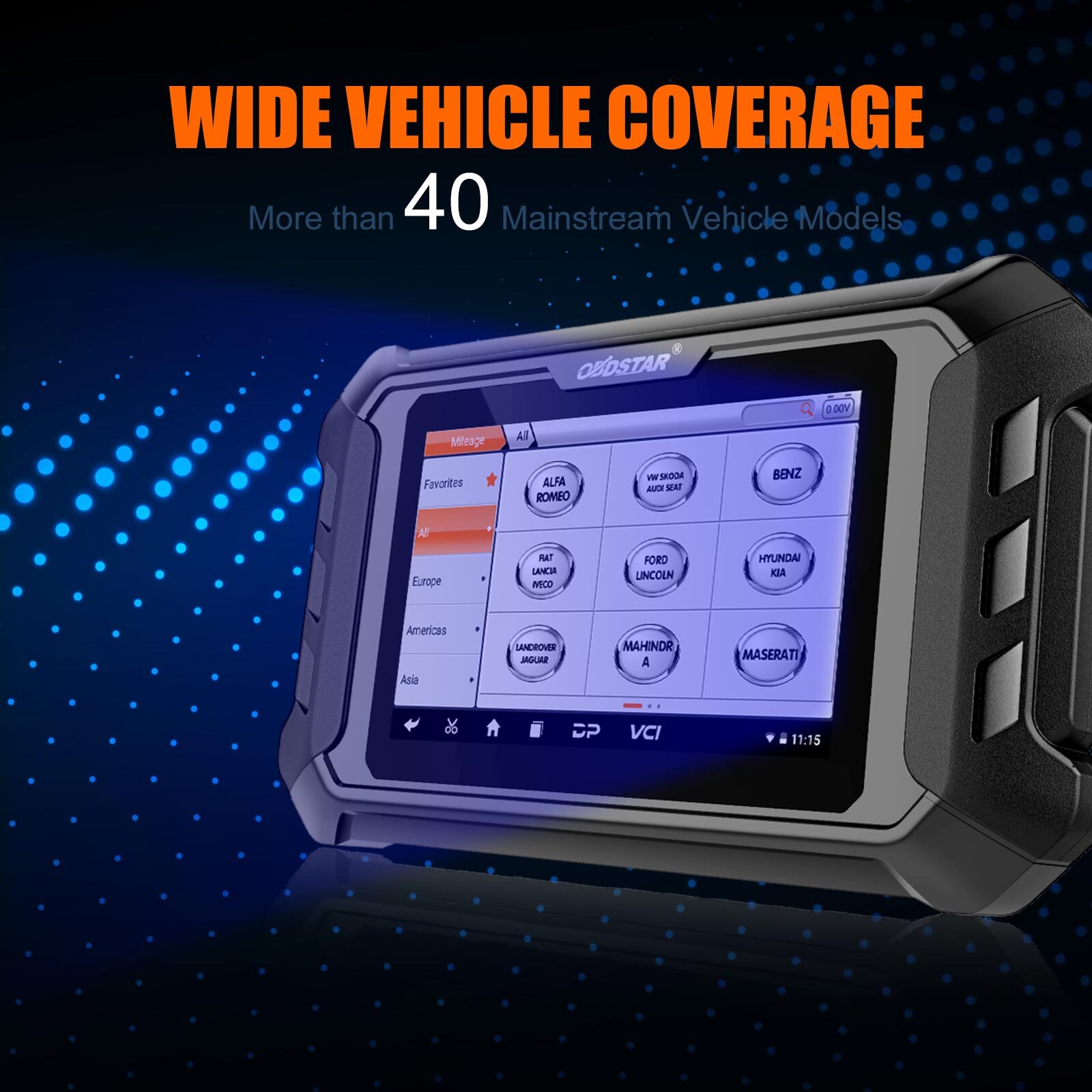

Vehicle Coverage:
（Whether it can be supported depends on the specific model and year. If you are unsure, please contact us.）
Europe | For Alfa Romeo; For AUDI; For Bentley; For Benz; For BMW/Mini; For Citroen; For Peugeot; For Ferrari; For Jaguar; For Lancia; For Land Rover; For Maserati; For Opel; For Porsche; For R-enault; For Smart; For V-olvo; For IVECO; For SKODA; For SEAT;For V-W; For Flat |
Japan | For Isuzu; For Mazda; For Mitsubishi;For Infinite; For Nissan; For Subaru; For Suzuki; For Toyota |
Korea | For Kia; For Sangyong |
America | For Ford;For Lincoln; For Chrysler; For GM |
China | For Geely; For Besturn; For Changan; For ROEWE MG; For Roewe |
Specifications:
Operation System | Android 5.1.1 |
CPU | RK3128 Quad-Core ARM Cortex A7 1.2GHz |
Battery | 2600mA, rechargeable polymer lithium battery |
Extension Memory Card | 32G Micro SD (TF) card supported |
Memory Capacity | 16GB |
Storage Capacity | 32GB |
LCD | 5.0 inch |
LCD Resolution | 8000*600 |
Touch Screen | Capacitive touch screen |
Camera | 5 mega rear view camera |
Wi-Fi | supported |
Working Temperature | -20℃ ~ 55℃（14℉ ~ 131℉） |
Storage Temperature | -20℃ ~ 70℃（-4℉ ~ 158℉） |
Dimension | 140mm*89*mm*18mm |
Weight | About 700g |
Odo Master vs. X300M
Software Comparison Data | Odo Master | X300M | |
For FORD | FIESTA | 2017- | 2013- |
FOCUS | 2019 | 2013- | |
TRANSIT | √ | × | |
KA | 2018- | 2015- | |
For GM | COLORADO | 2018- | 2005- |
CRUZE | 2017- | 2010- | |
ESCALADE | 2018- | 2015- | |
XT6 | 2019 | / | |
YUKON | 2017- | 2014- | |
For CHRYSLER | CHEROKEE | 2018- | 2015 |
RAM | 2018- | 2011- | |
DURANGO | 2018- | 2014- | |
For LANDROVER | DISSCOVERY 4 | 2015- | / |
RANGE ROVER SPORT | 2017- | 2014 | |
For V-W | MQB 2012-2014.06 | √ | × |
MQB 2014.06- | √ | √ | |
For RENAULT | CAPTUR | 2017- | / |
TRAFIC IV | 2017- | / | |
For KIA CEED | 24C16 | √ | √ |
D70F3423 | √ | √ | |
D70F3XXX | √ | × | |
D70F3421 | √ | × | |
D70F35XX | √ | × | |
NEC | √ | × | |
NEC+24C16 | √ | × | |
For KIA Optima | 24C16 | √ | √ |
D70F3536 | √ | √ | |
D70F3421 | √ | × | |
D70F352X | √ | × | |
D70F35XX | √ | × | |
NEC | √ | × | |
NEC+24C16 | √ | × | |
For NISSAN | ALTIMA 2013 | √ | √ |
KICKS 2017- | √ | × | |
For MITSUBISHI | OUTLANDER | √ | × |
TRITON 2015- | √ | × | |
Package includes:
1PC x Main Unit
1PC x Main Cable
1PC x Charger
1PC x Configuration List/Certificate/Quick Start Guide Fold
1PC x Packing box
