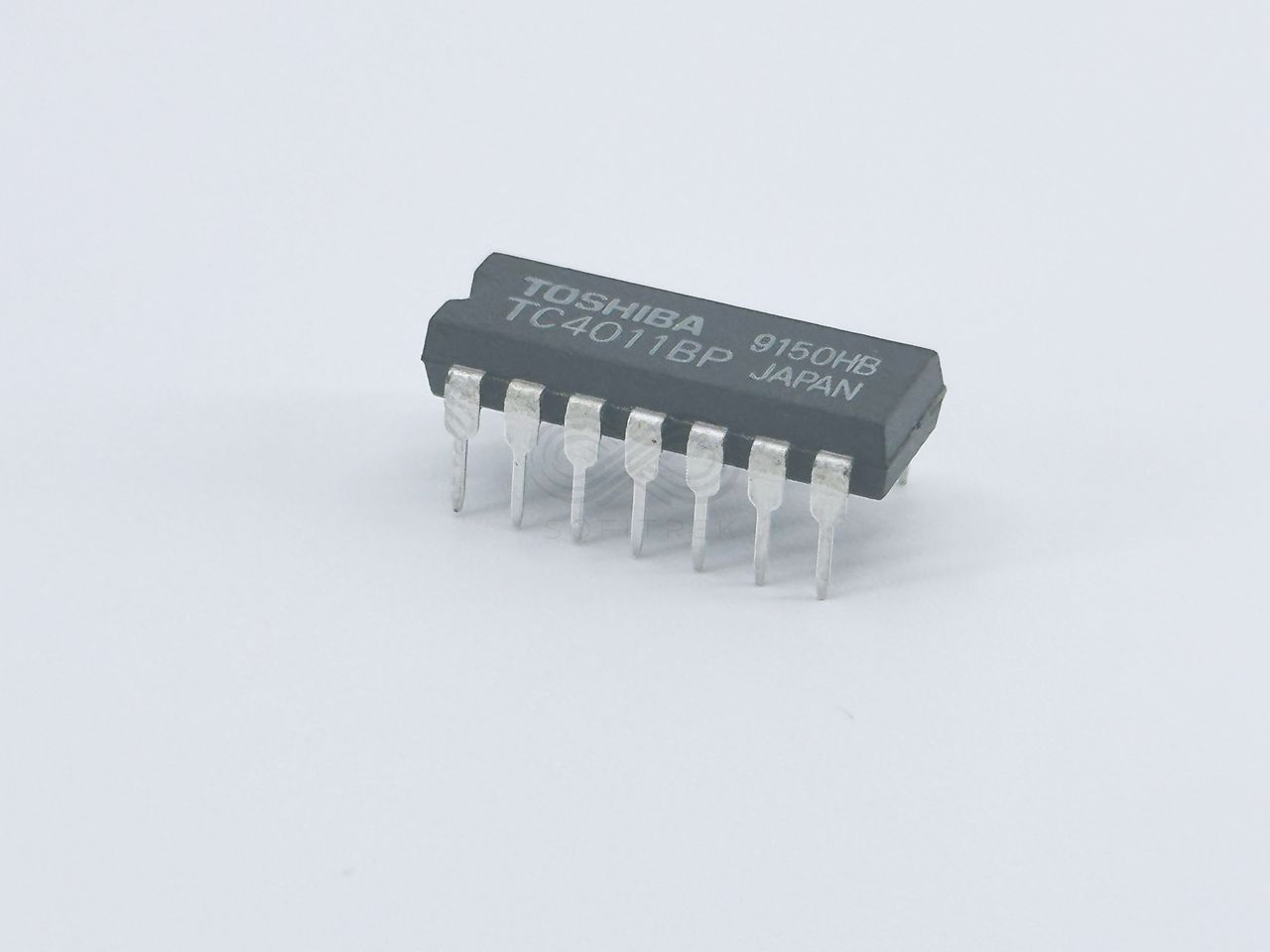

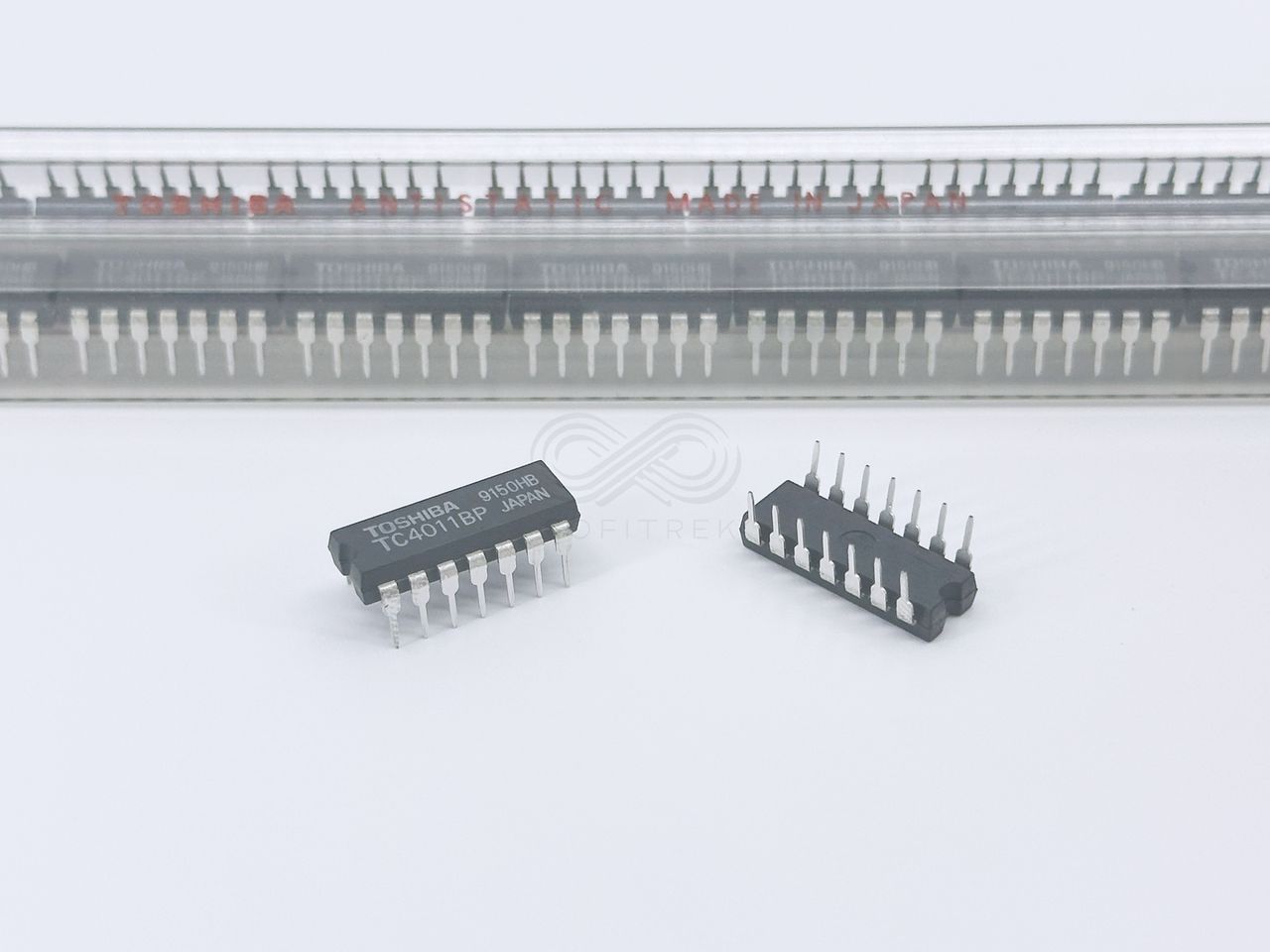

5X TC4011BP TOSHIBA 4011 CMOS Quad 2-Input NAND Gate IC DIP-14

Ready to Ship

Ask a Question

30-Day Return

5 Pieces - TC4011BP TOSHIBA 4011 CMOS Quad 2-Input NAND Gate IC DIP-14

Specification
Supply Voltage-Nom (Vsup)	5 V
Propagation Delay (tpd)	200 ns
Prop. Delay@Nom-Sup	200 ns
Number of Functions	4
Number of Inputs	2
Surface Mount	NO
Package Code	DIP
Load Capacitance (CL)	50 pF
Schmitt Trigger	NO
Family	4000/14000/40000
Logic IC Type	NAND GATE
Technology	CMOS
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Temperature Grade	INDUSTRIAL
Operating Temperature-Max	85 °C
Operating Temperature-Min	-40 °C
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Number of Terminals	14
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Seated Height-Max	4.45 mm
Width	7.62 mm
Length	19.25 mm
Manufacturer Entity	TOSHIBA CORP
Package Description	DIP-14
Pin Count	14
Manufacturer	Toshiba
