24 Damping Levels Coilover For Toyota Corolla 9th Gen E130 _E12_ 2003-2008

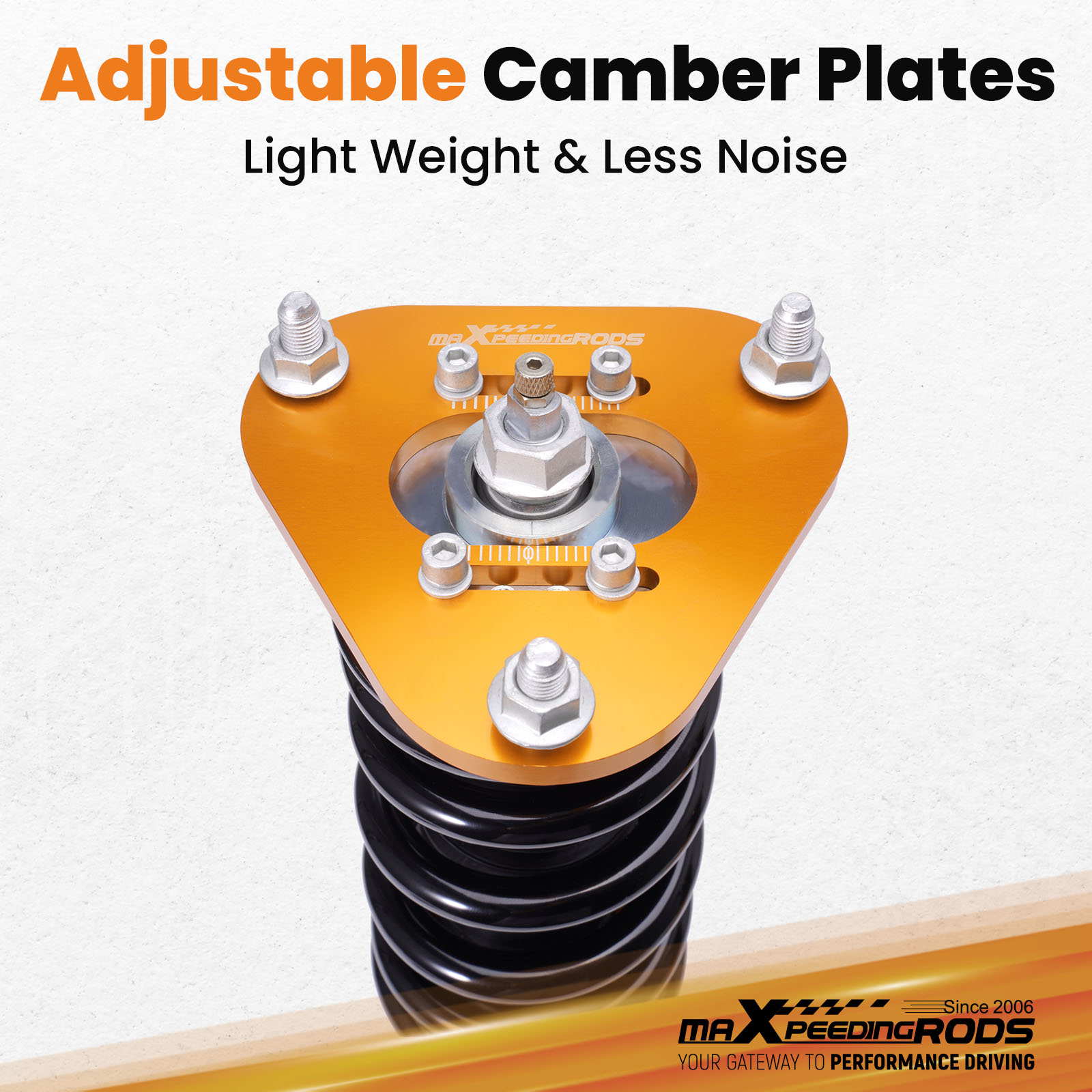

Aluminum Camber Plate with Pillow Ball Mount

Aluminum Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

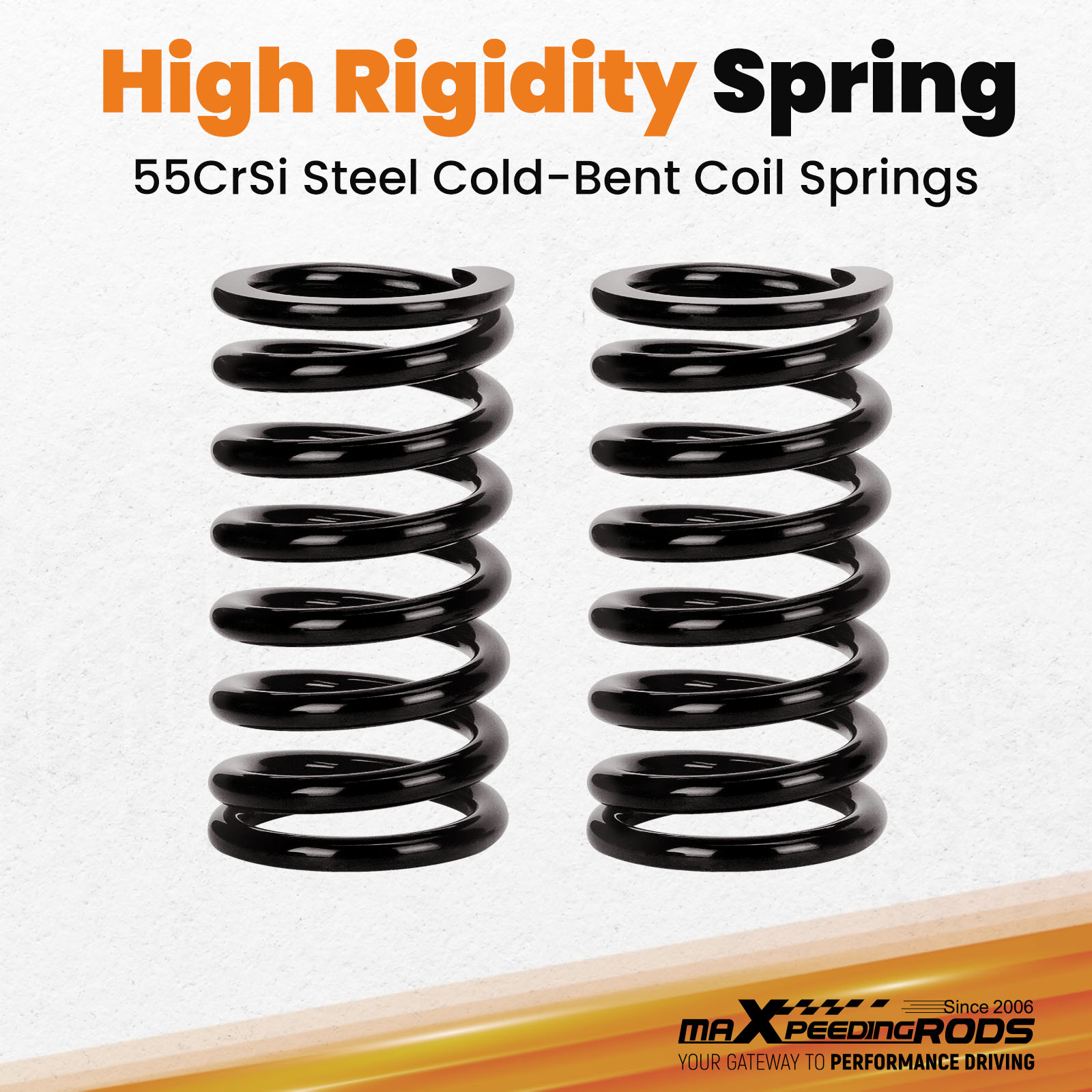

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Adjustable height	Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable	Yes, 24 levels of rebound damping force
Front spring length	190 mm
Rear spring length	180 mm
Front spring length	12kg/mm (672 lbs/in)
Rear spring length	8 kg/mm (448 lbs/in)
Top mounts	Front Pillow ball with camber plate, Rear Standard rubber
Spring inner diameter	70.5 mm

Features

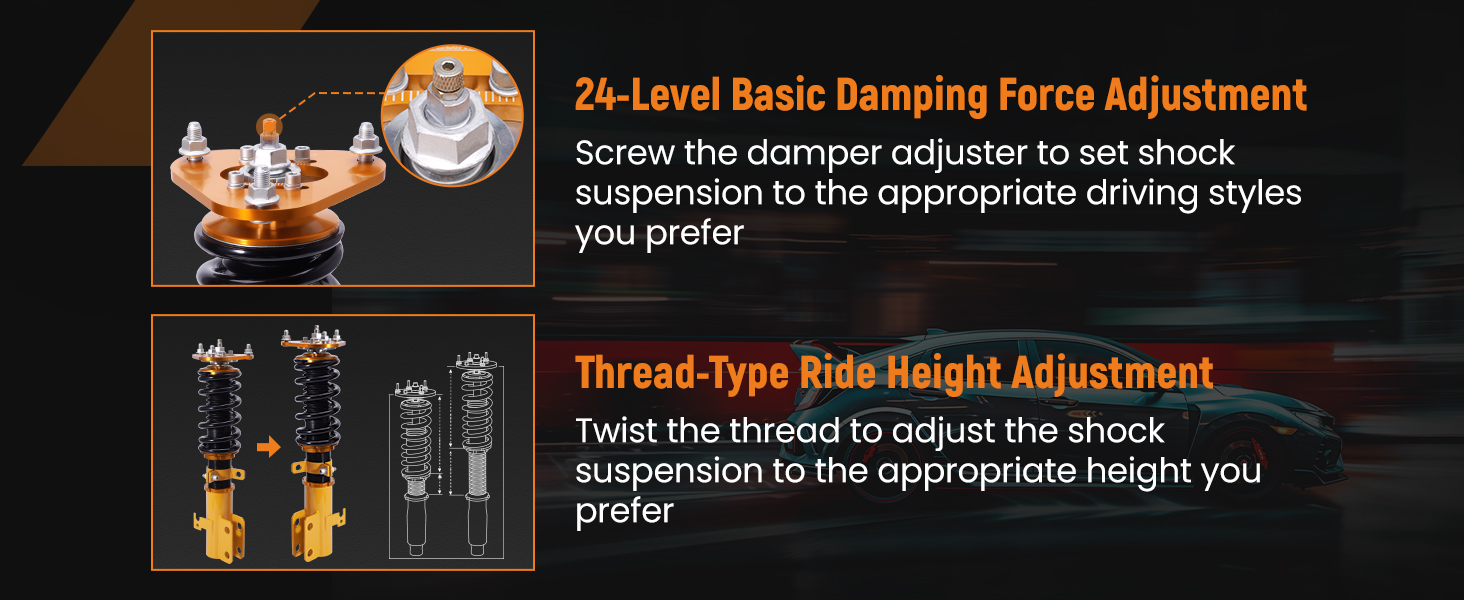

- 24 Step to adjust soft / hard adjustment according to your preference

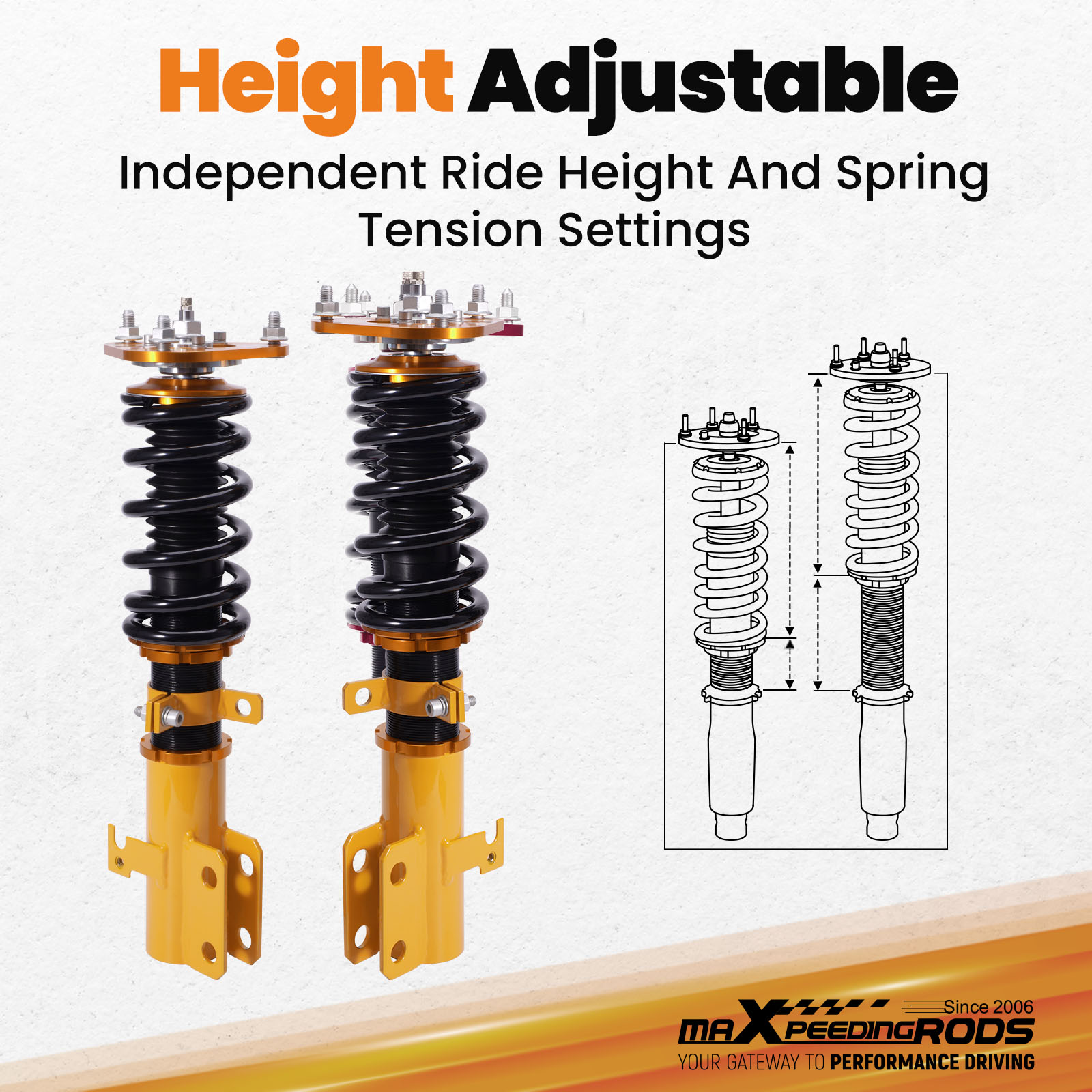

- Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
- 55CrSi high strength durable cold wound steel & heat treated coils
- Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.
- Improved Handling and stability without premature tire wear
- Improved Vehicle Stability and traction in hard cornering situations
- Full threaded absorber tube casing for independent height adjustment
- Twin-Tube System for Comfortable Ride on Streets

Application

For Toyota Corolla 9th Gen. (E130) 2003-2008

For Toyota Corolla 9th Gen (_E12_) (01/2001-12/2007) other markets

For Toyota Matrix XRS (E130) 2003-2008

Note: Please note this item does not fit for Corolla E150 "Ascent" model.

Specification

Height adjustable: Yes, lowering 1-3'' / 25-75mm depending on the vehicle models
Damping adjustable: Yes, 24 levels of rebound damping force
Front top mounts: Pillow ball with camber plate
Rear top mounts: Standard rubber
Camber adjustable: Yes, front only
Spring rate Front: 12 kg/mm (672 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 190 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Shock Type: Twin tube
