Details
Features
1. High power output, mono support 100W drive, suitable for a variety of audio equipment.
2.Support TWS pair box technology, two interconnected to achieve stereo effect, better sound quality.

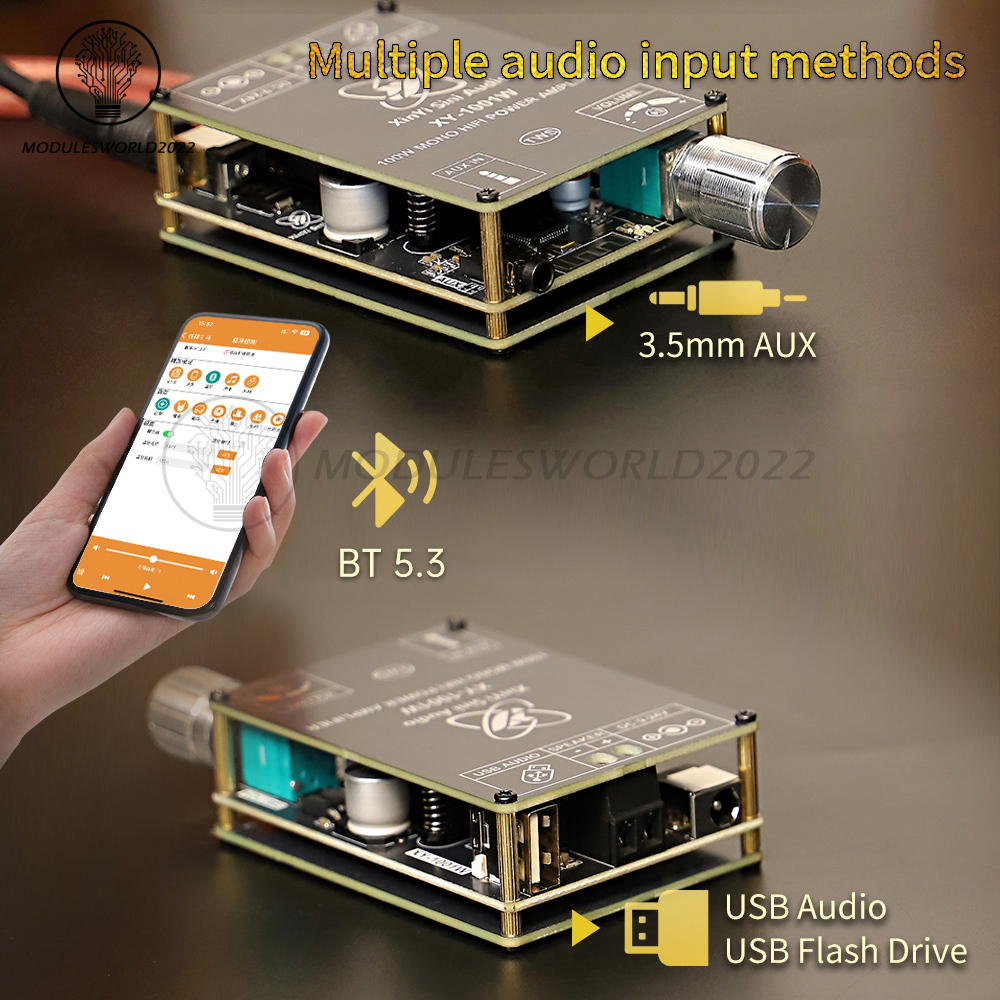

3. A variety of audio input, Bluetooth, AUX, U disk optional, flexible use.

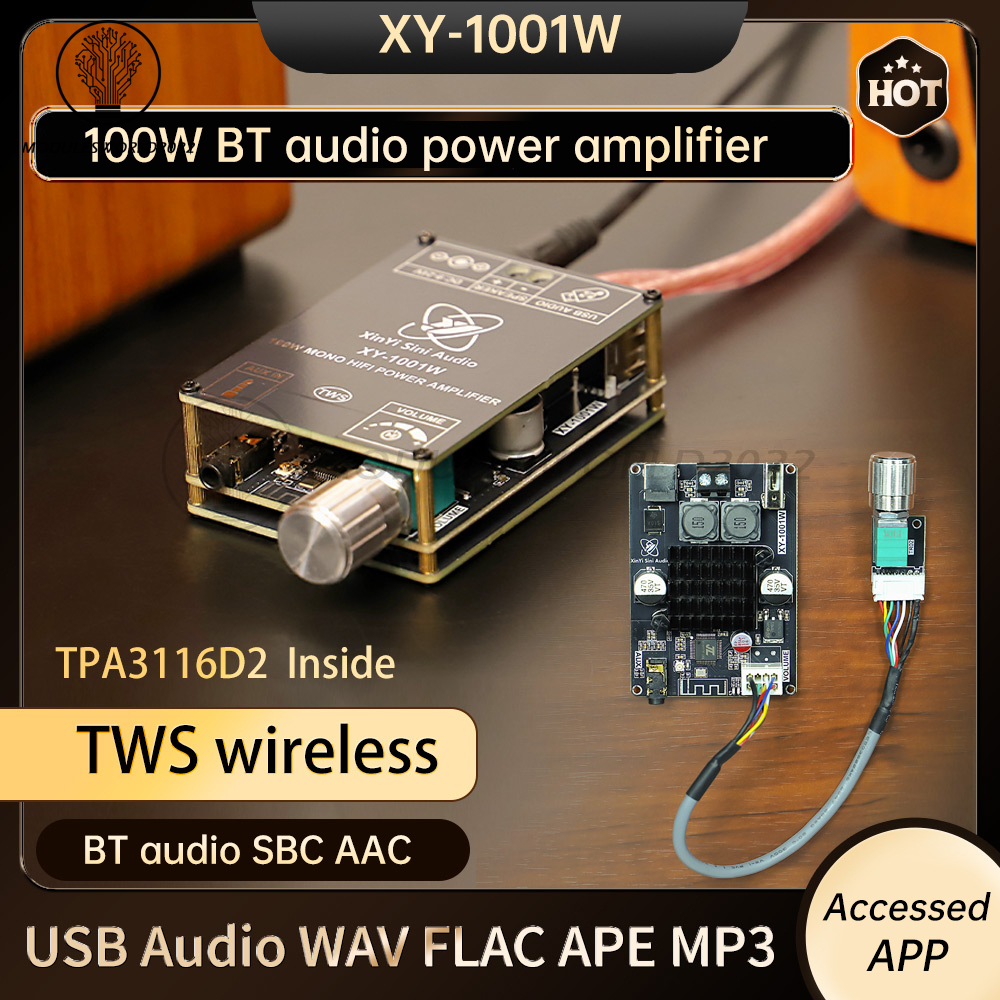

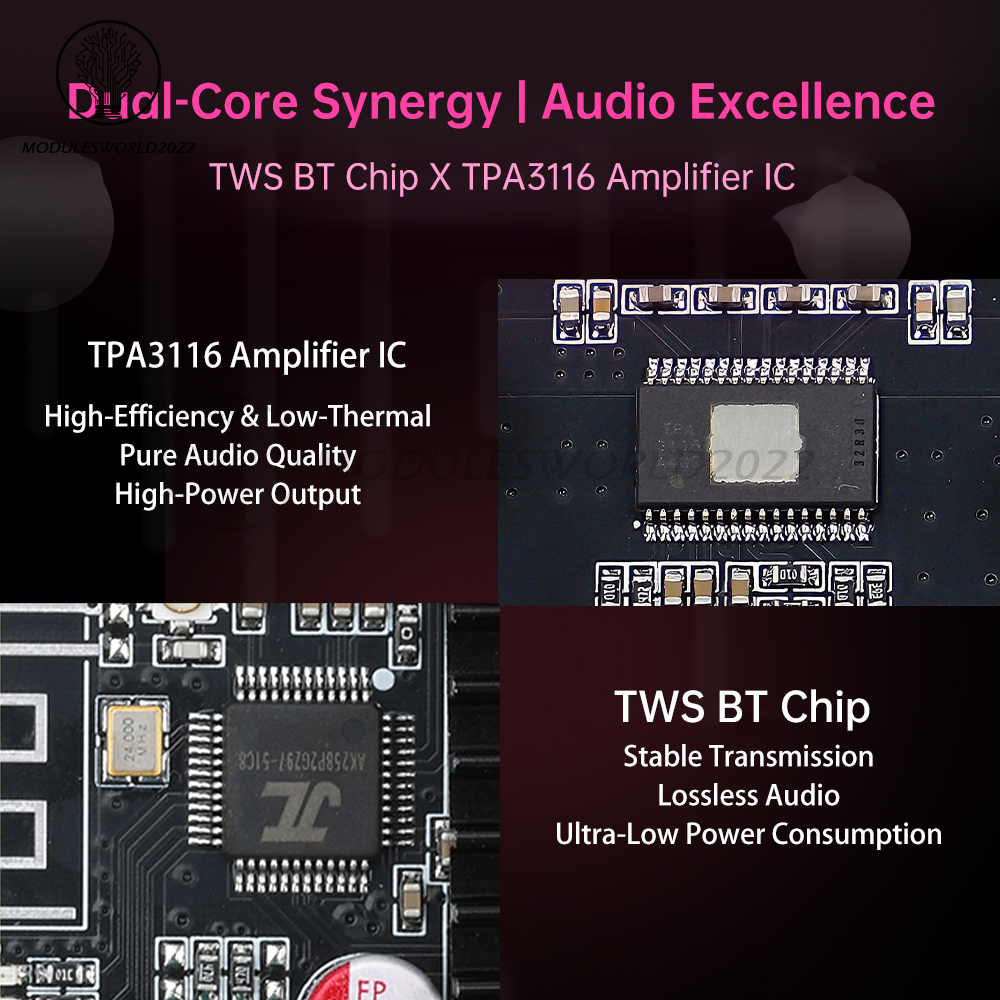

4. Using TPA3116D2 chip, to ensure high-fidelity sound quality performance.

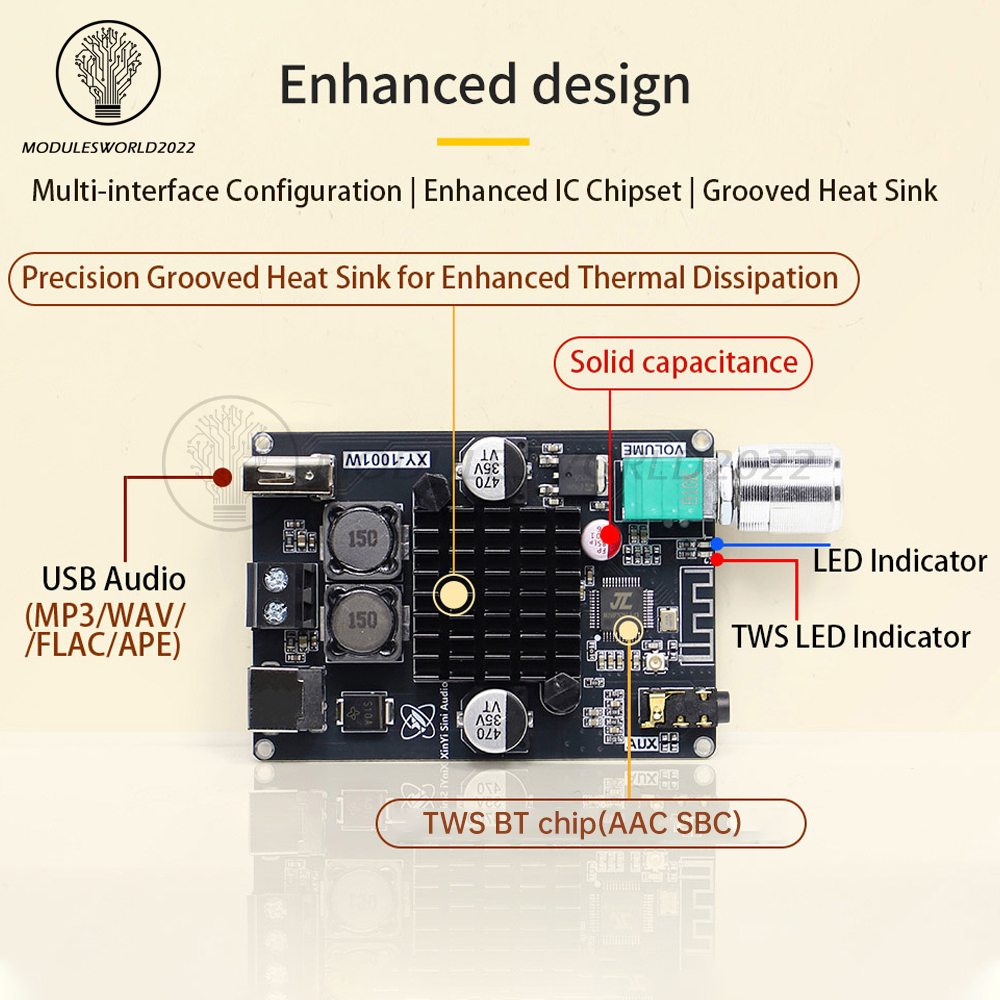

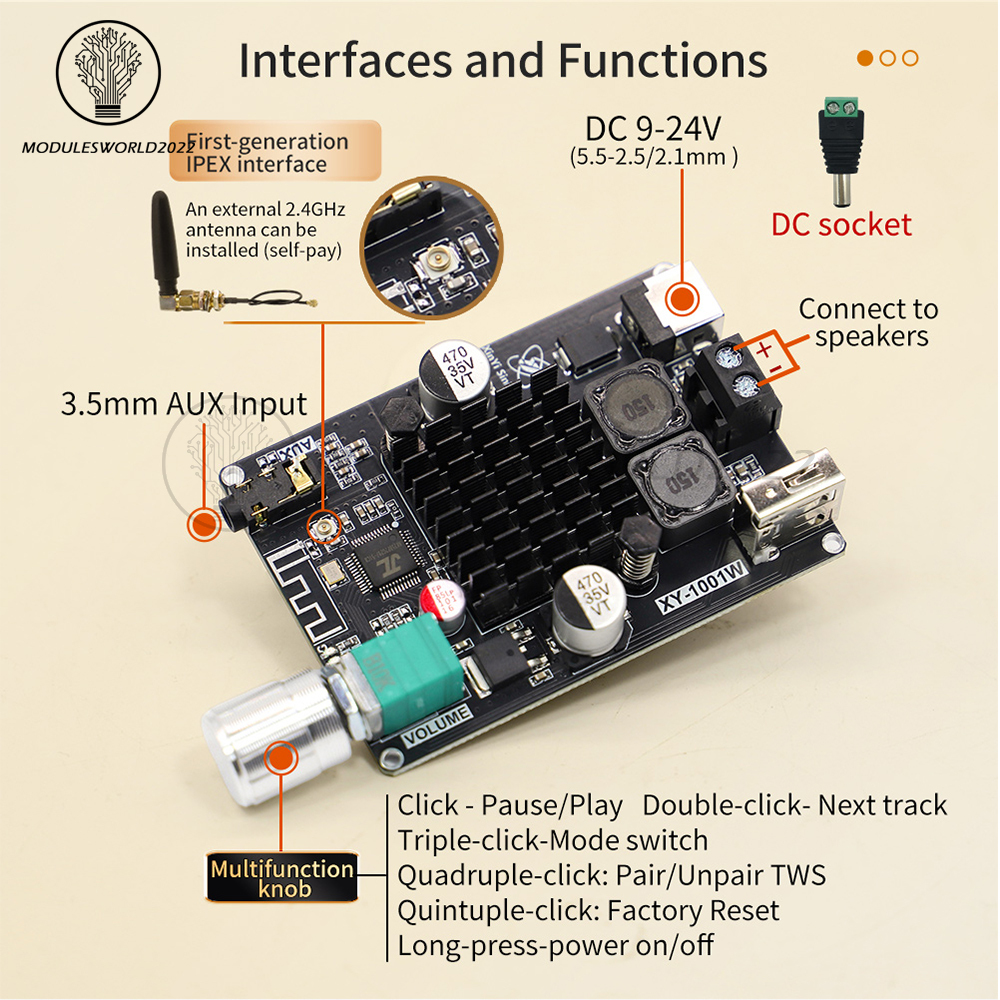

5. Hardware design is fully functional, a variety of interfaces, multi-function volume adjustment buttons, easy and fast operation.
1. High power output, mono support 100W drive, suitable for a variety of audio equipment.
2.Support TWS pair box technology, two interconnected to achieve stereo effect, better sound quality.
3. A variety of audio input, Bluetooth, AUX, U disk optional, flexible use.
4. Using TPA3116D2 chip, to ensure high-fidelity sound quality performance.
5. Hardware design is fully functional, a variety of interfaces, multi-function volume adjustment buttons, easy and fast operation.

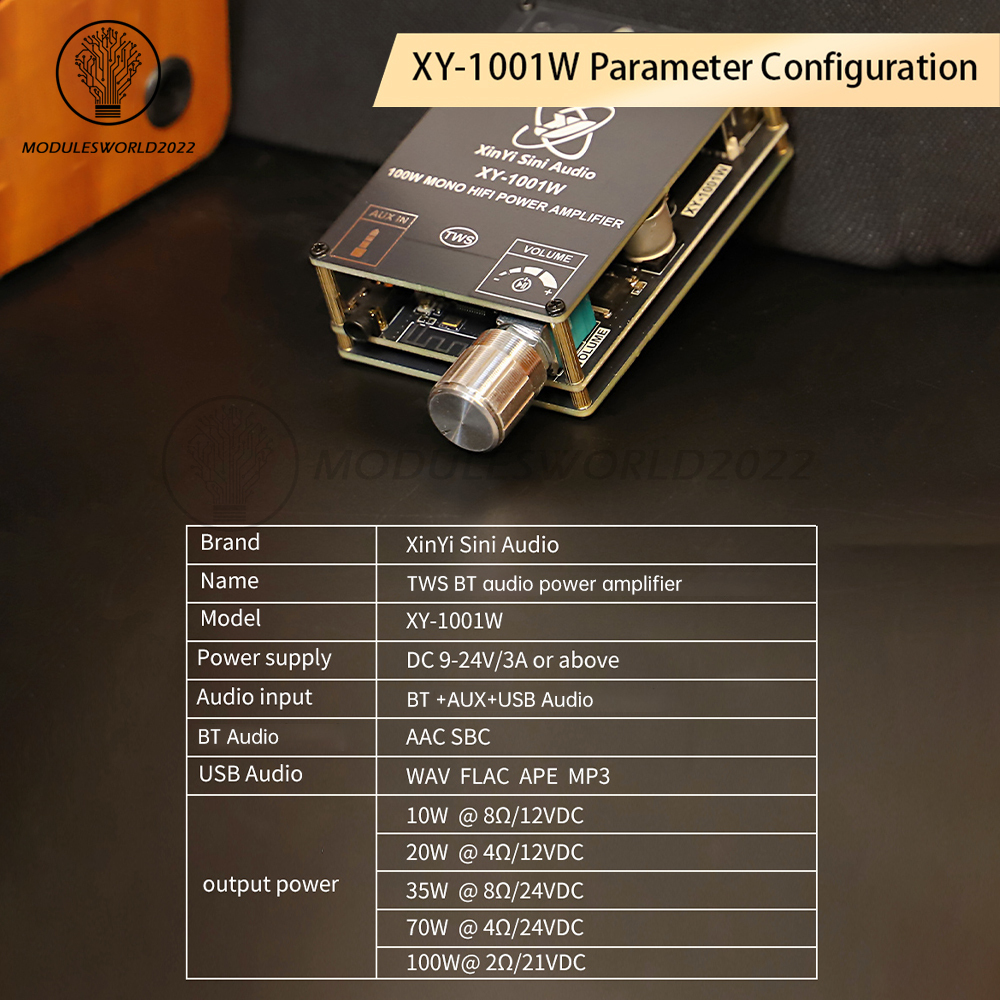

Specifications

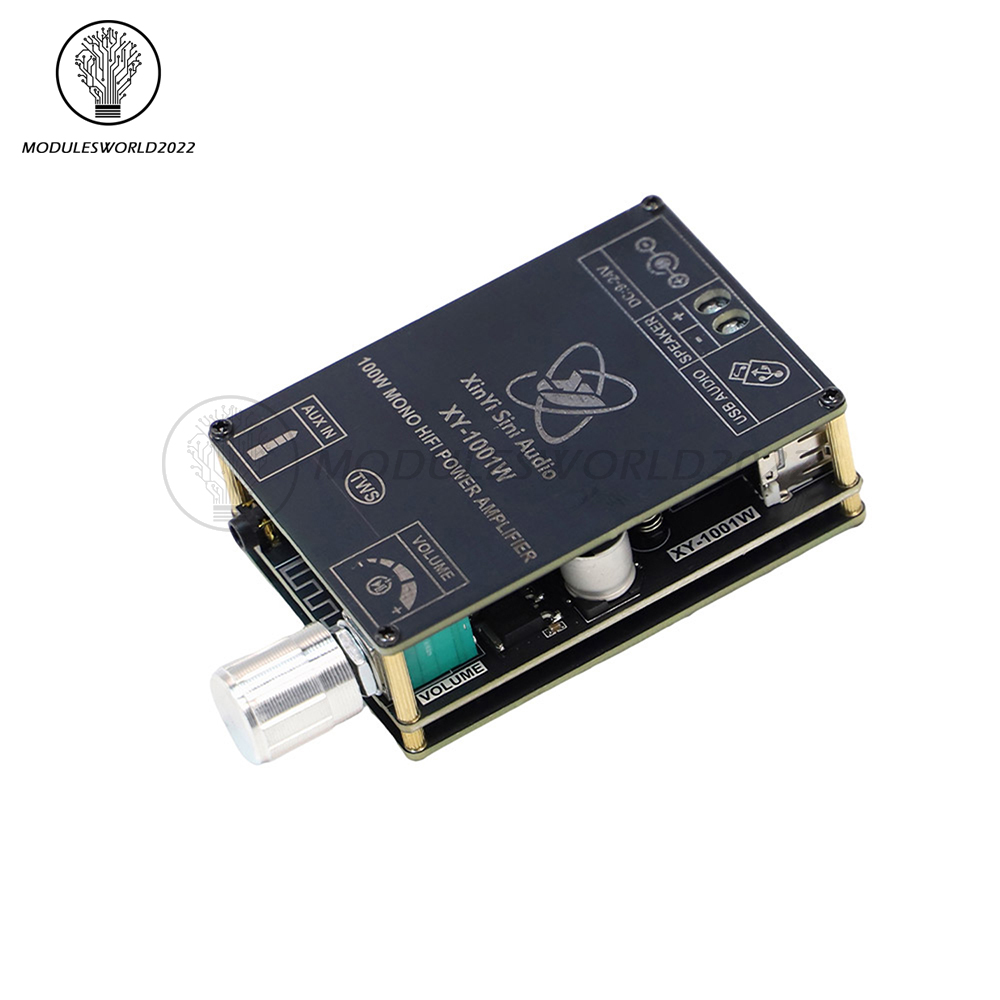

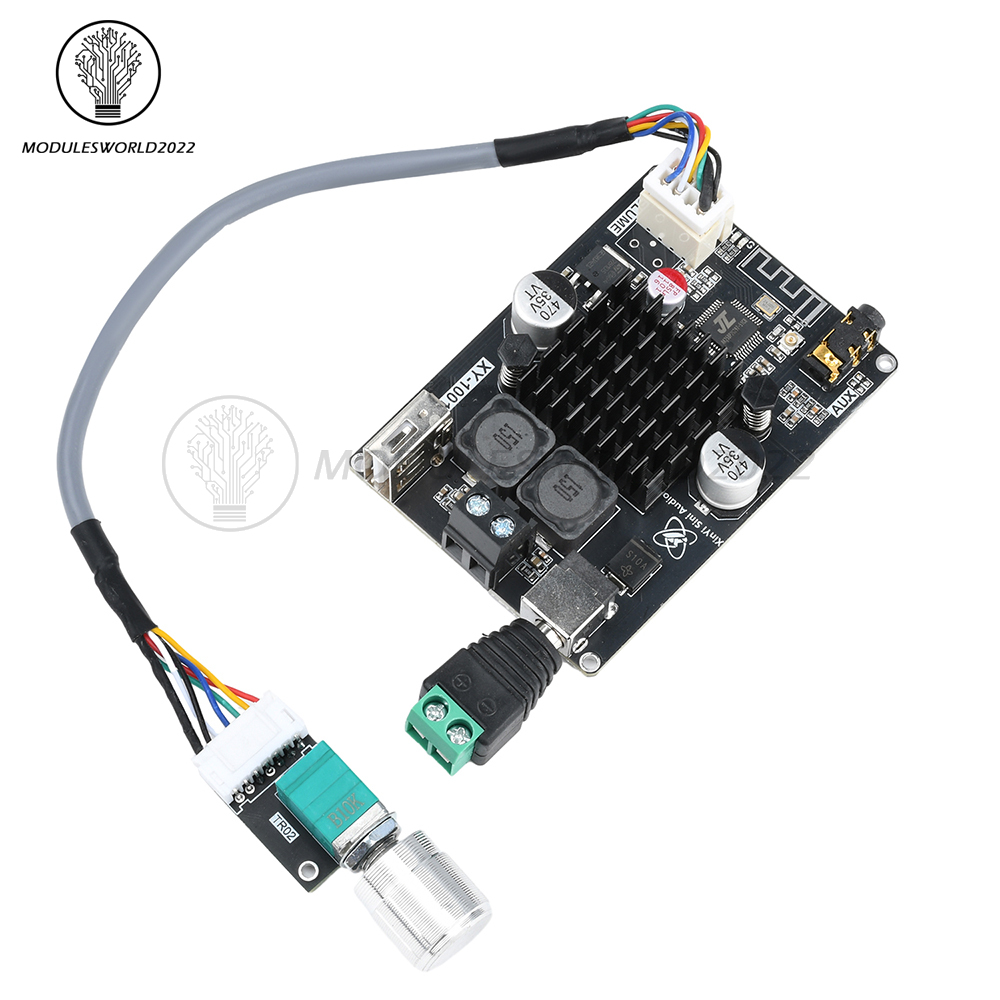

Product Name: TWS Bluetooth Digital Audio Amplifier Board
Model No.: 1001W
Power Supply: DC9-24V/3A or above
Audio Input: Bluetooth/AUX/U Disk
Bluetooth Audio Decoding: AAC SBC
U Disk Lossless Decoding: WAV FLAC APE MP3
Output Power:
10W @8Ω/12VDC
20W @4Ω/12VDC
35W @8Ω/ 24VDC
70W @4Ω/24VDC
100W @2Ω/21VDC

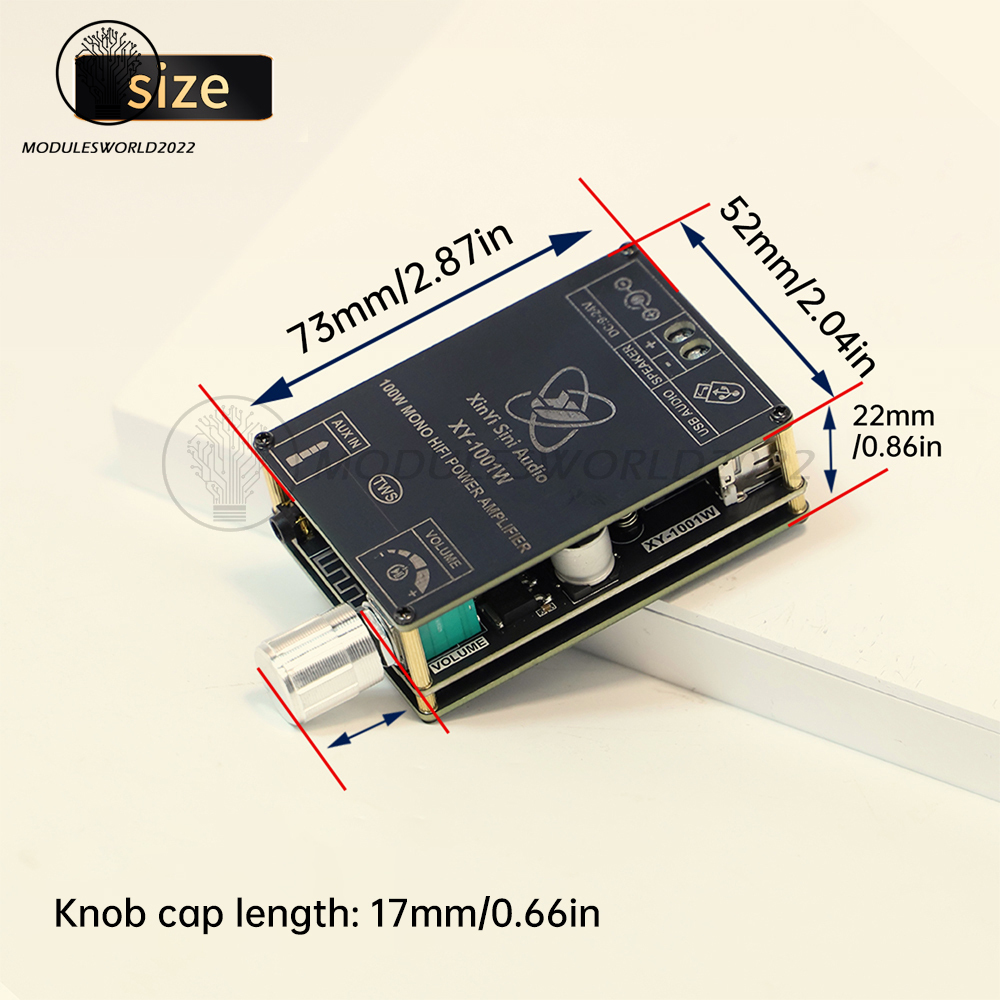

Size: 73mm*52mm*22mm
Product Name: TWS Bluetooth Digital Audio Amplifier Board
Model No.: 1001W
Power Supply: DC9-24V/3A or above
Audio Input: Bluetooth/AUX/U Disk
Bluetooth Audio Decoding: AAC SBC
U Disk Lossless Decoding: WAV FLAC APE MP3
Output Power:
10W @8Ω/12VDC
20W @4Ω/12VDC
35W @8Ω/ 24VDC
70W @4Ω/24VDC
100W @2Ω/21VDC
Size: 73mm*52mm*22mm

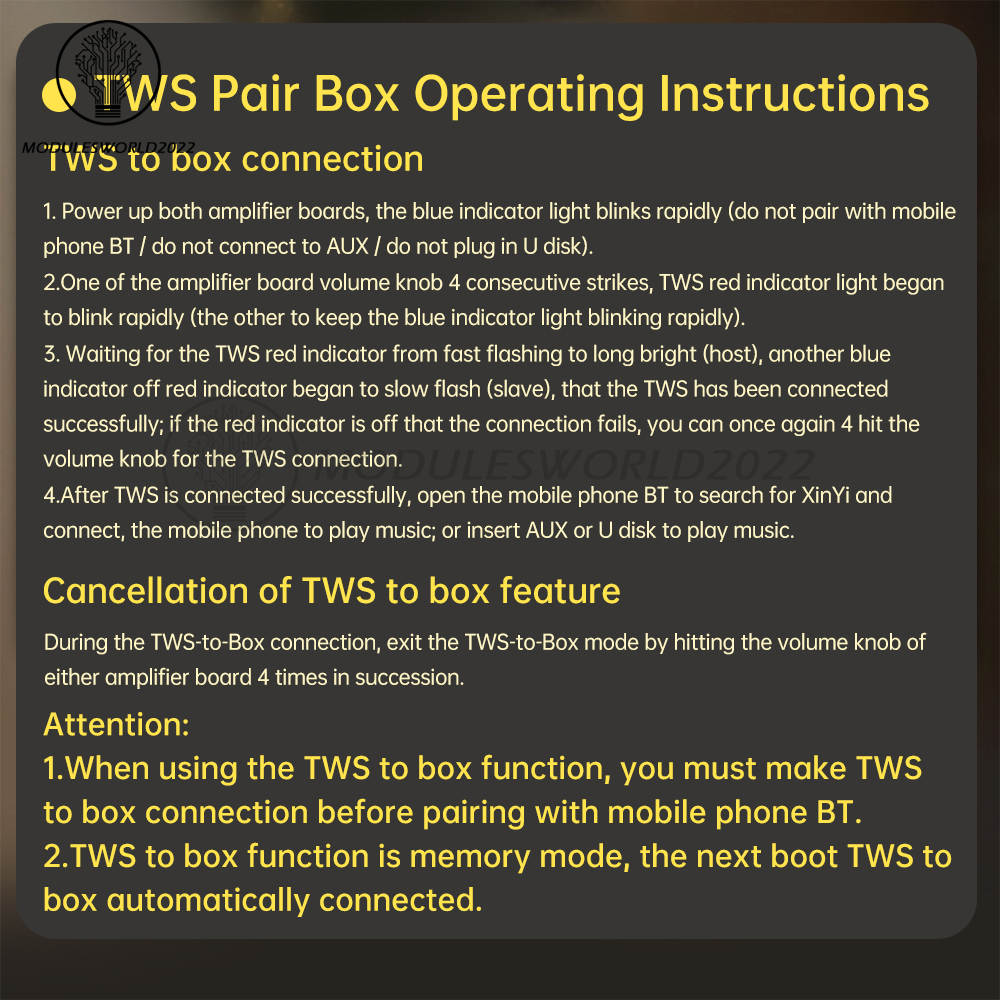

TWS Pair Box Operation Instructions:
1. TWS Pair Box Connection
1. Power up the two amplifier boards and the blue indicator light flashes rapidly (do not pair with Bluetooth on your cell phone / do not connect to AUX
/ do not plug in a U disk).
2.One of the amplifier board volume knob 4 consecutive strikes, TWS red indicator began to blink rapidly (the other to keep the blue indicator blinking rapidly).
3. Wait for the TWS red indicator light from fast flashing to long bright (host), another blue indicator light off, the red indicator light began to slow flash (slave), that the TWS has been connected successfully; if the red indicator light is off that the connection fails, you can once again 4 hit the volume knob for the TWS connection.
4.After the TWS connection is successful, open the cell phone Bluetooth search XinYi and connect, the cell phone to play music; or insert AUX or U disk to play music.
2、Cancel the TWS to box function: During the TWS to box connection, the volume knob of any amplifier board will be 4 consecutive strikes to exit the TWS to box mode.
Attention:
1.When using TWS to box function, you must first make TWS to box connection and then pair it with your cell phone Bluetooth.
2.TWS to box function is a memory mode, the next time you turn on the TWS to box automatically connected.
1. TWS Pair Box Connection
1. Power up the two amplifier boards and the blue indicator light flashes rapidly (do not pair with Bluetooth on your cell phone / do not connect to AUX
/ do not plug in a U disk).
2.One of the amplifier board volume knob 4 consecutive strikes, TWS red indicator began to blink rapidly (the other to keep the blue indicator blinking rapidly).
3. Wait for the TWS red indicator light from fast flashing to long bright (host), another blue indicator light off, the red indicator light began to slow flash (slave), that the TWS has been connected successfully; if the red indicator light is off that the connection fails, you can once again 4 hit the volume knob for the TWS connection.
4.After the TWS connection is successful, open the cell phone Bluetooth search XinYi and connect, the cell phone to play music; or insert AUX or U disk to play music.
2、Cancel the TWS to box function: During the TWS to box connection, the volume knob of any amplifier board will be 4 consecutive strikes to exit the TWS to box mode.
Attention:
1.When using TWS to box function, you must first make TWS to box connection and then pair it with your cell phone Bluetooth.
2.TWS to box function is a memory mode, the next time you turn on the TWS to box automatically connected.

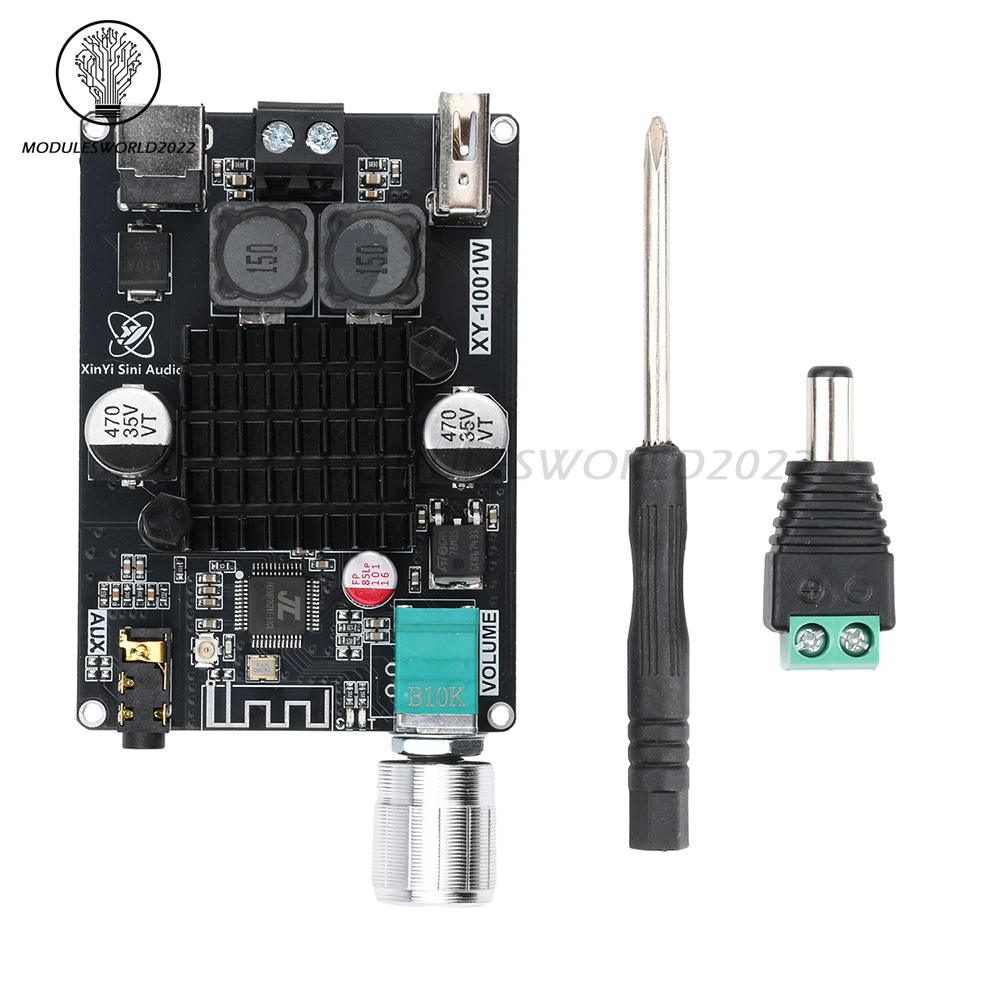

Package includes

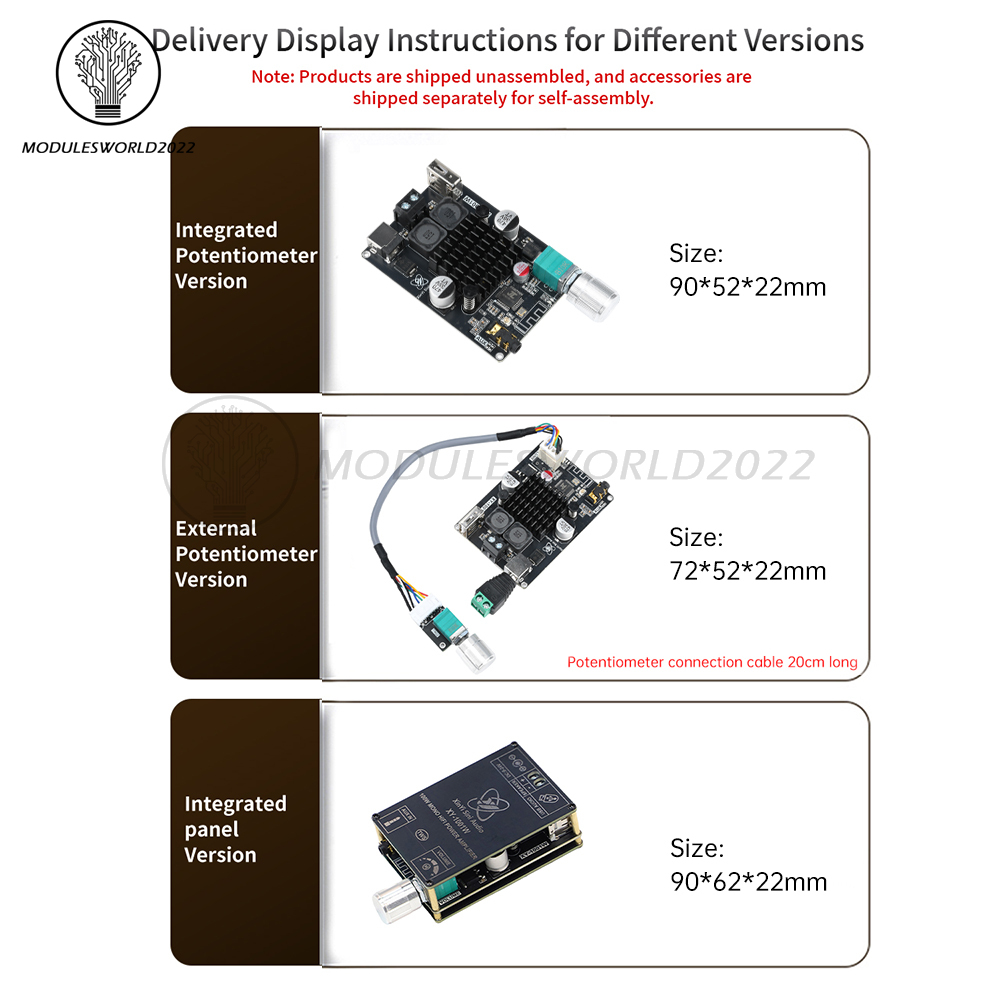

Depending on your choice
Depending on your choice
Note: The product is shipped unassembled, the accessories are shipped loose and need to be assembled by yourself, free screwdriver.
