Product Type: Alternator |
Replaces: 1012118871 1012118870 27060-0B050 27060-78160-71 270600B050 270607816071 |
  • Amperage: 50 |
  • Fan: Internal |
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

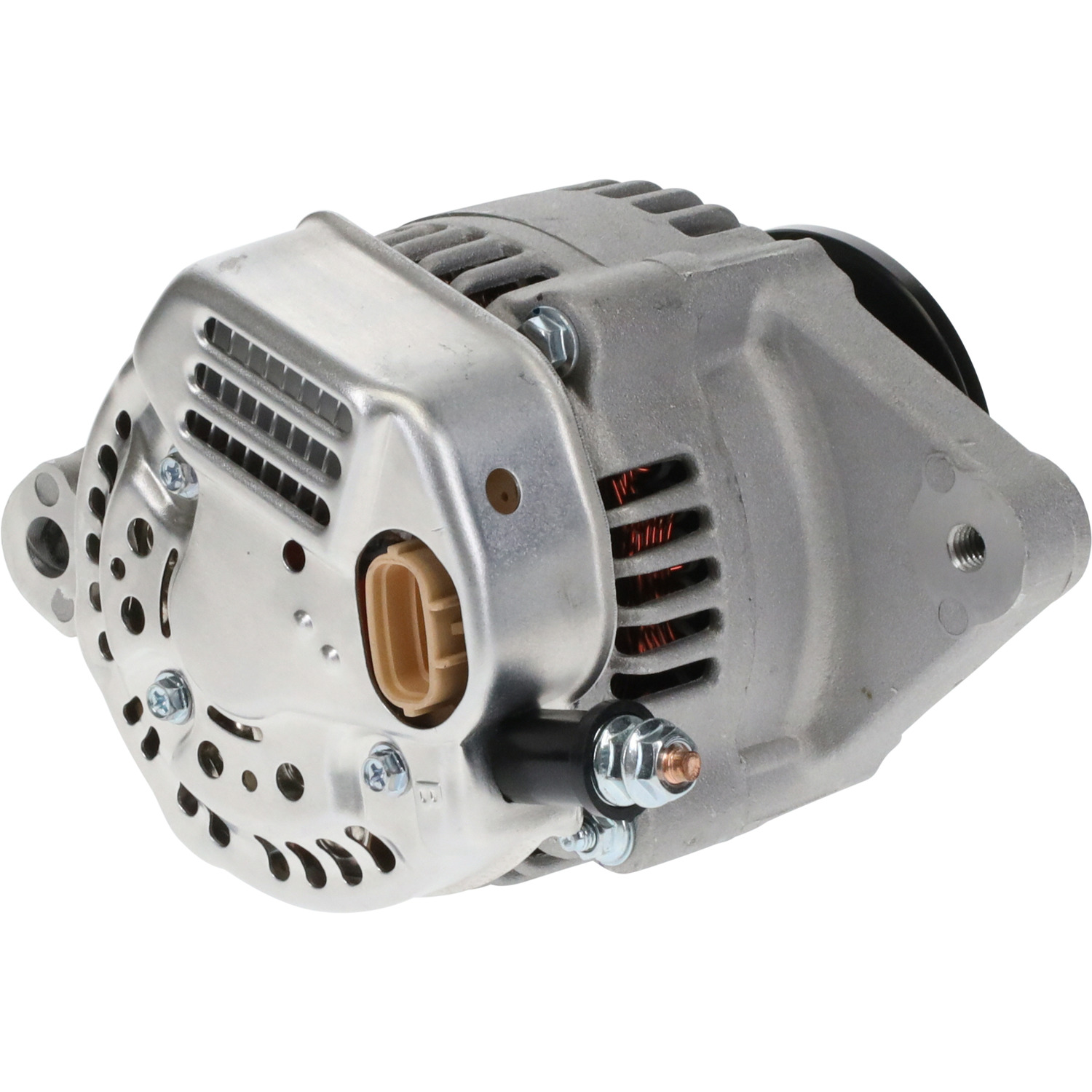

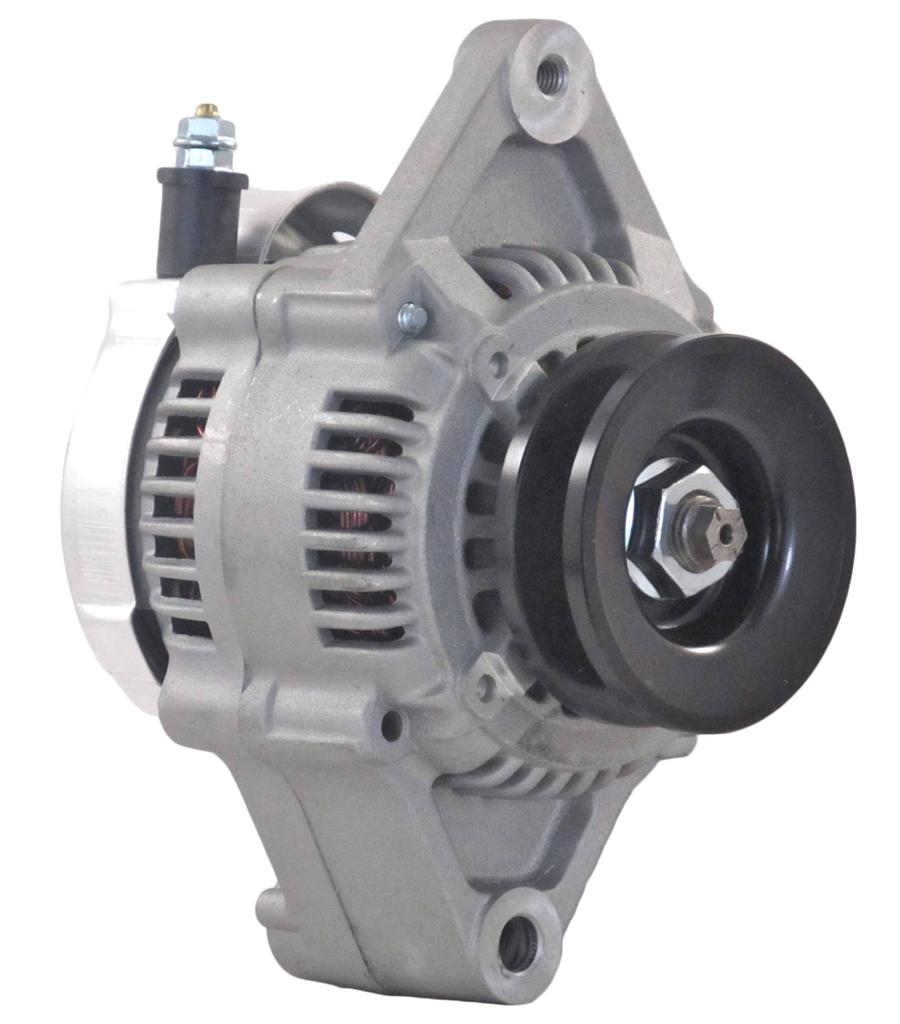

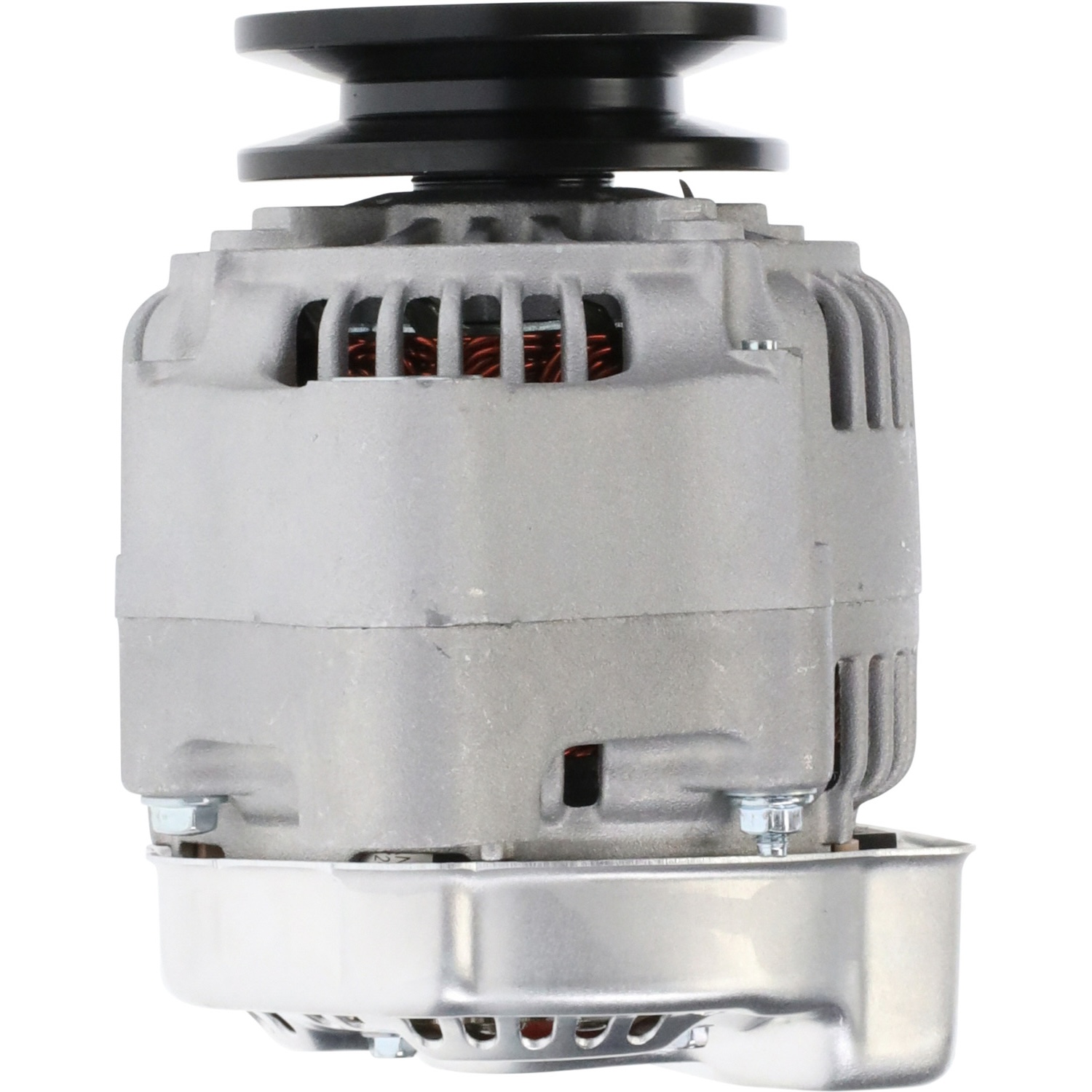

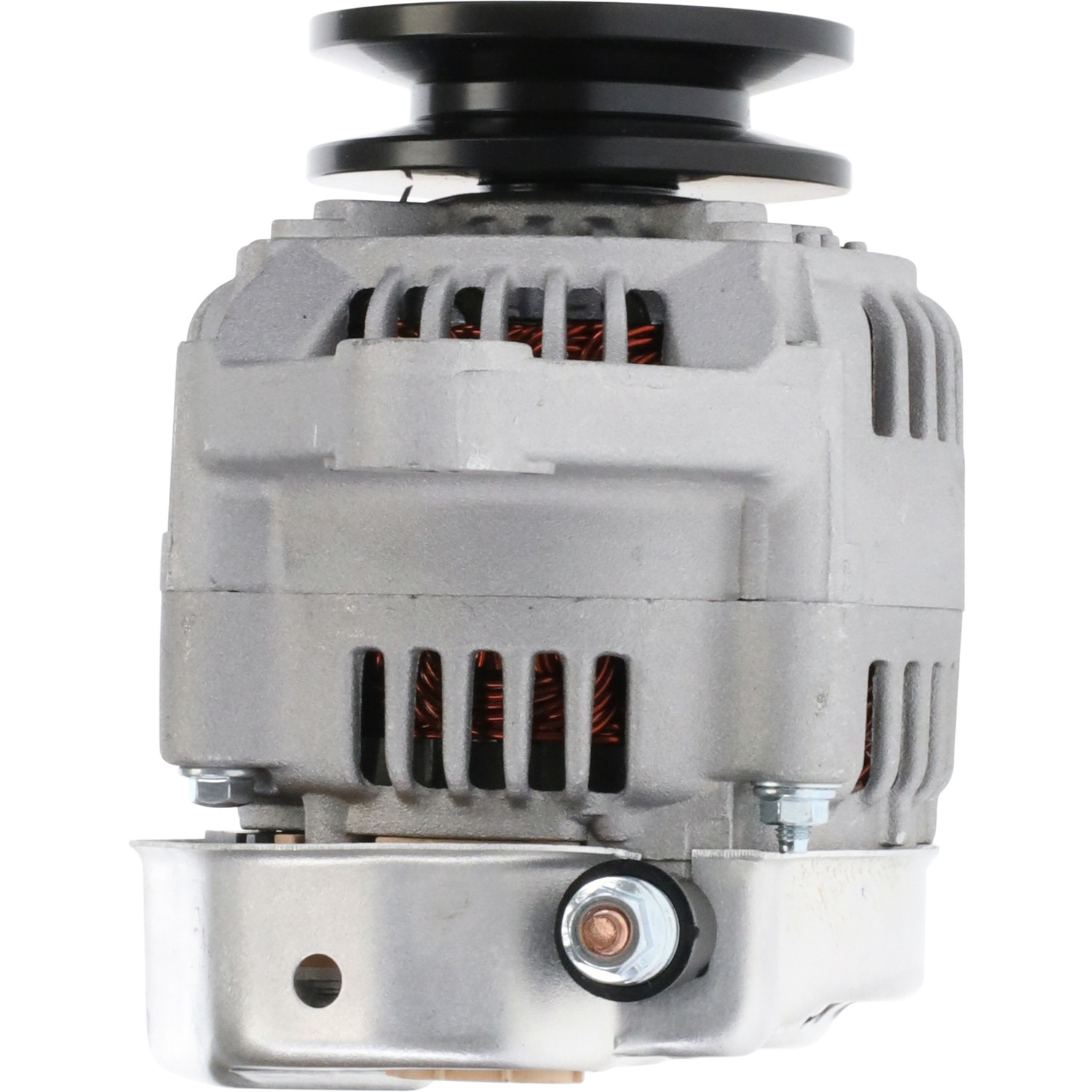

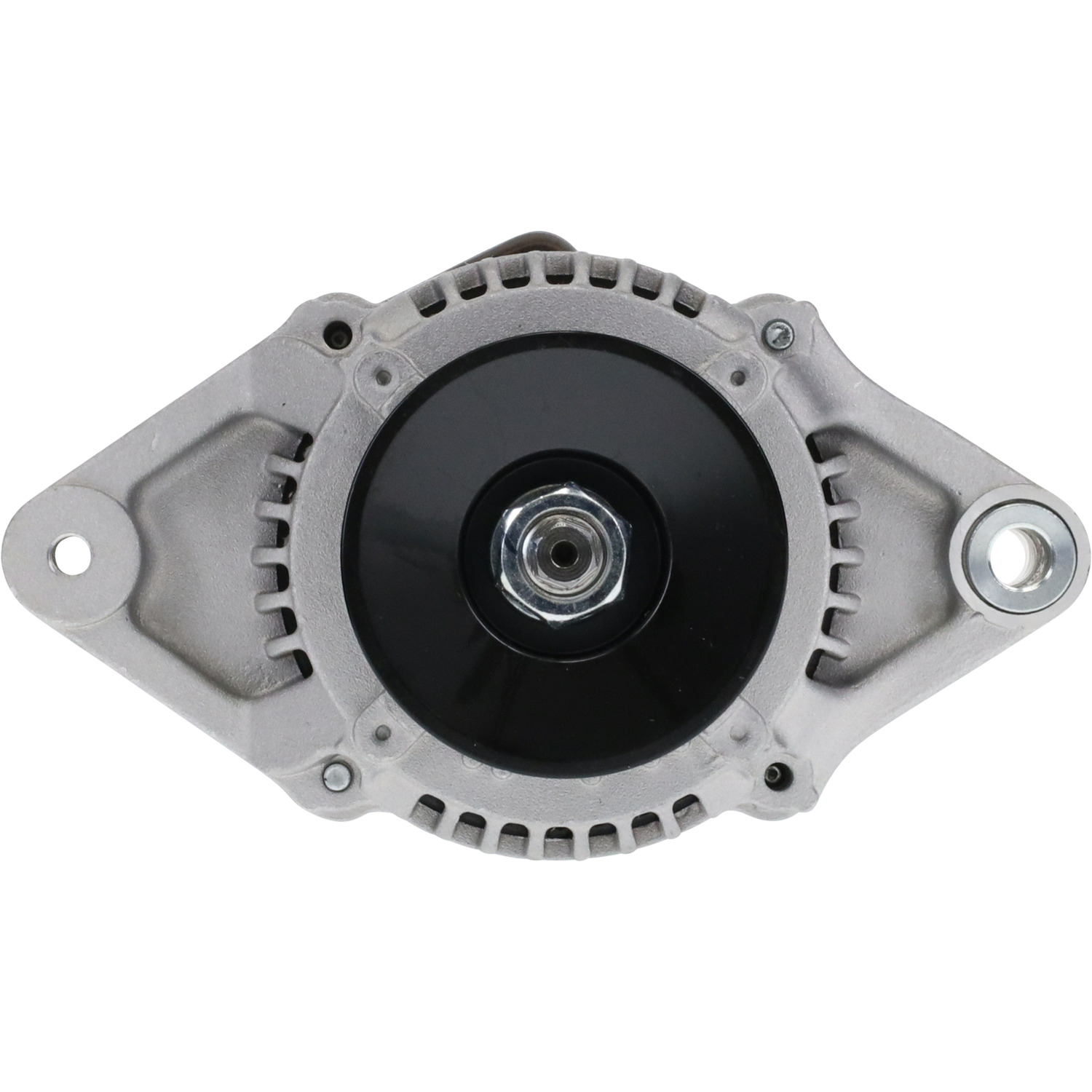

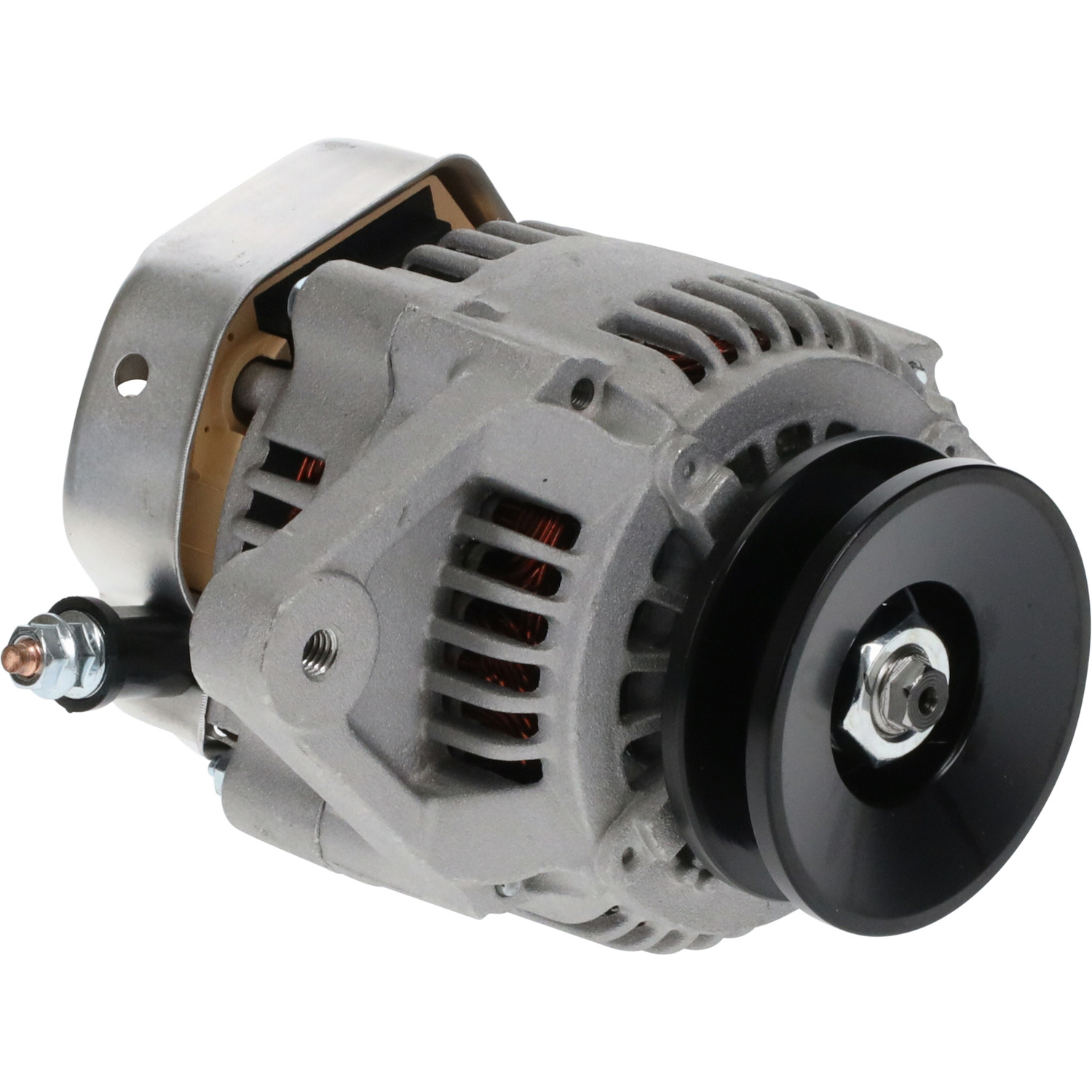

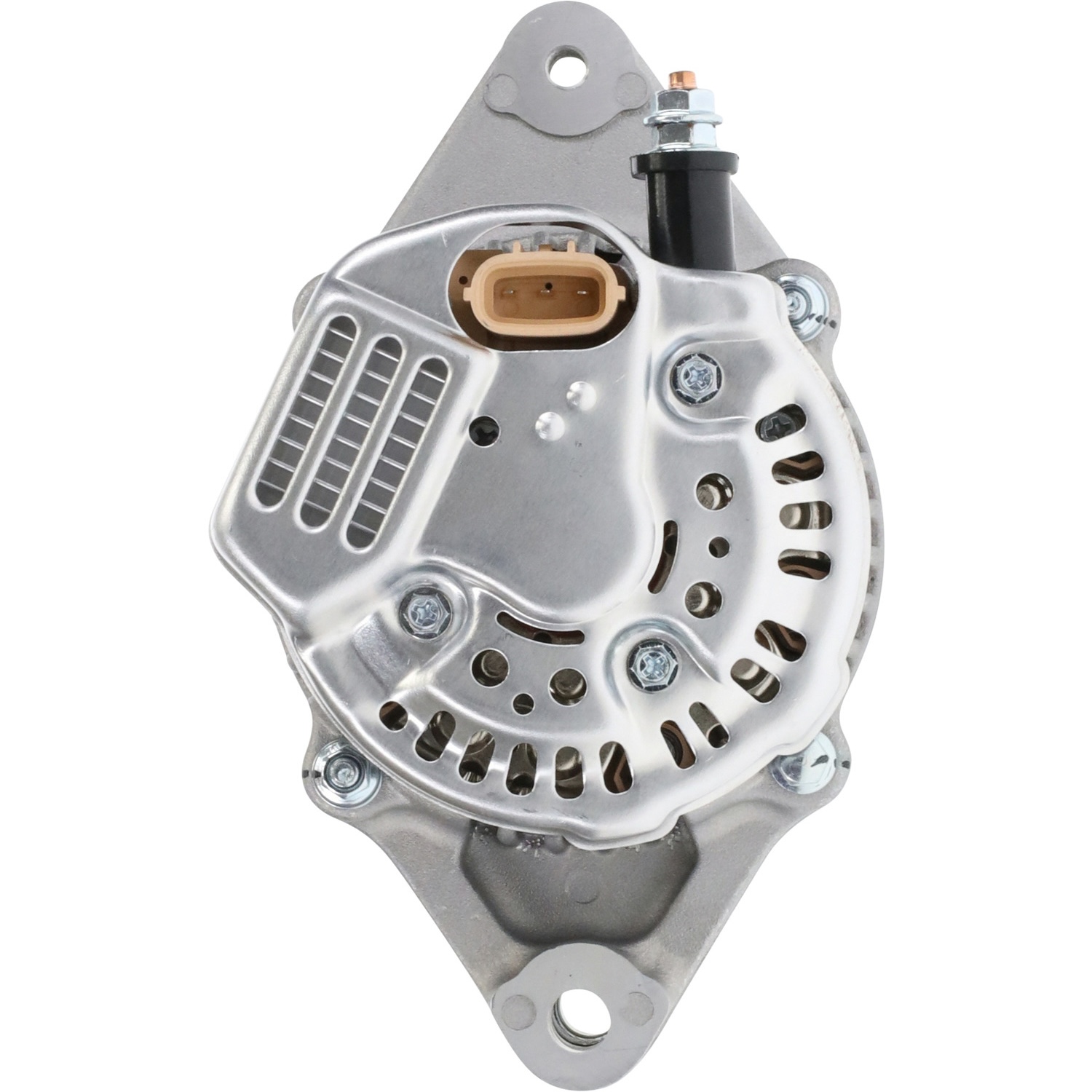

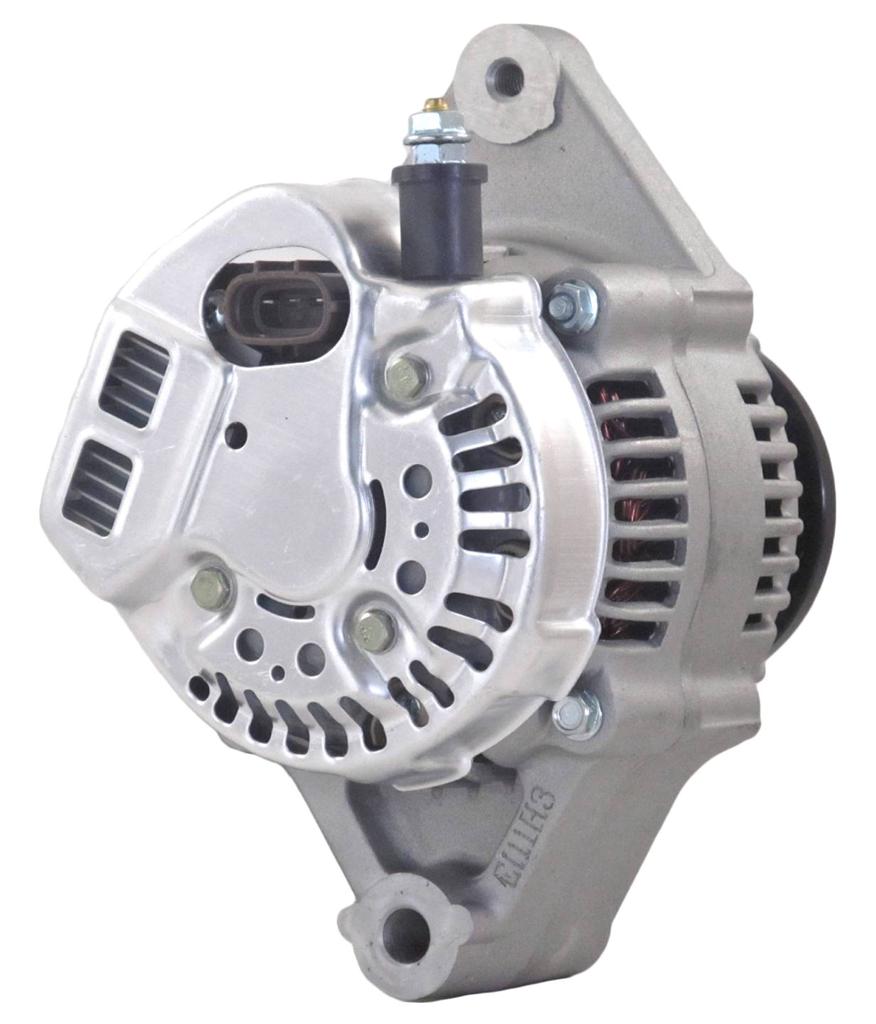

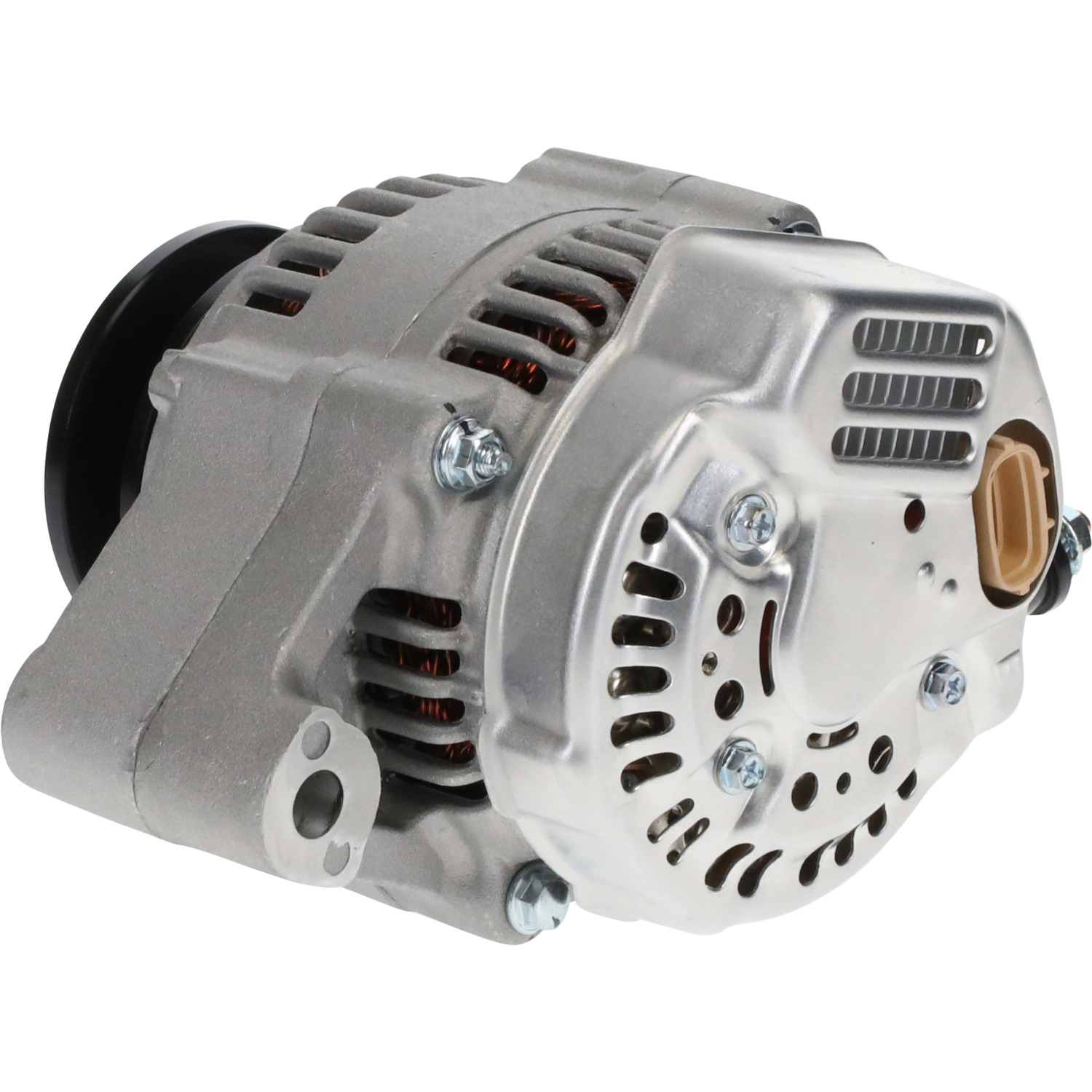

Alternator Denso 101211-3860 Toyota Forklift 12V 50A

Replaces Part Numbers & Specifications

DENSO OEM PART NUMBERS:
• 101211-3860
• 101211-3861
• 101211-8580
• 101211-8700
• 1012113860, 1012113861, 1012118580, 1012118700 (no dashes)

TOYOTA OEM PART NUMBERS:
• 27060-78203-71
• 27060-78156-71
• 27060-78156
• 27060-UC020
• 27060-UC021
• 270607820371, 270607815671, 2706078156, 27060UC020, 27060UC021 (no dashes)
• TY27060-78203-71, TY270607820371 (TY prefix)
• TY27060-78156-71, TY270607815671 (TY prefix)

SPECIFICATIONS:
• Unit Type: Denso
• Voltage: 12V
• Amperage: 50A
• Rotation: Clockwise (CW)
• Fan: Internal
• Regulator: Internal
• Regulator Clock: 12:00
• Pulley: 1-Groove V-Belt, 76mm OD, 15mm ID
• B+ Terminal: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.5mm Unthreaded
• Polarity: Negative
• Weight: 8.45 lbs / 3.84 kg

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



TOYOTA FORKLIFT APPLICATIONS BY ENGINE TYPE:

1DZ / 2Z / 13Z / 14Z / 15Z DIESEL ENGINE MODELS:
• 02-7FD10, 02-7FD15, 02-7FD18, 02-7FD20, 02-7FD25, 02-7FD30, 02-7FD35, 02-7FD40, 02-7FD45
• 02-7FDA50, 02-7FDJ35, 02-7FDK20, 02-7FDK25, 02-7FDK30, 02-7FDK40
• 02-7FDF15, 02-7FDF18, 02-7FDF20, 02-7FDF25, 02-7FDF30, 02-7FDJF35
• 02-7FDN15, 02-7FDN20, 02-7FDN25, 02-7FDN30
• 02-8FDF15, 02-8FDF18, 02-8FDF20, 02-8FDF25, 02-8FDF30, 02-8FDKF20
• 42-7FD35, 42-7FD40, 42-7FD45, 42-7FDA50, 42-7FDK40
• 5FD50, 5FD60, 5FD70, 5FDM60, 5FDM70
• 60-5FD80, 60-7FD20, 60-7FD25, 60-7FD30
• 60-7FDN20, 60-7FDN25, 60-7FDN30
• 60-8FD10, 60-8FD15, 60-8FD20, 60-8FD25, 60-8FD30
• 60-8FDN15, 60-8FDN20, 60-8FDN25

4Y / 5K GASOLINE ENGINE MODELS:
• 02-7FG10, 02-7FG15, 02-7FG20, 02-7FG25, 02-7FG30
• 02-7FGF30, 02-7FGJ35, 02-7FGJF35
• 02-7FGK20, 02-7FGK25, 02-7FGK30
• 30-5SDK8, 30-5SDK9, 30-5SDK10, 30-5SDK11
• 40-7FG15, 40-7FG20, 40-7FG23, 40-7FG25, 40-7FGK20, 40-7FGK25
• 42-7FG15, 42-7FG18, 42-7FG20, 42-7FG25
• 42-7FGF15, 42-7FGF18, 42-7FGF20, 42-7FGF25
• 42-7FGK20, 42-7FGK25
