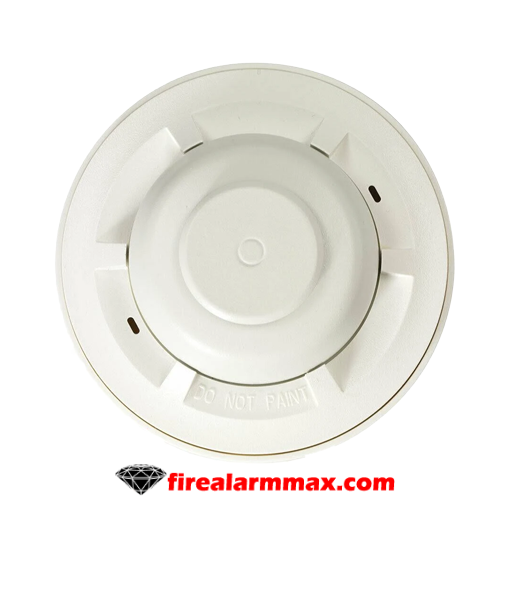

Honeywell 5809SS is a wireless heat and rate-of-rise temperature sensor that offers expand fire detection and also an installation flexibility. The 5809SS is ideal for hard-to-wire locations and also, applications that require more than smoke detection for alarm systems that support Honeywell’s 5800 series devices. This is a fast and easy install with no wires to run. The 5809SS contains a built temperature sensor, which will signal an alarm if the environmental temperature rises above 135°F (57°C) and it also incorporates an additional rate-of-rise temperature sensor. So, fires typically cause a rapid rise in temperature in the surrounding area. Honeywell 5809SS’s rate-of-rise thermostat senses the rise in temperature and signals an alarm if the increase is 15°F (8°C) or more per minute. The 5809SS is UL List (UL 521)and CSFM approved for commercial and residential applications.

Please note, Honeywell 5809SS is a wireless heat and rate-of-rise temperature sensor that offers expand fire detection and also an installation flexibility. The 5809SS is ideal for hard-to-wire locations and also, applications that require more than smoke detection for alarm systems that support Honeywell’s 5800 series devices. will be permanently damage if store, or install in environments where the temperature exceeds 100°F (38°C). If the metal disc is detach, the detector has exceeded 135°F (57°C) it must replace. Heat detectors should to be use for property protection. Reliance should not be placed solely on heat detectors for life safety. When life safety is involve, smoke detectors must also be use it. The 5809SS detectors must not be paint it, unit must stay dry, and is for indoor use only. If the fix sensor activates by the temperature, the detector must be replace it.

Product Features:

• Contains a built-in transmitter which can send alarm, supervisory and battery condition messages to the system’s receiver/control unit
• Powered by a three-volt lithium battery. If the battery voltage gets too low, the 5809 sends a low battery signal to the control panel
• Has a tamper switch, so, that causes a trouble signal to be sent to the control if the unit is remove it from the mounting base
• UL Listed for Commercial (when using 5881EH Receiver) or Residential applications
• Mounts on ceiling or wall for maximum installation flexibility
• 135°F Fixed temperature sensor
• Rate of Rise – 15°F per Minute @ <100°F
• UL 521 commercial/residential applications
• CSFM commercial/residential applications
• Includes 3V lithium battery

Download the Specification sheet in *.pdf format
